UNIVERSITY OF PUERTO RICO AT HUMACO DEPARTMENT OF PHYSICS ENGINEERING GRAPHICS I Traditional tools Dr. Walter López Moreno
Introduction to Engineering Graphics n n n n Importance of technical graphics Traditional engineering design & Changes in the engineering design process Technical drawing tools Standards ANSI standard sheet sizes Basics: Line weight & pencil grades Alphabet of lines
Importance of technical graphics " the engineer, scientist, or technician who is ignorant of or deficient in the principal mode of expression (that is, the universal graphic language) in his or her technical field is professionally illiterate. " - Page 8. Principles of Technical Drawing
Importance of technical graphics Technical drawings: A language used in the design process for communicating, solving problems, quickly and accurately visualizing objects, and conducting analysis A graphical representation of objects and structures and is done using freehand, mechanical, or computer methods Users of engineering and technical graphics in industry

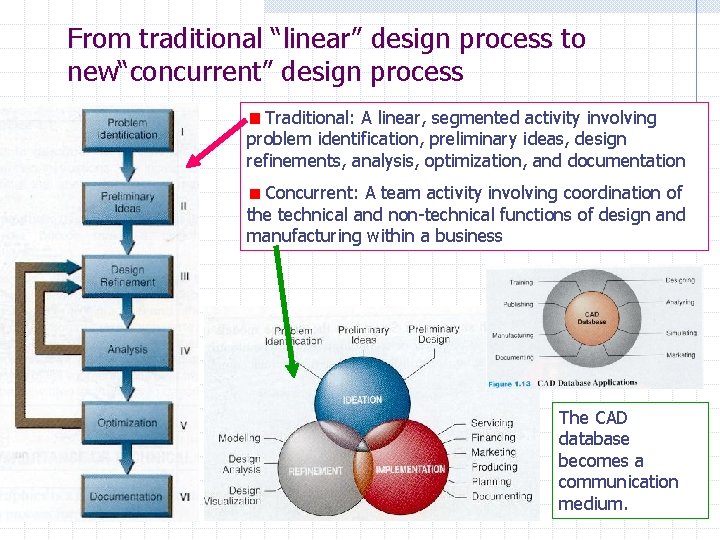

From traditional “linear” design process to new“concurrent” design process Traditional: A linear, segmented activity involving problem identification, preliminary ideas, design refinements, analysis, optimization, and documentation Concurrent: A team activity involving coordination of the technical and non-technical functions of design and manufacturing within a business The CAD database becomes a communication medium.
Samples of drawing conventions and standards
Architectural Drawing Lewis Park bedroom (Second Floor) downstairs of 2, 3 and 4
Manual drafting tools for technical drawing Mechanical pencils: 0. 7 and 0. 5 mm, or 0. 5 and 0. 3 mm combinations; Pencil grades – HB and H, or F and 2 H combinations) Compass and one divider One set of 45 - and 30/60 degree triangles Scales (one English unit and one Metric unit) Irregular curve (French curve) Protractor One good eraser
Use of drafting tools – a few examples
Standards Organizations involved in developing the standards for technical drawings: § ANSI (American National Standards Institute) § ASEE (American Society for Engineering Education) § SAE (Society of Automotive Engineers) § ASME (American Society of Mechanical Engineers) § ISO (International Standards Organization) American National Standard Drafting Manual
Some Important ANSI standards ANSI Y 14. 1 (1980) Drawing Sheet Size and Format. ANSI Y 14. 2 M (1979) Line Conventions and Lettering. ANSI Y 14. 3 (1975) Multiview and Sectional View Drawings ANSI Y 14. 5 M (1982 -1994) Dimensioning and Tolerancing. ANSI Y 14. 6 (1978) Screw Thread Representation ANSI Y 14. 6 a. M (1981) Screw Thread Representation (Metric Supplement) ANSI Y 14. 7. 1 & Y 14. 7. 2 (1978) Gear Drawing Standards
ANSI Standard Sheet Sizes & typical title block layouts
Pencil grades and Line weight Remember that Accuracy, Neatness, and Speed count in technical drawing
Alphabet of lines (1)

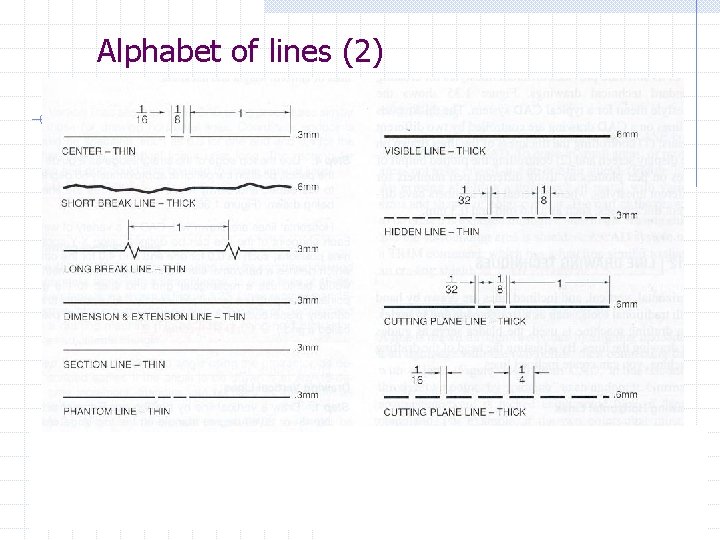

Alphabet of lines (2)
