University of Mustansiriyah Engineering Department of Computer Engineering Second Semester College of Second Class/ Digital Communication Adaptive delta modulation Dr. Haider Tarish Haider � Email: haiderth@uomustansiriyah. edu. iq � 2019 -218 1 Lecture 6 -2

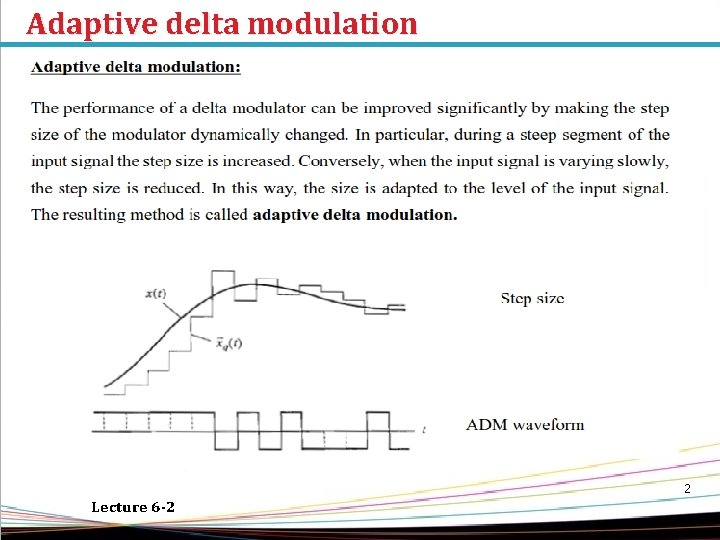

Adaptive delta modulation Lecture 6 -2 2
Adaptive delta modulation The step size is varied by controlling the gain of the integrator which is assumed to have a low gain when the control voltage is zero and a larger with increasing gain +ve control voltage the gain control voltage consist an RC integrated & square low device. When the i/p is constant or slowly varying the DM will be hunted and the modulator will be a sequence of alternate polarity pulses these pulses when integrated by the RC filter give an average o/p of all most zero the gain control i/p & hence the gain & the step size are small. Lecture 6 -2 3
Adaptive delta modulation In case of slope over load, the o/p of quantizer will be a train of all +ve or all –ve pulses. The integrator provides a large control voltage and the gain of amplifier is increase because of the squaring cct the amplifier gain will increase regardless the polarity of the pulses this result will increase in step size and a reduction in slop over load. The demodulator in an adaptive DM system will have an adaptive gain control similar to the one used in the modulator. M- Level DPCM systems: This techniques uses an M- level quantizer to quantize the difference signal. Thus the o/p of the sampler ysq(t) is an impulse train in which the strength of the impulses can have one of the M possible levels. If M=2 then DPCM reduces to DM. Lecture 6 -2 4
Adaptive delta modulation Lecture 6 -2 5
Q&A Thank You 6
