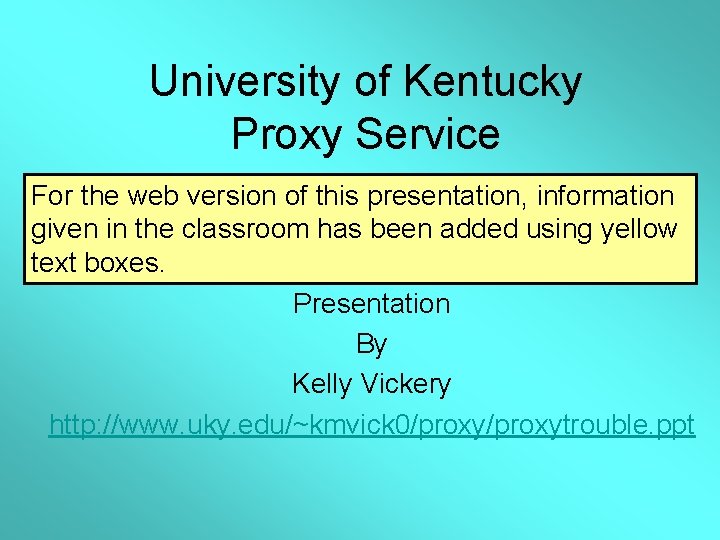

University of Kentucky Proxy Service For the web version of this presentation, information given in the classroom has been added using yellow text boxes. Presentation By Kelly Vickery http: //www. uky. edu/~kmvick 0/proxytrouble. ppt

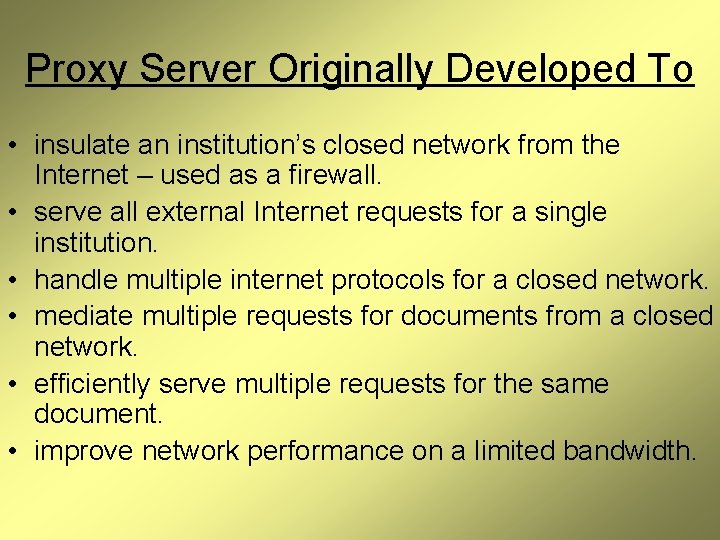

Proxy Server Originally Developed To • insulate an institution’s closed network from the Internet – used as a firewall. • serve all external Internet requests for a single institution. • handle multiple internet protocols for a closed network. • mediate multiple requests for documents from a closed network. • efficiently serve multiple requests for the same document. • improve network performance on a limited bandwidth.

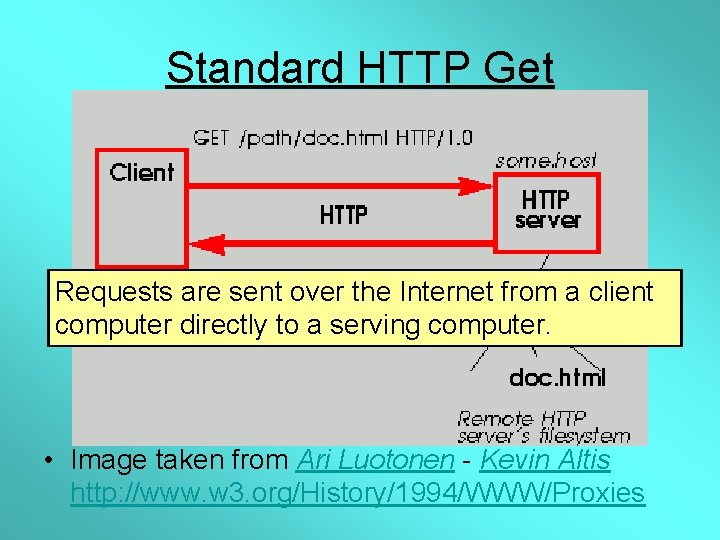

Standard HTTP Get Requests are sent over the Internet from a client computer directly to a serving computer. • Image taken from Ari Luotonen - Kevin Altis http: //www. w 3. org/History/1994/WWW/Proxies

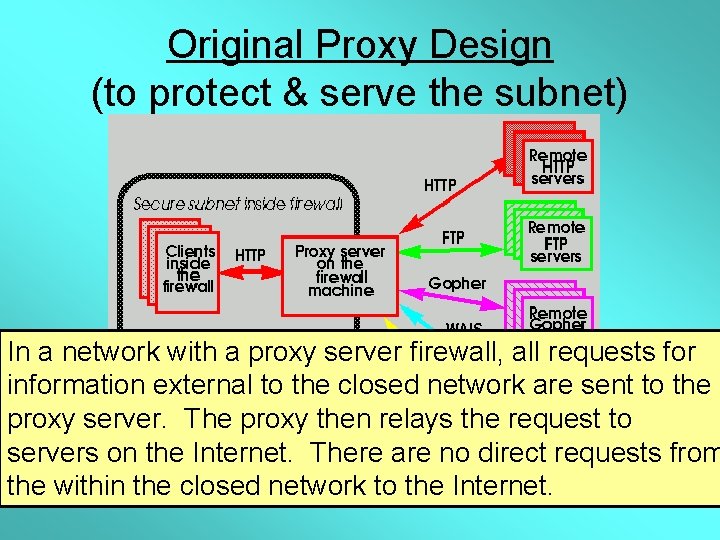

Original Proxy Design (to protect & serve the subnet) In a network with a proxy server firewall, all requests for information external to the closed network are sent to the proxy server. The proxy then relays the request to servers on the Internet. There are no- direct from • Image taken from Ari Luotonen Kevin requests Altis the within the closed network to the Internet. http: //www. w 3. org/History/1994/WWW/Proxies

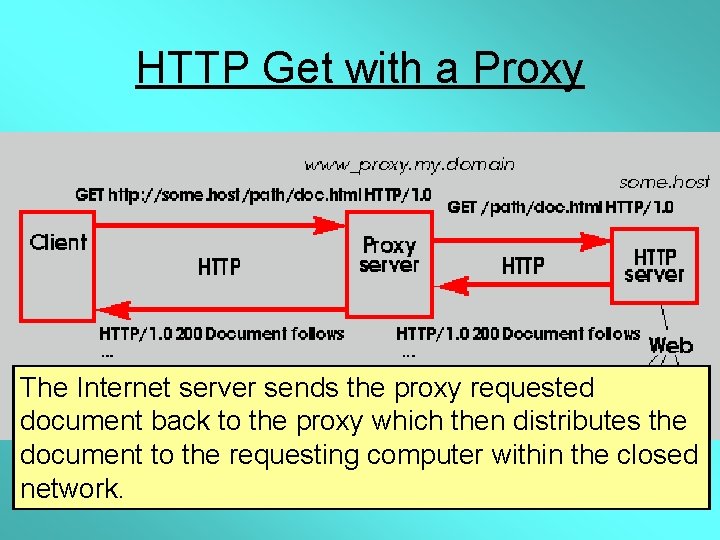

HTTP Get with a Proxy The Internet server sends the proxy requested document back to the proxy which then distributes the document the requesting computer within. Altis the closed • Image to taken from Ari Luotonen - Kevin network. http: //www. w 3. org/History/1994/WWW/Proxies

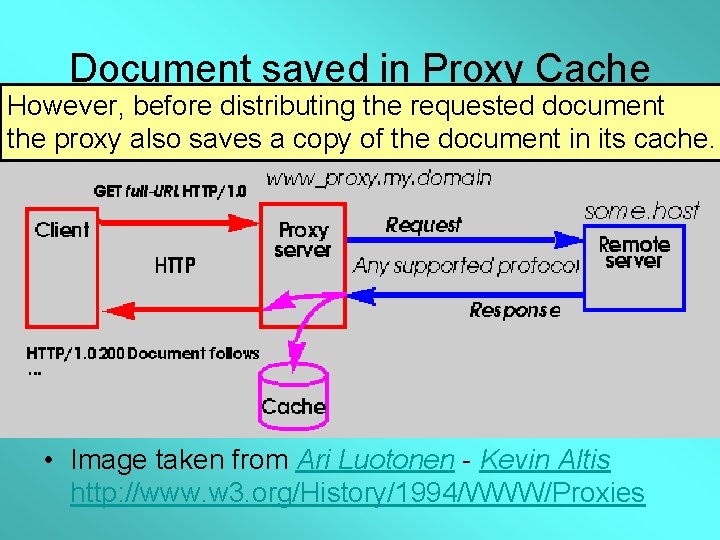

Document saved in Proxy Cache However, before distributing the requested document the proxy also saves a copy of the document in its cache. • Image taken from Ari Luotonen - Kevin Altis http: //www. w 3. org/History/1994/WWW/Proxies

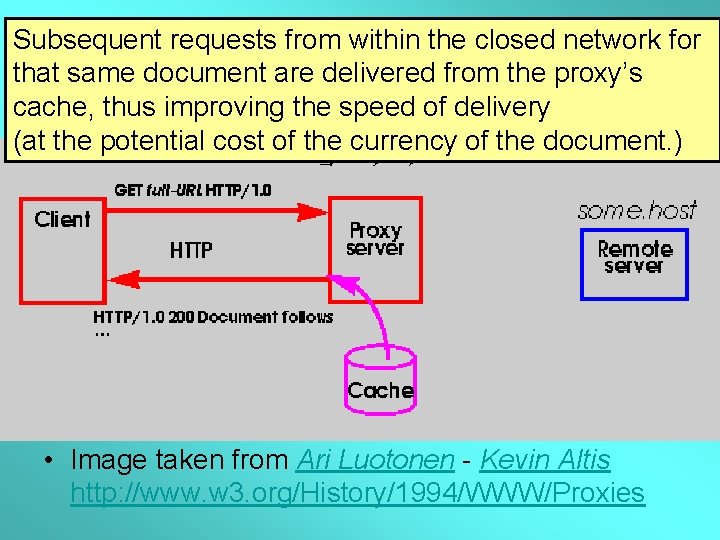

Subsequent requests from within the closed network for Requests from that. Subsequent same document are delivered from the Cache proxy’s cache, thus improving the speed of delivery (at the potential cost of the currency of the document. ) • Image taken from Ari Luotonen - Kevin Altis http: //www. w 3. org/History/1994/WWW/Proxies

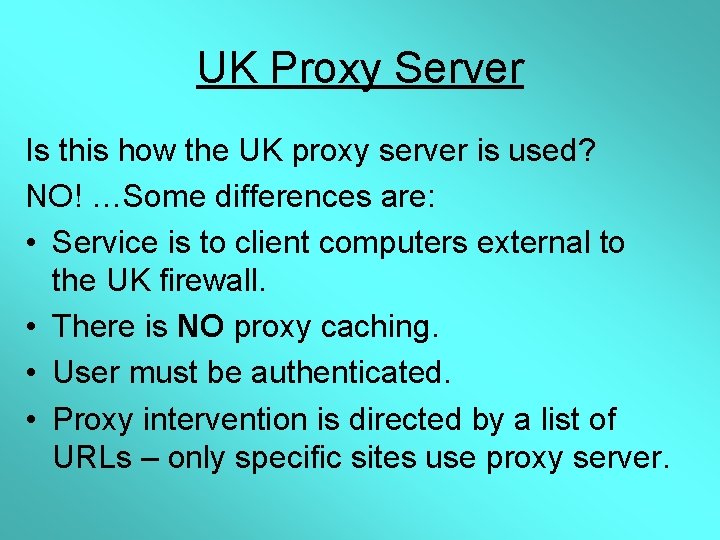

UK Proxy Server Is this how the UK proxy server is used? NO! …Some differences are: • Service is to client computers external to the UK firewall. • There is NO proxy caching. • User must be authenticated. • Proxy intervention is directed by a list of URLs – only specific sites use proxy server.

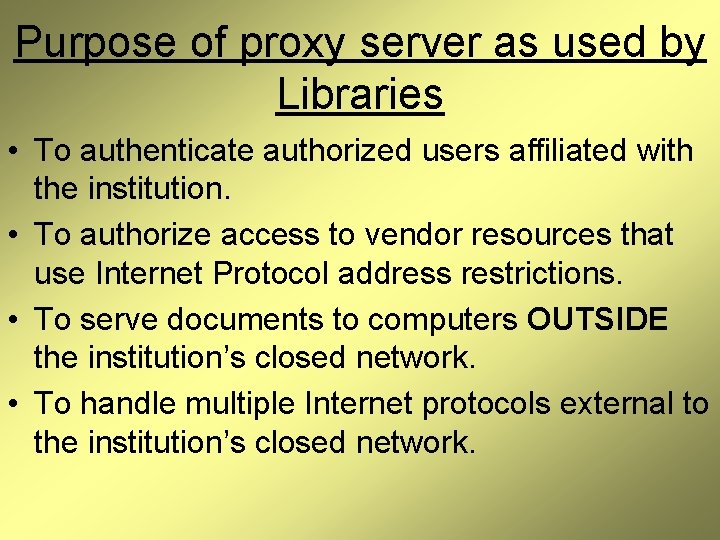

Purpose of proxy server as used by Libraries • To authenticate authorized users affiliated with the institution. • To authorize access to vendor resources that use Internet Protocol address restrictions. • To serve documents to computers OUTSIDE the institution’s closed network. • To handle multiple Internet protocols external to the institution’s closed network.

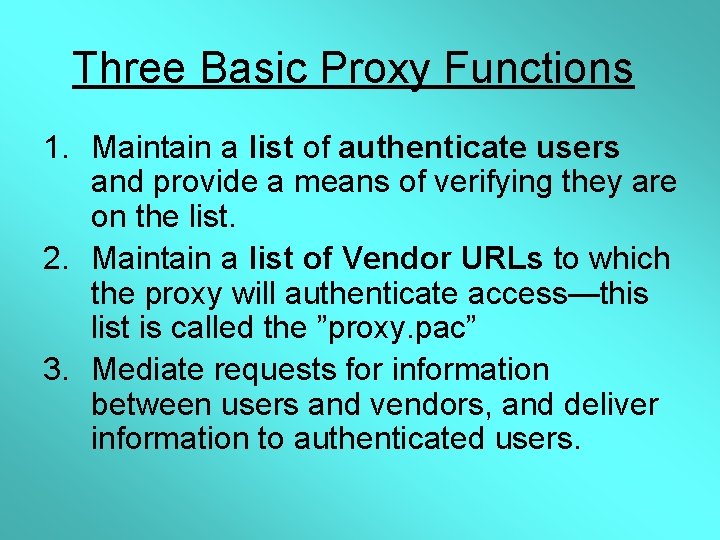

Three Basic Proxy Functions 1. Maintain a list of authenticate users and provide a means of verifying they are on the list. 2. Maintain a list of Vendor URLs to which the proxy will authenticate access—this list is called the ”proxy. pac” 3. Mediate requests for information between users and vendors, and deliver information to authenticated users.

Prerequisite Knowledge • What is an IP (Internet Protocol) address? • What is a Domain Name? • Anatomy of a URL (Uniform Resource Locator) • What is a proxy. pac?

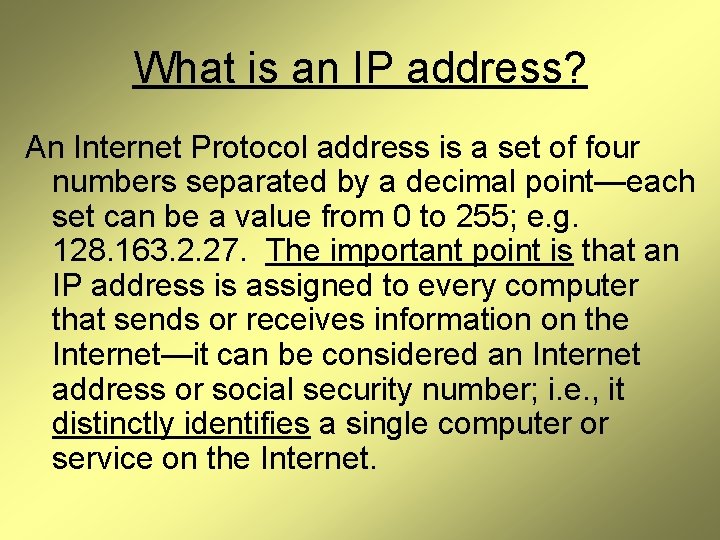

What is an IP address? An Internet Protocol address is a set of four numbers separated by a decimal point—each set can be a value from 0 to 255; e. g. 128. 163. 2. 27. The important point is that an IP address is assigned to every computer that sends or receives information on the Internet—it can be considered an Internet address or social security number; i. e. , it distinctly identifies a single computer or service on the Internet.

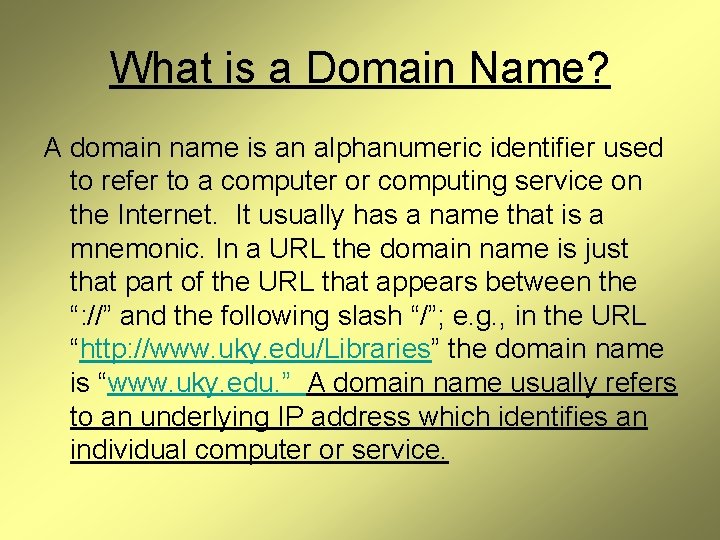

What is a Domain Name? A domain name is an alphanumeric identifier used to refer to a computer or computing service on the Internet. It usually has a name that is a mnemonic. In a URL the domain name is just that part of the URL that appears between the “: //” and the following slash “/”; e. g. , in the URL “http: //www. uky. edu/Libraries” the domain name is “www. uky. edu. ” A domain name usually refers to an underlying IP address which identifies an individual computer or service.

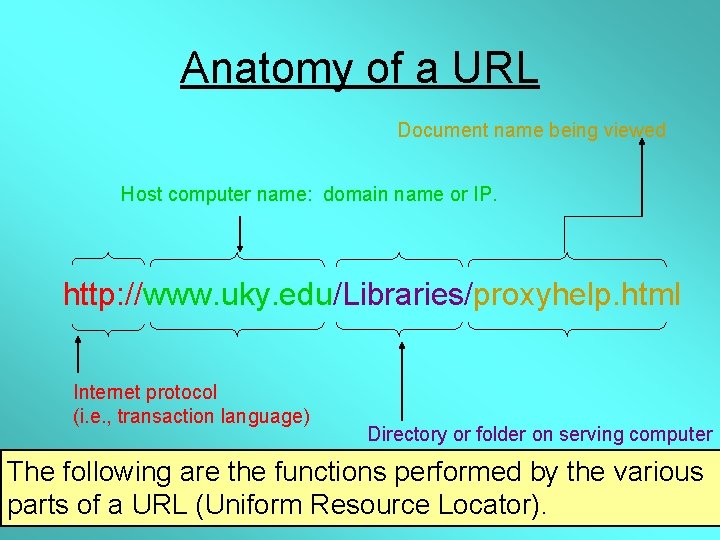

Anatomy of a URL Document name being viewed Host computer name: domain name or IP. http: //www. uky. edu/Libraries/proxyhelp. html Internet protocol (i. e. , transaction language) Directory or folder on serving computer The following are the functions performed by the various parts of a URL (Uniform Resource Locator).

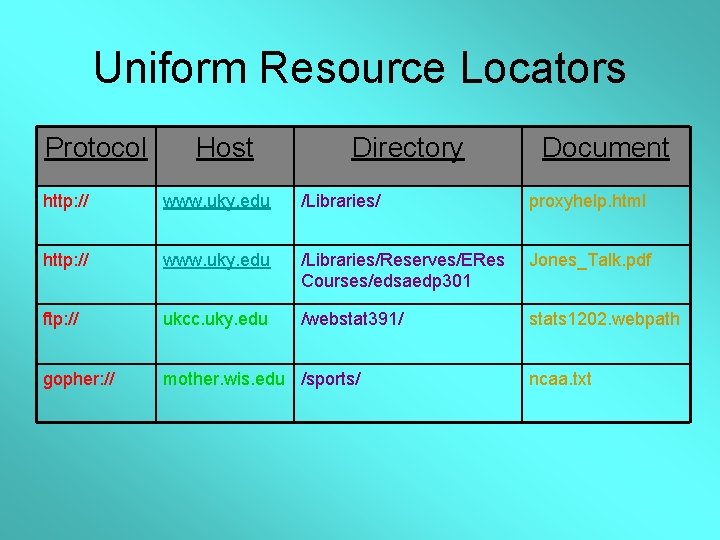

Uniform Resource Locators Protocol Host Directory Document http: // www. uky. edu /Libraries/ proxyhelp. html http: // www. uky. edu /Libraries/Reserves/ERes Courses/edsaedp 301 Jones_Talk. pdf ftp: // ukcc. uky. edu /webstat 391/ stats 1202. webpath gopher: // mother. wis. edu /sports/ ncaa. txt

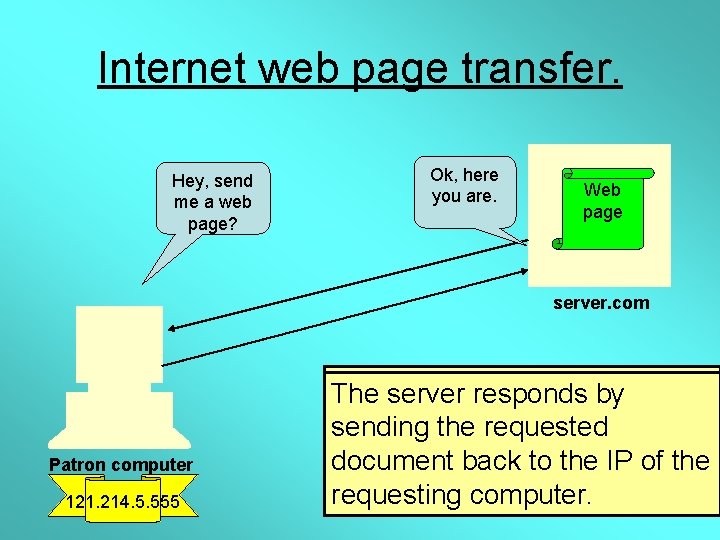

Internet web page transfer. Hey, send me a web page? Ok, here you are. Web page server. com Patron computer 121. 214. 5. 555 In a standard transaction The server responds by a client (patron’s) computer sending the requested requests documentaback to the and IP of the sends its IPcomputer. to a server. requesting

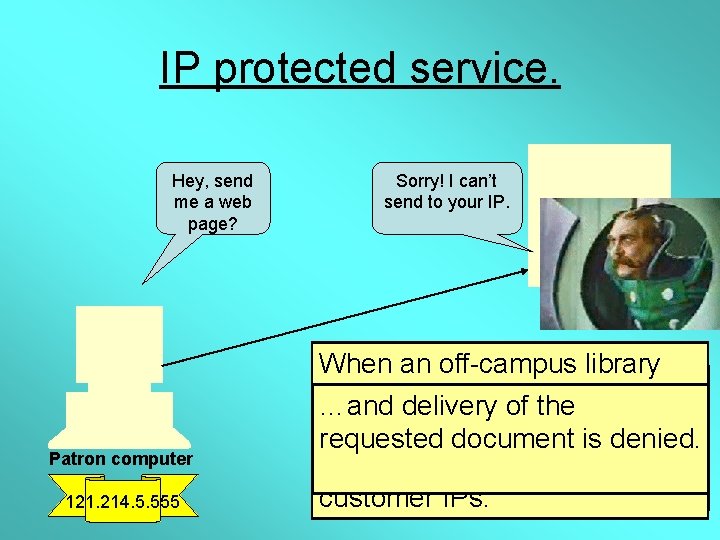

IP protected service. Hey, send me a web page? Sorry! I can’t send to your IP. Vendor. com Patron computer 121. 214. 5. 555 When an off-campus library To restrict access a vendor patron requests a document …and delivery of the maintains a list ofthe IPspatron’s of all from the vendor, requested document is denied. customers purchaselist of IP is not in who the vendor’s access to IPs. the service. customer

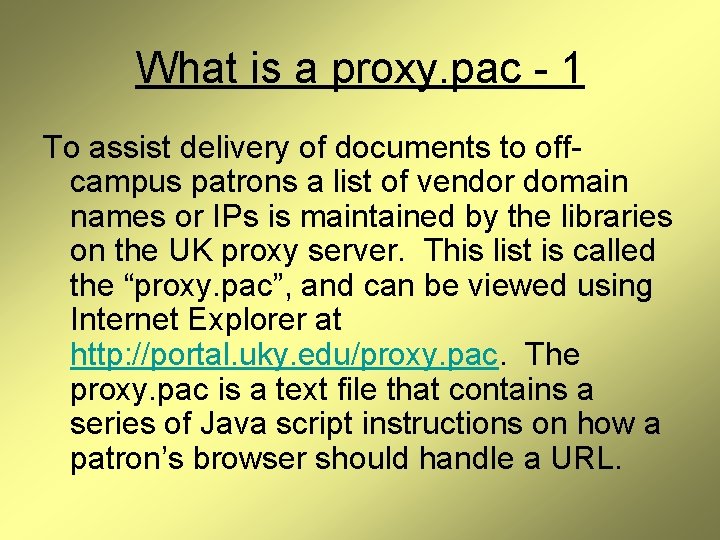

What is a proxy. pac - 1 To assist delivery of documents to offcampus patrons a list of vendor domain names or IPs is maintained by the libraries on the UK proxy server. This list is called the “proxy. pac”, and can be viewed using Internet Explorer at http: //portal. uky. edu/proxy. pac. The proxy. pac is a text file that contains a series of Java script instructions on how a patron’s browser should handle a URL.

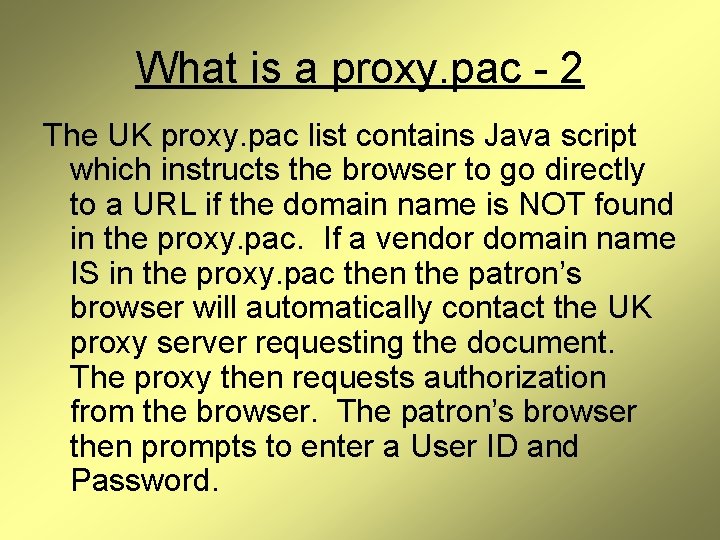

What is a proxy. pac - 2 The UK proxy. pac list contains Java script which instructs the browser to go directly to a URL if the domain name is NOT found in the proxy. pac. If a vendor domain name IS in the proxy. pac then the patron’s browser will automatically contact the UK proxy server requesting the document. The proxy then requests authorization from the browser. The patron’s browser then prompts to enter a User ID and Password.

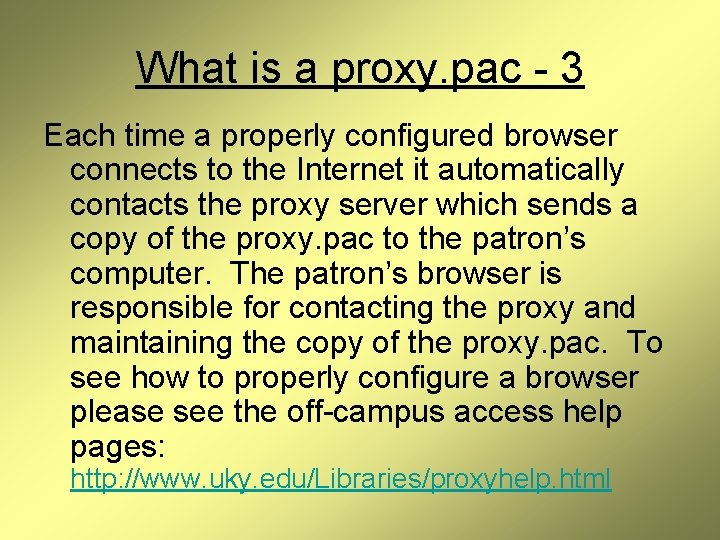

What is a proxy. pac - 3 Each time a properly configured browser connects to the Internet it automatically contacts the proxy server which sends a copy of the proxy. pac to the patron’s computer. The patron’s browser is responsible for contacting the proxy and maintaining the copy of the proxy. pac. To see how to properly configure a browser please see the off-campus access help pages: http: //www. uky. edu/Libraries/proxyhelp. html

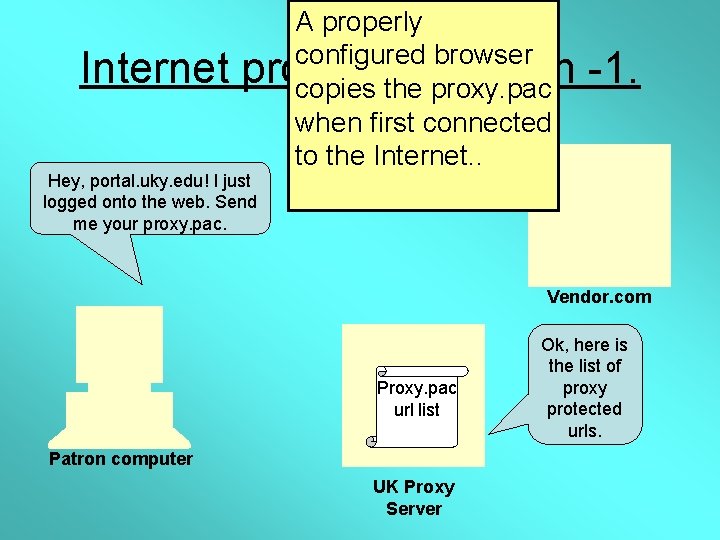

Internet A properly configured browser proxy transaction copies the proxy. pac when first connected to the Internet. . -1. Hey, portal. uky. edu! I just logged onto the web. Send me your proxy. pac. Vendor. com Proxy. pac url list Patron computer UK Proxy Server Ok, here is the list of proxy protected urls.

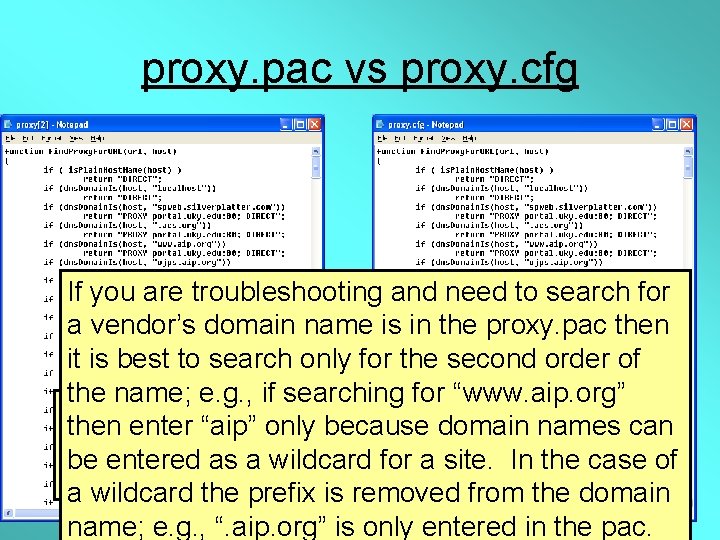

proxy. pac vs proxy. cfg If you are troubleshooting and need to search for a vendor’s domain name is in the proxy. pac then it is best to search only for the second order of the name; e. g. , if searching for “www. aip. org” Evidence of proxy. pac copying can be seen Internet Explorer maintains itsdomain copy of names the incan then enter “aip” only because Netscape, as the patron’s proxy. pac is copied to a file in proxy. pac in the computer RAM, but be entered as a wildcard for a site. In the case of c: Program FilesNetscapeUsers profile proxy. cfg does not write a copyistoremoved the hardfrom drive. a wildcard the prefix the domain name; e. g. , “. aip. org” is only entered in the pac.

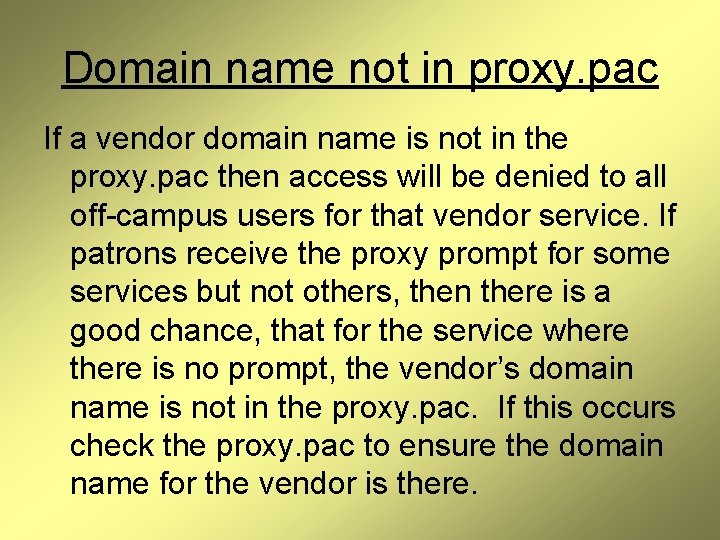

Domain name not in proxy. pac If a vendor domain name is not in the proxy. pac then access will be denied to all off-campus users for that vendor service. If patrons receive the proxy prompt for some services but not others, then there is a good chance, that for the service where there is no prompt, the vendor’s domain name is not in the proxy. pac. If this occurs check the proxy. pac to ensure the domain name for the vendor is there.

If the ID and Password entered in the prompt are not. Internet in the list of proxy authorized users then access is transaction-2. denied; if they are in the list then the proxy fetches the document and sends it to the patron. Proxy. pac url list I need to go to Vendor. com. It is listed in my proxy. pac file. Vendor. com Get ID & Password Ok, but first, who are you? Patron computer 121. 214. 5. 555 UK Proxy Server 128. 163. 1. 29

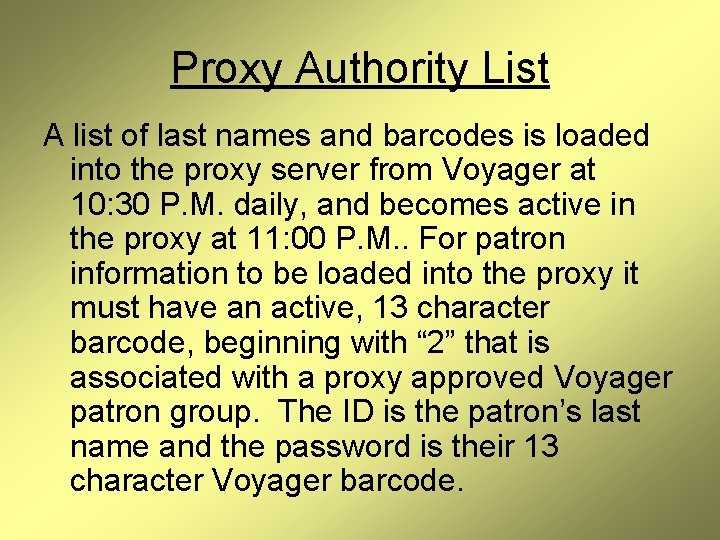

Proxy Authority List A list of last names and barcodes is loaded into the proxy server from Voyager at 10: 30 P. M. daily, and becomes active in the proxy at 11: 00 P. M. . For patron information to be loaded into the proxy it must have an active, 13 character barcode, beginning with “ 2” that is associated with a proxy approved Voyager patron group. The ID is the patron’s last name and the password is their 13 character Voyager barcode.

Proxy Approved Patron Groups » » » » » UK Distance Learning UK Donovan Scholar UK Faculty and Staff UK Graduate Student UK Independent Study Program Student UK Law Faculty UK Medical Center Community-Based Faculty UK Undergraduate Student UK Visiting Scholar UK Affiliate Faculty and Staff

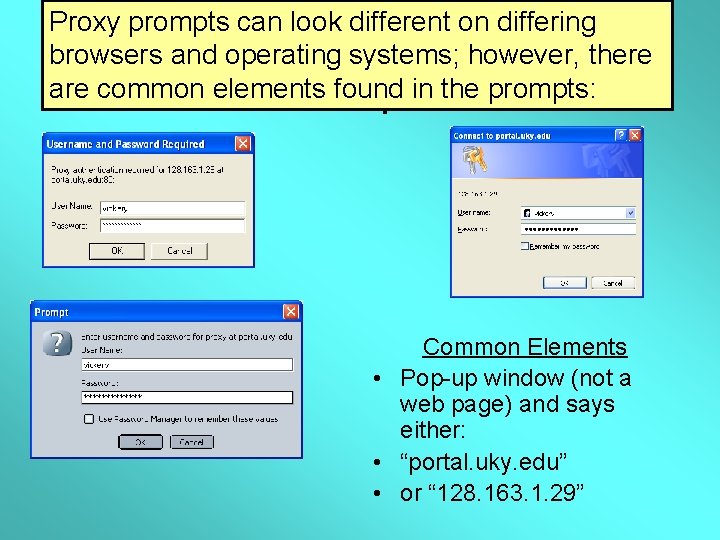

Proxy prompts can look different on differing Proxyandauthentication OS and browsers operating systems; is however, there are common elements found in the prompts: browser dependent. Common Elements • Pop-up window (not a web page) and says either: • “portal. uky. edu” • or “ 128. 163. 1. 29”

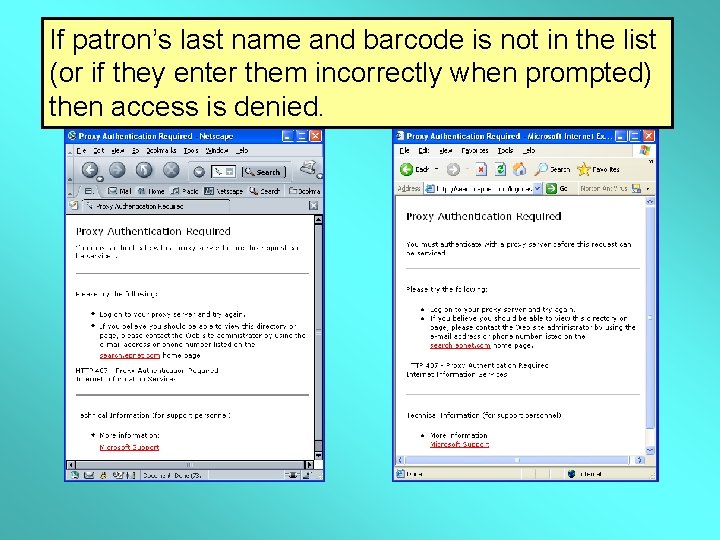

If patron’s last name and barcode is not in the list (or if they enter them incorrectly when prompted) Proxy Authentication Required then access is denied.

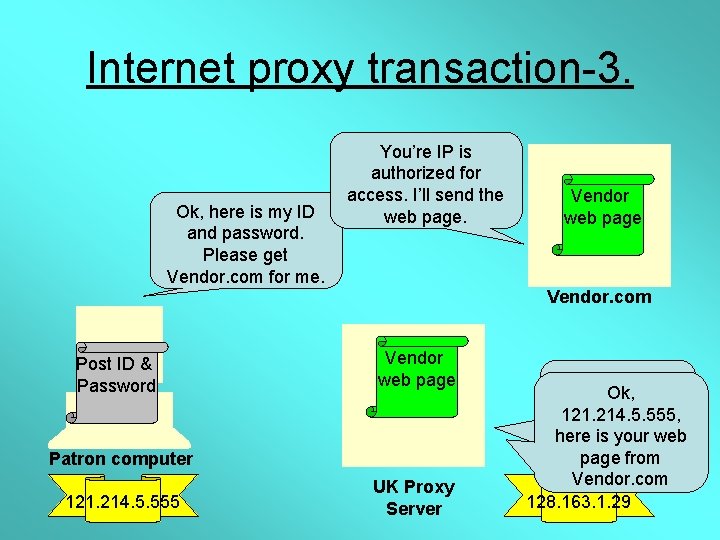

Internet proxy transaction-3. Ok, here is my ID and password. Please get Vendor. com for me. You’re IP is authorized for access. I’ll send the web page. Vendor web page Vendor. com Post ID & Password Vendor web page Patron computer 121. 214. 5. 555 UK Proxy Server You’re on my list. Ok, I’ll Get 121. 214. 5. 555, Vendor. com for here isyou. your web page from Vendor. com 128. 163. 1. 29

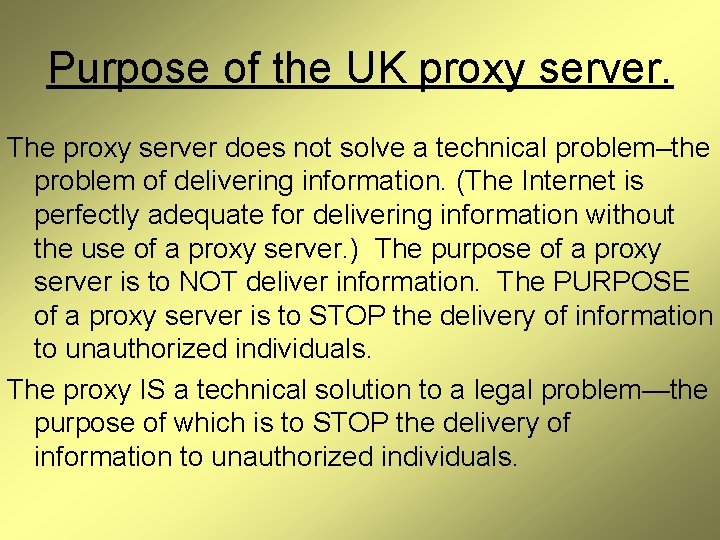

Purpose of the UK proxy server. The proxy server does not solve a technical problem–the problem of delivering information. (The Internet is perfectly adequate for delivering information without the use of a proxy server. ) The purpose of a proxy server is to NOT deliver information. The PURPOSE of a proxy server is to STOP the delivery of information to unauthorized individuals. The proxy IS a technical solution to a legal problem—the purpose of which is to STOP the delivery of information to unauthorized individuals.

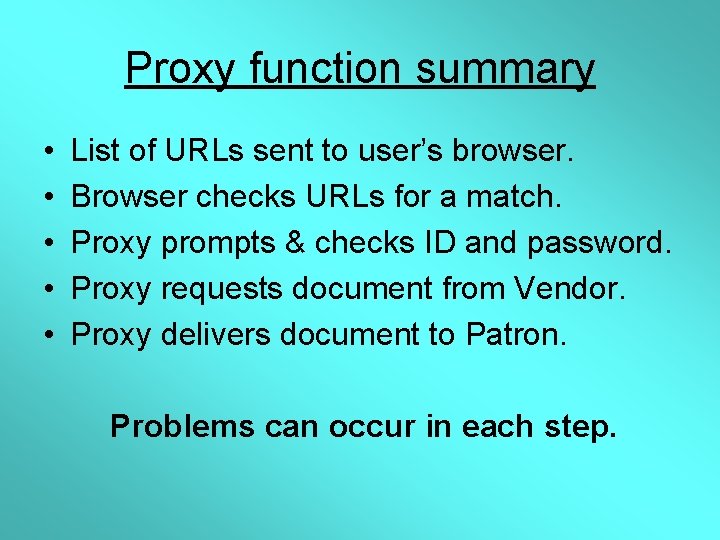

Proxy function summary • • • List of URLs sent to user’s browser. Browser checks URLs for a match. Proxy prompts & checks ID and password. Proxy requests document from Vendor. Proxy delivers document to Patron. Problems can occur in each step.

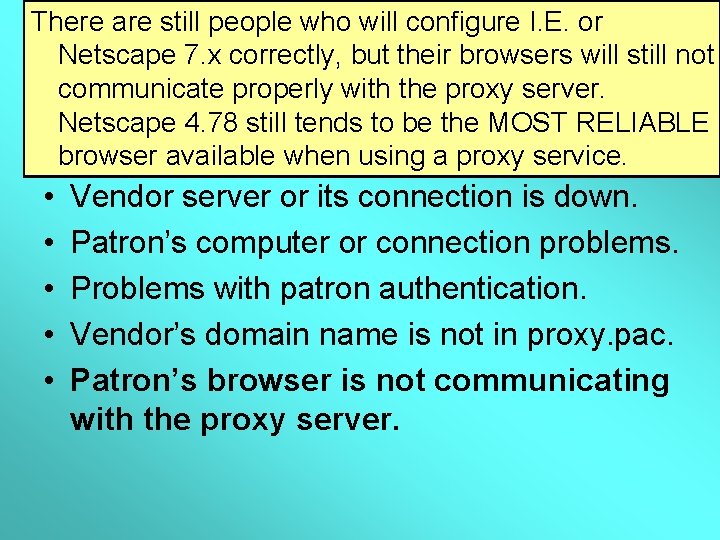

There are still people who will configure I. E. or Netscape 7. x correctly, but their browsers will still not Potential problems communicate properly with the proxy server. Netscape 4. 78 still tends to be the MOST RELIABLE • browser Proxy server orwhen its connection is down. available using a proxy service. • • • Vendor server or its connection is down. Patron’s computer or connection problems. Problems with patron authentication. Vendor’s domain name is not in proxy. pac. Patron’s browser is not communicating with the proxy server.

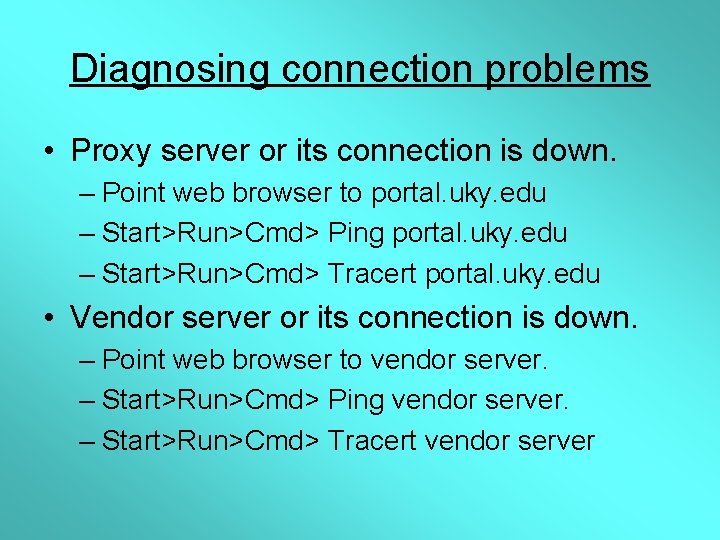

Diagnosing connection problems • Proxy server or its connection is down. – Point web browser to portal. uky. edu – Start>Run>Cmd> Ping portal. uky. edu – Start>Run>Cmd> Tracert portal. uky. edu • Vendor server or its connection is down. – Point web browser to vendor server. – Start>Run>Cmd> Ping vendor server. – Start>Run>Cmd> Tracert vendor server

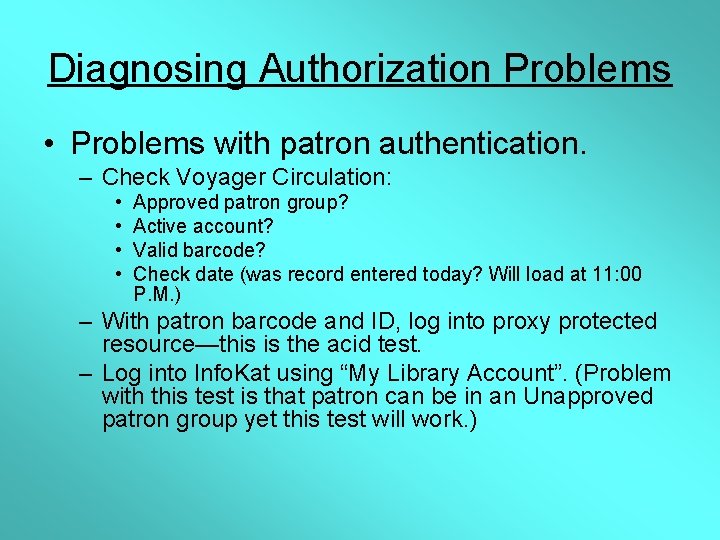

Diagnosing Authorization Problems • Problems with patron authentication. – Check Voyager Circulation: • • Approved patron group? Active account? Valid barcode? Check date (was record entered today? Will load at 11: 00 P. M. ) – With patron barcode and ID, log into proxy protected resource—this is the acid test. – Log into Info. Kat using “My Library Account”. (Problem with this test is that patron can be in an Unapproved patron group yet this test will work. )

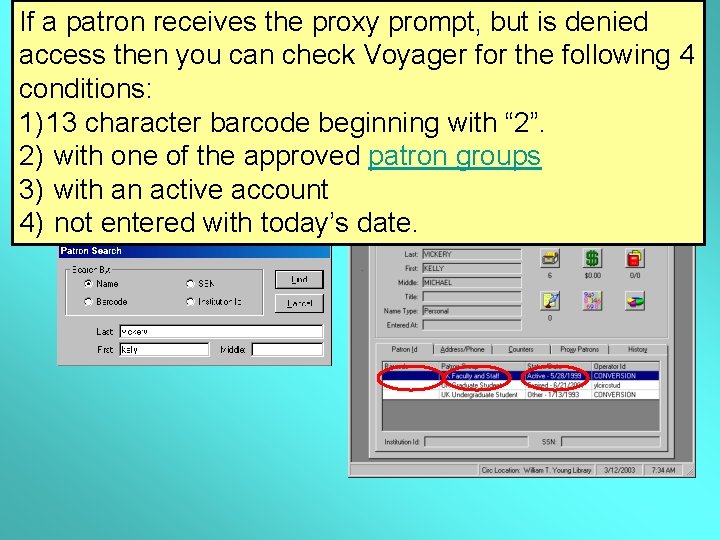

If a patron receives the proxy prompt, but is denied access then you can check Voyager for the following 4 Voyager Circulation conditions: 1) 13 character barcode beginning with “ 2”. 2) with one of the approved patron groups 3) with an active account 4) not entered with today’s date.

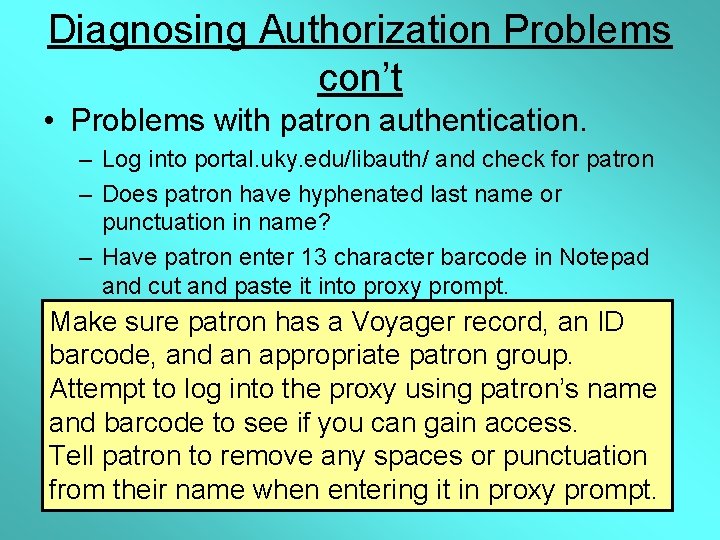

Diagnosing Authorization Problems con’t • Problems with patron authentication. – Log into portal. uky. edu/libauth/ and check for patron – Does patron have hyphenated last name or punctuation in name? – Have patron enter 13 character barcode in Notepad and cut and paste it into proxy prompt. Make sure patron has a Voyager record, an ID barcode, and an appropriate patron group. Attempt to log into the proxy using patron’s name and barcode to see if you can gain access. Tell patron to remove any spaces or punctuation from their name when entering it in proxy prompt.

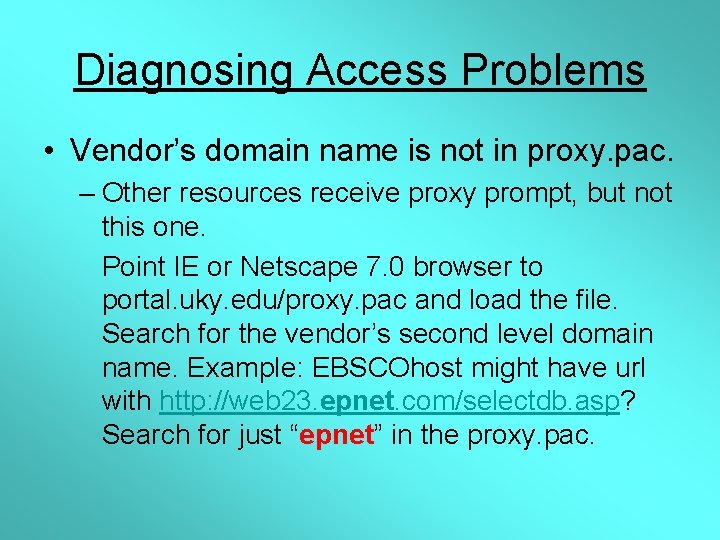

Diagnosing Access Problems • Vendor’s domain name is not in proxy. pac. – Other resources receive proxy prompt, but not this one. Point IE or Netscape 7. 0 browser to portal. uky. edu/proxy. pac and load the file. Search for the vendor’s second level domain name. Example: EBSCOhost might have url with http: //web 23. epnet. com/selectdb. asp? Search for just “epnet” in the proxy. pac.

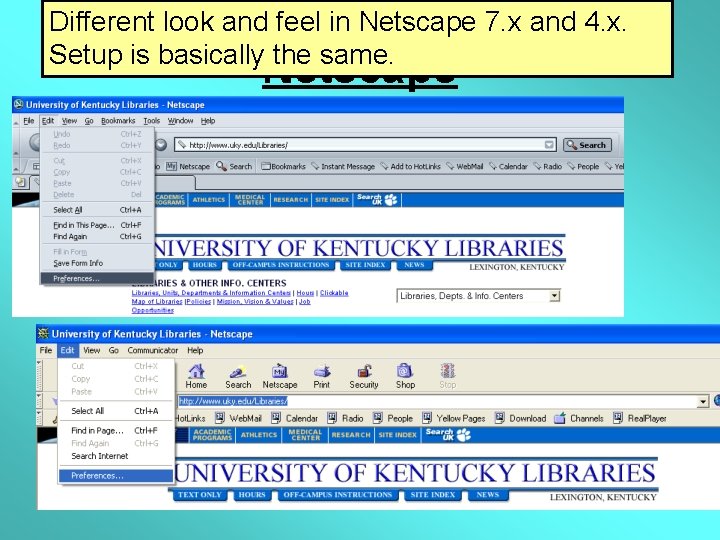

Different look and feel in Netscape 7. x and 4. x. Setup is basically the same. Netscape

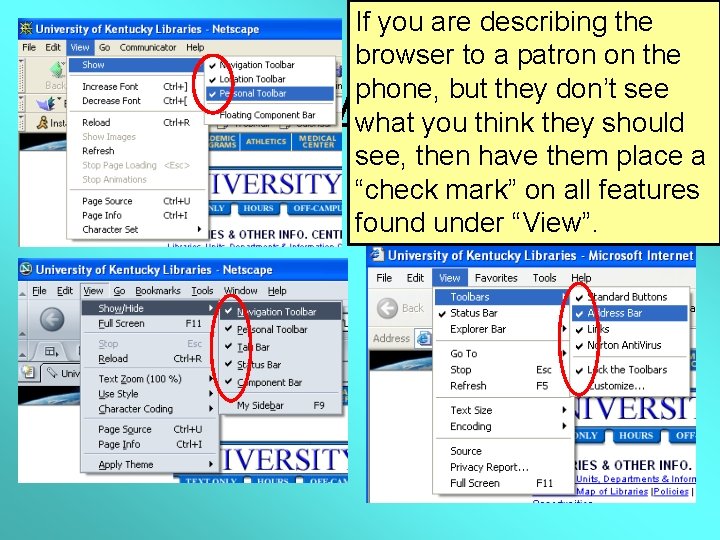

If you are describing the browser to a patron on the phone, but they don’t see Viewing Problems what you think they should see, then have them place a “check mark” on all features found under “View”.

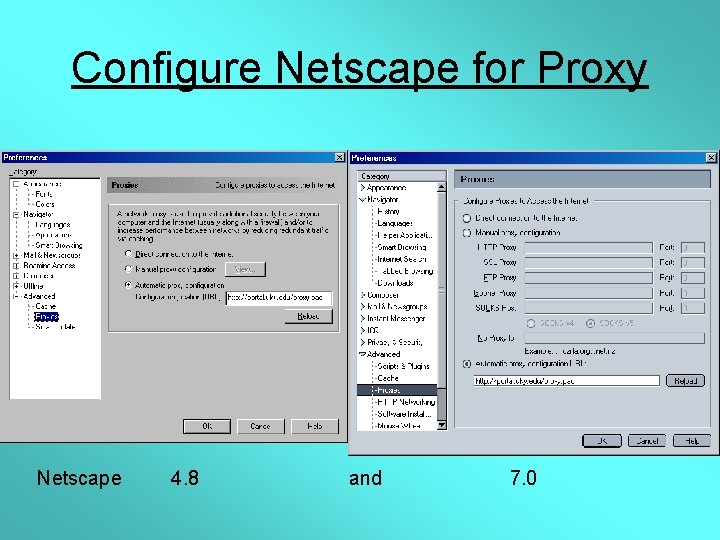

Configure Netscape for Proxy Netscape 4. 8 and 7. 0

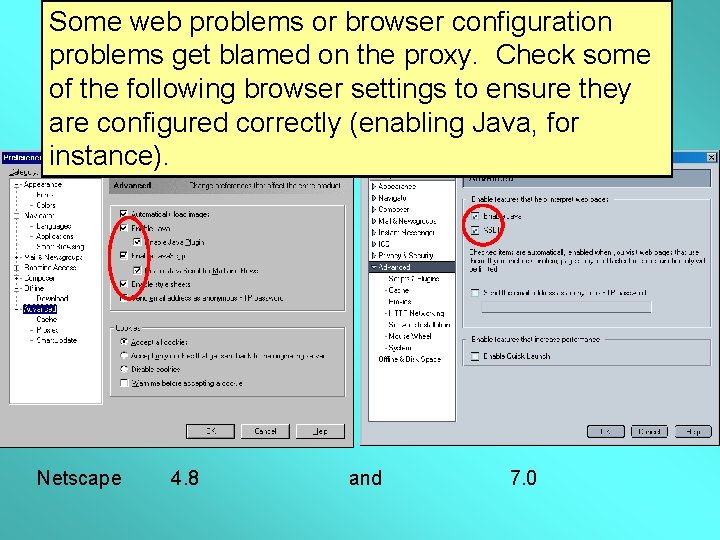

Some web problems or browser configuration problems get blamed on the proxy. Check some Check “Enable-Java” and cookies of the following browser settings to ensure they are configured correctly (enabling Java, for instance). Netscape 4. 8 and 7. 0

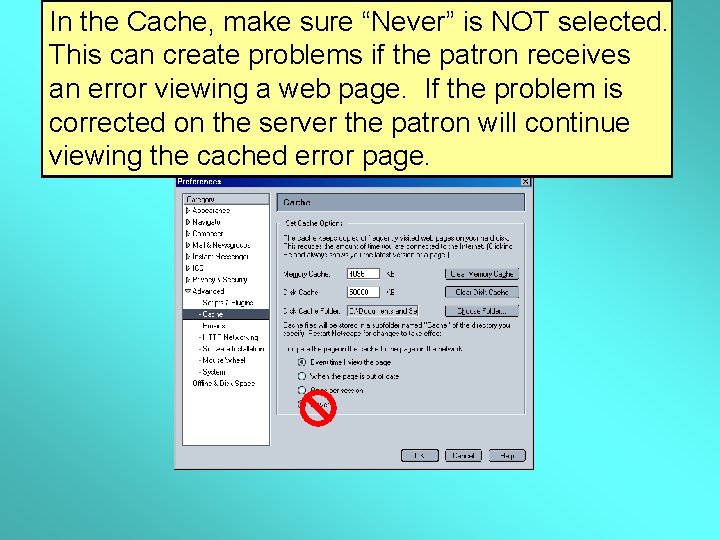

In the Cache, make sure “Never” is NOT selected. This can create problems if the patron receives NEVER select “Never”! an error viewing a web page. If the problem is corrected on the server the patron will continue viewing the cached error page.

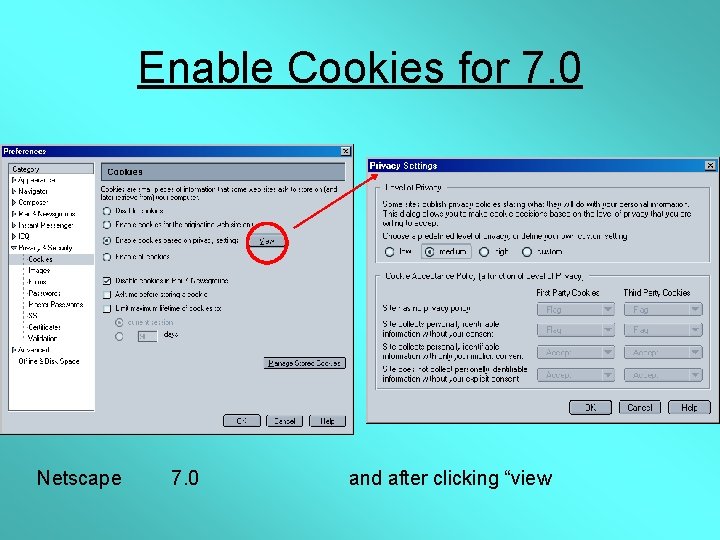

Enable Cookies for 7. 0 Netscape 7. 0 and after clicking “view

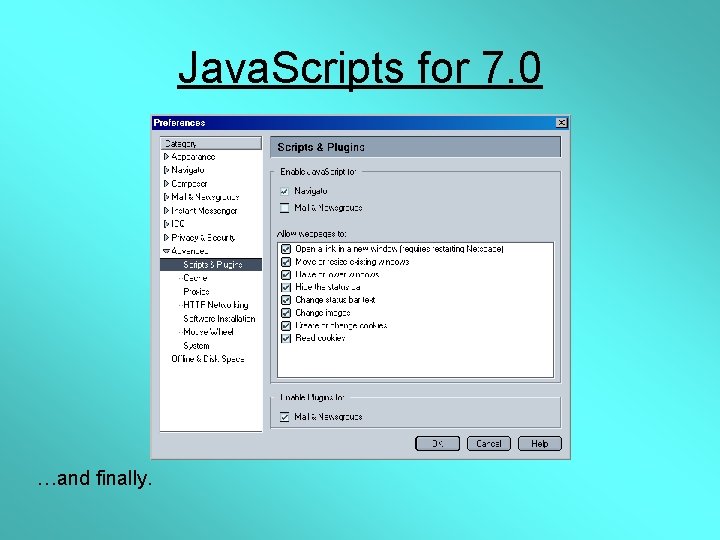

Java. Scripts for 7. 0 …and finally.

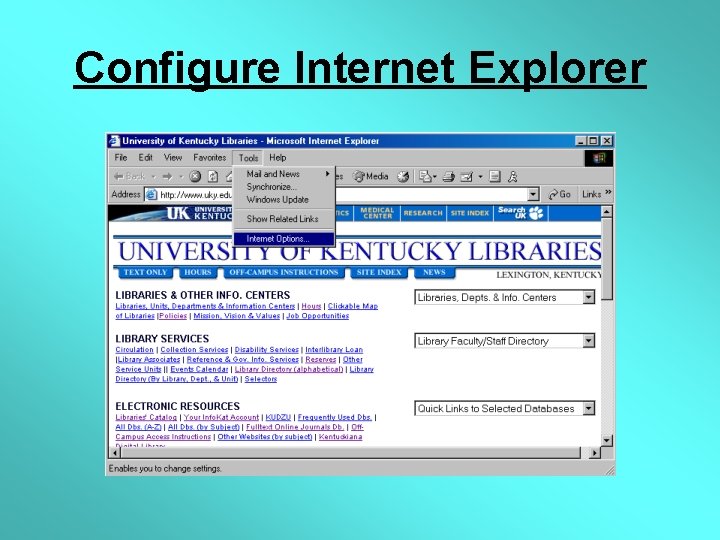

Configure Internet Explorer

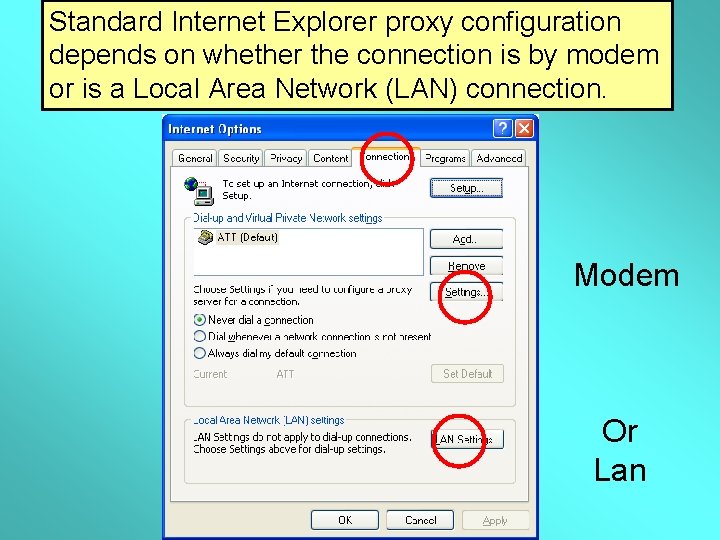

Standard Internet Explorer proxy configuration depends on whether the connection is by modem Proxy Configuration or is a Local Area Network (LAN) connection. Modem Or Lan

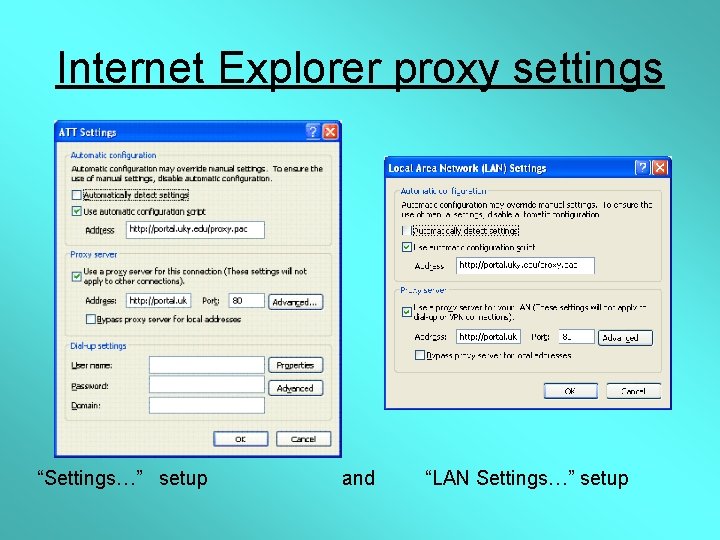

Internet Explorer proxy settings “Settings…” setup and “LAN Settings…” setup

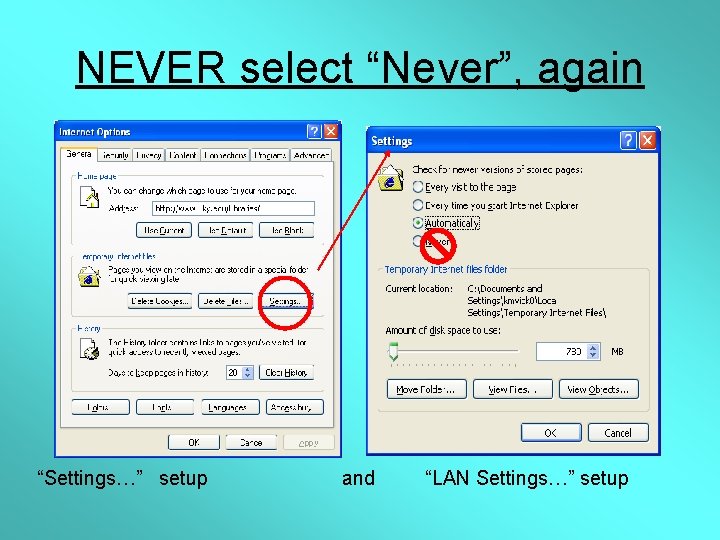

NEVER select “Never”, again “Settings…” setup and “LAN Settings…” setup

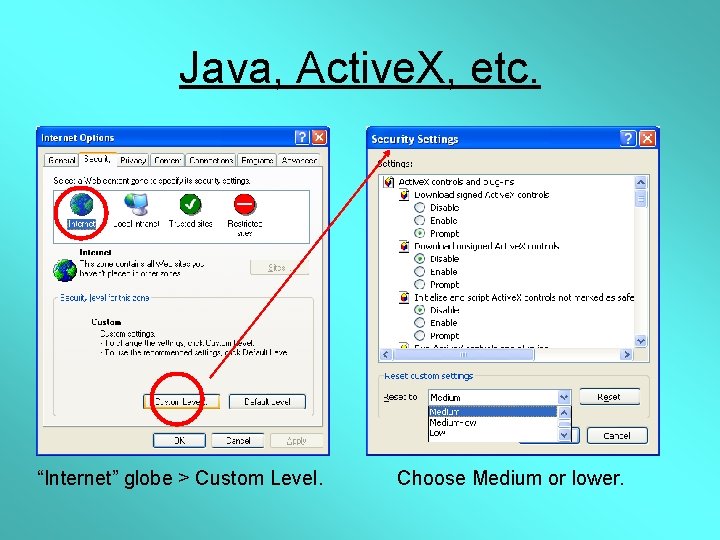

Java, Active. X, etc. “Internet” globe > Custom Level. Choose Medium or lower.

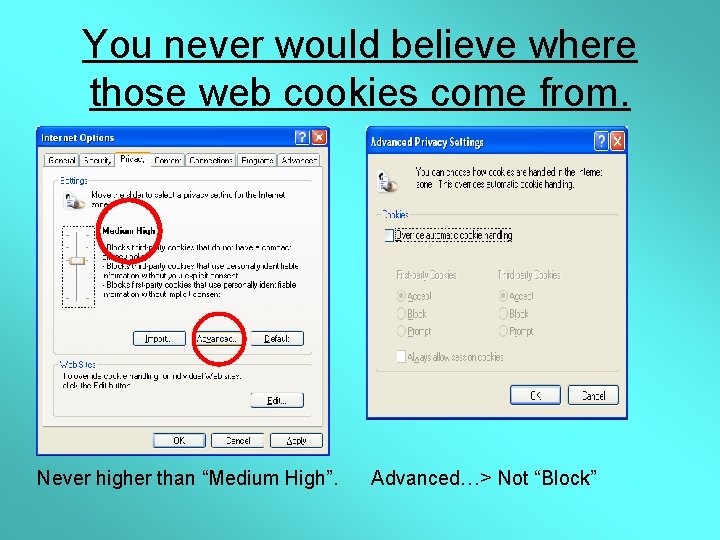

You never would believe where those web cookies come from. Never higher than “Medium High”. Advanced…> Not “Block”

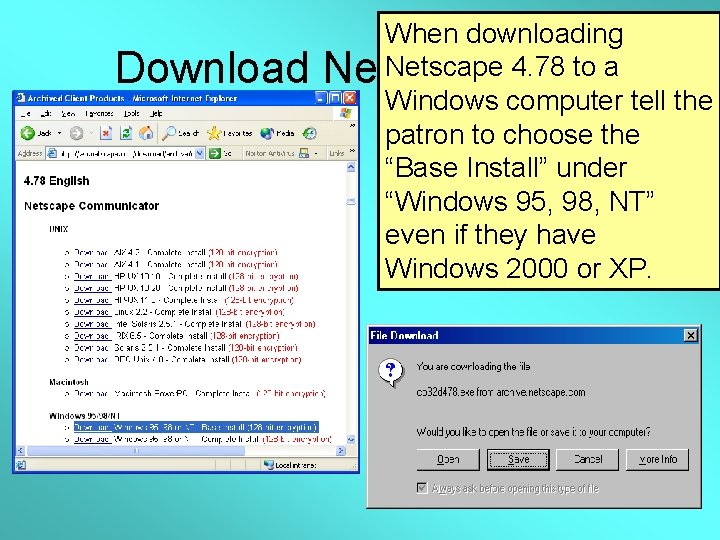

Download When downloading Netscape 4. 78 to a Netscape 4. 78 Windows computer tell the patron to choose the “Base Install” under “Windows 95, 98, NT” even if they have Windows 2000 or XP.

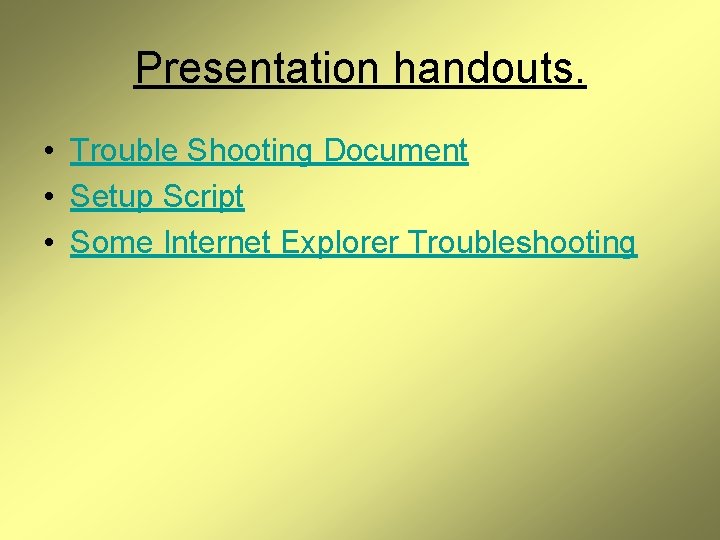

Presentation handouts. • Trouble Shooting Document • Setup Script • Some Internet Explorer Troubleshooting
