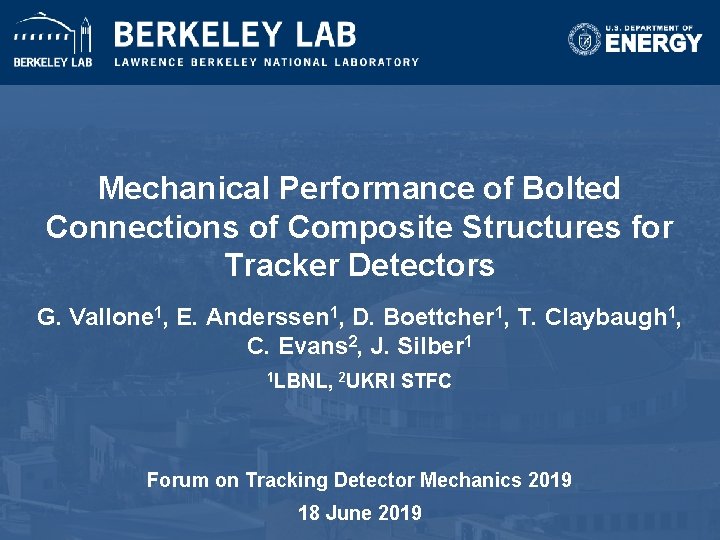

Mechanical Performance of Bolted Connections of Composite Structures for Tracker Detectors G. Vallone 1, E. Anderssen 1, D. Boettcher 1, T. Claybaugh 1, C. Evans 2, J. Silber 1 1 LBNL, 2 UKRI STFC Forum on Tracking Detector Mechanics 2019 18 June 2019 06/18/19

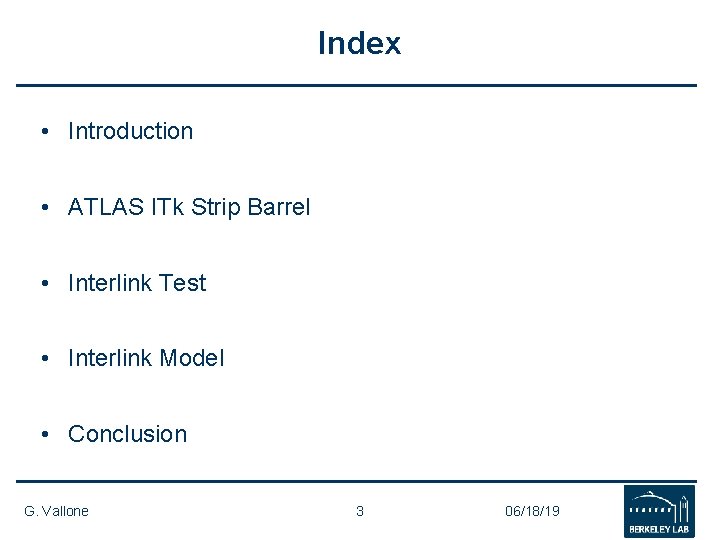

Index • Introduction • ATLAS ITk Strip Barrel • Interlink Test • Interlink Model • Conclusion G. Vallone 3 06/18/19

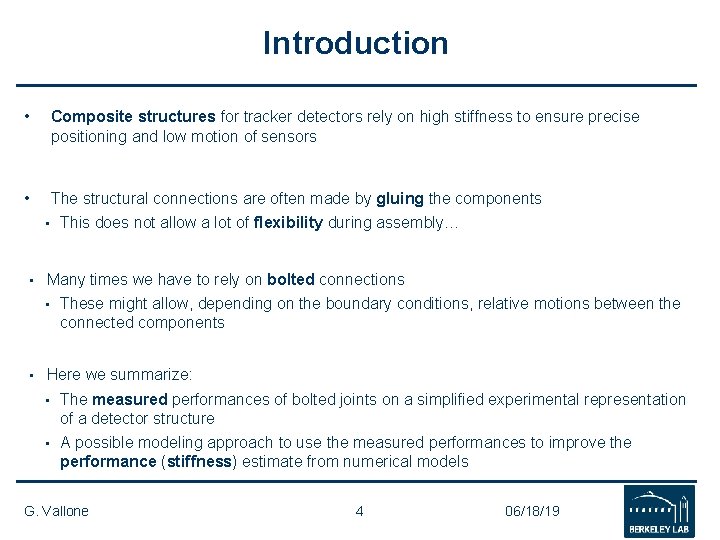

Introduction • Composite structures for tracker detectors rely on high stiffness to ensure precise positioning and low motion of sensors • The structural connections are often made by gluing the components • This does not allow a lot of flexibility during assembly… • Many times we have to rely on bolted connections • These might allow, depending on the boundary conditions, relative motions between the connected components • Here we summarize: • The measured performances of bolted joints on a simplified experimental representation of a detector structure • A possible modeling approach to use the measured performances to improve the performance (stiffness) estimate from numerical models G. Vallone 4 06/18/19

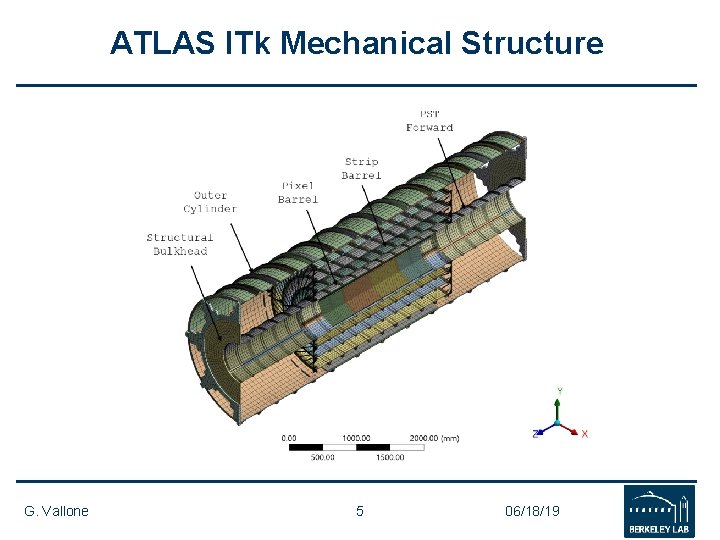

ATLAS ITk Mechanical Structure G. Vallone 5 06/18/19

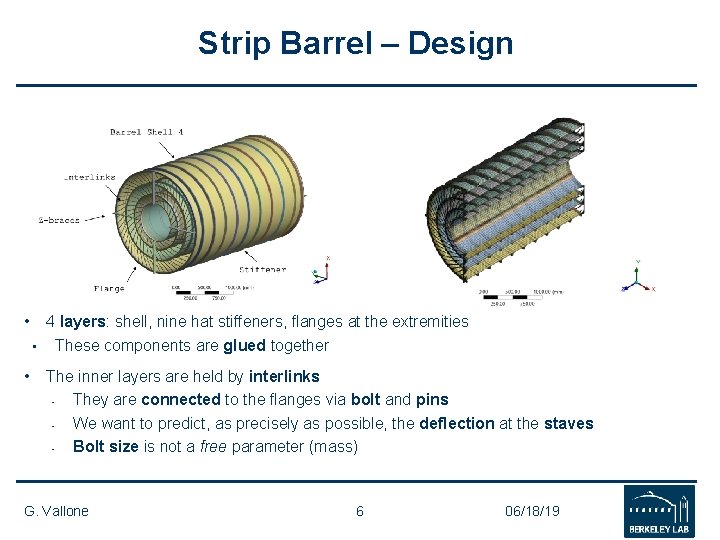

Strip Barrel – Design • 4 layers: shell, nine hat stiffeners, flanges at the extremities • • These components are glued together The inner layers are held by interlinks • They are connected to the flanges via bolt and pins • We want to predict, as precisely as possible, the deflection at the staves • Bolt size is not a free parameter (mass) G. Vallone 6 06/18/19

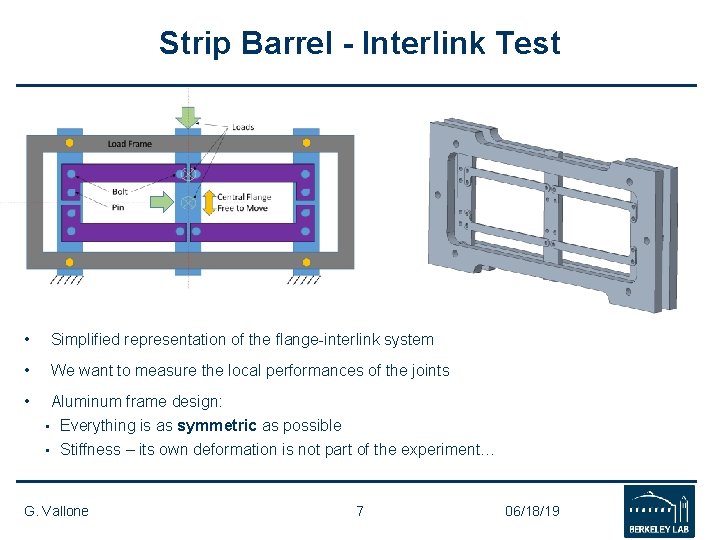

Strip Barrel - Interlink Test • Simplified representation of the flange-interlink system • We want to measure the local performances of the joints • Aluminum frame design: • Everything is as symmetric as possible • Stiffness – its own deformation is not part of the experiment… G. Vallone 7 06/18/19

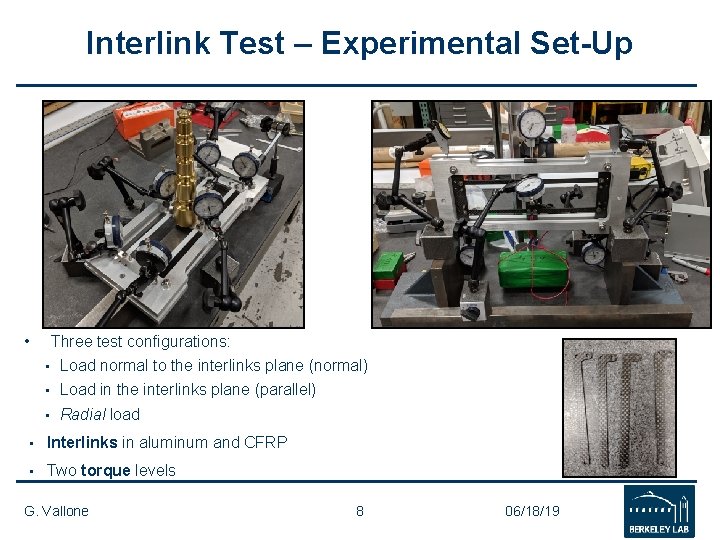

Interlink Test – Experimental Set-Up • Three test configurations: • Load normal to the interlinks plane (normal) • Load in the interlinks plane (parallel) • Radial load • Interlinks in aluminum and CFRP • Two torque levels G. Vallone 8 06/18/19

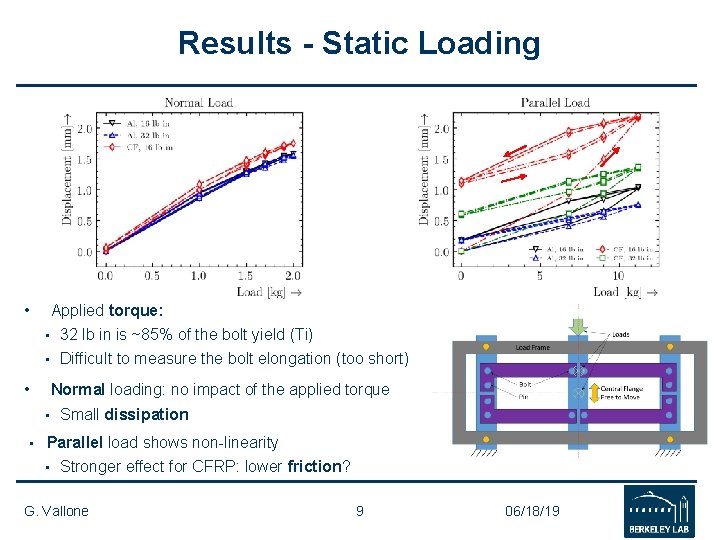

Results - Static Loading • Applied torque: • 32 lb in is ~85% of the bolt yield (Ti) • Difficult to measure the bolt elongation (too short) • Normal loading: no impact of the applied torque • Small dissipation • Parallel load shows non-linearity • Stronger effect for CFRP: lower friction? G. Vallone 9 06/18/19

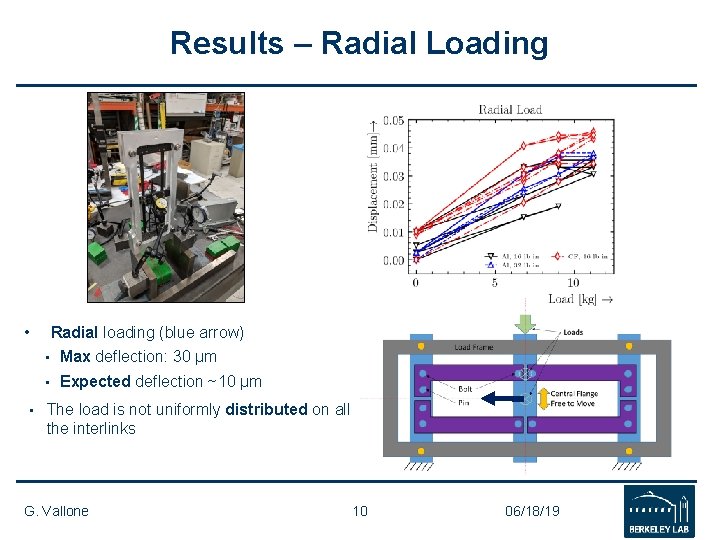

Results – Radial Loading • Radial loading (blue arrow) • Max deflection: 30 µm • Expected deflection ~10 µm • The load is not uniformly distributed on all the interlinks G. Vallone 10 06/18/19

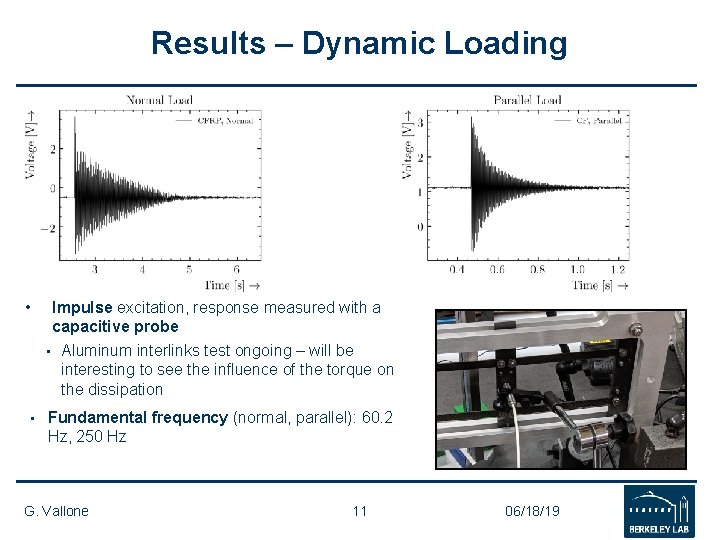

Results – Dynamic Loading • Impulse excitation, response measured with a capacitive probe • Aluminum interlinks test ongoing – will be interesting to see the influence of the torque on the dissipation • Fundamental frequency (normal, parallel): 60. 2 Hz, 250 Hz G. Vallone 11 06/18/19

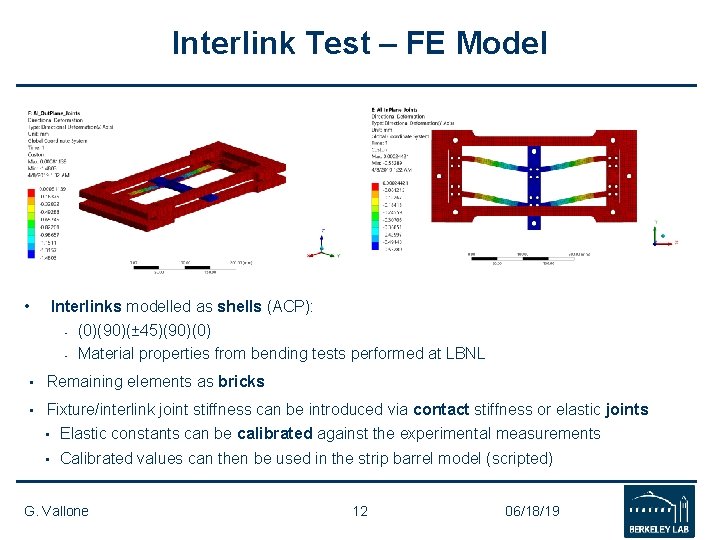

Interlink Test – FE Model • Interlinks modelled as shells (ACP): • (0)(90)(± 45)(90)(0) • Material properties from bending tests performed at LBNL • Remaining elements as bricks • Fixture/interlink joint stiffness can be introduced via contact stiffness or elastic joints • Elastic constants can be calibrated against the experimental measurements • Calibrated values can then be used in the strip barrel model (scripted) G. Vallone 12 06/18/19

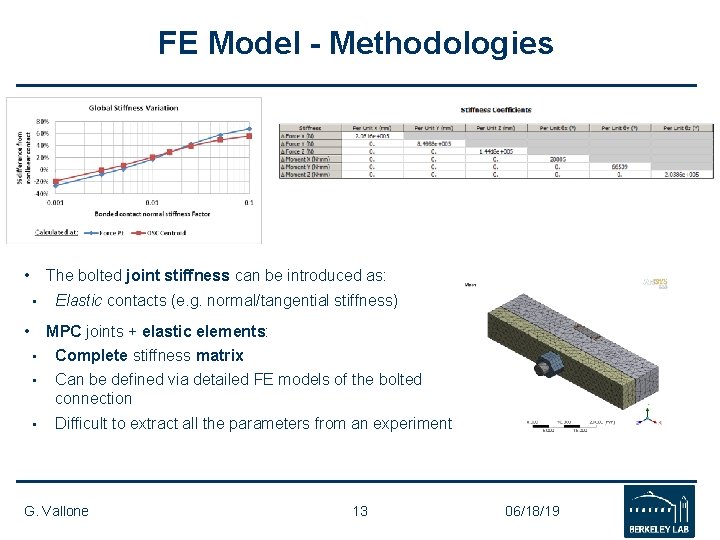

FE Model - Methodologies • The bolted joint stiffness can be introduced as: • • Elastic contacts (e. g. normal/tangential stiffness) MPC joints + elastic elements: • Complete stiffness matrix • Can be defined via detailed FE models of the bolted connection • Difficult to extract all the parameters from an experiment G. Vallone 13 06/18/19

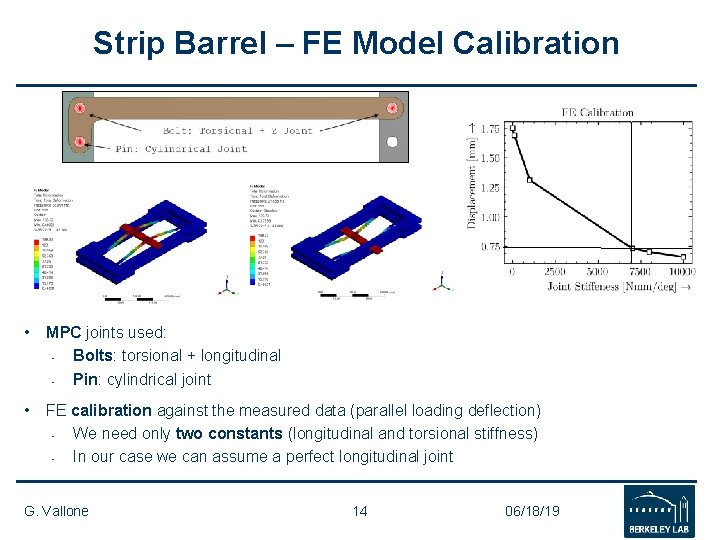

Strip Barrel – FE Model Calibration • MPC joints used: • Bolts: torsional + longitudinal • Pin: cylindrical joint • FE calibration against the measured data (parallel loading deflection) • We need only two constants (longitudinal and torsional stiffness) • In our case we can assume a perfect longitudinal joint G. Vallone 14 06/18/19

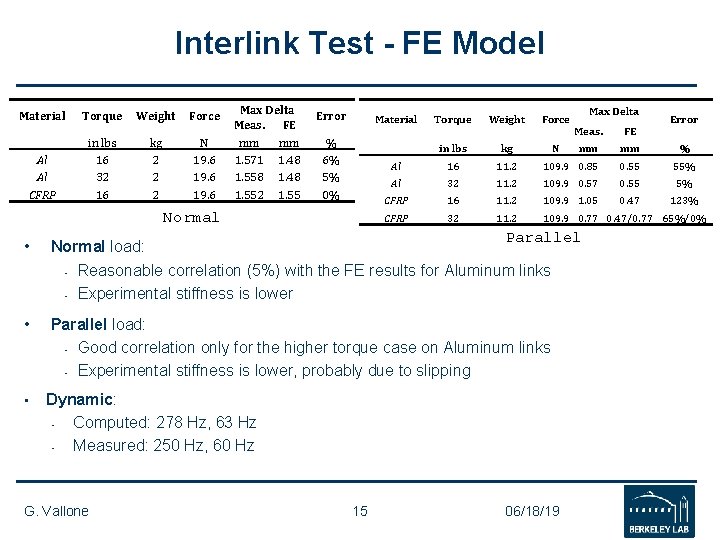

Interlink Test - FE Model Material Al Al CFRP Torque in lbs 16 32 16 Weight kg 2 2 2 Force N 19. 6 Max Delta Meas. FE mm mm 1. 571 1. 48 1. 558 1. 48 1. 552 1. 55 Error Material % 6% 5% 0% Normal • • • Torque Weight Force in lbs kg N Al 16 Al Max Delta FE mm mm % 11. 2 109. 9 0. 85 0. 55 55% 32 11. 2 109. 9 0. 57 0. 55 5% CFRP 16 11. 2 109. 9 1. 05 0. 47 123% CFRP 32 11. 2 109. 9 0. 77 0. 47/0. 77 65%/0% Parallel Normal load: • Reasonable correlation (5%) with the FE results for Aluminum links • Experimental stiffness is lower Parallel load: • Good correlation only for the higher torque case on Aluminum links • Experimental stiffness is lower, probably due to slipping Dynamic: • Computed: 278 Hz, 63 Hz • Measured: 250 Hz, 60 Hz G. Vallone 15 Error Meas. 06/18/19

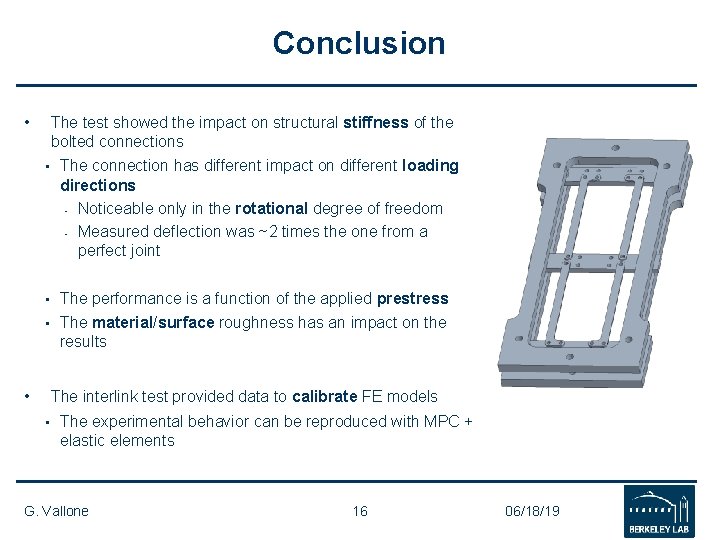

Conclusion • The test showed the impact on structural stiffness of the bolted connections • The connection has different impact on different loading directions • Noticeable only in the rotational degree of freedom • Measured deflection was ~2 times the one from a perfect joint • The performance is a function of the applied prestress • The material/surface roughness has an impact on the results • The interlink test provided data to calibrate FE models • The experimental behavior can be reproduced with MPC + elastic elements G. Vallone 16 06/18/19
