University of California, Berkeley Space Sciences Laboratory ICON End-To-End Operations Philosophy Will Marchant, Manfred Bester, Carl Dobson, Scott England, Stewart Harris, Mark Lewis, Will Rachelson, Bryce Roberts, Irene Rosen, and Ellen Taylor Space Sciences Laboratory University of California, Berkeley 2014 Workshop on Spacecraft Flight Software 1 Pasadena, CA, December 16 -18, 2014

Operations History at UCB/SSL EUVE FAST RHESSI Nu. STAR UCB/SSL operated 10 NASA Explorer spacecraft over a period of more than 20 years (7 are currently operational). CHIPS THEMIS / ARTEMIS ICON Mission Operations Center 2014 Workshop on Spacecraft Flight Software 2 BGS 11 -m ICON, the 11 th spacecraft, is scheduled for launch in 2017. Pasadena, CA, December 16 -18, 2014

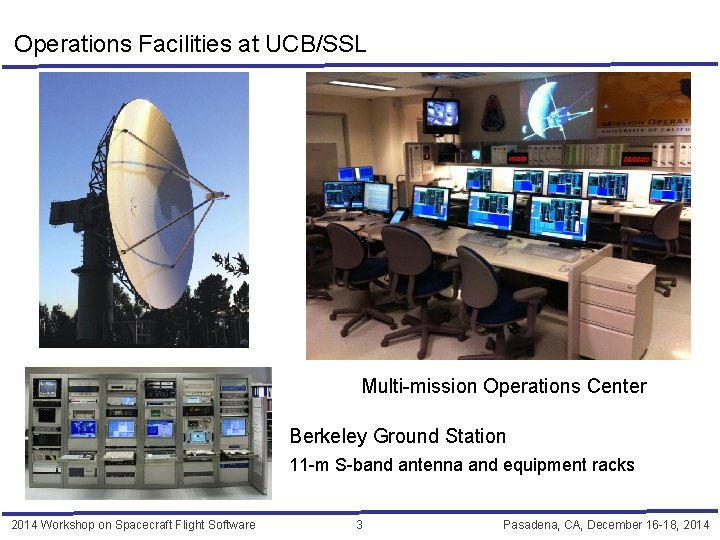

Operations Facilities at UCB/SSL Multi-mission Operations Center Berkeley Ground Station 11 -m S-band antenna and equipment racks 2014 Workshop on Spacecraft Flight Software 3 Pasadena, CA, December 16 -18, 2014

ICON Mission Implementation MIGHTI Mission Summary Cost $145 M (FY 11) $163 M (RY) Launch Vehicle Option B (Pegasus), Reagan Test Site Spacecraft LEOStar-2 bus, 3 -axis stabilized, no consumables Launch June 2017 Orbit 575 km circular, 27° inclination Ground Segment Berkeley Ground Station, WGS, WS 1, Santiago Mission & Science Ops 24 months Phase E, Operated from UCB 2014 Workshop on Spacecraft Flight Software EUV IVM FUV S/C 4 Pasadena, CA, December 16 -18, 2014

Photo Courtesy of Orbital Sciences Corporation 2014 Workshop on Spacecraft Flight Software 5 Pasadena, CA, December 16 -18, 2014

ICON Mission Science Objectives Measure altitude profiles of airglow near the Earth limb at visible and UV wavelengths via remote sensing, and measure in-situ ion densities and flows near the local magnetic field line to determine the connection between terrestrial weather and space weather. 300 km 200 km 100 km 2014 Workshop on Spacecraft Flight Software 6 Pasadena, CA, December 16 -18, 2014

ICON Participating Institutions and Team Roles Project Management Systems Engineering S&MA UV Instruments Payload Electronics Mission/Science Ops MIGHTI Neutral Wind Interferometer (2) Naval Research Laboratory Ion Velocity Meter (2) UT-Dallas UC Berkeley Payload Structure LEOStar-2 Spacecraft Observatory I&T ATK-Magna FUV Calibration Orbital Sciences Corporation Centre Spatial de Liège Instrument Support GSFC – Explorers Office KSC – LV Services Cameras/electronics Payload I&T Space Dynamics Lab NASA 2014 Workshop on Spacecraft Flight Software 7 Pasadena, CA, December 16 -18, 2014

ICON Mission Operations System Overview 2014 Workshop on Spacecraft Flight Software 8 Pasadena, CA, December 16 -18, 2014

Mission Operations System Architecture Overview § Most internal MOC systems and interfaces required for ICON are operational already within the multimission support environment. § All ICON network interfaces are already used with other missions. § New operational flight dynamics tools are added for ICON target processing, and for GPS based orbit determination and attitude maneuver QA. § Science operations planning and pipeline processing software tools are adapted from existing software. § IT Security Plan, physical and network controls are in place already and are regularly audited by the GSFC IONet Security Office. 2014 Workshop on Spacecraft Flight Software 9 Pasadena, CA, December 16 -18, 2014

Instrument Simulator Spacecraft Simulator Instrument Spacecraft Orbiting Observatory Ground Station TLM & CMD Network Routing Mission Development Phases Using Common Flight-like Interfaces ITOS Observatory CMD & CTRL TLM Source Packet Archive My. SQL DB Disk Storage Standardized interfaces at the CCSDS transfer frame layer allow usage of operational software from the earliest stages. 2014 Workshop on Spacecraft Flight Software 10 Pasadena, CA, December 16 -18, 2014

Strive for Realistic Testing § Ground Systems & Operations § § § Test-like-you-fly philosophy, follows Nu. STAR model used at UCB Box level to integrated systems level for all operations functions Early interface and data format verification via simulators End-to-end network data flows and pass simulations Science data flows from instrument to bus to ground and SOC pipeline § I&T Support § Portable MOC and BGS ground systems used as EGSE throughout I&T § UCB flight controllers participate as console operators in all I&T phases 2014 Workshop on Spacecraft Flight Software 11 Pasadena, CA, December 16 -18, 2014

MOC Supports Development, Integration & Testing § Taking advantage of fully integrated ground system to support spacecraft bus and instrument development § Participating in all phases from early flight software and hardware development to full-up observatory testing § Applying lessons learned: get involved early Taking the MOC to the ICON Spacecraft 2014 Workshop on Spacecraft Flight Software 12 Pasadena, CA, December 16 -18, 2014

Instrument Simulators and EM Development § EM development feeds simulator delivery § Software emulator: ICP-CE, software based emulator for IVM § Payload emulator: also hosting FSW, with simulated instrument data § Hardware simulators: EM 1, EM 2, EM 3 (hosting FSW) 2014 Workshop on Spacecraft Flight Software 13 Pasadena, CA, December 16 -18, 2014

ITOS Configuration and Testing § Converting legacy databases, scripts and telemetry pages to ITOS § ITOS supported Nu. STAR & ICON flight software development at Orbital § ITOS will also be used for instrument development and testing § Key strategy is to use standard CCSDS frames early in the development phase with small simulators serving as temporary stand-ins for not yet existing flight systems and software § Configuration management via Git § Data flows between Flat. Sat and MOC operational 2014 Workshop on Spacecraft Flight Software 14 Pasadena, CA, December 16 -18, 2014

Results & Lessons Learned § Use integrated MOC software (ITOS, Frame. Router, BTAPS) during earliest stages of I&T § Provide simple instrument simulators and interface modules to allow CCSDS transfer frame level interfacing to ITOS very early on § Steep ramp-up to get close to flight-like environment § Don’t be afraid of developing software in-house, but know where the limitations are of what makes sense § Integrate configuration management for all hardware and software solutions § Try to have Flat. Sat available with interfaces to the MOC 2014 Workshop on Spacecraft Flight Software 15 Pasadena, CA, December 16 -18, 2014

Summary § Successfully applied lessons learned from previous missions § Naturally, project and spacecraft contractor were skeptical about UCB proposal to deliver turn-key command control system with hardware and software for I&T, but concerns were dispersed relatively quickly § Operations team involvement beginning with ITOS configuration 2. 5 years before launch provides excellent training in preparation for on-orbit operations § Sizeable effort early on for operations team, but transition to on-orbit operations are very easy and low risk 2014 Workshop on Spacecraft Flight Software 16 Pasadena, CA, December 16 -18, 2014

Backup Slides 2014 Workshop on Spacecraft Flight Software 17 Pasadena, CA, December 16 -18, 2014

Abstract § § § The U. C. Berkeley Space Sciences Laboratory (SSL) Multi-mission Operations Center (MOC) provides support for Caltech's Nu. STAR mission and will operate the ICON mission (scheduled for launch in 2017. ) The MOC uses the Integrated Test and Operations System (ITOS) developed by NASA's GSFC and commercialized by The Hammers Company. The MOC supplied ITOS workstations and support for the Nu. STAR instrument and spacecraft development efforts. This led to very smooth observatory integration, launch operations, and on orbit operations. ICON is following in those footsteps with some enhancements from lessons learned on the Nu. STAR program. This talk will provide a brief overview of the suite of operations tools and discuss the advantages, and disadvantages, of using them for early flight software development and for integration and test activities. 2014 Workshop on Spacecraft Flight Software 18 Pasadena, CA, December 16 -18, 2014
