University Nano. Satellite Program (UNP) MANDATE Develop a “Space cadre” of highlytrained US university students Teach “hands-on” systems engineering through design, AI&T, launch and on-orbit operation of student-built nanosatellites SECONDARY GOALS Develop militarily-relevant small satellite technologies Develop US university space research capabilities Background: Nanosat-2 launch on Delta 4 Heavy (2004)

University Nano. Satellite Program Cycle Process Flow Flight Competition Review (FCR) Late March/Early April Odd Years AFOSR BAA Proposals Due Late CY Even Years Winner! AFRL/AFOSR/AIAA Rank Proposals via BAA reqs AFRL/VS Universities selected and notified January Odd Years Open to U. S. Universities only Former Student PM’s now Professor PI’s ~2 years Program Management Launch Opportunity Via AFRL/SMC (SERB) Systems Eng Kick off meeting Competition begins Early spring Odd Years S/C Eng Flight I&T Grants awarded (After Kick Off Meeting) ~110 K / school over 2 years Cycle Repeats every 2 Years – 2 Cycles running at any point in time

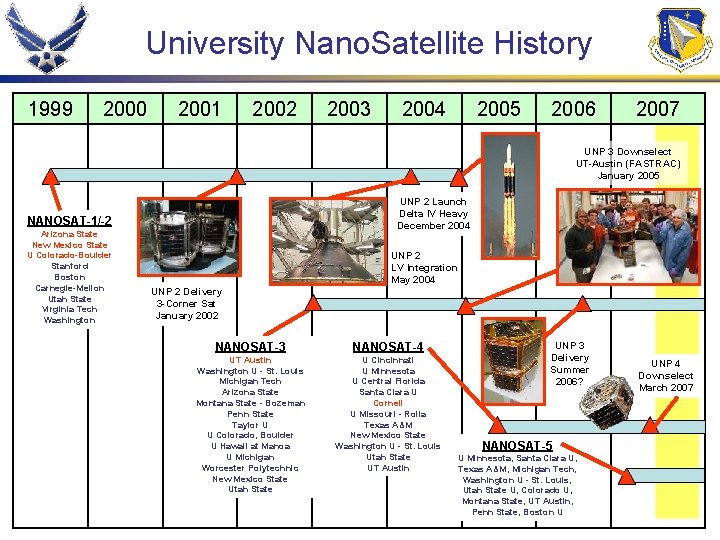

University Nano. Satellite History 1999 2000 2001 2002 2003 2004 2005 2006 2007 UNP 3 Downselect UT-Austin (FASTRAC) January 2005 UNP 2 Launch Delta IV Heavy December 2004 NANOSAT-1/-2 Arizona State New Mexico State U Colorado-Boulder Stanford Boston Carnegie-Mellon Utah State Virginia Tech Washington UNP 2 LV Integration May 2004 UNP 2 Delivery 3 -Corner Sat January 2002 NANOSAT-3 NANOSAT-4 UT Austin Washington U - St. Louis Michigan Tech Arizona State Montana State - Bozeman Penn State Taylor U U Colorado, Boulder U Hawaii at Manoa U Michigan Worcester Polytechnic New Mexico State Utah State U Cincinnati U Minnesota U Central Florida Santa Clara U Cornell U Missouri - Rolla Texas A&M New Mexico State Washington U - St. Louis Utah State UT Austin UNP 3 Delivery Summer 2006? NANOSAT-5 U Minnesota, Santa Clara U, Texas A&M, Michigan Tech, Washington U - St. Louis, Utah State U, Colorado U, Montana State, UT Austin, Penn State, Boston U UNP 4 Downselect March 2007

University & Student Involvement 25 universities and >2500 students since 1999

Three Corner Sat (University Nano. Sat 1/2) Project Objective • Provide flight demonstration capability to two AFRL SBIR-developed low shock release devices • Study ionospheric disturbances • Measure upper atmosphere cloud formation • Simulate formation flying capability Technical Innovation / Approach • Three nearly identical independent satellites built by three separate universities • Each university plus AFRL launcher combined to form Nanosat-2 Delta-IV Heavy Liftoff Impacts / Benefits • Education legacy of the Future Aerospace Workforce • Advertisement of AFRL for recruitment • Dec 2004 – Nanosat-2 Three Corner Satellite (3 CS) Launched on the first Delta IV Heavy Demo Mission Nanosat-2 aloft Demosat on Delta IV Heavy

FASTRAC (University Nano. Sat 3) http: //fastrac. ae. utexas. edu/ (Formation Autonomous Satellite with Thrust, Relnav & Crosslink) OBJECTIVE: §Primary: Low-cost, small, precise GPS rel-nav metrology §Secondary: Demo motorized Lightband separation system & Micro-Discharge Plasma Thruster DESCRIPTION • One satellite maintains orbit altitude, the other is a drifting “control” • Verified by GPS telemetry, potentially by ground-based tracking

CUSat (University Nano. Sat-4) http: //cusat. cornell. edu/ OBJECTIVE • Demonstrate and verify on orbit Carrier-phase Differential GPS for relative navigation • Demonstrate an end-to-end autonomous on orbit visual inspection system. DESCRIPTION • Centimeter-level accurate Carrierphase Differential GPS • Cameras to gather target-satellite imagery • Image-processing techniques to verify the CDGPS relative distance and orientation estimates Generation of a 3 D model of the target satellite for the user.

Nano. Sat-5 • Competition in progress • Eleven schools participating • Missions varied from ionospheric observations, to autonomous separation and GPS navigation, to remote sensing using GPS signals. • Preliminary Design Review (PDR) will occur in August 2007 at the USU Small. Sat Conference.

AFRL Sponsored Activities Hands-on Standard Sat-Fab Practices • Aerospace Engineering Facility (AEF) @ KAFB • Includes clean room procedures, elec/mech fab • All Universities participate (~50 Students on-site) Formal Review Process NS-4 PDR, Logan, UT, August 2005 • SCR (System Concept) (t = 0) • Internal AFRL/NASA review (telecon) • PDR (6 months @ Small. Sat, Logan, UT) • ~20 Industry/Government reviewers • CDR (~1 year @ each university campus) • AFRL + selected others (industry) experts • Proto-Qualification Review (1. 5 years, @ Small. Sat) • Format as PDR w/ fully-built EDU • FCR (Flight Competition) (2 years, Location varies) • Formal Panel of Judges and Criteria w/ downselect

SHOT – Student Hands-On Training Workshop High Altitude Balloon Payload Workshop Colorado Space Grant University of Colorado Boulder, CO First Year: Standard Kit Payloads Second Year: Nanosatellite Subcomponent Payloads (e. g. sensor, comm box, etc)

Summary • Program Success – – Strong, persistent University participation Strong support from AF and AIAA Nano. Sat-1/2 launched Nano. Sat-3 delivered and in-storage • Upcoming Events – Working manifest for Nano. Sat-3 (UT-A) w/ SMC SDTW – Nano. Sat-4 (Cornell) slated for delivery Fall 2007 – Nano. Sat-5 PDR August 2007, FCR ~Spring 2009 Questions?
