Overview n Introduction to quantum monte carlo methods ´ n VMC, QMC, advantages and drawbacks Stability and structure of small 3 He/4 He mixed clusters ´ Trimers Dario Bressanini – Göttingen 24/05/2002 2
Monte Carlo Methods n How to solve a deterministic problem using a Monte Carlo method? n Rephrase the problem using a probability distribution n “Measure” A by sampling the probability distribution Dario Bressanini – Göttingen 24/05/2002 3
Monte Carlo Methods n The points Ri are generated using random numbers This is why the methods are called Monte Carlo methods n Metropolis, Ulam, Fermi, Von Neumann (-1945) n We introduce noise into the problem!! ´ Our results have error bars. . . ´ . . . Nevertheless it might be a good way to proceed Dario Bressanini – Göttingen 24/05/2002 4
VMC: Variational Monte Carlo n To solve H Y = E Y start from the Variational Principle n Translate it into Monte Carlo language Dario Bressanini – Göttingen 24/05/2002 7
VMC: Variational Monte Carlo n E is a statistical average of the local energy EL over P(R) n Recipe: ´ take an appropriate trial wave function ´ distribute N points according to P(R) ´ compute the average of the local energy Dario Bressanini – Göttingen 24/05/2002 8
The Metropolis Algorithm ? n How do we sample n Use the Metropolis algorithm (M(RT)2 1953). . . and a powerful computer Anyone who consider n The algorithm is a random arithmetical methods of producing random digits walk (markov chain) in is, of course, in a state of sin. configuration space John Von Neumann Dario Bressanini – Göttingen 24/05/2002 9
Dario Bressanini – Göttingen 24/05/2002 10
The Metropolis Algorithm move Ri Call the Oracle Rtry reject accept Ri+1=Ri Ri+1=Rtry Compute averages Dario Bressanini – Göttingen 24/05/2002 11

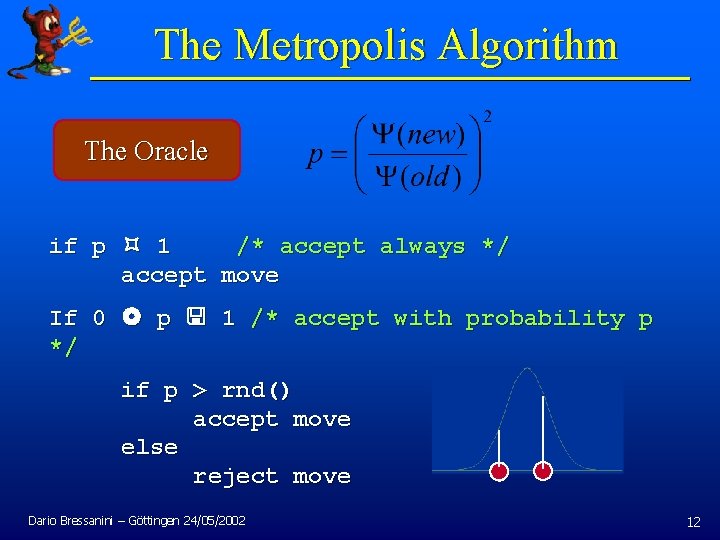

The Metropolis Algorithm The Oracle if p 1 /* accept always */ accept move If 0 p 1 /* accept with probability p */ if p > rnd() accept move else reject move Dario Bressanini – Göttingen 24/05/2002 12
VMC: Variational Monte Carlo n No need to analytically compute integrals: complete freedom in the choice of the trial wave function. n Can use explicitly correlated wave functions n Can satisfy the cusp conditions r 12 r 2 He atom Dario Bressanini – Göttingen 24/05/2002 13
VMC advantages n Can compute lower bounds n Can go beyond the Born-Oppenheimer approximation, with ANY potential, in ANY number of dimensions. Ps 2 molecule (e+e+e-e-) in 2 D and 3 D M+m+M-m- as a function of M/m Dario Bressanini – Göttingen 24/05/2002 14
First Major VMC Calculations n n Mc. Millan VMC calculation of ground state of liquid 4 He (1964) Generalized for fermions by Ceperley, Chester and Kalos PRB 16, 3081 (1977). Dario Bressanini – Göttingen 24/05/2002 18
VMC drawbacks n Error bar goes down as N-1/2 n It is computationally demanding n The optimization of Y becomes difficult as the number of nonlinear parameters increases n It depends critically on our skill to invent a good Y n There exist exact, automatic ways to get better wave functions. Let the computer do the work. . . Dario Bressanini – Göttingen 24/05/2002 19

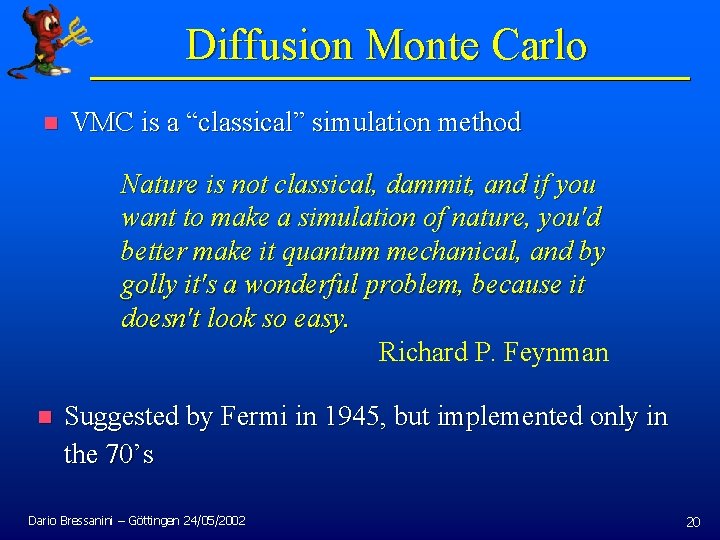

Diffusion Monte Carlo n VMC is a “classical” simulation method Nature is not classical, dammit, and if you want to make a simulation of nature, you'd better make it quantum mechanical, and by golly it's a wonderful problem, because it doesn't look so easy. Richard P. Feynman n Suggested by Fermi in 1945, but implemented only in the 70’s Dario Bressanini – Göttingen 24/05/2002 20
Diffusion equation analogy n The time dependent Schrödinger equation is similar to a diffusion equation n The diffusion equation can be “solved” by directly simulating the system Time evolution Diffusion Branch Can we simulate the Schrödinger equation? Dario Bressanini – Göttingen 24/05/2002 21
Imaginary Time Sch. Equation n The analogy is only formal ´ n Y is a complex quantity, while C is real and positive If we let the time t be imaginary, then Y can be real! Imaginary time Schrödinger equation Dario Bressanini – Göttingen 24/05/2002 22
Y as a concentration n Y is interpreted as a concentration of fictitious particles, called walkers n The schrödinger equation is simulated by a process of diffusion, growth and disappearance of walkers Ground State Dario Bressanini – Göttingen 24/05/2002 23
Diffusion Monte Carlo SIMULATION: discretize time • Diffusion process • Kinetic process (branching) Dario Bressanini – Göttingen 24/05/2002 24
The DMC algorithm Dario Bressanini – Göttingen 24/05/2002 25
The Fermion Problem n Wave functions for fermions have nodes. ´ Diffusion equation analogy is lost. Need to introduce positive and negative walkers. The (In)famous Sign Problem n Restrict random walk to a positive region bounded by nodes. Unfortunately, the exact nodes are unknown. n Use approximate nodes from a trial Y. Kill the walkers if they cross a node. Dario Bressanini – Göttingen 24/05/2002 + - 26

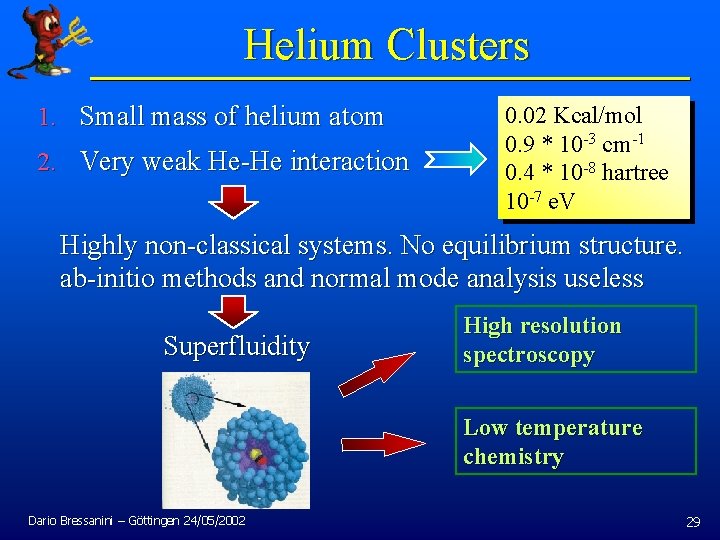

Helium Clusters 1. Small mass of helium atom 2. Very weak He-He interaction 0. 02 Kcal/mol 0. 9 * 10 -3 cm-1 0. 4 * 10 -8 hartree 10 -7 e. V Highly non-classical systems. No equilibrium structure. ab-initio methods and normal mode analysis useless Superfluidity High resolution spectroscopy Low temperature chemistry Dario Bressanini – Göttingen 24/05/2002 29
The Simulations n Both VMC and DMC simulations n Potential = sum of two-body TTY pair-potential n Three-body terms not important for small clusters n Standard Dario Bressanini – Göttingen 24/05/2002 30
4 He Clusters Stability n 4 He dimer exists 2 n All clusters bound Liquid: stable 4 He bound. Efimov effect? 3 Dario Bressanini – Göttingen 24/05/2002 31
Pure 4 Hen Clusters DMC gives exact results. The quality of the VMC simulations decreases as the cluster increases Dario Bressanini – Göttingen 24/05/2002 32
3 He Clusters Stability n n What is the smallest 3 Hem stable cluster ? 3 He m 3 He 2 dimer unbound n m = ? 20 < m < 35 critically bound Liquid: stable Even less is known for mixed clusters. Is 3 Hem 4 Hen stable ? Dario Bressanini – Göttingen 24/05/2002 34
3 He 4 He Clusters Stability n Bonding interaction Non-bonding interaction 3 He 4 He dimer unbound 3 He 4 He 2 Trimer bound 3 He 4 He n All clusters up bound 3 He 4 He E = -0. 00984(5) cm-1 2 4 He -1 3 E = -0. 08784(7) cm Dario Bressanini – Göttingen 24/05/2002 35
Mixed 3 He 4 Hen Clusters (m, n) = 3 Hem 4 Hen Bressanini et. al. J. Chem. Phys. 112, 717 (2000) 4 He is n destabilized by substituting a 4 He with a 3 He Dario Bressanini – Göttingen 24/05/2002 36

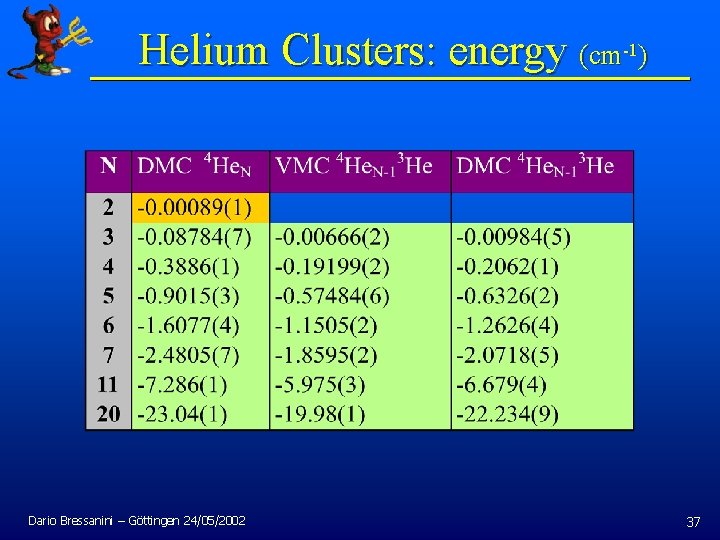

Helium Clusters: energy (cm-1) Dario Bressanini – Göttingen 24/05/2002 37
3 He/4 He Distribution Functions Pair distribution functions 3 He 4 He 5 Dario Bressanini – Göttingen 24/05/2002 38
3 He/4 He Distribution Functions Distributions with respect to the center of mass 3 He 4 He 5 c. o. m Dario Bressanini – Göttingen 24/05/2002 39
Distribution Functions c. o. m. = center of mass r(4 He-C. O. M. ) Similar to pure clusters Dario Bressanini – Göttingen 24/05/2002 r(3 He-C. O. M. ) 3 He is pushed away 41
4 What is the shape of He 3 ?

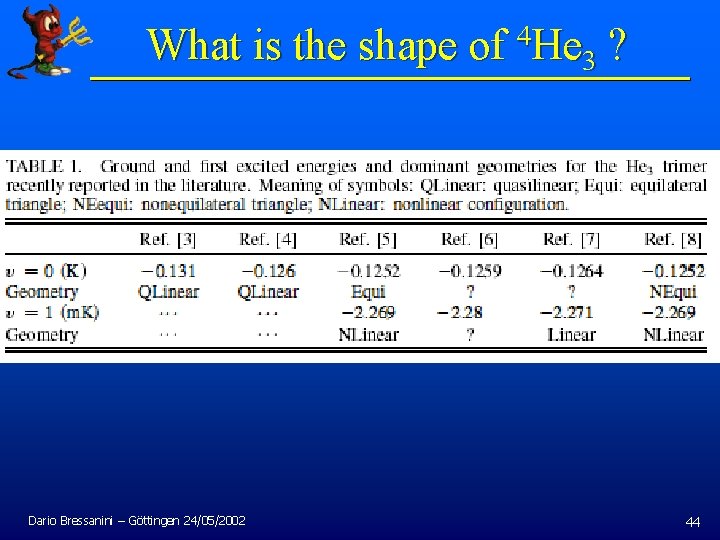

What is the shape of 4 He 3 ? n Some people say is an equilateral triangle. . . n . . . some say it is linear (almost). . . n . . . some say it is both. Pair distribution function We find NO sign of double peak Dario Bressanini – Göttingen 24/05/2002 43
What is the shape of 4 He 3 ? Dario Bressanini – Göttingen 24/05/2002 44

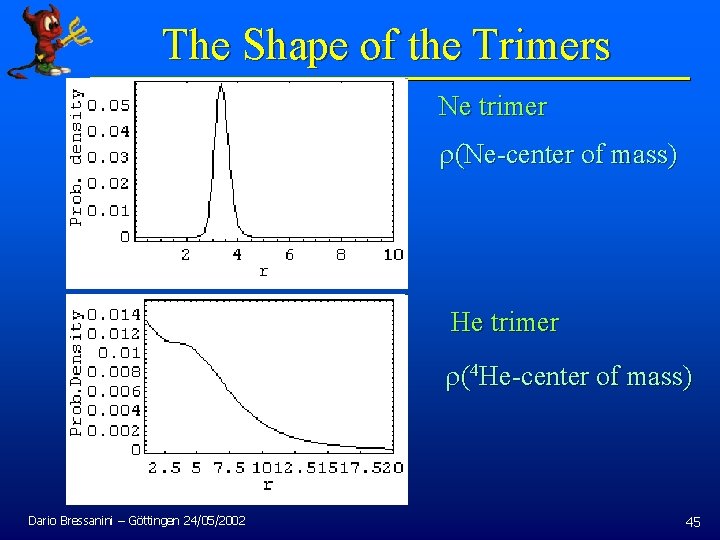

The Shape of the Trimers Ne trimer r(Ne-center of mass) He trimer r(4 He-center of mass) Dario Bressanini – Göttingen 24/05/2002 45
Ne 3 Angular Distributions a b Ne trimer b b a a Dario Bressanini – Göttingen 24/05/2002 46
4 He Angular Distributions 3 b a b b a a Dario Bressanini – Göttingen 24/05/2002 47
3 He 4 He Angular Distributions 2 a b b b a Dario Bressanini – Göttingen 24/05/2002 a 48

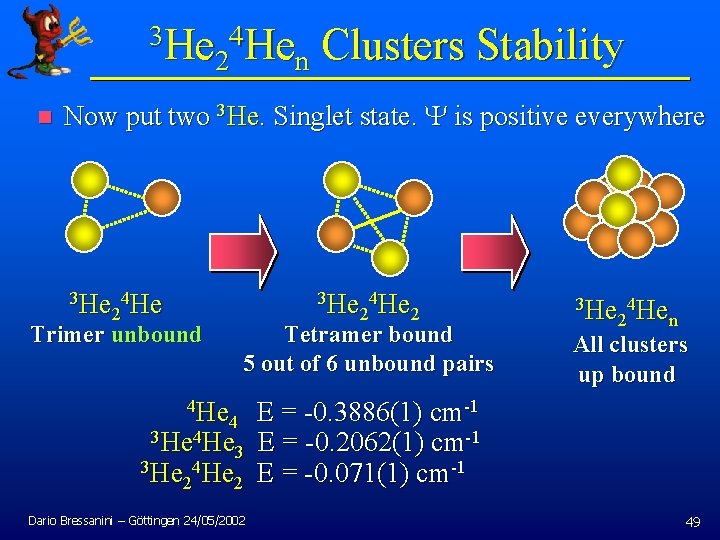

3 He 4 He Clusters Stability 2 n n Now put two 3 He. Singlet state. Y is positive everywhere 3 He 4 He 2 Trimer unbound 3 He 4 He 2 2 Tetramer bound 5 out of 6 unbound pairs 3 He 4 He 2 n All clusters up bound 4 He -1 4 E = -0. 3886(1) cm 3 He 4 He E = -0. 2062(1) cm-1 3 3 He 4 He E = -0. 071(1) cm-1 2 2 Dario Bressanini – Göttingen 24/05/2002 49
3 He 4 He Clusters Structure 2 n n The two 3 He atoms stay mainly on the surface of the 4 He cluster 3 He 4 He 2 10 Dario Bressanini – Göttingen 24/05/2002 50
3 He 4 He Clusters Stability 3 n n Adding a third fermionic helium, introduces a nodal surface into the wave function that destabilizes the system n What is the smallest 3 He 34 Hen stable cluster ? n 3 He is bound, so 3 He 4 He should be bound. n < 32 35 3 32 Dario Bressanini – Göttingen 24/05/2002 51
The Wave Function n The total wave function must be antisymmetric with respect to the fermionic helium n Consider the doublet spin eigenfunction (two a and one b) ´ The 4 He-4 He and 4 He-3 He functions are symmetric ´ The 3 He-3 He part is antisymmetric Dario Bressanini – Göttingen 24/05/2002 52
3 He 4 He m = 0, 1, 2, 3 Energies m n Dario Bressanini – Göttingen 24/05/2002 53

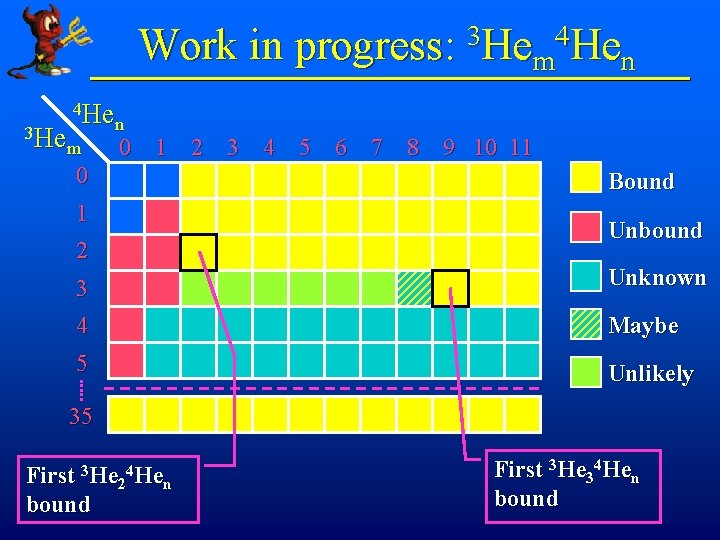

Work in progress: 3 Hem 4 Hen 3 Hem 0 1 2 3 4 5 6 7 8 9 10 11 0 1 2 Bound Unbound 3 Unknown 4 Maybe 5 Unlikely 35 First 3 He 24 Hen bound First 3 He 34 Hen bound
3 He 4 He m = 0, 1, 2, 3 m 10 4 He distribution with respect to the center of mass r(4 He-C. O. M. ) c. o. m The 4 He distribution is unchanged with 0, 1, 2 or 3 3 He Dario Bressanini – Göttingen 24/05/2002 55
3 He 4 He m = 0, 1, 2, 3 m 10 3 He distribution with respect to the center of mass 3 He 4 He 10 r(3 He-C. O. M. ) c. o. m 3 He 4 He 2 10 Dario Bressanini – Göttingen 24/05/2002 3 He 4 He 3 10 56
3 He 4 He m = 0, 1, 2, 3 m 10 3 He distribution with respect to the center of mass r(3 He-C. O. M. ) One a 3 He is pushed inside the cluster, the other two (a, b) outside Dario Bressanini – Göttingen 24/05/2002 57
3 He 4 He m = 0, 1, 2, 3 m 10 3 He- 3 He distributions r(3 He- 3 He) a outside b outside on opposite sides a outside a inside b outside a inside The (tentative) picture: two 3 He outside (a, b) and one a inside, pushed away from the other a 3 He Dario Bressanini – Göttingen 24/05/2002 a a b 4 He 10 58
3 He 4 He 3 10 a a 4 He 10 b Why ? It is a Nodal Effect. The wave function is zero if the two a 3 He are at the same distance from the b 3 He. For this reason the three atoms are not free to move on the surface of the cluster. One is pushed inside to avoid the wave function node. Dario Bressanini – Göttingen 24/05/2002 59
More Flexible Wave Function n The standard form is not very flexible n Difficult to optimize n Difficult to reproduce the shell structure Dario Bressanini – Göttingen 24/05/2002 61
Different wave function form 0. 60 f(r) 0. 40 0. 20 0. 00 Dario Bressanini – Göttingen 24/05/2002 2. 00 4. 00 6. 00 r (a. u. ) 8. 00 10. 00 62
Spline Wave Function SF 6 He 39 Knots of the He-SF 6 spline function Dario Bressanini – Göttingen 24/05/2002 63
Shell Structure Standard r(4 He-SF 6) Spline Dario Bressanini – Göttingen 24/05/2002 64
Work in Progress and Future n Various impurities embedded in a Helium cluster (suggestions welcome!) n Different functional forms for Y (splines) ´ anisotropy n Analysis of 3 He 34 Hen n What about 3 He 44 Hen and 3 He 54 Hen ? Dario Bressanini – Göttingen 24/05/2002 67
Acknowledgments Gabriele Morosi Mose’ Casalegno Giordano Fabbri Matteo Zavaglia Dario Bressanini – Göttingen 24/05/2002 69
