The Problem and Goal

The Integration Problem & Goal Current Point-to-Point Approach --- n(n-1) Future UDEF Canonical Approach --- 2 n Global Canonical Standard 400 350 300 $$ 250 200 150 Savings 100 50 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Page 3

The Interoperability Challenge “According to Gartner Group, 35 -40% of all programming effort in a typical computing environment is devoted to developing and maintaining the extract and update programs whose only purpose is to transfer information between different databases. ” Quote from Ernst & Young Financial Analysis of “Enterprise Application Integration – Constellar and British Power Achieving Business Benefit” “Interoperability required the entire interfaces between applications to be standardized. Only 5% of the interface is a function of the middleware choice. The remaining 95% is a function of application semantics. ” Gartner Group Application Integration “Semantics” Messaging and Transport Services 95% 5% Page 4

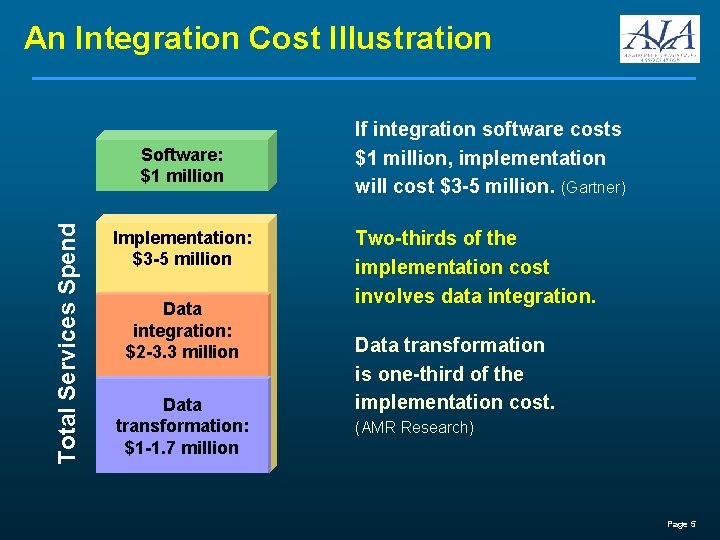

An Integration Cost Illustration Total Services Spend Software: $1 million Implementation: $3 -5 million Data integration: $2 -3. 3 million Data transformation: $1 -1. 7 million If integration software costs $1 million, implementation will cost $3 -5 million. (Gartner) Two-thirds of the implementation cost involves data integration. Data transformation is one-third of the implementation cost. (AMR Research) Page 5

The Standards Problem Summarized Conflicting Overlaps EIA-836 Config Mgmt STEP (CAD) X 12/EDIFACT (EDI) Other XML Standards Legacy Data Though semantically equal, the following are 4 different XML tag names <PARTNUMBER>111 -222 -333</PARTNUMBER> <part. Number>111 -222 -333</part. Number> <Part. Number>111 -222 -333</Part. Number> <partnumber>111 -222 -333</partnumber> As result, many industries including aerospace are defining their metadata Page 6 (tag name) XML standards necessary for e-business – too many standards

Small Sample of the “Other XML Standards” • • • HL 7 - Health Care http: //www. hl 7. org/ IFX - Interactive Financial Exchange http: //www. ifxforum. org/ FPML – Financial Products http: //www. fpml. org/ SWIFT – Business Messages based on EDIFACT (for International Trading Partners) http: //www. swift. com/index. cfm HR-XML – Human Resources and Benefits http: //www. hr-xml. org/channels/home. htm OAG – ERP and Middleware Vendors http: //www. openapplications. org/ Rosetta. Net – IT and Electronic Components Industry http: //www. rosettanet. org/rosettanet/Rooms/Display. Pages/Layout. Initial ACORD – XML for the Insurance Industry http: //www. acord. org/ XBRL – Business Reporting - Accounting http: //www. xbrl. org/ Tran. XML – Transportation XML http: //www. transentric. com/default 2. asp Page 7

Example Overlaps UDDI AIA Transactions - Universal Unique ID (UUID) - Globally unique - Supports many ID codes - 128 bit hexadecimal (8 char AN) UDDI EIA-836 - Organization ID - Supports many ID codes EIA 836 Collaboration » CAGE, DUNS, FSCM, etc. - ID length not specified AIA EDI - Originating Company ID Number - Supports many ID codes » CAGE, DUNS, FSCM, etc. - ID length (10 char AN) STEP Collaboration Example Overlaps • Supplier ID • Address • Part Number Page 8

The Universal Data Element Framework (UDEF) and its Foundation

Universal Data Element Framework Summary Description The UDEF is a rules-based metadata naming convention that follows the principles of ISO 11179 and supports the eb. XML core components naming convention. Once a data element concept has been mapped to the UDEF, the data element can then be assigned a UDEF derived intelligent unique ID. The UDEF was officially adopted by the AIA Metadata Harmonization Project Team in January 2002 Current Business Problem • • • Point-to-point interfaces are the norm Mappings are time consuming process Lack consistent naming convention Lack standard data names System experts often retained to support Interface development Page 10

UDEF Background CALS ISG - Developed UDEF EIA- Applied UDEF in the late 80 s – early 90 s Industry Ron Schuldt (Chair) - Lockheed Martin Barbara Barman (Vice Chair) - Raytheon Rob Bryant - Dyn. Corp Ruey Chen - David Taylor Research Center Bob Hodges - Texas Instruments Neal Mc. Namara - Analysis & Technology Inc. Bud Orlando - TRW Madelyn van der Bokke - ASEC George Walther - Lockheed Martin in the mid 90 s and 2002 Industry Ron Schuldt (Chair) - Lockheed Martin Rick Lang - Texas Instruments Pam Stanfield - Lockheed Martin Gary O’Hara - Hughes Space and Comm Tony Di. Perna - Ericsson Communications Ken Mc. Tee - Texas Instruments Cindy Hauer - Mevatec Corp Fred Bahrs - CMstat Corporation Doug Drury - ITT Federal Services Lee Le. Clair - Texas Instruments Government Norma Kornwebel - PM JCALS Dinah Beres - NAWC Steve Waterbury - NASA Government Deborah Cornelius - US Army Missile Cmd C. H. Van. Landingham - NOAA Nat’l Wea Svc Today AFEI (formerly CALS ISG) holds the Intellectual Property Rights to the UDEF Page 11

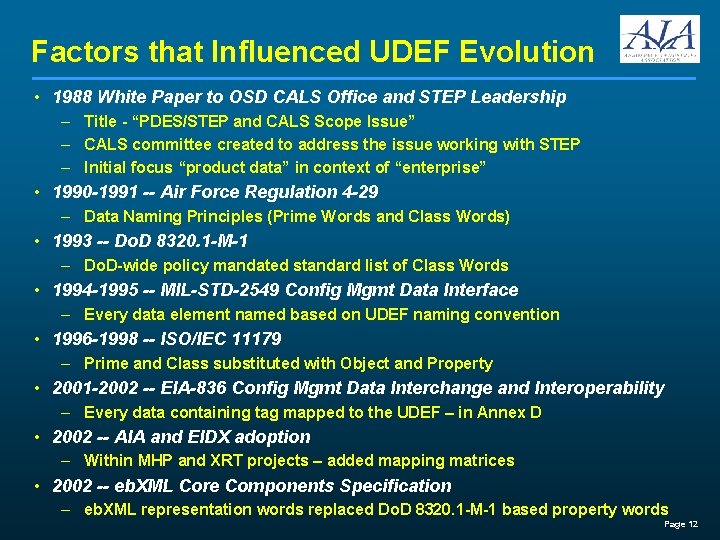

Factors that Influenced UDEF Evolution • 1988 White Paper to OSD CALS Office and STEP Leadership – Title - “PDES/STEP and CALS Scope Issue” – CALS committee created to address the issue working with STEP – Initial focus “product data” in context of “enterprise” • 1990 -1991 -- Air Force Regulation 4 -29 – Data Naming Principles (Prime Words and Class Words) • 1993 -- Do. D 8320. 1 -M-1 – Do. D-wide policy mandated standard list of Class Words • 1994 -1995 -- MIL-STD-2549 Config Mgmt Data Interface – Every data element named based on UDEF naming convention • 1996 -1998 -- ISO/IEC 11179 – Prime and Class substituted with Object and Property • 2001 -2002 -- EIA-836 Config Mgmt Data Interchange and Interoperability – Every data containing tag mapped to the UDEF – in Annex D • 2002 -- AIA and EIDX adoption – Within MHP and XRT projects – added mapping matrices • 2002 -- eb. XML Core Components Specification – eb. XML representation words replaced Do. D 8320. 1 -M-1 based property words Page 12

UDEF Rules Based Naming Convention Complies with ISO 11179 Naming Convention and Supports eb. XML Data Element Object Class List Name Entity Document Enterprise Object Class Term Property Term Place Program 0. . . n qualifiers + 0. . n qualifiers + 1 or more reqd Product 1 reqd Property Object Class Process Person Asset Example Data Element Names Law-Rule Document Abstract Text Environment Enterprise Name Condition Product Price Amount Liability Product Scheduled Delivery Date Animal Engineering Design Process Cost Amount Plant Mineral + Property List Amount Code Date Time Graphic Identifier Indicator Measure Name Percent Picture Quantity Rate Text Time Value Names constructed follow the rules of English – modifiers precede the word they modify Page 13

ISO/IEC 11179 Part 1: Framework for the Specification and Standardization of Data Elements Part 2: Classification for Data Elements Part 3: Basic Attributes of Data Elements Part 4: Rules and Guidelines for the Formulation of Data Definitions Part 5: Naming and Identification Principles for Data Elements Part 6: Registration of Data Elements Page 14

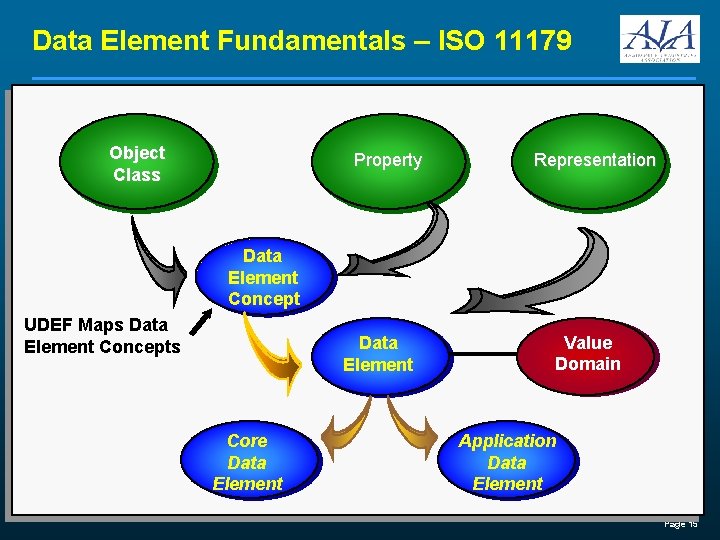

Data Element Fundamentals – ISO 11179 Object Class Property Representation Data Element Concept UDEF Maps Data Element Concepts Data Element Core Data Element Value Domain Application Data Element Page 15

Data Naming Fundamentals – ISO 11179 naming scheme has three major components: 1. Object Class identifies the primary concept of a data element 2. Property identifies the characteristics of the object class 3. A Representation Class categorizes the format of the data element • For example, the property “date” can be represented in many different formats such as July 24, 2002 or 7 -24 -02 or 20020724 Page 16

Data Element Concept per ISO 11179 Data Element Concept - definition A concept that can be represented in the form of a data element, described independently of any particular representation. Page 17

Comparison to Data Model Terminology Page 18

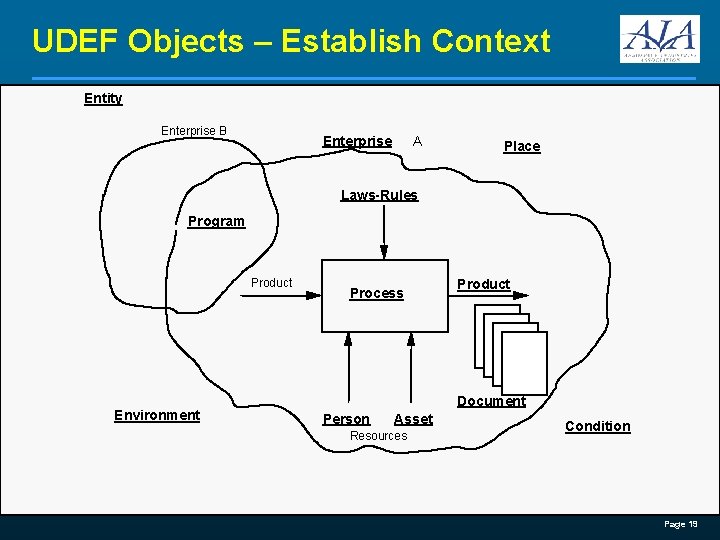

UDEF Objects – Establish Context Entity Enterprise B Enterprise A Place Laws-Rules Program Product Environment Process Product Document Person Asset Resources Condition Page 19

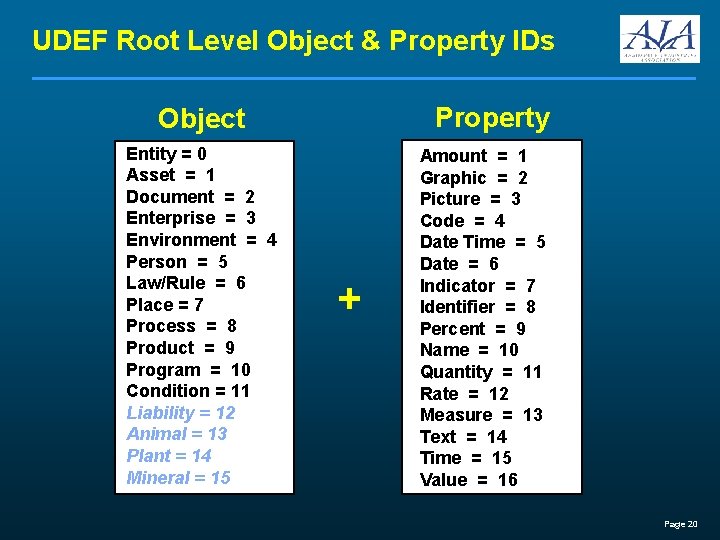

UDEF Root Level Object & Property IDs Property Object Entity = 0 Asset = 1 Document = 2 Enterprise = 3 Environment = 4 Person = 5 Law/Rule = 6 Place = 7 Process = 8 Product = 9 Program = 10 Condition = 11 Liability = 12 Animal = 13 Plant = 14 Mineral = 15 + Amount = 1 Graphic = 2 Picture = 3 Code = 4 Date Time = 5 Date = 6 Indicator = 7 Identifier = 8 Percent = 9 Name = 10 Quantity = 11 Rate = 12 Measure = 13 Text = 14 Time = 15 Value = 16 Page 20

UDEF Object Definitions Entity - Any concrete or abstract thing of interest, including associations among things Asset - Any data or information about any resource, other than human, which is used, consumed, or available for use/consumption by any process of an enterprise Document - Any data or information about any collection of data or information, regardless of format, which has definable boundaries and is so designated for one or more purposes Enterprise - Any data or information about any definable boundary collection of person and asset resources used to perform a collection of processes to create one or more products which are intended for use or consumption by outside entities Environment - Any data or information about any natural or man-made surrounding that is relevant to the enterprise Person - Any data or information about any person that is relevant to the enterprise Law-Rule - Any data or information about laws (natural or man-made) or policies that govern any process of the enterprise Place - Any data or information about any location that is relevant to the enterprise Process - Any data or information about a definable course of events distinguishable by its purpose or by its effect, whether natural, manual, automated or machine supported and which is relevant to the enterprise Product - Any data or information regarding something that is the result of a set of processes and which is intended to be used or consumed by activities outside of the enterprise Program - Any data or information about any definable collection of enterprises bound by a common set of objectives Condition - Any data or information that describes the state of something of interest to the enterprise Page 21

UDEF Property Definitions Amount - always monetary Code - a character string used to replace a definitive value Date - a day within a particular calendar year (a type of date time) Date Time - a particular point in the progression of time Graphic - a diagram, graph, mathematical curve or similar representation Identifier - a character string used to identify and distinguish uniquely Indicator - a list of two and only possible values (synonym for Boolean) Measure - a description of the attributes associated with a numeric value that is determined by measuring an object (Unit of Measure) Name - a word or phrase that distinctively designates a person, place, etc. (a type of text) Percent - a rate expressed in hundredths between two values with same Uo. M (a type of numeric) Picture - a visual representation of a person, object, or scene Quantity - a number of non-monetary units - associated with objects (a type of numeric) Rate - a quantity or amount measured with respect to another quantity or amount (a type of numeric) Text - a character string generally in the form of words of a language Time – the time within a (not specified) day (a type of date time) Value – numeric information that is assigned or determined by calculation, counting, or sequencing (a type of numeric) Page 22

Example Object Tree Extract DOCUMENT Agreement Order s Instruction t License Work Change c Partner a b Modification Purchase a d Equipment c a a Air Force Limited Duration a a Memorandum-Of a Manual v Work b Data w List a Technical a b Contract a Rapid Action Trading Item u Technical a (2) Manufacturing a Requirements Changed e Army Alias c Revised d b a Controlling b Data United States a a a United States a Contract a Page 23

Example Property Tree Extract IDENTIFIER Assigned 35 Action Designator 33 (8) 34 Reference 1 Vendor 1 NATO 10 Purchaser Manufacturer 9 EAN-UCC 2 Sender Air Force 4 DUNS 3 5 United States 1 UDDI 8 7 Defense Logistics 6 Page 24

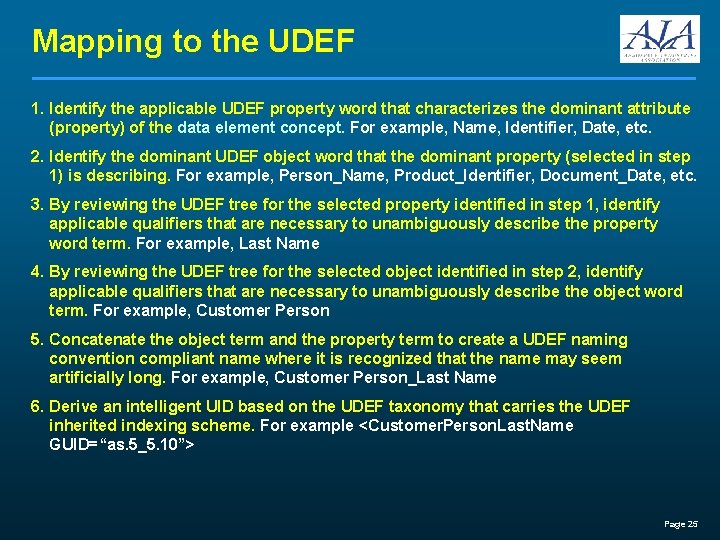

Mapping to the UDEF 1. Identify the applicable UDEF property word that characterizes the dominant attribute (property) of the data element concept. For example, Name, Identifier, Date, etc. 2. Identify the dominant UDEF object word that the dominant property (selected in step 1) is describing. For example, Person_Name, Product_Identifier, Document_Date, etc. 3. By reviewing the UDEF tree for the selected property identified in step 1, identify applicable qualifiers that are necessary to unambiguously describe the property word term. For example, Last Name 4. By reviewing the UDEF tree for the selected object identified in step 2, identify applicable qualifiers that are necessary to unambiguously describe the object word term. For example, Customer Person 5. Concatenate the object term and the property term to create a UDEF naming convention compliant name where it is recognized that the name may seem artificially long. For example, Customer Person_Last Name 6. Derive an intelligent UID based on the UDEF taxonomy that carries the UDEF inherited indexing scheme. For example <Customer. Person. Last. Name GUID=“as. 5_5. 10”> Page 25

Goal - UDEF IDs Become Global Unique IDs (GUIDs) UDEF ID = eb. XML UID EIA-836 X 12 (EDI) 9_5. 8 Product Part Identifier Product/Service ID 9_9 Product Name Product/Service Name y. 3_9 e. 2_8 f. g. 9_11 2_33. 4 Vendor A Part No Entity (Supplier) Name Supplier Contract Document Identifier Component Product Quantity Buyer’s Contract Number Contract No Document Type Code Report Type Code Doc Type <Contract. Document. Identifier DOC: GUID=“e. 2_8”>123 abc</Contract. Document. Identifier> <Buyers. Contract. Number DOC: GUID=“e. 2_8”>123 abc</Buyers. Contract. Number> <Contract. No DOC: GUID=“e. 2_8”>123 abc</Contract. No> Benefit – GUIDs eliminate the baggage associated with changing names Page 26

Mapping Data Element Concepts to the UDEF

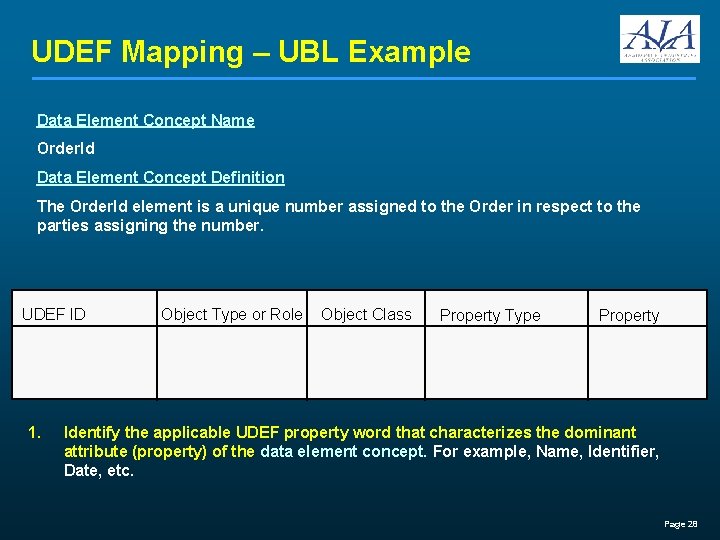

UDEF Mapping – UBL Example Data Element Concept Name Order. Id Data Element Concept Definition The Order. Id element is a unique number assigned to the Order in respect to the parties assigning the number. UDEF ID 1. Object Type or Role Object Class Property Type Property Identify the applicable UDEF property word that characterizes the dominant attribute (property) of the data element concept. For example, Name, Identifier, Date, etc. Page 28

UDEF Mapping – UBL Example Data Element Concept Name Order. Id Data Element Concept Definition The Order. Id element is a unique number assigned to the Order in respect to the parties assigning the number. UDEF ID Object Type or Role Object Class Property Type Property Identifier 2. Identify the dominant UDEF object word that the dominant property (selected in step 1) is describing. For example, Person_Name, Product_Identifier, Document_Date, etc. Page 29

UDEF Mapping – UBL Example Data Element Concept Name Order. Id Data Element Concept Definition The Order. Id element is a unique number assigned to the Order in respect to the parties assigning the number. UDEF ID Object Type or Role Object Class Document 3. Property Type Property Identifier By reviewing the UDEF tree for the selected property identified in step 1, identify applicable qualifiers that are necessary to unambiguously describe the property word term. For example, Last Name Page 30

UDEF Mapping – UBL Example Data Element Concept Name Order. Id Data Element Concept Definition The Order. Id element is a unique number assigned to the Order in respect to the parties assigning the number. UDEF ID Object Type or Role Object Class Document 4. Property Type N/A Property Identifier By reviewing the UDEF tree for the selected object identified in step 2, identify applicable qualifiers that are necessary to unambiguously describe the object word term. For example, Customer Person Page 31

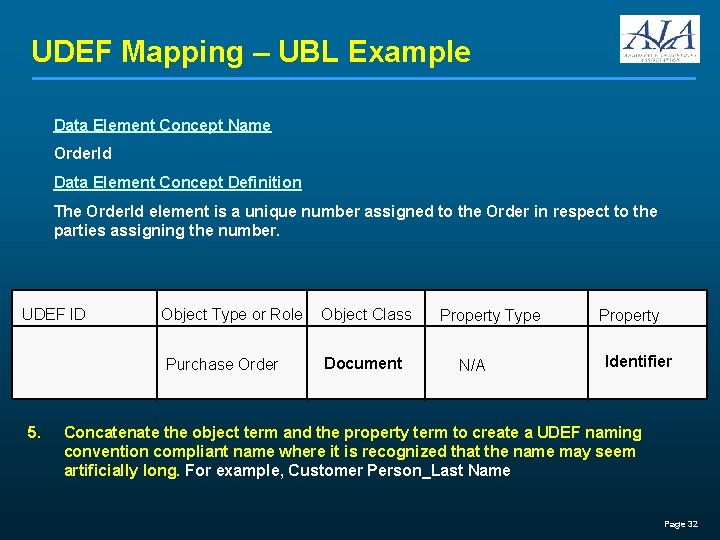

UDEF Mapping – UBL Example Data Element Concept Name Order. Id Data Element Concept Definition The Order. Id element is a unique number assigned to the Order in respect to the parties assigning the number. UDEF ID 5. Object Type or Role Object Class Purchase Order Document Property Type N/A Property Identifier Concatenate the object term and the property term to create a UDEF naming convention compliant name where it is recognized that the name may seem artificially long. For example, Customer Person_Last Name Page 32

UDEF Mapping – UBL Example Data Element Concept Name Order. Id Data Element Concept Definition The Order. Id element is a unique number assigned to the Order in respect to the parties assigning the number. UDEF ID d. t. 2_8 6. Object Type or Role Object Class Purchase Order Document Property Type N/A Property Identifier Derive an intelligent UID based on the UDEF taxonomy that carries the UDEF inherited indexing scheme. For example <Customer. Person. Last. Name GUID=“as. 5_5. 10”> Page 33

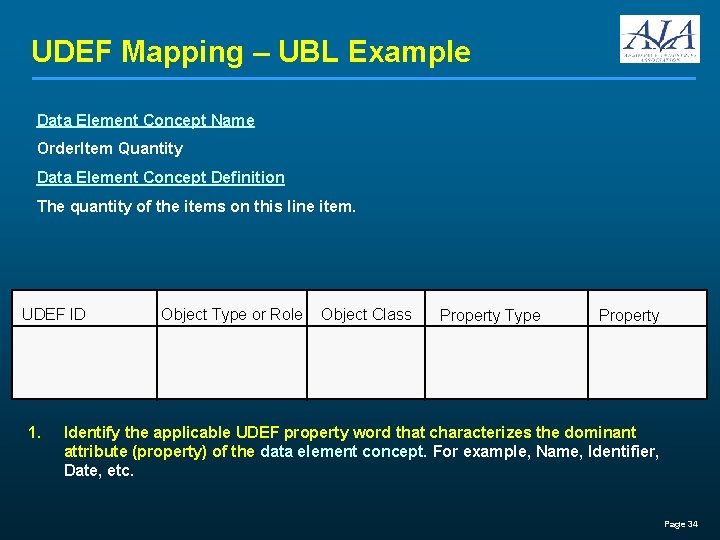

UDEF Mapping – UBL Example Data Element Concept Name Order. Item Quantity Data Element Concept Definition The quantity of the items on this line item. UDEF ID 1. Object Type or Role Object Class Property Type Property Identify the applicable UDEF property word that characterizes the dominant attribute (property) of the data element concept. For example, Name, Identifier, Date, etc. Page 34

UDEF Mapping – UBL Example Data Element Concept Name Order. Item Quantity Data Element Concept Definition The quantity of the items on this line item. UDEF ID Object Type or Role Object Class Property Type Property Quantity 2. Identify the dominant UDEF object word that the dominant property (selected in step 1) is describing. For example, Person_Name, Product_Identifier, Document_Date, etc. Page 35

UDEF Mapping – UBL Example Data Element Concept Name Order. Item Quantity Data Element Concept Definition The quantity of the items on this line item. UDEF ID Object Type or Role Object Class Product 3. Property Type Property Quantity By reviewing the UDEF tree for the selected property identified in step 1, identify applicable qualifiers that are necessary to unambiguously describe the property word term. For example, Last Name Page 36

UDEF Mapping – UBL Example Data Element Concept Name Order. Item Quantity Data Element Concept Definition The quantity of the items on this line item. UDEF ID 4. Object Type or Role Object Class Property Type Product Ordered Property Quantity By reviewing the UDEF tree for the selected object identified in step 2, identify applicable qualifiers that are necessary to unambiguously describe the object word term. For example, Customer Person Page 37

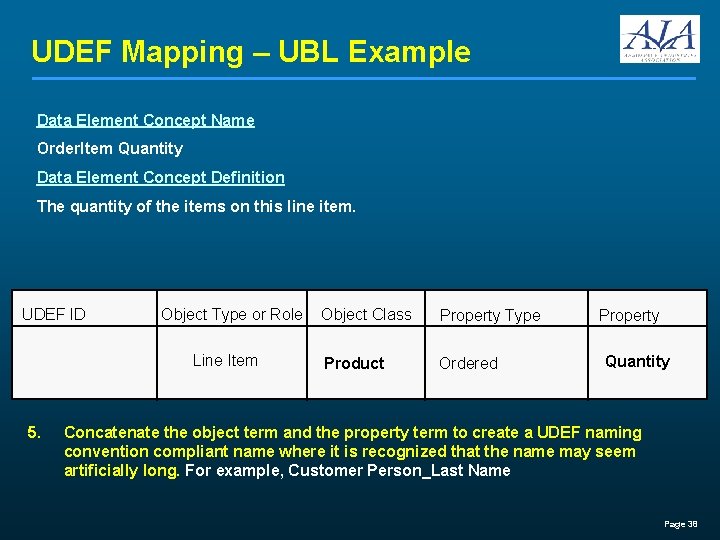

UDEF Mapping – UBL Example Data Element Concept Name Order. Item Quantity Data Element Concept Definition The quantity of the items on this line item. UDEF ID Object Type or Role Line Item 5. Object Class Property Type Product Ordered Property Quantity Concatenate the object term and the property term to create a UDEF naming convention compliant name where it is recognized that the name may seem artificially long. For example, Customer Person_Last Name Page 38

UDEF Mapping – UBL Example Data Element Concept Name Order. Item Quantity Data Element Concept Definition The quantity of the items on this line item. UDEF ID b. i. 9_13. 11 6. Object Type or Role Line Item Object Class Property Type Product Ordered Property Quantity Derive an intelligent UID based on the UDEF taxonomy that carries the UDEF inherited indexing scheme. For example <Customer. Person. Last. Name GUID=“as. 5_5. 10”> Page 39

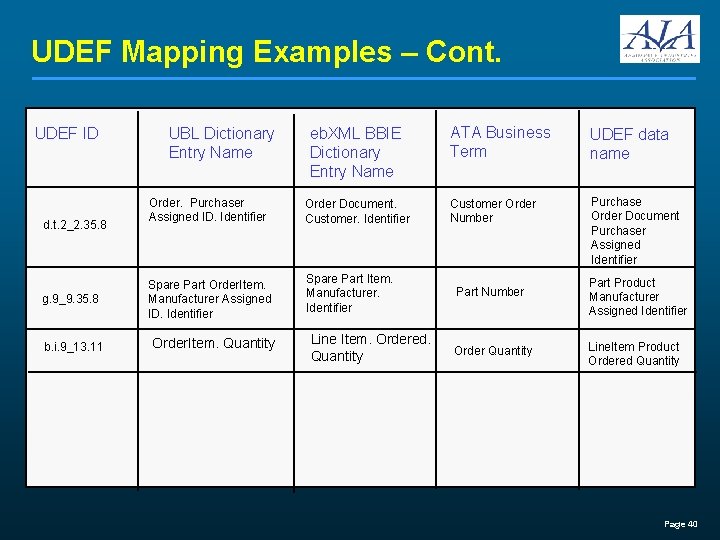

UDEF Mapping Examples – Cont. UDEF ID d. t. 2_2. 35. 8 g. 9_9. 35. 8 b. i. 9_13. 11 UBL Dictionary Entry Name eb. XML BBIE Dictionary Entry Name Order. Purchaser Assigned ID. Identifier Order Document. Customer. Identifier Spare Part Order. Item. Manufacturer Assigned ID. Identifier Spare Part Item. Manufacturer. Identifier Order. Item. Quantity Line Item. Ordered. Quantity ATA Business Term UDEF data name Customer Order Number Purchase Order Document Purchaser Assigned Identifier Part Number Part Product Manufacturer Assigned Identifier Order Quantity Line. Item Product Ordered Quantity Page 40

Benefits/Features of the UDEF

Benefits of the UDEF • • Based on ISO 11179 and eb. XML standards Infinitely extensible UDEF IDs are language independent Built in indexing for all XML catalogs – Find entries more rapidly within large catalogs • Enable faster alignment between disparate legacy systems – even for close matches – Two hinge points (the object and the representation word) • • Reduce costs associated with interfacing systems within the business Provide foundation for standardized global XML namespace categories – – – – PER: GUID Person – all XML names with Person as the object PRD: GUID Product – all XML names with Product as the object ENP: GUID Enterprise – all XML names with Enterprise as the object PRC: GUID Process – all XML names with Process as the object PLC: GUID Place – all XML names with Place as the object PRG: GUID Program – all XML names with Program as the object etc Page 42

Making UDEF Real in the Supply Chain

The UDEF Business Model • Is this ready for prime-time? i. e. how do we know this is not just another standards intellectual exercise, but rather, is something that industries will implement soon? – AIA and EIDX (a part of Comp. TIA) have already adopted the UDEF approach and are building UDEF based matrices for standards relevant to their respective industries – Individual companies are already expending resources to accomplish these mappings – Concept and architecture will be demonstrated and proven before deployment • Why is UDEF better than any other approach? – UDEF structured IDs are an extension of the number approach already used with the Internet for IP addresses. The structured IDs are computer friendly. Similar to Dewey Decimal system. – Theoretically has infinite extensibility – UDEF addresses the randomness issue associated with eb. XML random UIDs – It simplifies data integration across disparate systems – Reduces IT costs associated with building and maintaining data mapping applications – “According to Gartner Group, 35 -40% of all programming effort in a typical computing environment is devoted to developing and maintaining the extract and update programs whose only purpose is to transfer information between different databases. ” Quote from Ernst & Young Financial Analysis of Enterprise Application Integration – Constellar and British Power Achieving Business Benefit Page 44

UDEF One Page Summary Description The Universal Data Element Framework (UDEF) is a rules based metadata naming convention that greatly accelerates data integration for large data integration projects. Once a data element concept has been mapped to the UDEF, the data element can then be assigned a UDEF derived intelligent unique ID. Canonical Model Name Current Business Problem • • • Point-to-Point Interfaces are the Norm Mappings are Time Consuming Process Lack Consistent Naming Convention Lack Standard Data Names System Experts Often Retained to Support Interface Development Alias 1 Benefits of UDEF • • • Depending on complexity, the time and effort required to analyze and map any pair of systems reduces substantially (potentially by order of magnitude) as the number of systems to be integrated increases beyond three or four (break even point) UDEF IDs add computer sensible intelligence to the names of elements within any system – thereby reducing dependence on requiring the system expert for mapping the system to any other system UDEF is gaining momentum as an e-business standard – adopted by AIA – gaining interest by other organizations Alias 2 Alias 3 . . . Alias n Universal ID = Map-to-UDEF Approach UDEF Name UDEF ID Page 45
