Unity Connection SNMP TOI Overview Cisco Unity Connection – SNMP Support Yolanda Liu, liuyu@cisco.

Unity Connection SNMP TOI Overview Cisco Unity Connection – SNMP Support Yolanda Liu, liuyu@cisco. com © 2006 Cisco Systems, Inc. All rights reserved. 1

Introduction One of the goals of the Unity Connection 7. x is to support

Introduction One of the goals of the Unity Connection 7. x is to support SNMP on UCOS. It will take advantage of the common platform support. The specific MIB is CISCO-UNITY-MIBS. There is no change of the MIB as in Unity 4. x. There is no support for trap in this release. © 2006 Cisco Systems, Inc. All rights reserved. 2

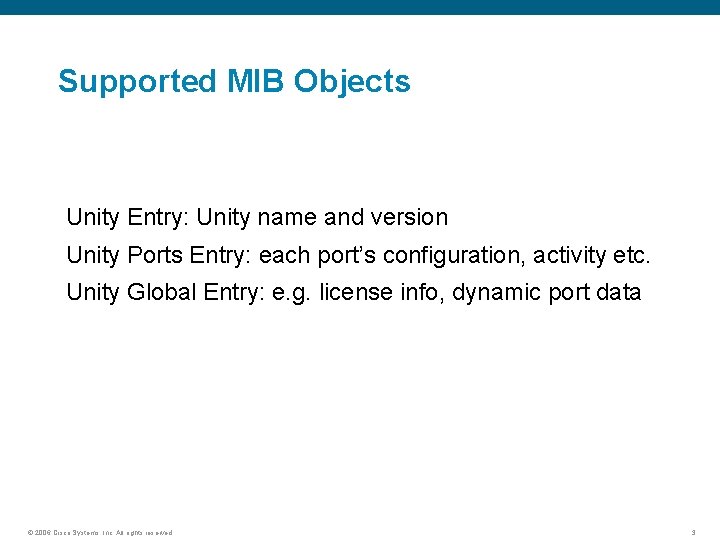

Supported MIB Objects Unity Entry: Unity name and version Unity Ports Entry: each port’s

Supported MIB Objects Unity Entry: Unity name and version Unity Ports Entry: each port’s configuration, activity etc. Unity Global Entry: e. g. license info, dynamic port data © 2006 Cisco Systems, Inc. All rights reserved. 3

Deploy approach 1. Unity Connection subagent can be started/stopped independently from the master agent.

Deploy approach 1. Unity Connection subagent can be started/stopped independently from the master agent. 2. It is running as a separate process 3. It is run as a non-root user with root process 4. On A/A pair, each UC SNMP agent is running on each server. SNMP MIB objects are for each server. © 2006 Cisco Systems, Inc. All rights reserved. 4

Check Connection SNMP Agent Status § Control Center->Feature Services © 2006 Cisco Systems, Inc.

Check Connection SNMP Agent Status § Control Center->Feature Services © 2006 Cisco Systems, Inc. All rights reserved. 5

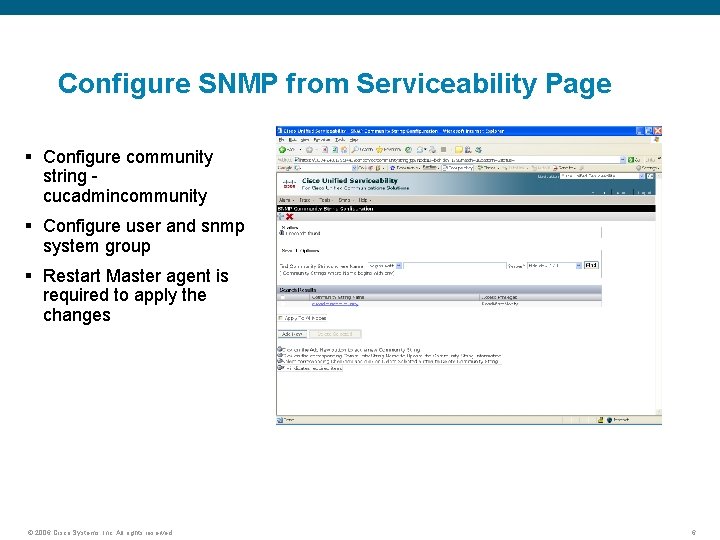

Configure SNMP from Serviceability Page § Configure community string cucadmincommunity § Configure user and

Configure SNMP from Serviceability Page § Configure community string cucadmincommunity § Configure user and snmp system group § Restart Master agent is required to apply the changes © 2006 Cisco Systems, Inc. All rights reserved. 6

Access Unity Connection MIBS objects § /usr/local/Snmpr/bin §. /getmany -v 1 localhost cucadmincommunity 1.

Access Unity Connection MIBS objects § /usr/local/Snmpr/bin §. /getmany -v 1 localhost cucadmincommunity 1. 3. 6. 1. 4. 1. 9. 9. 385 § Need to start brassd §Other third party SNMP management station: e. g. , SNMPc © 2006 Cisco Systems, Inc. All rights reserved. 7

Query result § © 2006 Cisco Systems, Inc. All rights reserved. 8

Query result § © 2006 Cisco Systems, Inc. All rights reserved. 8

Collect log files § © 2006 Cisco Systems, Inc. All rights reserved. 9

Collect log files § © 2006 Cisco Systems, Inc. All rights reserved. 9

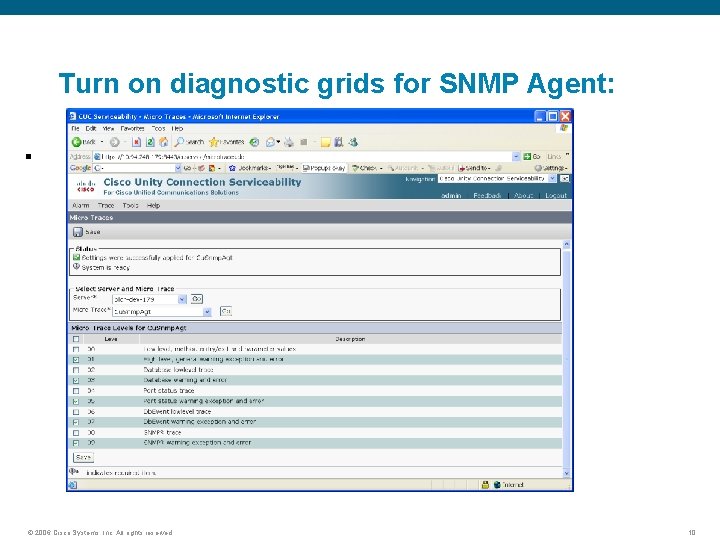

Turn on diagnostic grids for SNMP Agent: § © 2006 Cisco Systems, Inc. All

Turn on diagnostic grids for SNMP Agent: § © 2006 Cisco Systems, Inc. All rights reserved. 10

For Further Information 1. Unity Connection Serviceability Administration Guide © 2006 Cisco Systems, Inc.

For Further Information 1. Unity Connection Serviceability Administration Guide © 2006 Cisco Systems, Inc. All rights reserved. 11
