Unity 3 4 0 0 Unity 3 0

Unity 3. 4. 0. 0

Unity 3. 0. 1. 1 vs. Unity 3. 4. 0. 0 What hasn’t changed?

What hasn’t changed? Ballot Styles per Precinct Still limited to 40 styles per party per Unity “precinct” for ballots coded by style ONE STOP 1 ONE STOP 2 ONE STOP 3 Style 1 Style 2 Style 3 … Style 38 Style 39 Style 40 Style 41 Style 42 Style 43 … Style 78 Style 79 Style 80 Style 81 Style 82 Style 83 …

What hasn’t changed? Overall Ballot Layout Options Still the same ballot sizes: 11”, 14”, 17”, 19” Still up to three columns per ballot face

Unity 3. 0. 1. 1 vs. Unity 3. 4. 0. 0 What has changed?

M 100

M 100 • Expanded precincts from 10 to 18 per Election Day poll

M 100 • Expanded precincts from 10 to 18 per Election Day poll • Expanded precincts from 10 to 450 per Early Voting poll

M 100 • Expanded precincts from 10 to 18 per Election Day poll • Expanded precincts from 10 to 450 per Early Voting poll • Increased security to access administrative menus

M 100 • • Expanded precincts from 10 to 18 per Election Day poll Expanded precincts from 10 to 450 per Early Voting poll Increased security to access administrative menus No modem functionality

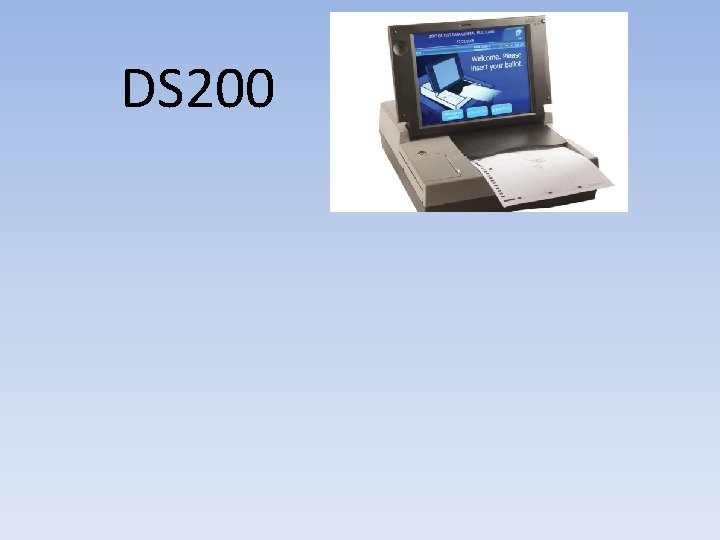

DS 200

DS 200 • Uses 12” touch screen interface

DS 200 • Uses 12” touch screen interface • Uses USB thumb drive for loading election definition and storing results

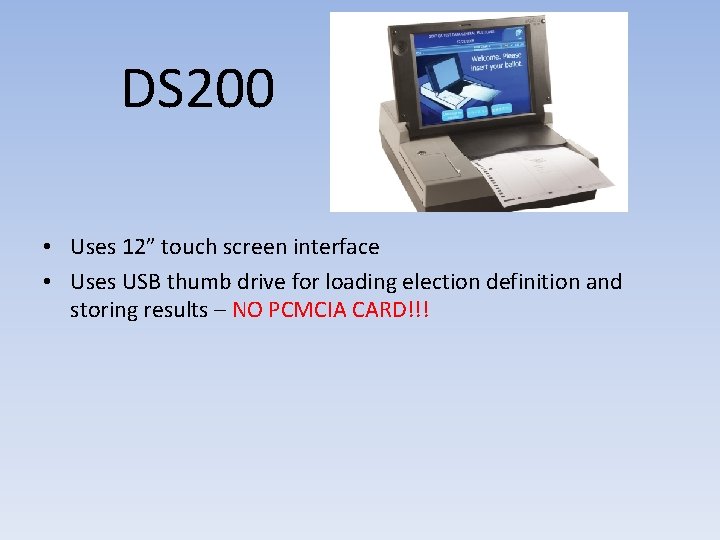

DS 200 • Uses 12” touch screen interface • Uses USB thumb drive for loading election definition and storing results – NO PCMCIA CARD!!!

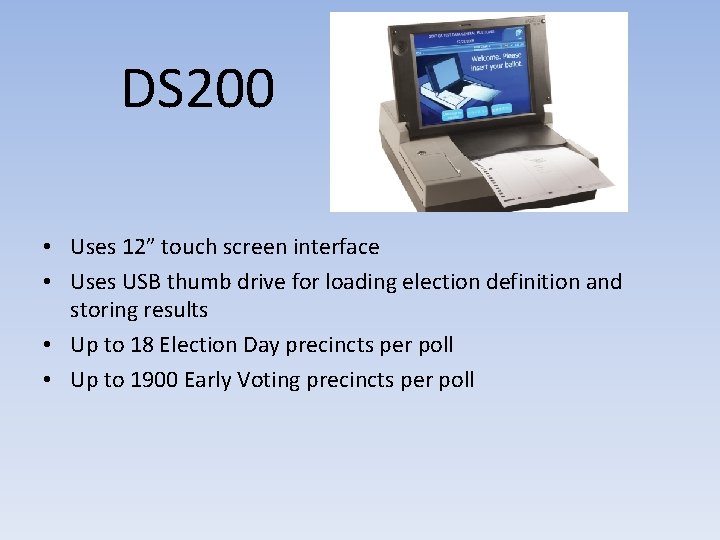

DS 200 • Uses 12” touch screen interface • Uses USB thumb drive for loading election definition and storing results • Up to 18 Election Day precincts per poll

DS 200 • Uses 12” touch screen interface • Uses USB thumb drive for loading election definition and storing results • Up to 18 Election Day precincts per poll • Up to 1900 Early Voting precincts per poll

DS 200 • Uses 12” touch screen interface • Uses USB thumb drive for loading election definition and storing results • Up to 18 Election Day precincts per poll • Up to 1900 Early Voting precincts per poll • If ballots coded by precinct, early voting “All Poll” stores and reports votes by precinct for 1600+ total ballot styles

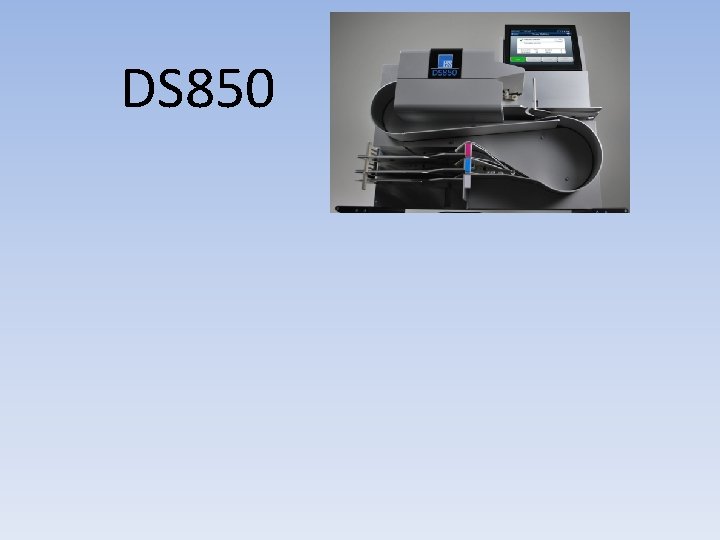

DS 850

DS 850 • Uses touch screen interface

DS 850 • Uses touch screen interface • Scans up to 400 ballots per minute

DS 850 • Uses touch screen interface • Scans up to 400 ballots per minute • Uses USB thumb drive for loading election definition and storing results

DS 850 • Uses touch screen interface • Scans up to 400 ballots per minute • Uses USB thumb drive for loading election definition and storing results – no Zip drive

DS 850 • Uses touch screen interface • Scans up to 400 ballots per minute • Uses USB thumb drive for loading election definition and storing results • Security locks over USB ports

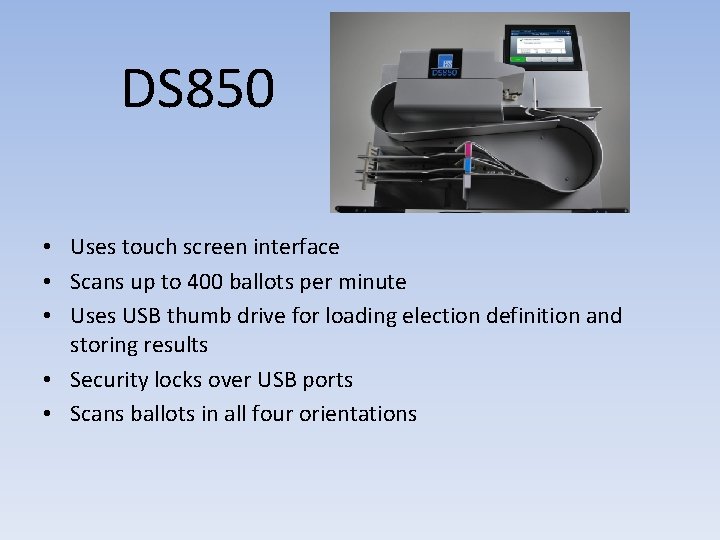

DS 850 • Uses touch screen interface • Scans up to 400 ballots per minute • Uses USB thumb drive for loading election definition and storing results • Security locks over USB ports • Scans ballots in all four orientations

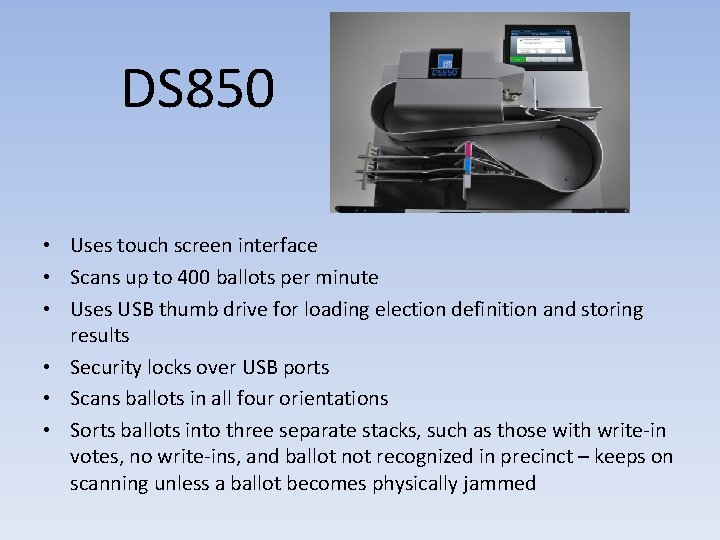

DS 850 • Uses touch screen interface • Scans up to 400 ballots per minute • Uses USB thumb drive for loading election definition and storing results • Security locks over USB ports • Scans ballots in all four orientations • Sorts ballots into three separate stacks, such as those with write-in votes, no write-ins, and ballot not recognized in precinct – keeps on scanning unless a ballot becomes physically jammed

i. Votronic

i. Votronic No native i. Vo support in Unity 3. 4. 0. 0

i. Votronic No native i. Vo support in Unity 3. 4. 0. 0 However. . .

ERM has the capability to copy results from one reporting group and merge them into a different reporting group. Election officials can use this same functionality to copy results from ERM in Unity 3. 0. 1. 1 and then merge those results into ERM in Unity 3. 4. 0. 0. So although it will require some additional steps, it is still possible to use i. Votronics and/or M 100 s with modems, and combine the results from those devices with those from DS 200 s and/or DS 850 s.

FYI: SBE Voting Systems staff are currently reviewing Unity 3. 4. 0. 1, which adds DS 200 modem functionality (but still no M 100 modem functionality). Because the firmware does not permit modem operation in a tabulator set up for Early Voting use, this will really only affect counties which may eventually replace their Election Day tabulators.
