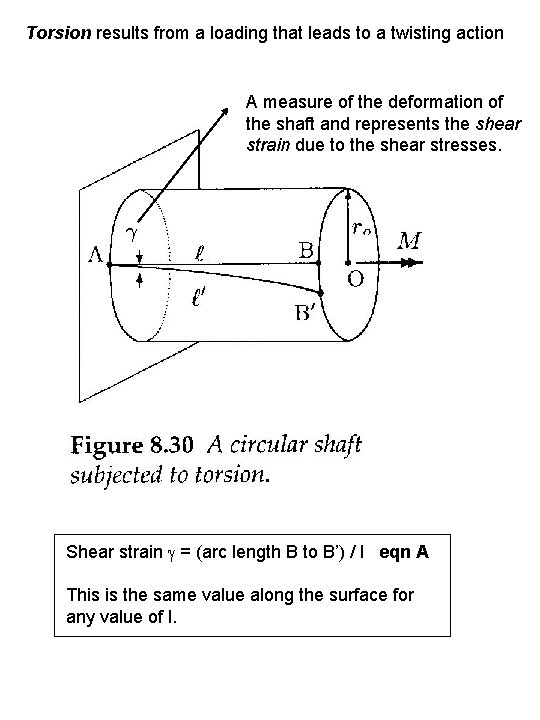

Torsion results from a loading that leads to a twisting action A measure of the deformation of the shaft and represents the shear strain due to the shear stresses. Shear strain = (arc length B to B’) / l eqn A This is the same value along the surface for any value of l.

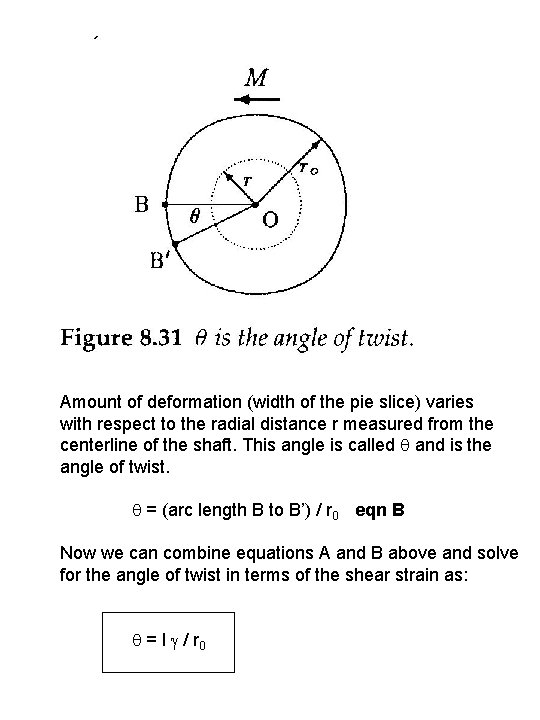

Amount of deformation (width of the pie slice) varies with respect to the radial distance r measured from the centerline of the shaft. This angle is called and is the angle of twist. = (arc length B to B’) / r 0 eqn B Now we can combine equations A and B above and solve for the angle of twist in terms of the shear strain as: = l / r 0

Since the shaft as a whole is in static equilibrium its individual parts have to be in static equilibrium. This requires the presence of internal shearing forces that are distributed over the cross-sectional area of the shaft. The intensity of these internal forces per unit area is the shear stress . Hence there exists in the object an internal resisting torque.

Applied torque is T reaction Cut the object Shows the shear stresses at some distance from the axis. These shear stresses are acting on the shaded area.

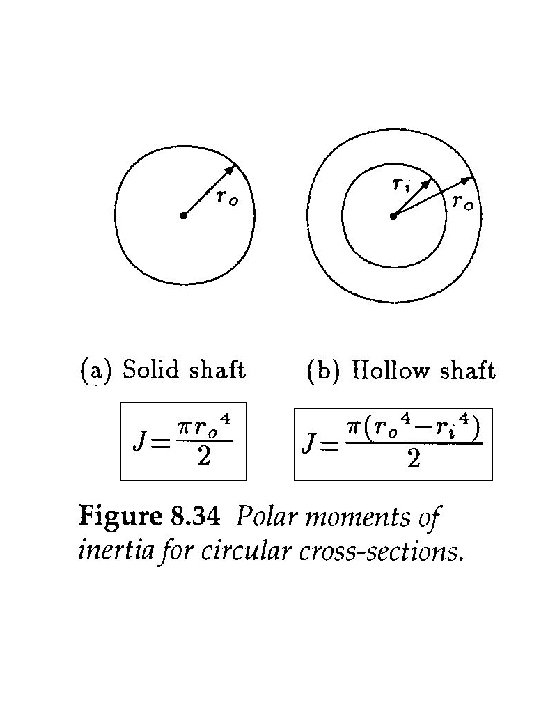

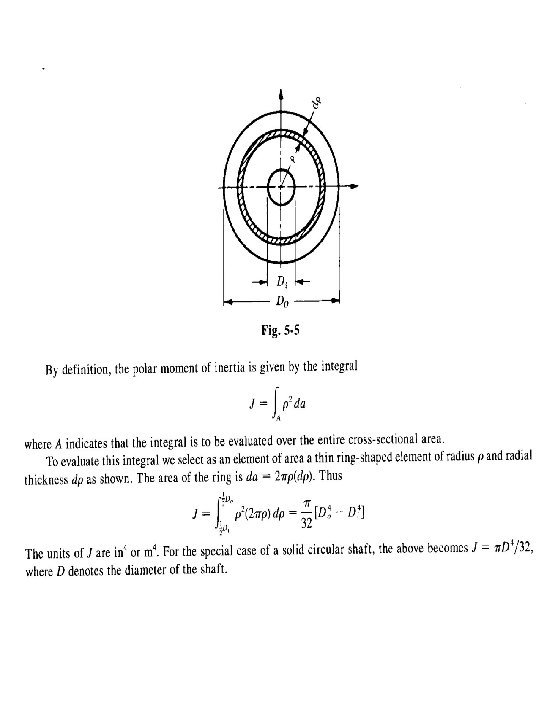

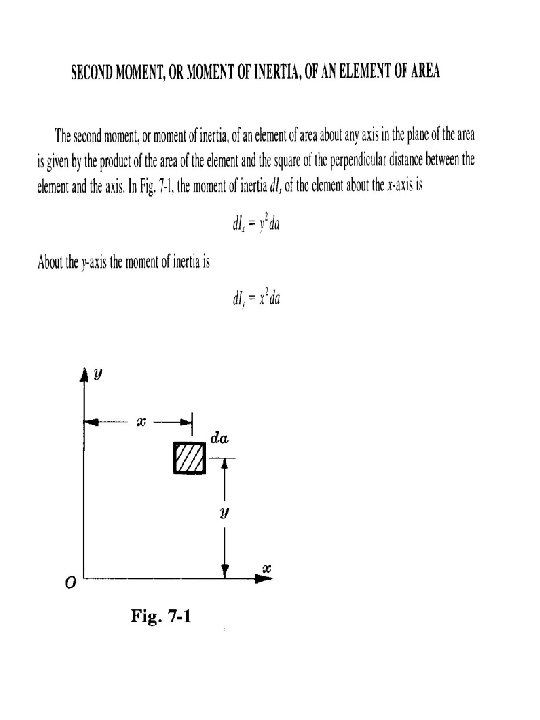

Example #1 If a twisting moment of 10000 lb in is impressed upon a 1. 75 inch diameter shaft what is the maximum shearing stress that is developed? Also what is the angle of twist in a 4 ft length of the shaft? Assume the material is steel for which G = 12 x 106 lb/in 2. Also assume elastic behavior. max

Example #2 Consider a thin walled tube subject to torsion. Derive an approximate expression for the allowable twisting moment if the working stress limit in shear is given as w. Assume elastic deformations.
