Units of Measurement quantities and units UCUM Units

Units of Measurement

quantities and units • • • UCUM Units in RTM IHTSDO - Observable and Investigation Model Project ISO/IEC 80000 / 80003 - telebiometrics (IDMP, ISO 11240)

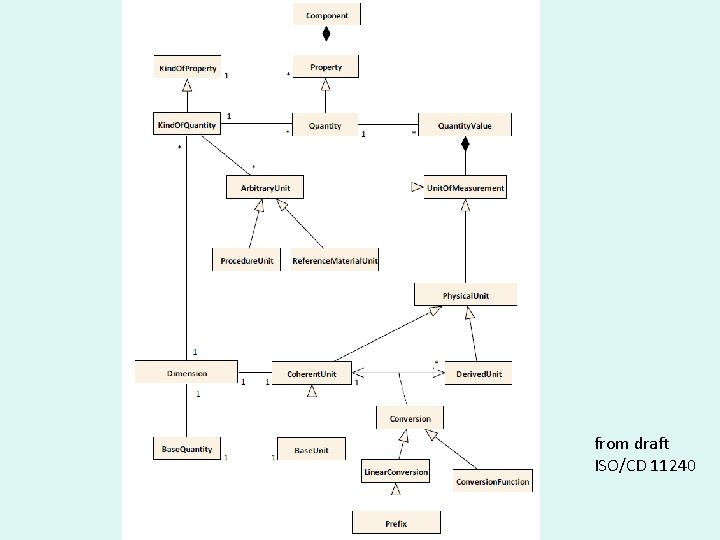

from draft ISO/CD 11240

UCUM The Unified Code for Units of Measure • • • Codes for base units and derived units Covers most units in practical use freely available published as XML file lightweight maintenance process unitsofmeasure. org

UCUM • added units for RTM: – Wood units for vascular resistance: [wood'U] : = mm[Hg]. min/L – B[10. n. V] ( for using d. B[10. n. V] ) • future development: – add syntax rules for logarithmic units – rules for arbitrary units – road to ISO?

Lab: Reference ranges for blood tests

Unit alone is not enough! • relative volume: 1 L 1 L 1 L 1 L / 2 L = 0. 5 L/L • volume fraction: 1 L / 3 L = 0. 333 L/L • same unit and dimension! -> fully specified property required!

harmonized RTM table

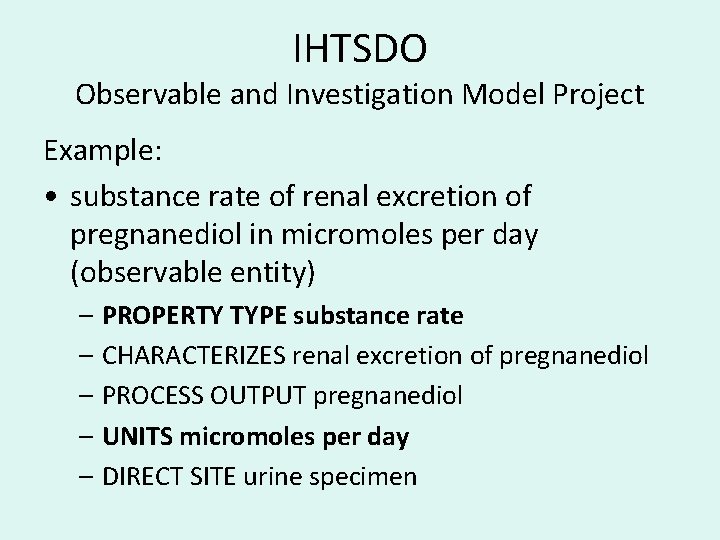

IHTSDO Observable and Investigation Model Project Example: • substance rate of renal excretion of pregnanediol in micromoles per day (observable entity) – PROPERTY TYPE substance rate – CHARACTERIZES renal excretion of pregnanediol – PROCESS OUTPUT pregnanediol – UNITS micromoles per day – DIRECT SITE urine specimen

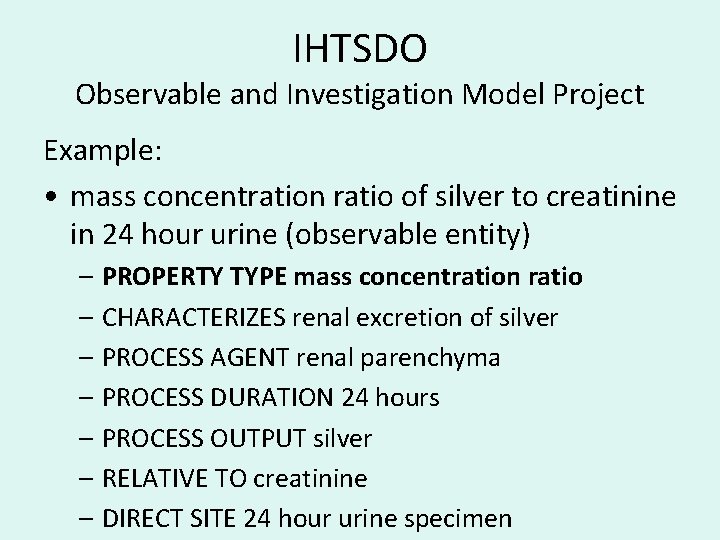

IHTSDO Observable and Investigation Model Project Example: • mass concentration ratio of silver to creatinine in 24 hour urine (observable entity) – PROPERTY TYPE mass concentration ratio – CHARACTERIZES renal excretion of silver – PROCESS AGENT renal parenchyma – PROCESS DURATION 24 hours – PROCESS OUTPUT silver – RELATIVE TO creatinine – DIRECT SITE 24 hour urine specimen

IHTSDO Observable and Investigation Model Project • PROPERTY TYPE • INHERES IN – INHERENT LOCATION – INHERENT INGREDIENT • CHARACTERIZES – PROCESS AGENT – PROCESS DURATION – PROCESS OUTPUT • TOWARDS • RELATIVE TO, REL-TO PART-OF

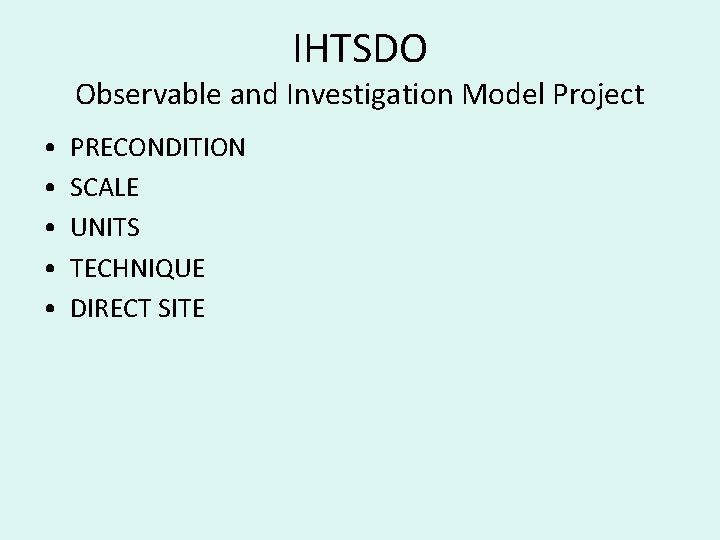

IHTSDO Observable and Investigation Model Project • • • PRECONDITION SCALE UNITS TECHNIQUE DIRECT SITE

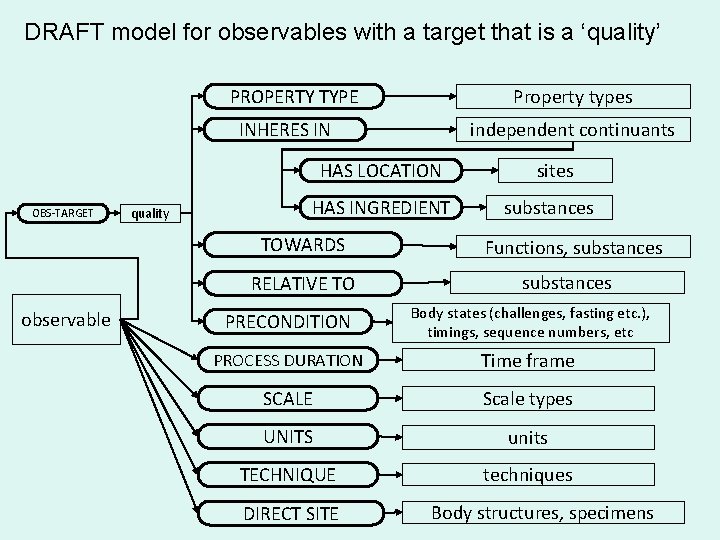

DRAFT model for observables with a target that is a ‘quality’ PROPERTY TYPE Property types INHERES IN independent continuants HAS LOCATION OBS-TARGET quality HAS INGREDIENT TOWARDS RELATIVE TO observable sites substances Functions, substances PRECONDITION Body states (challenges, fasting etc. ), timings, sequence numbers, etc PROCESS DURATION Time frame SCALE Scale types UNITS units TECHNIQUE techniques DIRECT SITE Body structures, specimens

IHTSDO Observable and Investigation Model Project • Property Type – This attribute is used to specify the type of inherent quality or process that is to be observed. – Its values are abstract types of quality (length, odor, concentration) or abstract types of process features (rate, speed), and do not include qualities that are located (length of arm, odor of urine), or given a value (elevated concentration).

IHTSDO Observable and Investigation Model Project • Note: In a coming release of SNOMED CT, Measurement property will become a subtype of a new general concept Property type (qualifier value)

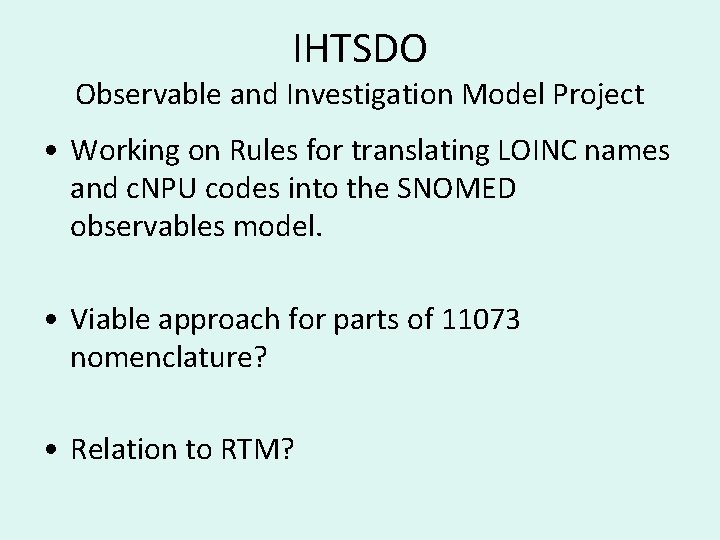

IHTSDO Observable and Investigation Model Project • Working on Rules for translating LOINC names and c. NPU codes into the SNOMED observables model. • Viable approach for parts of 11073 nomenclature? • Relation to RTM?

ISO/IEC 80000 • Quantities and units • Successor of ISO 31, IEC 60072 • definitions, names, letter symbols and their use, relations, and signs and symbols used with them • ISO TC 12 - Quantities and Units / IEC TC 25 • "style guide" for scientific publications

ISO/IEC 80003 • ISO TC 12 - Quantities and Units • ISO 80003: Physiological quantities and their units – ISO 80003 -2 PHYSICS – ISO 80003 -3 CHEMISTRY – IEC 80003 -4 BIOLOGY – IEC 80003 -5 CULTUROLOGY – IEC 80003 -6 PSYCHOLOGY
