United States Version 4 0 National CAD Standard
- Slides: 67
United States Version 4. 0 National CAD Standard Université St-Esprit de KASLIK – Faculté des Beaux Arts
National CAD Standard Université St-Esprit de KASLIK – Faculté des Beaux Arts © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a Version 4. 0 United States
Version 4. 0 National CAD Standard Université St-Esprit de KASLIK – Faculté des Beaux Arts Presented by: Roland Aboujaoude [ARCHITECT], [USEK] [Nov 2011] © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a United States
Who Should Care about the NCS? • Architects • Engineers (all types) • Facility Managers • Owners • Specifiers • Draftspeople • Students • Academic Faculty ** HOW STANDARDS HELP RELEVANCY © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a RELEVANCY
** NCS BACKGROUND & CONCEPTS NATIONAL CAD STANDARD™ CONCEPTS WHAT IS THE NCS? • Interrelated tools, guidelines and standards for drawings • Specifies Graphic Organization • Master. Format™, Page. Format™ and Section. Format™ organize specs; NCS organizes drawings © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a • NCS is known as the “National Cad Standards” for architecture, engineering and construction; it is called also “the standard”. • NCS intent during the design phase is to speed the transfer of information between owner, designer, consultants, contractors and subcontractors. • During construction, NCS intent is to reduce time in finding and referencing information between owner, designer, consultants, products suppliers and manufacturers.
Version 4. 0 National CAD Standard A Consensus Standard Incorporating Industry Publications • NCS Scope of work: • Data. Organization: (Organize cad files) it addresses issues such as layer name, discipline designators, line weights, pen assignments and the graphic organization of the construction drawing sheets. • Data exchange: Helps to guarantee the future utility of today’s Cad data files. © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a United States
National CAD Standard A Consensus Standard Incorporating Industry Publications COMPONENTS © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a Version 4. 0 United States
Version 3. 1 National CAD Standard A Consensus Standard Incorporating Industry Publications • Chapter 1: Layers: • Discipline - Major group - Minor Group – 2 nd minor group - status • (Page 40 - ---) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a United States
(mandatory) AA - AAAA - X Major Group (mandatory) AA - AAAA - X One or Two Minor Groups (optional) AA - AAAA - X Status (optional) ** NCS: AIA CAD LAYER GUIDELINES OVERVIEW AIA CAD LAYER GUIDELINES © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a AA - AAAA - X Discipline Designators
LEVEL 1 (MANDATORY) LEVEL 2 (OPTIONAL) G General H Hazardous Materials V Survey / Mapping B Geotechnical W Civil Works C Civil L Landscape S Structural A Architectural I Interiors Q Equipment F Fire Protection P Plumbing D Process M Mechanical E Electrical T Telecommunications R Resource X Other Disciplines Z Contractor/Shop Drawings O Operations AI Architectural Interiors AS Architectural Site AD Architectural Demolition CG Civil Grading CP Civil Paving SF Structural Framing DP Process Piping EL Electrical Lighting ** NCS: AIA CAD LAYER GUIDELINES DISCIPLINE DESIGNATORS • One or Two Alpha Characters • Mandatory • Coordinated With Drawing Set Organization © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DISCIPLINE
** NCS: AIA CAD LAYER GUIDELINES MAJOR GROUP DESIGNATORS • Identifies: Major Building Systems or • Drawing Views, or, • Annotations. • Mandatory • Coordinated With Drawing Set Organization • User-defined Major Groups are NOT Permitted © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a Discipline: A - Architectural ANNO - General Information AREA - Area BAGS - Baggage Handling Equipment CLNG - Ceiling Information COLS - Columns DETL - Detail Information DOOR - Doors ELEV - Elevations EQPM - Equipment FLOR - Floor Information GLAZ - Windows LITE - Lights PROP - Properties Information ROOF - Roof Information SECT - Sections STAT - Demolition (used only in creating Existing Demolition model files) WALL - Walls MAJOR GROUP DESIGNATORS
FULL PART IDEN PATT Full Height Partial Identification Pattern • Differentiates a Major Group • One or Two Sets of Four Characters • Optional • May be User. Defined: A-Z, 0 -9, ~ ** NCS: AIA CAD LAYER GUIDELINES MINOR GROUP DESIGNATORS © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MINOR GROUP DESIGNATORS
N E D F T M X 1 -9 ** New work Existing to remain Existing to demolish Future work Temporary work Items to be moved Not in contract Phase numbers NCS: AIA CAD LAYER GUIDELINES STATUS FIELD DESIGNATORS • Differentiates Construction Phase or Type • Optional © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a STATUS FIELD DESIGNATORS
AA – N NN DESIGNATORS SHEET TYPE 0 General (symbols legend, notes, etc. ) 1 Plans (horizontal) 2 Elevations (vertical) 3 Sections (sectional, ] wall & stair) 4 Large Scale Views 5 Details 6 Schedules and Diagrams 7 User Defined* 8 User Defined* 9 3 D Representations (isometrics, perspectives, photographs) AA – N NN SEQUENCE 01 -99 ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) SHEET TYPE ND SEQUENCE DESIGNATORS • *User-Defined Sheet Type Designators May NOT Fall in Another Category • Always Include 2 digit Sequence Designator • Do NOT use “ 00” © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a SHEET TYPE & SEQUENCE
Sheet Title G - 001 C - 001 S - 101 A - 201 A - 301 A - 601 P - 101 P - 601 M - 101 E - 102 E - 501 Title Sheet Notes and Symbols Foundation Plan Floor Plan Exterior Elevations Wall Sections Door and Frame Schedule Plumbing Site Plan Plumbing Riser Diagram HVAC Plan Power Plan Lighting Plan Electrical Details ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) SHEET NAME EXAMPLES DESIGNATORS © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a Sheet SAMPLE DRAWING
Sheet Title CD-101 CG-101 LI-101 SF-501 AS-101 AG-101 IN-601 ES-101 EP-101 EL-101 TI-101 Site Demolition Plan Grading Plan Landscape Irrigation Plan Roof Framing Plan Framing Details Architectural Site Plan Signage Plan Interior Finish Schedules Electrical Site Plan Electrical Power Plan Electrical Lighting Plan Intercom Plan ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) SHEET NAME EXAMPLES DESIGNATORS • Hyphen Must Follow Level-2 Discipline Designator (NEW) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a Sheet SAMPLE DRAWING
SHEET ORGANIZATION: MODULE 2 ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MODULE 2
B 279 x 432 (11 x 17) C 432 x 559 (17 x 22) D 559 x 864 (22 x 34) E 864 x 1118 (34 x 44) TYPICAL USES Project book; supplemental drawings; mock-up sheets. Supplemental drawings; mock-up sheets. Small projects in preferred plan scale. Projects in preferred plan scale; government projects. Large projects in preferred plan scale; mapping & GIS. NOT SHOWN: A 0 -A 4, A-F ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) COMMON SHEET SIZES © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MARK SIZE mm (in) A 216 x 279 (8. 5 x 11) COMMON SHEET SIZES
• Production Data Area • Drawing Area • Title Block Area SHEET LAYOUT AREAS ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a SHEET LAYOUT

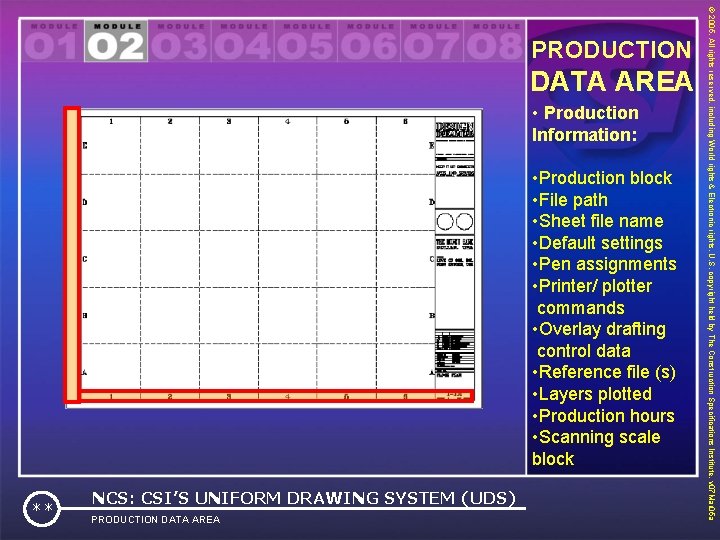

DATA AREA • Production Information: • Production block • File path • Sheet file name • Default settings • Pen assignments • Printer/ plotter commands • Overlay drafting control data • Reference file (s) • Layers plotted • Production hours • Scanning scale block ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) PRODUCTION DATA AREA © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PRODUCTION
Contains: • Keynotes • Key plans DRAWING AREA NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DRAWING AREA ** • Schedules • Other graphic Information © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DRAWING AREA
D NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DRAWING AREA GRID ** 1 B B A A 5 4 3 2 1 2 3 4 5 C • Columns are Numbers C D • Divided into Modules • Rows are Letters © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DRAWING AREA
D 1 2 3 4 5 C MODULE ** B A ** 1 2 3 4 5 D C • A Drawing May Comprise Several Modules B • Use Module Coordinates for ID A NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DRAWING AREA GRID MODULE • Modules Identified by Letter & Number © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DRAWING AREA
GRID XXXX XX • Drawing Number as Determined by Coordinate XX XXXXX XXXXX C 4 ** XXXXXX X: X NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DRAWING NUMBER © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DRAWING AREA
AREA Contains: • Designer • Project • Issue Block • Client/ Management • Sheet Title • Sheet ID Information ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) TITLE BLOCK AREA © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a TITLE BLOCK
Vertical Text Format AREA Horizontal Text Format: TITLE BLOCK TEXT ALIGNMENT ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a TITLE BLOCK
Contains: • Name • Address • Telephone & Fax • E-mail address • Consultants • Professional Seals ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DESIGNER BLOCK COMPONENTS © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DESIGNER ID BLOCK
Contains: • Project name • Project address • Building / facility name • Construction phase sequence • Project logo ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) PROJECT ID BLOCK COMPONENTS © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PROJECT ID BLOCK
Contains: • Phase Issue Dates • Addendum issue dates • Clarification dates • Revision issue dates ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) ISSUE BLOCK COMPONENTS © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a ISSUE BLOCK
BLOCK Contains: • Drawing Preparer’s Project Number • CAD Drawing File Number • Drawn by • Checked by • Copyright Always Horizontal, Regardless of Text Format. ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) MANAGEMENT BLOCK COMPONENTS © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MANAGEMENT
BLOCKS • Always Horizontal, Regardless of Text Format SHEET TITLE AND SHEET ID BLOCKS ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a SHEET TITLE SHEET ID
ROOM FINISH SCHEDULE ROOM # ROOM NAME FLOOR BASE WALL CEILING NOTES 1 101 ENTRY VCT RUBBER PAINT SAP 102 OFFICE CPT RUBBER PAINT SAP 2 SCHEDULES ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) SCHEDULES: MODULE 3 © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MODULE 3
DRAFTING CONVENTIONS: MODULE 04 ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MODULE 04
CONVENTIONS Includes: DRAFTING CONVENTIONS ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DRAFTING CONVENTIONS OVERVIEW • Drawing Orientation and North Arrow • Grid System • Drawing Block Format • Drafting Layout • Scale • Lines • Dimensions © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DRAFTING
CONVENTIONS Subjects Covered: • Material Indications • Cross-Ref • Symbols • Drawing Types DRAFTING CONVENTIONS General Plans Elevations Sections Large Scale Views Details Schedules & Diagrams 3 -D Representations • Mock-Up Drawing Set ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DRAFTING CONVENTIONS OVERVIEW © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DRAFTING
• Sides of Building Parallel with Sheet Edges • Detail Orientation Same as Floor Plan ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) ORIENTATION AND NORTH ARROW © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a ORIENTATION & NORTH ARROW
Fine 0. 18 1. 00 Thin 0. 25 1. 40 Extra Wide 0. 70 LINE WIDTHS © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) ** 0. 50 Wide 2. 00 Medium 0. 35 LINE WIDTHS Line Width in mm
151 • Each Door Has Unique ID 152 A • Door Number Same as Room No. STORAGE 151 152 ** 152 B NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DOOR SYMBOLS • Multiple Doors Labeled with A-Z (New NCS 4. 0 Symbol) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a EXAMPLE
DOOR SYMBOLS ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a EXAMPLE
DOOR SYMBOLS ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a EXAMPLE
Detail Designator A-GRID-DIMS A-ANNO-IDEN Door TAG Window. TAG WALL SECTION Example NCS Plan © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a SECTION EXAMPLE A-ANNO-TAG A-GRID-IDEN
REFERENCE GRID INDICATORS 1 2 3 4 • Vertical Grid at Top, Numbered Left -Right 5 D C B A ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) REFERENCE GRID INDICATORS • Horizontal Grid on Right, Alphabetized Bottom-Top © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a REFERENCE GRID
MARKS • Consistent Orientation TERMINATOR MARKS ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a TERMINATOR
BLOCK FORMAT Reference Grid & Dimension Area Graphic Notation Area XXXXX XX Margin XXXXX Title Area Drawing Module Lines ** ** SECTION X: X NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DRAWING BLOCK FORMAT © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DRAWING
BLOCK FORMAT GRID Reference Grid & Dimension Area XXXX XXX Graphic Notation Area XXXXX XXX Margin XXXXX Title Area Drawing Module Lines ** ** SECTION X: X NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DRAWING BLOCK COMPONENTS © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a DRAWING
Drawing Module Lines Drawing ID Drawing Number Drawing Title Drawing Scale North Arrow ** ** SECTION X: X X X NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) DRAWING BLOCK TITLE AREA Graphic Scale (Optional) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a TITLE AREA
GRID XXXX XXXX XXX XXXXX ** ** SECTION X: X NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) BENEFITS OF NCS • Simplifies & organizes • Standardizes placement of drawing components • Standardizes placement of information for all drawings • Consistent format for all drawings • Works with all projects regardless of size © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a BENEFITS
Locate Frequently- Used Drawing Block Lowest, by Title Move Upward, to Left FIRST FOURTH SECOND THIRD DRAWING ** NOTE BLOCK NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) BLOCK LOCATION AND ORGANIZATION © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a BLOCK LOCATION
TERMS & ABBREVIATIONS TERMS AND ABBREVIATIONS: MODULE 05 ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MODULE 5
Includes: • Preferred Terms • Standard Drawing Abbreviations • When to Use Abbreviations TERMS & ABBREVIATIONS ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) TERMS AND ABBREVIATIONS OVERVIEW • Formats for Abbreviations © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MODULE 5
Provides: • Consistent Communication • Consistent Terms • Notes on Common Usage and Non-Preferred Terminology TERMS & ABBREVIATIONS ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) TERMS AND ABBREVIATIONS OVERVIEW © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MODULE 5
TERM QUIZ Gypsum Wall Board Gypsum Wallboard Gypsum Board Sheet Rock Drywall Gypsum Panel ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) PREFERRED TERM QUIZ: NAME THIS PRODUCT © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PREFERRED
TERM QUIZ CAULKING CALKING SEALANT PREFERRED TERM QUIZ: NAME THIS PRODUCT ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PREFERRED
TERM QUIZ CONCRETE UNIT MASONRY CONCRETE MASONRY UNIT CONCRETE BLOCK CINDER BLOCK CONCRETE MASONRY ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) PREFERRED TERM QUIZ: NAME THIS PRODUCT © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PREFERRED
TERM QUIZ GROUND FAULT CIRCUIT INTERRUPTER GROUND FAULT INTERRUPTER ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) PREFERRED TERM QUIZ: NAME THIS PRODUCT © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PREFERRED
ABBREVIATION QUIZ hdwr hw. Hdwr. HDW. hdw. HDW PREFERRED ABBREVIATION QUIZ: “HARDWARE” ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PREFERRED
ABBREVIATION QUIZ el EL elev ELEV ELV PREFERRED ABBREVIATION QUIZ: “ELEVATION” ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PREFERRED
ABBREVIATION QUIZ CP CONC PVMT CPMT PCCP CONPVMT Concrete Pavement ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) PREFERRED ABBREVIATION QUIZ: “CONCRETE PAVEMENT” CCCP © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PREFERRED
Invert Elevation Catch Basin Typical Yes EL GYP BD EQ INV EL CB TYP No El Gyp Bd Eq INV. EL. C. B. TYP. If thr cn be any dbt / cnfsn abt abbrv mnng, DN’T USE. ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) GENERAL ABBREVIATION RULES • No Lower Case • No Periods • Don’t Abbreviate Words Less than 5 letters long • Avoid Abbreviations Where Possible © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a Word Elevation Gypsum Board Equals GENERAL RULES
SYMBOLS Includes: • Symbol Classifications 3 D 2 A-512 2 ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) SYMBOLS: MODULE 06 • Over 6, 000 Graphic Symbol Representations • How Symbols are Organized © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a MODULE 6
Sheet Keynote at Existing Elevation Disconnect End Grain Indicator General Sink Switch Plus or 3 S D 2 A-512 ** ‘‘‘ & @ SD 3 21 0 2 4 Reference Symbols EL 100 VESTIBULE Construction Room Identifier +/-Storm Minus 101 Drain Lumber Three-Way Multiply by, Square Table X 1 -3 w/Switch by. Chairs Armless Finish Wood 2 Hour Fire Detail Indicator Number, Resistive Round Catch #Construction CB Pound Basin Stall. Grid Reference Shower o Indicator Earth. Degree(s) x NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) TYPES OF SYMBOLS Line Symbols Identity Symbols Template Symbols Material Symbols Text Symbols © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a ERV-1 Foot (feet) Graphic. Inch Scales (inches) Exhaust Left Single Brick Bench Mark. Roof Indicator Vent Fan Hinged Door and SYMBOL TYPES
ORGANIZATION NEW in 3. 1: • Symbols Now Organized by MF 2004 • Symbols Sub. Organized by Type ** NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) SYMBOL ORGANIZATION © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a SYMBOL
X “ROSEY RED BRICK BY ACME BRICK COMPANY” X 09 65 00. G GYPSUM BOARD X 14. 97 “FACE BRICK” 09 65 00. G GYPSUM BOARD 14. 97 NCS: CSI’S UNIFORM DRAWING SYSTEM (UDS) NOTES GENERAL RULES Use Brief, Generic Language Use Capitalized, Sans serif, Proportional, Non-stylized Fonts © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a Use: Instead of: ** GENERAL RULES
GUIDELINES • Allow Consistent B&W Printing from Color Files • Consistent Color Mapping • Allow CAD Vendors to Develop Color Mapping ** NCS: TRI-SERVICES PLOTTING GUIDELINES GENERAL PRINCIPLES © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PLOTTING
EXAMPLE NCS: TRI-SERVICES PLOTTING GUIDELINES EXAMPLE ** GUIDELINES © 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a PLOTTING
© 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a
© 2005. All rights reserved, including World rights & Electronic rights. U. S. copyright held by The Construction Specifications Institute. v 07 Mar 05 a
- American national symbols
- National cad standards north arrow orientation
- Digital literacy standard curriculum version 4
- Windows 7 embedded iso
- Was the united states on the axis powers or allied powers?
- Settlement patterns
- Sectionalism map of the united states
- National premier soccer league
