United States Coast Guard U. S. Coast Guard Auxiliary Division 1 Operations Meeting Ron Kudla SO-OP, Div 1 1 SR 18 Apr 2015

What We’ll Cover Personal Protective Equipment (PPE) Aux. Order Management (AOM) GAR / Risk Analysis Getting underway Cases discovered by the Auxiliary Damage claim procedures 2

2014 Rescue and Survival Systems (R&SS) Manual The policies in this Manual apply to all Active Duty, Reserve, and Auxiliary Facilities under orders. Ref: Page 2 of R&SS 3

2014 Rescue and Survival Systems (R&SS) Manual Part 2, Chapter 4 - A. 3: The Coast Guard-approved Type III PFD … shall be used … as directed by the unit Commanding Officer/Officer-In-Charge, based on conditions not requiring the use of a Type I device. When the Type III is selected for use on shore and cutter based boat missions, the boat crew survival vest shall be worn over it by all crewmembers. 4

2014 Rescue and Survival Systems (R&SS) Manual Part 2, Chapter 4 - B. 10: The boat crew survival vest shall be worn by all crewmembers over a Type III Coast Guard-approved PFD, Anti-Exposure Coverall, or Float Coat on all missions. 5

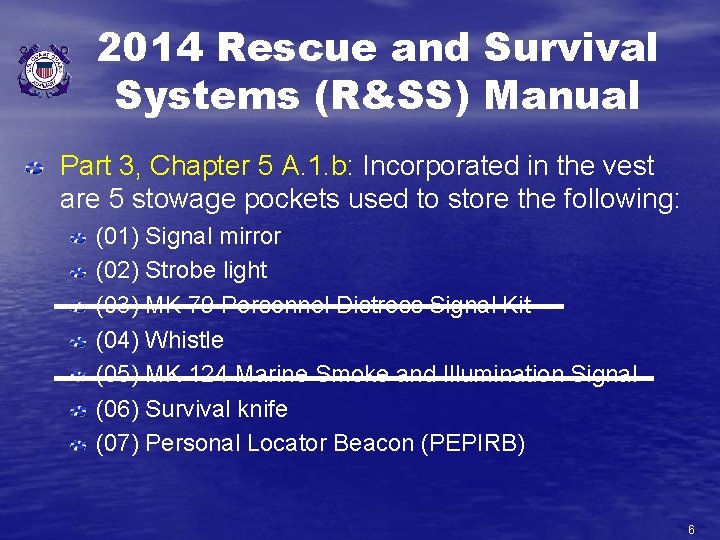

2014 Rescue and Survival Systems (R&SS) Manual Part 3, Chapter 5 A. 1. b: Incorporated in the vest are 5 stowage pockets used to store the following: (01) Signal mirror (02) Strobe light (03) MK 79 Personnel Distress Signal Kit (04) Whistle (05) MK 124 Marine Smoke and Illumination Signal (06) Survival knife (07) Personal Locator Beacon (PEPIRB) 6

Personal Protective Equipment (PPE) 7

PPE – Inspection and Documentation Safety officer to be appointed by Flotilla Could be FSO-OP or another member Must be familiar with the R&SS Must be familiar with proper inspection procedures (014 -SLIS PPE Procedure Guide) Must have MPC cards www. d 1 ops. org – click on PPE Inspection 8

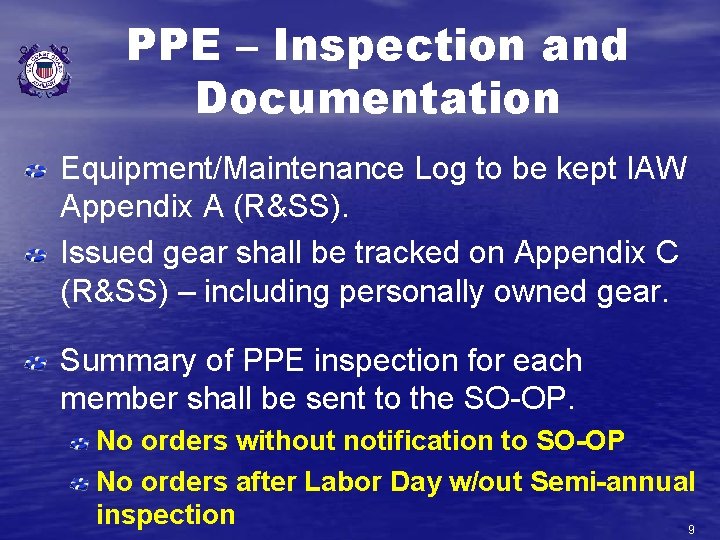

PPE – Inspection and Documentation Equipment/Maintenance Log to be kept IAW Appendix A (R&SS). Issued gear shall be tracked on Appendix C (R&SS) – including personally owned gear. Summary of PPE inspection for each member shall be sent to the SO-OP. No orders without notification to SO-OP No orders after Labor Day w/out Semi-annual inspection 9

PPE vs Water Temp. 10

AOM Reminders Prior to getting Underway: Request orders 1 week in advance. Fill in the “comments” section. Add crew to mission before the patrol starts. Cancel order if you do not undertake the patrol. 11

AOM Reminders After conclusion of mission: GAR form must be attached as a receipt. Must update “comments” section. Receipts required for reimbursements of $75 or more. Attach any other important info Accident report, SAR Incident Report, Pictures, etc. 12

AOM (continued) If on a QE check ride mission, list the QE in the crew and note in comments the QE name and time doing QE activity If a mid-patrol crew change, list all crew members and note times for each in the comments 2015 Operations Workshop Response Directorate

AOM (continued) Meals are no longer automatically selected. They must be selected manually. Select only the meals that were actually consumed during the underway portion of the patrol, not before and after. If you receive fuel or meals at no cost from the Coast Guard, check “Government Provided” box. 2015 Operations Workshop Response Directorate

AOM (continued) Do not claim make-up engine oil as it is included in your SAMA payment. Fuel additives include 2 -cycle oil. Per the Operations Policy Manual, patrol orders must be submitted within 30 days after completion of the patrol. That means the facility owner/coxswain must complete the order within 10 days. 2015 Operations Workshop Response Directorate

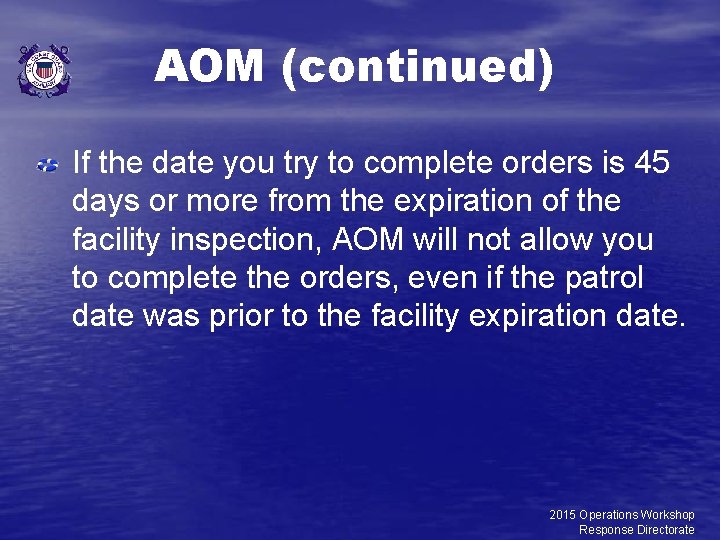

AOM (continued) If the date you try to complete orders is 45 days or more from the expiration of the facility inspection, AOM will not allow you to complete the orders, even if the patrol date was prior to the facility expiration date. 2015 Operations Workshop Response Directorate

Facility Owners Facility properly equipped/maintained. Notify the DIRAUX of significant changes. Facility Inspection and Offer for Use valid for 1 year plus 45 days. No orders valid when offer for use expires. STAFI Aux. Facility inspection dates: 16 May 13 Jun 2015 Operations Workshop Response Directorate

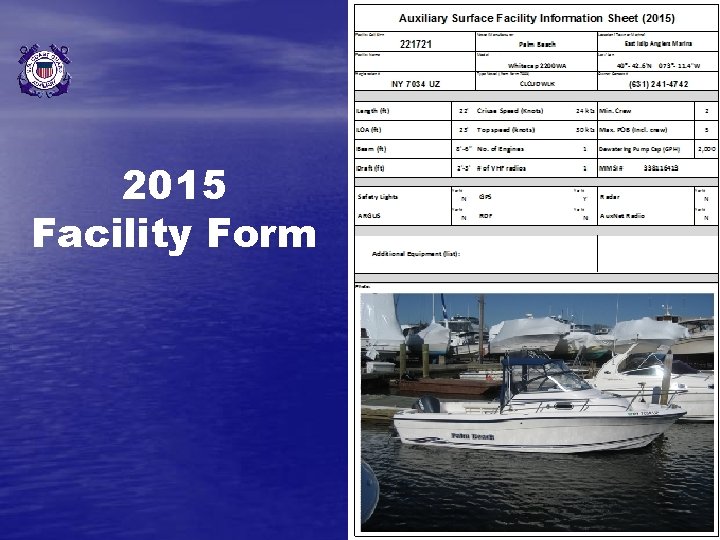

2015 Facility Form 18

First Response Bravo-0 patrols from STAFI Air Show week 20 May – 25 May Other weekends during the summer Possible over-night at STAFI SAR callouts Let the SO-OP know if you are interested 19

GAR / Risk Analysis Green – Amber – Red Any single item 5 or above should raise a concern even if the total score is in the green. There should be no zero risk scores (even 1 is very rare). Scoring the GAR is a collective effort. GAR is done before AND updated throughout the mission when ANY condition changes. 20

I’m Safe I = Illness. Do I have an illness or symptoms of illness? M = Medication. Am I taking any medications (incl. over the counter meds. )? S = Stress. Am I under psychological pressure from the job? A = Alcohol. Have I been drinking within 8 hrs? Within 24 hrs? F = Fatigue. Am I tired and not properly rested? E = Eating. Am I adequately nourished? This is an excellent self-assessment tool 21

BMR (Boat Mission Report) STAFI phone: 631. 661. 9100 GAR PPE Water Temp. Radio guard 22 A, 23 A 22

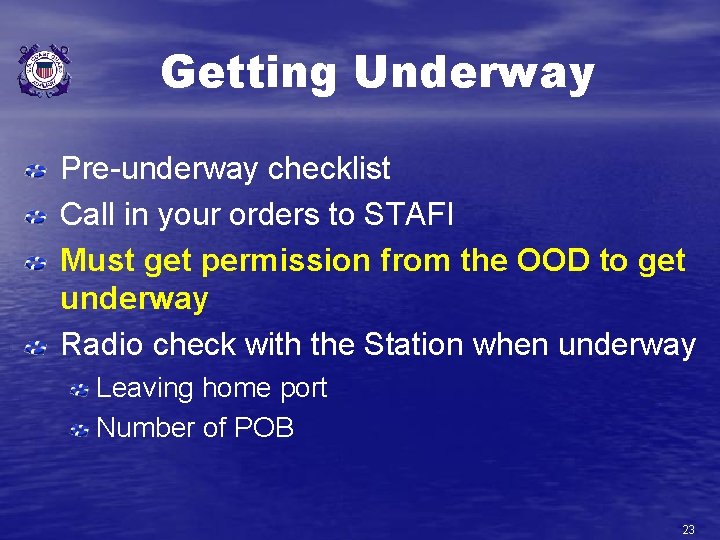

Getting Underway Pre-underway checklist Call in your orders to STAFI Must get permission from the OOD to get underway Radio check with the Station when underway Leaving home port Number of POB 23

Coxswain’s Responsibility The safety and conduct of passengers and crew. The safe operation and navigation of the boat assigned. The completion of the mission(s) assigned or undertaken pursuant to Coast Guard policy and regulations.

Safety is Always Priority 1 25

Crew Fatigue From Aux Operations Policy Manual [4. E. 8]: Evidence suggests high % mishaps occur with prolonged operations and crew fatigue. Crew underway time begins when you report to the facility to prepare for a mission. Operators shall not exceed crew fatigue guidelines unless granted a waiver by OIC. 26

Crew Fatigue Maximum Underway Hours Boat Type Seas < 4 ft Aux/Non. Standard <30 ft 8 Aux/Non. Standard >30 ft 8 Seas > 4 ft Heavy Weather Rest Hours Required 8 6 8 27

Communications VHF radio is always primary, cell secondary. Use cell phone for sensitive comms with STAFI Must have 2 -way communications at all times. If not, return to base. Maintain a radio guard (22 A or 23 A). Even when moored Carry backup radio 28

Important Reminders Cell Phone / Texting Per ALCOAST 382/10: The use of cell phones/texting devices and phone applications aboard operational vessels is NOT authorized without permission of the Coxswain. At no time will the operator (helmsman) of the vessel use a cell phone or texting device. 2015 Operations Workshop Response Directorate

Emergencies Call 911 first then notify STAFI Rendezvous points to meet EMS: STAFI (preferred) Tanner Park Boat Ramp (Amity Harbor) West Islip Marina Boat Ramp (Helipad) Bay Shore Marina Boat Ramp Heckscher Park Boat Ramp Brown’s River Ferry Terminal (Sayville) Patchogue River Ferry Terminal 30

Night Ops Navigation lights on RADAR required Crew properly trained on RADAR use? Increase lookout responsibilities Reduce speed Night vision 31

Provide SAR Response Do only what you & your facility/crew are capable of - Safety of Crew Comes First. Operate at SAFE SPEED for the sea conditions and local environment. Observe ALL no wake zones. 2015 Operations Workshop Response Directorate

SAR Response STAFI now has an email account and a Text number: uscgfi@gmail. com 631 -572 -8090 for texting Pictures can be sent to the station Watchstander will receive the information sent 33

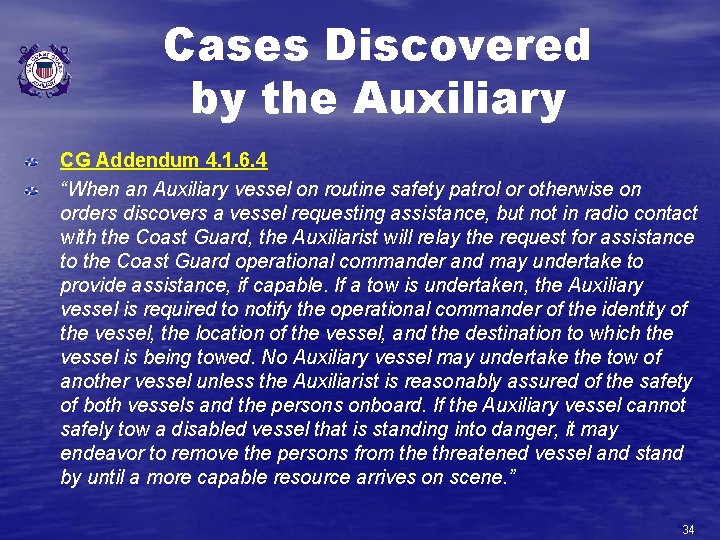

Cases Discovered by the Auxiliary CG Addendum 4. 1. 6. 4 “When an Auxiliary vessel on routine safety patrol or otherwise on orders discovers a vessel requesting assistance, but not in radio contact with the Coast Guard, the Auxiliarist will relay the request for assistance to the Coast Guard operational commander and may undertake to provide assistance, if capable. If a tow is undertaken, the Auxiliary vessel is required to notify the operational commander of the identity of the vessel, the location of the vessel, and the destination to which the vessel is being towed. No Auxiliary vessel may undertake the tow of another vessel unless the Auxiliarist is reasonably assured of the safety of both vessels and the persons onboard. If the Auxiliary vessel cannot safely tow a disabled vessel that is standing into danger, it may endeavor to remove the persons from the threatened vessel and stand by until a more capable resource arrives on scene. ” 34

Cases Discovered by the Auxiliary An Auxiliary resource may assist in a non-distress case if capable of providing assistance and the disabled vessel is not in contact with the Coast Guard. 35

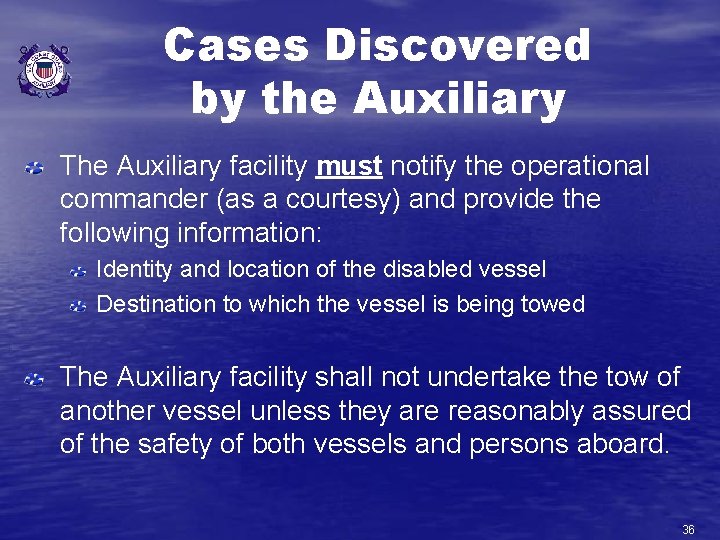

Cases Discovered by the Auxiliary The Auxiliary facility must notify the operational commander (as a courtesy) and provide the following information: Identity and location of the disabled vessel Destination to which the vessel is being towed The Auxiliary facility shall not undertake the tow of another vessel unless they are reasonably assured of the safety of both vessels and persons aboard. 36

Safe Haven A place that can accommodate and will accept the safe mooring of the vessel, and has available a means of communication, normally a telephone. In a non-distress situation, the vessel is normally towed to a safe haven. 37

Safe Haven CG Addendum 4. 1. 6. 5 In cases involving towing by the Coast Guard or Coast Guard Auxiliary, the vessel being assisted will normally be taken to the nearest safe haven. Coast Guard or Auxiliary resources should not tow the vessel beyond the nearest safe haven when there are commercial resources that could perform this function. 38

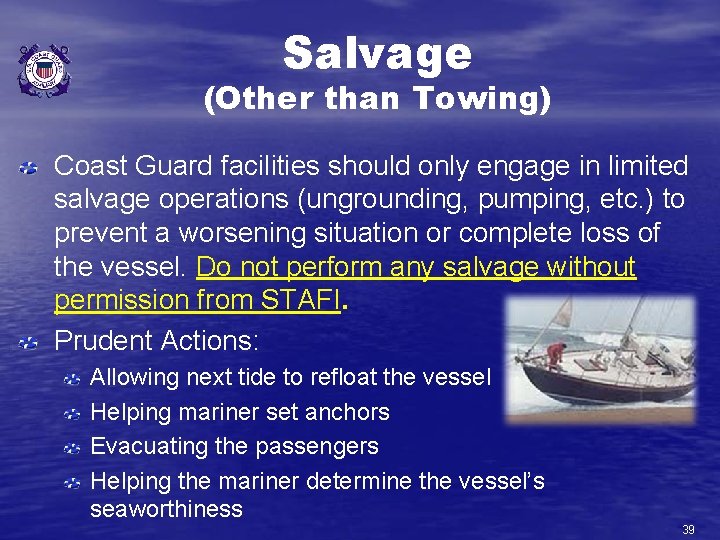

Salvage (Other than Towing) Coast Guard facilities should only engage in limited salvage operations (ungrounding, pumping, etc. ) to prevent a worsening situation or complete loss of the vessel. Do not perform any salvage without permission from STAFI. Prudent Actions: Allowing next tide to refloat the vessel Helping mariner set anchors Evacuating the passengers Helping the mariner determine the vessel’s seaworthiness 39

Damage Claims Notification Notify Operational Commander (BM 1 Natti) within 24 hrs Do not complete orders for reimbursement or start repairs Visual Inspection Operational Commander will assign an Investigating Officer (IO) to inspect the damage 40

Damage Claims Estimates or Appraisal Two estimates required if damage > $200 Fill out claim form and return to Operational Commander Attach claim form and estimates to AOM orders 41

Summary Safety (PPE) Safety (GAR / Risk Analysis) Decision making Safety (No cell phone use!) Safety (Safe speed / proper lookout) STAY SAFE!! 42

Questions? 43

Search Pattern Guidance Should be on board every Auxiliary facility 44

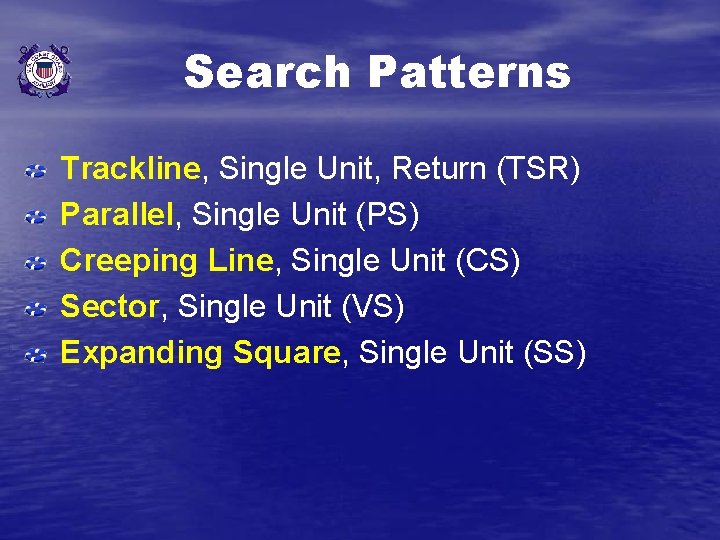

Search Patterns Trackline, Single Unit, Return (TSR) Parallel, Single Unit (PS) Creeping Line, Single Unit (CS) Sector, Single Unit (VS) Expanding Square, Single Unit (SS)

Trackline Search Pattern Used When: The intended route of the search object is known 46

Parallel Search Pattern Used when: The search area is large The location of the search object is approximate 47

Creeping Line Search Pattern Used when: The search area is large The location of the search object is approximate, but there is a greater chance that the search object is at one end of the search area versus the other (i. e. debris was found on one end during a previous search) 48

Sector Search Pattern Used when: The search area is small. The location of the search object is well known, and A concentrated search is desired. First leg is in direction of drift (preferred) or true north. 49

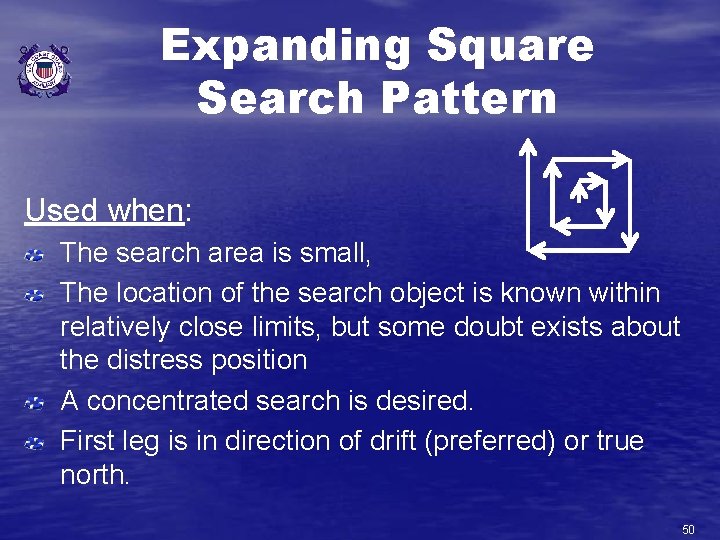

Expanding Square Search Pattern Used when: The search area is small, The location of the search object is known within relatively close limits, but some doubt exists about the distress position A concentrated search is desired. First leg is in direction of drift (preferred) or true north. 50

First On Scene Without specific tasking from the SMC, you should report on scene weather conditions to the SMC and prepare for your initial search. Initial Track Spacing (NM) Search Object Good Conditions Poor Conditions Winds < 15 Knots Winds ≥ 15 Knots Seas < 3 Feet Seas ≥ 3 Feet PIW 0. 1 Vessels < 15 Feet 0. 5 0. 2 Vessels ≥ 15 Feet 1. 0 0. 5 51
