Light-Emitting Diodes (LEDs) • For photonic communications requiring data rate 100 -200 Mb/s with multimode fiber with tens of microwatts, LEDs are usually the best choice. • LED configurations being used in photonic communications: 1 - Surface Emitters (Front Emitters) 2 - Edge Emitters

LED PRINCIPLE OF OPERATION • In FOC LEDS must have ü high radiance o/p or brightness ü Fast emission response time ü High Quantum Efficiency RADIANCE Measure of optical power radiated into a unit solid angle per unit area of the emitting surface. (unit is Watts. )

• Emission Response Time delay between application of a current pulse and respective optical emission. Quantum efficiency Related to fraction of electron hole pairs recombine radiatively.

LED structures • For high radiance and quantum efficiency The LED must have Optical confinement Achieve high level Radiative Recombination in the active region of the device-yield high quantum efficiency Carrier confinement Preventing absorption of the emitted radiation by the material surrounding the PN junction.

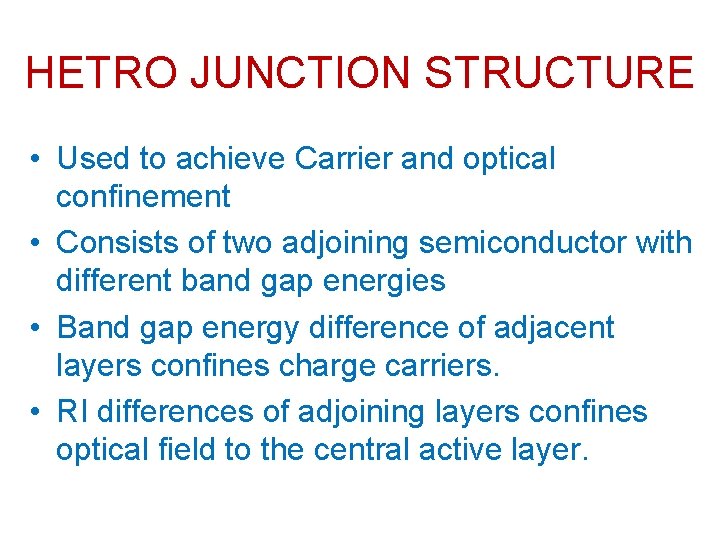

HETRO JUNCTION STRUCTURE • Used to achieve Carrier and optical confinement • Consists of two adjoining semiconductor with different band gap energies • Band gap energy difference of adjacent layers confines charge carriers. • RI differences of adjoining layers confines optical field to the central active layer.

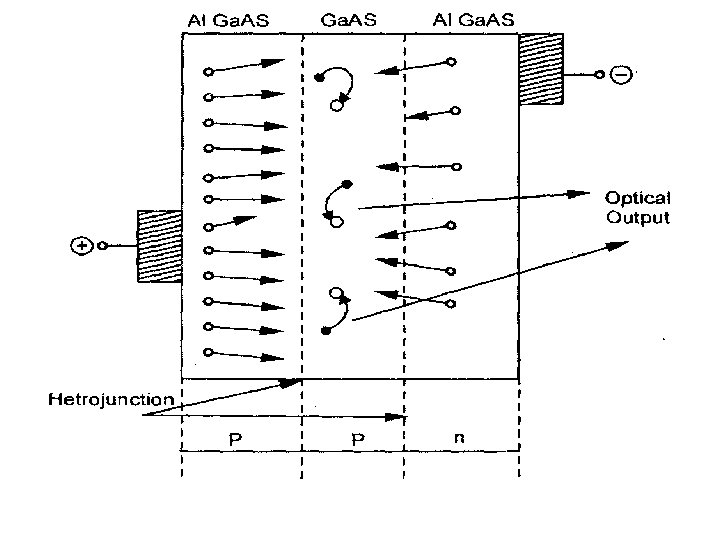

Cross-section drawing of a typical Ga. Al. As double heterostructure light emitter. In this structure, x>y to provide for both carrier confinement and optical guiding. b) Energy-band diagram showing the active region, the electron & hole barriers which confine the charge carriers to the active layer. c) Variations in the refractive index; the lower refractive index of the material in regions 1 and 5 creates an optical barrier around the waveguide because of the higher band-gap energy of this material. [4 -3] Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

LED CONFIGURATION • Surface emitters LED • Homo structure ü Data rates above 1000 bps ü Light emitting region perpendicular to fiber axis • Edge emitters LED ü Emit more directional light than SELED ü Use an etched well in Ga. As substrate in order to prevent heavy absorption. • Double hetero junction structure ü Giving increased efficiency from optical and electrical confinement

Surface-Emitting LED ü High radiance etched well is 0. 8 to 0. 9 um ü Due to large band gap in confining layer- very low internal absorption. ü Ga. As is used in well- to avoid heavy absorption of emitted light. ü Circular active area of surface emitter is 50 um dia and 2. 5 um thick. ü Emission pattern is isotropic with 120 half power beam width. Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

LAMBERTIAN PATTERN ü Isotropic pattern from surface emitter. ü Source equally bright in all directions-view ü It decides coupling efficiency ü Source equally bright but power dismisses cosᶿ. ü Power 50% down in its peak when ᶿ= 60. ü So total half power beam width is 120

Coupled power ü The power coupled to MMSI is PC =π(1 -r)A RD(NA)2 R- fresenel coefficient of fiber surface A- emission area of the source RD - radiance of the source ü They allow more power to be coupled- more difficult, expensive.

DH Edge Emitter LED ü Emit more directional light ü Reduce lose by absorption and more directional –light collected from edge. ü Has transparent guiding layers with very thin active layer of 50 um to 100 um – reducing self absorption. ü Guiding layer RI < surrounding material(core&cladding)> outer surrounding material. ü Form wave guide channel that directs the optical radiation towards fiber. ü To match fiber core diameter (50 to 100 um) the contact stripes for the edge emitters are 50 -70 um wide. ü In the plane parallel to the junction no waveguide effects. ü In the plane highly directional perpendicular to the junction-when half power beam width is 25 to 35 by proper choice of waveguide thickness.

Edge-Emitting LED Schematic of an edge-emitting double heterojunction LED. The output beam is lambertian in the plane of junction and highly directional perpendicular to pn junction. They have high quantum efficiency & fast response. Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

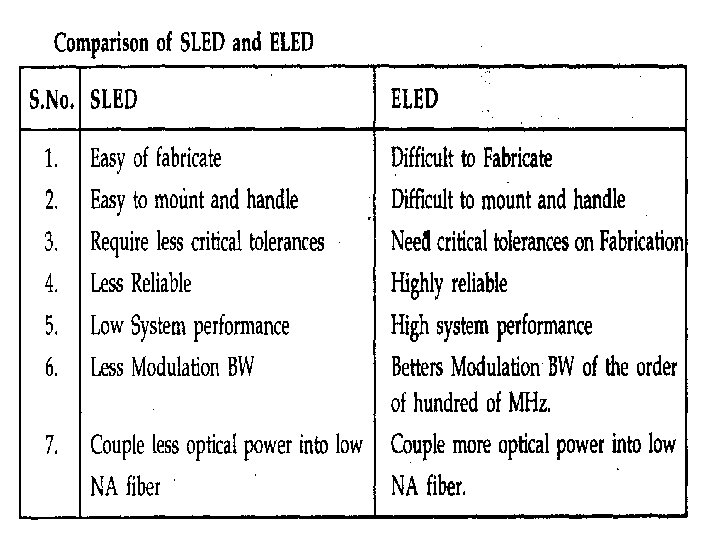

Full Width Half Power Maximum ü Width of spectral pattern and its half power point. ü Fundamental quantum relation E=hv = h (c/λ) V=c/λ λ= hc/E Ø Peak emission wavelength λ(um)=1. 240/Eg(e. V)

Light Source Material ü Most of the light sources contain III-V ternary & quaternary compounds. ü by varying x it is possible to control the band-gap energy and thereby the emission wavelength over the range of 800 nm to 900 nm. The spectral width is around 20 to 40 nm. ü By changing 0<x<0. 47; y is approximately 2. 2 x, the emission wavelength can be controlled over the range of 920 nm to 1600 nm. The spectral width varies from 70 nm to 180 nm when the wavelength changes from 1300 nm to 1600 nm. These materials are lattice matched.

Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

Spectral width of LED types Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

Quantum efficiency Intro. . ü Excess of electrons and holes in p and n type material created in semiconductor by carrier injection at device contacts. ü Excess carrier can be recombine radiatively or non radiatively. ü Total carrier generated rate is sum of externally supplied and thermally generated rates. ü Externally generated rate = j/qd j – current density q – electron charge ü d – thickness of region Themally generation rate = n/Ԏ Ԏ- carrier life time, N – excess carrier

Rate equations, Quantum Efficiency & Power of LEDs • When there is no external carrier injection, the excess density decays exponentially due to electron-hole recombination. [4 -4] • n is the excess carrier density, • Bulk recombination rate R: [4 -5] • Bulk recombination rate (R)=Radiative recombination rate + nonradiative recombination rate

With an external supplied current density of J the rate equation for the electron-hole recombination is: [4 -6] In equilibrium condition: dn/dt=0 [4 -7]

INTERNAL QUANTUM EFFICIENCY & OPTICAL POWER ü Fraction of electron and holes recombine radiatively ü Ratio of radiative recombination to total recombination [4 -8] Optical power generated internally in the active region in the LED is: [4 -9]

External Quantum Eficiency [4 -10] ü In order to calculate the external quantum efficiency, we need to consider the reflection effects at the surface of the LED. If we consider the LED structure as a simple 2 D slab waveguide, only light falling within a cone defined by critical angle will be emitted from an LED.

[4 -11] [4 -12] [4 -13] [4 -14]

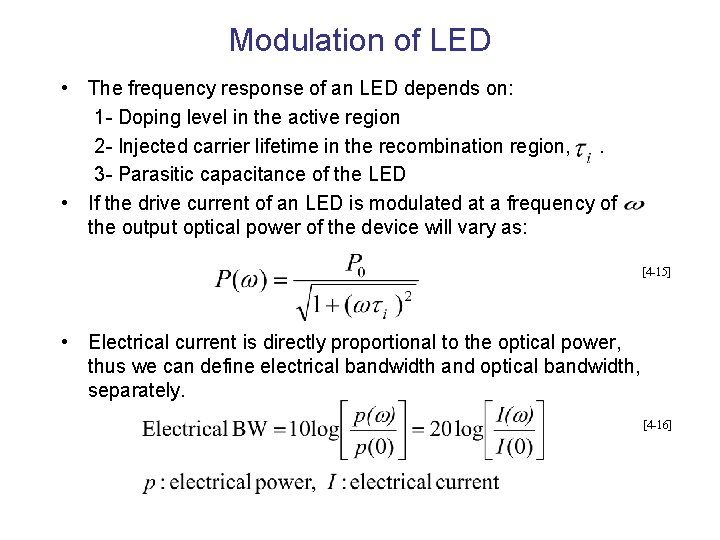

Modulation of LED • The frequency response of an LED depends on: 1 - Doping level in the active region 2 - Injected carrier lifetime in the recombination region, . 3 - Parasitic capacitance of the LED • If the drive current of an LED is modulated at a frequency of the output optical power of the device will vary as: [4 -15] • Electrical current is directly proportional to the optical power, thus we can define electrical bandwidth and optical bandwidth, separately. [4 -16]

[4 -17] Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

LASER (Light Amplification by the Stimulated Emission of Radiation) • Laser is an optical oscillator. It comprises a resonant optical amplifier whose output is fed back into its input with matching phase. Any oscillator contains: 1 - An amplifier with a gain-saturated mechanism 2 - A feedback system 3 - A frequency selection mechanism 4 - An output coupling scheme • In laser the amplifier is the pumped active medium, such as biased semiconductor region, feedback can be obtained by placing active medium in an optical resonator, such as Fabry. Perot structure, two mirrors separated by a prescribed distance. Frequency selection is achieved by resonant amplifier and by the resonators, which admits certain modes. Output coupling is accomplished by making one of the resonator mirrors partially transmitting.

LASER ü Single wavelength- related to molecular characteristics of material ü Lasing medium – gas, liquid, insualting crystal

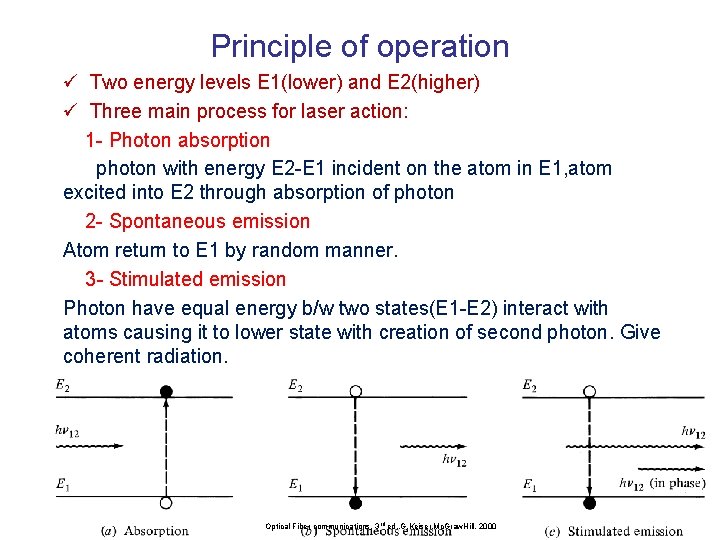

Principle of operation ü Two energy levels E 1(lower) and E 2(higher) ü Three main process for laser action: 1 - Photon absorption photon with energy E 2 -E 1 incident on the atom in E 1, atom excited into E 2 through absorption of photon 2 - Spontaneous emission Atom return to E 1 by random manner. 3 - Stimulated emission Photon have equal energy b/w two states(E 1 -E 2) interact with atoms causing it to lower state with creation of second photon. Give coherent radiation. Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

Lasing in a pumped active medium ü In thermal equilibrium the stimulated emission is essentially negligible, since the density of electrons in the excited state is very small, and optical emission is mainly because of the spontaneous emission. ü Stimulated emission will exceed absorption only if the population of the excited states is greater than that of the ground state. This condition is known as Population Inversion. ü Population inversion is achieved by various pumping techniques. ü In a semiconductor laser, population inversion is accomplished by injecting electrons into the material to fill the lower energy states of the conduction band.

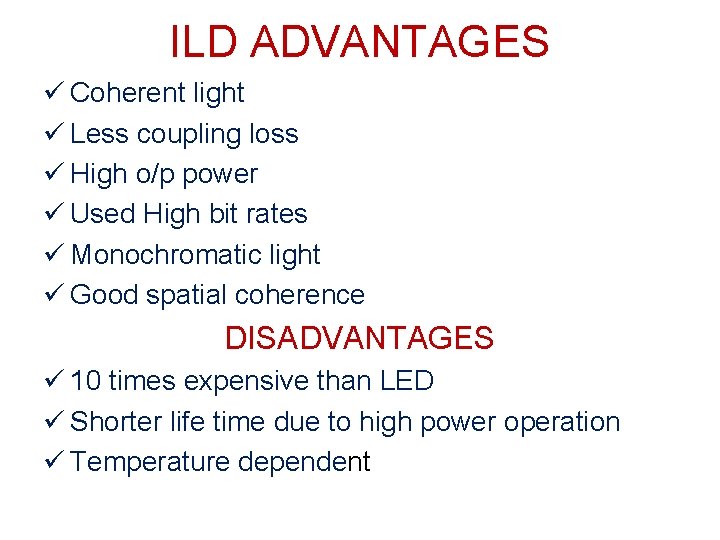

ILD ADVANTAGES ü Coherent light ü Less coupling loss ü High o/p power ü Used High bit rates ü Monochromatic light ü Good spatial coherence DISADVANTAGES ü 10 times expensive than LED ü Shorter life time due to high power operation ü Temperature dependent

SEMICONDUCTOR INJECTION LASER ü BW Greater than 200 Mhz. ü Its have response time less than 1 ns v. HOptical BW 2 nm or less vigh coupling efficiency v. Multilayered v. Smaller temp dependence

Fabry-Perot Resonator [4 -18] R: reflectance of the optical intensity, k: optical wavenumber

Hetero junctions ü Semiconductor lasers cleaved facets are used instead of external mirrors ü Reflectivity Rm=(n-1/n+1)^2 ü In DH structures-carrier and optical confinement reduces threshold currents for lasing by a factor 100 ü DH forward bias applied by +ve to p & -ve to n. ü Voltage correspond to band gap energy applied –large no of es are injected into active layer lasing commences. ü Small amount of energy required for operation of laser. ü Realized only by laser pumped above threshold ü Threshold current- current needed to reach threshold

Fabry Perot resonator cavity for Laser Diode • Laser diode is an improved LED, in the sense that uses stimulated emission in semiconductor from optical transitions between distribution energy states of the valence and conduction bands with optical resonator structure such as Fabry-Perot resonator with both optical and carrier confinements. Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

Cavity much smaller ü 250 – 500 um long ü 5 – 15 um wide ü 0. 1 – 0. 2 um Thick

Laser Diode Characteristics • • Nanosecond & even picosecond response time (GHz BW) Spectral width of the order of nm or less High output power (tens of m. W) Narrow beam (good coupling to single mode fibers) • Laser diodes have three distinct radiation modes namely, longitudinal, lateral and transverse modes. • In laser diodes, end mirrors provide strong optical feedback in longitudinal direction, so by roughening the edges and cleaving the facets, the radiation can be achieved in longitudinal direction rather than lateral direction.

Modes of cavity Ø The radiation with in the resonance cavity of a laser diode set up a pattern of electric and magnetic lines Ø Modes ü TE modes ü TM modes Each modes described in lateral, longitudinal and transverse.

Ø Longitudinal modes ü Related to length L of the cavity. ü Much larger then lasing wavelength approximately 1 u Ø Longitudinal modes ü Lin in the plane of p-n junction. ü Depends on side wall preparation, width of cavity. Ø Transverse modes ü Associated with electromagnetic field and beam profile perpendicular to the plane of p-n junction.

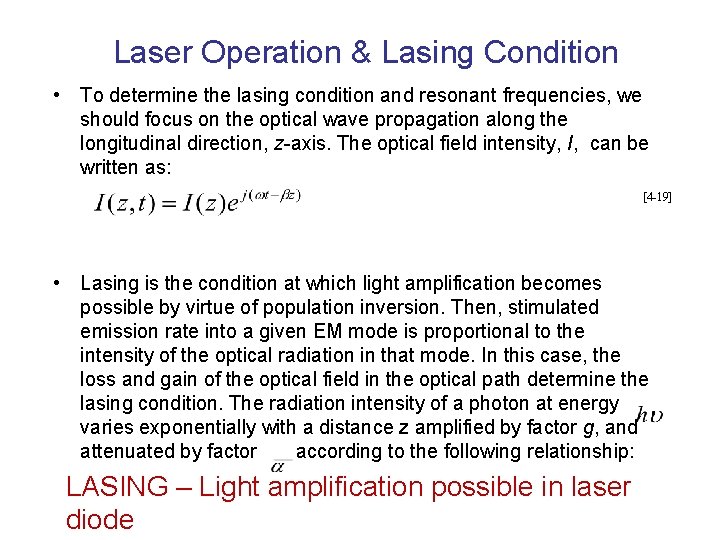

Laser Operation & Lasing Condition • To determine the lasing condition and resonant frequencies, we should focus on the optical wave propagation along the longitudinal direction, z-axis. The optical field intensity, I, can be written as: [4 -19] • Lasing is the condition at which light amplification becomes possible by virtue of population inversion. Then, stimulated emission rate into a given EM mode is proportional to the intensity of the optical radiation in that mode. In this case, the loss and gain of the optical field in the optical path determine the lasing condition. The radiation intensity of a photon at energy varies exponentially with a distance z amplified by factor g, and attenuated by factor according to the following relationship: LASING – Light amplification possible in laser diode

[4 -20] Z=0 Z=L [4 -21] Lasing Conditions: [4 -22]

Optical output vs. drive current Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

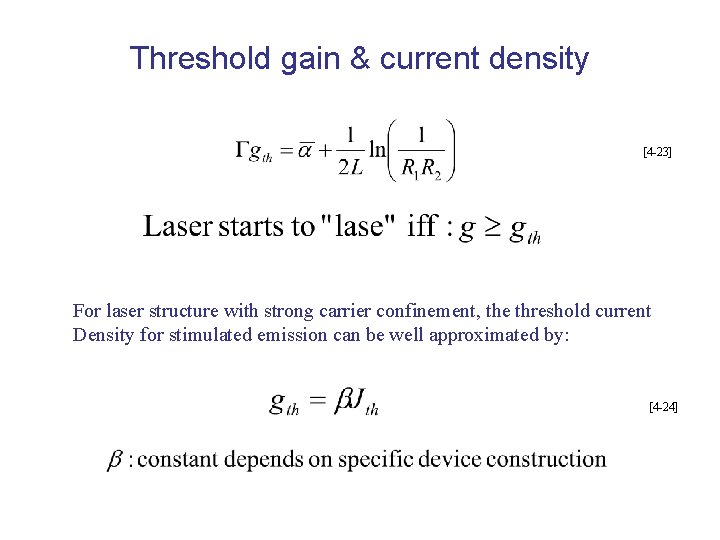

Threshold gain & current density [4 -23] For laser structure with strong carrier confinement, the threshold current Density for stimulated emission can be well approximated by: [4 -24]

External quantum efficiency • Number of photons emitted per radiative electron-hole pair recombination above threshold, gives us the external quantum efficiency. [4 -29] • Note that:

Threshold current Density & excess electron density • At the threshold of lasing: [4 -26] • The threshold current needed to maintain a steady state threshold concentration of the excess electron, is found from electron rate equation under steady state condition dn/dt=0 when the laser is just about to lase: [4 -27]

Semiconductor laser rate equations • Rate equations relate the optical output power, or # of photons per unit volume, , to the diode drive current or # of injected electrons per unit volume, n. For active (carrier confinement) region of depth d, the rate equations are: [4 -25]

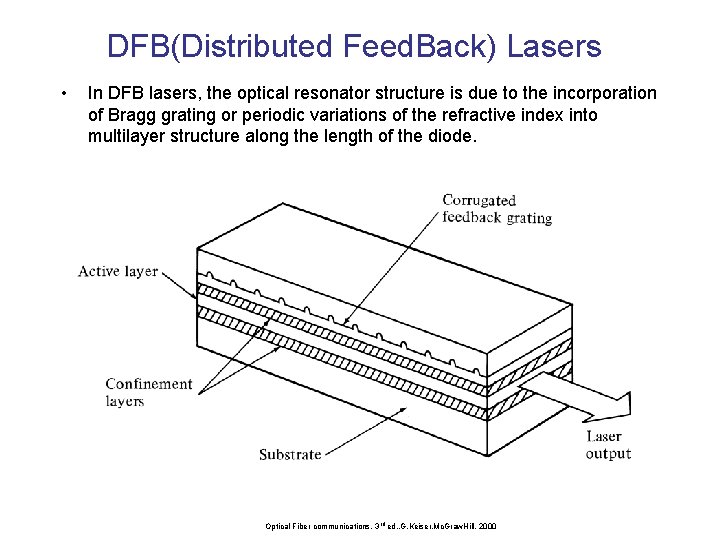

DFB(Distributed Feed. Back) Lasers • In DFB lasers, the optical resonator structure is due to the incorporation of Bragg grating or periodic variations of the refractive index into multilayer structure along the length of the diode. Optical Fiber communications, 3 rd ed. , G. Keiser, Mc. Graw. Hill, 2000

Laser operation beyond the threshold • The solution of the rate equations [4 -25] gives the steady state photon density, resulting from stimulated emission and spontaneous emission as follows: [4 -28]

Laser Resonant Frequencies • Lasing condition, namely eq. [4 -22]: • Assuming mode is: the resonant frequency of the mth [4 -30] [4 -31]

Spectrum from a laser Diode [4 -32]

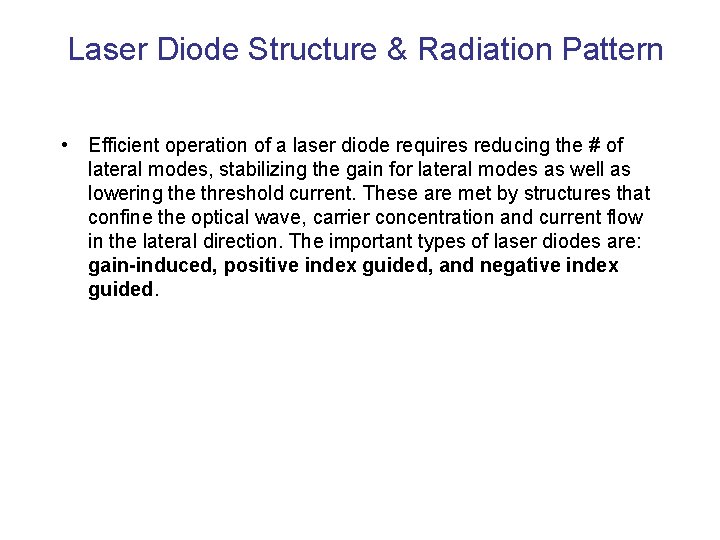

Laser Diode Structure & Radiation Pattern • Efficient operation of a laser diode requires reducing the # of lateral modes, stabilizing the gain for lateral modes as well as lowering the threshold current. These are met by structures that confine the optical wave, carrier concentration and current flow in the lateral direction. The important types of laser diodes are: gain-induced, positive index guided, and negative index guided.

(a) gain-induced guide (b)positive-index waveguide (c)negative-index waveguide

Laser Diode with buried heterostructure (BH)

Single Mode Laser • Single mode laser is mostly based on the indexguided structure that supports only the fundamental transverse mode and the fundamental longitudinal mode. In order to make single mode laser we have four options: 1 - Reducing the length of the cavity to the point where the frequency separation given in eq[4 -31] of the adjacent modes is larger than the laser transition line width. This is hard to handle for fabrication and results in low output power. 2 - Vertical-Cavity Surface Emitting laser (VCSEL) 3 - Structures with built-in frequency selective grating 4 - tunable laser diodes.

VCSEL

Frequency-Selective laser Diodes: Distributed Feedback (DFB) laser [4 -33]

Frequency-Selective laser Diodes: Distributed Feedback Reflector (DBR) laser

[4 -35] Output spectrum symmetrically distributed around Bragg wavelength in an idealized DFB laser diode

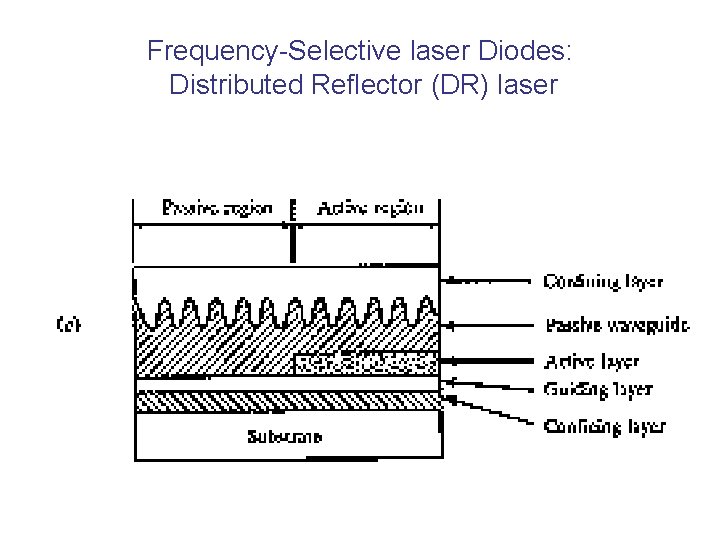

Frequency-Selective laser Diodes: Distributed Reflector (DR) laser

Modulation of Laser Diodes • Internal Modulation: Simple but suffers from non-linear effects. • External Modulation: for rates greater than 2 Gb/s, more complex, higher performance. • Most fundamental limit for the modulation rate is set by the photon life time in the laser cavity: [4 -36] • Another fundamental limit on modulation frequency is the relaxation oscillation frequency given by: [4 -37]

Relaxation oscillation peak

Pulse Modulated laser • In a pulse modulated laser, if the laser is completely turned off after each pulse, after onset of the current pulse, a time delay, given by: [4 -38]

Temperature variation of the threshold current

Linearity of Laser Information carrying electrical signal s(t) LED or Laser diode modulator Optical putput power: P(t)=P[1+ms(t)]

Nonlinearity x(t) Nonlinear function y=f(x) Nth order harmonic distortion: y(t)

Intermodulation Distortion Harmonics: Intermodulated Terms:

Laser Noise • Modal (speckel) Noise: Fluctuations in the distribution of energy among various modes. • Mode partition Noise: Intensity fluctuations in the longitudinal modes of a laser diode, main source of noise in single mode fiber systems. • Reflection Noise: Light output gets reflected back from the fiber joints into the laser, couples with lasing modes, changing their phase, and generate noise peaks. Isolators & index matching fluids can eliminate these reflections.
