UNIT III FINITE ELEMENT METHOD Presented by G

UNIT – III FINITE ELEMENT METHOD Presented by, G. Bairavi AP/civil 10/2/2020

PLANE STRESS AND PLANE STRAIN 2

Plane stress 3

4

5

6

7

8

9

10

11

12

13

14

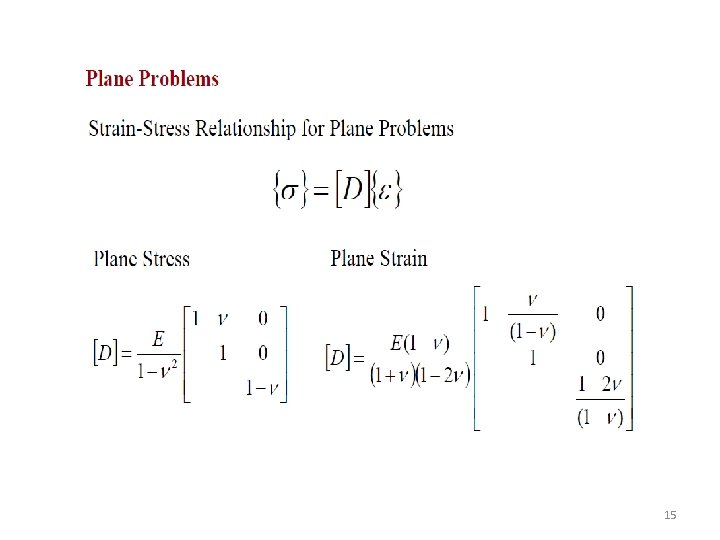

15

16

17

18

Formulation of Two-Dimensional Elasticity Problems 19

Simplified Elasticity Formulations The General System of Elasticity Field Equations of 15 Equations for 15 Unknowns Is Very Difficult to Solve for Most Meaningful Problems, and So Modified Formulations Have Been Developed. Displacement Formulation Eliminate the stresses and strains from the general system of equations. This generates a system of three equations for the three unknown displacement components. Stress Formulation Eliminate the displacements and strains from the general system of equations. This generates a system of six equations and for the six unknown stress components. 20

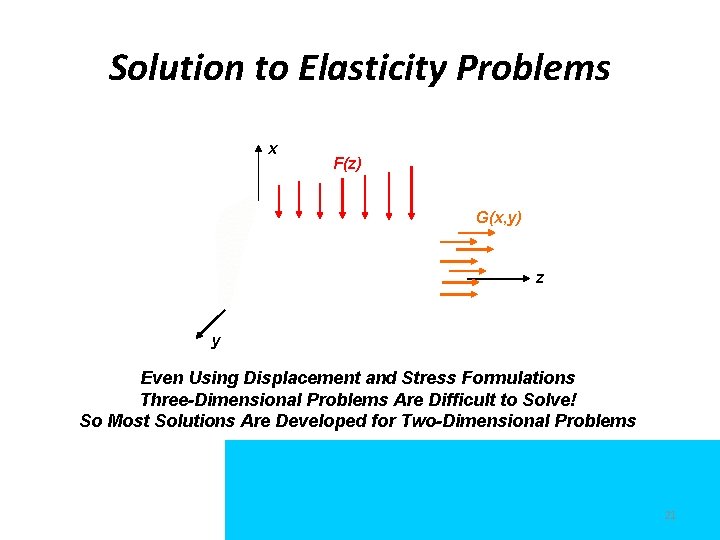

Solution to Elasticity Problems x F(z) G(x, y) z y Even Using Displacement and Stress Formulations Three-Dimensional Problems Are Difficult to Solve! So Most Solutions Are Developed for Two-Dimensional Problems 21

Two and Three Dimensional Problems Three-Dimensional Two-Dimensional x y z z z Spherical Cavity y x 22

Two-Dimensional Formulation Plane Stress y Plane Strain y 2 h << other dimensions z R x x R z 23

Examples of Plane Strain Problems y P z x x y z Long Cylinders Under Uniform Loading Semi-Infinite Regions Under Uniform Loadings 24

Examples of Plane Stress Problems Thin Plate With Central Hole Circular Plate Under Edge Loadings 25

Plane Strain Formulation Strain. Displacement Hooke’s Law 26

Plane Strain Formulation Stress Formulation Displacement Formulation Si y R S = Si + So S o x 27

Plane Strain Example 28

Plane Stress Formulation Hooke’s Law Strain. Displacement Note plane stress theory normally neglects some of the strain-displacement and compatibility equations. 29

Plane Stress Formulation Displacement Formulation Stress Formulation Si y R S = Si + So S o x 30

Correspondence Between Plane Problems Plane Strain Plane Stress 31

Elastic Moduli Transformation Relations for Conversion Between Plane Stress and Plane Strain Problems Plane Strain Plane Stress E v Plane Stress to Plane Strain to Plane Stress Therefore the solution to one plane problem also yields the solution to the other plane problem through this simple transformation 32

Airy Stress Function Method Plane Problems with No Body Forces Stress Formulation Airy Representation Biharmonic Governing Equation (Single Equation with Single Unknown) 33

Polar Coordinate Formulation Strain. Displacement x 2 rd dr d Hooke’s Law x 1 Equilibrium Equations Airy Representation 34

Solutions to Plane Problems Cartesian Coordinates Airy Representation Biharmonic Governing Equation y Click to edit Master subtitle style Traction Boundary S R Conditions x 35

Solutions to Plane Problems Polar Coordinates Airy Representation Biharmonic Governing Equation Click to edit Master subtitle style Traction Boundary S R y Conditions � r x 36

Cartesian Coordinate Solutions Using Polynomial Stress Functions terms do not contribute to the stresses and are therefore dropped terms will automatically satisfy the biharmonic equation terms require constants Amn to be related in order to satisfy biharmonic equation Solution method limited to problems where boundary traction conditions can be represented by polynomials or where more complicated boundary conditions can be replaced by a statically equivalent loading 37

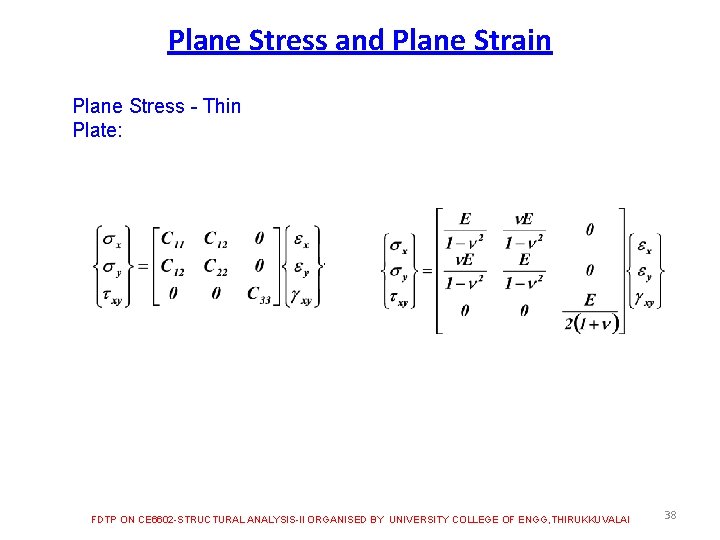

Plane Stress and Plane Strain Plane Stress - Thin Plate: FDTP ON CE 6602 -STRUCTURAL ANALYSIS-II ORGANISED BY UNIVERSITY COLLEGE OF ENGG, THIRUKKUVALAI 38

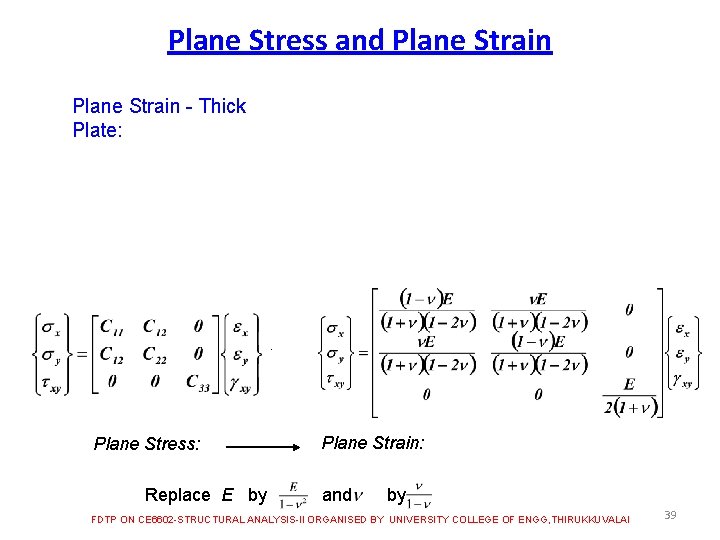

Plane Stress and Plane Strain - Thick Plate: Plane Stress: Plane Strain: Replace E by and by FDTP ON CE 6602 -STRUCTURAL ANALYSIS-II ORGANISED BY UNIVERSITY COLLEGE OF ENGG, THIRUKKUVALAI 39

Equations of Plane Elasticity Governing Equations (Static Equilibrium) Constitutive Relation (Linear Elasticity) Strain-Deformation (Small Deformation) 40
