Unit 9 Statistics By Jamie Fu and Neha

Unit 9: Statistics By: Jamie Fu and Neha Surapaneni

Central Tendency ❖ Mean/average( ): sum of n numbers divided by n ❖ Median: The middle number of n numbers that are written in numerical order (If n is even, take the average of the middle two numbers) ❖ Mode: The number or numbers that occur most in a set of n numbers ❖ Range: The difference between the largest and smallest numbers of a set of n numbers of values ❖ Standard Deviation(σ): Describes. N=number the =typical difference between a mean X 1 -n=each of the values of the set data value and mean

Sample Problem You are competing in a hockey tournament. The winning scores for the first 10 games are: 11, 12, 13, 14, 15, 15, 17 Find the mean, mode, median, range, standard deviation Mean: (11+12+13…+17)/10 = 14 Median: (14+15)/2= 14. 5 Mode: 15 Range: 17 -11 = 6 Std. Dev. : σ= √[(11 -14)^2 + (12 -14)^2 …+ (17 -14)^2]/10 ≈ 1. 7

Scatter plots ❖ X-axis is independent variable ❖ Y-axis is the dependent variable ❖ Correlation coefficient: How strong the relationship is between points

Box and Whisker plots ❖ Lower quartile=median between median and lowest value ❖ Upper quartile=median between median and highest value

Histograms ❖ The bars should be touching ❖ Bars should be the same width ❖ Width should represent a quantitative value not categorical ❖ The height indicates frequency

Sample Problem: Box & Whisker vs. Histogram The annual incomes for 6 professions are shown below: Farming: 19, 630 Sales: 28, 920 Architecture: 56, 330 Professional Athlete: 2, 476, 590 Legal: 69, 030 Teaching: 39, 130 Which graph will better represent the data? (histogram/box and whisker) Box and Whisker, due to the big outlier, the athlete Which graph will better represent the data when the outlier is removed? Histogram, because the data is closer together

Frequency Distribution ❖ Lower Class limit: lowest value in a class ❖ Upper Class Limit: Highest value in a class ❖ Class Mark: midpoint of a class ❖ Formula: (Lower class limit + upper class limit)/2 ❖ Class Width: the difference between the lower and upper class limits to the next highest whole number ❖ Formula: (high-low)/number of classes you want ❖ Class Boundaries: the endpoints of the bars in a histogram

Frequency tables ❖ Use frequency distribution to organize data ❖ Used in creating Tally histograms Class Limits Class Boundaries Lower-Upper Frequenc y Class Midpoint 1 -8 0. 5 -8. 5 11111 14 4. 5 9 -16 8. 5 -16. 5 11111 1 21 12. 5 17 -24 16. 5 -24. 5 11111 11 20. 5

Sample Frequency Tables ❖ Sample mean: = [∑(x. f)]/n ❖ Sample Standard Deviation: ❖ Variance: sample std. dev. without the square root x= class mark n= # of entries f= frequency

Sample Frequency Tables Class Limits Marks Frequency x✖f v (class midpoint) 1 -10 5. 5 34 187 112. 36 3820. 24 11 -20 15. 5 18 279 . 36 6. 48 21 -30 25. 5 Mean: 31+ 16. 135. 5 17 433. 5 88. 36 1502. 12 ∑=80 ∑=1290 ∑=9468. 8 Standard Variance: 11 Deviation: √ 119. 9 390. 5 376. 36 119. 94139. 96 ✖f

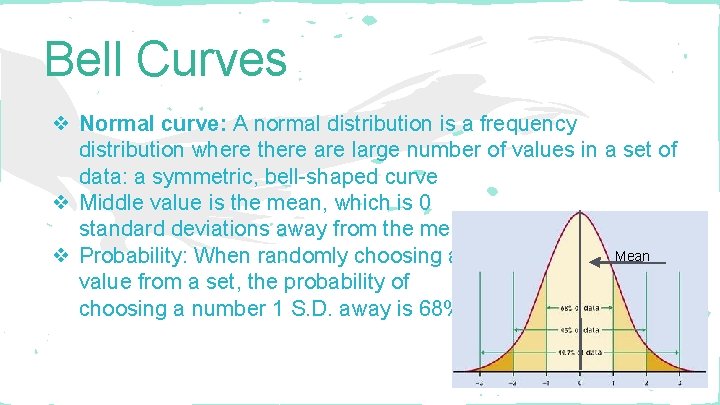

Bell Curves ❖ Normal curve: A normal distribution is a frequency distribution where there are large number of values in a set of data: a symmetric, bell-shaped curve ❖ Middle value is the mean, which is 0 standard deviations away from the mean Mean ❖ Probability: When randomly choosing a value from a set, the probability of choosing a number 1 S. D. away is 68%

Choosing a Graph: Use. . . when. . . ❖ Scatter plot: Set of points to find correlation ❖ Box & Whisker: Outliers ❖ Histogram: numbers are close to each other, showing for frequency of #s in a certain range ❖ Bell Curve: Showing where majority of data is; finding probability of a certain # picked out of set

Data Classification Population: Group of people or objects you want info about Sample: Subset of population Types of Samples ❖ Self-selected sample: Members volunteer to be samples ❖ Systematic sample: A rule is used to select members ❖ Convenience sample: Easy-to-reach members ❖ Random sample: Each member has equal chance of selection Bias and Unbias ❖ Biased sample: Over or under represents parts of population ❖ Unbiased sample: Representative of population you want info on

Margin of Error ❖ Gives limit on how much the responses of your sample differ from responses from the whole population ❖ ±(1/√N) ❖ Percent of the population that responds in the same way as the sample responding a certain way(p) is likely to be between. . . ❖ P-(1/√N) and P+(1/√N)

Calculating Probability ❖ What is the probability that a number(x) will be ≥, ≤, <, > +nσ (≤ and < are the same, ≥ and > are the same) ❖ Example: P(x≥ +σ) ❖ The percent between +1 and +2 is 13. 5% ❖ The percent between +2 and +3 is Mean 2. 35% 34 ❖ After +3 is. 15% 13. ❖ Therefore, P(x≥ +σ) is 13. 5+2. 35+. 15 5 2. 35 =16% . 1 5

Calculating Probability Example: Normal distribution has a mean of 27 and a standard deviation of 5 What is P(22<x<32)? 22 is 27( )-5(σ) and 32 is 27+5 so it is one standard deviation away Mean Therefore, the percentage should be in 34 between -σ and +σ, which is 68% 13. 5 2. 35 . 1 5

Calculating Probability using zscore ❖ The standard normal distribution is the normal distribution with mean 0 and standard deviation 1 ❖ The formula (x- )/σ can be used to transform x-values from a normal distribution with mean and standard deviation σ into z-values having a standard normal distribution with mean 0 and standard deviation 1 ❖ The z-value for a particular x-value is called the z-score for the x-value and is the number of standard deviations the xvalue lies above or below the mean

Calculating Probability using zscore A normal distribution has a mean of 75 and a standard deviation of 10 Use standard normal table(find z-score first) to find P(x≤ 70) Answer: Use (x- )/σ to find z-score [ (70 -75)/10 = -0. 5 ] The z-score is -0. 5; Choose row -0 and column. 5 to form -0. 5 The cross section shows the number. 3085 which is 30. 85% which is ≈31% The probability of P(x≤ 70) ≈31% When using z-score and it asks for P(x≥n), then take 1 MINUS the z-score

Standard Error of the Mean ❖ Standard Error( ) measures how well a sample mean estimates the true mean of a population ❖ Formula: Q: The mean weight of 36 boys on the wrestling team is 136. 4 lbs and the standard deviation is 4. 1 what is the standard error of the mean? A: 4. 1÷√ 36 = 4. 1÷ 6 ≈. 68 = 68%

Confidence Interval ❖ Lower Confidence Limit ❖ Upper Confidence Limit ❖ formula for confidence interval around pop, mean(μ): ❖ critical confidence value(zc)is found using this table

Confidence Interval Example Q: In a sample of 100 families a Tv reporter found that kids watch an avg. of 4. 6 hrs of TV a day. The σ is 1. 4 hrs. a) Find the ? 1. 4÷√ 100 = 1. 4÷ 10=. 14 = 14% b) Find the 50% and 99% confidence intervals for the number of hours all kids in Texas watch T. V. 50%: 4. 6±(. 6745)(. 14) = 4. 51 ≤μ≤ 4. 69 99%: 4. 6±(. 2. 58)(. 14) = 4. 24 ≤μ≤ 4. 96 c) Which interval has a wider range? 99%

Common Mistakes ❖ Finding the proper class limits: sometimes the formula doesn’t work ❖ Remember: when using z-score and the probability asks for ≥ a number, then you take 1 MINUS the z-score ❖ Deciding the formulas to use in real life situations ❖ Deciding on the classification of the data(which sample to use)

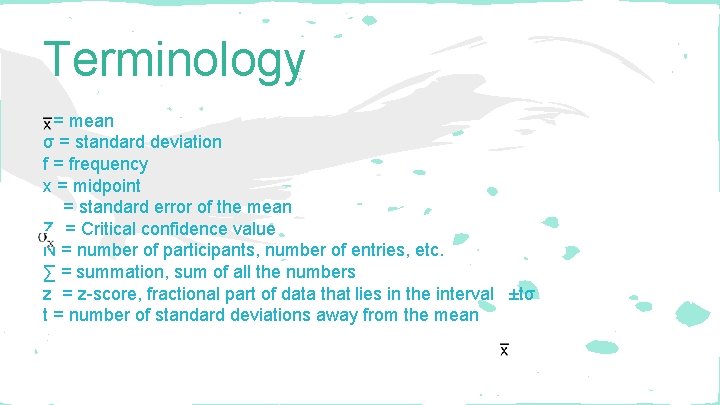

Terminology = mean σ = standard deviation f = frequency x = midpoint = standard error of the mean Zc = Critical confidence value N = number of participants, number of entries, etc. ∑ = summation, sum of all the numbers z = z-score, fractional part of data that lies in the interval ±tσ t = number of standard deviations away from the mean

Using a Graphing Calculator Correlation Coefficient: Stat, 1, 2 nd, 0, D, diagnostics on, enter. stat, calc, 4 (It is r) Central Tendency: Stat, 1, stat, calc Get numbers in order: stat, 1, 2 nd, stat, ops, 1, 2 nd, 1, stat, 1. Line of best fit: stat, 1, 2 nd, y=, plot on, stat, calc, 4

Statistics Formulas Margin of Error: ± 1 /√N Class WIdth: (high - low) / # of classes mean Class Midpoint: (upper limit + lower limit) / 2 Mean of Frequency Distribution: [∑(x. f)]/n Sample standard deviation: Z-score: (x- )/σ Standard Error of the Mean: Deviation Confidence Interval:
