Unit 6 Series Circuits Objectives: • Discuss the properties of series circuits. • List three rules for solving electrical values of series circuits. • Compute values of voltage, current, resistance, and power for series circuits.

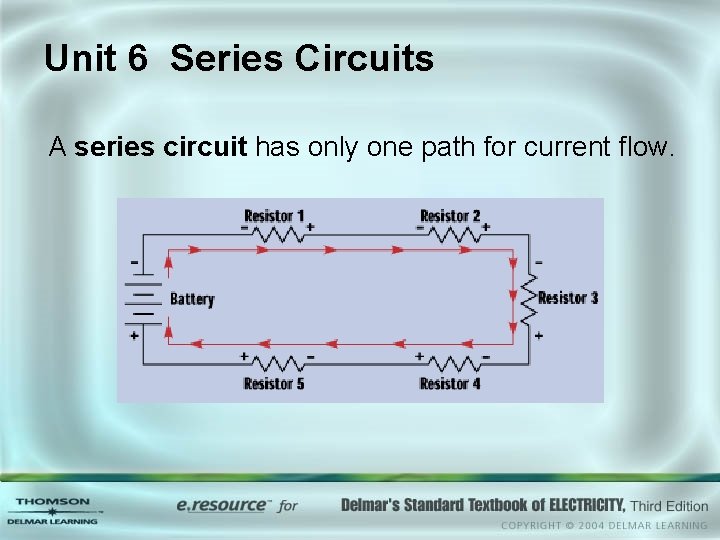

Unit 6 Series Circuits A series circuit has only one path for current flow.

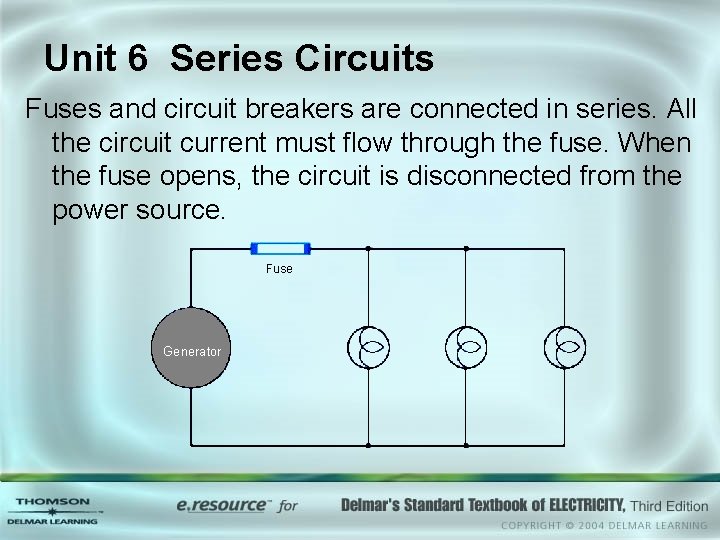

Unit 6 Series Circuits Fuses and circuit breakers are connected in series. All the circuit current must flow through the fuse. When the fuse opens, the circuit is disconnected from the power source. Fuse Generator

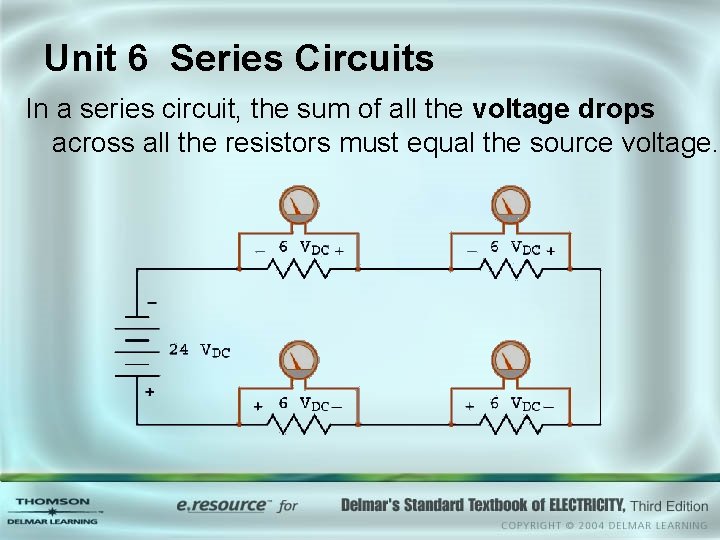

Unit 6 Series Circuits In a series circuit, the sum of all the voltage drops across all the resistors must equal the source voltage.

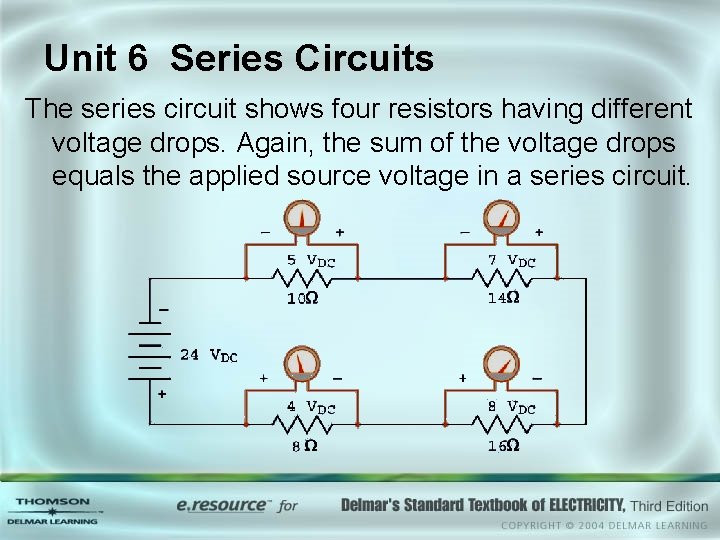

Unit 6 Series Circuits The series circuit shows four resistors having different voltage drops. Again, the sum of the voltage drops equals the applied source voltage in a series circuit.

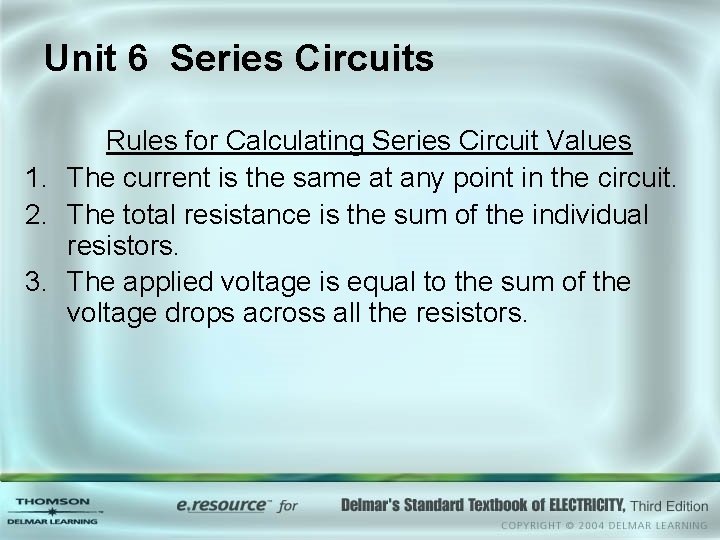

Unit 6 Series Circuits Rules for Calculating Series Circuit Values 1. The current is the same at any point in the circuit. 2. The total resistance is the sum of the individual resistors. 3. The applied voltage is equal to the sum of the voltage drops across all the resistors.

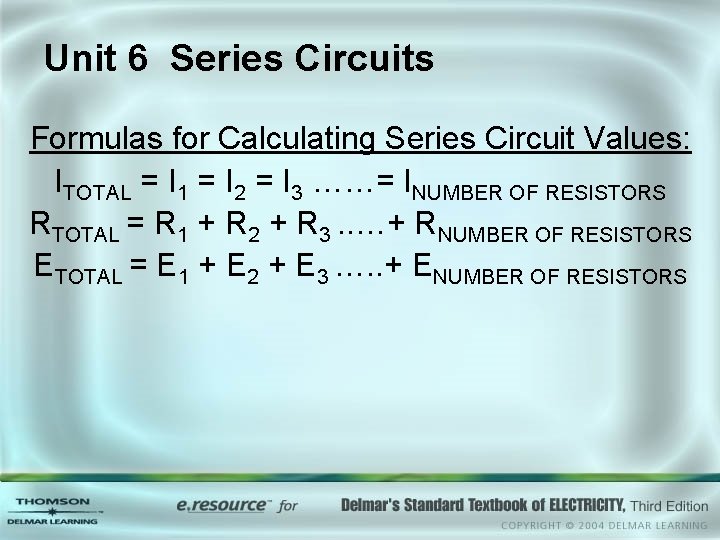

Unit 6 Series Circuits Formulas for Calculating Series Circuit Values: ITOTAL = I 1 = I 2 = I 3 ……= INUMBER OF RESISTORS RTOTAL = R 1 + R 2 + R 3. . …+ RNUMBER OF RESISTORS ETOTAL = E 1 + E 2 + E 3 …. . + ENUMBER OF RESISTORS

Unit 6 Series Circuits Example of Series Circuit Values ITOTAL = I 1 = I 2 = I 3 = 2 A RTOTAL = 20 Ω + 10 Ω + 30 Ω = 60 Ω ETOTAL = 40 V + 20 V + 60 V = 120 V Please insert figure 6 -6

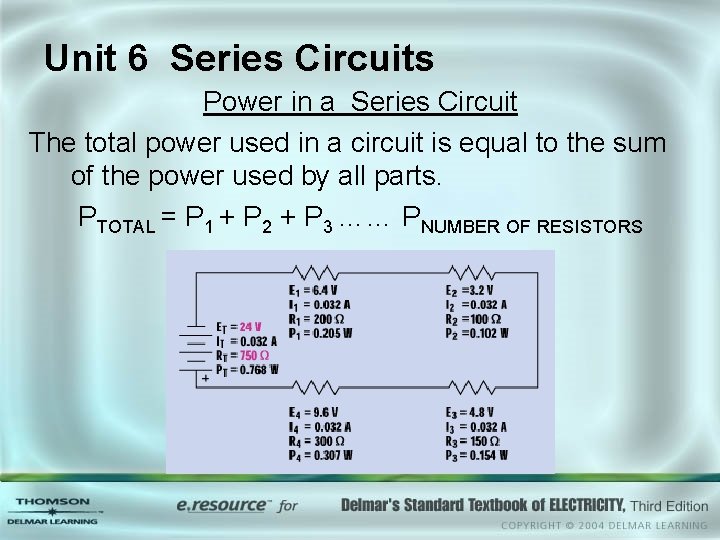

Unit 6 Series Circuits Power in a Series Circuit The total power used in a circuit is equal to the sum of the power used by all parts. PTOTAL = P 1 + P 2 + P 3 …… PNUMBER OF RESISTORS Please insert Figure 6 -21

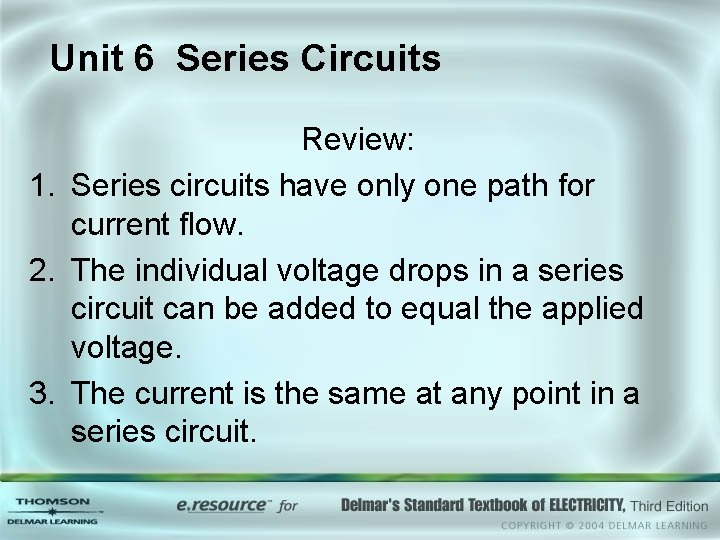

Unit 6 Series Circuits Review: 1. Series circuits have only one path for current flow. 2. The individual voltage drops in a series circuit can be added to equal the applied voltage. 3. The current is the same at any point in a series circuit.

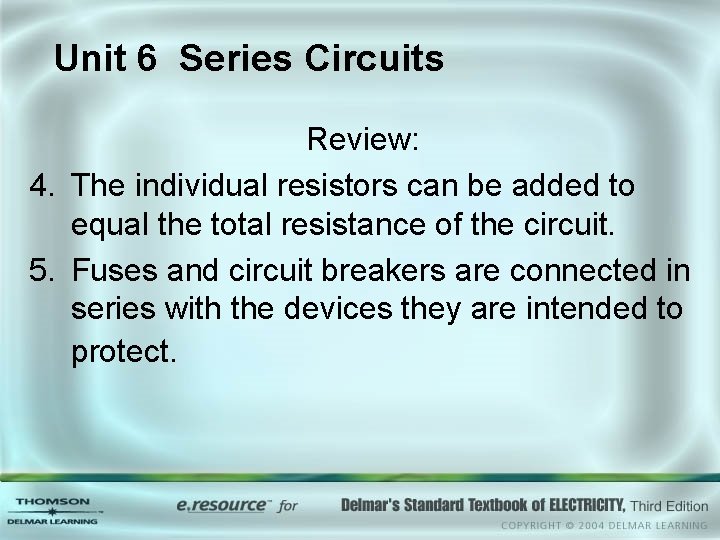

Unit 6 Series Circuits Review: 4. The individual resistors can be added to equal the total resistance of the circuit. 5. Fuses and circuit breakers are connected in series with the devices they are intended to protect.
