Unit 35 Vibrationdata Using Fatigue to Compare Sine

Unit 35 Vibrationdata Using Fatigue to Compare Sine and Random Environments 1

Comparing Different Environments in Terms of Damage Potential Base Input is Navmat P 9492 PSD, 60 sec Duration SDOF Response fn=300 Hz, Q=10 Assume fatigue exponent of 6. 4 (Steinberg's value for electronic equipment) What is equivalent sine level in terms of fatigue damage?

NAVMAT P 9492 Synthesized Time History Save as: accel_input

Synthesized Time History Histogram

Synthesized Time History PSD Verification

SDOF Response to Synthesis, Narrowband Random Acceleration Response absolute peak = 64. 7 G overall = 13. 9 GRMS Std dev = 13. 9 G (for zero mean) Peak response = 4. 6 sigma Save as: accel_resp

Statistical Relation = standard deviation [ RMS ] 2 = [ ] 2 + [ mean ]2 RMS = assuming zero mean

SDOF Response to Synthesis, Narrowband Random, Histogram

Damage Index for Relative Comparisons between Environments A damage index D can be calculated using where is the response amplitude from the rainflow analysis is the corresponding number of cycles b is the fatigue exponent

Rainflow Cycles for SDOF (fn=300 Hz, Q=10) Response to PSD, Exponent=6. 4

Equivalent Sine Level What is equivalent Sine Input Level at 300 Hz for 60 second duration? Again, SDOF Response fn=300 Hz, Q=10 Assume fatigue exponent of 6. 4 Modified Relative Damage Index for Steady-state Sine Response is the response f Excitation Frequency T Duration Y Base Input Acceleration Q Amplification Factor b Fatigue Index

Equivalent Sine Level (cont) f T Q b D 300 Hz 60 sec 10 6. 4 2. 6 e+13 Y=2. 7 G (Sine Base Input at 300 Hz) (QY) =27 G (Sine Response) Random Response overall = 13. 9 GRMS = 13. 9 G (1 -sigma) for zero mean) Equivalent Sine Response Amplitude 2 -sigma Random Response Repeat analysis for other Q and b values as needed. Run additional PSD synthesis cases for statistical rigor.

Equivalent Sine Level (cont) vibrationdata > fatigue toolbox > Miscellaneous > Equivalent Sine Input for Given Damage Level

Histogram Comparison, Base Inputs Random, Normal Distribution Sine, Bathtub Curve Even though histograms differ, we can still do equivalent damage calculation for engineering purposes. This is Engineering not Physics!

Converting a Sine Tone to Narrowband PSD • Assume a case where the base input is a sine tone which must be converted to a narrowband PSD • The conversion will be made in terms of the acceleration response of the mass to each input • Assume Q and fatigue exponent • Calculate fatigue damage for sine tone • Select frequency limits for narrowband PSD • One-twelfth octave band is used for this example • Assume initial PSD level of 1 G^2/Hz • Calculated SDOF response to narrowband PSD • Calculate narrowband damage using Dirlik method • Scale PSD level to match sine damage

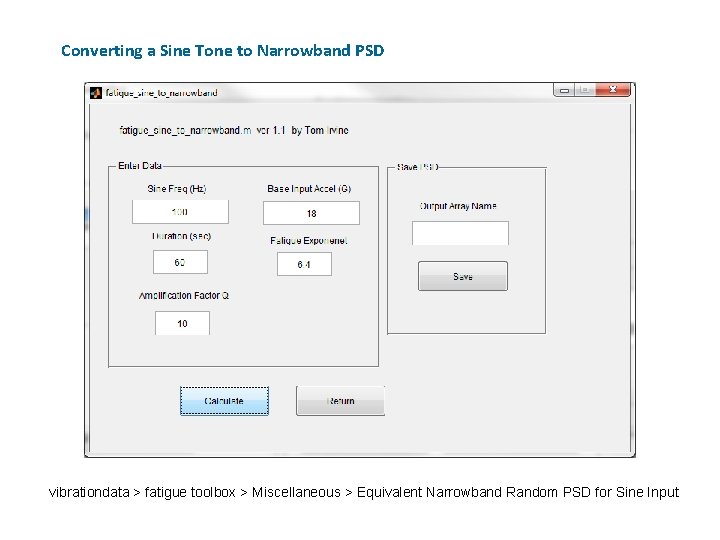

Converting a Sine Tone to Narrowband PSD vibrationdata > fatigue toolbox > Miscellaneous > Equivalent Narrowband Random PSD for Sine Input

Converting a Sine Tone to Narrowband PSD 18 G, 100 Hz, Sine Tone converted to One-twelfth Octave band PSD Q b PSD (G^2/Hz) 10 4 19. 9 10 6. 4 15. 0 10 9 12. 0 30 4 31. 7 30 6. 4 23. 9 30 9 19. 1 Highest Q and lowest b give most conservative PSD level
