Unit 3 Motion in Two Dimensions EQ What

Unit 3 Motion in Two Dimensions EQ: What is a projectile?

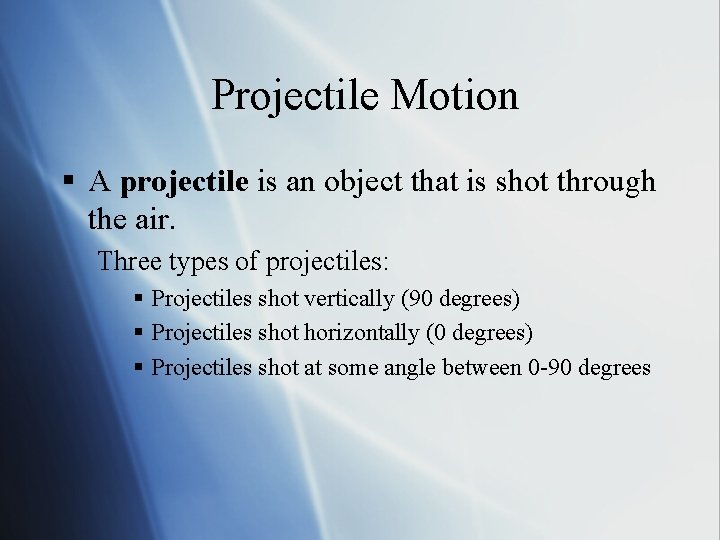

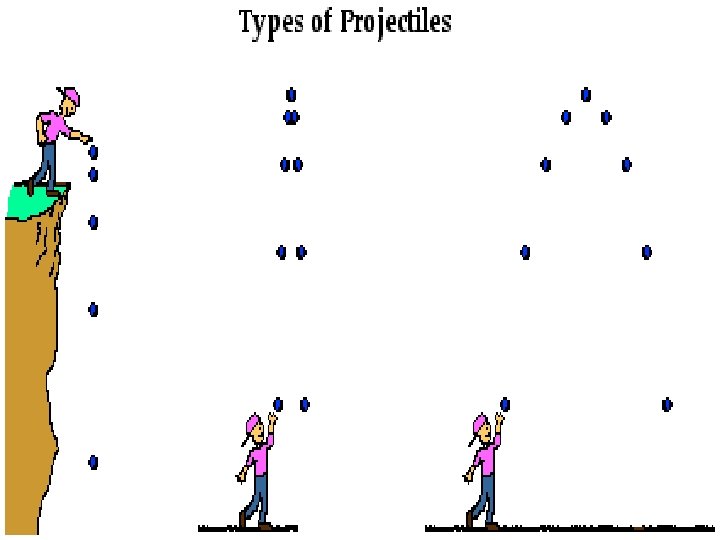

Projectile Motion § A projectile is an object that is shot through the air. Three types of projectiles: § Projectiles shot vertically (90 degrees) § Projectiles shot horizontally (0 degrees) § Projectiles shot at some angle between 0 -90 degrees

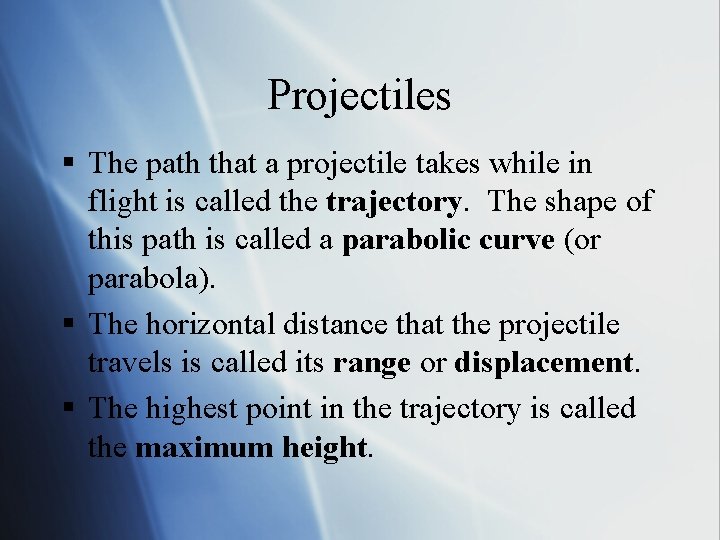

Projectiles § The path that a projectile takes while in flight is called the trajectory. The shape of this path is called a parabolic curve (or parabola). § The horizontal distance that the projectile travels is called its range or displacement. § The highest point in the trajectory is called the maximum height.

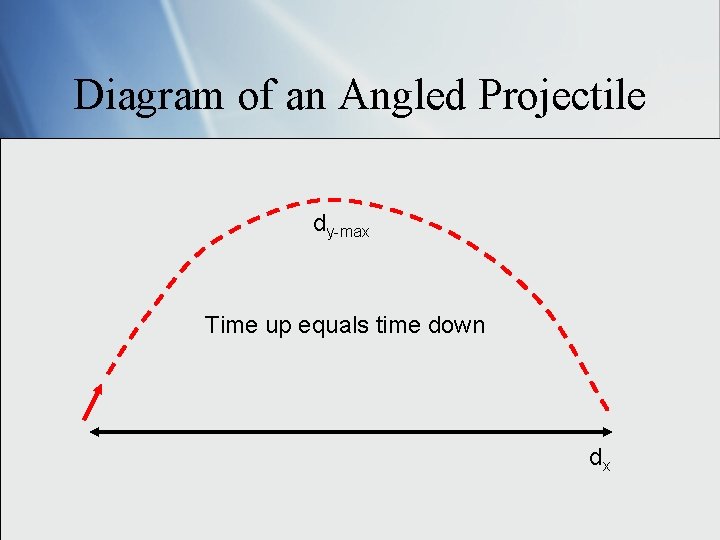

Diagram of an Angled Projectile dy-max Time up equals time down dx

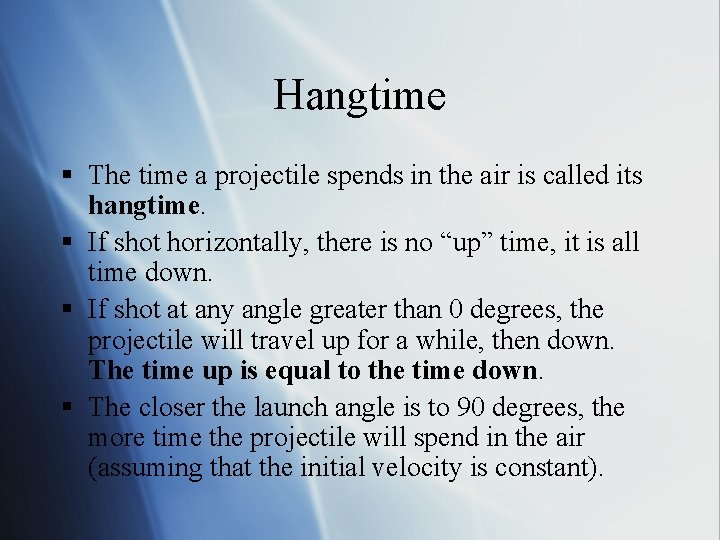

Hangtime § The time a projectile spends in the air is called its hangtime. § If shot horizontally, there is no “up” time, it is all time down. § If shot at any angle greater than 0 degrees, the projectile will travel up for a while, then down. The time up is equal to the time down. § The closer the launch angle is to 90 degrees, the more time the projectile will spend in the air (assuming that the initial velocity is constant).

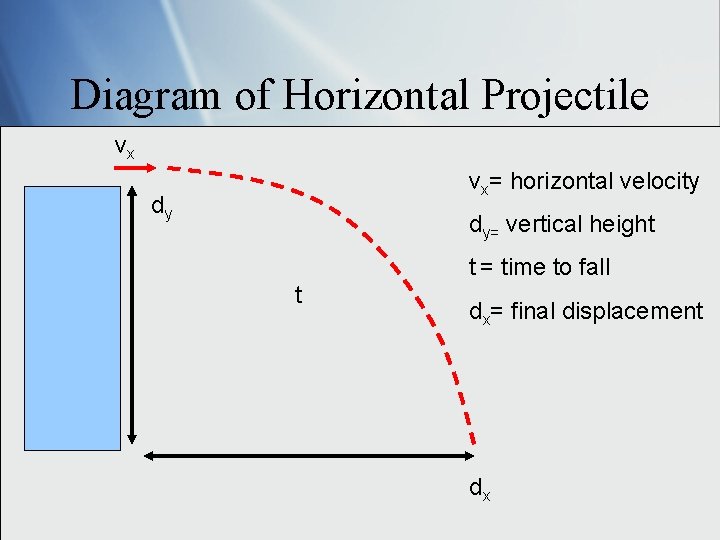

Diagram of Horizontal Projectile vx vx= horizontal velocity dy dy= vertical height t = time to fall t dx= final displacement dx

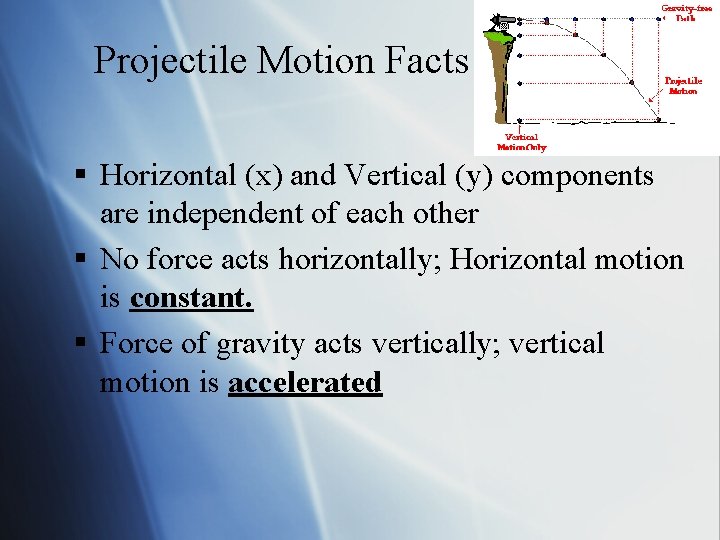

Projectile Motion Facts § Horizontal (x) and Vertical (y) components are independent of each other § No force acts horizontally; Horizontal motion is constant. § Force of gravity acts vertically; vertical motion is accelerated

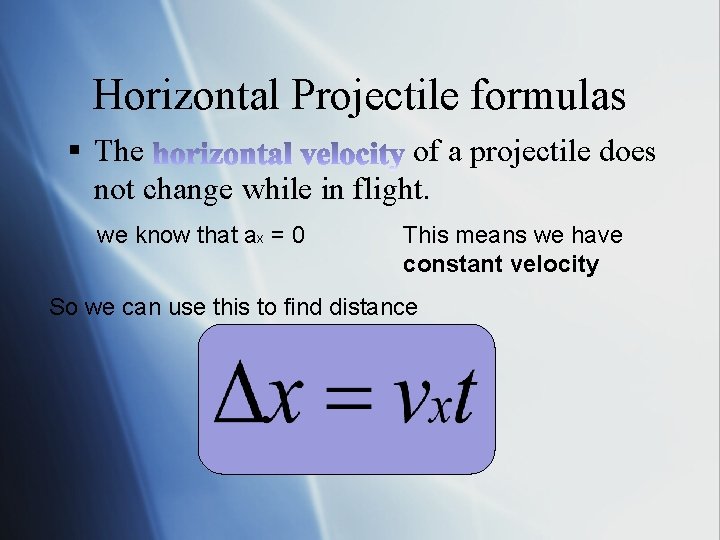

Horizontal Projectile formulas § The of a projectile does not change while in flight. we know that ax = 0 This means we have constant velocity So we can use this to find distance

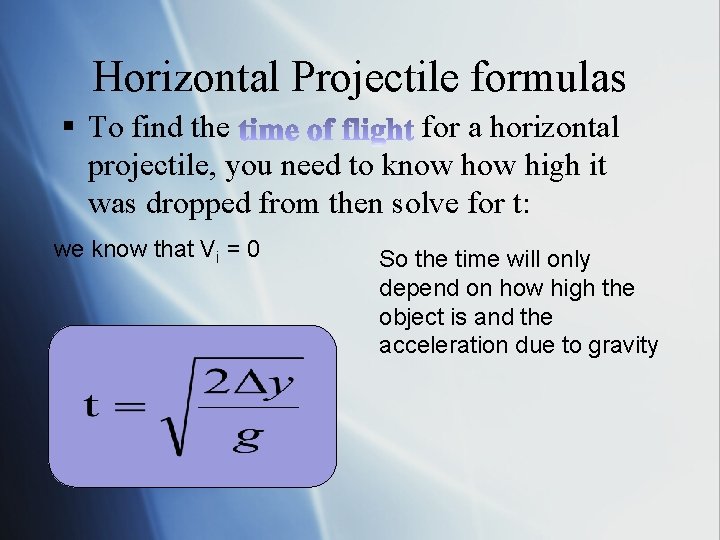

Horizontal Projectile formulas § To find the for a horizontal projectile, you need to know high it was dropped from then solve for t: we know that Vi = 0 So the time will only depend on how high the object is and the acceleration due to gravity

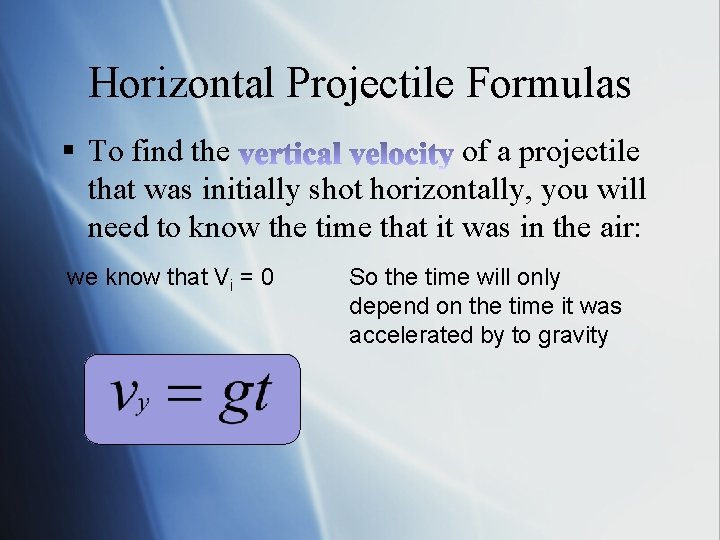

Horizontal Projectile Formulas § To find the of a projectile that was initially shot horizontally, you will need to know the time that it was in the air: we know that Vi = 0 So the time will only depend on the time it was accelerated by to gravity

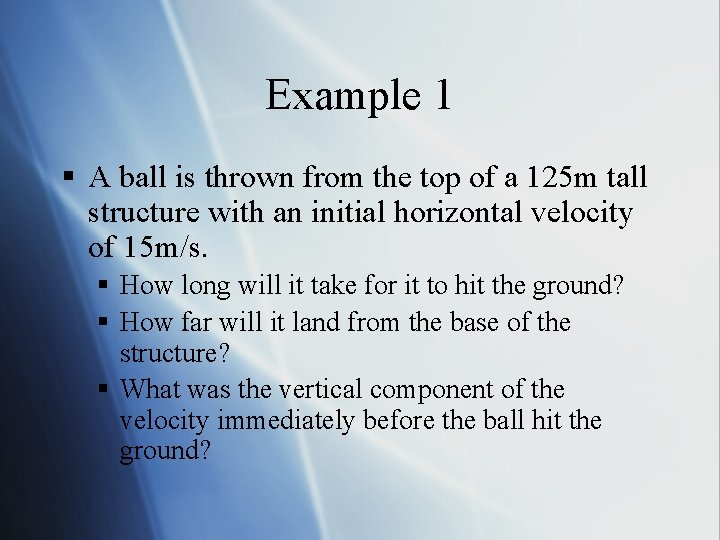

Example 1 § A ball is thrown from the top of a 125 m tall structure with an initial horizontal velocity of 15 m/s. § How long will it take for it to hit the ground? § How far will it land from the base of the structure? § What was the vertical component of the velocity immediately before the ball hit the ground?

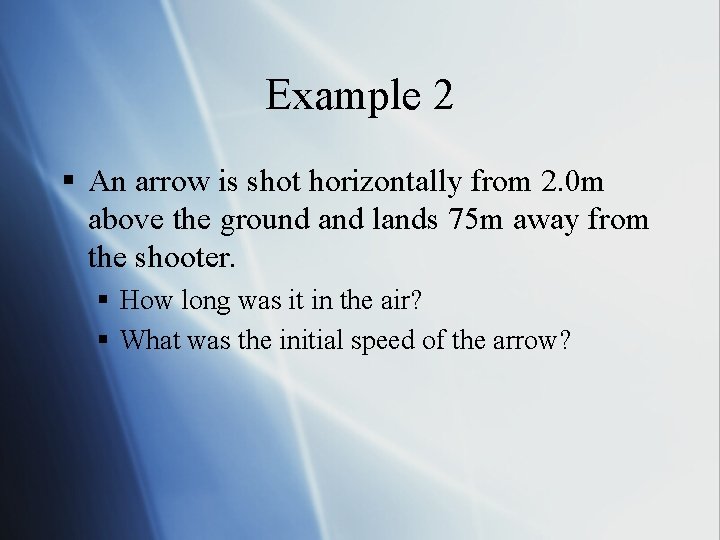

Example 2 § An arrow is shot horizontally from 2. 0 m above the ground and lands 75 m away from the shooter. § How long was it in the air? § What was the initial speed of the arrow?

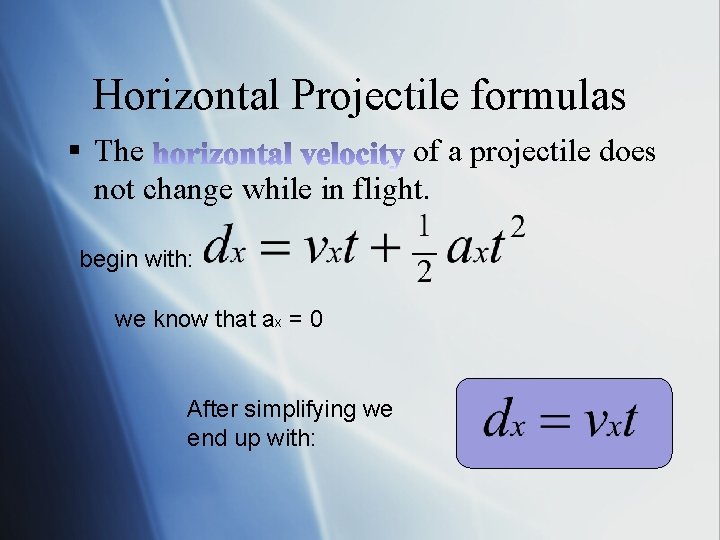

Horizontal Projectile formulas § The of a projectile does not change while in flight. begin with: we know that ax = 0 After simplifying we end up with:

Horizontal Projectile formulas § To find the for a horizontal projectile, you need to know high it was dropped from then solve for t: begin with: we know that: Vy=0 for horizontal flight ay=g (acceleration due to gravity) After simplifying we end up with:

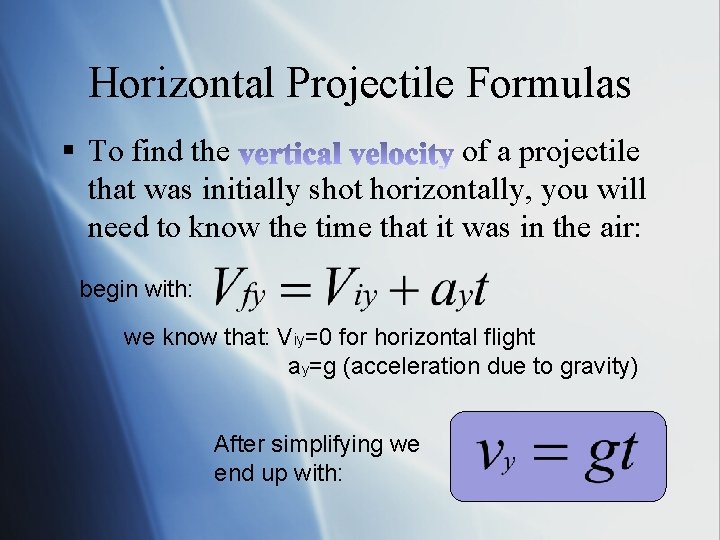

Horizontal Projectile Formulas § To find the of a projectile that was initially shot horizontally, you will need to know the time that it was in the air: begin with: we know that: Viy=0 for horizontal flight ay=g (acceleration due to gravity) After simplifying we end up with:
