UNIT 3 Metals Nonmetals Metalloids Lab Activity Use

UNIT 3

Metals, Nonmetals, Metalloids Lab

Activity • Use paper strips with element properties to create your own periodic table. • How did you arrange your table? • What trends do you see? • Use the element key to compare your layout with the real periodic table. • What similarities do you see? • What differences do you see? • Then rearrange your elements so they match the real periodic table. • Compare data for elements in the same group (column).

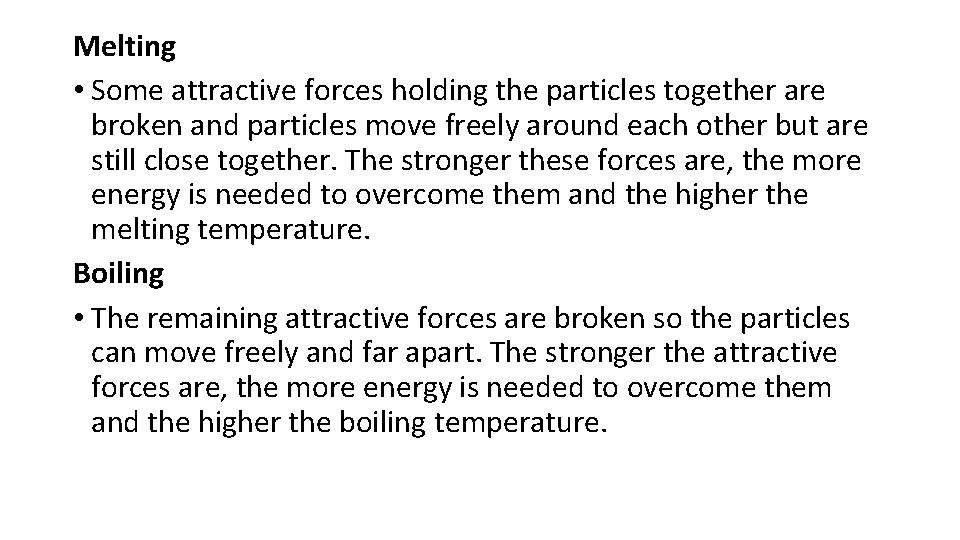

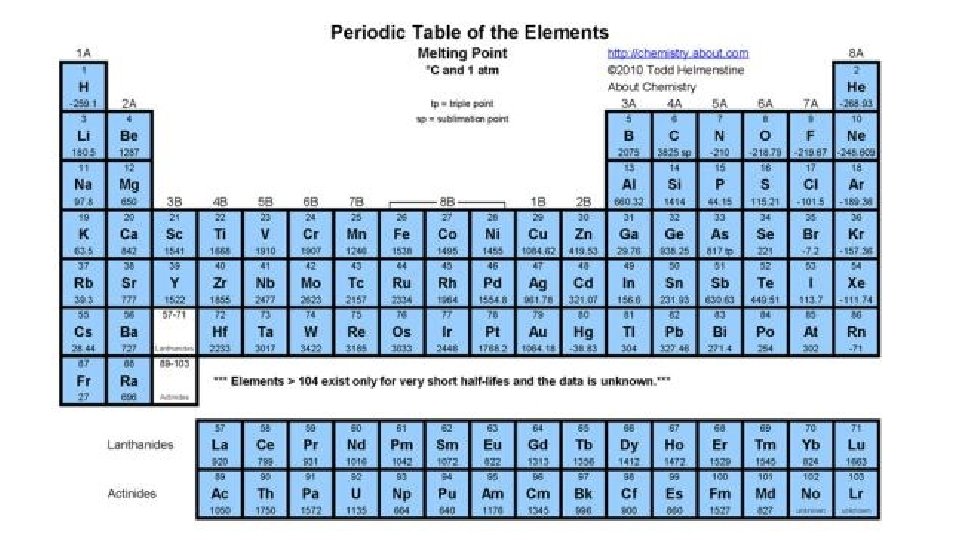

Melting • Some attractive forces holding the particles together are broken and particles move freely around each other but are still close together. The stronger these forces are, the more energy is needed to overcome them and the higher the melting temperature. Boiling • The remaining attractive forces are broken so the particles can move freely and far apart. The stronger the attractive forces are, the more energy is needed to overcome them and the higher the boiling temperature.

Period Table Arrangement Russian Chemist Dmitri Mendeleev

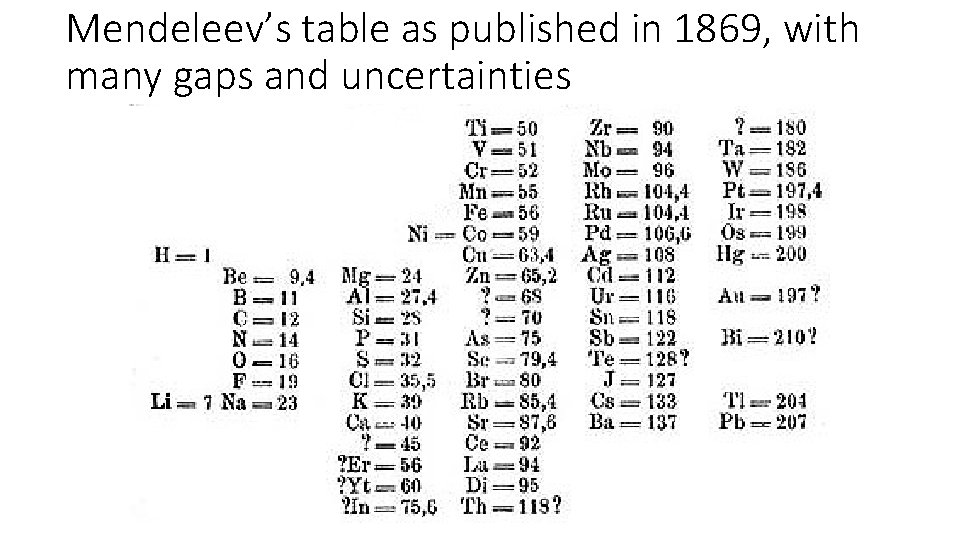

Mendeleev’s table as published in 1869, with many gaps and uncertainties

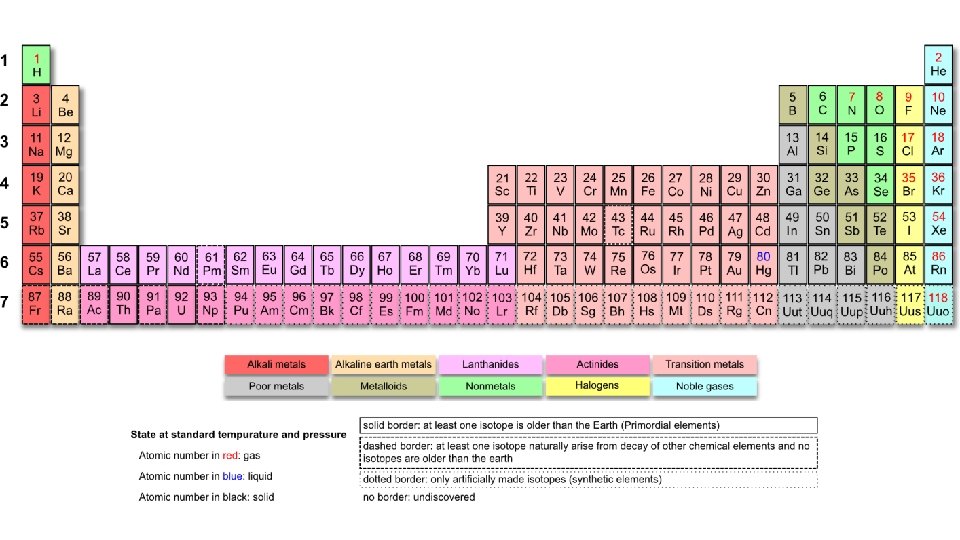

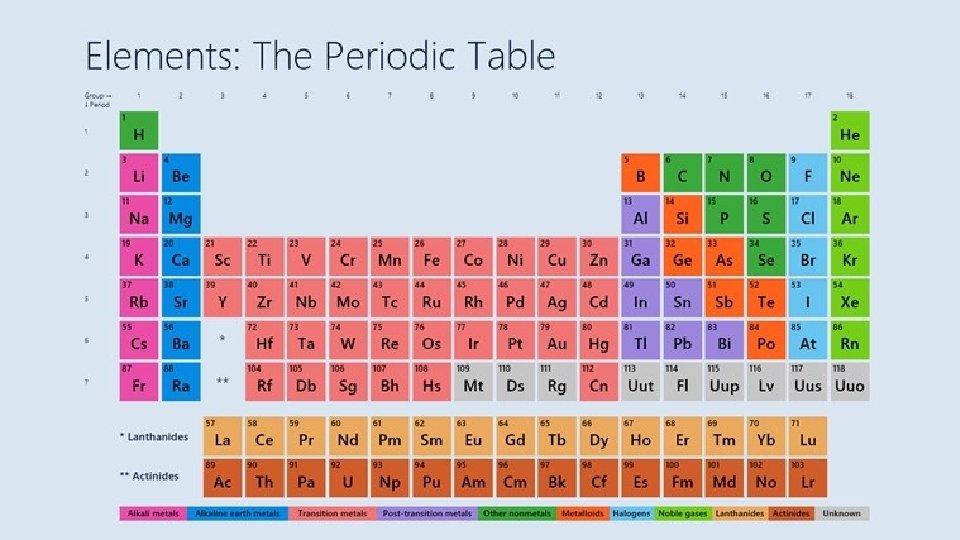

The physical and chemical properties of the elements are periodic functions of their atomic numbers. Elements in the same group have similar properties.

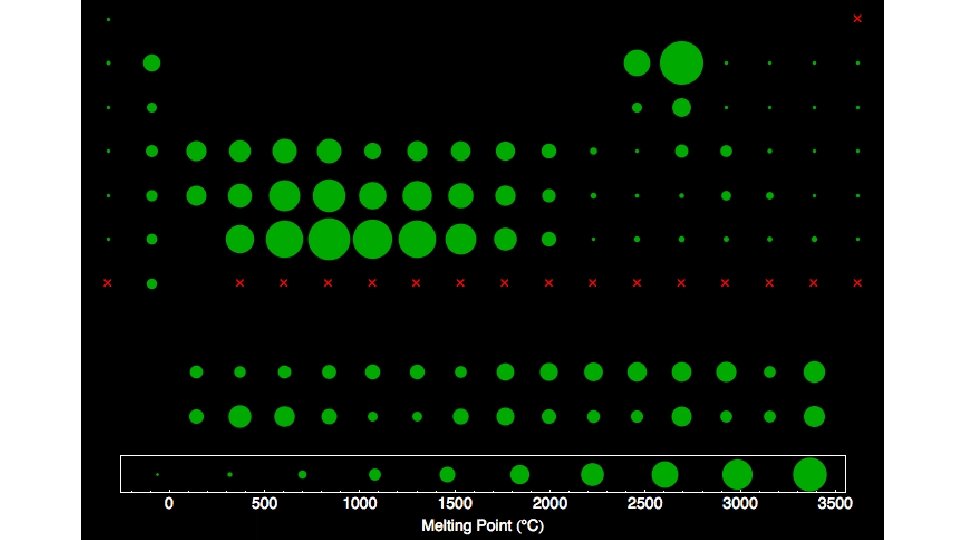

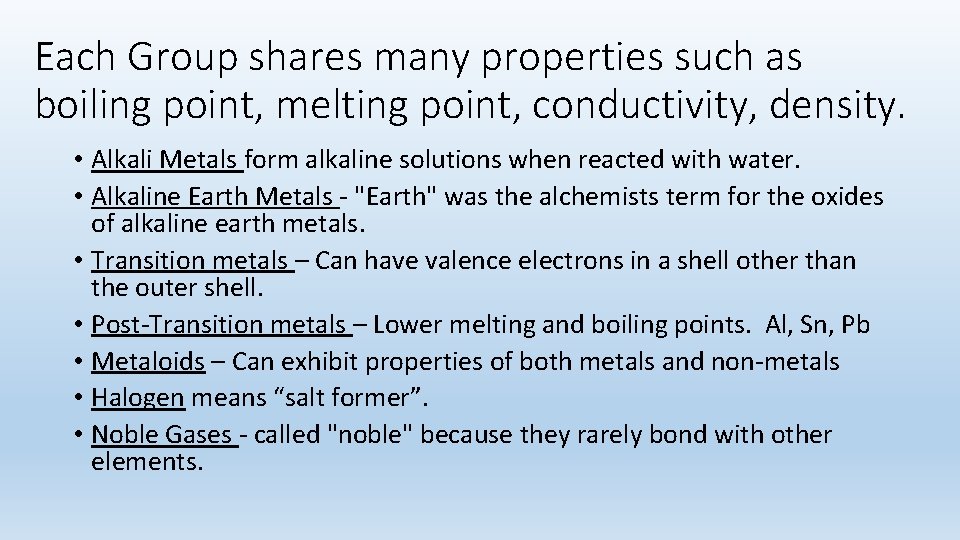

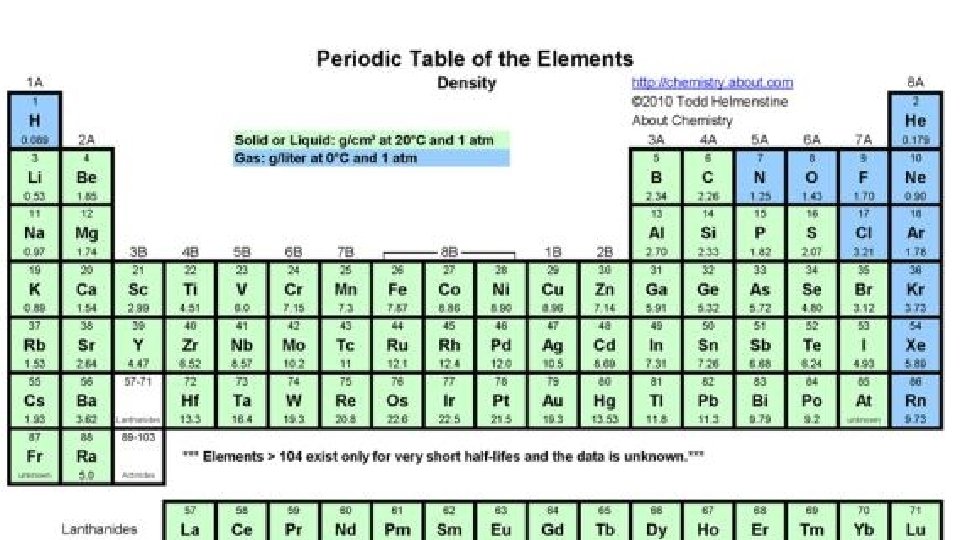

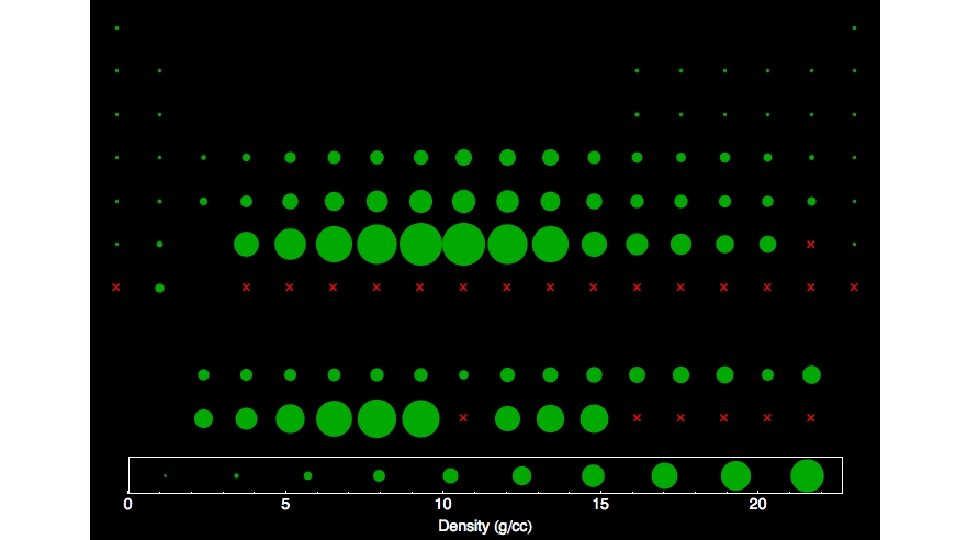

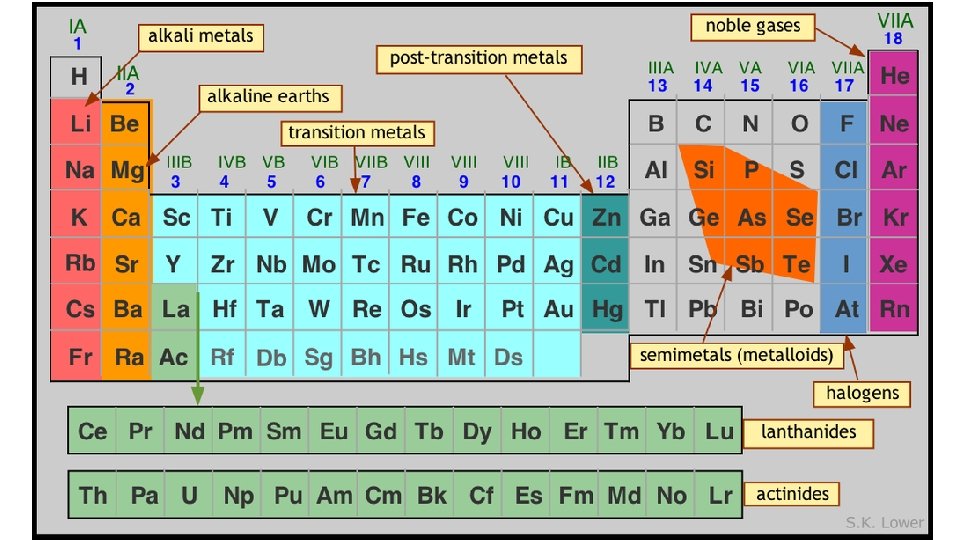

Each Group shares many properties such as boiling point, melting point, conductivity, density. • Alkali Metals form alkaline solutions when reacted with water. • Alkaline Earth Metals - "Earth" was the alchemists term for the oxides of alkaline earth metals. • Transition metals – Can have valence electrons in a shell other than the outer shell. • Post-Transition metals – Lower melting and boiling points. Al, Sn, Pb • Metaloids – Can exhibit properties of both metals and non-metals • Halogen means “salt former”. • Noble Gases - called "noble" because they rarely bond with other elements.

ELECTRONS

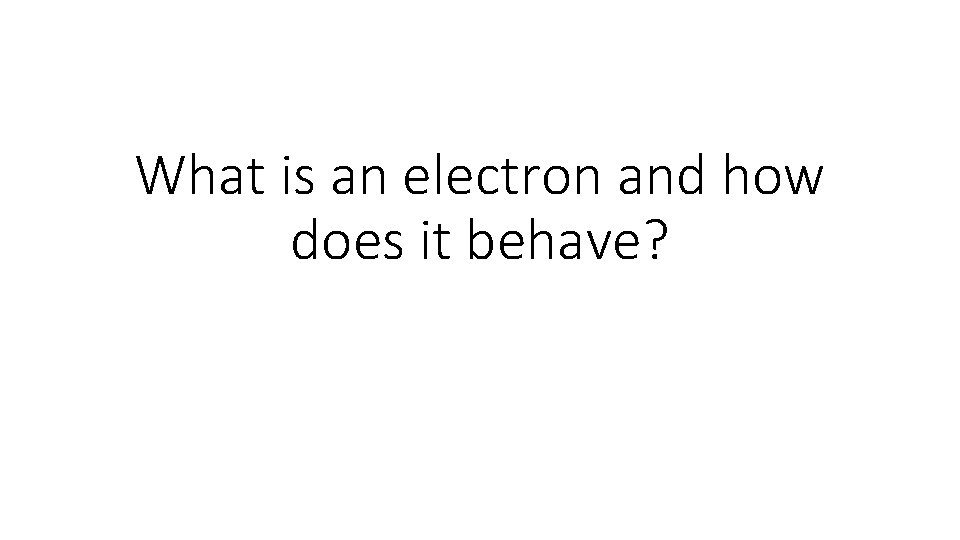

What is an electron and how does it behave?

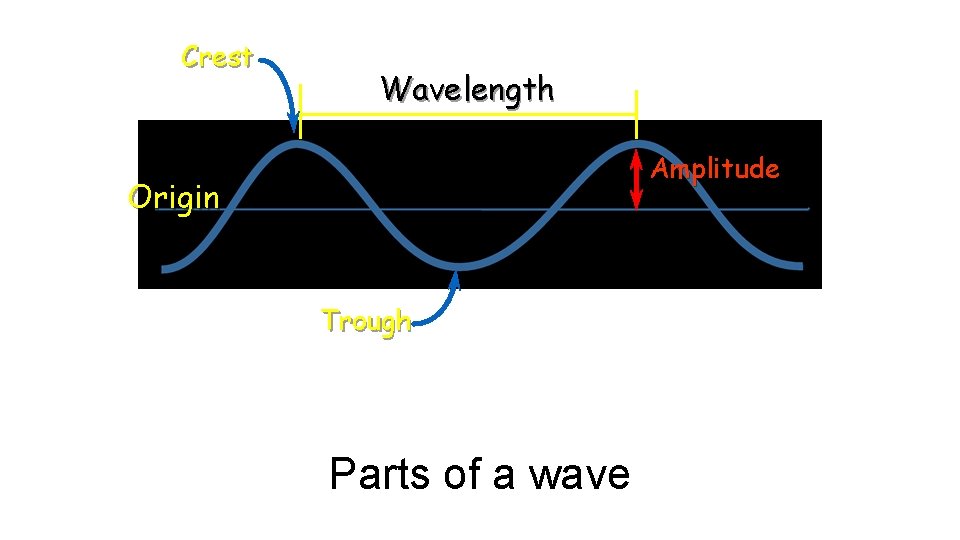

Crest Wavelength Amplitude Origin Trough Parts of a wave

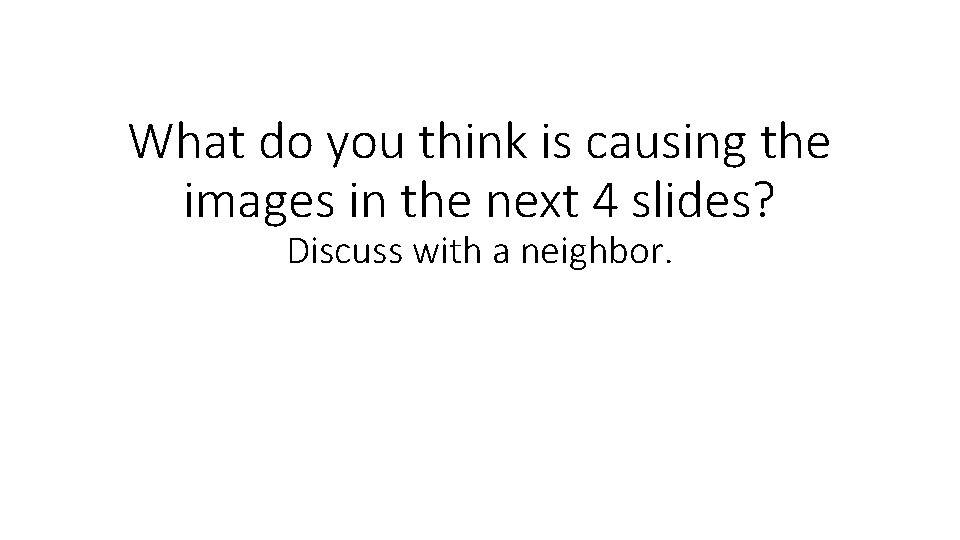

What do you think is causing the images in the next 4 slides? Discuss with a neighbor.

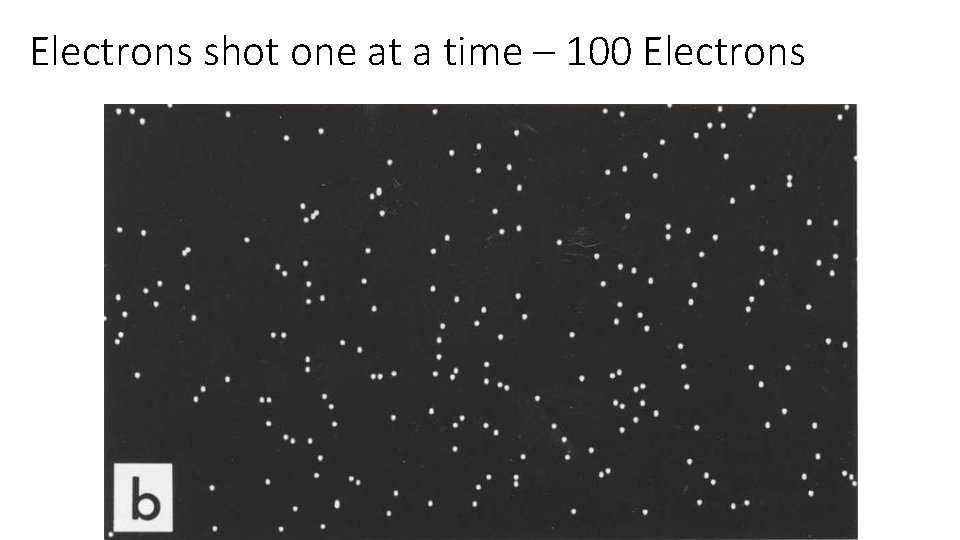

Electrons shot one at a time – 100 Electrons

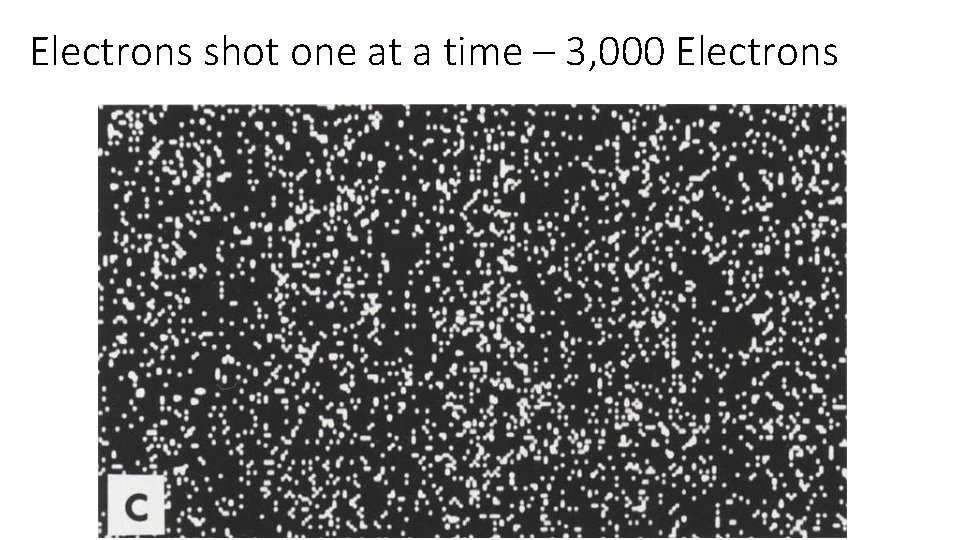

Electrons shot one at a time – 3, 000 Electrons

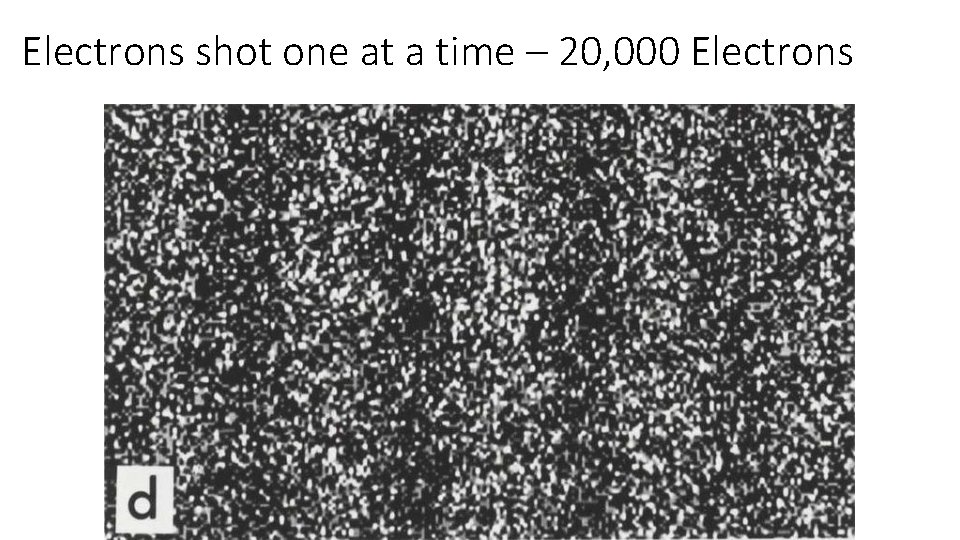

Electrons shot one at a time – 20, 000 Electrons

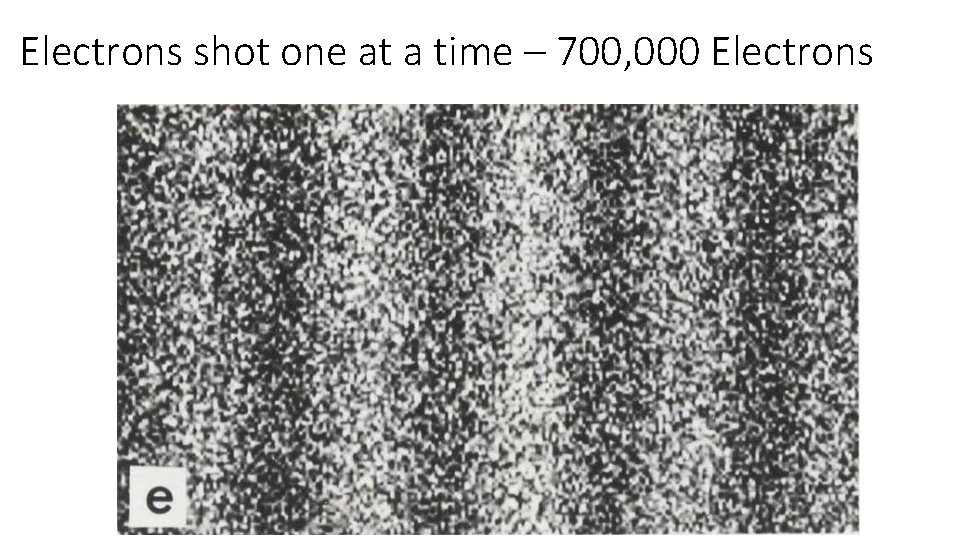

Electrons shot one at a time – 700, 000 Electrons

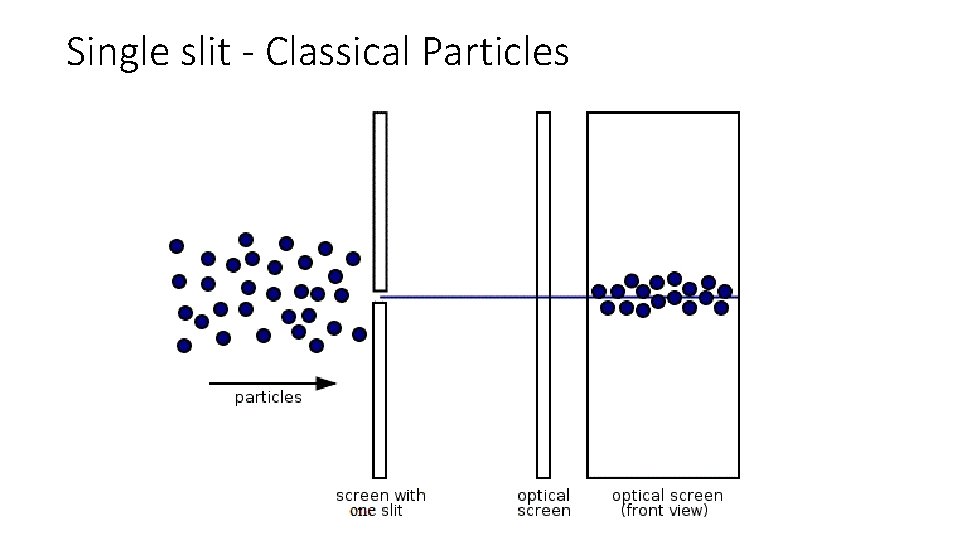

Single slit - Classical Particles

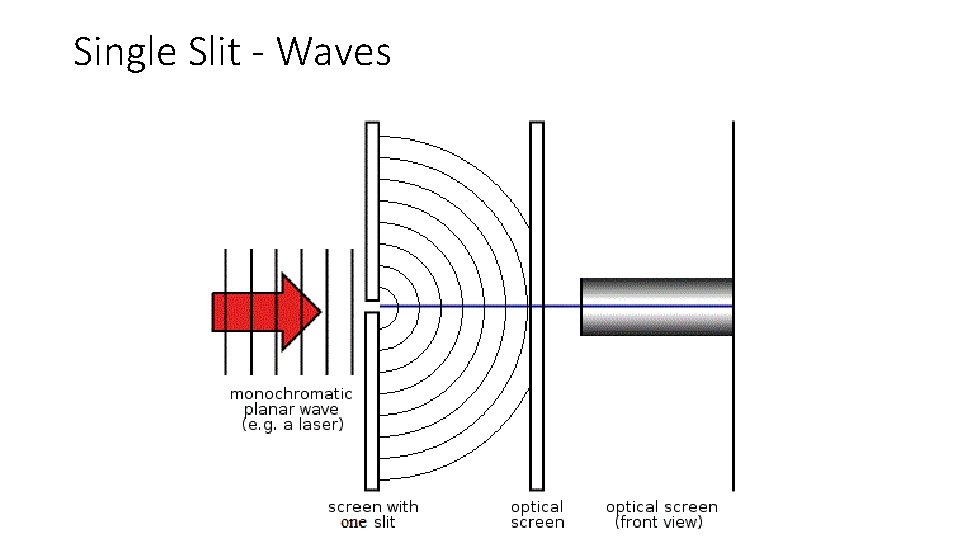

Single Slit - Waves

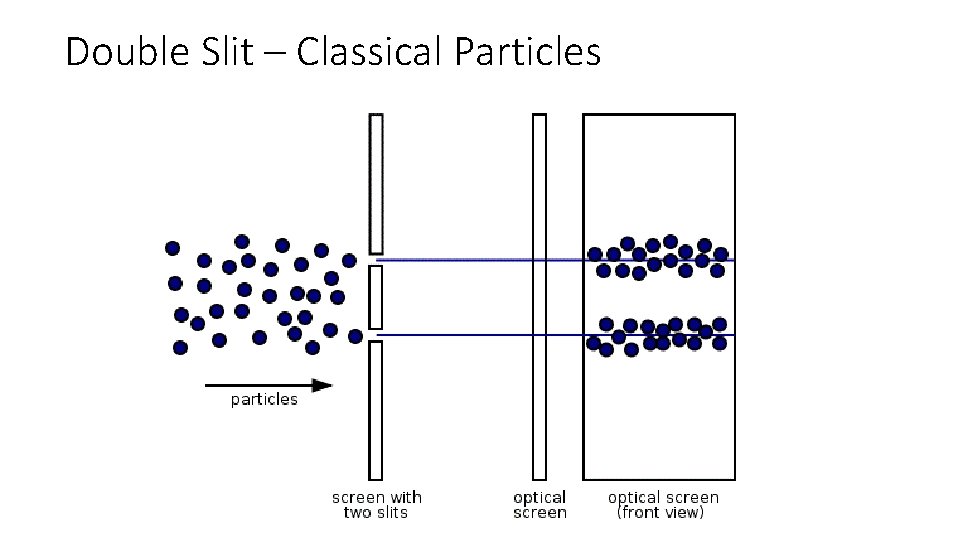

Double Slit – Classical Particles

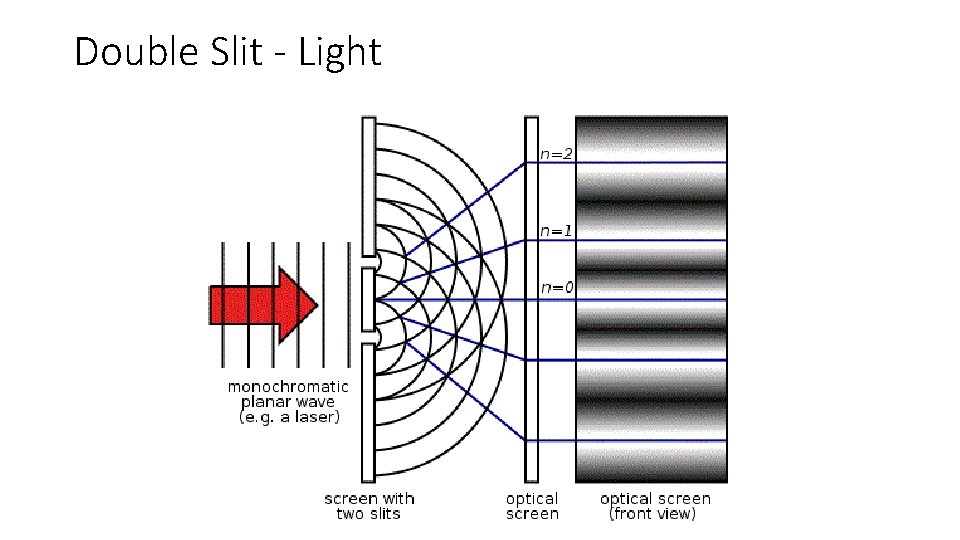

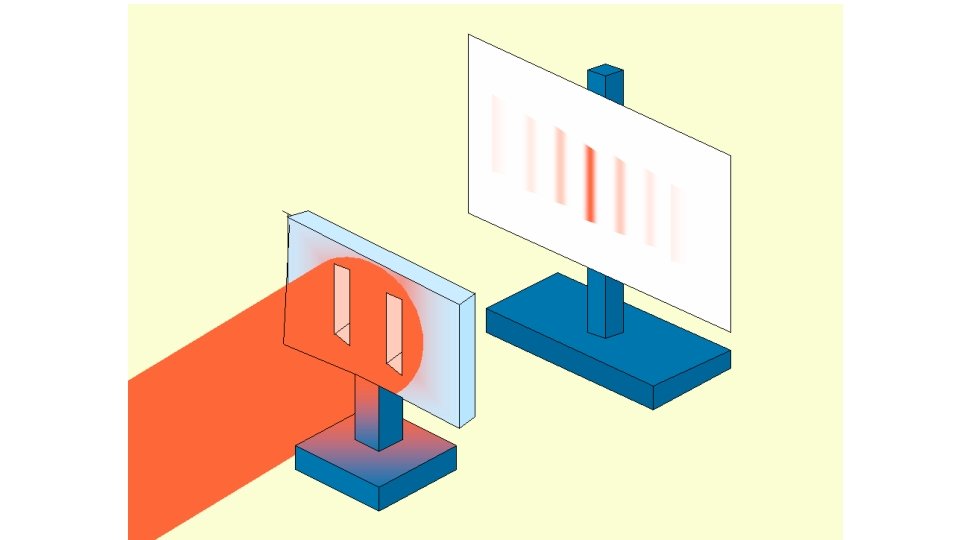

Double Slit - Light

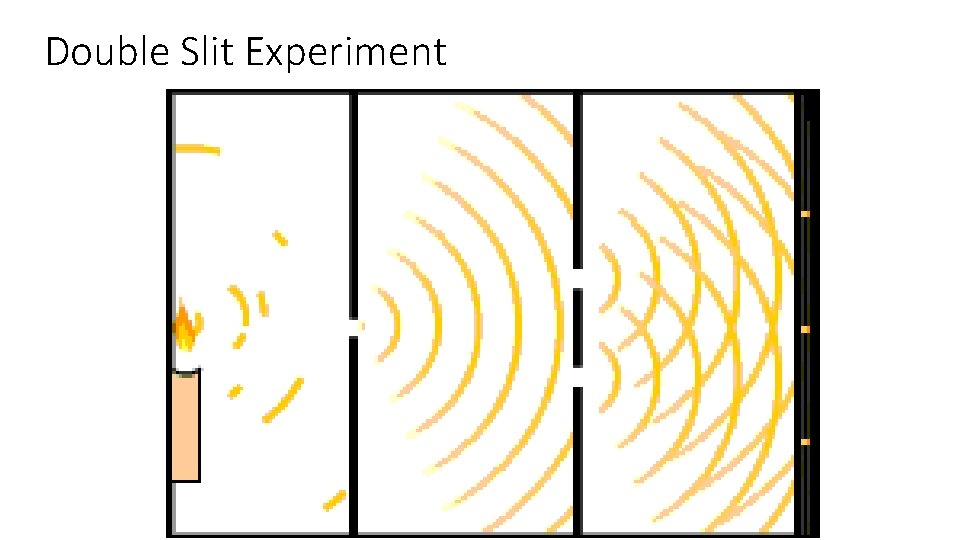

Double Slit Experiment

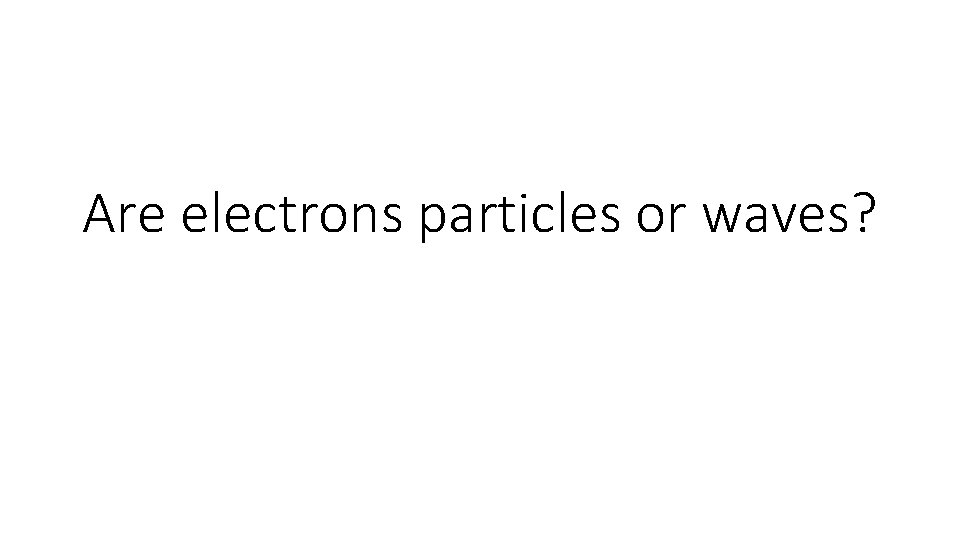

Are electrons particles or waves?

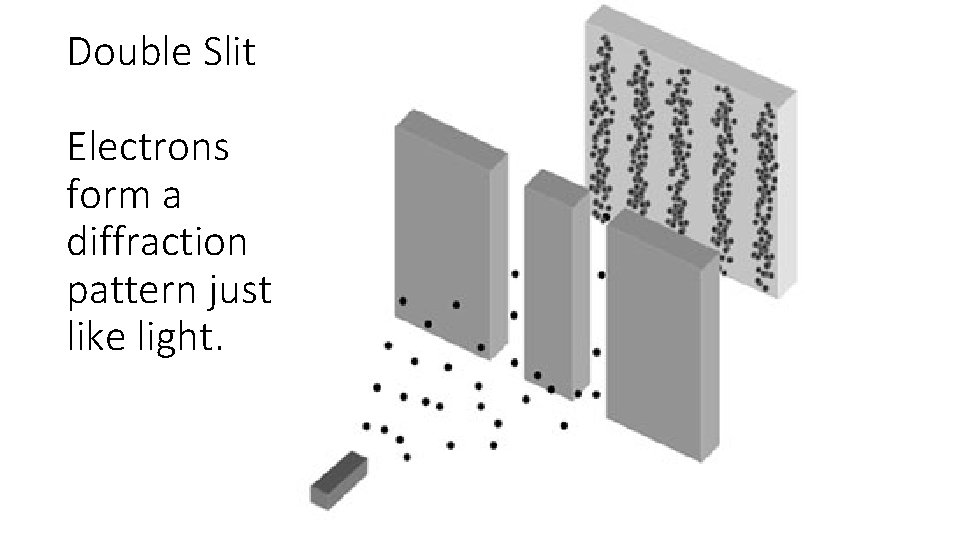

Double Slit Electrons form a diffraction pattern just like light.

Electrons shot one at a time – 100 Electrons

Electrons shot one at a time – 3, 000 Electrons

Electrons shot one at a time – 20, 000 Electrons

Electrons shot one at a time – 700, 000 Electrons

Okay, so are electrons waves or particles?

Quantum particles (like electrons) behave as both particles and waves.

What would happen if you do the same experiment and record which electron goes through each slit?

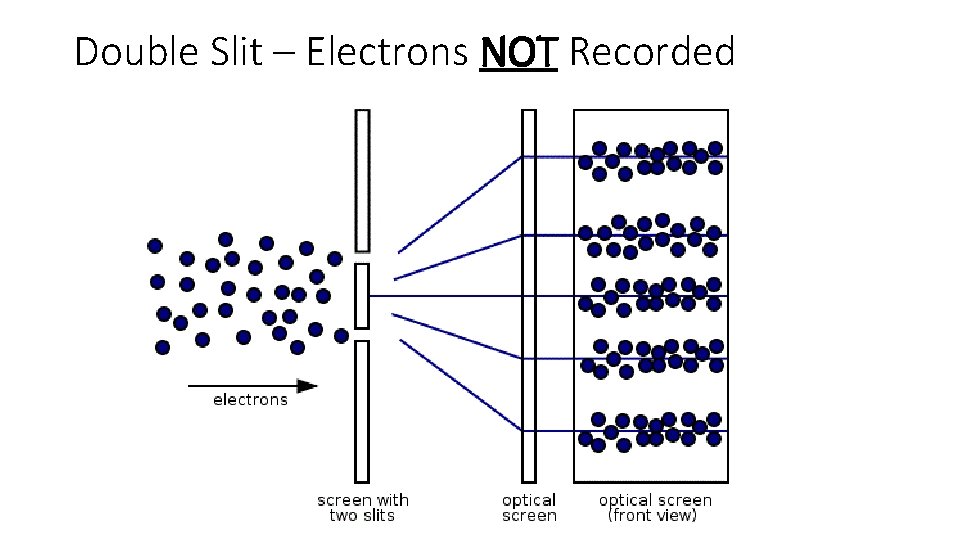

Double Slit – Electrons NOT Recorded

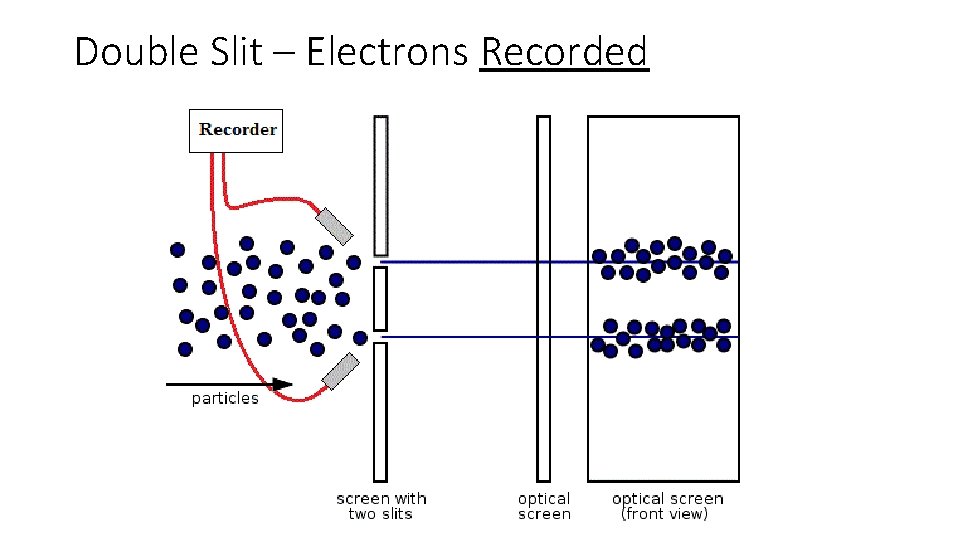

Double Slit – Electrons Recorded

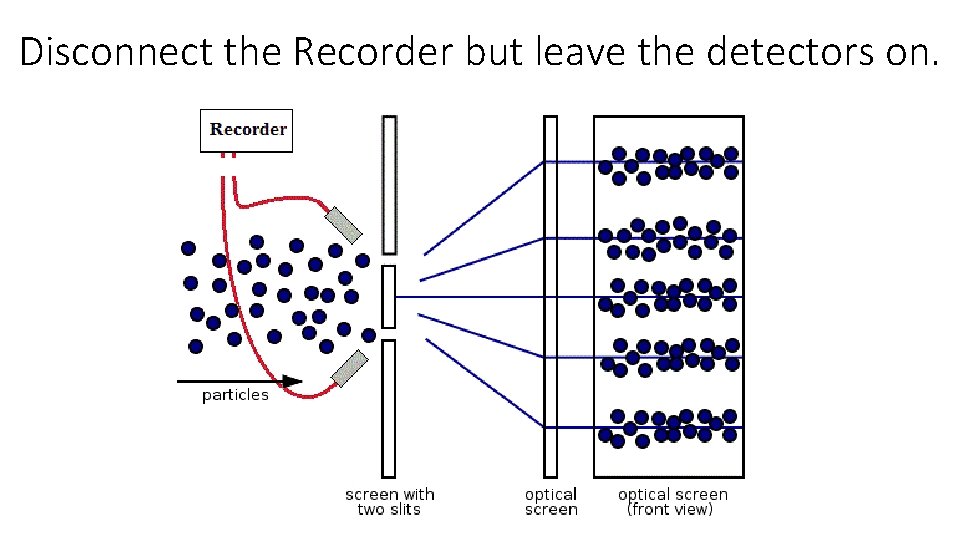

Disconnect the Recorder but leave the detectors on.

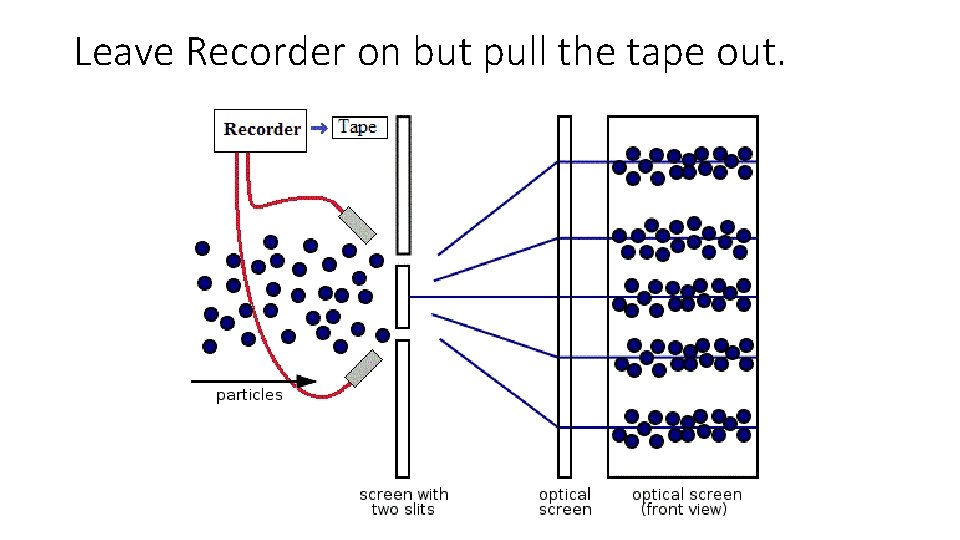

Leave Recorder on but pull the tape out.

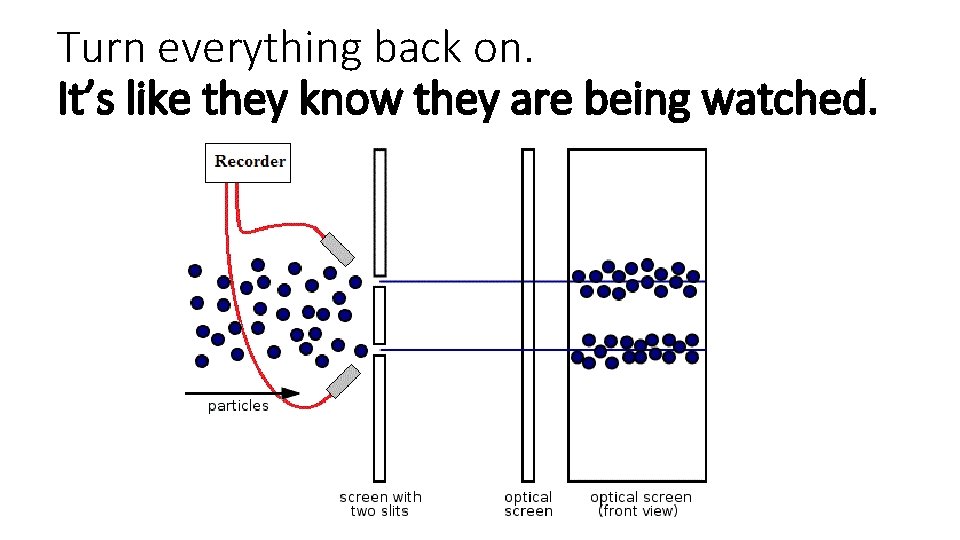

Turn everything back on. It’s like they know they are being watched.

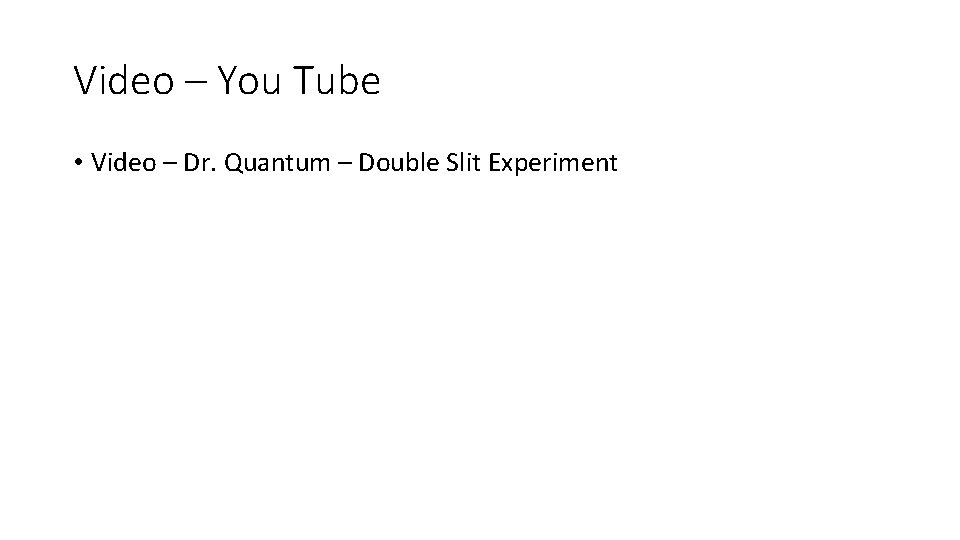

Video – You Tube • Video – Dr. Quantum – Double Slit Experiment

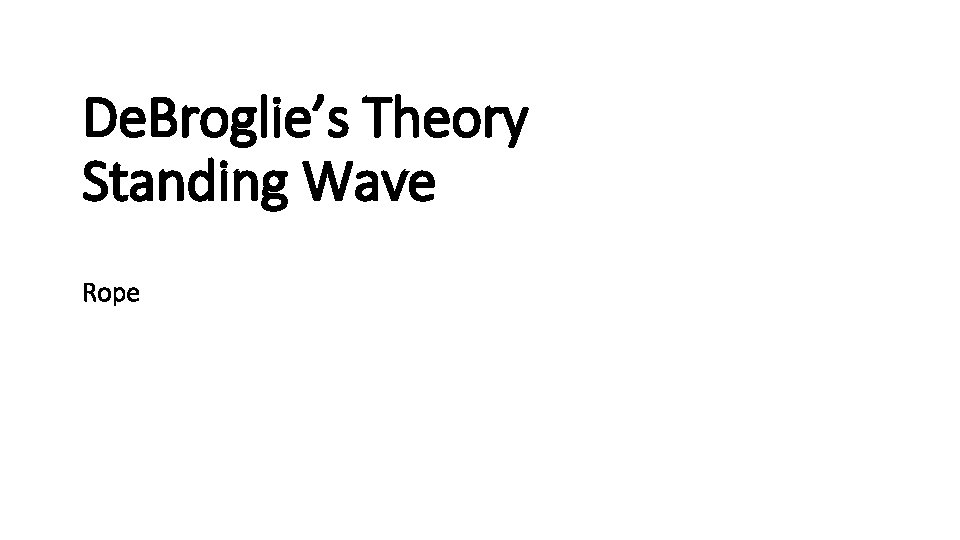

De. Broglie’s Theory Standing Wave Rope

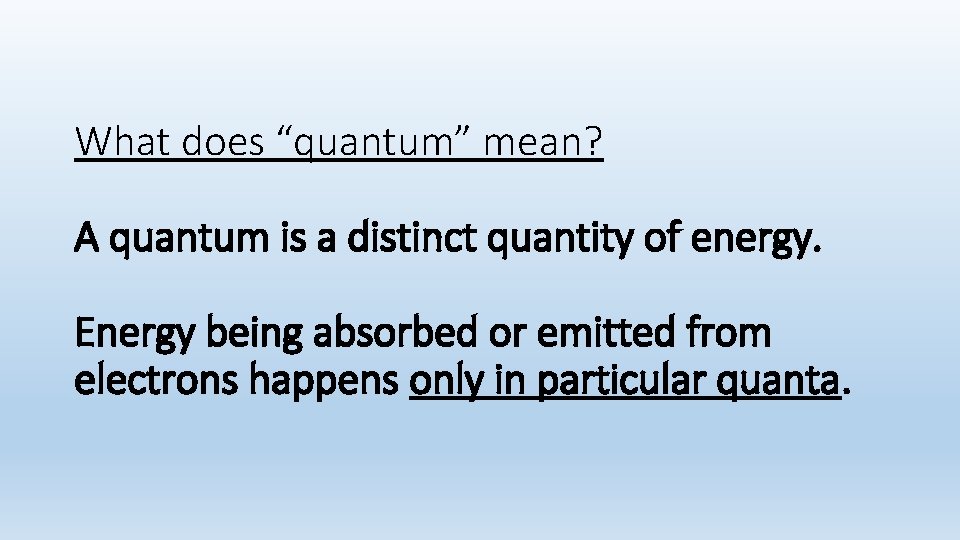

What does “quantum” mean? A quantum is a distinct quantity of energy. Energy being absorbed or emitted from electrons happens only in particular quanta.

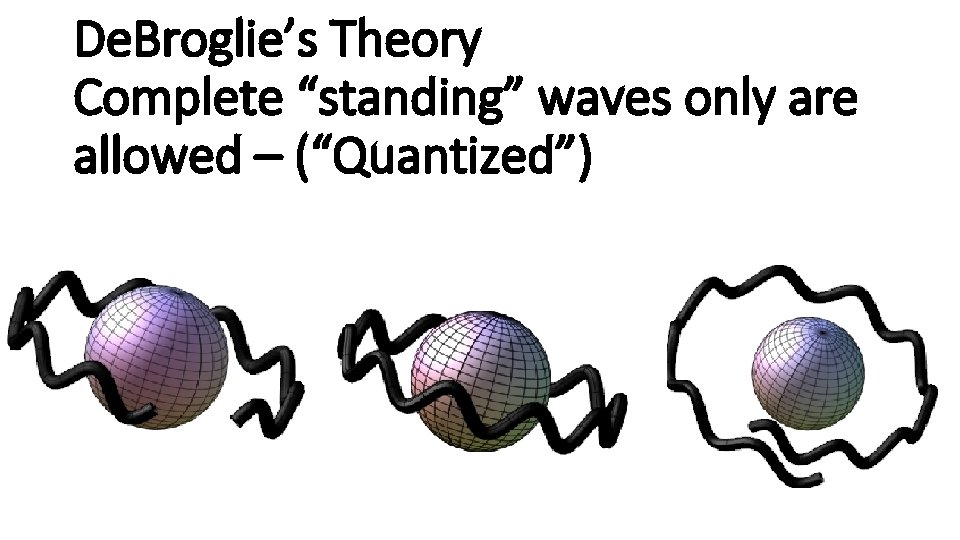

De. Broglie’s Theory Complete “standing” waves only are allowed – (“Quantized”)

How does this affect how the electron orbits the nucleus? Example on board Draw wave orbitals standing and destructive Calculate the hydrogen electron wavelength

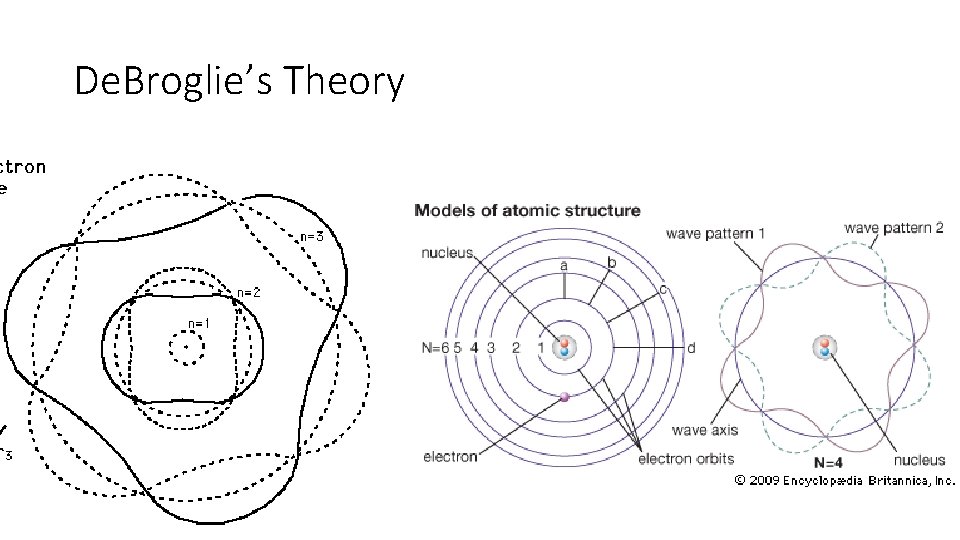

De. Broglie’s Theory

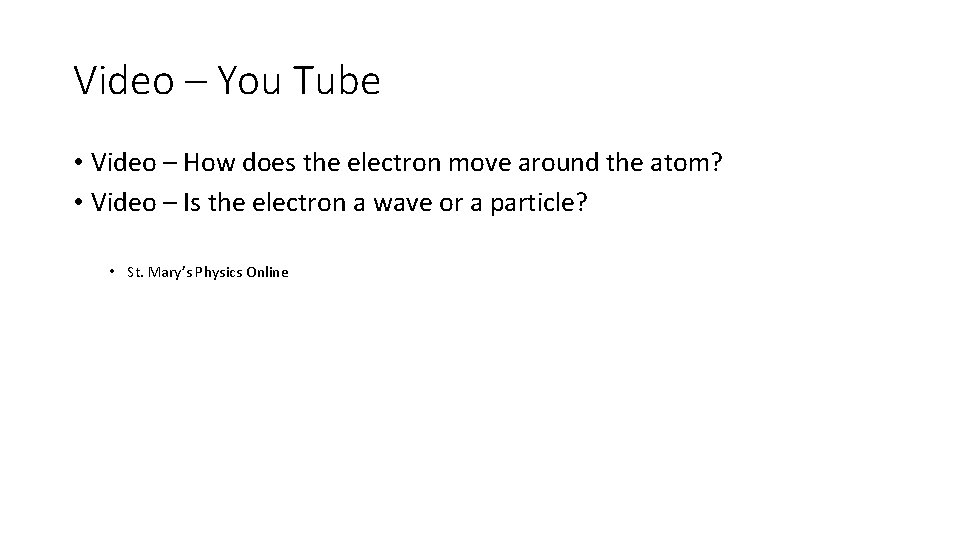

Video – You Tube • Video – How does the electron move around the atom? • Video – Is the electron a wave or a particle? • St. Mary’s Physics Online

Activity • Cut out different numbers of wavelengths; 1, 2, 3, 4, 5. • Demonstrate how the electron would create a wave around the nucleus. • Demonstrate different energy levels using the same method.
