Unit 2 The Skeletal System Lab 4 Bone

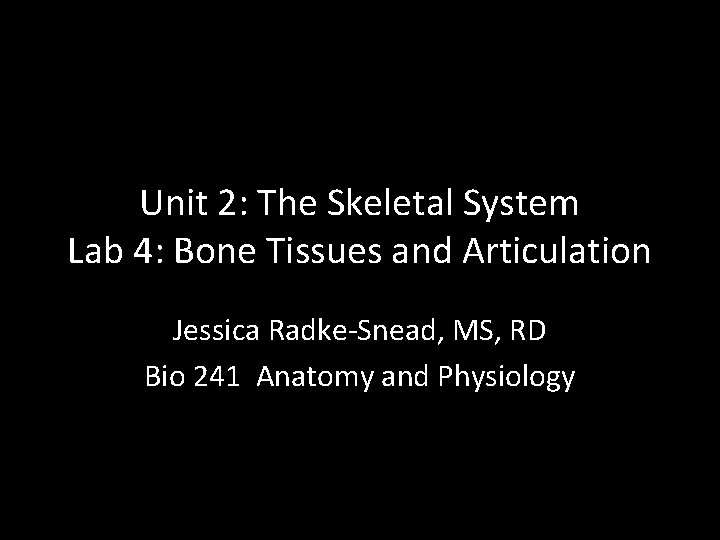

Unit 2: The Skeletal System Lab 4: Bone Tissues and Articulation Jessica Radke-Snead, MS, RD Bio 241 Anatomy and Physiology

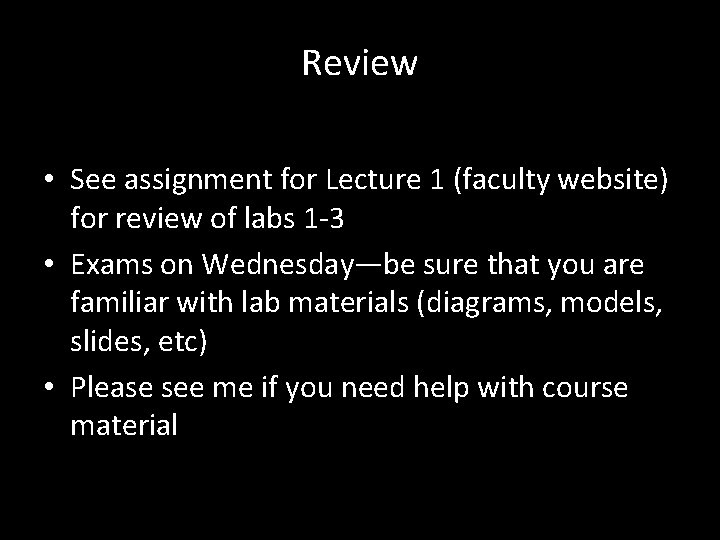

Review • See assignment for Lecture 1 (faculty website) for review of labs 1 -3 • Exams on Wednesday—be sure that you are familiar with lab materials (diagrams, models, slides, etc) • Please see me if you need help with course material

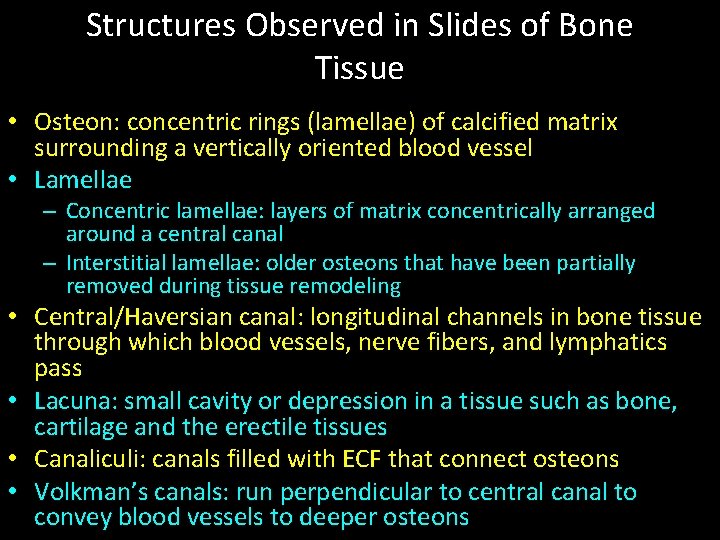

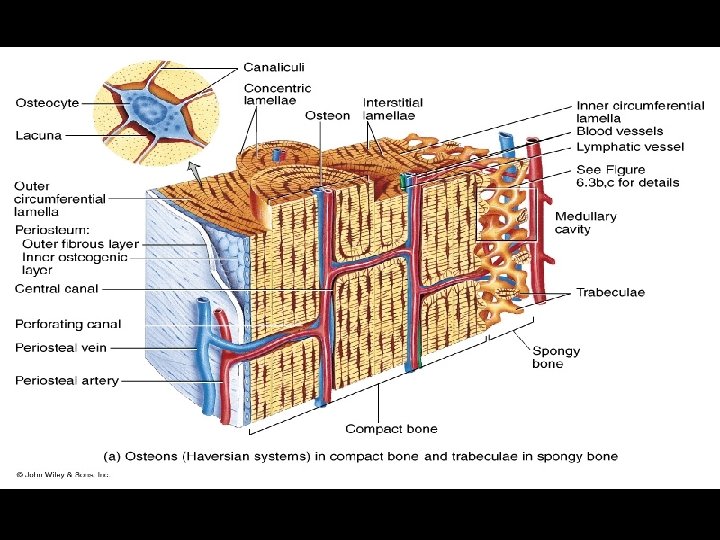

Structures Observed in Slides of Bone Tissue • Osteon: concentric rings (lamellae) of calcified matrix surrounding a vertically oriented blood vessel • Lamellae – Concentric lamellae: layers of matrix concentrically arranged around a central canal – Interstitial lamellae: older osteons that have been partially removed during tissue remodeling • Central/Haversian canal: longitudinal channels in bone tissue through which blood vessels, nerve fibers, and lymphatics pass • Lacuna: small cavity or depression in a tissue such as bone, cartilage and the erectile tissues • Canaliculi: canals filled with ECF that connect osteons • Volkman’s canals: run perpendicular to central canal to convey blood vessels to deeper osteons

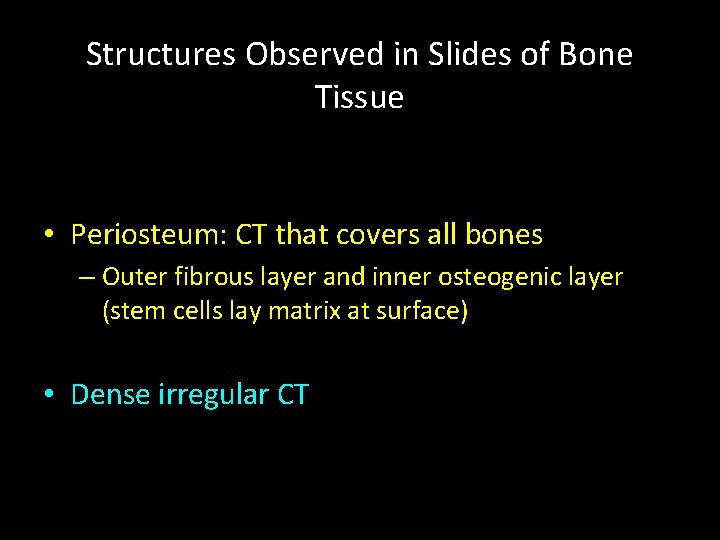

Structures Observed in Slides of Bone Tissue • Periosteum: CT that covers all bones – Outer fibrous layer and inner osteogenic layer (stem cells lay matrix at surface) • Dense irregular CT

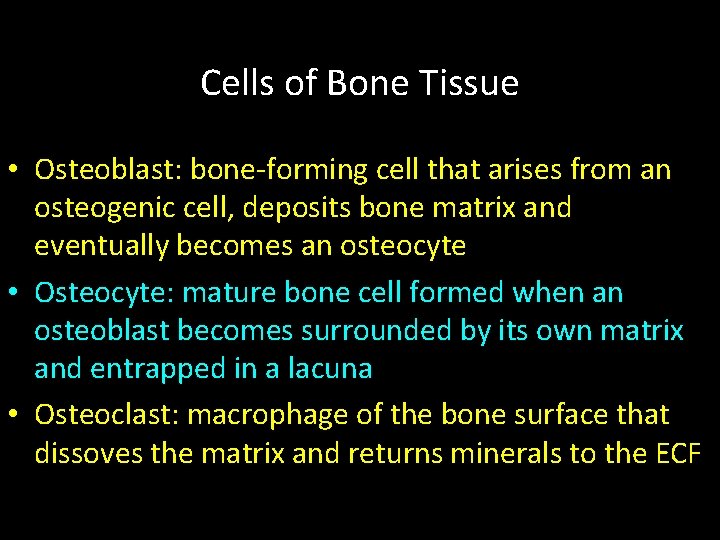

Cells of Bone Tissue • Osteoblast: bone-forming cell that arises from an osteogenic cell, deposits bone matrix and eventually becomes an osteocyte • Osteocyte: mature bone cell formed when an osteoblast becomes surrounded by its own matrix and entrapped in a lacuna • Osteoclast: macrophage of the bone surface that dissoves the matrix and returns minerals to the ECF

Compact Bone Lacuna with osteocyte Concentric lamellae Central canal Interstitial lamellae

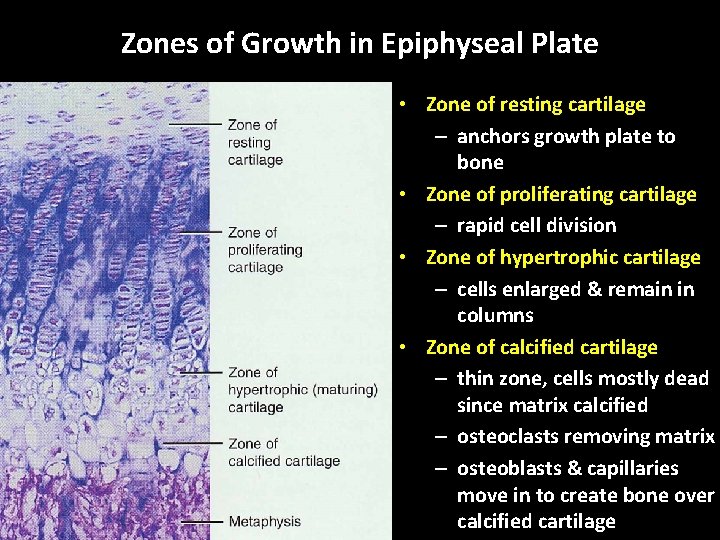

Zones of Growth in Epiphyseal Plate • Zone of resting cartilage – anchors growth plate to bone • Zone of proliferating cartilage – rapid cell division • Zone of hypertrophic cartilage – cells enlarged & remain in columns • Zone of calcified cartilage – thin zone, cells mostly dead since matrix calcified – osteoclasts removing matrix – osteoblasts & capillaries move in to create bone over calcified cartilage

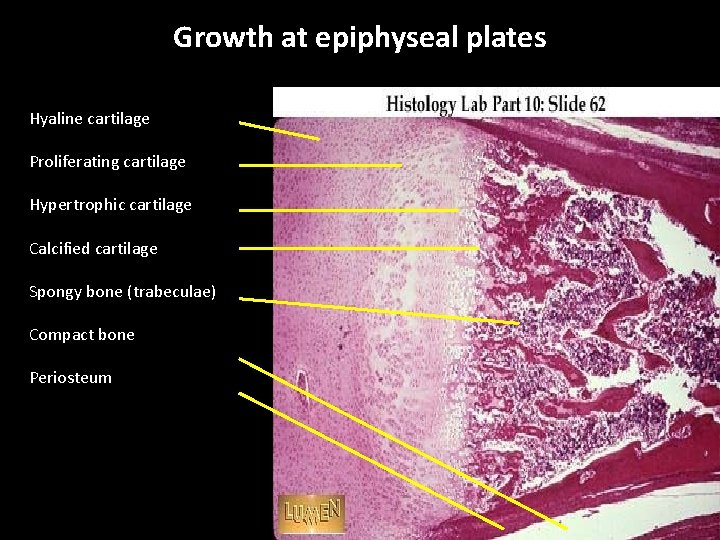

Growth at epiphyseal plates Hyaline cartilage Proliferating cartilage Hypertrophic cartilage Calcified cartilage Spongy bone (trabeculae) Compact bone Periosteum

Proliferative Cartilage

Calcified Cartilage

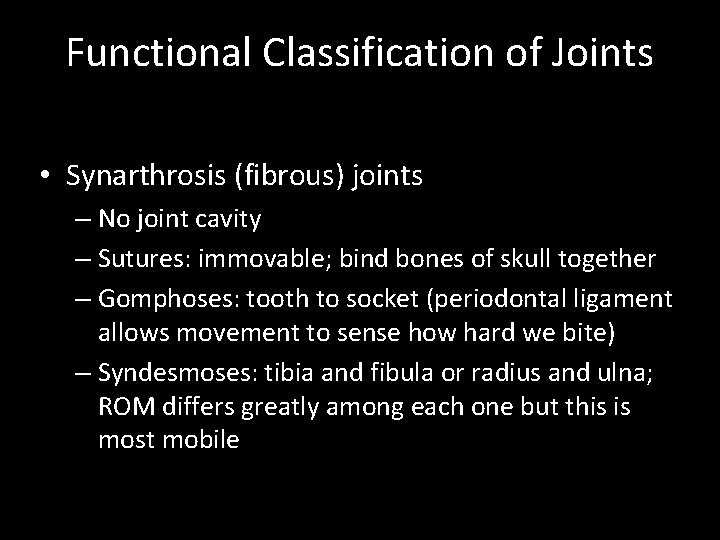

Functional Classification of Joints • Synarthrosis (fibrous) joints – No joint cavity – Sutures: immovable; bind bones of skull together – Gomphoses: tooth to socket (periodontal ligament allows movement to sense how hard we bite) – Syndesmoses: tibia and fibula or radius and ulna; ROM differs greatly among each one but this is most mobile

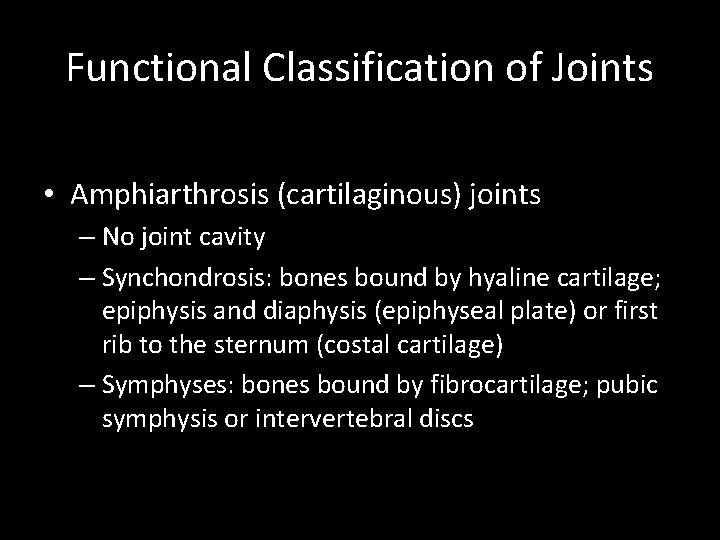

Functional Classification of Joints • Amphiarthrosis (cartilaginous) joints – No joint cavity – Synchondrosis: bones bound by hyaline cartilage; epiphysis and diaphysis (epiphyseal plate) or first rib to the sternum (costal cartilage) – Symphyses: bones bound by fibrocartilage; pubic symphysis or intervertebral discs

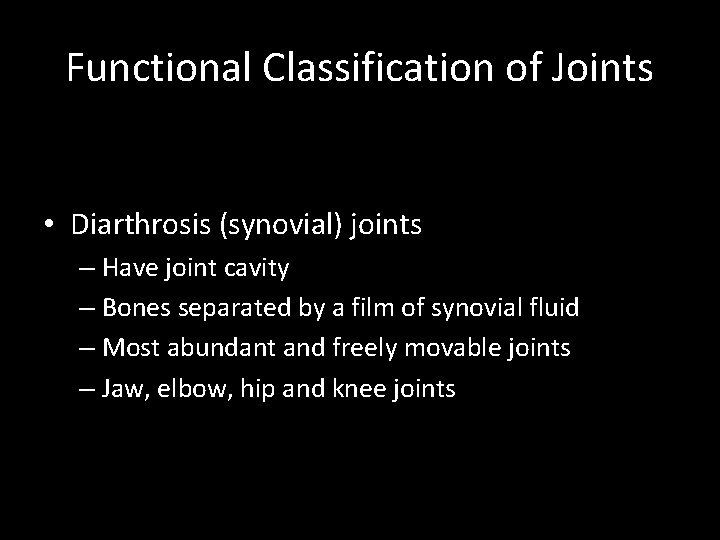

Functional Classification of Joints • Diarthrosis (synovial) joints – Have joint cavity – Bones separated by a film of synovial fluid – Most abundant and freely movable joints – Jaw, elbow, hip and knee joints

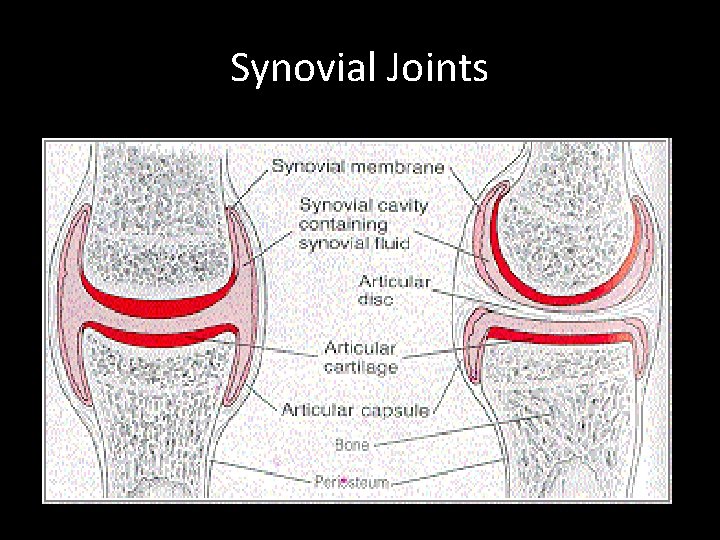

Synovial Joints

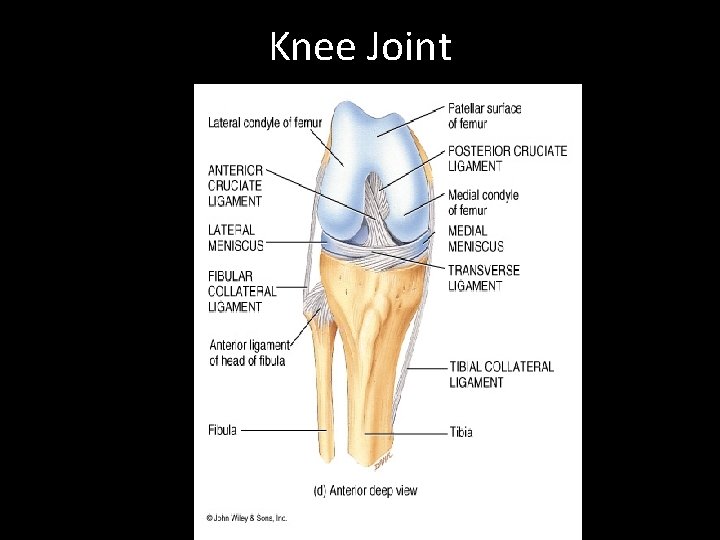

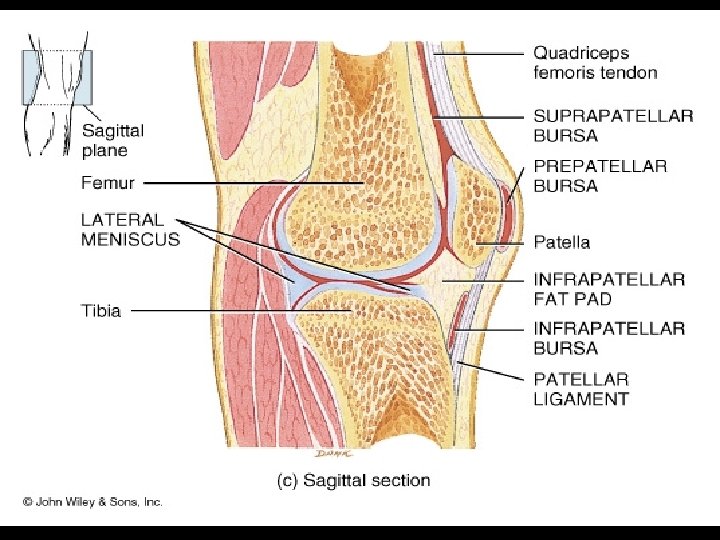

Knee Joint

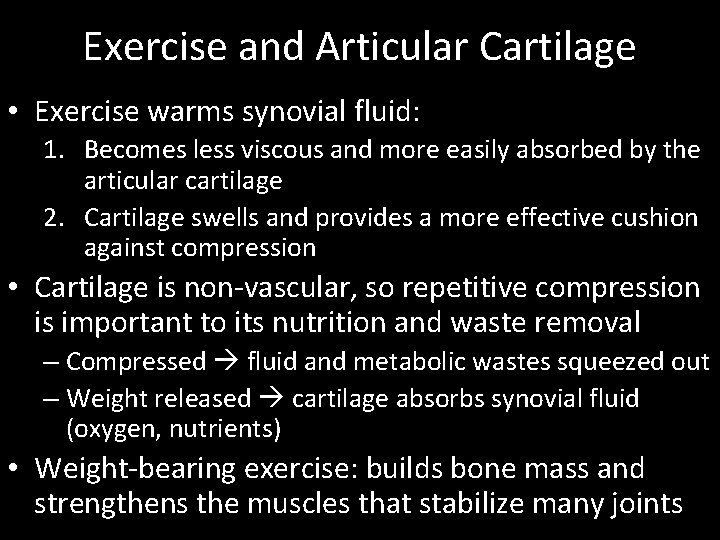

Exercise and Articular Cartilage • Exercise warms synovial fluid: 1. Becomes less viscous and more easily absorbed by the articular cartilage 2. Cartilage swells and provides a more effective cushion against compression • Cartilage is non-vascular, so repetitive compression is important to its nutrition and waste removal – Compressed fluid and metabolic wastes squeezed out – Weight released cartilage absorbs synovial fluid (oxygen, nutrients) • Weight-bearing exercise: builds bone mass and strengthens the muscles that stabilize many joints

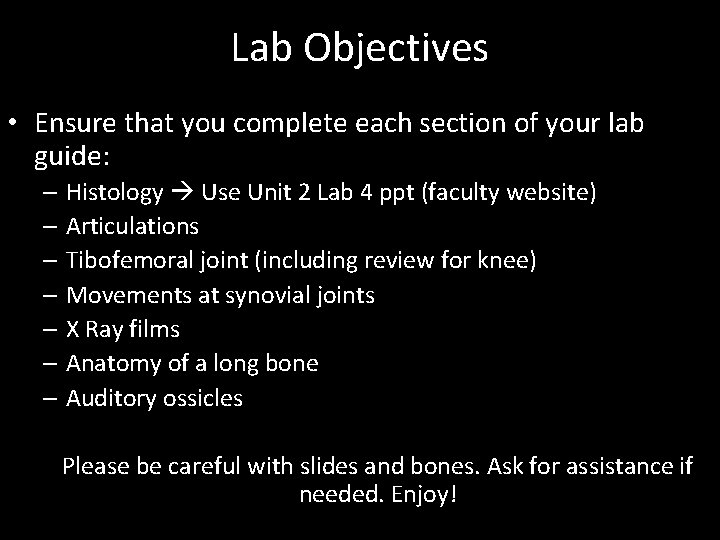

Lab Objectives • Ensure that you complete each section of your lab guide: – Histology Use Unit 2 Lab 4 ppt (faculty website) – Articulations – Tibofemoral joint (including review for knee) – Movements at synovial joints – X Ray films – Anatomy of a long bone – Auditory ossicles Please be careful with slides and bones. Ask for assistance if needed. Enjoy!
