UNIT 2 SYNTAX ANALYSIS 1 Compiled by Namratha

UNIT - 2 SYNTAX ANALYSIS - 1 -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

OBJECTIVES � The Role of Parser � Context Free Grammars � Writing a Grammar � Parsing – Top Down and Bottom Up � Simple LR Parser � Powerful LR Parser � Using Ambiguous Grammars � Parser Generators -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

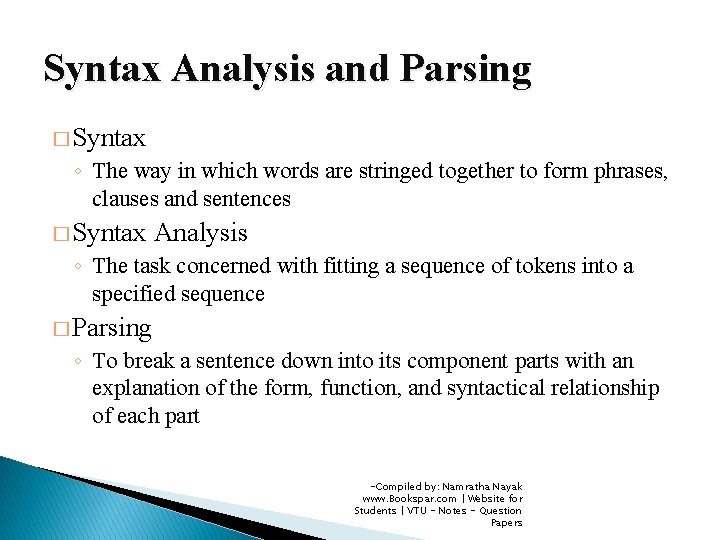

Syntax Analysis and Parsing � Syntax ◦ The way in which words are stringed together to form phrases, clauses and sentences � Syntax Analysis ◦ The task concerned with fitting a sequence of tokens into a specified sequence � Parsing ◦ To break a sentence down into its component parts with an explanation of the form, function, and syntactical relationship of each part -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

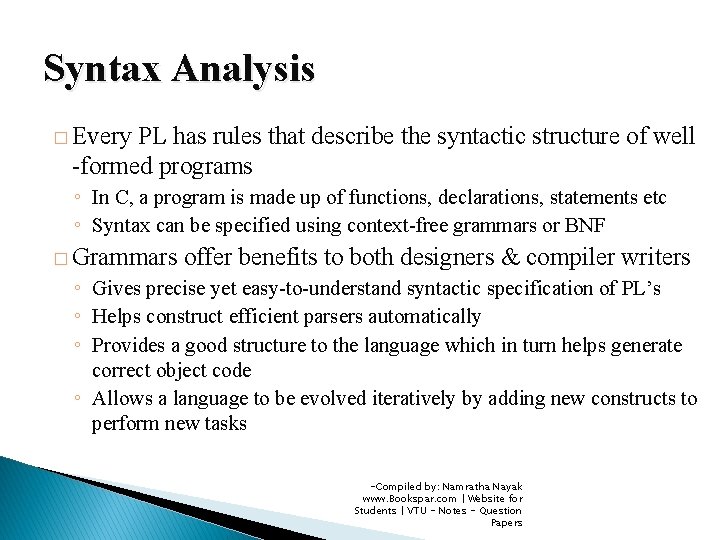

Syntax Analysis � Every PL has rules that describe the syntactic structure of well -formed programs ◦ In C, a program is made up of functions, declarations, statements etc ◦ Syntax can be specified using context-free grammars or BNF � Grammars offer benefits to both designers & compiler writers ◦ Gives precise yet easy-to-understand syntactic specification of PL’s ◦ Helps construct efficient parsers automatically ◦ Provides a good structure to the language which in turn helps generate correct object code ◦ Allows a language to be evolved iteratively by adding new constructs to perform new tasks -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

The Role of a Parser � Parser obtains a string of tokens from the lexical analyzer � Verifies that the string of token names can be generated by the grammar � Constructs a parse tree and passes it to the rest of the compiler � Reports errors when the program does not match the syntactic structure of the source language -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Parsing Methods � Universal Parsing Method ◦ Can parse any grammar, but too inefficient to use in any practical compilers ◦ Example: Earley’s Algorithm � Top-Down Parsing ◦ Build parse trees from the root to the leaves ◦ Can be generated automatically or written manually ◦ Example : LL Parser � Bottom-Up Parsing ◦ Starts from the leaves and work their way up to the root ◦ Can only be generated automatically ◦ Example : LR Parser -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

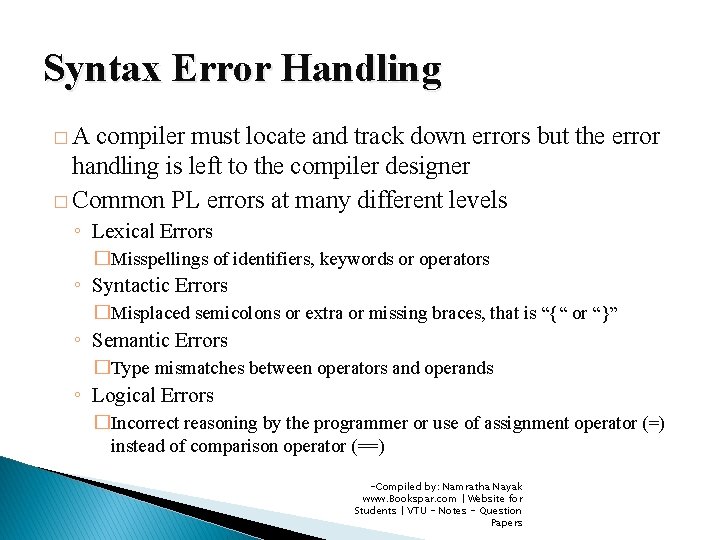

Syntax Error Handling �A compiler must locate and track down errors but the error handling is left to the compiler designer � Common PL errors at many different levels ◦ Lexical Errors �Misspellings of identifiers, keywords or operators ◦ Syntactic Errors �Misplaced semicolons or extra or missing braces, that is “{“ or “}” ◦ Semantic Errors �Type mismatches between operators and operands ◦ Logical Errors �Incorrect reasoning by the programmer or use of assignment operator (=) instead of comparison operator (==) -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

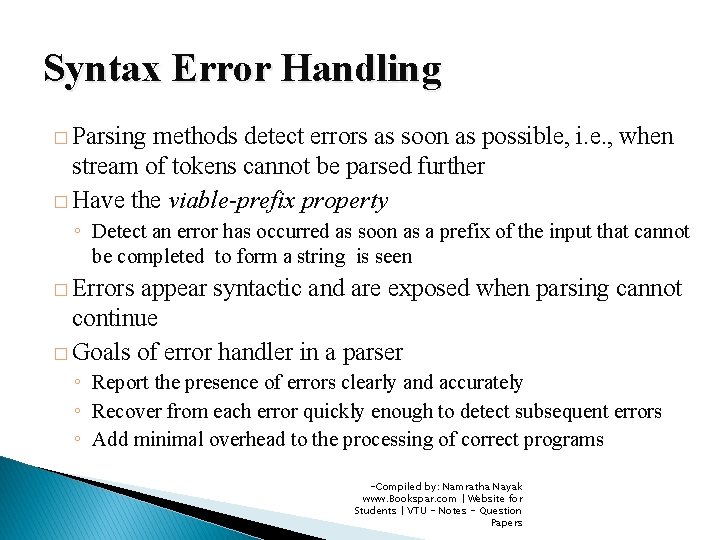

Syntax Error Handling � Parsing methods detect errors as soon as possible, i. e. , when stream of tokens cannot be parsed further � Have the viable-prefix property ◦ Detect an error has occurred as soon as a prefix of the input that cannot be completed to form a string is seen � Errors appear syntactic and are exposed when parsing cannot continue � Goals of error handler in a parser ◦ Report the presence of errors clearly and accurately ◦ Recover from each error quickly enough to detect subsequent errors ◦ Add minimal overhead to the processing of correct programs -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Error-Recovery Strategies � How should the parser recover once an error is detected? ◦ Quit with an informative error message when it detects the first error ◦ Additional errors are uncovered if parser can restore to a state where processing of the input can continue ◦ If errors pile up, its better to stop after exceeding some error limit � Four ◦ ◦ error-recovery strategies Panic-Mode Recovery Phrase-Level Recovery Error Productions Global Correction -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Error-Recovery Strategies � Panic-Mode Recovery ◦ Parser discards input symbols one at a time until one of a designated set of synchronizing tokens is found �Synchronizing tokens – delimiters like semicolon or “}” ◦ Compiler designer must select the synchronizing tokens appropriate for the source language ◦ Advantage of simplicity and is guaranteed not to go into an infinite loop � Phrase-Level Recovery ◦ Perform local correction on remaining input, that is, may replace a prefix of the remaining input by some string that allows the parser to continue ◦ Choose replacements that do not lead to infinite loops ◦ Drawback is the difficulty to cope up with situations in which actual error has occurred before the point of detection -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

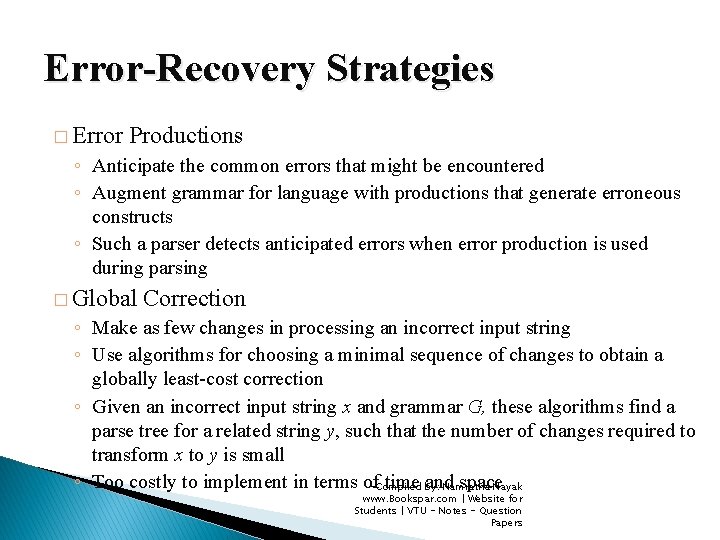

Error-Recovery Strategies � Error Productions ◦ Anticipate the common errors that might be encountered ◦ Augment grammar for language with productions that generate erroneous constructs ◦ Such a parser detects anticipated errors when error production is used during parsing � Global Correction ◦ Make as few changes in processing an incorrect input string ◦ Use algorithms for choosing a minimal sequence of changes to obtain a globally least-cost correction ◦ Given an incorrect input string x and grammar G, these algorithms find a parse tree for a related string y, such that the number of changes required to transform x to y is small ◦ Too costly to implement in terms of-Compiled time and space. Nayak by: Namratha www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

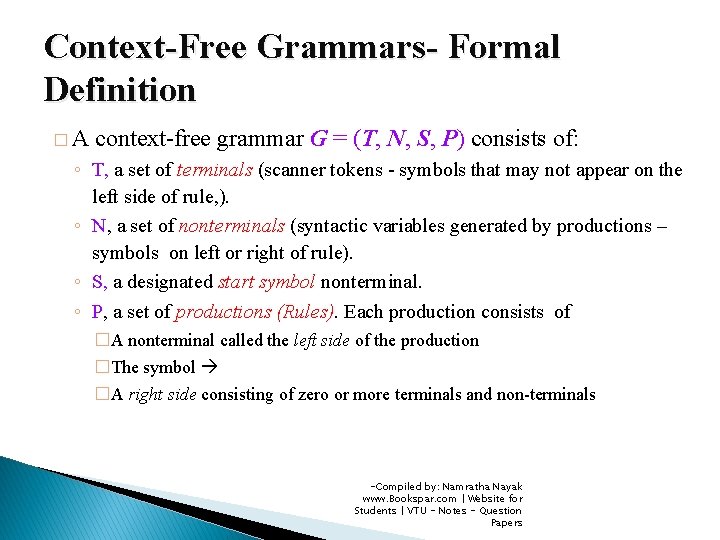

Context-Free Grammars- Formal Definition �A context-free grammar G = (T, N, S, P) consists of: ◦ T, a set of terminals (scanner tokens - symbols that may not appear on the left side of rule, ). ◦ N, a set of nonterminals (syntactic variables generated by productions – symbols on left or right of rule). ◦ S, a designated start symbol nonterminal. ◦ P, a set of productions (Rules). Each production consists of �A nonterminal called the left side of the production �The symbol �A right side consisting of zero or more terminals and non-terminals -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Context-Free Grammars- Formal Definition � Example grammar for simple arithmetic expressions expression term factor expression + term expression – term * factor term / factor ( expression ) id -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

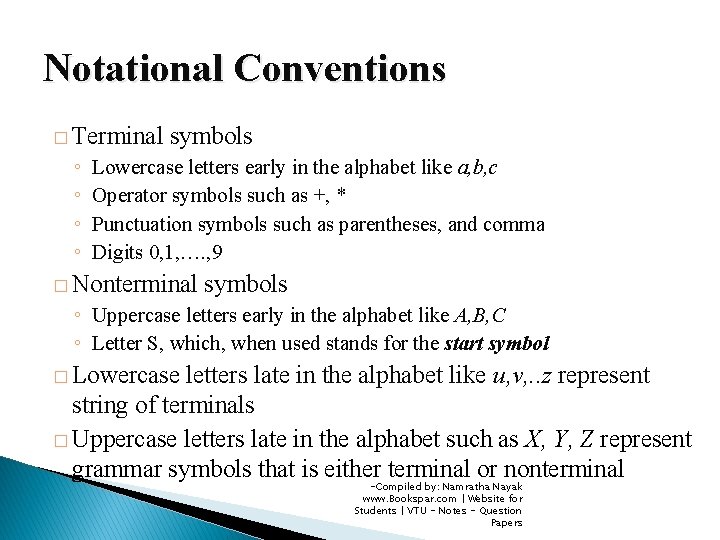

Notational Conventions � Terminal ◦ ◦ symbols Lowercase letters early in the alphabet like a, b, c Operator symbols such as +, * Punctuation symbols such as parentheses, and comma Digits 0, 1, …. , 9 � Nonterminal symbols ◦ Uppercase letters early in the alphabet like A, B, C ◦ Letter S, which, when used stands for the start symbol � Lowercase letters late in the alphabet like u, v, . . z represent string of terminals � Uppercase letters late in the alphabet such as X, Y, Z represent grammar symbols that is either terminal or nonterminal -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

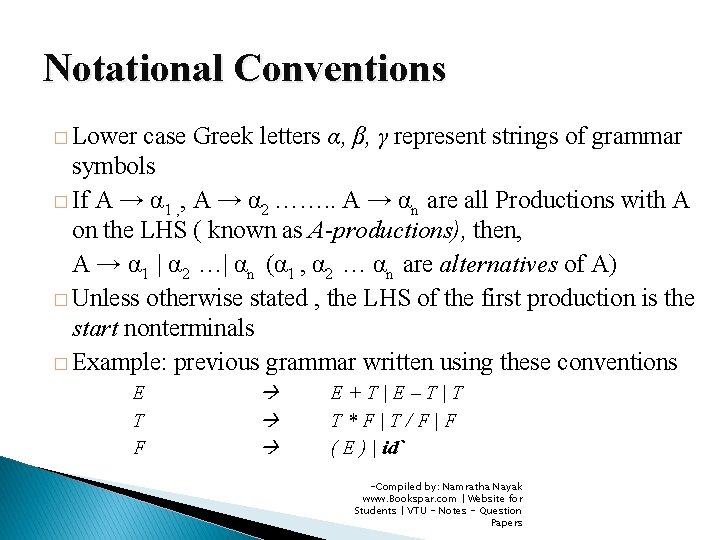

Notational Conventions � Lower case Greek letters α, β, γ represent strings of grammar symbols � If A → α 1 , , A → α 2 ……. . A → αn are all Productions with A on the LHS ( known as A-productions), then, A → α 1 | α 2 …| αn (α 1 , α 2 … αn are alternatives of A) � Unless otherwise stated , the LHS of the first production is the start nonterminals � Example: previous grammar written using these conventions E T F E+T|E–T|T T*F|T/F|F ( E ) | id` -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Derivations �A way of showing how an input sentence is recognized with a grammar � Beginning with the start symbol, each rewriting step replaces a nonterminal by the body of one of its productions � Consider the following grammar E E + E | E * E | – E | ( E ) | id ◦ “E derives –E” can be denoted by E ==> – E ◦ A derivation of – ( id ) from E E ==> – ( E ) ==> – ( id ) -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Derivations � Symbols ◦ ◦ ◦ to indicate derivation ==> denotes “derives in one step” * ==> denotes “derives in zero or more steps” + ==> denotes “derives in one or more steps” � Given the grammar G with start symbol S, a string ω is part of * the language L (G), if and only if S ==> ω * � If S ==> α and α contains ◦ Only terminals then it is a sentence of G ◦ Both terminals and nonterminals then it is a Sentential form of G � Two choices to be made at each step in the derivation ◦ Choose which nonterminal to replace ◦ Pick a production with that nonterminal as head -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Derivations � Leftmost Derivation ◦ The leftmost nonterminal in each sentential form is always chosen to be replaced ◦ If α ==> β, is a step in which the leftmost nonterminal in α is replaced, we write α ==> β lm � Rightmost Derivation ◦ Replace the rightmost nonterminal in each sentential form ◦ Written as α ==> β rm � If * S ==> α, then we can say that α is left-sentential form of the lm grammar -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Parse Trees and Derivations �A graphical representation for a derivation showing how to derive the string of a language from grammar starting from Start symbol ◦ The interior node is labeled with the nonterminal in the head of the production ◦ Children are labeled by the symbols in the RHS of the production � Yield of the tree ◦ The string derived or generated from the nonterminal at the root of the tree ◦ Obtained by reading the leaves of the parse tree from left to right -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Parse Trees and Derivations Fig: Parse tree for – (id +id) -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Ambiguity �A grammar that produces more than one parse tree for some sentence is said to be ambiguous ◦ Can be a leftmost derivation or a rightmost derivation for the same sentence Fig: Two Parse trees for id+id*id -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

CFG’s Versus Regular Expressions � Every construct that can be described by a regular expression can be described by a grammar, but not vice-versa. � Grammar construction from the NFA ◦ For each state i of the NFA, create a nonterminal Ai ◦ If state i has a transition to state j on input a, add the production Ai a. Aj If state i goes to state j on input ε, add the production Ai Aj ◦ If i is an accepting state, add Ai ε ◦ If i is the start state, make Ai the start symbol of the grammar -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Exercises -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

-Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Writing a Grammar � Lexical versus Syntactic Analysis ◦ Why use RE’s to define lexical syntax of a language? �Separating syntactic structure into lexical and non-lexical parts modularizes a compiler into two components �Lexical rules are simple and easy to describe �RE’s provide a concise and easier-to-understand notation for tokens than grammars �Efficient lexical analyzers can be constructed automatically from RE’s than from arbitrary grammars ◦ RE’s are most useful for describing the structure of constructs such as identifiers, constants, keywords and whitespace ◦ Grammars are useful for describing nested structures such as balanced parentheses, matching begin-end’s, corresponding if-then-Compiled by: Namratha Nayak else’s www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Eliminating Ambiguity � Ambiguous grammars can be rewritten to eliminate ambiguity ◦ Example : “Dangling-else” grammar stmt | | if expr then other stmt else stmt ◦ Parse tree for the statement: if E 1 then S 1 else if E 2 then S 2 else S 3 -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Eliminating Ambiguity � Grammar is ambiguous since the following string has two parse trees if E 1 then if E 2 then S 1 else S 2 -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

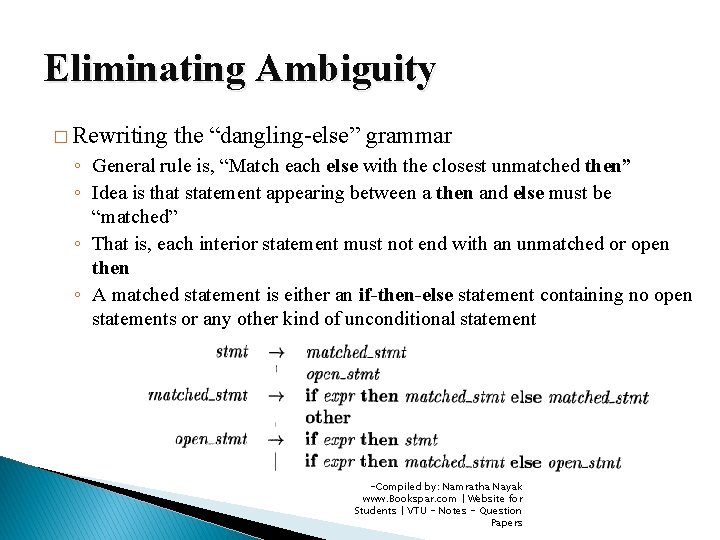

Eliminating Ambiguity � Rewriting the “dangling-else” grammar ◦ General rule is, “Match each else with the closest unmatched then” ◦ Idea is that statement appearing between a then and else must be “matched” ◦ That is, each interior statement must not end with an unmatched or open then ◦ A matched statement is either an if-then-else statement containing no open statements or any other kind of unconditional statement -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Eliminating Left Recursion � Left-recursive grammar + ◦ Grammar that has a nonterminal A such that there is a derivation A ==>A for some string ◦ Top-down parsing methods cannot handle left-recursive grammars ◦ Immediate Left recursion : a production of the form A A ◦ Left-recursive pair of productions, A A | β can be replaced by: A β A′ A′ A′ | ε ◦ Eliminating immediate left recursion �First group the A-productions as A A 1 | A 2 |. . . | A m | β 1 | β 2 |. . . | βn Where no βi begins with an A �Replace the A-productions by A β 1 A′ | β 2 A′ |. . . | βn A′ A 1 A′ | 2 A′ |. . . | m A′ | ε -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

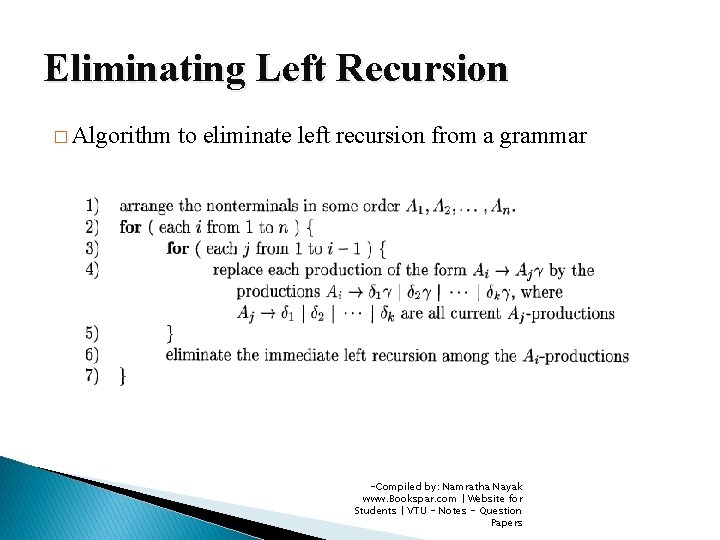

Eliminating Left Recursion � Algorithm to eliminate left recursion from a grammar -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

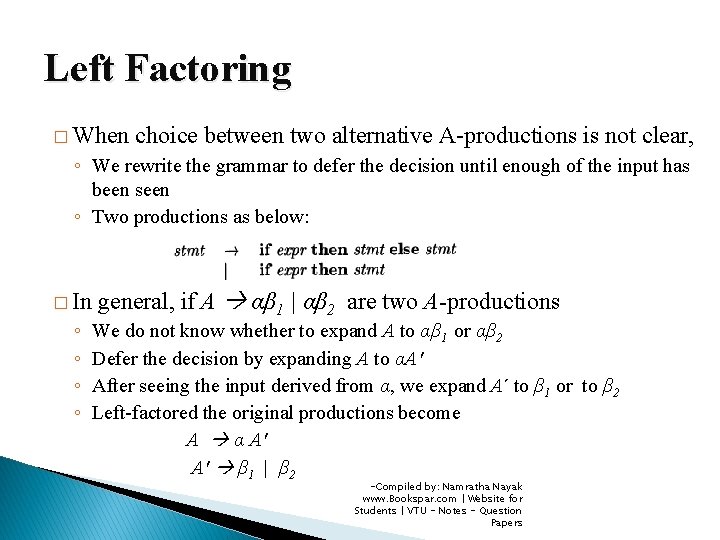

Left Factoring � When choice between two alternative A-productions is not clear, ◦ We rewrite the grammar to defer the decision until enough of the input has been seen ◦ Two productions as below: � In ◦ ◦ general, if A αβ 1 | αβ 2 are two A-productions We do not know whether to expand A to αβ 1 or αβ 2 Defer the decision by expanding A to αA′ After seeing the input derived from α, we expand A to β 1 or to β 2 Left-factored the original productions become A α A′ A′ β 1 | β 2 -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Left Factoring � Algorithm for left-factoring a grammar ◦ For each nonterminal A, find the longest prefix α common to two or more alternatives ◦ If α ≠ ε – replace all of the A-productions A αβ 1 | αβ 2 |. . . | αβn | γ, where γ represents alternatives that do not begin with α, by A αA′ | γ A′ β 1 | β 2 |. . . | βn ◦ Repeatedly apply this transformation until no two alternatives for a nonterminal have a common prefix -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Non-Context Free Language Constructs � Some syntactic constructs found in PL cannot be specified using grammars alone ◦ Example 1: Problem of checking that identifiers are declared before they are used in the program The abstract language is L 1 = {wcw | w is in (a|b)*} ◦ Example 2: Problem of checking that number of formal parameters in the declaration of a function agrees with the number of actual parameters in a use of the function The abstract language is L 2 = {anbmcndm | n ≥ 1 and m ≥ 1} -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Top-Down Parsing � Constructing a parse tree for the input string starting from the toot and creating nodes in preorder � Can be viewed as finding a leftmost derivation for an input string � Consider the grammar below E T E′ E′ + T E′ | ε T F T′ T′ * F T′ | ε F ( E ) | id Sequence of parse trees for the input id+id*id -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Top-Down Parsing -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Top-Down Parsing � Determining the production to be applied for a nonterminal A is the key problem at each step of top-down parse � Once an A-production is chosen, the parsing process consists of “matching” the terminal symbols in production with input string � Two types ◦ Recursive-descent parsing �May require backtracking to find the correct A-production to be applied ◦ Predictive Parsing �No backtracking is requires �Chooses the correct A-production by looking ahead at the input a fixed number of symbols � LL(k) Grammars : Construct predictive parsers that look k symbols ahead in the input -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

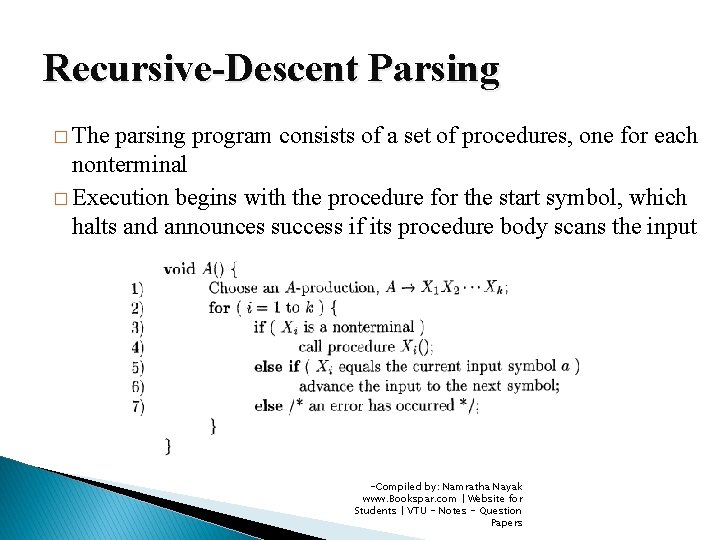

Recursive-Descent Parsing � The parsing program consists of a set of procedures, one for each nonterminal � Execution begins with the procedure for the start symbol, which halts and announces success if its procedure body scans the input -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Recursive-Descent Parsing � To allow backtracking, the code needs to be modified ◦ Cannot choose a unique A-production at line (1), so must try each of the several productions in some order ◦ Failure at line (7) is not ultimate failure, but tells that we need to return to line (1) and try another A-production ◦ Only if there are no more A-productions to try, we declare that an input error has been found ◦ To try another A-production, we need to be able to reset the input pointer to where it was when we first reached line (1) ◦ A local variable is needed to store this input pointer -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Recursive-Descent Parsing � Consider the grammar: S c. Ad A ab|a And input string w = cad -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

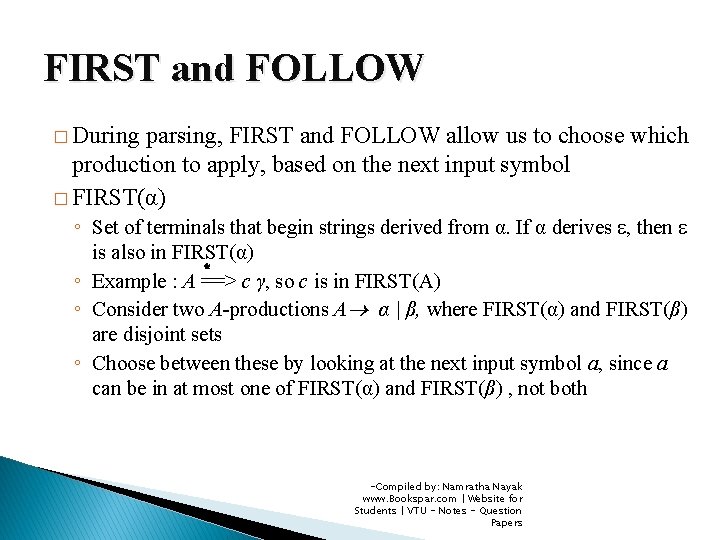

FIRST and FOLLOW � During parsing, FIRST and FOLLOW allow us to choose which production to apply, based on the next input symbol � FIRST(α) ◦ Set of terminals that begin strings derived from α. If α derives ε, then ε is also in FIRST(α) * ◦ Example : A ==> c γ, so c is in FIRST(A) ◦ Consider two A-productions A α | β, where FIRST(α) and FIRST(β) are disjoint sets ◦ Choose between these by looking at the next input symbol a, since a can be in at most one of FIRST(α) and FIRST(β) , not both -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

FIRST and FOLLOW � FOLLOW(A), for a nonterminal A ◦ Set of terminals a that can appear immediately to the right of A in some sentential form ◦ That is, set of terminals a such that there exists a derivation of the form * S ==> αAaβ ◦ If A can be the rightmost symbol in some sentential form, then $ is in FOLLOW(A) -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

FIRST and FOLLOW � To compute FIRST(X), apply following rules until no more terminals or ε can be added to any FIRST set 1. 2. If X is a terminal, then FIRST(X) = { X } If X is a nonterminal and X Y 1 Y 2. . . Yk is a production for some k≥ 1 � Place a in FIRST(X) if for some i, a is in FIRST(Yi) , and ε is in all of FIRST(Y 1), . . . , FIRST(Yi-1); i. e. , Y 1. . . Yi-1 *==> ε � If ε is in FIRST(Yj) for all j = 1, 2, . . . , k, then add ε to FIRST(X) * ε, � If Y 1 does not derive ε, then we add nothing more to FIRST(X), but if Y 1 ==> then we add FIRST(Y 2) and so on 3. If X ε is a production, then add ε to FIRST(X) -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

FIRST and FOLLOW � To compute FOLLOW(A) for all nonterminals A, apply following rules until nothing can be added to any FOLLOW set 1. 2. 3. Place $ in FOLLOW(S), where S is the start symbol, and $ is the input right endmarker If there is production , A αBβ, then everything in FIRST(β) except ε is in FOLLOW(B) If there is a production, A αB, or a production A αBβ, where FIRST(β) contains ε, then everything in FOLLOW(A) is in FOLLOW(B) -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

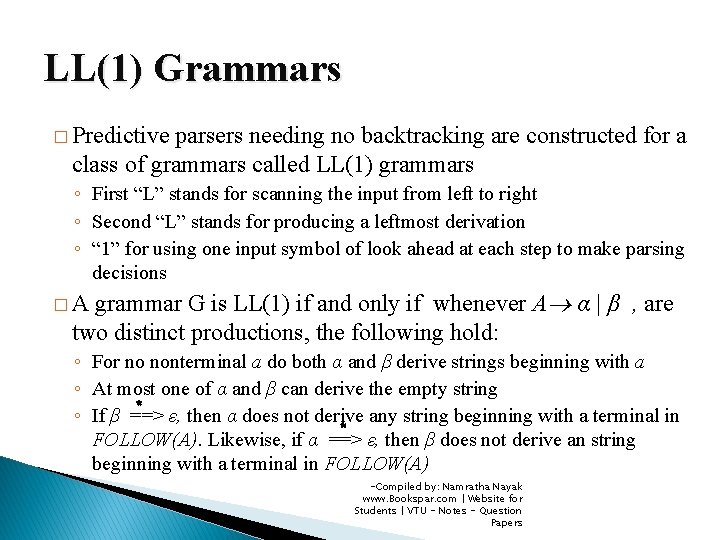

LL(1) Grammars � Predictive parsers needing no backtracking are constructed for a class of grammars called LL(1) grammars ◦ First “L” stands for scanning the input from left to right ◦ Second “L” stands for producing a leftmost derivation ◦ “ 1” for using one input symbol of look ahead at each step to make parsing decisions grammar G is LL(1) if and only if whenever A α | β , are two distinct productions, the following hold: �A ◦ For no nonterminal a do both α and β derive strings beginning with a ◦ At most one of α and β can derive the empty string * ◦ If β ==> ε, then α does not derive any string beginning with a terminal in * FOLLOW(A). Likewise, if α ==> ε, then β does not derive an string beginning with a terminal in FOLLOW(A) -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

LL(1) Grammars � Predictive parsers can be constructed for LL(1) grammars since the proper production to apply can be selected by looking only at the current input symbol � Next algorithm collects information from FIRST and FOLLOW sets ◦ Into a predictive parsing table M[A, a], where A is the nonterminal and a is terminal ◦ IDEA �Production A α is chosen if the next input symbol a is in FIRST(α) �If α = ε, we again choose A α , if the current input symbol is in FOLLOW(A), or if the $ on the input has been reached and $ is in FOLLOW(A) -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

LL(1) Grammars Algorithm: Construction of Predictive Parsing Table Input : Grammar G Output: Parsing Table M Method : For each production A α of the grammar do the 1. For each terminal a in FIRST(A), add A α to M[A, a]. 2. If ε is in FIRST(α), then for each terminal b in FOLLOW(A), add A α to M[A, b]. If ε is in FIRST(α) and $ is in FOLLOW(A), add A α to M[A, $] as well If after performing the above, there is no production at all in M[A, a], then set M[A, a] to error -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Nonrecursive Predictive Parsing � Built by maintaining a stack explicitly rather than recursive calls � Parser mimics a leftmost derivation ◦ If w is the input that has been matched so far, then the stack holds a * sequence of grammar symbols α such that S ==> wα lm -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

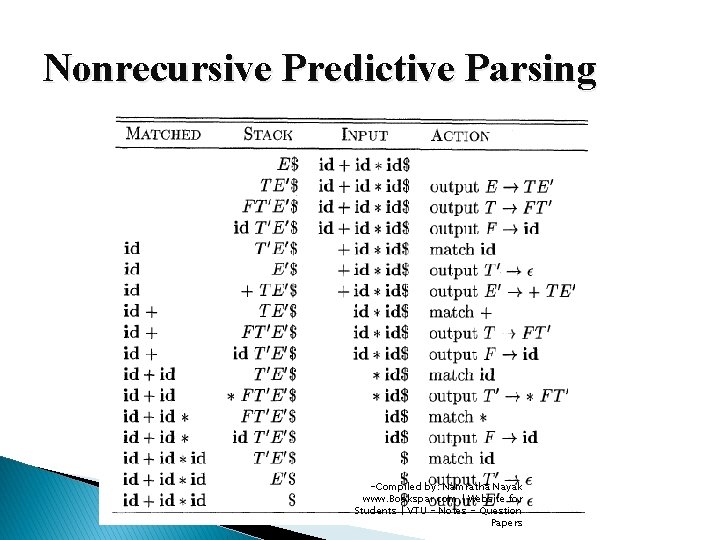

Nonrecursive Predictive Parsing -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Error Recovery in Predictive Parsing � Error recovery refers to the stack of a table-driven predictive parser ◦ It makes explicit the terminals and nonterminals that the parser hopes to match with the remainder of the input � An error is detected during predictive parsing when ◦ The terminal on top of the stack does not match the next input symbol ◦ Nonterminal A is on top of the stack, a is the next input symbol, and M[A, a] is error, i. e. , parsing table entry is empty -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Error Recovery in Predictive Parsing � Panic Mode ◦ Based on the idea of skipping symbols on the input until a token in a selected set of synchronizing tokens appear ◦ Some heuristics are : �Place all symbols in FOLLOW(A) into the synchronizing set for nonterminal A. If we skip tokens until an element of FOLLOW (A) is seen and pop A from the stack, parsing can continue �If we add symbols in FIRST(A) to the synchronizing set, then it may be possible to resume parsing according to A if a symbol in FIRST(A) appears in the input �If a nonterminal can generate the empty string, then the production deriving ε can be used as default �If a terminal on top of the stack cannot be matched, then pop the terminal, issue a message saying that the terminal was inserted and continue parsing -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Error Recovery in Predictive Parsing � Synchronizing tokens added to the parsing table -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

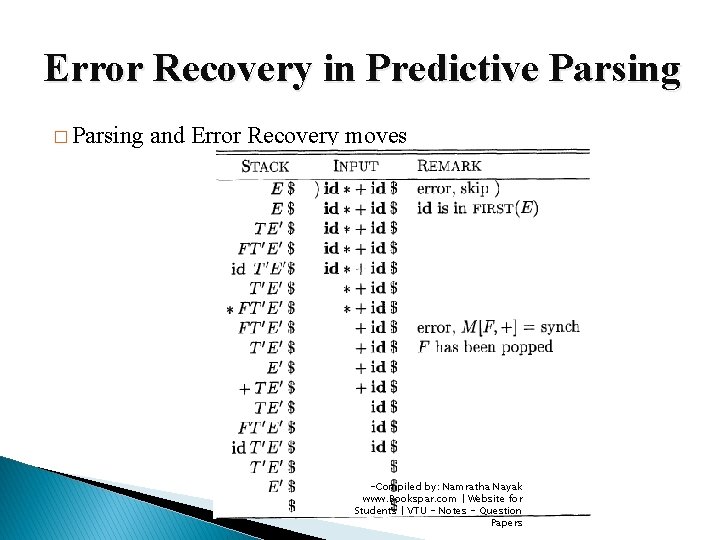

Error Recovery in Predictive Parsing � Parsing and Error Recovery moves -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

Error Recovery in Predictive Parsing � Phrase-level Recovery ◦ Implemented by filling the blank entries in the table with pointers to error routines ◦ These routines may change , insert, or delete symbols on the input and issue appropriate error messages. May also pop from the stack ◦ Alteration of stack symbols or pushing of new symbols onto the stack is questionable for several reasons �Steps carried out by the parser might not correspond to the derivation of any word in the language at all �Must ensure that there is no possibility of an infinite loop ◦ Checking that any recovery action results in an input symbol being consumed is a good way to protect against such loops -Compiled by: Namratha Nayak www. Bookspar. com | Website for Students | VTU - Notes - Question Papers
