Unit 11 Computer Networks Assignment B Design a

Unit 11 - Computer Networks Assignment B: Design a Computer Network Name here

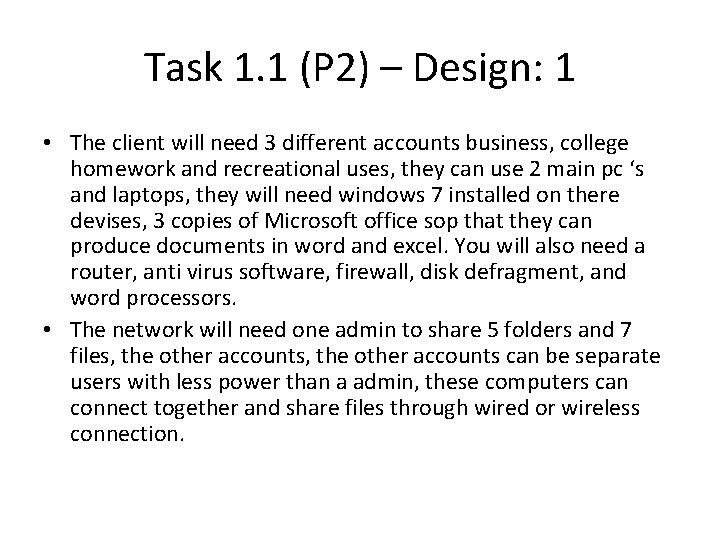

Task 1. 1 (P 2) – Design: 1 • The client will need 3 different accounts business, college homework and recreational uses, they can use 2 main pc ‘s and laptops, they will need windows 7 installed on there devises, 3 copies of Microsoft office sop that they can produce documents in word and excel. You will also need a router, anti virus software, firewall, disk defragment, and word processors. • The network will need one admin to share 5 folders and 7 files, the other accounts can be separate users with less power than a admin, these computers can connect together and share files through wired or wireless connection.

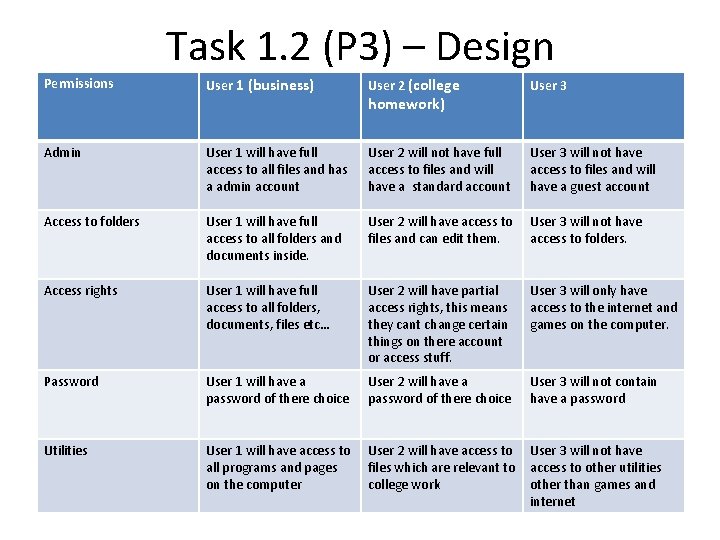

Task 1. 2 (P 3) – Design User 1 (business) User 2 (college User 3 Admin User 1 will have full access to all files and has a admin account User 2 will not have full access to files and will have a standard account User 3 will not have access to files and will have a guest account Access to folders User 1 will have full access to all folders and documents inside. User 2 will have access to files and can edit them. User 3 will not have access to folders. Access rights User 1 will have full access to all folders, documents, files etc… User 2 will have partial access rights, this means they cant change certain things on there account or access stuff. User 3 will only have access to the internet and games on the computer. Password User 1 will have a password of there choice User 2 will have a password of there choice User 3 will not contain have a password Utilities User 1 will have access to all programs and pages on the computer User 2 will have access to files which are relevant to college work User 3 will not have access to other utilities other than games and internet Permissions homework)

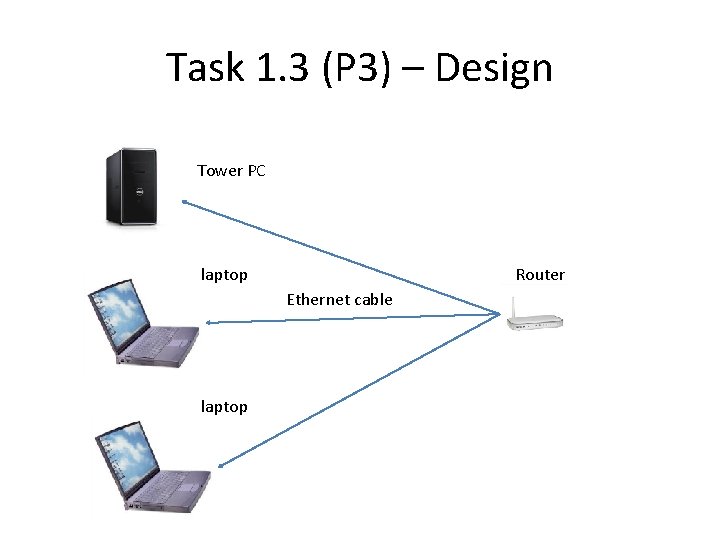

Task 1. 3 (P 3) – Design Tower PC laptop Router Ethernet cable laptop

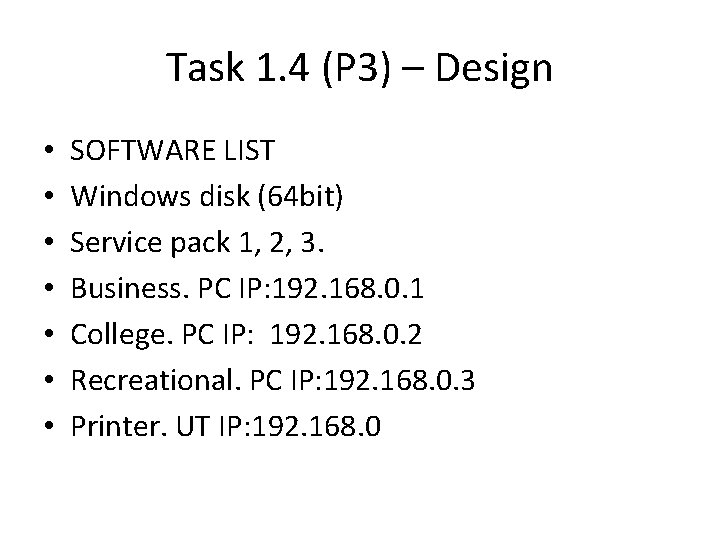

Task 1. 4 (P 3) – Design • • SOFTWARE LIST Windows disk (64 bit) Service pack 1, 2, 3. Business. PC IP: 192. 168. 0. 1 College. PC IP: 192. 168. 0. 2 Recreational. PC IP: 192. 168. 0. 3 Printer. UT IP: 192. 168. 0

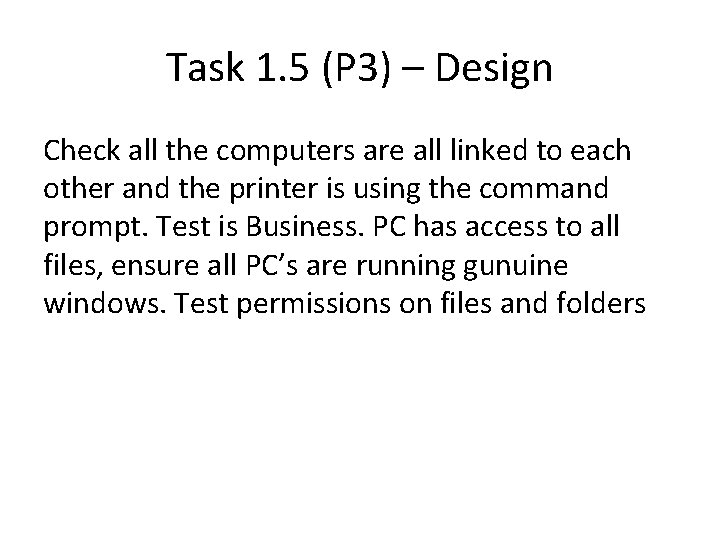

Task 1. 5 (P 3) – Design Check all the computers are all linked to each other and the printer is using the command prompt. Test is Business. PC has access to all files, ensure all PC’s are running gunuine windows. Test permissions on files and folders

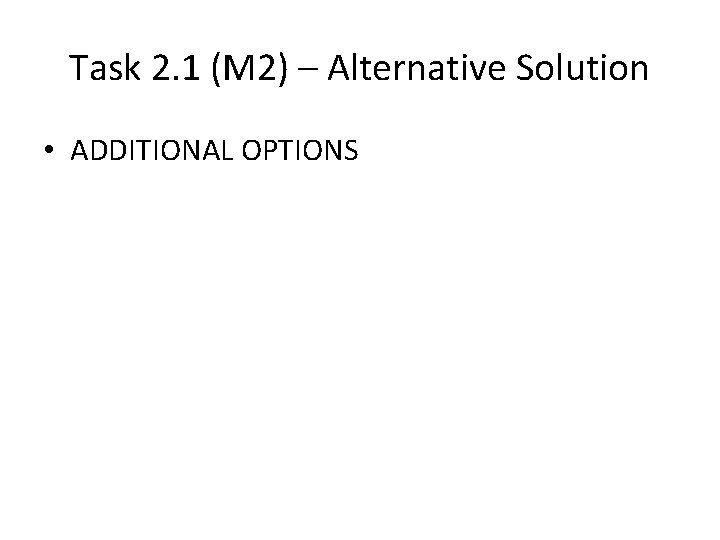

Task 2. 1 (M 2) – Alternative Solution • ADDITIONAL OPTIONS

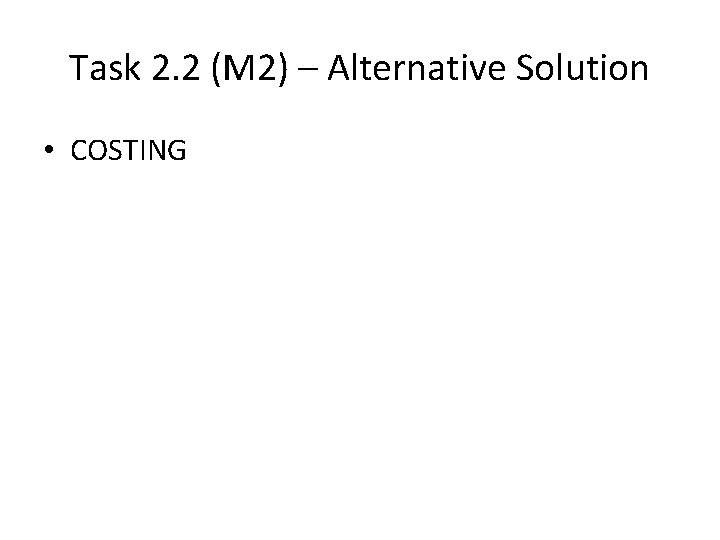

Task 2. 2 (M 2) – Alternative Solution • COSTING

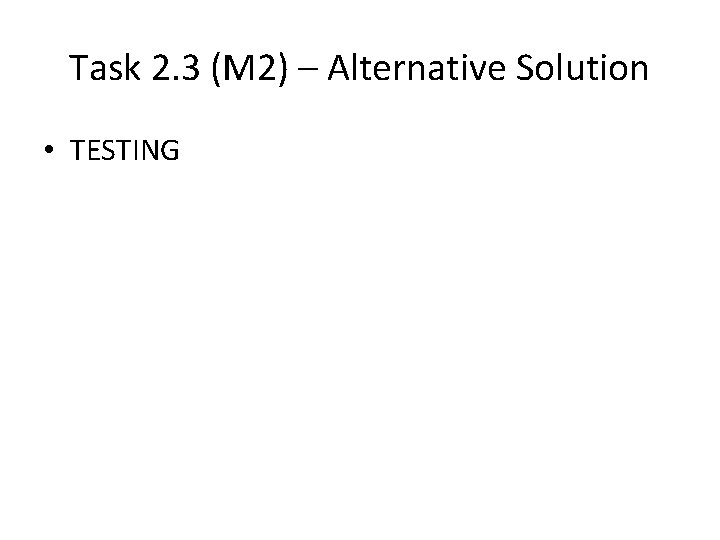

Task 2. 3 (M 2) – Alternative Solution • TESTING

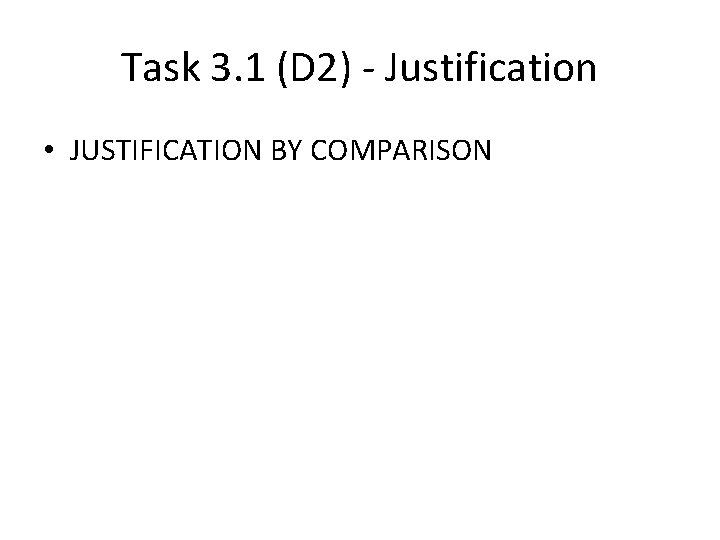

Task 3. 1 (D 2) - Justification • JUSTIFICATION BY COMPARISON

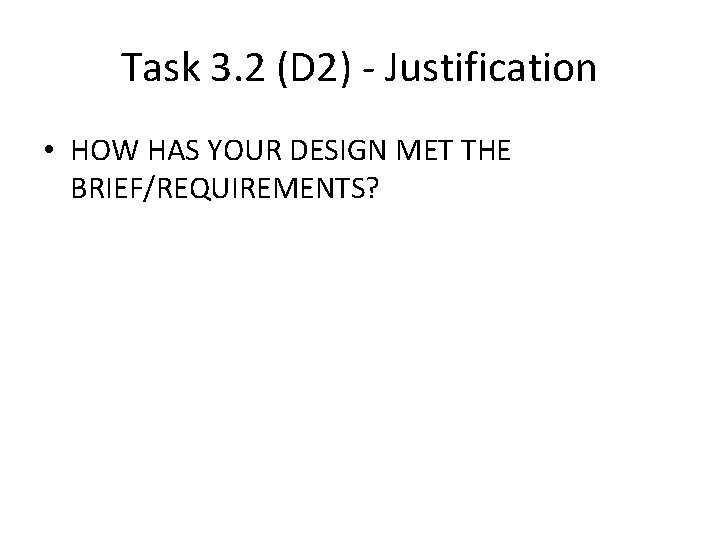

Task 3. 2 (D 2) - Justification • HOW HAS YOUR DESIGN MET THE BRIEF/REQUIREMENTS?

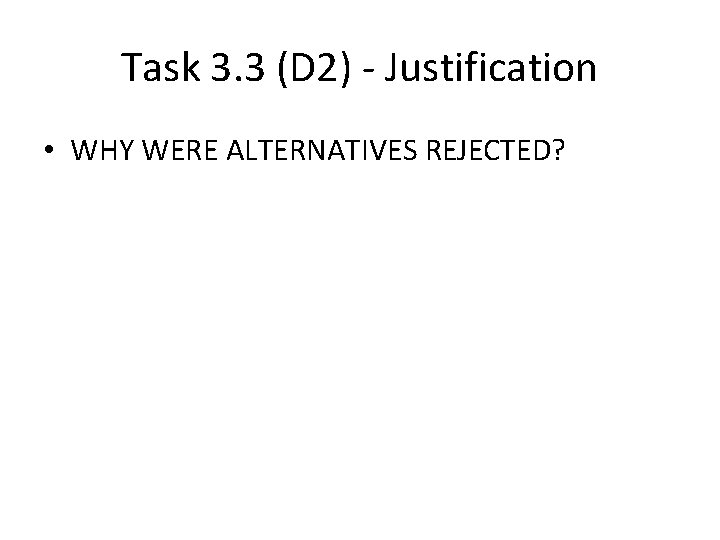

Task 3. 3 (D 2) - Justification • WHY WERE ALTERNATIVES REJECTED?

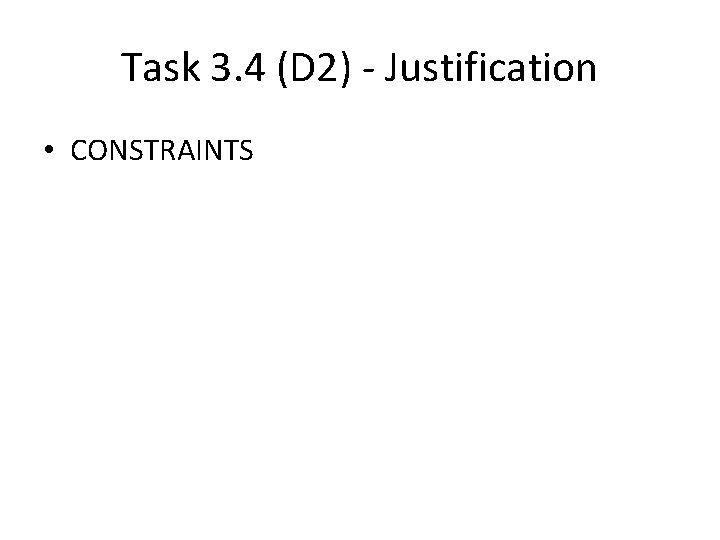

Task 3. 4 (D 2) - Justification • CONSTRAINTS

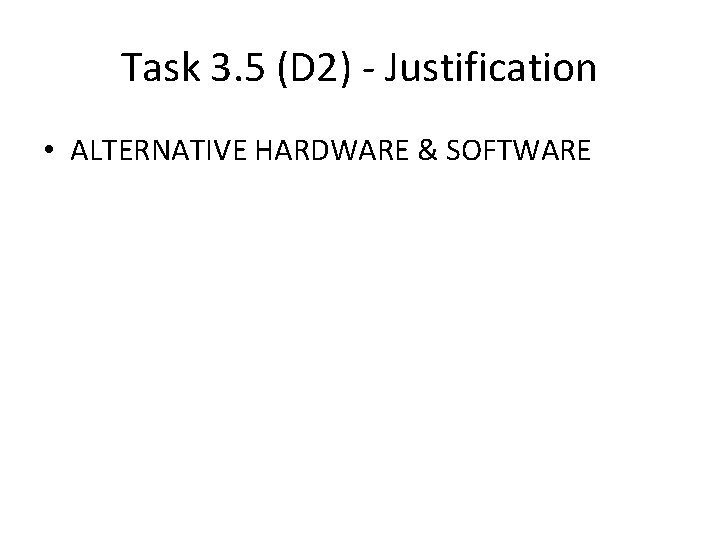

Task 3. 5 (D 2) - Justification • ALTERNATIVE HARDWARE & SOFTWARE
