UNIT 1 BY NAMRATHA NAYAK www Bookspar com

UNIT 1 BY : - NAMRATHA NAYAK www. Bookspar. com | Website for Students | VTU Notes - Question Papers INTODUCTION TO COMPILERS

TOPICS Language www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Processors Structure of a Compiler Evolution of Programming Languages Science of Building a Compiler Applications of Compiler Technology Programming Language Basics

LANGUAGE PROCESSORS COMPILER Read Source language – High-level language like C, C++ Target language – object code of the target machine Report any errors detected in the source program during translation www. Bookspar. com | Website for Students | VTU - Notes - Question Papers a program in source language and translate into the target language

LANGUAGE PROCESSORS INTERPRETER Directly Executes source program statement by statement Target program produced by compiler is much faster at mapping inputs to outputs www. Bookspar. com | Website for Students | VTU - Notes - Question Papers executes the operations specified in the source program on inputs supplied by the user Target program is not produced as output of translation Gives better error-diagnostics than a compiler

LANGUAGE PROCESSORS EXAMPLE Java Source program is first compiled into bytecodes Bytecodes are then interpreted by a virtual machine Just-in-time compilers Translate bytecodes into machine language before they runt he intermediate program to process input www. Bookspar. com | Website for Students | VTU - Notes - Question Papers language processors combine compilation and interpretation

LANGUAGE PROCESSORS A Language-Processing System www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

LANGUAGE PROCESSORS Preprocessor Source Assembler Compiler produces an assembly-language program Symbolic form of the machine language Produces relocatable machine code as output www. Bookspar. com | Website for Students | VTU - Notes - Question Papers program may be divided into modules in separate files Accomplishes the task of collecting the source program Can delete comments, include other files, expand macros

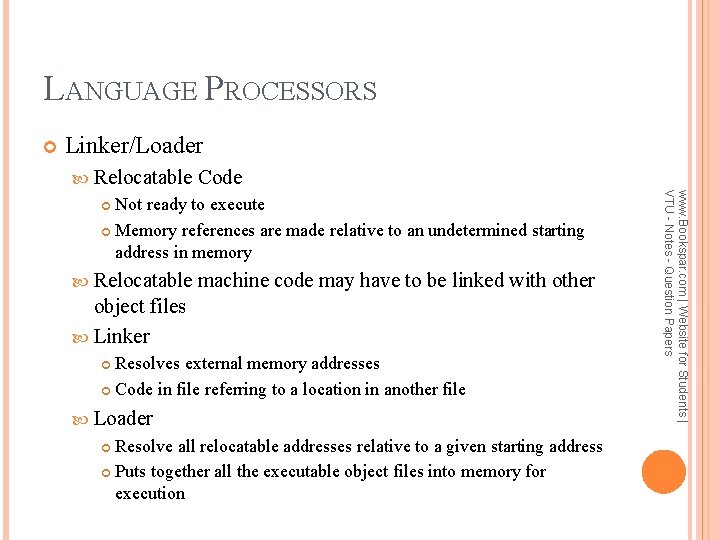

LANGUAGE PROCESSORS Linker/Loader Relocatable Code Relocatable machine code may have to be linked with other object files Linker Resolves external memory addresses Code in file referring to a location in another file Loader Resolve all relocatable addresses relative to a given starting address Puts together all the executable object files into memory for execution www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Not ready to execute Memory references are made relative to an undetermined starting address in memory

THE STRUCTURE OF A COMPILER Analysis Phase Break Provide informative messages to the user Symbol Table Stores the information collected about the source program Given to the synthesis phase along with the intermediate representation www. Bookspar. com | Website for Students | VTU - Notes - Question Papers up source program into token or constituent pieces Impose a grammatical structure Create an intermediate representation of the source program If source program is syntactically incorrect or semantically wrong

THE STRUCTURE OF A COMPILER Synthesis Phase Constructs the desired target program from Back end of the compiler Analysis phase is called front end of the compiler Compilation process is a sequence of phases Each phase transforms one representation of source program into another Several phases may be grouped together Symbol table is used by all the phases of the compiler www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Intermediate representation Information in symbol table

THE STRUCTURE OF A COMPILER www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

LEXICAL ANALYSIS Lexical Analyzer Reads <token-name , attribute-value> Token-name : symbol used during syntax analysis Attribute-value : an entry in the symbol table for this token Information from symbol table is needed for syntax analysis and code generation Consider the following assignment statement www. Bookspar. com | Website for Students | VTU - Notes - Question Papers stream of characters in the source program Groups the characters into meaningful sequences – lexemes For each lexeme, a token is produced as output

SYNTAX ANALYSIS Parsing Parser Interior node – operation Children - arguments of the operation Other phases use this syntax tree to help analyze source program and generate target program www. Bookspar. com | Website for Students | VTU - Notes - Question Papers uses the tokens to create a tree-like intermediate representation Depicts the grammatical structure of the token stream Syntax tree is one such representation

SEMANTIC ANALYSIS Semantic Analyzer Checks semantic consistency with language using: Gathers type information and save in syntax tree or symbol table Type Checking Checks each operator for matching operands Ex: Report error if floating point number is used as index of an array Coercions or type conversions Binary arithmetic operator applied to a pair of integers or floating point numbers If applied to floating point and integer, compiler may convert integer to floating-point number www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Syntax tree Information in symbol table

SEMANTIC ANALYSIS Semantic Analyzer For our assignment statement Type checker finds that * is applied to floating-point ‘rate’ and integer ‘ 60’ Integer is converted to floating-point www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Position, rate and initial are floating-point numbers Lexeme 60 is an integer

INTERMEDIATE CODE GENERATION After syntax and semantic analysis Compilers Should be easy to produce Should be easy to translate into target machine Three-address code Sequence of assembly-like instructions with three operands per instruction Each operand acts like a register www. Bookspar. com | Website for Students | VTU - Notes - Question Papers generate machine-like intermediate representation This intermediate representation should have the two properties:

INTERMEDIATE CODE GENERATION Points to be noted about three-address instructions are: Each assignment instruction has at most one operator on the right www. Bookspar. com | Website for Students | VTU - Notes - Question Papers side Compiler must generate a temporary name to hold the value computed by a three-address instruction Some instructions have fewer than three operands

CODE OPTIMIZATION Attempt to improve the target code Faster Optimizer can deduce that Conversion of 60 from int to float can be done once at compile time So, the inttofloat can be eliminated by replacing 60 with 60. 0 t 3 is used only once to transmit its value to id 1 www. Bookspar. com | Website for Students | VTU - Notes - Question Papers code, shorter code or target code that consumes less power

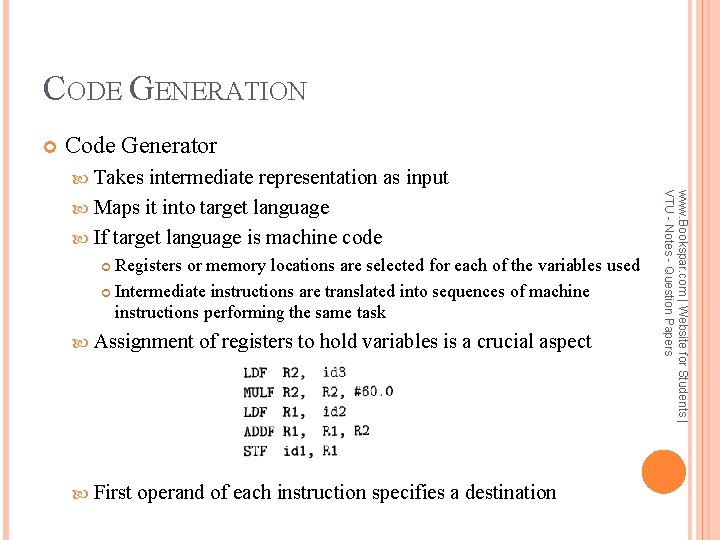

CODE GENERATION Code Generator Takes Registers or memory locations are selected for each of the variables used Intermediate instructions are translated into sequences of machine instructions performing the same task Assignment First of registers to hold variables is a crucial aspect operand of each instruction specifies a destination www. Bookspar. com | Website for Students | VTU - Notes - Question Papers intermediate representation as input Maps it into target language If target language is machine code

www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

SYMBOL-TABLE MANAGEMENT Essential function of Compiler Record Type Scope – where in the program the value may be used In case of procedure names, Number and type of its argument Method of passing each argument Type returned Symbol Table Data structure containing a record for each variable name with fields for attributes www. Bookspar. com | Website for Students | VTU - Notes - Question Papers variable names used in source program Collect information about storage allocated for a name

COMPILER-CONSTRUCTION TOOLS Commonly used compiler-construction tools Parser www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Generators Scanner Generators Syntax-directed translation engines Code-generator Generators Data-flow analysis engines Compiler-construction Toolkits

EVOLUTION OF PROGRAMMING LANGUAGES Move to Higher-Level Languages Development Generation First-generation : machine languages Second-generation : assembly languages Third-generation : C, C++, C#, Java Fourth-generation : SQL, Postscript Fifth-generation : Prolog Imperative and Declarative Imperative : how a computation is to be done Declarative : what computation is to be done Object-oriented Language Scripting Languages www. Bookspar. com | Website for Students | VTU - Notes - Question Papers of mnemonic assembly languages in 1950’s Classification of Languages

EVOLUTION OF PROGRAMMING LANGUAGES Impact on Compilers Advances What problems to deal with What heuristics to use to approach the problem of generating efficient code www. Bookspar. com | Website for Students | VTU - Notes - Question Papers in PL’s placed new demands on compiler writers Devise algorithms and representations to support new features Performance of a computer is dependent on compiler technology Good software-engineering techniques are essential for creating and evolving modern language processors Compiler writers must evaluate tradeoffs about

SCIENCE OF BUILDING A COMPILER Modeling in Compiler Design and Implementation Study of compilers is a study of how Finite-state machines and regular expressions Useful for describing the lexical units of a program (keywords, identifiers) Used to describe the algorithms used to recognize those units Context-free Grammars Describe syntactic structure of PL Nesting of parentheses, control constructs www. Bookspar. com | Website for Students | VTU - Notes - Question Papers To design the right mathematical models and Choose the right algorithms

SCIENCE OF BUILDING A COMPILER Science of Code Optimization “Optimization” Optimization must be correct, i. e. , preserve the meaning of compiled program Optimization must improve the performance of many programs Compilation time must be kept reasonable Engineering effort required must be manageable www. Bookspar. com | Website for Students | VTU - Notes - Question Papers – an attempt to produce code that is more efficient Processor architectures have become more complex Important to formulate the right problem to solve Need a good understanding of the programs Compiler design must meet the following design objectives

APPLICATIONS OF COMPILER TECHNOLOGY Implementation of high-level programming languages High-level programming language defines a programming Hard to write, less portable, prone to errors and harder to maintain Example : register keyword Common programming languages (C, Fortran, Cobol) support User-defined aggregate data types (arrays, structures, control flow ) Data-flow optimizations Analyze flow of data through the program and remove redundancies Key ideas behind object oriented languages are Data Abstraction Inheritance of properties www. Bookspar. com | Website for Students | VTU - Notes - Question Papers abstraction Low-level language have more control over computation and produce efficient code

APPLICATIONS OF COMPILER TECHNOLOGY Implementation of high-level programming languages Java has features that make programming easier www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Type-safe – an object cannot be used as an object of an unrelated type Array accesses are checked to ensure that they lie within the bounds Built in garbage-collection facility Optimizations developed to overcome the overhead by eliminating unnecessary range checks

APPLICATIONS OF COMPILER TECHNOLOGY Optimizations for Computer Architectures Parallelism Memory hierarchies Consists of several levels of storage with different speeds and sizes Average memory access time is reduces Using registers effectively is the most important problem in optimizing a program Caches and physical memories are managed by the hardware Improve effectiveness by changing the layout of data or order of instructions accessing the data www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Instruction level : multiple operations are executed simultaneously Processor level : different threads of the same application run on different processors

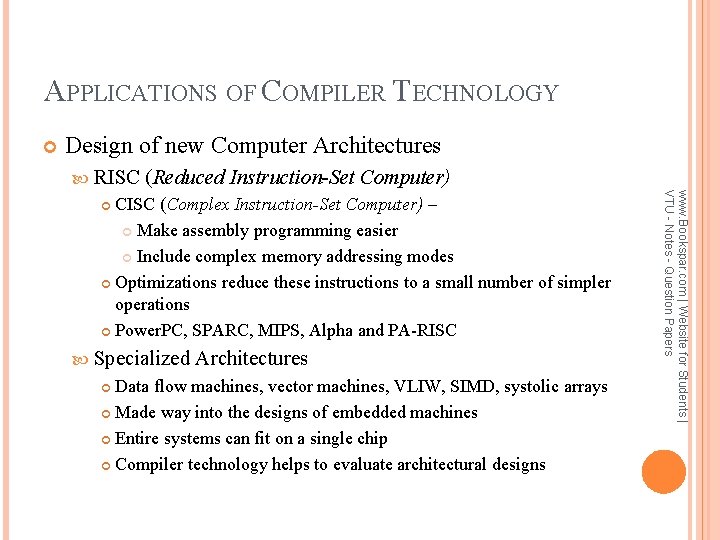

APPLICATIONS OF COMPILER TECHNOLOGY Design of new Computer Architectures RISC (Reduced Instruction-Set Computer) Specialized Architectures Data flow machines, vector machines, VLIW, SIMD, systolic arrays Made way into the designs of embedded machines Entire systems can fit on a single chip Compiler technology helps to evaluate architectural designs www. Bookspar. com | Website for Students | VTU - Notes - Question Papers CISC (Complex Instruction-Set Computer) – Make assembly programming easier Include complex memory addressing modes Optimizations reduce these instructions to a small number of simpler operations Power. PC, SPARC, MIPS, Alpha and PA-RISC

APPLICATIONS OF COMPILER TECHNOLOGY Program Translations Binary Translation Hardware synthesis Hardware designs are described in high-level hardware description languages like Verilog and VHDL Described at register transfer level (RTL) Variables represent registers Expressions represent combinational logic Tools translate RTL descriptions into gates, which are then mapped to transistors and eventually to physical layout www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Translate binary code of one machine to that of another Allow machine to run programs compiled for another instruction set Used to increase the availability of software for their machines Can provide backward compatibility

APPLICATIONS OF COMPILER TECHNOLOGY Program Translations Database Query Interpreters Compiled Simulation Technique used in scientific and engg disciplines Understand a phenomenon or validate a design Inputs include description of the design and specific input parameters for that run www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Languages are useful in other applications Query languages like SQL are used to search databases Queries consist of predicates containing relational and boolean operators Can be interpreted or compiled into commands to search a database

APPLICATIONS OF COMPILER TECHNOLOGY Software Productivity Tools Testing Catch inconsistencies in the program Operation applied to wrong type of object Parameters to a procedure do not match the signature Go beyond finding type errors by analyzing flow of data If www. Bookspar. com | Website for Students | VTU - Notes - Question Papers is a primary technique for locating errors in a program Use data flow analysis to locate errors statically Problem of finding all program errors is undecidable Ways in which program analysis has improved software productivity Type Checking pointer is assigned null and then dereferenced, the program is clearly in error

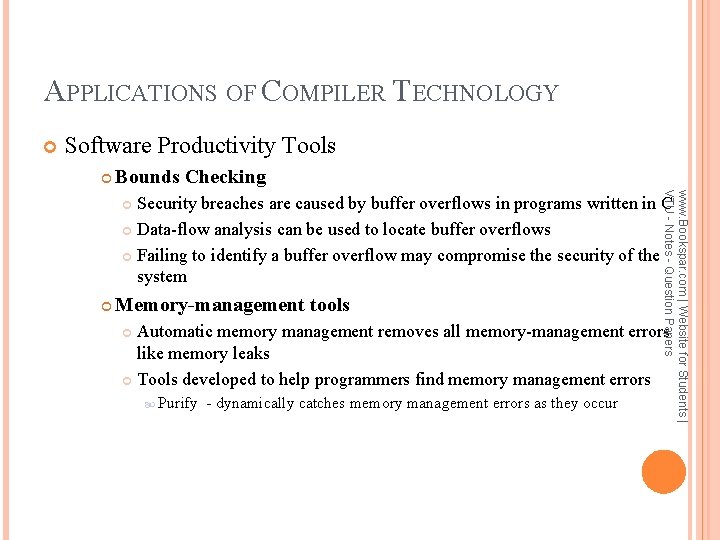

APPLICATIONS OF COMPILER TECHNOLOGY Software Productivity Tools Bounds Checking www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Security breaches are caused by buffer overflows in programs written in C Data-flow analysis can be used to locate buffer overflows Failing to identify a buffer overflow may compromise the security of the system Memory-management tools Automatic memory management removes all memory-management errors like memory leaks Tools developed to help programmers find memory management errors Purify - dynamically catches memory management errors as they occur

PROGRAMMING LANGUAGE BASICS The Static/Dynamic Distinction What www. Bookspar. com | Website for Students | VTU - Notes - Question Papers decision can the compiler make about a program Static Policy - Language uses a policy that allows compiler to decide an issue, i. e. , at compile time Dynamic Policy – Policy that allows a decision to be made when we execute the program, i. e. at run time Scope of Declarations Scope declaration of x is the region of the program in which uses of x refer to this declaration Static or Lexical scope : Used if it is possible to determine the scope of a declaration by looking only at the program Dynamic Scope : As the program runs, the same use of x could refer to any several different declaration of x Example : public static int x;

PROGRAMMING LANGUAGE BASICS Environments and States Whether the changes that occur as the program is run Association www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Affects the values of the data elements Affect interpretation of names for that data of names with locations on memory (store) and then with values is described as a two-stage mapping Environment – Mapping from names to locations in the store State – Mapping from locations in store to their values. It maps l-values to their corresponding r-values

PROGRAMMING LANGUAGE BASICS Environments and States Example to environment and state mappings Static versus dynamic binding of names to locations Static versus dynamic binding of locations to values www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Exceptions

PROGRAMMING LANGUAGE BASICS Static Scope and Block Structure Scope www. Bookspar. com | Website for Students | VTU - Notes - Question Papers rules for C – based on program structure Scope of a declaration – determined by the location of its appearance Languages like C++, C# and Java provide explicit control over scopes – public, private and protected Static scope rules for a language with blocks – a grouping of declarations and statements C static scope policy is as follows: C program is a sequence of top-level declarations of variables & functions Functions may have variable declarations within them, scope of which is restricted to the function in which it appears Scope of a top-level declaration of a name x consists of the entire program that follows

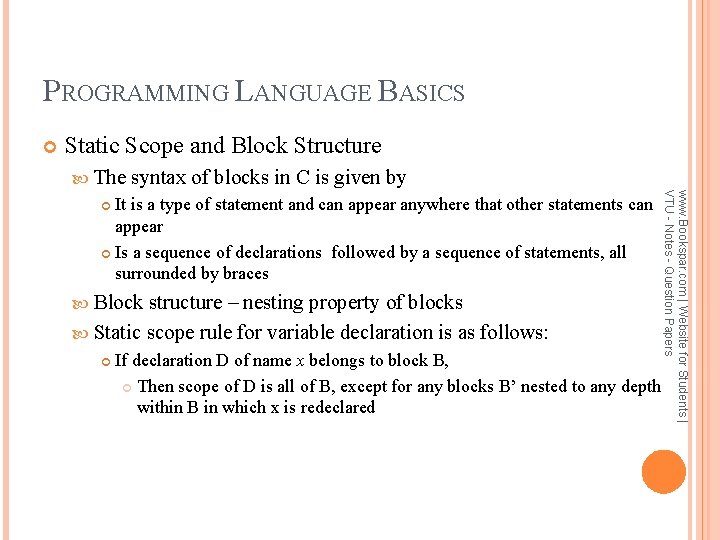

PROGRAMMING LANGUAGE BASICS Static Scope and Block Structure The syntax of blocks in C is given by Block structure – nesting property of blocks Static scope rule for variable declaration is as follows: If declaration D of name x belongs to block B, Then scope of D is all of B, except for any blocks B’ nested to any depth within B in which x is redeclared www. Bookspar. com | Website for Students | VTU - Notes - Question Papers It is a type of statement and can appear anywhere that other statements can appear Is a sequence of declarations followed by a sequence of statements, all surrounded by braces

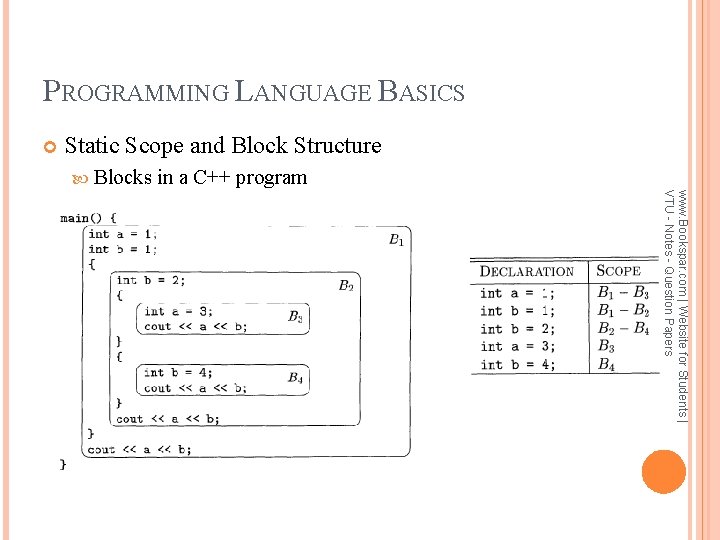

PROGRAMMING LANGUAGE BASICS Static Scope and Block Structure Blocks in a C++ program www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

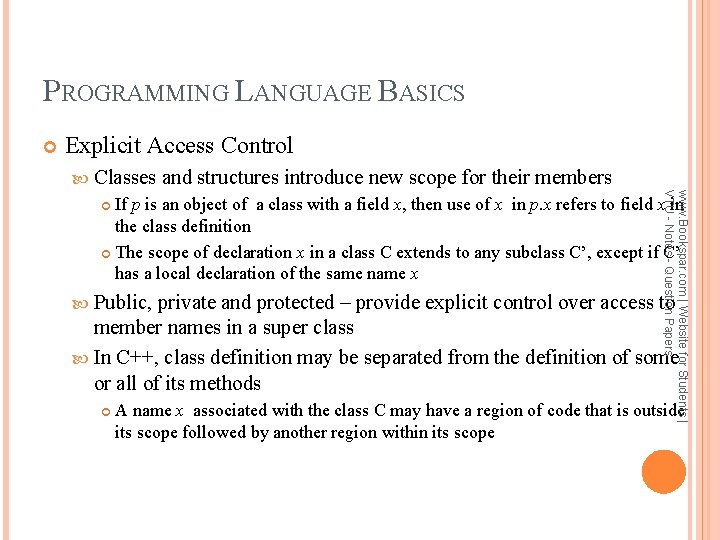

PROGRAMMING LANGUAGE BASICS Explicit Access Control Classes and structures introduce new scope for their members www. Bookspar. com | Website for Students | VTU - Notes - Question Papers If p is an object of a class with a field x, then use of x in p. x refers to field x in the class definition The scope of declaration x in a class C extends to any subclass C’, except if C’ has a local declaration of the same name x Public, private and protected – provide explicit control over access to member names in a super class In C++, class definition may be separated from the definition of some or all of its methods A name x associated with the class C may have a region of code that is outside its scope followed by another region within its scope

PROGRAMMING LANGUAGE BASICS Dynamic Scope Based www. Bookspar. com | Website for Students | VTU - Notes - Question Papers on factors that can be known only when the program executes A use of a name x refers to the declaration of x in the most recently called procedure with such a declaration Macro expansion in the C preprocessor Dynamic scope resolution is essential for polymorphic procedures

PROGRAMMING LANGUAGE BASICS Dynamic Scope Method resolution in OOP www. Bookspar. com | Website for Students | VTU - Notes - Question Papers The procedure called when x. m() is executed depends on the class of the object denoted by x at that time Example: Class C with a method named m() D is a subclass of C , and D has its own method named m() There is a use of m of the form x. m(), where x is an object of class C Impossible to tell at compile time whether x will be of class C or of the subclass D Cannot be decided until runtime which definition of m is the right one Code generated by compiler must determine the class of the object x, and call one or the other method named m

PROGRAMMING LANGUAGE BASICS Parameter Passing Mechanisms How actual parameters are associated with formal parameters Call-by-Value www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Actual parameters – used in the call of a procedure Formal parameters – used in the procedure definition The actual parameter is evaluated or copied Value is placed in the location belonging to the corresponding formal parameter of the called procedure Computation involving formal parameters done by the called procedure is local to that procedure and actual parameters cannot be changed In C, we can pass a pointer to a variable to allow that variable to be changed by the callee Array names passed as parameters in C, C++ or Java give the called procedure what is in effect a pointer or reference to the array itself

PROGRAMMING LANGUAGE BASICS Parameter Passing Mechanisms Call-by-Reference www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Address of actual parameter is passed to the callee as the value of the corresponding formal parameter Changes to formal parameter appear as changes to the actual parameter Essential when the formal parameter is a large object, array or a structure Strict call-by-value requires that the caller copy the entire actual parameter into the space of the corresponding formal parameter Copying is expensive when the parameter is large Call-by-Name The callee executes as if the actual parameter were substituted literally for the formal parameter in the code of the callee

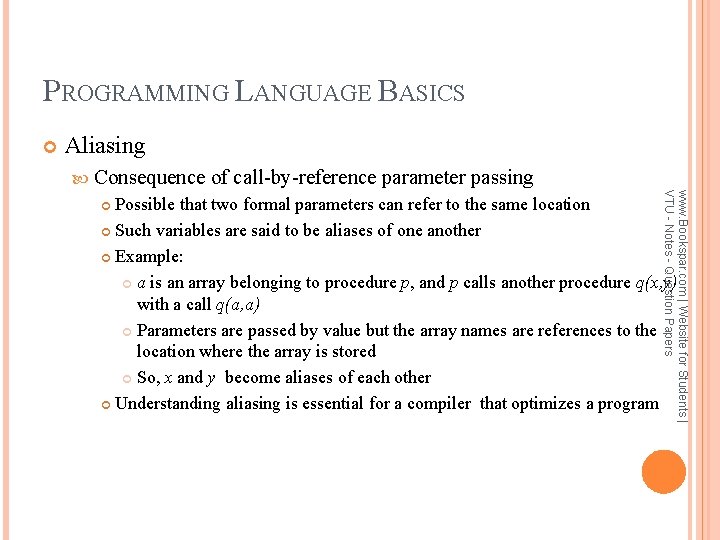

PROGRAMMING LANGUAGE BASICS Aliasing Consequence of call-by-reference parameter passing www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Possible that two formal parameters can refer to the same location Such variables are said to be aliases of one another Example: a is an array belonging to procedure p, and p calls another procedure q(x, y) with a call q(a, a) Parameters are passed by value but the array names are references to the location where the array is stored So, x and y become aliases of each other Understanding aliasing is essential for a compiler that optimizes a program

www. Bookspar. com | Website for Students | VTU Notes - Question Papers LEXICAL ANALYSIS

OBJECTIVES Role www. Bookspar. com | Website for Students | VTU - Notes - Question Papers of Lexical analyzer Lexical analysis using formal language definitions with Finite Automata Specification of Tokens Recognition of Tokens

PROGRAMMING LANGUAGE STRUCTURE A Programming Language is defined by: Decides whether a sentence in a language is well-formed SEMANTICS Determines the meaning , if any, of a syntactically well-formed sentence GRAMMAR www. Bookspar. com | Website for Students | VTU - Notes - Question Papers SYNTAX Provides a generative finite description of the language Well developed tools (regular, context-free and attribute grammars) are available for the description of syntax Lexical analyzer and the Parser handle the syntax of the programming language

THE ROLE OF THE LEXICAL ANALYZER Main task of lexical analyzer Read input characters in a source program Group them into lexemes Produce as output a sequence of tokens for each lexeme Stream of tokens is sent to the parser Whenever a lexeme is found, it is entered into the symbol table www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

THE ROLE OF THE LEXICAL ANALYZER Other tasks performed by the lexical analyzer Removing Cascade of two processes Scanning Processes that do not require the tokenization of input, like, deletion of comments and compaction of whitespaces Lexical analysis Scanner produces the sequence of tokens as output www. Bookspar. com | Website for Students | VTU - Notes - Question Papers comments and whitespace Correlating error messages generated by compiler with source program Associates a line number with each error message Makes a copy of the source program with error messages

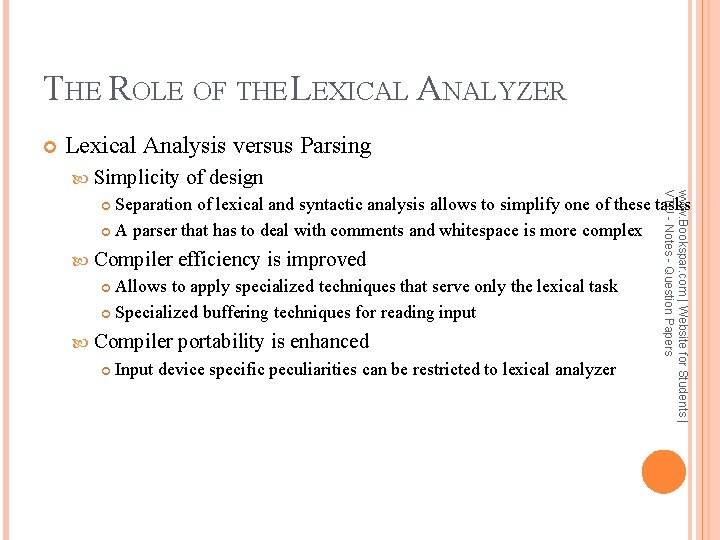

THE ROLE OF THE LEXICAL ANALYZER Lexical Analysis versus Parsing Simplicity of design www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Separation of lexical and syntactic analysis allows to simplify one of these tasks A parser that has to deal with comments and whitespace is more complex Compiler efficiency is improved Allows to apply specialized techniques that serve only the lexical task Specialized buffering techniques for reading input Compiler portability is enhanced Input device specific peculiarities can be restricted to lexical analyzer

TOKENS, PATTERNS, AND LEXEMES Token Pair consisting of a token name and an optional attribute value Token name – abstract symbol for a lexical unit, like keyword Pattern Description of the form that the lexemes of a token may take If keyword is a token, pattern is a sequence of characters that form the keyword Lexeme www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Sequence of characters in the source program that matches the pattern for a token Identified by the lexical analyzer as an instance of that token

TOKENS, PATTERNS, AND LEXEMES Typical tokens in a Programming Language One token for each keyword Tokens for the operators Token representing all identifiers One or more tokens representing constants, such as numbers and literal strings Tokens for each punctuation symbol, such as comma, semicolon, left and right parentheses www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

ATTRIBUTES FOR TOKENS When more than one lexeme matches a pattern, additional information about the lexeme must be passed www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Example : Pattern for token number matches both 0 and 1 So, lexical analyzer returns to the parser both the token name and attribute value describing the lexeme Token name influences parsing decisions Attribute value influences translation of tokens after the parse Appropriate attribute value for an identifier is a pointer to the symbol-table entry for that entry

LEXICAL ERRORS Lexical analyzer is unable to proceed because none of the patterns for tokens matches any prefix of the remaining input Error recovery strategy “Panic mode” recovery www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Delete successive characters from the remaining input, until the lexical analyzer can find a well-formed token at the beginning of the input left Delete one character from the remaining input Insert a missing character into the remaining input Replace a character by another character Transpose two adjacent characters See whether a prefix of the remaining input can be transformed into a valid lexeme by a single transformation

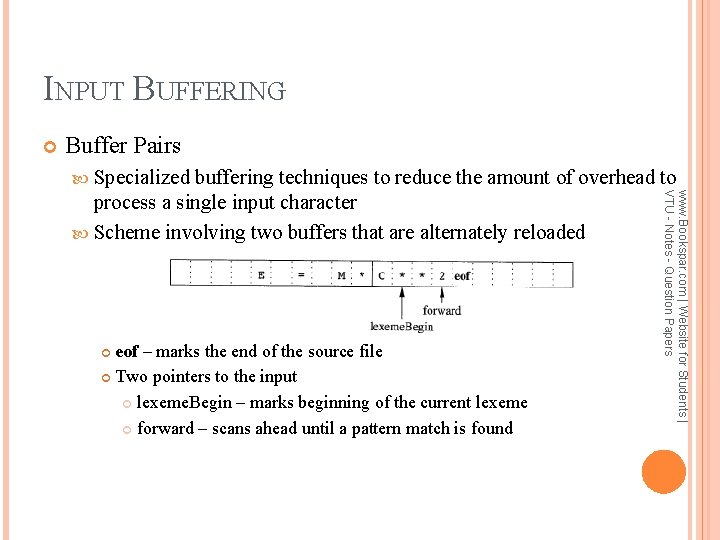

INPUT BUFFERING Buffer Pairs Specialized eof – marks the end of the source file Two pointers to the input lexeme. Begin – marks beginning of the current lexeme forward – scans ahead until a pattern match is found www. Bookspar. com | Website for Students | VTU - Notes - Question Papers buffering techniques to reduce the amount of overhead to process a single input character Scheme involving two buffers that are alternately reloaded

INPUT BUFFERING Buffer Pairs Once Test whether the end of one of the buffers has been reached If so, then reload the other buffer from the input Move forward to the beginning of the newly loaded buffer www. Bookspar. com | Website for Students | VTU - Notes - Question Papers the next lexeme is determined, forward is set to the character at its right end After lexeme is recorded as an attribute value, lexeme. Begin is set to the character immediately after the lexeme just found To advance forward pointer,

INPUT BUFFERING Sentinels In previous scheme, each time the forward pointer is advanced, For each character read, make two tests End of buffer Determine what character is read Combine www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Must check that we have not moved off one of the buffers If we do, then reload the other buffer the buffer-end test with the test for current character, if we extend each buffer to hold a sentinel character at the end Sentinel is a special character that is not a part of the source program

SPECIFICATION OF TOKENS Strings and Languages Alphabet String over an alphabet Finite sequence of symbols drawn from that alphabet Length of string s (|s|) – number of occurrences of symbols in s Empty string (ε) –string of length zero Language Set of strings over some fixed alphabet Ex : {ε}, set containing only the empty string Set of all syntactically well-formed C programs www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Finite set of symbols, e. g. , letters, digits and punctuation Binary alphabet – {0, 1}

SPECIFICATION OF TOKENS Strings and Languages Suffix of string s String obtained by removing zero or more symbols from the beginning if s Substring of s String obtained by deleting any prefix and any suffix from s Proper prefixes, suffixes and substrings of a string s : Prefixes, suffixes and substrings of s that are not or not equal to s itself www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Prefix of a string s String obtained by removing zero or more symbols from the end of s Subsequence of s Any string formed by deleting zero or more not necessarily consecutive positions of s Concatenation of x and y (xy) String formed by appending y to x

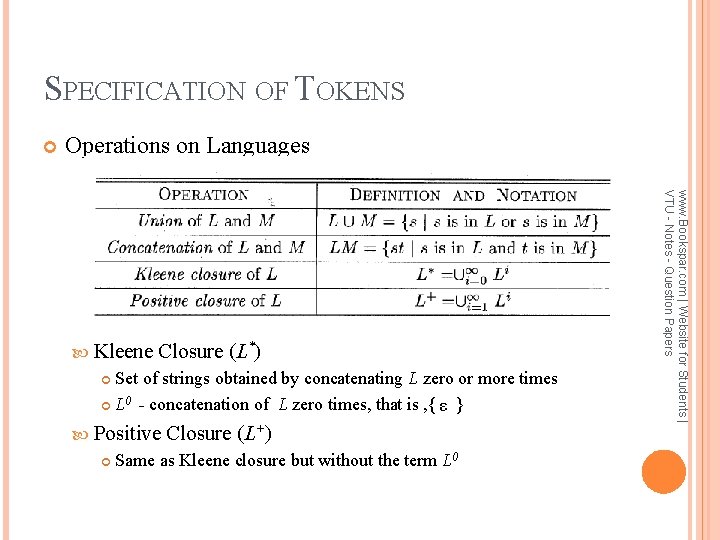

SPECIFICATION OF TOKENS Operations on Languages Closure (L*) Set of strings obtained by concatenating L zero or more times L 0 - concatenation of L zero times, that is , { ε } Positive Closure (L+) Same as Kleene closure but without the term L 0 www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Kleene

SPECIFICATION OF TOKENS Regular Expressions Notation ε is a regular expression and L(ε ) is {ε } If a is a symbol in alphabet, then a is a regular expression and L(a) = {a} r and s are RE’s denoting languages L(r) and L(s), then (r)|(s) is a RE denoting the language L(r) U L(s) (r)(s) is a RE denoting the language L(r)L(s) (r)* is a RE denoting (L(r))* (r) is a RE denoting L(r) www. Bookspar. com | Website for Students | VTU - Notes - Question Papers used for describing all languages that can be built from these operators applied to the symbols of some alphabet Ex: Language of C identifiers letter (letter | digit)* Each regular expression r denotes a language L(r), defined recursively from the languages denoted by r’s sub expressions Rules that define the RE’s over some alphabet

SPECIFICATION OF TOKENS Regular Expressions Parentheses in RE’s may be dropped if we adopt the following (a) | ((b)*(c) a | b*c Regular set : Language defined by a RE Example: Two RE’s are equivalent if they denote the same regular set Ex: (a|b) = (b|a) www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Unary operator * has highest precedence and is left associative Concatenation has second highest precedence and is left associative | has lowest precedence and is left associative

SPECIFICATION OF TOKENS Regular Definitions If r 1 r 2. . . . dn rn Each di is a new symbol, not in and not the same as any other of the d’s Each ri is a RE over the alphabet U {d 1, d 2, . . . , di-1} d 1 d 2 Avoid recursive definition by restricting ri to defined d’s Construct a RE over alone for each ri and the previously www. Bookspar. com | Website for Students | VTU - Notes - Question Papers is an alphabet of symbols, then a regular definition is a sequence of definitions of the form

SPECIFICATION OF TOKENS Extensions of Regular Expressions One or more instances Zero or one instance Unary operator ? Means “zero or one occurence” r? = r|ε or L(r? ) = L(r) U {ε} Character classes Regular expression, a 1| a 2|. . | an can be replaced by [a 1 a 2. . . an ] [abc] is short form for a|b|c www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Unary operator +, represents positive closure of a RE and its language r* = r+| ε and r+ = rr* = r*r

RECOGNITION OF TOKENS Study how to take patterns for all the needed tokens Build www. Bookspar. com | Website for Students | VTU - Notes - Question Papers a piece of code that examines the input string Find a prefix that is a lexeme matching one of the patterns Simple form of branching statements and conditional expressions Terminals of the grammar : if, then, else, relop, id, number

RECOGNITION OF TOKENS Patterns for the tokens are described using regular definitions Recognize the token ws, to remove whitespaces www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

RECOGNITION OF TOKENS Tokens, their patterns and attribute values www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

TRANSITION DIAGRAMS Convert patterns into flowcharts called transition diagrams Represents a condition that could occur during the scanning of input that matches a pattern Edges Directed from one state to another Labelled by a symbol or set of symbols If www. Bookspar. com | Website for Students | VTU - Notes - Question Papers States in some state s, and next input symbol is a, Look for an edge out of state s labelled by a If such an edge is found, advance the forward pointer and enter the state to which that edge leads

TRANSITION DIAGRAMS Important conventions about transition diagrams Certain states are said to be final or accepting If www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Indicate that a lexeme has been found If there is an action to be taken – returning a token an attribute value to the parser – attach that action tot he accepting state it is necessary to retract the forward pointer one position, then place a * near the accepting state One state is the start state or initial state Transition diagram always begins in the start state before any input symbols have been read

TRANSITION DIAGRAMS Transition diagram for relop www. Bookspar. com | Website for Students | VTU - Notes - Question Papers

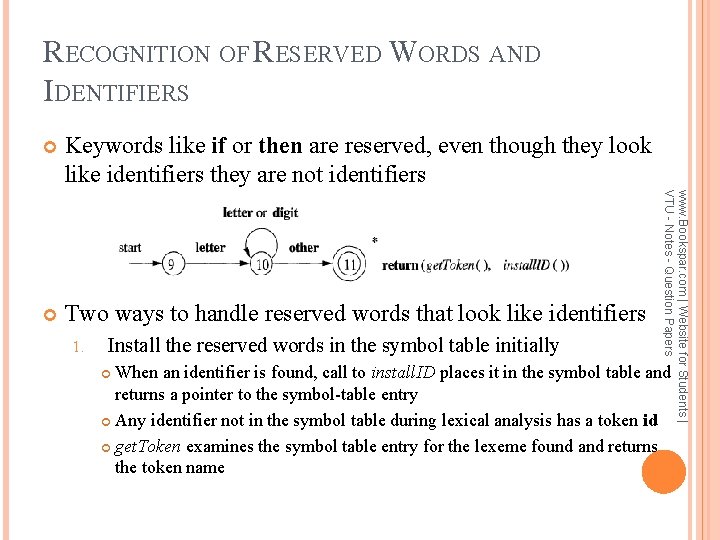

RECOGNITION OF RESERVED WORDS AND IDENTIFIERS Keywords like if or then are reserved, even though they look like identifiers they are not identifiers Two ways to handle reserved words that look like identifiers 1. Install the reserved words in the symbol table initially www. Bookspar. com | Website for Students | VTU - Notes - Question Papers When an identifier is found, call to install. ID places it in the symbol table and returns a pointer to the symbol-table entry Any identifier not in the symbol table during lexical analysis has a token id get. Token examines the symbol table entry for the lexeme found and returns the token name

RECOGNITION OF RESERVED WORDS AND IDENTIFIERS Two ways to handle reserved words that look like identifiers 2. Create separate transition diagrams for each keyword www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Such a diagram consists of states representing the situation after each successive letter of keyword is seen , followed by a test for “nonletter-ordigit” Necessary to check that the identifier has ended, or else would return token then in situations where correct token was id

ARCHITECTURE OF A TRANSITION-DIAGRAMBASED LEXICAL ANALYZER Collection of transition diagrams can be used to build a lexical analyzer Each state is represented by a piece of code www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Variable state holding the number of the current state A switch based on the value of state takes us to the code for each of the possible states, where action of that state is found Code for a state is itself a switch statement or multiway branch that determines the next state

ARCHITECTURE OF A TRANSITION-DIAGRAMBASED LEXICAL ANALYZER www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Fig : Implementation of relop transition diagram

ARCHITECTURE OF A TRANSITION-DIAGRAMBASED LEXICAL ANALYZER Ways in which the code could fit into the entire lexical analyzer Arrange the transition diagrams for each token to be tried sequentially Run various transition diagrams “in parallel” Feed the next input character to all of them an allow each one to make the transitions required Must be careful to resolve the case where One diagram finds a lexeme that matches the pattern While one or more other diagrams are still able to process the input Combine all transition diagrams into one Allow to read input until there is no possible next state Take the longest lexeme that matched any pattern www. Bookspar. com | Website for Students | VTU - Notes - Question Papers Function fail() resets the forward pointer and starts next transition diagram Allows to use transition diagrams for the individual keywords
