Unik 4 Buttons Partial reset Cross Out Total
Unik 4 Buttons Partial reset Cross Out Total Odo + Total Odo - 08/03/2021 To increase brightness To enter or exit sleep mode Note + Note - copyright by ERTF 2 functions with 1 button: A short press to decrease brightness A long press to go to the parameters menu 1
Unik 4 General screen Number of validated CP GPS Odo repeater Total Target Waypoint number Name of the target Waypoint COG = Current heading Partial Odo CTW = Heading to Waypoint Speed Distance To Waypoint Heading to follow Road. Book 08/03/2021 copyright by ERTF 2
Unik 4 Global speed limitation by category 08/03/2021 copyright by ERTF 3
Unik 4 Current zone speed limitation 08/03/2021 copyright by ERTF 4
Unik 4 Cross Out No box is yet crossed out on the visible page: From the bottom of the Road. Book screen, the last unmarked box is crossed out. Cross Out 08/03/2021 copyright by ERTF 5
Unik 4 Cross Out A box is already crossed out on the visible page: From the bottom of the Road. Book screen, the last box not crossed out will be crossed out, without going beyond a box that has already been crossed out. Cross Out Uncross : Ø A long press uncross the last crossed box on the screen. If there is no crossed box on the screen, nothing happen. Ø If you stay pressing, it will uncross all the boxes. 08/03/2021 copyright by ERTF 6

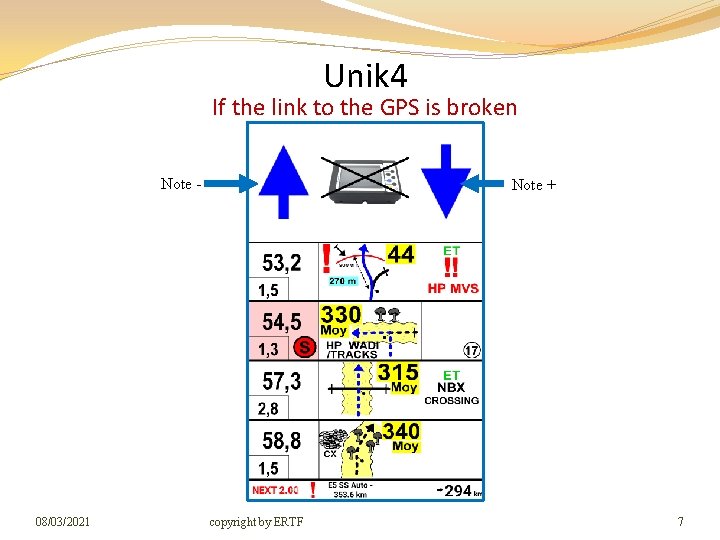

Unik 4 If the link to the GPS is broken Note - 08/03/2021 Note + copyright by ERTF 7

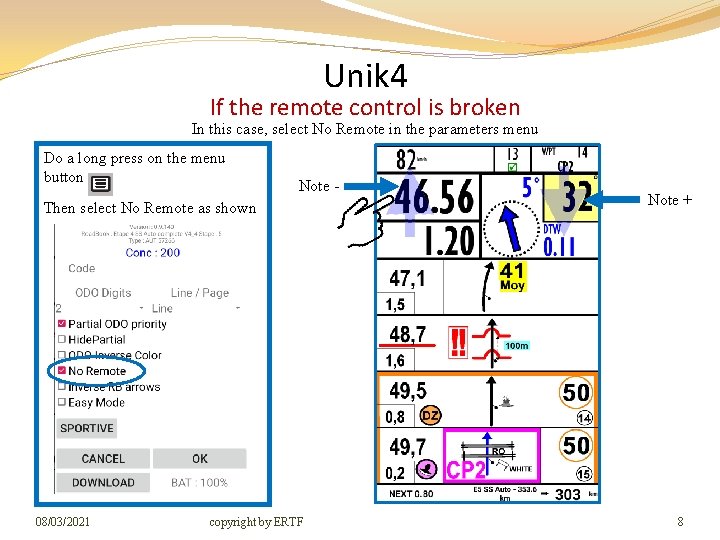

Unik 4 If the remote control is broken In this case, select No Remote in the parameters menu Do a long press on the menu button Note - Then select No Remote as shown 08/03/2021 copyright by ERTF Note + 8

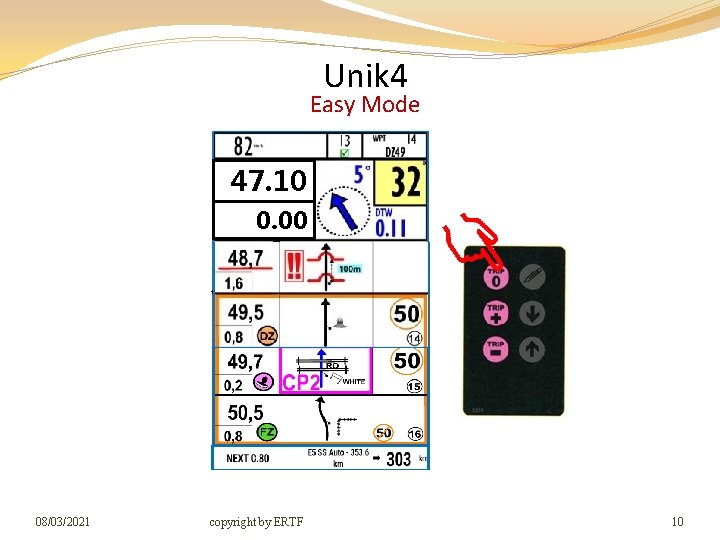

Unik 4 Easy Mode Do a long press on the menu button Then select Easy Mode : 08/03/2021 copyright by ERTF A press of «TRIP 0» on the remote control does the following 3 actions at once: Ø Odo reset Ø Note cross-out Ø Go to the next note 9
Unik 4 Easy Mode 47. 10 0. 00 08/03/2021 copyright by ERTF 10
FOR FURTHER INFORMATION: PLEASE CONTACT ERTF TEAM competition@ertf. com 08/03/2021 copyright by ERTF 11
