Uniform Circular Motion Why does an object in

Uniform Circular Motion Why does an object in circular motion have a constant velocity yet an acceleration and unbalanced force that is directed toward the center of the circle? EQ: https: //www. youtube. com/watch? v=VSDRq. V 1 p 63 A

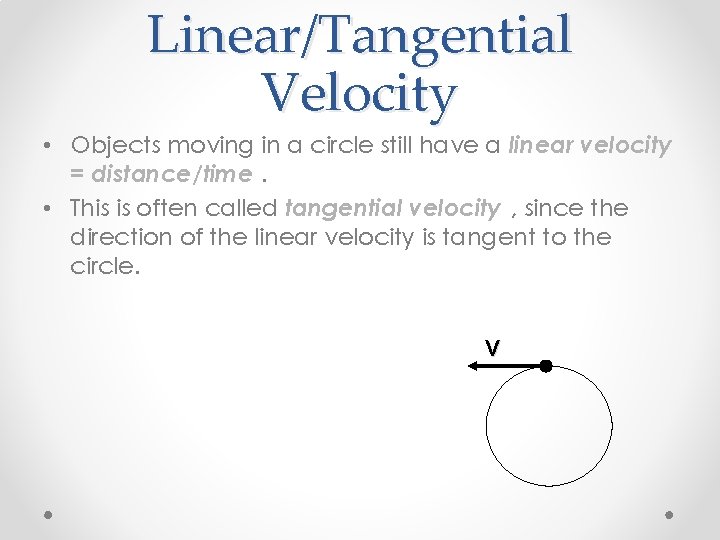

Linear/Tangential Velocity • Objects moving in a circle still have a linear velocity = distance/time. • This is often called tangential velocity , since the direction of the linear velocity is tangent to the circle. v

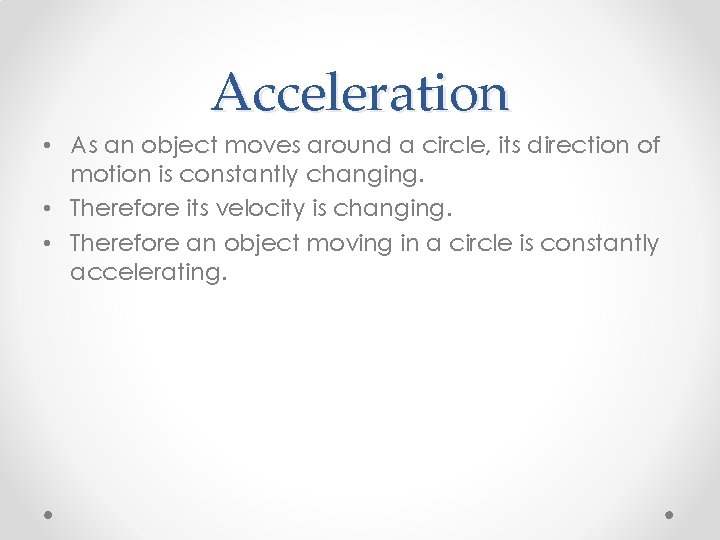

Acceleration • As an object moves around a circle, its direction of motion is constantly changing. • Therefore its velocity is changing. • Therefore an object moving in a circle is constantly accelerating.

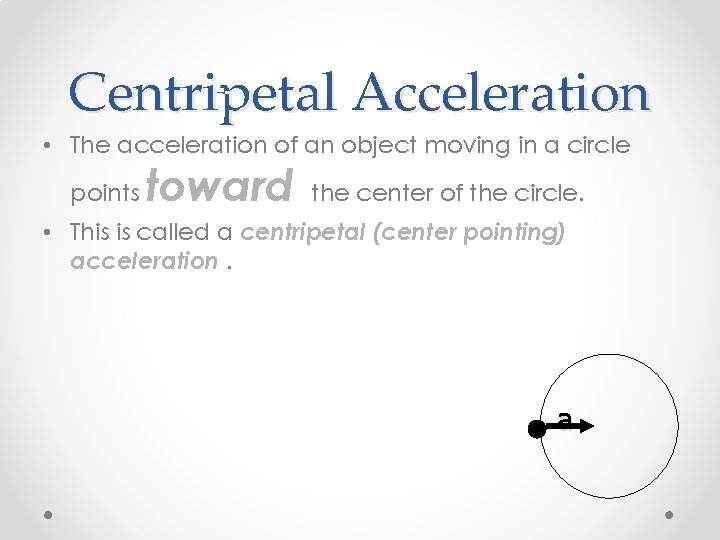

Centripetal Acceleration • The acceleration of an object moving in a circle points toward the center of the circle. • This is called a centripetal (center pointing) acceleration. a

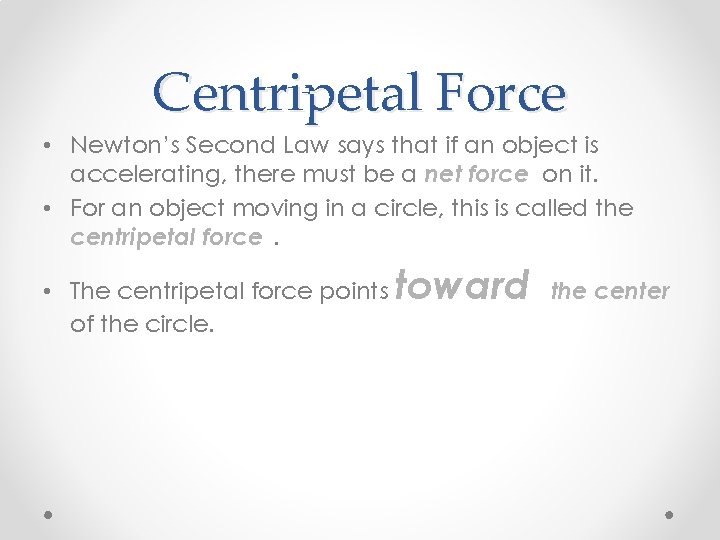

Centripetal Force • Newton’s Second Law says that if an object is accelerating, there must be a net force on it. • For an object moving in a circle, this is called the centripetal force. • The centripetal force points of the circle. toward the center

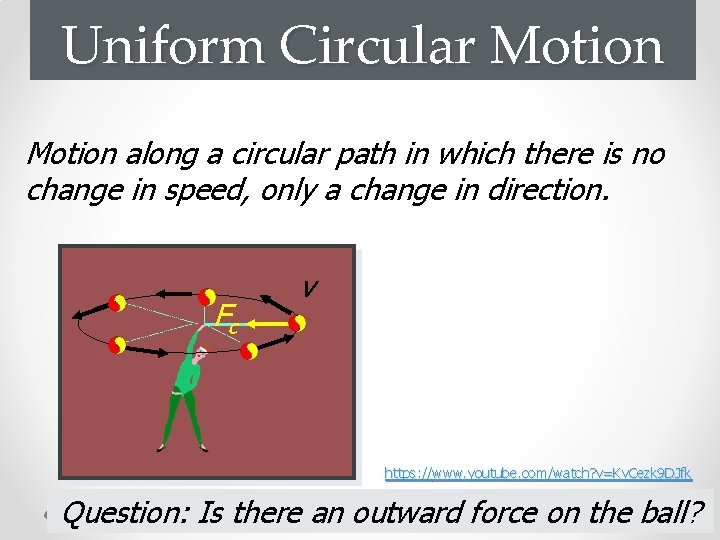

Uniform Circular Motion along a circular path in which there is no change in speed, only a change in direction. Fc v https: //www. youtube. com/watch? v=Kv. Cezk 9 DJfk Question: Is there an outward force on the ball?

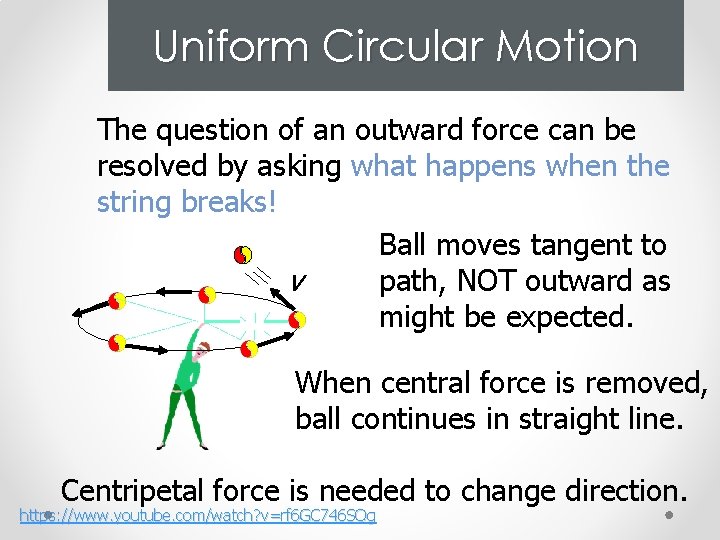

Uniform Circular Motion The question of an outward force can be resolved by asking what happens when the string breaks! Ball moves tangent to v path, NOT outward as might be expected. When central force is removed, ball continues in straight line. Centripetal force is needed to change direction. https: //www. youtube. com/watch? v=rf 6 GC 746 SOg

Uniform Circular Motion

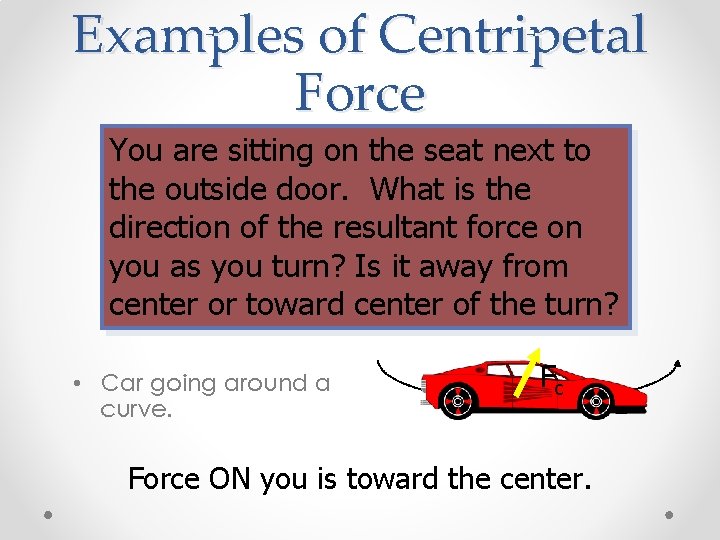

Examples of Centripetal Force You are sitting on the seat next to the outside door. What is the direction of the resultant force on you as you turn? Is it away from center or toward center of the turn? • Car going around a curve. Fc Force ON you is toward the center.

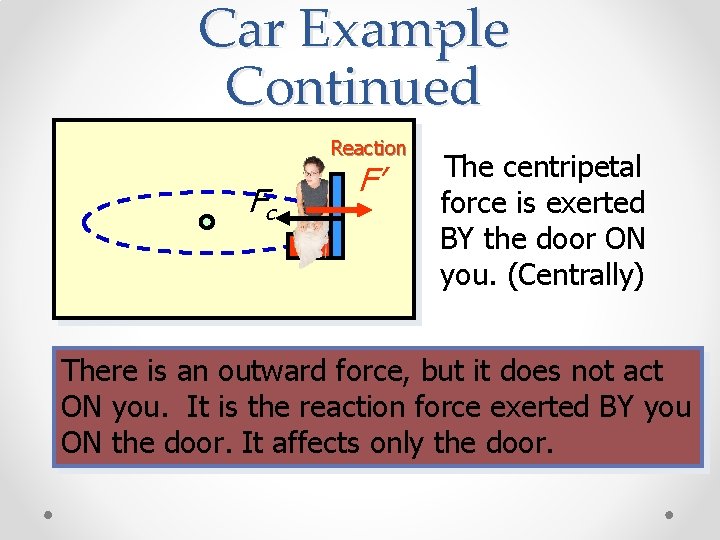

Car Example Continued Reaction Fc F’ The centripetal force is exerted BY the door ON you. (Centrally) There is an outward force, but it does not act ON you. It is the reaction force exerted BY you ON the door. It affects only the door.

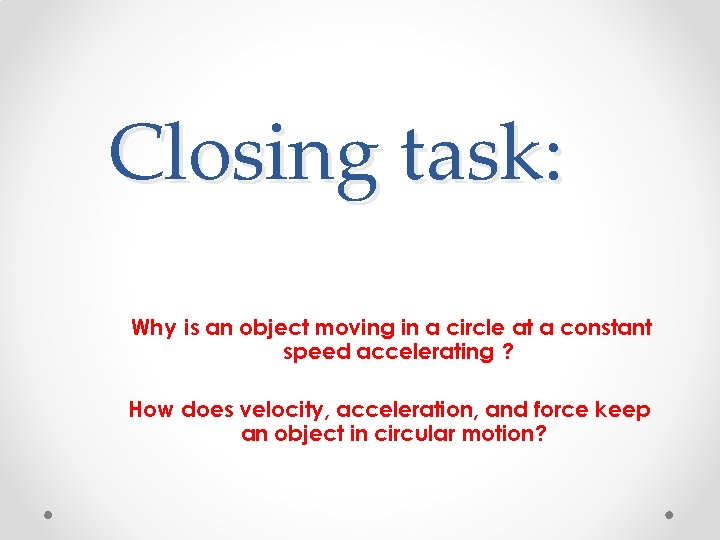

Closing task: Why is an object moving in a circle at a constant speed accelerating ? How does velocity, acceleration, and force keep an object in circular motion?

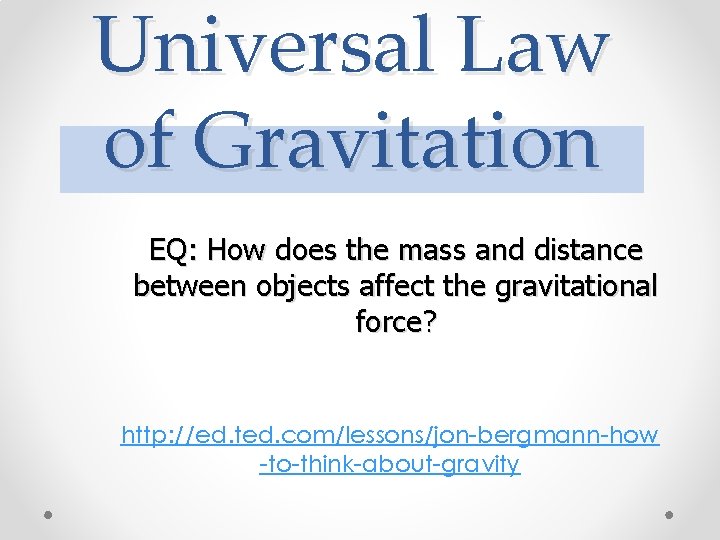

Universal Law of Gravitation EQ: How does the mass and distance between objects affect the gravitational force? http: //ed. ted. com/lessons/jon-bergmann-how -to-think-about-gravity

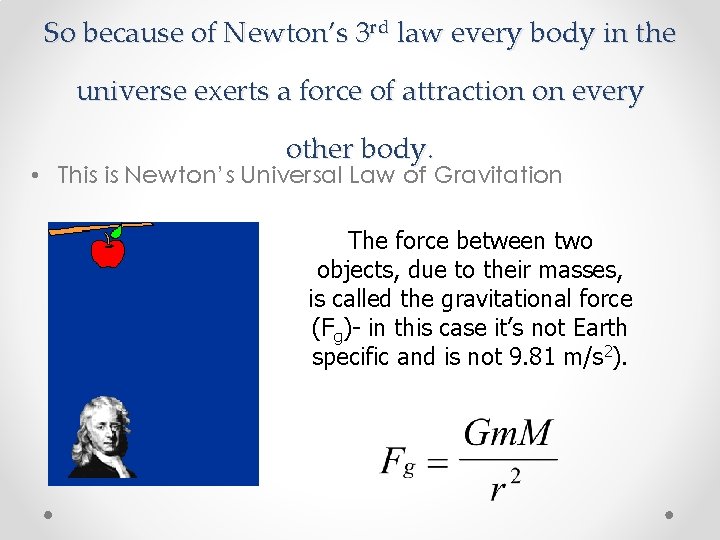

So because of Newton’s 3 rd law every body in the universe exerts a force of attraction on every other body. • This is Newton’s Universal Law of Gravitation The force between two objects, due to their masses, is called the gravitational force (Fg)- in this case it’s not Earth specific and is not 9. 81 m/s 2).

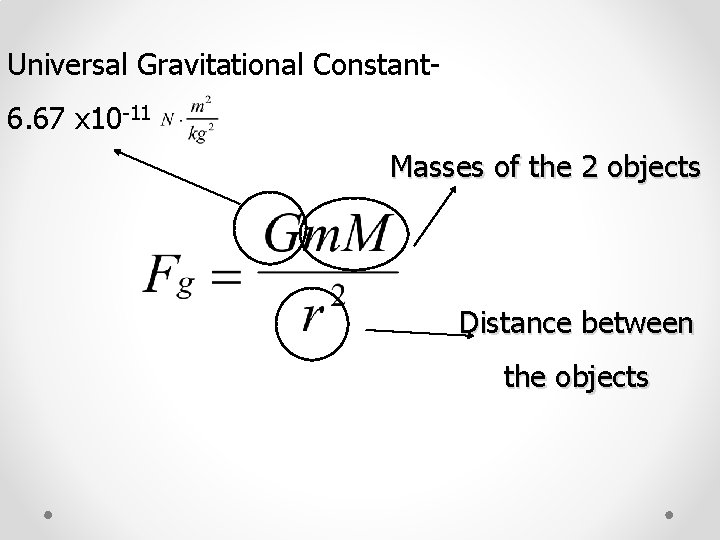

Universal Gravitational Constant 6. 67 x 10 -11 Masses of the 2 objects Distance between the objects

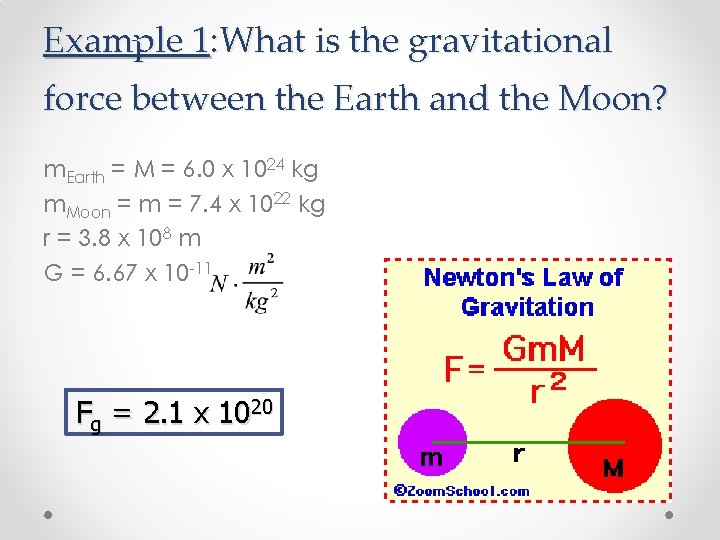

Example 1: What is the gravitational force between the Earth and the Moon? m. Earth = M = 6. 0 x 1024 kg m. Moon = m = 7. 4 x 1022 kg r = 3. 8 x 108 m G = 6. 67 x 10 -11 Fg = 2. 1 x 1020

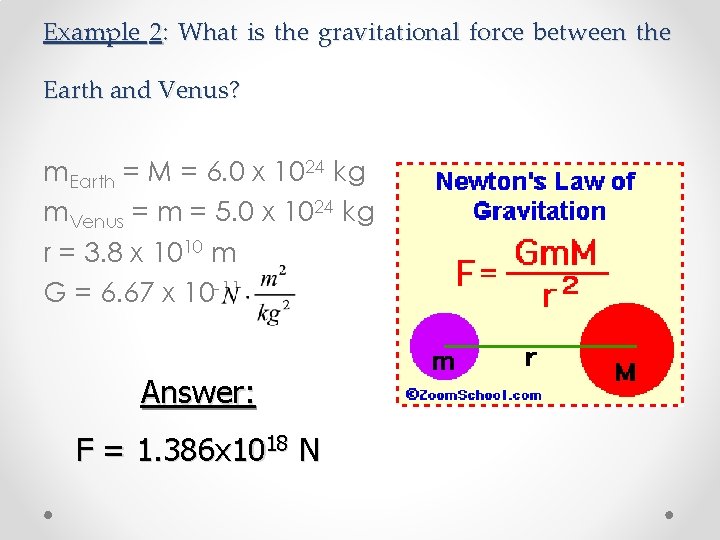

Example 2: What is the gravitational force between the Earth and Venus? m. Earth = M = 6. 0 x 1024 kg m. Venus = m = 5. 0 x 1024 kg r = 3. 8 x 1010 m G = 6. 67 x 10 -11 Answer: F = 1. 386 x 1018 N

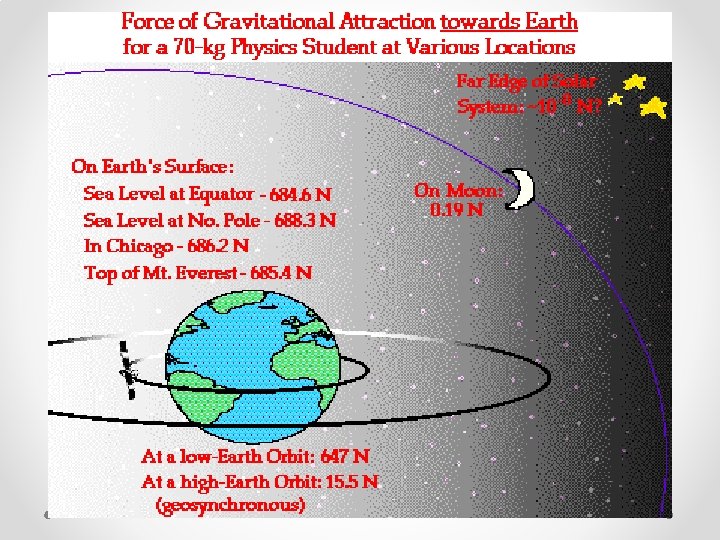

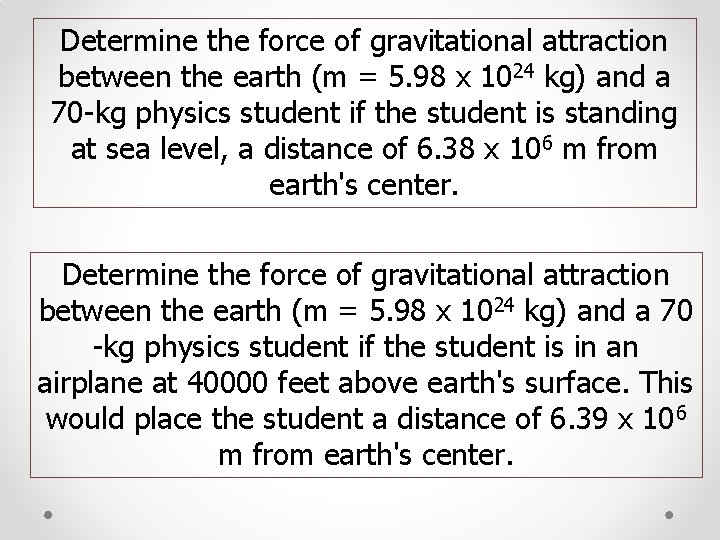

Determine the force of gravitational attraction between the earth (m = 5. 98 x 1024 kg) and a 70 -kg physics student if the student is standing at sea level, a distance of 6. 38 x 106 m from earth's center. Determine the force of gravitational attraction between the earth (m = 5. 98 x 1024 kg) and a 70 -kg physics student if the student is in an airplane at 40000 feet above earth's surface. This would place the student a distance of 6. 39 x 106 m from earth's center.

There is also a way to determine the gravitational field around one object: This is now the gravitational Field Strength(GFS)

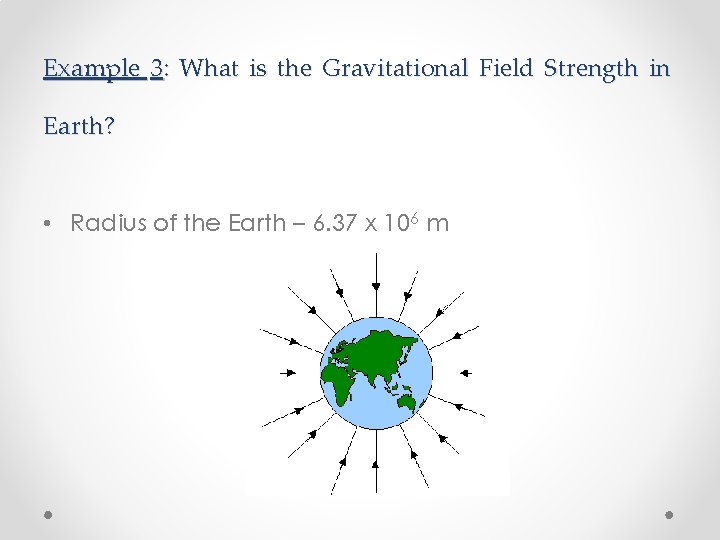

Example 3: What is the Gravitational Field Strength in Earth? • Radius of the Earth – 6. 37 x 106 m

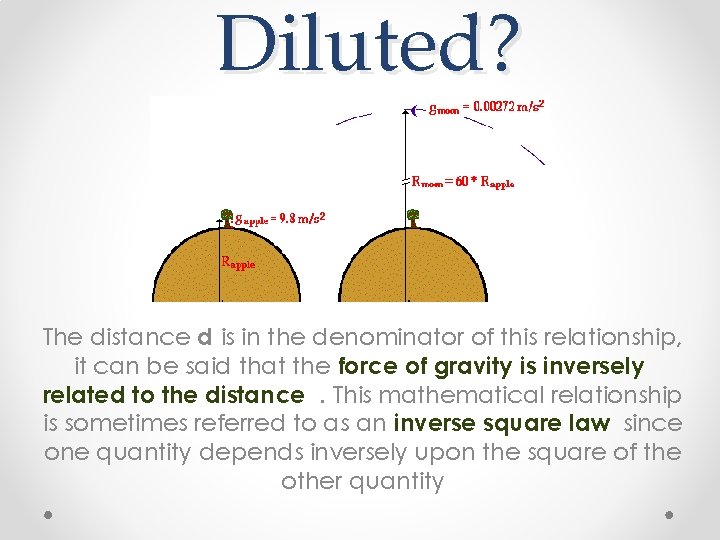

Diluted? The distance d is in the denominator of this relationship, it can be said that the force of gravity is inversely related to the distance. This mathematical relationship is sometimes referred to as an inverse square law since one quantity depends inversely upon the square of the other quantity

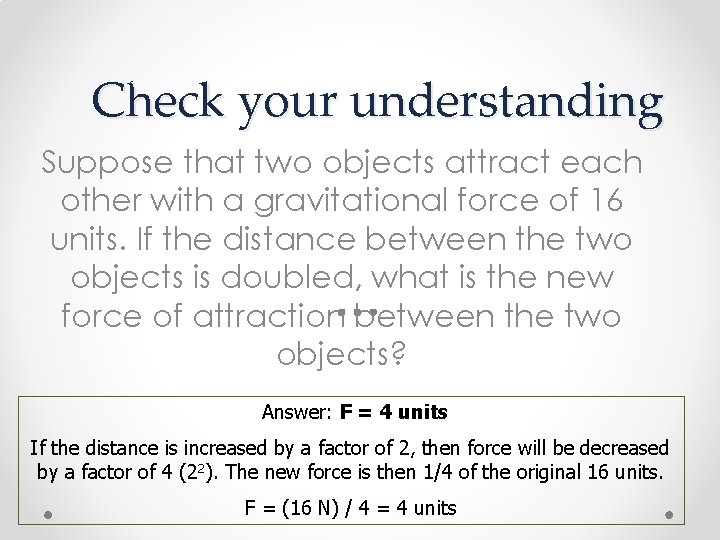

Check your understanding Suppose that two objects attract each other with a gravitational force of 16 units. If the distance between the two objects is doubled, what is the new force of attraction between the two objects? Answer: F = 4 units If the distance is increased by a factor of 2, then force will be decreased by a factor of 4 (22). The new force is then 1/4 of the original 16 units. F = (16 N) / 4 = 4 units

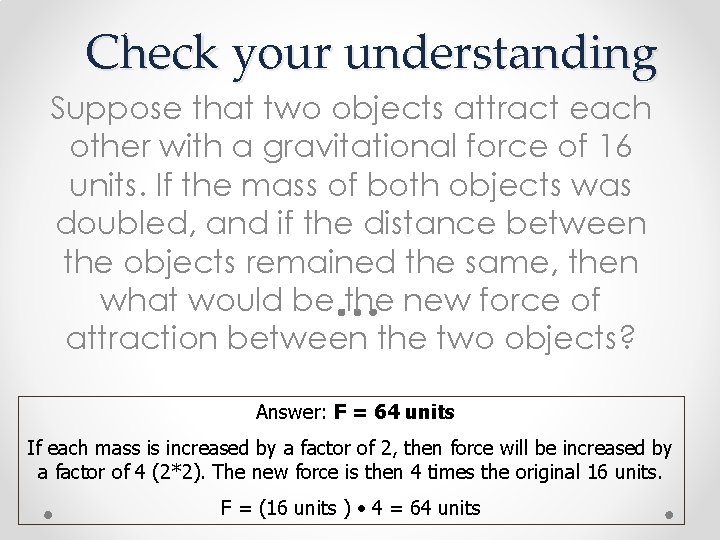

Check your understanding Suppose that two objects attract each other with a gravitational force of 16 units. If the mass of both objects was doubled, and if the distance between the objects remained the same, then what would be the new force of attraction between the two objects? Answer: F = 64 units If each mass is increased by a factor of 2, then force will be increased by a factor of 4 (2*2). The new force is then 4 times the original 16 units. F = (16 units ) • 4 = 64 units

follow the Inverse square law: • ULG-If the distance between two objects is doubled the gravitational attraction is (1/4) of the original. OR • GFS-If we travel beyond the Earth by a distance that is double it’s radius than we will only feel a quarter of Earth’s gravitational pull (9. 81 m/s 2/4 = 2. 45 m/s 2).

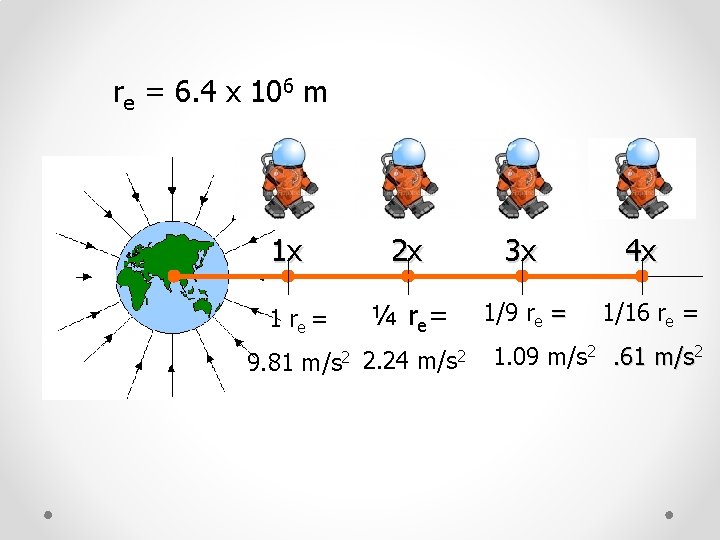

re = 6. 4 x 106 m 1 x 1 re = 2 x 3 x ¼ r e= 1/9 re = 9. 81 m/s 2 2. 24 m/s 2 4 x 1/16 re = 1. 09 m/s 2. 61 m/s 2

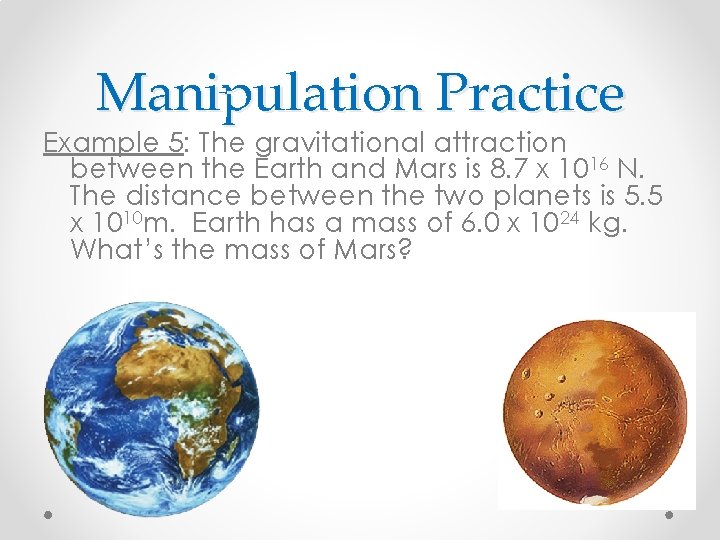

Manipulation Practice Example 5: The gravitational attraction between the Earth and Mars is 8. 7 x 1016 N. The distance between the two planets is 5. 5 x 1010 m. Earth has a mass of 6. 0 x 1024 kg. What’s the mass of Mars?
