Unified Parallel C UPC Costin Iancu The Berkeley

Unified Parallel C (UPC) Costin Iancu The Berkeley UPC Group: C. Bell, D. Bonachea, W. Chen, J. Duell, P. Hargrove, P. Husbands, C. Iancu, R. Nishtala, M. Welcome, K. Yelick http: //upc. lbl. gov Slides edited by K. Yelick, T. El-Ghazawi, P. Husbands, C. Iancu

Context • Most parallel programs are written using either: – Message passing with a SPMD model (MPI) • Usually for scientific applications with C++/Fortran • Scales easily – Shared memory with threads in Open. MP, Threads+C/C++/F or Java • Usually for non-scientific applications • Easier to program, but less scalable performance • Partitioned Global Address Space (PGAS) Languages take the best of both – SPMD parallelism like MPI (performance) – Local/global distinction, i. e. , layout matters (performance) – Global address space like threads (programmability) • 3 Current languages: UPC (C), CAF (Fortran), and Titanium (Java) • 3 New languages: Chapel, Fortress, X 10

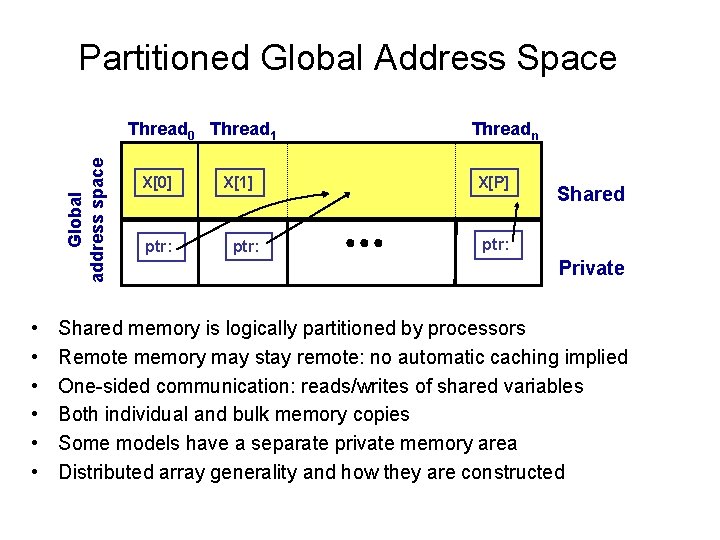

Partitioned Global Address Space Global address space Thread 0 Thread 1 • • • X[0] ptr: X[1] ptr: Threadn X[P] Shared ptr: Private Shared memory is logically partitioned by processors Remote memory may stay remote: no automatic caching implied One-sided communication: reads/writes of shared variables Both individual and bulk memory copies Some models have a separate private memory area Distributed array generality and how they are constructed

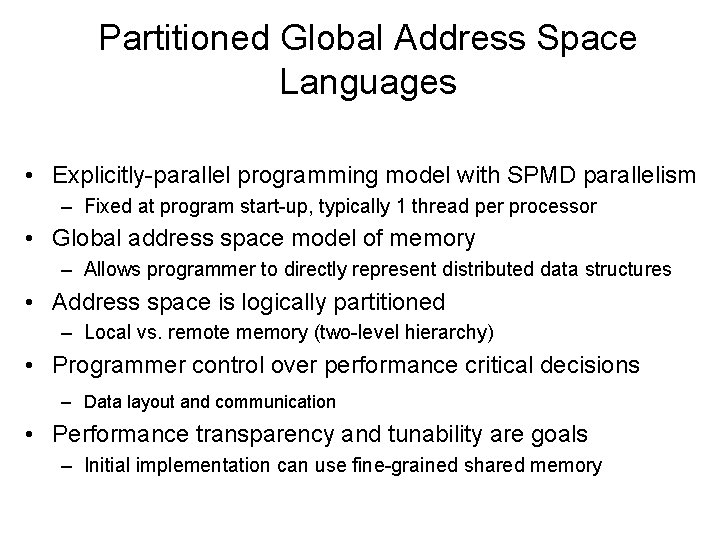

Partitioned Global Address Space Languages • Explicitly-parallel programming model with SPMD parallelism – Fixed at program start-up, typically 1 thread per processor • Global address space model of memory – Allows programmer to directly represent distributed data structures • Address space is logically partitioned – Local vs. remote memory (two-level hierarchy) • Programmer control over performance critical decisions – Data layout and communication • Performance transparency and tunability are goals – Initial implementation can use fine-grained shared memory

Current Implementations • A successful language/library must run everywhere • UPC – Commercial compilers: Cray, SGI, HP, IBM – Open source compilers: LBNL/UCB (source-to-source), Intrepid (gcc) • CAF – Commercial compilers: Cray – Open source compilers: Rice (source-to-source) • Titanium – Open source compilers: UCB (source-to-source) • Common tools – Open 64 open source research compiler infrastructure – ARMCI, GASNet for distributed memory implementations – Pthreads, System V shared memory

Talk Overview • UPC Language Design – – Data Distribution (layout, memory management) Work Distribution (data parallelism) Communication (implicit, explicit, collective operations) Synchronization (memory model, locks) • Programmi�� ng in UPC – – Performance (one-sided communication) Application examples: FFT, PC Productivity (compiler support) Performance tuning and modeling

UPC Overview and Design • Unified Parallel C (UPC) is: – An explicit parallel extension of ANSI C with common and familiar syntax and semantics for parallel C and simple extensions to ANSI C – A partitioned global address space language (PGAS) – Based on ideas in Split-C, AC, and PCP • Similar to the C language philosophy – Programmers are clever and careful, and may need to get close to hardware • to get performance, but • can get in trouble • SPMD execution model: (THREADS, MYTHREAD), static vs. dynamic threads

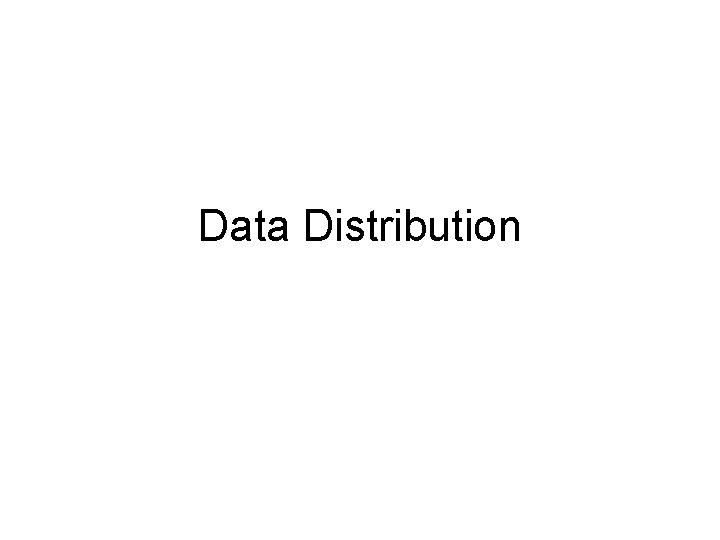

Data Distribution

Data Distribution Global Address Space Thread 0 Thread 1 X[0] X[1] Threadn X[P] Shared ours: ptr: mine: Private • Distinction between memory spaces through extensions of the type system (shared qualifier) shared int ours; shared int X[THREADS]; shared int *ptr; int mine; • Data in shared address space: – Static: scalars (T 0), distributed arrays – Dynamic: dynamic memory management (upc_alloc, upc_global_alloc, upc_alloc)

Data Layout • Data layout controlled through extensions of the type system (layout specifiers): – [0] or [] (indefinite layout, all on 1 thread): shared [] int *p; – Empty (cyclic layout) : shared int array[THREADS*M]; – [*] (blocked layout): shared [*] int array[THREADS*M]; – [b] or [b 1][b 2]…[bn] = [b 1*b 2*…bn] (block cyclic) shared [B] int array[THREADS*M]; • Element array[i] has affinity with thread (i / B) % THREADS • Layout determines pointer arithmetic rules • Introspection (upc_threadof, upc_phaseof, upc_blocksize)

UPC Pointers Implementation • In UPC pointers to shared objects have three fields: – thread number – local address of block – phase (specifies position in the block) Virtual Address Thread Phase • Example: Cray T 3 E implementation Phase 63 Thread 49 48 Virtual Address 38 37 • Pointer arithmetic can be expensive in UPC 0

UPC Pointers Where does the pointer point? Where does the pointer reside? Local Private PP (p 1) Shared PS (p 3) Shared SP (p 2) SS (p 4) int *p 1; /* shared int *p 2; /* int *shared p 3; /* shared int *shared private pointer to local memory */ private pointer to shared space */ shared pointer to local memory */ p 4; /* shared pointer to shared space */

UPC Pointers Global address space Thread 0 Thread 1 Threadn p 3: p 4: p 1: p 2: Shared Private int *p 1; /* private pointer to local memory */ shared int *p 2; /* private pointer to shared space */ int *shared p 3; /* shared pointer to local memory */ shared int *shared p 4; /* shared pointer to shared space */ Pointers to shared often require more storage and are more costly to dereference; they may refer to local or remote memory.

Common Uses for UPC Pointer Types int *p 1; • These pointers are fast (just like C pointers) • Use to access local data in part of code performing local work • Often cast a pointer-to-shared to one of these to get faster access to shared data that is local shared int *p 2; • Use to refer to remote data • Larger and slower due to test-for-local + possible communication int *shared p 3; • Not recommended shared int *shared p 4; • Use to build shared linked structures, e. g. , a linked list • typedef is the UPC programmer’s best friend

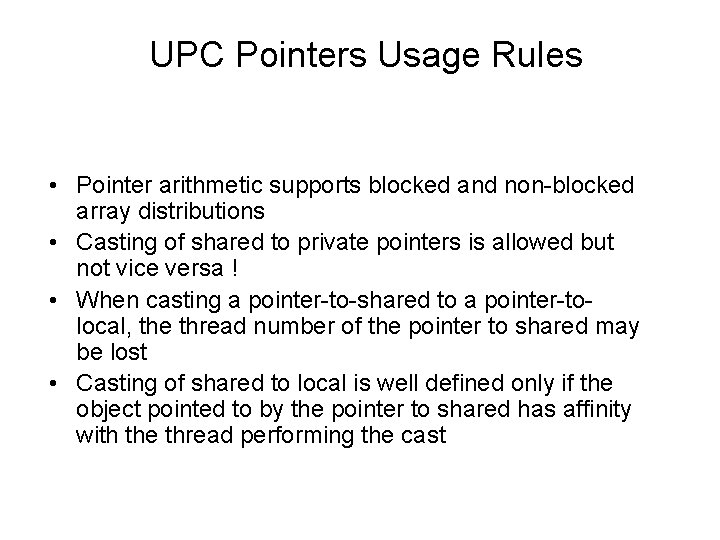

UPC Pointers Usage Rules • Pointer arithmetic supports blocked and non-blocked array distributions • Casting of shared to private pointers is allowed but not vice versa ! • When casting a pointer-to-shared to a pointer-tolocal, the thread number of the pointer to shared may be lost • Casting of shared to local is well defined only if the object pointed to by the pointer to shared has affinity with the thread performing the cast

Work Distribution

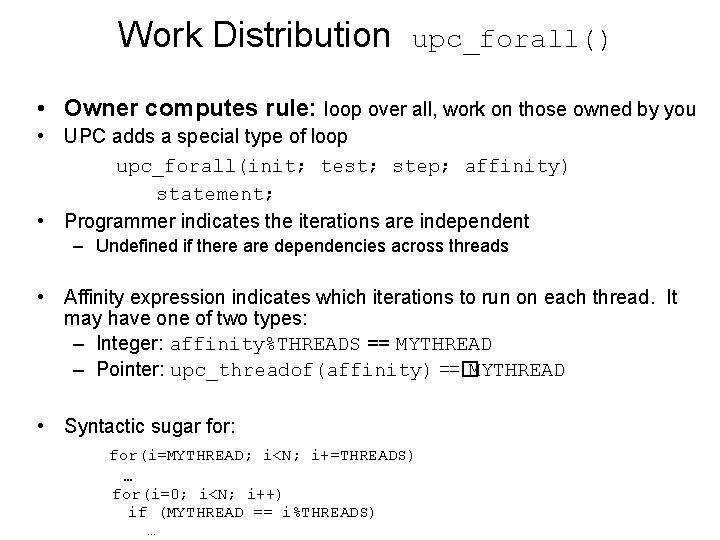

Work Distribution upc_forall() • Owner computes rule: loop over all, work on those owned by you • UPC adds a special type of loop upc_forall(init; test; step; affinity) statement; • Programmer indicates the iterations are independent – Undefined if there are dependencies across threads • Affinity expression indicates which iterations to run on each thread. It may have one of two types: – Integer: affinity%THREADS == MYTHREAD – Pointer: upc_threadof(affinity) ==� MYTHREAD • Syntactic sugar for: for(i=MYTHREAD; i<N; i+=THREADS) … for(i=0; i<N; i++) if (MYTHREAD == i%THREADS) …

Inter-Processor Communication

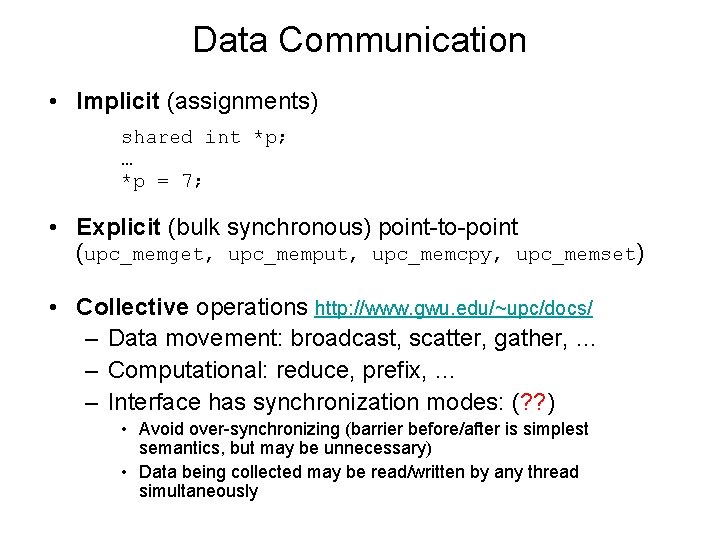

Data Communication • Implicit (assignments) shared int *p; … *p = 7; • Explicit (bulk synchronous) point-to-point (upc_memget, upc_memput, upc_memcpy, upc_memset) • Collective operations http: //www. gwu. edu/~upc/docs/ – Data movement: broadcast, scatter, gather, … – Computational: reduce, prefix, … – Interface has synchronization modes: (? ? ) • Avoid over-synchronizing (barrier before/after is simplest semantics, but may be unnecessary) • Data being collected may be read/written by any thread simultaneously

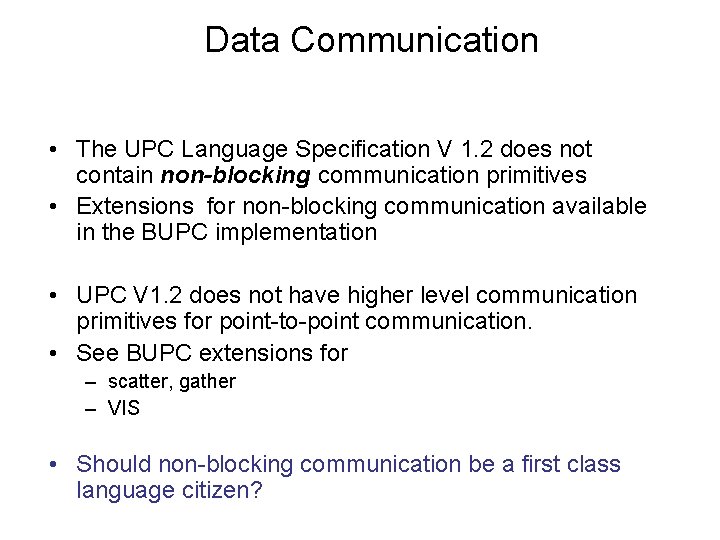

Data Communication • The UPC Language Specification V 1. 2 does not contain non-blocking communication primitives • Extensions for non-blocking communication available in the BUPC implementation • UPC V 1. 2 does not have higher level communication primitives for point-to-point communication. • See BUPC extensions for – scatter, gather – VIS • Should non-blocking communication be a first class language citizen?

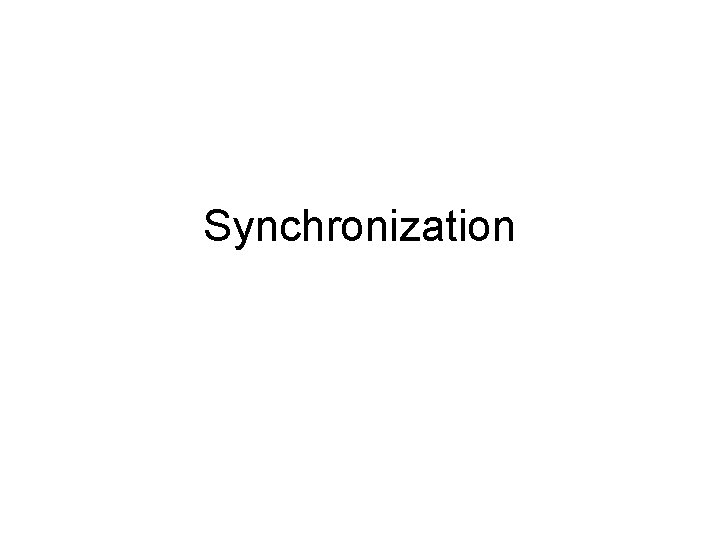

Synchronization

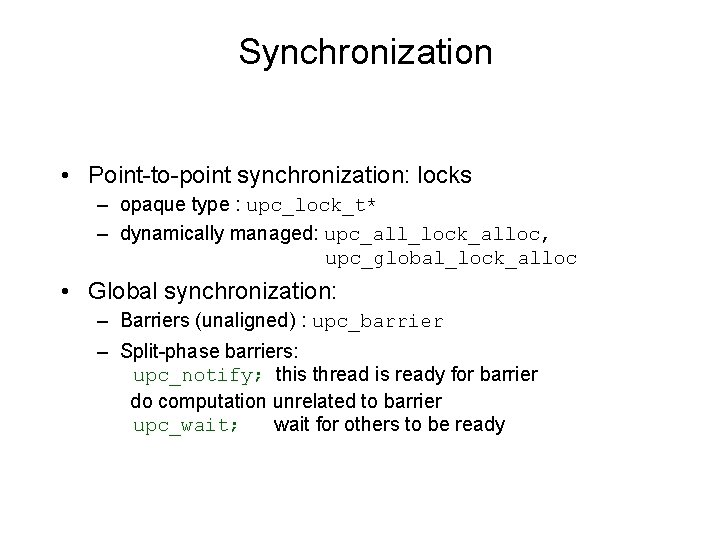

Synchronization • Point-to-point synchronization: locks – opaque type : upc_lock_t* – dynamically managed: upc_all_lock_alloc, upc_global_lock_alloc • Global synchronization: – Barriers (unaligned) : upc_barrier – Split-phase barriers: upc_notify; this thread is ready for barrier do computation unrelated to barrier upc_wait; wait for others to be ready

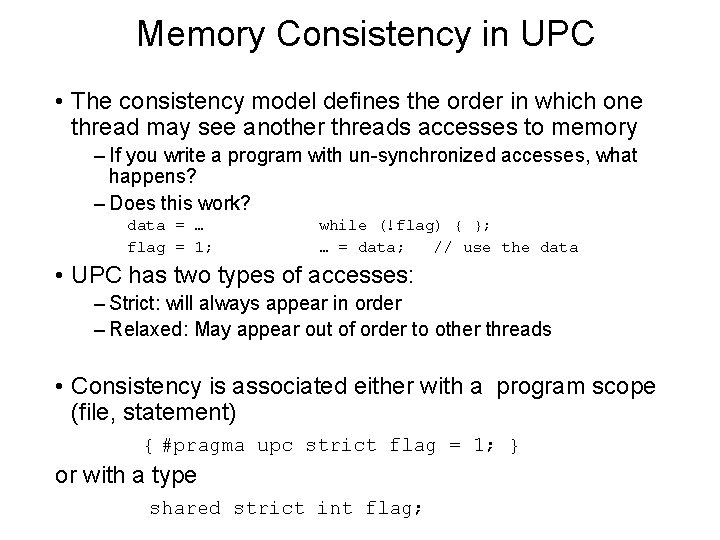

Memory Consistency in UPC • The consistency model defines the order in which one thread may see another threads accesses to memory – If you write a program with un-synchronized accesses, what happens? – Does this work? data = … flag = 1; while (!flag) { }; … = data; // use the data • UPC has two types of accesses: – Strict: will always appear in order – Relaxed: May appear out of order to other threads • Consistency is associated either with a program scope (file, statement) { #pragma upc strict flag = 1; } or with a type shared strict int flag;

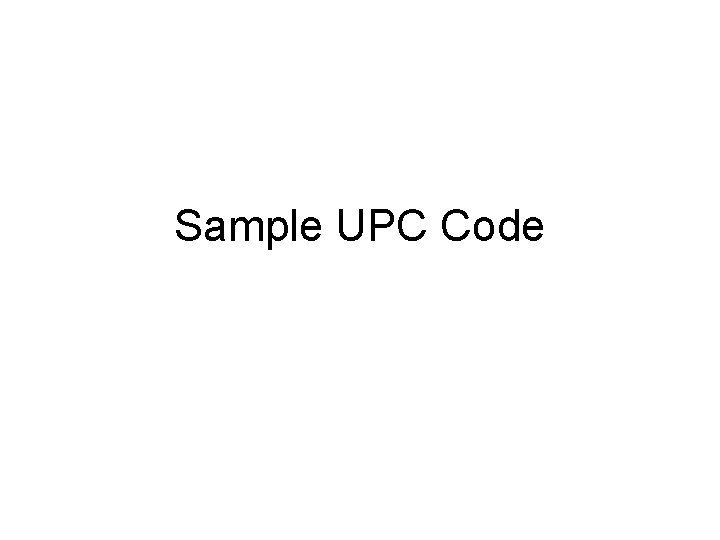

Sample UPC Code

Matrix Multiplication in UPC • Given two integer matrices A(Nx. P) and B(Px. M), we want to compute C =A x B. • Entries cij in C are computed by the formula:

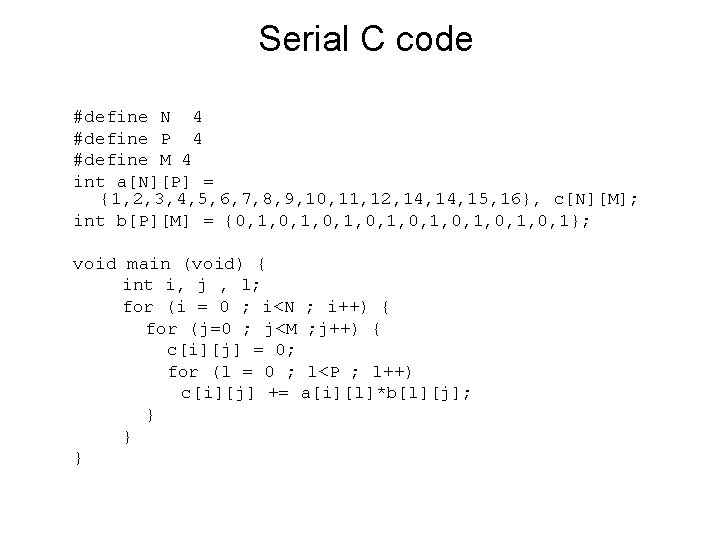

Serial C code #define N 4 #define P 4 #define M 4 int a[N][P] = {1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 15, 16}, c[N][M]; int b[P][M] = {0, 1, 0, 1, 0, 1}; void main (void) { int i, j , l; for (i = 0 ; i<N ; i++) { for (j=0 ; j<M ; j++) { c[i][j] = 0; for (l = 0 ; l<P ; l++) c[i][j] += a[i][l]*b[l][j]; } } }

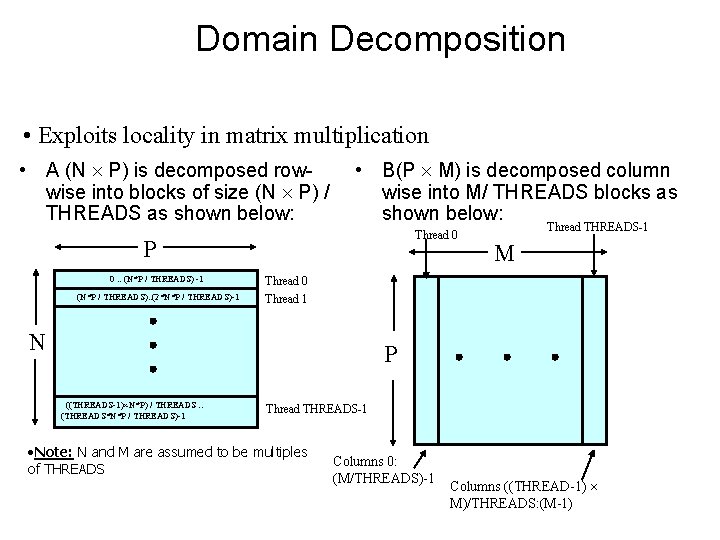

Domain Decomposition • Exploits locality in matrix multiplication • A (N P) is decomposed rowwise into blocks of size (N P) / THREADS as shown below: • B(P M) is decomposed column wise into M/ THREADS blocks as shown below: Thread 0 P 0. . (N*P / THREADS) -1 (N*P / THREADS). . (2*N*P / THREADS)-1 Thread THREADS-1 M Thread 0 Thread 1 N P ((THREADS-1) N*P) / THREADS. . (THREADS*N*P / THREADS)-1 Thread THREADS-1 • Note: N and M are assumed to be multiples of THREADS Columns 0: (M/THREADS)-1 Columns ((THREAD-1) M)/THREADS: (M-1)

UPC Matrix Multiplication Code #include <upc_relaxed. h> #define N 4 #define P 4 #define M 4 shared [N*P/THREADS] int a[N][P] = {1, . . , 16}, c[N][M]; // data distribution: a and c are blocked shared matrices shared [M/THREADS] int b[P][M] = {0, 1, … , 0, 1}; void main (void) { int i, j , l; // private variables upc_forall(i = 0 ; i<N ; i++; &c[i][0]) { //work distribution for (j=0 ; j<M ; j++) { c[i][j] = 0; for (l= 0 ; l<P ; l++) //implicit communication c[i][j] += a[i][l]*b[l][j]; } } }

UPC Matrix Multiplication With Block Copy #include <upc_relaxed. h> shared [N*P /THREADS] int a[N][P], c[N][M]; // a and c are blocked shared matrices shared[M/THREADS] int b[P][M]; int b_local[P][M]; void main (void) { int i, j , l; // private variables //explicit bulk communication upc_memget(b_local, b, P*M*sizeof(int)); //work distribution (c aligned with a? ? ) upc_forall(i = 0 ; i<N ; i++; &c[i][0]) { for (j=0 ; j<M ; j++) { c[i][j] = 0; for (l= 0 ; l<P ; l++) c[i][j] += a[i][l]*b_local[l][j]; } } }

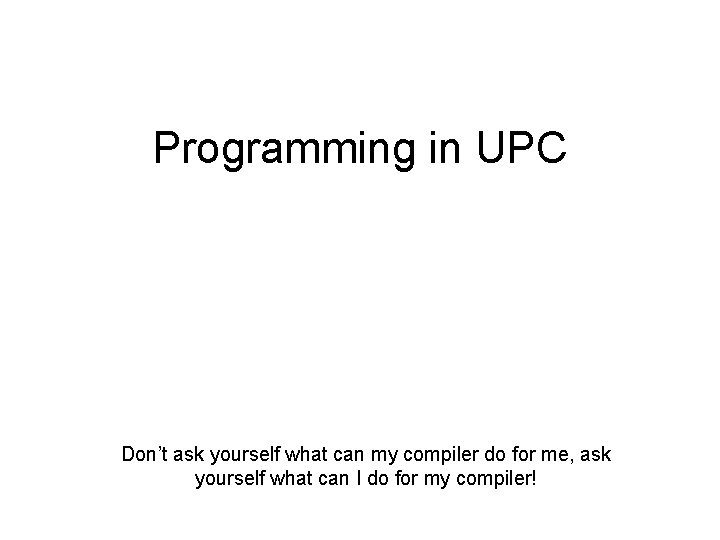

Programming in UPC Don’t ask yourself what can my compiler do for me, ask yourself what can I do for my compiler!

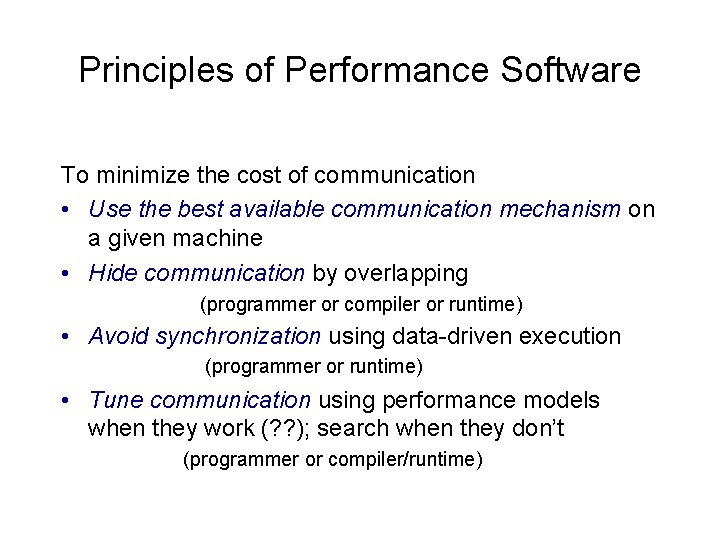

Principles of Performance Software To minimize the cost of communication • Use the best available communication mechanism on a given machine • Hide communication by overlapping (programmer or compiler or runtime) • Avoid synchronization using data-driven execution (programmer or runtime) • Tune communication using performance models when they work (? ? ); search when they don’t (programmer or compiler/runtime)

Best Available Communication Mechanism • Performance is determined by overhead, latency and bandwidth • Data transfer (one-sided communication) is often faster than (two sided) message passing • Semantics limit performance – – In-order message delivery Message and tag matching Need to acquire information from remote host processor Synchronization (message receipt) tied to data transfer

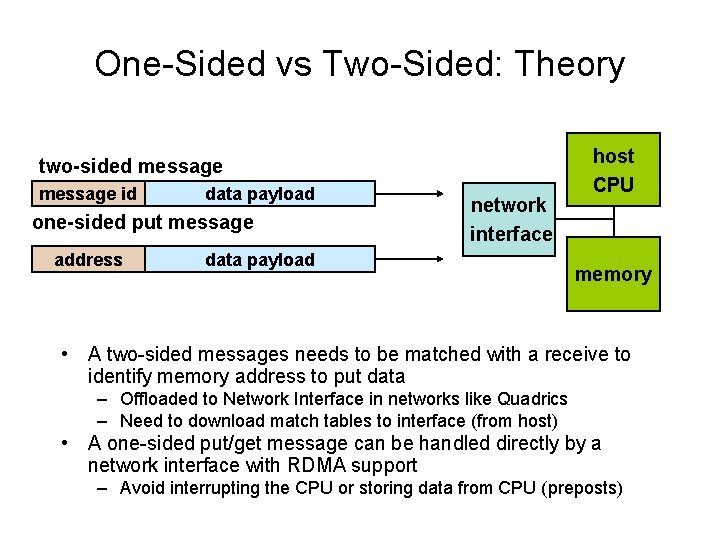

One-Sided vs Two-Sided: Theory two-sided message id data payload one-sided put message address network interface data payload host CPU memory • A two-sided messages needs to be matched with a receive to identify memory address to put data – Offloaded to Network Interface in networks like Quadrics – Need to download match tables to interface (from host) • A one-sided put/get message can be handled directly by a network interface with RDMA support – Avoid interrupting the CPU or storing data from CPU (preposts)

(down is good) GASNet: Portability and High-Performance GASNet better for overhead and latency across machines UPC Group; GASNet design by Dan Bonachea

(up is good) GASNet: Portability and High-Performance (up is good) GASNet excels at mid-range sizes: important for overlap GASNet at least as high (comparable) for large messages Joint work with UPC Group; GASNet design by Dan Bonachea

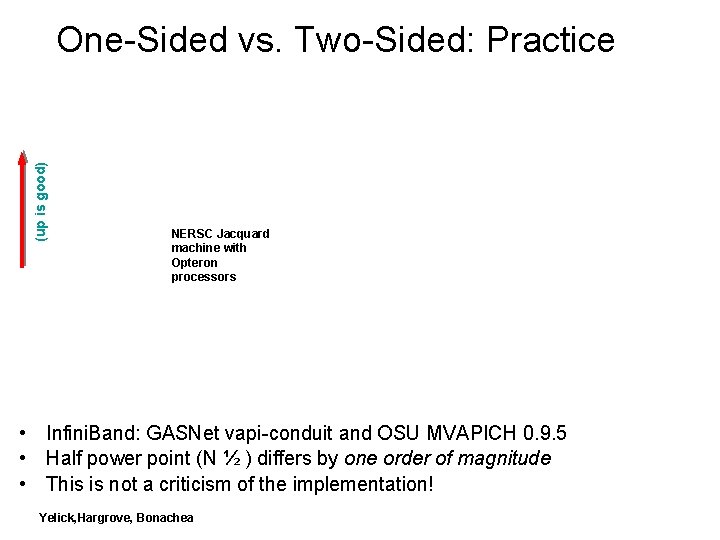

(up is good) One-Sided vs. Two-Sided: Practice NERSC Jacquard machine with Opteron processors • Infini. Band: GASNet vapi-conduit and OSU MVAPICH 0. 9. 5 • Half power point (N ½ ) differs by one order of magnitude • This is not a criticism of the implementation! Yelick, Hargrove, Bonachea

Overlap

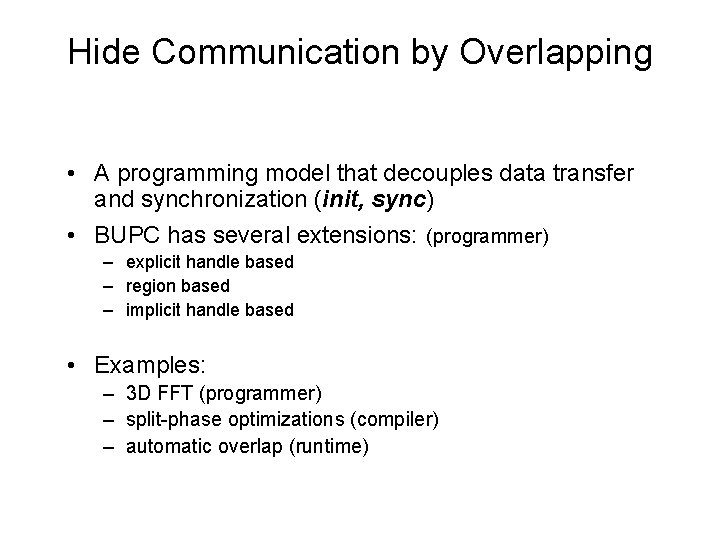

Hide Communication by Overlapping • A programming model that decouples data transfer and synchronization (init, sync) • BUPC has several extensions: (programmer) – explicit handle based – region based – implicit handle based • Examples: – 3 D FFT (programmer) – split-phase optimizations (compiler) – automatic overlap (runtime)

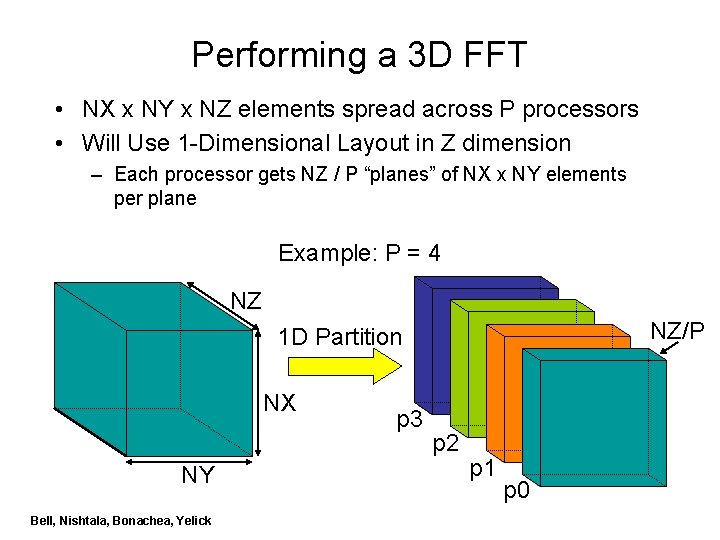

Performing a 3 D FFT • NX x NY x NZ elements spread across P processors • Will Use 1 -Dimensional Layout in Z dimension – Each processor gets NZ / P “planes” of NX x NY elements per plane Example: P = 4 NZ NZ/P 1 D Partition NX NY Bell, Nishtala, Bonachea, Yelick p 3 p 2 p 1 p 0

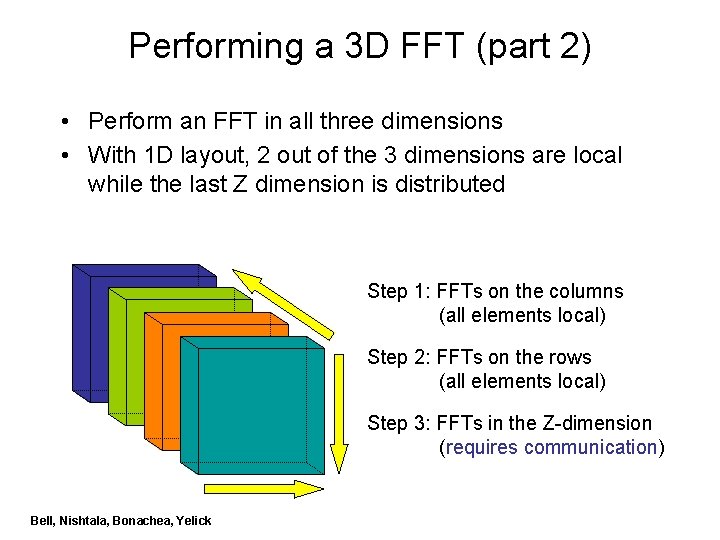

Performing a 3 D FFT (part 2) • Perform an FFT in all three dimensions • With 1 D layout, 2 out of the 3 dimensions are local while the last Z dimension is distributed Step 1: FFTs on the columns (all elements local) Step 2: FFTs on the rows (all elements local) Step 3: FFTs in the Z-dimension (requires communication) Bell, Nishtala, Bonachea, Yelick

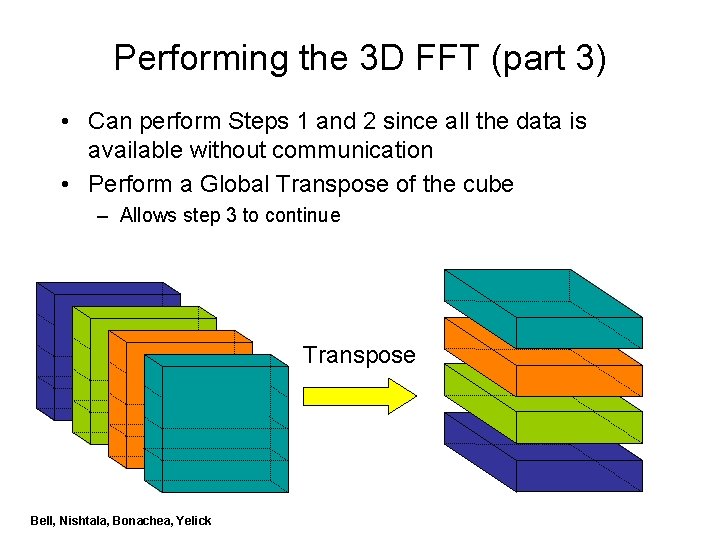

Performing the 3 D FFT (part 3) • Can perform Steps 1 and 2 since all the data is available without communication • Perform a Global Transpose of the cube – Allows step 3 to continue Transpose Bell, Nishtala, Bonachea, Yelick

Communication Strategies for 3 D FFT • Three approaches: –Chunk: chunk = all rows with same destination • Wait for 2 nd dim FFTs to finish • Minimize # messages –Slab: • Wait for chunk of rows destined for 1 proc to finish • Overlap with computation –Pencil: • Send each row as it completes pencil = 1 row • Maximize overlap and • Match natural layout slab = all rows in a single plane with same destination Bell, Nishtala, Bonachea, Yelick

NAS FT Variants Performance Summary Chunk (NAS FT with FFTW). 5 Tflops MFlops per Thread Best MPI (always slabs) Best UPC (always pencils) • Slab is always best for MPI; small message cost too high • Myrinet Pencil is. Infiniband always best. Elan 3 for UPC; Elan 3 more overlap Elan 4 #procs 64 256 512

Bisection Bandwidth Limits • Full bisection bandwidth is (too) expensive • During an all-to-all communication phase –Effective (per-thread) bandwidth is fractional share –Significantly lower than link bandwidth –Use smaller messages mixed with computation to avoid swamping the network Bell, Nishtala, Bonachea, Yelick

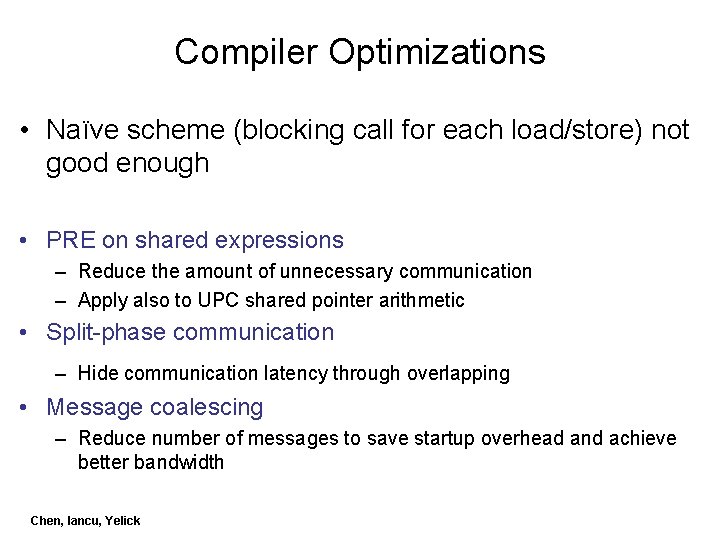

Compiler Optimizations • Naïve scheme (blocking call for each load/store) not good enough • PRE on shared expressions – Reduce the amount of unnecessary communication – Apply also to UPC shared pointer arithmetic • Split-phase communication – Hide communication latency through overlapping • Message coalescing – Reduce number of messages to save startup overhead and achieve better bandwidth Chen, Iancu, Yelick

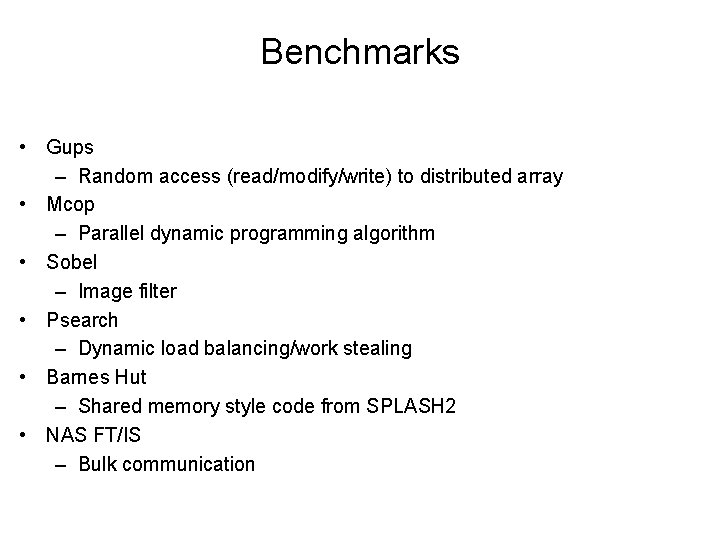

Benchmarks • Gups – Random access (read/modify/write) to distributed array • Mcop – Parallel dynamic programming algorithm • Sobel – Image filter • Psearch – Dynamic load balancing/work stealing • Barnes Hut – Shared memory style code from SPLASH 2 • NAS FT/IS – Bulk communication

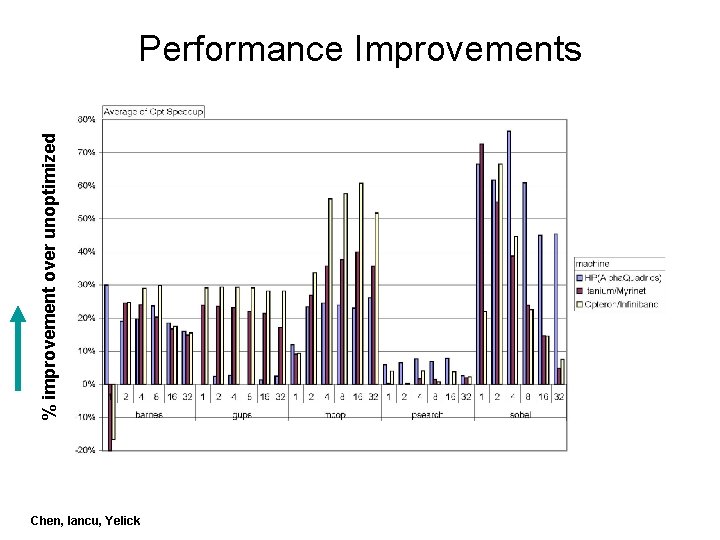

% improvement over unoptimized Performance Improvements Chen, Iancu, Yelick

Data Driven Execution

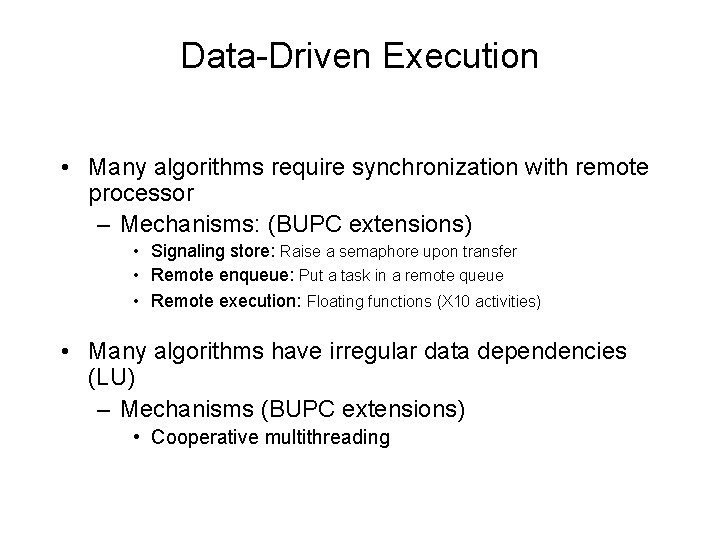

Data-Driven Execution • Many algorithms require synchronization with remote processor – Mechanisms: (BUPC extensions) • Signaling store: Raise a semaphore upon transfer • Remote enqueue: Put a task in a remote queue • Remote execution: Floating functions (X 10 activities) • Many algorithms have irregular data dependencies (LU) – Mechanisms (BUPC extensions) • Cooperative multithreading

Matrix Factorization Blocks 2 D block-cyclic distributed Completed part of U Completed part of L Panel factorizations involve communication for pivoting A(i, j) A(i, k) A(j, i) A(j, k) Trailing matrix to be updated Panel being factored Husbands, Yelick

Three Strategies for LU Factorization • Organize in bulk-synchronous phases (Sca. LAPACK) • Factor a block column, then perform updates • Relatively easy to understand/debug, but extra synchronization • Overlapping phases (HPL): • Work associated with on block column factorization can be overlapped • Parameter to determine how many (need temp space accordingly) • Event-driven multithreaded (UPC Linpack): • • • Each thread runs an event handler loop Tasks: factorization (w/ pivoting), update trailing, update upper Tasks my suspend (voluntarily) to wait for data, synchronization, etc. Data moved with remote gets (synchronization built-in) Must “gang” together for factorizations Scheduling priorities are key to performance and deadlock avoidance Husbands, Yelick

UPC-HP Linpack Performance • Comparable to HPL (numbers from HPCC database) • Faster than Sca. LAPACK due to less synchronization • Large scaling of UPC code on Itanium/Quadrics (Thunder) • 2. 2 TFlops on 512 p and 4. 4 TFlops on 1024 p Husbands, Yelick

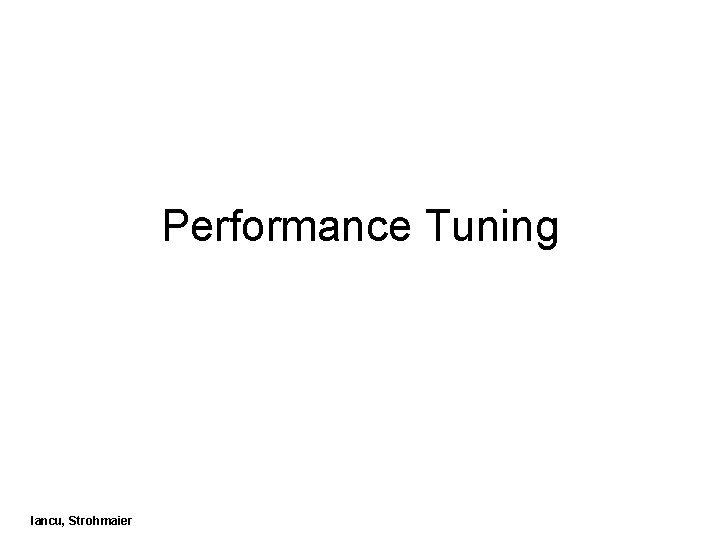

Performance Tuning Iancu, Strohmaier

Efficient Use of One-Sided • Implementations: need to be efficient and have scalable performance • Application level use of NB benefits from new design techniques: finer grained decompositions and overlap • Overlap exercises the system in “un-expected” ways • Prototyping of implementations for large scale systems is a hard problem: non-linear behavior of networks, communication scheduling is NP-hard • Need methodology for fast prototyping: – understand interaction network/CPU at large scale

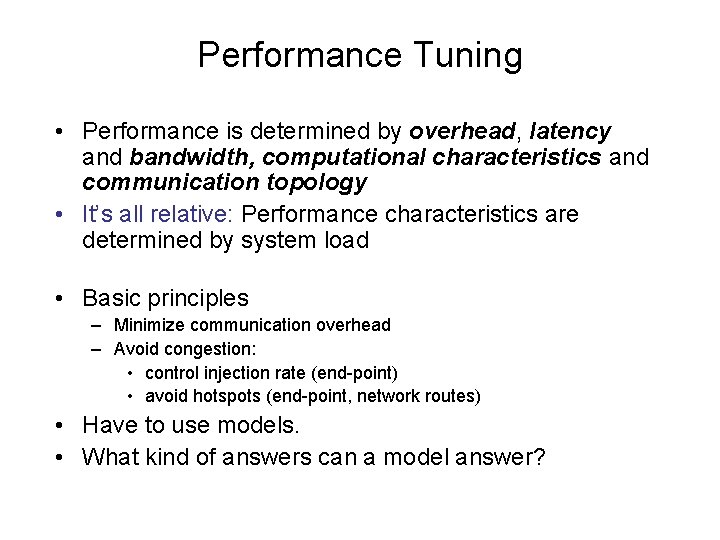

Performance Tuning • Performance is determined by overhead, latency and bandwidth, computational characteristics and communication topology • It’s all relative: Performance characteristics are determined by system load • Basic principles – Minimize communication overhead – Avoid congestion: • control injection rate (end-point) • avoid hotspots (end-point, network routes) • Have to use models. • What kind of answers can a model answer?

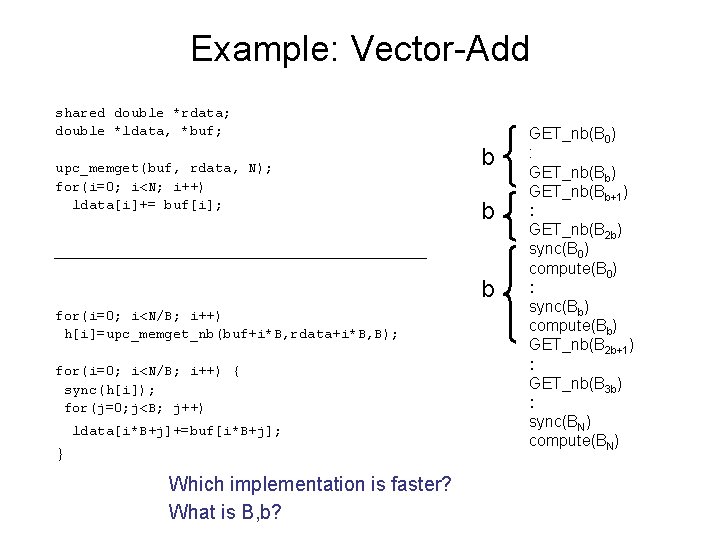

Example: Vector-Add shared double *rdata; double *ldata, *buf; upc_memget(buf, rdata, N); for(i=0; i<N; i++) ldata[i]+= buf[i]; b b b for(i=0; i<N/B; i++) h[i]=upc_memget_nb(buf+i*B, rdata+i*B, B); for(i=0; i<N/B; i++) { sync(h[i]); for(j=0; j<B; j++) ldata[i*B+j]+=buf[i*B+j]; } Which implementation is faster? What is B, b? GET_nb(B 0) : GET_nb(Bb) GET_nb(Bb+1) : GET_nb(B 2 b) sync(B 0) compute(B 0) : sync(Bb) compute(Bb) GET_nb(B 2 b+1) : GET_nb(B 3 b) : sync(BN) compute(BN)

Prototyping • Usual approach: use time accurate performance model (applications, automatically tuned collectives) – Models (Log. P. . ) don’t capture important behavior (parallelism, congestion, resource constraints, non-linear behavior) – Exhaustive search of the optimization space – Validated only at low concurrency (~tens of procs), might break at high concurrency, might break for torus networks • Our approach: – Use performance model for ideal implementation – Understand hardware resource constraints and the variation of performance parameters (understand trends not absolute values) – Derive implementation constraints to satisfy both optimal implementation and hardware constraints – Force implementation parameters to converge towards optimal

Performance • Network: bandwidth and overhead Overhead is determined by message size, communication schedule, hardware flow of control Bandwidth is determined by message size, communication schedule, fairness of allocation • Application: communication pattern and schedule (congestion), computation Iancu, Strohmaier

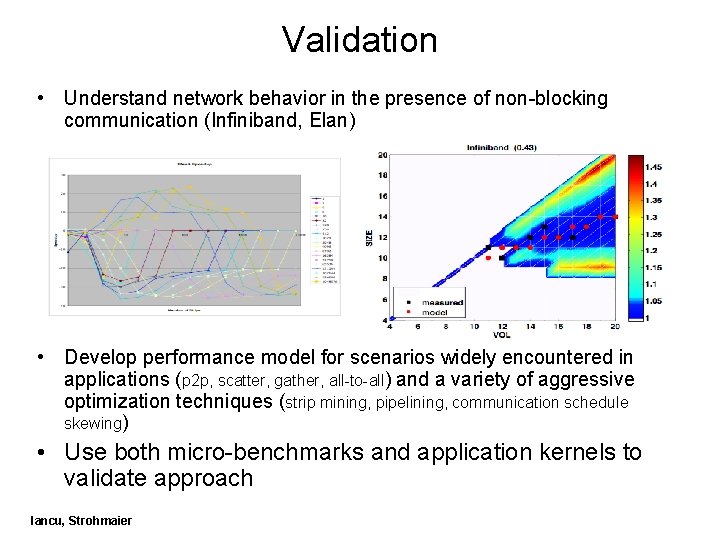

Validation • Understand network behavior in the presence of non-blocking communication (Infiniband, Elan) • Develop performance model for scenarios widely encountered in applications (p 2 p, scatter, gather, all-to-all) and a variety of aggressive optimization techniques (strip mining, pipelining, communication schedule skewing) • Use both micro-benchmarks and application kernels to validate approach Iancu, Strohmaier

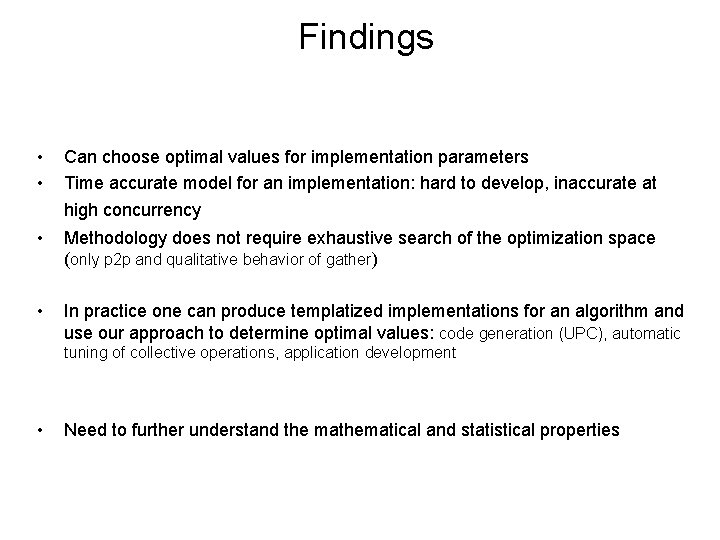

Findings • • Can choose optimal values for implementation parameters Time accurate model for an implementation: hard to develop, inaccurate at high concurrency • Methodology does not require exhaustive search of the optimization space (only p 2 p and qualitative behavior of gather) • In practice one can produce templatized implementations for an algorithm and use our approach to determine optimal values: code generation (UPC), automatic tuning of collective operations, application development • Need to further understand the mathematical and statistical properties

End

Avoid synchronization: Data-driven Execution • Many algorithms require synchronization with remote processor • What is the right mechanism in a PGAS model for doing this? • Is it still one-sided? Part 3: Event-Driven Execution Models

Mechanisms for Event-Driven Execution • “Put” operation does a send side notification – Needed for memory consistency model ordering • Need to signal remote side on completion • Strategies: – Have remote side do a “get” (works in some algorithms) – Put + strict flag write: do a put, wait for completion, then do another (strict) put – Pipelined put + put-flag: works only on ordered networks – Signaling put: add new “store” operation that embeds signal (2 nd remote address) into single message

Mechanisms for Event-Driven Execution Preliminary results on Opteron + Infiniband
