Unica solutions for your home Customers presentation

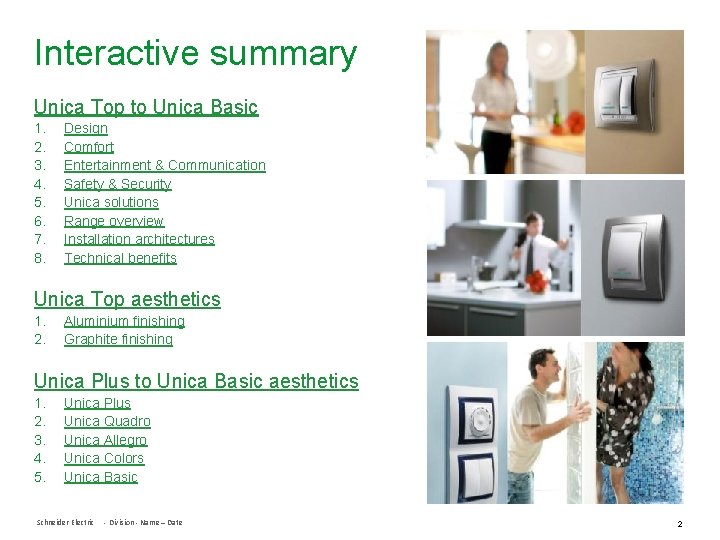

Interactive summary Unica Top to Unica Basic 1. 2. 3. 4. 5. 6. 7. 8. Design Comfort Entertainment & Communication Safety & Security Unica solutions Range overview Installation architectures Technical benefits Unica Top aesthetics 1. 2. Aluminium finishing Graphite finishing Unica Plus to Unica Basic aesthetics 1. 2. 3. 4. 5. Unica Plus Unica Quadro Unica Allegro Unica Colors Unica Basic Schneider Electric - Division - Name – Date 2

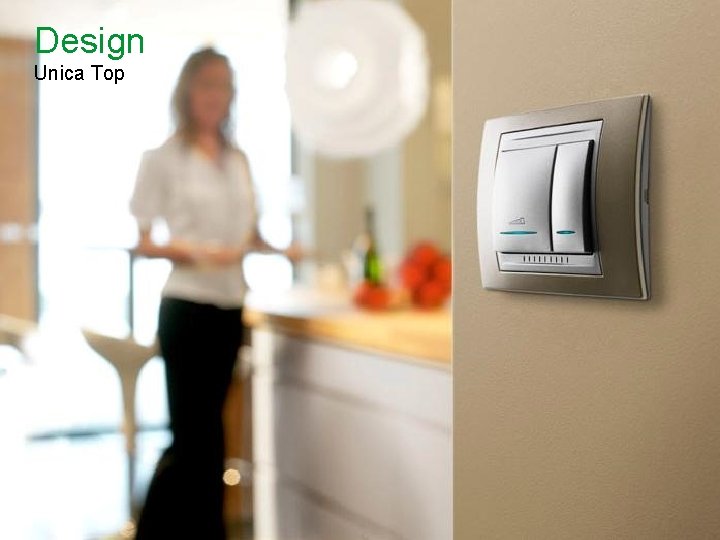

Design Unica Top Schneider Electric - Division - Name – Date 3

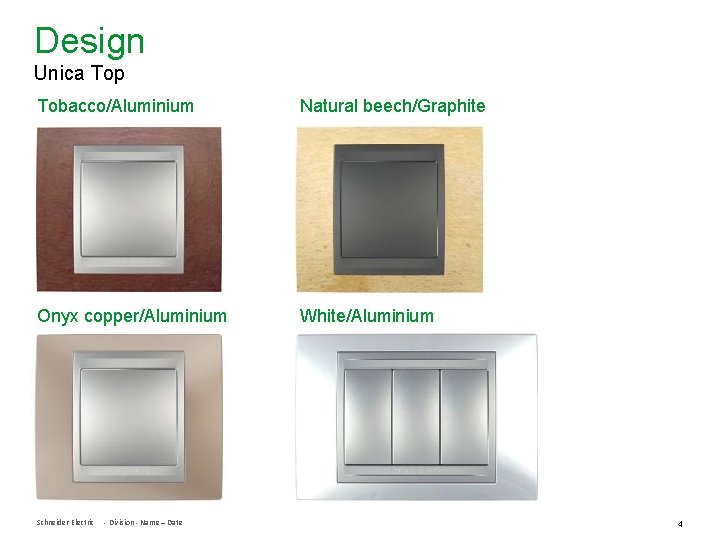

Design Unica Top Tobacco/Aluminium Natural beech/Graphite Onyx copper/Aluminium White/Aluminium Schneider Electric - Division - Name – Date 4

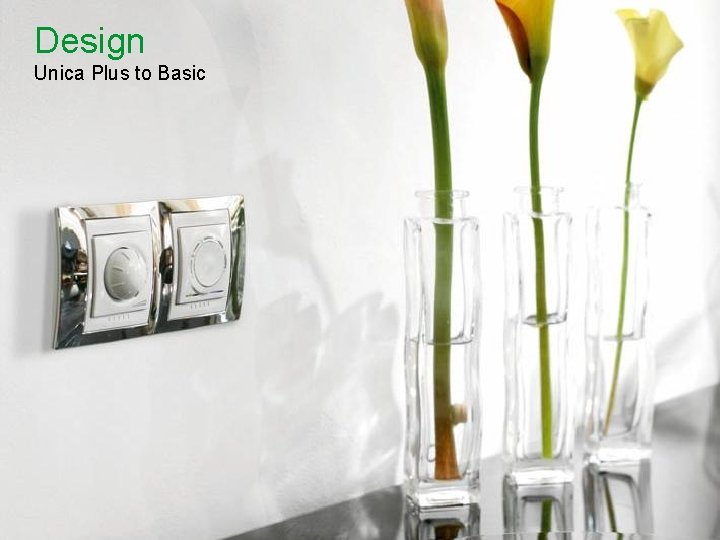

Design Unica Plus to Basic Schneider Electric - Division - Name – Date 5

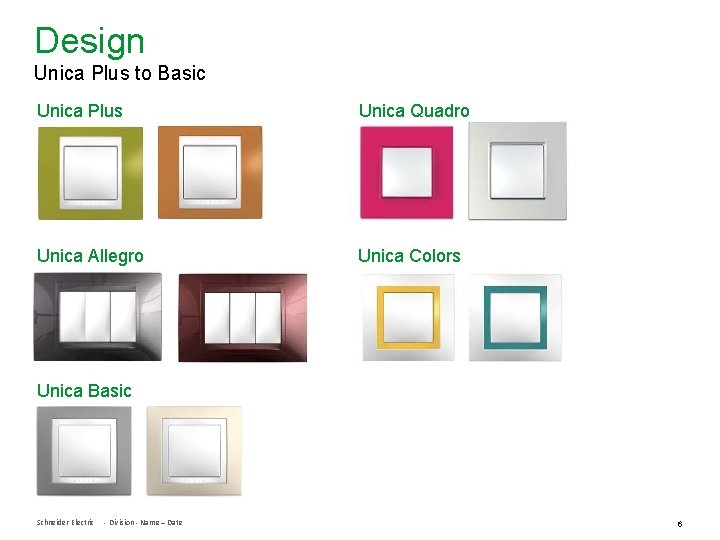

Design Unica Plus to Basic Unica Plus Unica Quadro Unica Allegro Unica Colors Unica Basic Schneider Electric - Division - Name – Date 6

Comfort Your home is your considerate friend Schneider Electric - Division - Name – Date 7

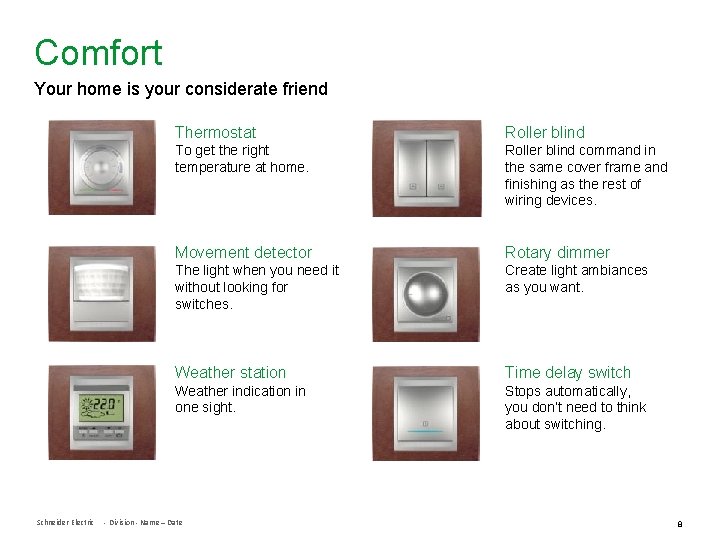

Comfort Your home is your considerate friend Schneider Electric Thermostat Roller blind To get the right temperature at home. Roller blind command in the same cover frame and finishing as the rest of wiring devices. Movement detector Rotary dimmer The light when you need it without looking for switches. Create light ambiances as you want. Weather station Time delay switch Weather indication in one sight. Stops automatically, you don’t need to think about switching. - Division - Name – Date 8

Entertainment & Communication Hook up Wind down Schneider Electric - Division - Name – Date 9

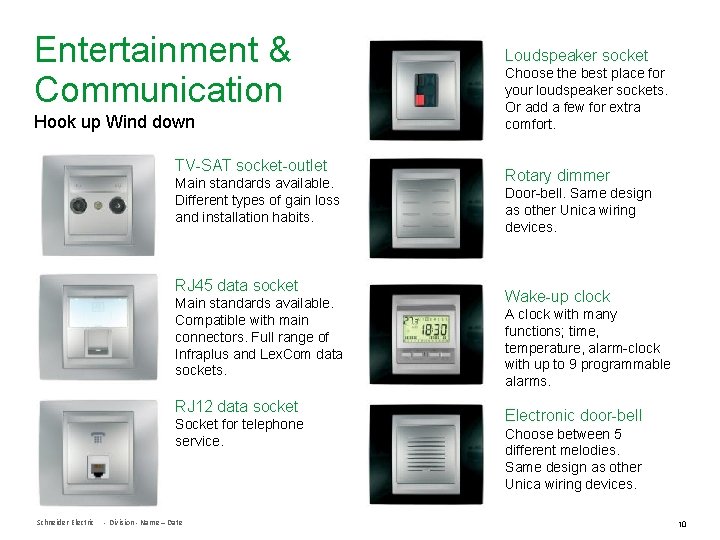

Entertainment & Communication Hook up Wind down TV-SAT socket-outlet Main standards available. Different types of gain loss and installation habits. RJ 45 data socket Main standards available. Compatible with main connectors. Full range of Infraplus and Lex. Com data sockets. RJ 12 data socket Socket for telephone service. Schneider Electric - Division - Name – Date Loudspeaker socket Choose the best place for your loudspeaker sockets. Or add a few for extra comfort. Rotary dimmer Door-bell. Same design as other Unica wiring devices. Wake-up clock A clock with many functions; time, temperature, alarm-clock with up to 9 programmable alarms. Electronic door-bell Choose between 5 different melodies. Same design as other Unica wiring devices. 10

Safety & Security Your reliable guard Schneider Electric - Division - Name – Date 11

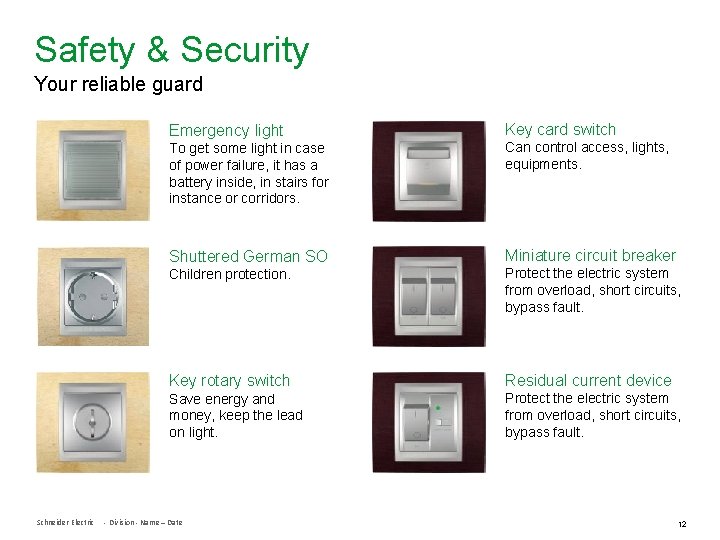

Safety & Security Your reliable guard Schneider Electric Emergency light Key card switch To get some light in case of power failure, it has a battery inside, in stairs for instance or corridors. Can control access, lights, equipments. Shuttered German SO Miniature circuit breaker Children protection. Protect the electric system from overload, short circuits, bypass fault. Key rotary switch Residual current device Save energy and money, keep the lead on light. Protect the electric system from overload, short circuits, bypass fault. - Division - Name – Date 12

Unica solutions Schneider Electric - Division - Name – Date 13

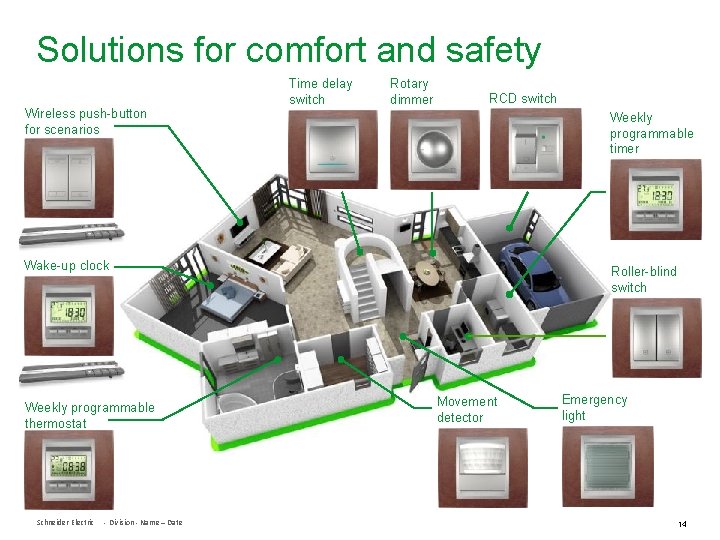

Solutions for comfort and safety Wireless push-button for scenarios Time delay switch Rotary dimmer RCD switch Weekly programmable timer Wake-up clock Weekly programmable thermostat Schneider Electric - Division - Name – Date Roller-blind switch Movement detector Emergency light 14

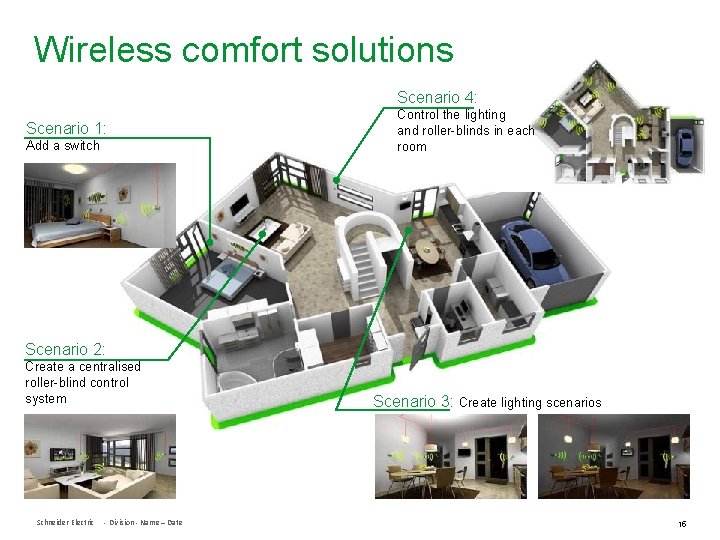

Wireless comfort solutions Scenario 4: Scenario 1: Add a switch Control the lighting and roller-blinds in each room Scenario 2: Create a centralised roller-blind control system Schneider Electric - Division - Name – Date Scenario 3: Create lighting scenarios 15

Range overview Schneider Electric - Division - Name – Date 16

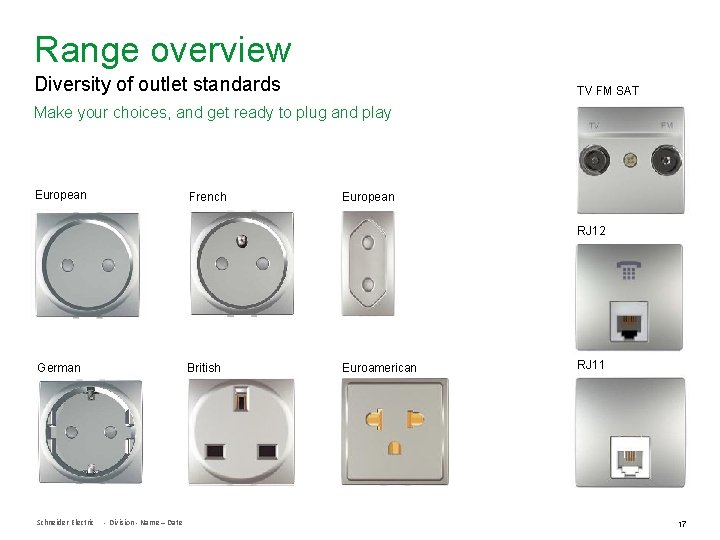

Range overview Diversity of outlet standards TV FM SAT Make your choices, and get ready to plug and play European French European RJ 12 German Schneider Electric British - Division - Name – Date Euroamerican RJ 11 17

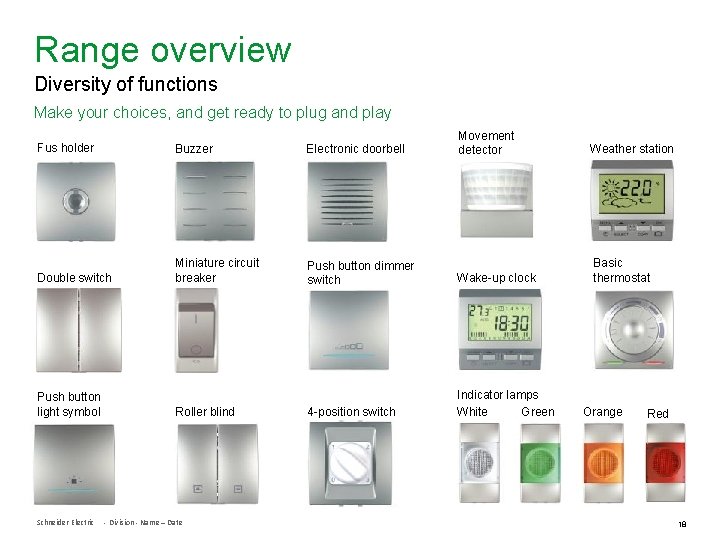

Range overview Diversity of functions Make your choices, and get ready to plug and play Movement detector Weather station Push button dimmer switch Wake-up clock Basic thermostat 4 -position switch Indicator lamps Green White Fus holder Buzzer Electronic doorbell Double switch Miniature circuit breaker Push button light symbol Schneider Electric Roller blind - Division - Name – Date Orange Red 18

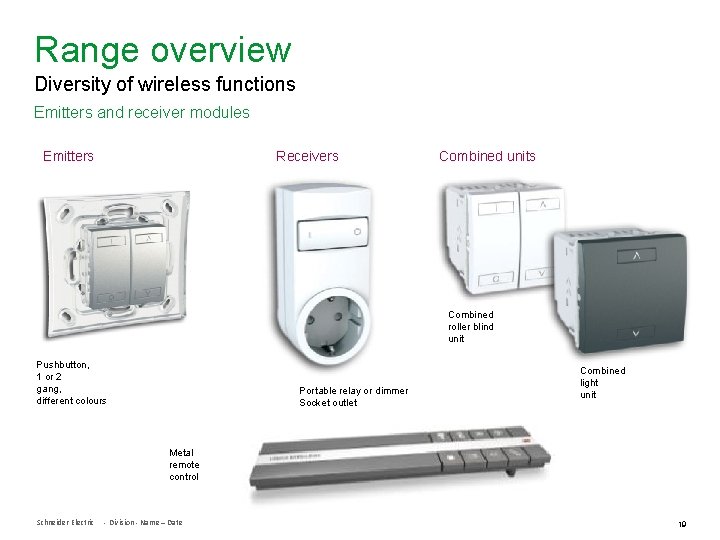

Range overview Diversity of wireless functions Emitters and receiver modules Emitters Receivers Combined units Combined roller blind unit Pushbutton, 1 or 2 gang, different colours Portable relay or dimmer Socket outlet Combined light unit Metal remote control Schneider Electric - Division - Name – Date 19

Installation architectures Schneider Electric - Division - Name – Date 20

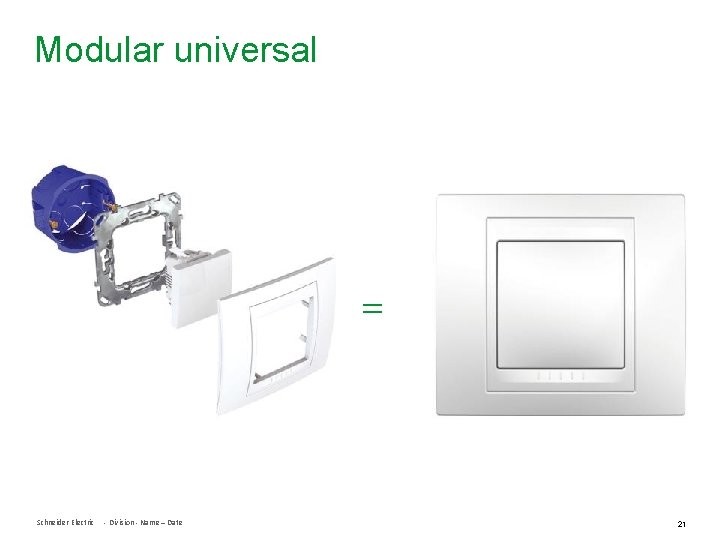

Modular universal = Schneider Electric - Division - Name – Date 21

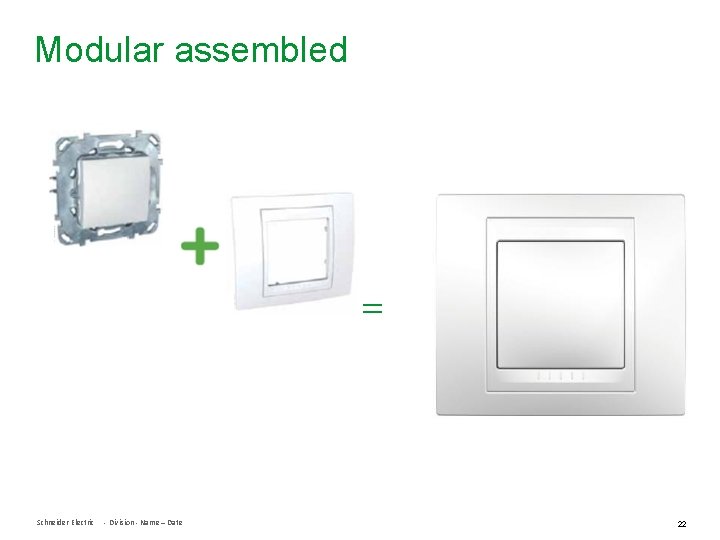

Modular assembled = Schneider Electric - Division - Name – Date 22

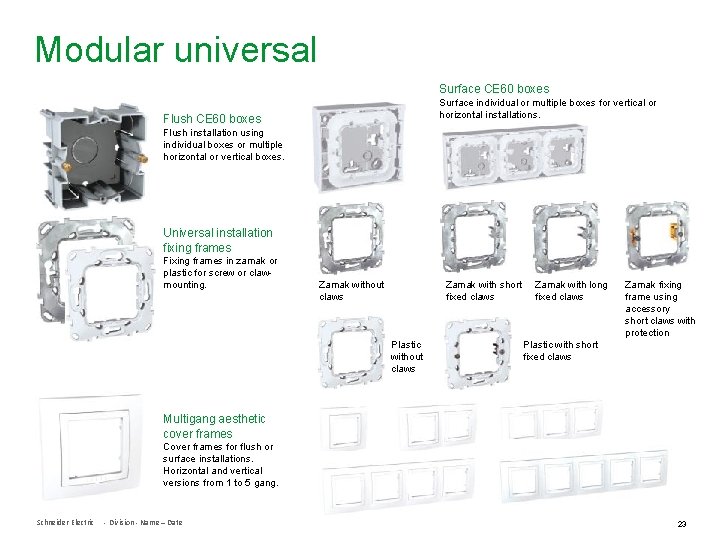

Modular universal Surface CE 60 boxes Surface individual or multiple boxes for vertical or horizontal installations. Flush CE 60 boxes Flush installation using individual boxes or multiple horizontal or vertical boxes. Universal installation fixing frames Fixing frames in zamak or plastic for screw or clawmounting. Zamak without claws Zamak with short fixed claws Plastic without claws Zamak with long fixed claws Zamak fixing frame using accessory short claws with protection Plastic with short fixed claws Multigang aesthetic cover frames Cover frames for flush or surface installations. Horizontal and vertical versions from 1 to 5 gang. Schneider Electric - Division - Name – Date 23

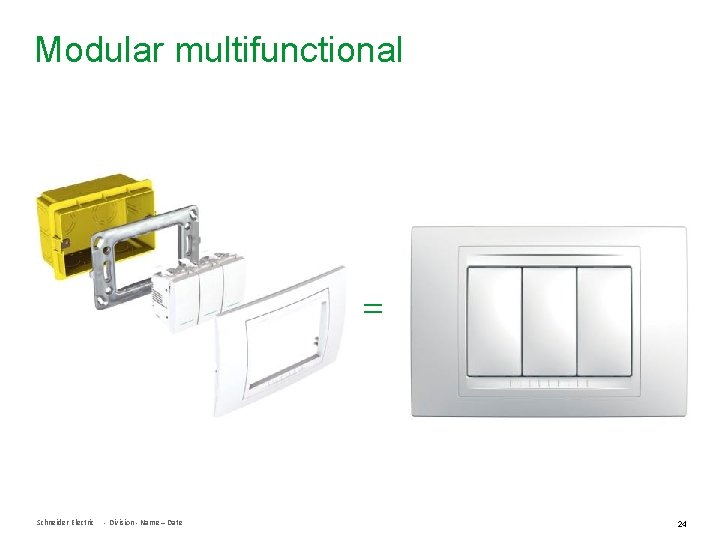

Modular multifunctional = Schneider Electric - Division - Name – Date 24

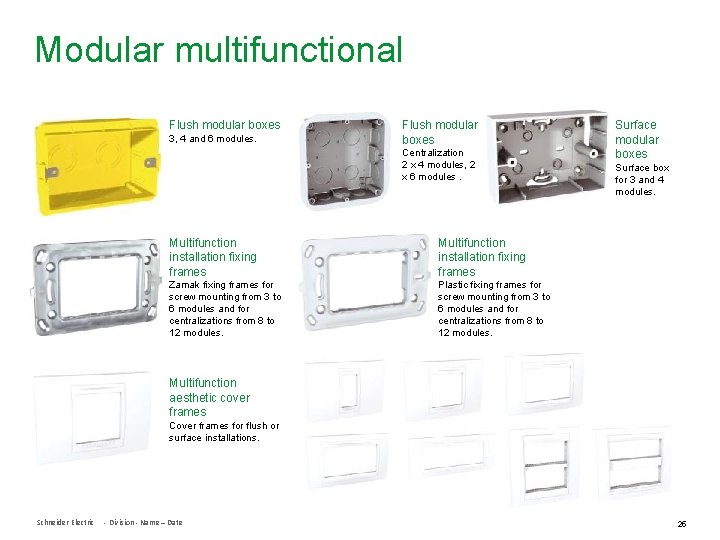

Modular multifunctional Flush modular boxes 3, 4 and 6 modules. Flush modular boxes Centralization 2 x 4 modules, 2 x 6 modules. Multifunction installation fixing frames Zamak fixing frames for screw mounting from 3 to 6 modules and for centralizations from 8 to 12 modules. Plastic fixing frames for screw mounting from 3 to 6 modules and for centralizations from 8 to 12 modules. Surface modular boxes Surface box for 3 and 4 modules. Multifunction aesthetic cover frames Cover frames for flush or surface installations. Schneider Electric - Division - Name – Date 25

Technical benefits Schneider Electric - Division - Name – Date 26

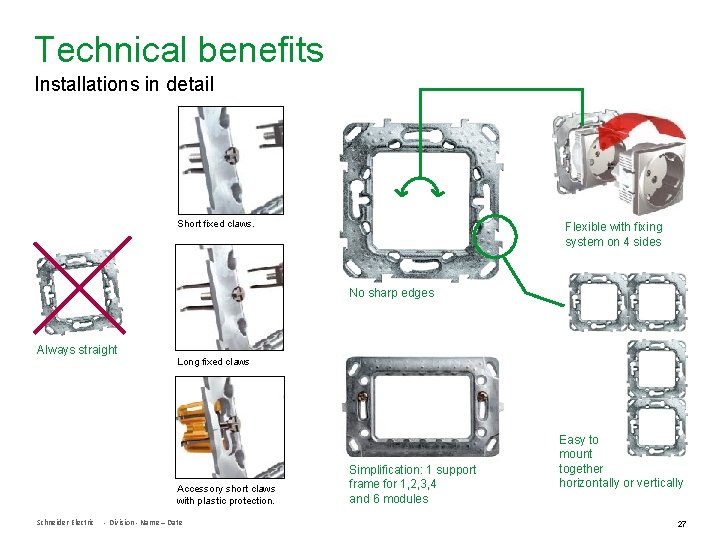

Technical benefits Installations in detail Short fixed claws. Flexible with fixing system on 4 sides No sharp edges Always straight Long fixed claws Accessory short claws with plastic protection. Schneider Electric - Division - Name – Date Simplification: 1 support frame for 1, 2, 3, 4 and 6 modules Easy to mount together horizontally or vertically 27

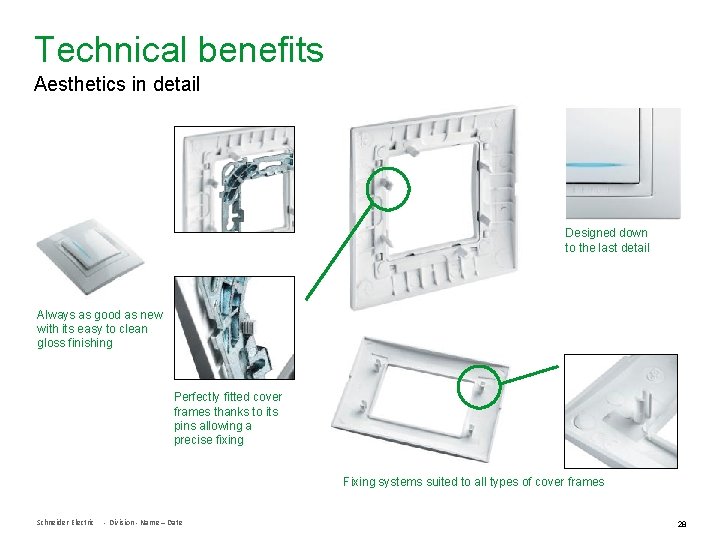

Technical benefits Aesthetics in detail Designed down to the last detail Always as good as new with its easy to clean gloss finishing Perfectly fitted cover frames thanks to its pins allowing a precise fixing Fixing systems suited to all types of cover frames Schneider Electric - Division - Name – Date 28

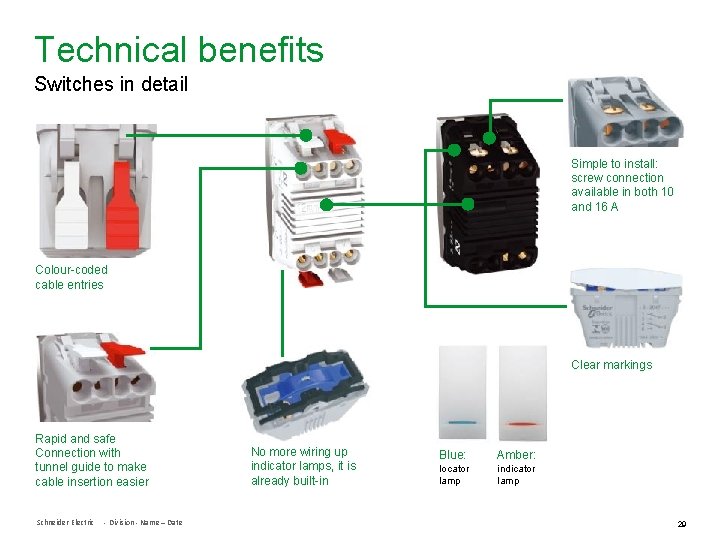

Technical benefits Switches in detail Simple to install: screw connection available in both 10 and 16 A Colour-coded cable entries Clear markings Rapid and safe Connection with tunnel guide to make cable insertion easier Schneider Electric - Division - Name – Date No more wiring up indicator lamps, it is already built-in Blue: Amber: locator lamp indicator lamp 29

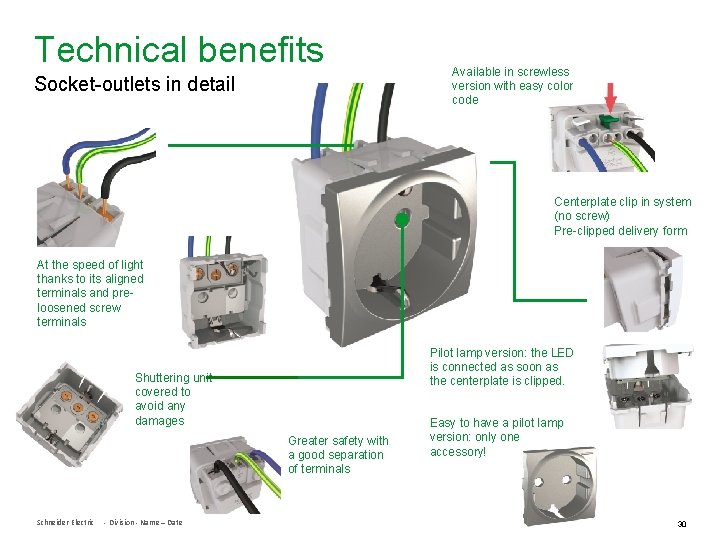

Technical benefits Socket-outlets in detail Available in screwless version with easy color code Centerplate clip in system (no screw) Pre-clipped delivery form At the speed of light thanks to its aligned terminals and preloosened screw terminals Pilot lamp version: the LED is connected as soon as the centerplate is clipped. Shuttering unit covered to avoid any damages Greater safety with a good separation of terminals Schneider Electric - Division - Name – Date Easy to have a pilot lamp version: only one accessory! 30

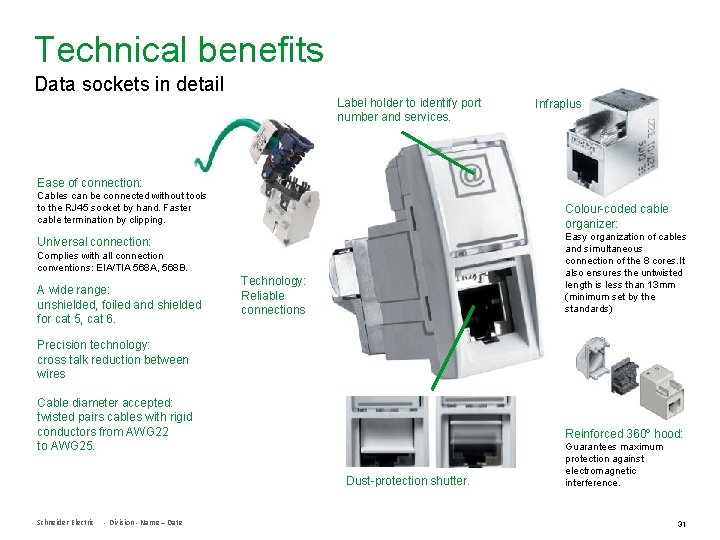

Technical benefits Data sockets in detail Label holder to identify port number and services. Infraplus Ease of connection: Cables can be connected without tools to the RJ 45 socket by hand. Faster cable termination by clipping. Colour-coded cable organizer: Easy organization of cables and simultaneous connection of the 8 cores. It also ensures the untwisted length is less than 13 mm (minimum set by the standards) Universal connection: Complies with all connection conventions: EIA/TIA 568 A, 568 B. A wide range: unshielded, foiled and shielded for cat 5, cat 6. Technology: Reliable connections Precision technology: cross talk reduction between wires Cable diameter accepted: twisted pairs cables with rigid conductors from AWG 22 to AWG 25. Reinforced 360º hood: Dust-protection shutter. Schneider Electric - Division - Name – Date Guarantees maximum protection against electromagnetic interference. 31

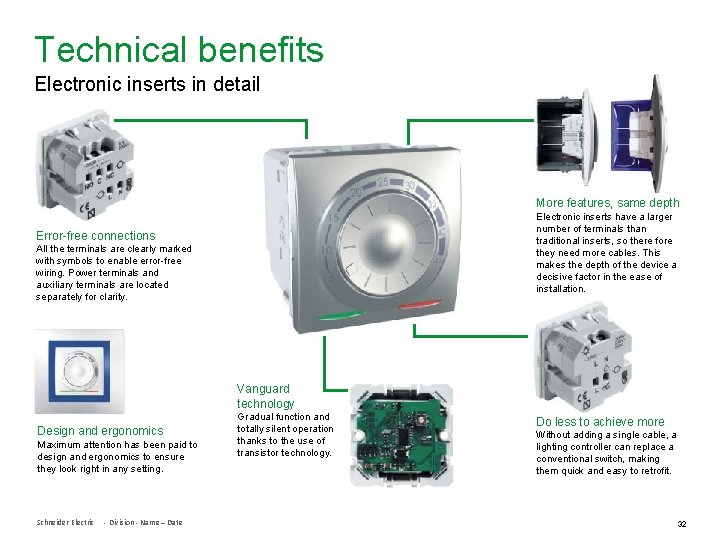

Technical benefits Electronic inserts in detail More features, same depth Electronic inserts have a larger number of terminals than traditional inserts, so there fore they need more cables. This makes the depth of the device a decisive factor in the ease of installation. Error-free connections All the terminals are clearly marked with symbols to enable error-free wiring. Power terminals and auxiliary terminals are located separately for clarity. Vanguard technology Design and ergonomics Maximum attention has been paid to design and ergonomics to ensure they look right in any setting. Schneider Electric - Division - Name – Date Gradual function and totally silent operation thanks to the use of transistor technology. Do less to achieve more Without adding a single cable, a lighting controller can replace a conventional switch, making them quick and easy to retrofit. 32

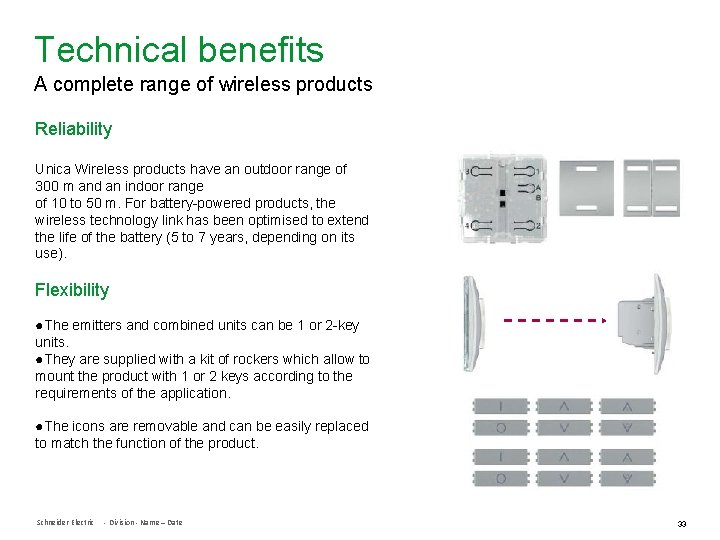

Technical benefits A complete range of wireless products Reliability Unica Wireless products have an outdoor range of 300 m and an indoor range of 10 to 50 m. For battery-powered products, the wireless technology link has been optimised to extend the life of the battery (5 to 7 years, depending on its use). Flexibility ●The emitters and combined units can be 1 or 2 -key units. ●They are supplied with a kit of rockers which allow to mount the product with 1 or 2 keys according to the requirements of the application. ●The icons are removable and can be easily replaced to match the function of the product. Schneider Electric - Division - Name – Date 33

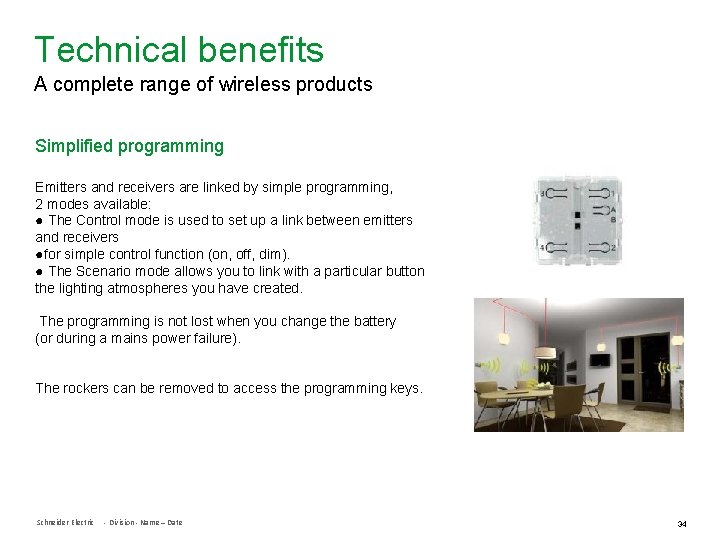

Technical benefits A complete range of wireless products Simplified programming Emitters and receivers are linked by simple programming, 2 modes available: ● The Control mode is used to set up a link between emitters and receivers ●for simple control function (on, off, dim). ● The Scenario mode allows you to link with a particular button the lighting atmospheres you have created. The programming is not lost when you change the battery (or during a mains power failure). The rockers can be removed to access the programming keys. Schneider Electric - Division - Name – Date 34

Unica Top aesthetics A distinct refinement Schneider Electric - Division - Name – Date 35

Unica Top Aluminium finishing Schneider Electric - Division - Name – Date 36

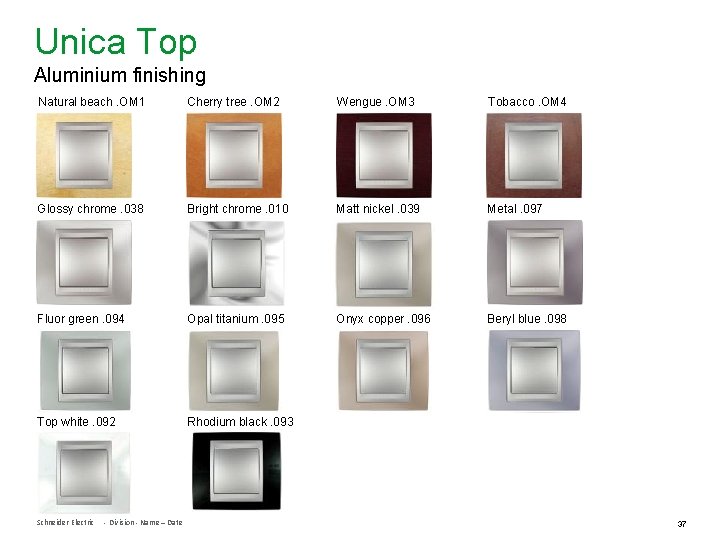

Unica Top Aluminium finishing Natural beach. OM 1 Cherry tree. OM 2 Wengue. OM 3 Tobacco. OM 4 Glossy chrome. 038 Bright chrome. 010 Matt nickel. 039 Metal. 097 Fluor green. 094 Opal titanium. 095 Onyx copper. 096 Beryl blue. 098 Top white. 092 Rhodium black. 093 Schneider Electric - Division - Name – Date 37

Unica Top Graphite finishing Schneider Electric - Division - Name – Date 38

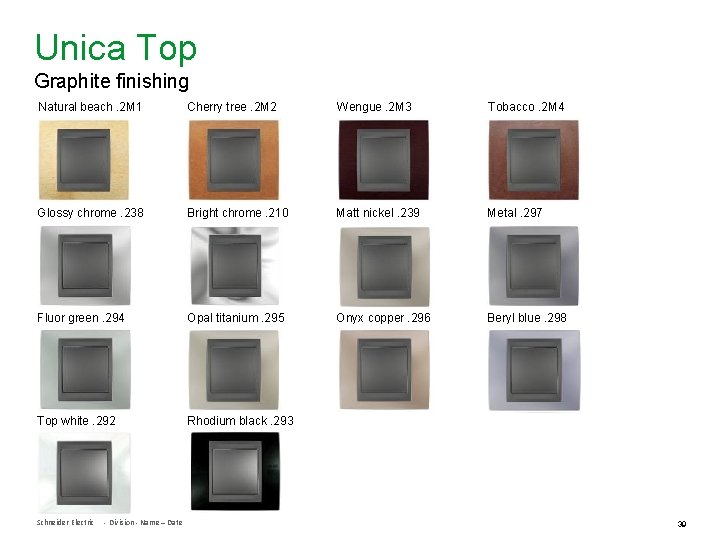

Unica Top Graphite finishing Natural beach. 2 M 1 Cherry tree. 2 M 2 Wengue. 2 M 3 Tobacco. 2 M 4 Glossy chrome. 238 Bright chrome. 210 Matt nickel. 239 Metal. 297 Fluor green. 294 Opal titanium. 295 Onyx copper. 296 Beryl blue. 298 Top white. 292 Rhodium black. 293 Schneider Electric - Division - Name – Date 39

Unica Plus to Basic aesthetics Fashion, design and sophistication, your home will follow your mood Schneider Electric - Division - Name – Date 40

Unica Plus The most trendy designer style Schneider Electric - Division - Name – Date 41

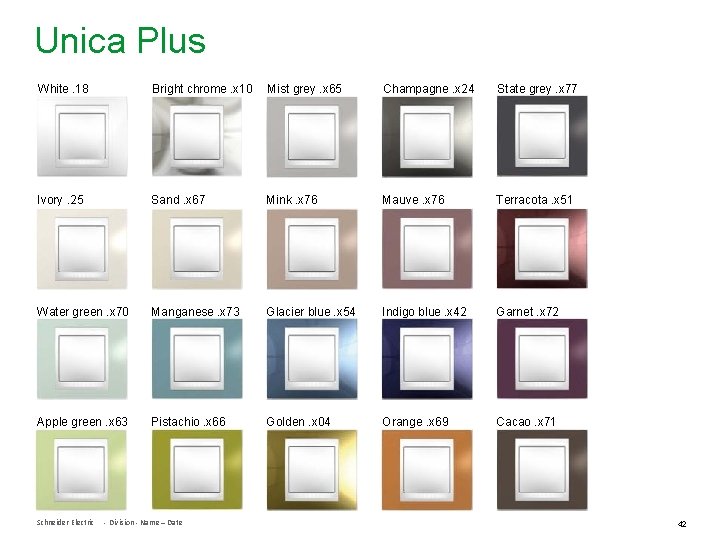

Unica Plus White. 18 Bright chrome. x 10 Mist grey. x 65 Champagne. x 24 State grey. x 77 Ivory. 25 Sand. x 67 Mink. x 76 Mauve. x 76 Terracota. x 51 Water green. x 70 Manganese. x 73 Glacier blue. x 54 Indigo blue. x 42 Garnet. x 72 Apple green. x 63 Pistachio. x 66 Golden. x 04 Orange. x 69 Cacao. x 71 Schneider Electric - Division - Name – Date 42

Unica Quadro For a modern and sweet life Schneider Electric - Division - Name – Date 43

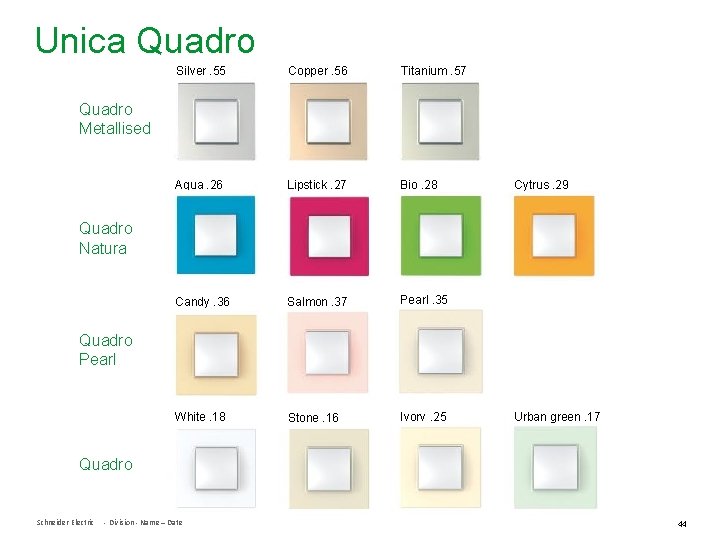

Unica Quadro Silver. 55 Copper. 56 Titanium. 57 Aqua. 26 Lipstick. 27 Bio. 28 Candy. 36 Salmon. 37 Pearl. 35 White. 18 Stone. 16 Ivory. 25 Quadro Metallised Cytrus. 29 Quadro Natura Quadro Pearl Urban green. 17 Quadro Schneider Electric - Division - Name – Date 44

Unica Allegro The intense elegance of colours Schneider Electric - Division - Name – Date 45

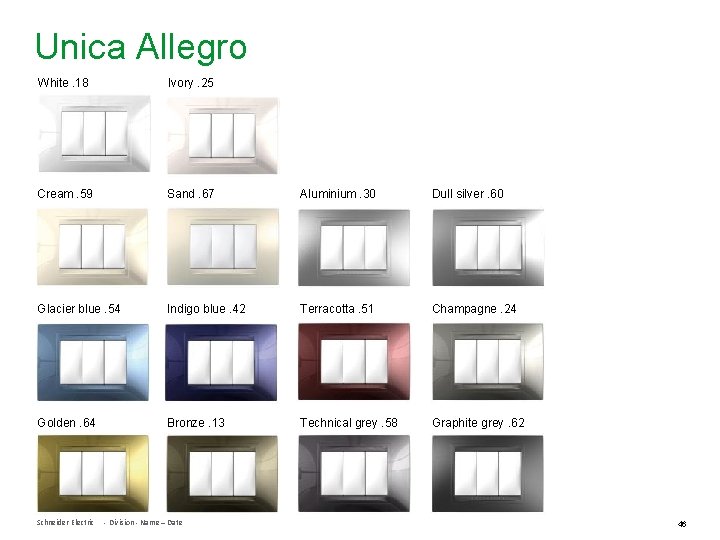

Unica Allegro White. 18 Ivory. 25 Cream. 59 Sand. 67 Aluminium. 30 Dull silver. 60 Glacier blue. 54 Indigo blue. 42 Terracotta. 51 Champagne. 24 Golden. 64 Bronze. 13 Technical grey. 58 Graphite grey. 62 Schneider Electric - Division - Name – Date 46

Unica Colors A rainbow for your home Schneider Electric - Division - Name – Date 47

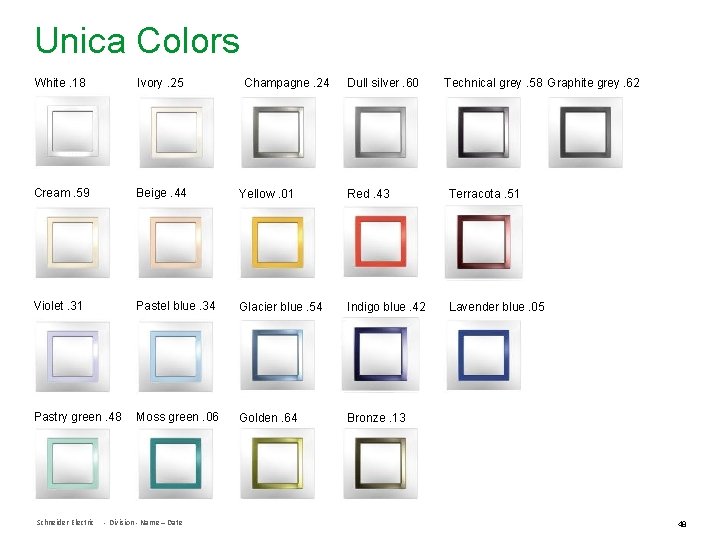

Unica Colors White. 18 Ivory. 25 Cream. 59 Beige. 44 Yellow. 01 Red. 43 Terracota. 51 Violet. 31 Pastel blue. 34 Glacier blue. 54 Indigo blue. 42 Lavender blue. 05 Pastry green. 48 Moss green. 06 Golden. 64 Bronze. 13 Schneider Electric - Division - Name – Date Champagne. 24 Dull silver. 60 Technical grey. 58 Graphite grey. 62 48

Unica Basic Soberness and discretion Schneider Electric - Division - Name – Date 49

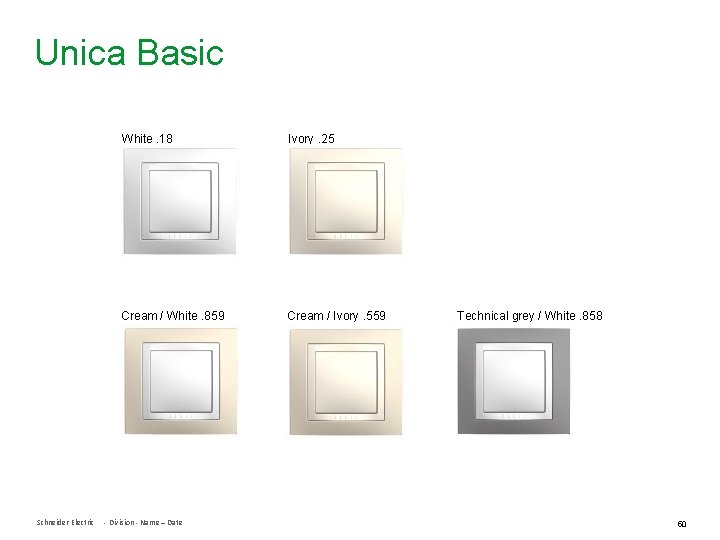

Unica Basic Schneider Electric White. 18 Ivory. 25 Cream / White. 859 Cream / Ivory. 559 - Division - Name – Date Technical grey / White. 858 50

Thank you for your attention Schneider Electric - Division - Name – Date 51
