UNI EN ISO 9001 CERT. N. 9105. CAEN Part 1: New CAEN Power Supply CERN, 03 July 2003 COSTRUZIONI APPARECCHIATURE ELETTRONICHE NUCLEARI Via Vetraia, 11 - I 55049 VIAREGGIO (Italy) URL: http: //www. caen. it Tel. +39 0584 388398 - Fax +39 0584 388959 03 July 2003 CAEN New Products 1
Summary • SY 1527 Family Overview • EASY 3000/4000: a solution for “hostile” area 03 July 2003 CAEN New Products 2
SYx 527 Family • Three different size for different requirements SY 3527 : 2 slots SY 1527 : 16 slots SY 2527 : 6 slots 03 July 2003 CAEN New Products 3
SY 1527/SY 2527 • Fast and accurate setting-monitoring of channel parameters • Sophisticated channels trip handling • External signal synchronisation • OPC Server for easy DCS interfacing • Officially chosen by: – CMS E-CAL for the HV PS – CMS Muon Drift Tubes for the HV PS 03 July 2003 CAEN New Products 4
SY 1527/SY 2527 Connectivity HV+Control Detector HV Distr. LV Distr. Custom Device HV/LV Out 03 July 2003 CAEN New Products 5
CAEN OPC Server Milestones (more than 5 years of CAEN R&D) 200 Downloads from CAEN web site (25% by CERN) CAEN delivers the 1° SY 1527 to CERN CAEN and IT/CO start the collaboration Presentation of the CAEN OPC Server rel. 2. 0 new features Presentation of the CAEN OPC Server project to the JCOP Meeting Integration of SY 1527 into the JCOP Framework OPC Server rel. 1. 0 (SY 1527 via TCP/IP) Mar 99 Oct 99 03 July 2003 May 00 Sep 00 Nov 00 Permanent Test Bench (CAEN PS + OPC) at IT/CO Labs Sep 01 Jan 02 CAEN New Products Today 7
SY 1527 - SY 2527 - SY 3527 power supply boards 03 July 2003 CAEN New Products 8
Channels “zoo” • HV and LV are used on different detectors /FE Electr. • Many grounding schemes are used • Floating channel: allows to minimize ground loop problems • Channel return & chassis ground: various levels of insulation available. • Polarity: may be fixed or reversible • Naming conventions may be misleading Let’s try to make things clear! 03 July 2003 CAEN New Products 9

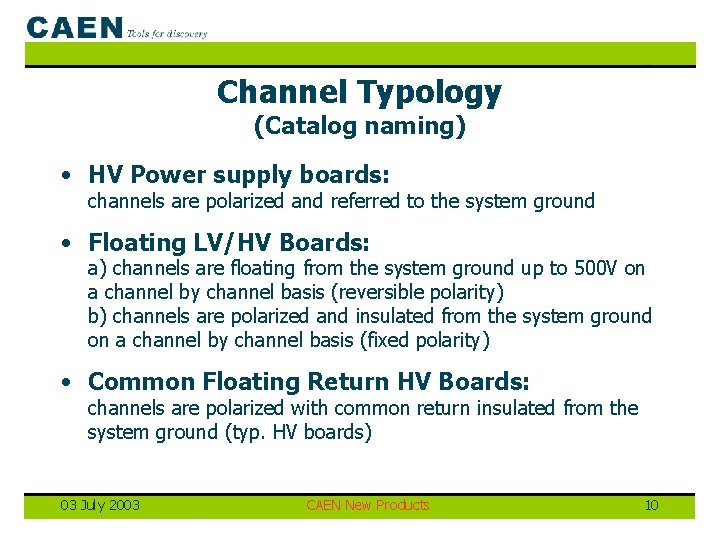

Channel Typology (Catalog naming) • HV Power supply boards: channels are polarized and referred to the system ground • Floating LV/HV Boards: a) channels are floating from the system ground up to 500 V on a channel by channel basis (reversible polarity) b) channels are polarized and insulated from the system ground on a channel by channel basis (fixed polarity) • Common Floating Return HV Boards: channels are polarized with common return insulated from the system ground (typ. HV boards) 03 July 2003 CAEN New Products 10
HV Power supply boards (1) • Channels are polarized and referred to the system ground 03 July 2003 CAEN New Products 11
HV Power supply boards (2) • A 173 x/B P/N Family: 12/28 Ch. HV boards with 100~500 n. A current resolution (used for PMTs) • A 183 x/B P/N Family: 12/28 Ch. HV boards with 100~200 n. A and 20 n. A current resolution (used for wire chambers) • A 1821 P/N: 12 Channels, 3 KV, 200 u. A or 20 u. A positive or negative boards with extremely high (2 n. A) current resolution (used for wire chambers) 03 July 2003 CAEN New Products 12
Floating HV/LV Boards “reversible polarity” • All channels are floating from the system ground up to 500 V (reversible polarity) 03 July 2003 CAEN New Products 13
Floating LV/HV Boards (a) • A 1510 - A 1511 - A 1512 - A 1519: 12 Ch. 100 V to 500 V boards, 1 or 10 m. A full scale current in a single width (used mainly for silicon/pixel detectors bias) • A 1513 A - A 1516 A – A 1517 A – A 1518 A: 6 Ch. Low Voltage floating boards, 15 V to 4. 5 V with currents respectively from 1. 5 A to 6 A: a) with sense wires for line drop recovery b) line drop recovery without the sense wires, only by adjusting a trimmer (used mainly for Front End Electronics supply) • A 1514 A: heterogeneous board, 7 Ch. , 2 x 500 V, 3 x 10 V, 2 x 7 V (used mainly for silicon/pixel detectors bias & FEE supply ) 03 July 2003 CAEN New Products 14
Remote voltage sensing • Remote Sensing Line (SENSE +/-) to compensate for the voltage drop over the cable • Voltage is monitored directly at the load by an high impedance differential amplifier through the sense wires 03 July 2003 CAEN New Products 15
Line Drop Recovery without sense wires • LV boards feature a Line Drop Recovery (LDR) system which can compensate for the voltage drop over the connection cables • Vset is modified according to the Impedance of the cable (Rcable) • If the User wishes to employ the LDR system a short calibration procedure is required (trimmer) • Advantages: no need for sense wires • Disadvantages: less accurate than sense wires, dependent from Rcable variations (e. g. temp. ) 03 July 2003 CAEN New Products 16
Line drop recovery + remote sensing • Use of sense wires over the first cable segment (A, A’) • the remaining loss (voltage drop over rcable) can be compensated with the LDR • Advantages: better Vout accuracy, faster recovery to changes 03 July 2003 CAEN New Products 17
Floating HV/LV Boards “fixed polarity” • channels are polarized and insulated from the system ground on a channel by channel basis (fixed polarity) 03 July 2003 CAEN New Products 18
Floating LV/HV Boards (b) • A 1520 P: 12 Ch. , 500 V, 15 m. A positive board, long term stability (3 months), temp. stability from 15 to 40 °C, with sense wires – floating up to 10 V (used for Avalanche Photodiodes, CMS-ECAL) • A 1533 P/N: 6 Ch. 4 k. V, 3 m. A board with 100 n. A current resolution – floating up to 100 V (used mainly for Silicon Drift Detectors) • A 1534 P/N: 6 Ch. 8 k. V, 200 u. A board with 10 n. A current resolution – floating up to 100 V (used mainly for Resistive Plate Chambers) 03 July 2003 CAEN New Products 19
Common Floating Return HV Boards • all channels share a common floating return, uncoupled from the system/chassis ground 03 July 2003 CAEN New Products 20
Common Floating Return HV Boards • A 1932 A P/N: 48 Channels, 3 k. V, 0. 5 m. A positive or negative distributor board – floating up to 20 V (used for low current PMTs) • A 1526 P/N: 6 Channels, 15 k. V positive or negative board, with 1 m. A or 0. 1 m. A high resolution current full scale – floating up to 10 V (used for Resistive Plate Chambers) 03 July 2003 CAEN New Products 21
SY 1527/SY 2527 Connectivity HV+Control Detector HV Distr. LV Distr. Custom Device HV/LV Out 03 July 2003 CAEN New Products 22
EASY: a new SY 1527 -based Embedded Assembly System (expressed designed for “hostile area”) 03 July 2003 CAEN New Products 23
System Philosophy 03 July 2003 CAEN New Products 24
Background • CAEN’s Power Supplies R&D activities in the last 6 years: – SY 1527/2527 family – OPC Server for the SY 1527/2527 – SASY 2000 for Radiation Tolerant and Magnetic Field solutions tested working devices up to: • 7 k. Gauss • 1*1011 p/cm 2 TD - 15 k. Rad TID • 2*1011 n/cm 2 TD • Result: – existence of a series of building blocks for a new power supply concept 03 July 2003 CAEN New Products 25
Hostile Area Experience Milestones (more than 6 years of CAEN R&D) EASY 3000/4000 First COTS radtolerance tests (ENEA - La Casaccia) SASY 2000 tested in Magnetic field in CERN NIC Non Inductive Converter SASY 2000 tested under Radiation in Louvain la Neuve Tests with p and n in Louvain-la-Neuve of A 877 ( CMS Muon Chambers ) Start of Special material research Feb ‘ 97 Mar ‘ 98 03 July 2003 May ‘ 99 Apr 00 SASY 2000 functional prototype New design (Patent Pending) for a family of High and Low voltage DC/DC converters Nov 01 May 02 CAEN New Products Aug 02 Sept 02 Today 26
Why EASY ? • The LHC experiments need common solutions: – Reduce R&D costs (Hardware & Software) – Reduce Hardware/Software proliferation – Reduce Maintenance costs • CAEN proposes a “catalog” approach with a limited set of modules 03 July 2003 CAEN New Products 27
EASY Main Features • Full integration in SY 1527/SY 2527 (it appears as a single SY 1527 board) • 48 V DC input • 3 k. W Maximum Output Power • Magnetic field capability: 2 k. Gauss • Expected rad. tol. : 5*1010 p/cm 2 TD 2*1011 n/cm 2 TD 15 k. Rad TID 03 July 2003 CAEN New Products 28
EASY 3000/EASY 4000 03 July 2003 EASY 3000 Rack Mount Standalone Radiation & Magnetic Field EASY 4000 CAEN New Products 29
EASY Modules 03 July 2003 CAEN New Products 30
EASY Architecture EASY DCS + EASY • CAN Bus based link • Ad-hoc protocol • Speed and reliability • No interoperability issues • Can work in hostile area 03 July 2003 CAEN New Products EASY 31
03 July 2003 Channel 04 Channel 05 Channel 06 Channel 07 Channel 08 Channel 09 Channel 10 Channel 11 Channel 12 Channel 13 Channel 14 Channel 15 Channel 16 Channel 17 CAEN New Products EASY 3000 Channel 01 Channel 02 … Board 01 - Channel 000 Board 01 - Channel 001 Board 01 - Channel 002 Board 01 - Channel 003 Board 01 - Channel 004 Board 01 - Channel 005 Board 01 - Channel 006 Board 01 - Channel 007 Board 01 - Channel 008 Board 01 - Channel 009 Board 01 - Channel 010 Board 01 - Channel 011 Board 01 - Channel 012 Board 01 - Channel 013 Board 01 - Channel 014 Board 01 - Channel 015 Board 01 - Channel 016 Board 01 - Channel 017 … EASY 3000 EASY Channels Representation 32
SY 1527 (rear view) DB 09 1 GND 2 GND 3 GND 4 GND 5 GND 03 July 2003 Branch Controller CAEN New Products 33
SY 2527 (rear view) Branch Controller 03 July 2003 CAEN New Products 34
UNI EN ISO 9001 CERT. N. 9105. CAEN Part 2: New Front End Electronics CERN, 3 July 2003 COSTRUZIONI APPARECCHIATURE ELETTRONICHE NUCLEARI Via Vetraia, 11 - I 55049 VIAREGGIO (Italy) URL: http: //www. caen. it Tel. +39 0584 388398 - Fax +39 0584 388959 03 July 2003 CAEN New Products 35
New CAEN Modules MODEL • • • V 1190 / V 1290 V 965 V 976 V 925 V 977 N 638 N 979 N 1145 V 1718 Vxxx 03 July 2003 AVAILABILITY Multi-Hit TDC 14 bit DR QDC Logic Unit 4 linear Fan. In Fan. Out 16 Channel I/O Register ECL-NIM-ECL Translator 16 Ch. Fast Amplifier Quad Scaler and … VME-USB 2. 0 Bridge ADC 12/14 bit 200 MHz CAEN New Products 4 Q 3 Q 1 Q 4 Q 4 Q 4 Q 1 Q 2 Q 2003 2003 2004 36
V 1190 - V 1290 a New Family of Multi-Hit TDC (based on the CERN HPTDC chip) 03 July 2003 CAEN New Products 37
TDC Milestones the prototype V 890 is ready prototypes of V 1190 -V 1290 available for test debug of V 890 and HPTDC rev. 1. 1 debug and test of V 1190 -V 1290 with HPTDC rev. 1. 3 measurements and performances verify design of the new family V 1190 -V 1290 starts IV Q 2001 I &II Q 2002 03 July 2003 III Q 2002 start of the final production IV Q 2002 New boards ready II Q 2003 ^ Today CAEN New Products III Q 2003 IV Q 2003 38
General description • Based on the CERN HPTDC chip • VME 6 U modules for physics applications • 128 channels 800/200/100 ps LSB • 32 channels 25 ps LSB • Automatic INL compensation • It can house a custom data processing unit 03 July 2003 CAEN New Products 39
VME Interface • VME 64 x compliant • Readout: D 32, BLT, MBLT, CBLT 32/64, up to ~40 MB/s • Event building oriented readout • 2 e. VME or 2 e. SST coming (~100 MB/s expected) • Firmware upgrade via VME 03 July 2003 CAEN New Products 40
INL Compensation • The INL compensation allows to reach an RMS noise of about 27 ps • Data read from the TDCs are corrected at 40 MHz by means of a Look-Up Table • The compensation is automatic, dead-time free and transparent to the user 03 July 2003 CAEN New Products 41
The Family 03 July 2003 CAEN New Products 42
V 965 - 14 bit Dual Range QDC • • 25 f. C LSB (Dual Range) 12 bit ADC with sliding scale ! 14 bit Dynamic Range y d ea R 16 inputs (Coaxial cable) 5. 7 µs / 16 ch conversion time 600 ns fast clear time Zero and overflow suppression BLT 32/MBLT 64/CBLT 32/CBLT 64 data transfer • Multicast commands 03 July 2003 CAEN New Products 43
V 976 Logic Unit • • • 03 July 2003 4 independent 4 channel sections NIM/TTL inputs/outputs 150/200 MHz operating frequency ~10 ns in-out delay y! d 2, 3, 4 in / 4 out AND, OR a Re 8, 16 in / 8, 16 out Majority 16 channel TTL-NIM-TTL translator Logic Fan In - Fan Out Selectable Q or /Q outputs CAEN New Products 44
V 925 Quad Linear Fan In-Fan Out l 3+1 sections, 3 x 4 in/4 out + 1 x 3 in/3 out l 1 channel discriminator l 1. 5 V input range l 150 MHz analog bandwidth ! y d Rea l Fixed gain = 1 l Bipolar 50 DC coupled analog input l Zero adjust l Outputs can drive 50 03 July 2003 CAEN New Products 45
V 977 - 16 Channel I/O Register • • le b a l i Ava in ! s h ont M 6 Status A functionality Multi-hit pattern unit Accepts and produces NIM and TTL levels Individual channel enabling/disabling Software Input/Output generation Fully programmable RORA Interrupter Pushbutton TEST signal 03 July 2003 CAEN New Products 46
N 638 - 16 CH NIM-ECL-NIM TRASLATOR • 16 independent NIM to ECL/NIM and ECL to NIM/ECL channels • NIM fan-out of 2 • 300 MHz max operating frequency • COMMON IN input with a fan-out of 16 NIM and 8 ECL • I/O delay from 2. 5 to 4 ns, according to input type 03 July 2003 CAEN New Products y! d a Re 47
N 979 - 16 Channel Fast Amplifier • • 03 July 2003 x 10 Fixed Gain 250 MHz bandwidth 50 Ohm input impedance (<5% reflect. ) ± 2 V dynamic range Drives 50 Ohm loads Cascadeable channels y! d <1 ns rise time a Re <3 ns I/O delay CAEN New Products 48
N 1145 - Quad Scaler and Preset Counter-Timer y! d a Re • • • Up to 200 MHz counting rate NIM and TTL inputs 8 -digit LED displays per section four 8 digit up-counters one 7 digit down-counter/timer Up to three sections can be cascaded for 24 -digit counting • Individual GATE and RESET per counter • Manual or pulse triggered RESET 03 July 2003 CAEN New Products 49
V 1718 VME-USB 2. 0 Bridge • • USB 2. 0 High Speed Bulk Transaction protocol VME 64 x compliant 20/30 Mbyte/s transfert rate ss! e r rog 128 Kbyte memory buffer P In Windows, Linux and Lab. View drivers Front panel Dataway display 8 USB programmable NIM/TTL I/Os or VME signals monitor • Optional Plug-in interface cards (Firewire, Optical, etc. ) 03 July 2003 CAEN New Products 50
Vxxx – 8 ch. Sampling ADC • • • 8 inputs 12/14 bit resolution 200 MHz maximum frequency Single ended or differential input signals External or internal clock le b a l i a v A in ! r a e Y 1 03 July 2003 CAEN New Products 51
