INTRODUCTION ▫ Sunlight cannot penetrate deeper than 1000 m ▫ Deeper parts still not well explored ▫ Far-ranging applications - Deep sea exploration - Underwater structure inspection - Identification of marine life - Monitoring the sea bed, etc. ▫ Clearer images are required 3

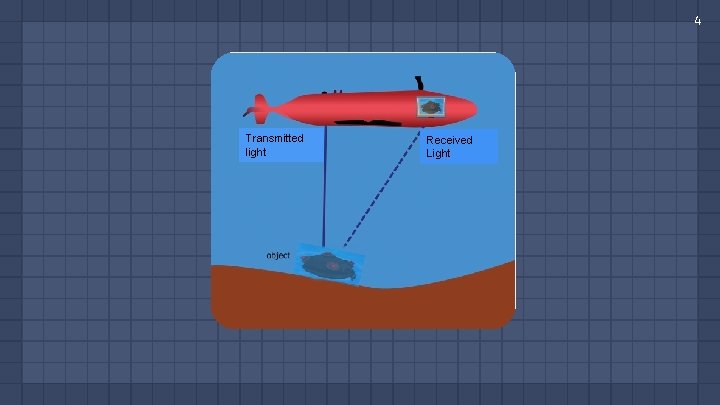

4 Transmitted light Received Light

ASSOCIATED PROBLEMS

6 PROBLEMS ▫ Reflection ▫ Absorption § Light bounces off the particles Visible light spectrum ▫ §Scattering suspended in water § -Which color. Scattering penetrates Forward §more? Contrast is reduced - Blurring, contrast § Wavelength vs Energy reduction § -Color Loss, Darker Images Backward Scattering - Bright spots in the image

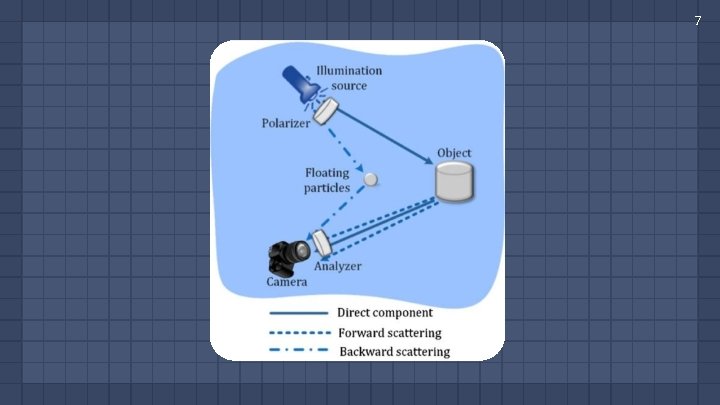

7

8 SOLUTIONS

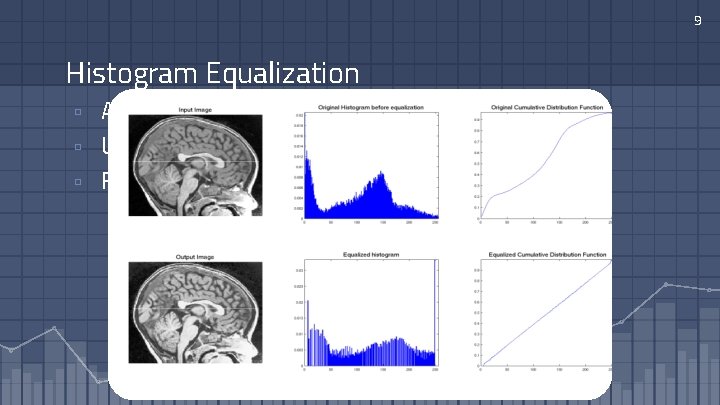

9 Histogram Equalization ▫ Adjusting intensities to enhance contrast ▫ Usually results in sharper images ▫ Features in an image are enhanced

10 UNSHARP MASKING ▫ Image manipulation technique ▫ ‘Edges’ are highlighted ▫ Results in sharper images ▫ Backscatter is removed

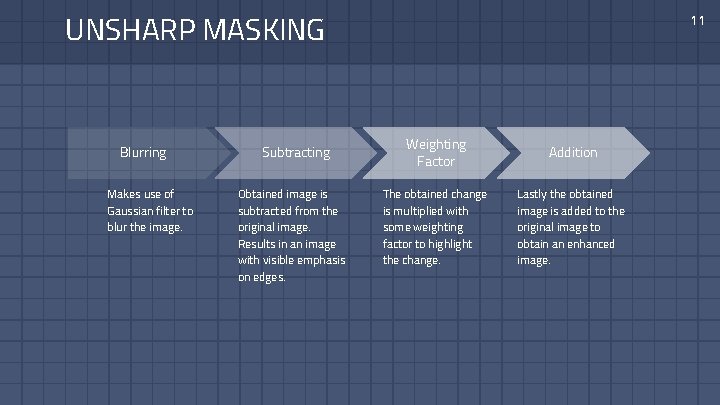

UNSHARP MASKING Blurring Makes use of Gaussian filter to blur the image. Subtracting Obtained image is subtracted from the original image. Results in an image with visible emphasis on edges. 11 Weighting Factor Addition The obtained change is multiplied with some weighting factor to highlight the change. Lastly the obtained image is added to the original image to obtain an enhanced image.

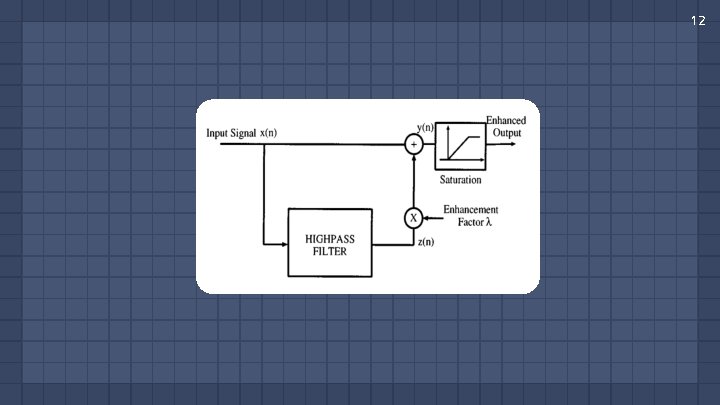

12

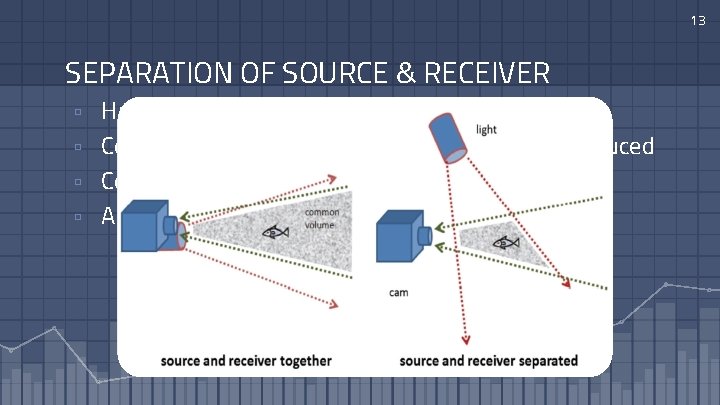

13 SEPARATION OF SOURCE & RECEIVER ▫ ▫ Hardware implemented Common volume between source and receiver reduced Contrast of image reduced Attenuation length increased
