Understanding the Finite-Difference Time-Domain Method 5. 5 Real Signals and DFT ~ 5. 7 Conductivity 전자파연구실 1

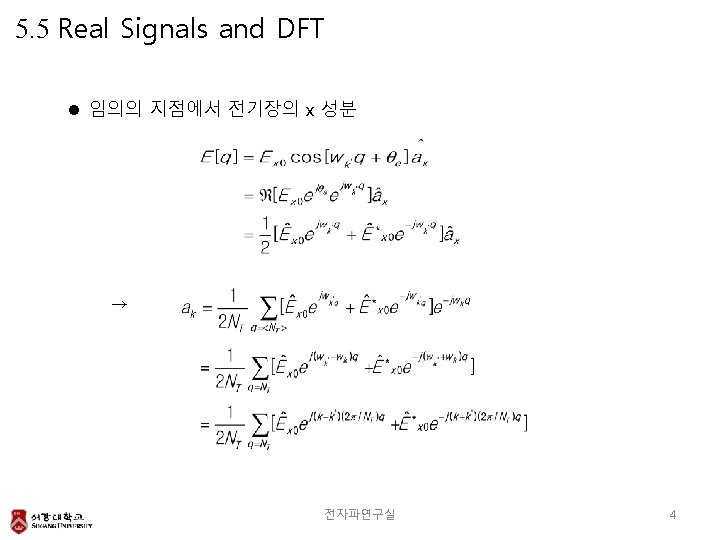

5. 5 Real Signals and DFT l 대부분의 FDTD 시뮬레이션에서는 real signal이 중요 → spectral index k에 대해, spectral coefficient l Index 전자파연구실 2
5. 5 Real Signals and DFT 전자파연구실 3
5. 5 Real Signals and DFT l l → → 전자파연구실 5
5. 5 Real Signals and DFT 전자파연구실 6

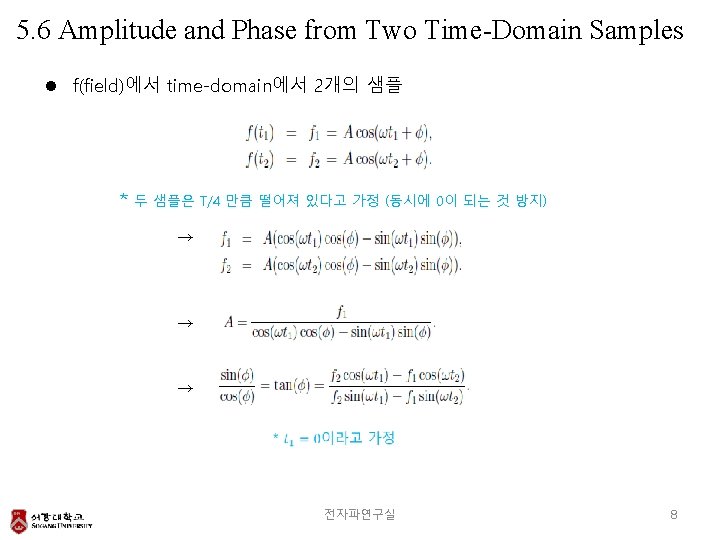

5. 6 Amplitude and Phase from Two Time-Domain Samples l FDTD 시뮬레이션은 quasi-harmonic way로 사용되기도 함 (source is turned on, ramped up and run continuously in a harmonic way until the simulation is terminated. ) → 넓은 스펙트럼을 얻기는 힘들지만, 하나의 주파수만 관찰하거나 highly inhomogeneous media가 있을 때는 유용 l Quasi-harmonic simulation에서, steady state에 도달하면 시뮬레이 션 종료 → field의 진폭과 위상을 알아야 함 → time-domain field에서 2개의 샘플 지점으로부터 구할 수 있음 l Field at some point(x, y, z) 전자파연구실 7
5. 6 Amplitude and Phase from Two Time-Domain Samples 전자파연구실 9
