Understanding Sedona 1 2 Components from Tridium Components
- Slides: 54
Understanding Sedona 1. 2 Components from Tridium
Components on Wiresheets Create Applications With Sedona release 1. 2. 28, Tridium added, modified and reorganized their components and kits Contemporary Controls re-distributes these Tridium kits without modification and therefore they can be used on all Contemporary Controls’ Sedona products Custom components and kits are not addressed in this presentation 2
Components are Found in the Following Tridium Kits basic. Schedule datetime. STD func hvac logic math pricomp timing types In previous releases, Tridium put all components in the Control kit. Now they are sorted by function. Components discussed in this presentation can be found in one of these kits. 3
Variable Types 4
Configuring Constants 5
Using Write Components 6
Converting Between Component Types 7
Float-to-Boolean and Boolean-to-Float Conversion 8
Float-to-Boolean and Boolean-to-Float Conversion 9
Negating a Boolean Variable — Inverting Your Logic 10
Boolean Product — “ANDing” Boolean Variables 11
Boolean Sum — “ORing” Boolean Variables 12
Exclusive OR — A OR B but Not Both 13
Cascading Logic Blocks and Unused Inputs 14
Cascading Logic Blocks and Unused Inputs 15
Cascading Logic Blocks and Unused Inputs 16
Boolean, Float or Integer Selection 17
Boolean, Float or Integer Selection 18
Boolean, Float or Integer Selection 19
Boolean, Float or Integer Selection 20
De-Multiplexing 21

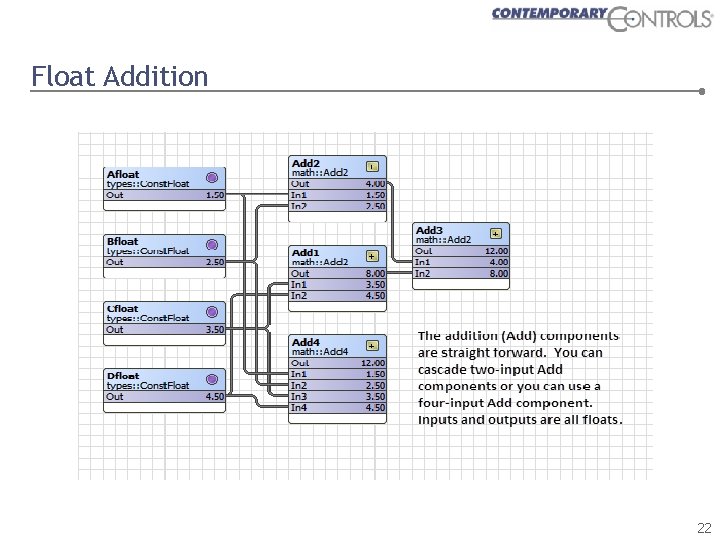

Float Addition 22
Float Subtraction 23

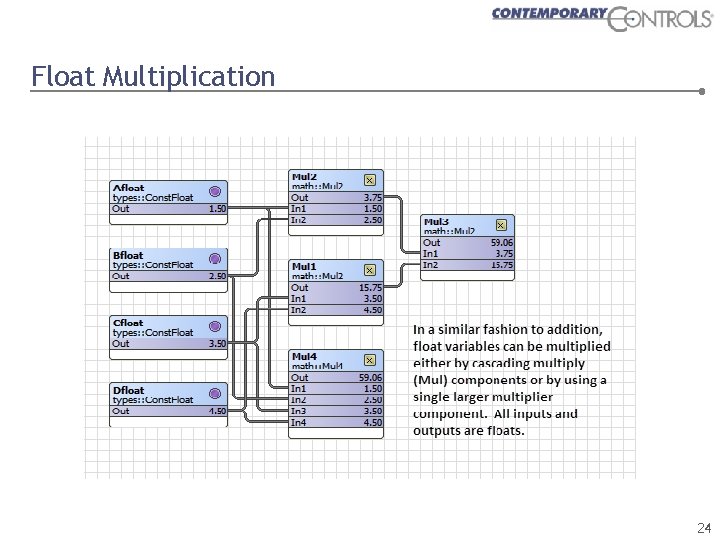

Float Multiplication 24

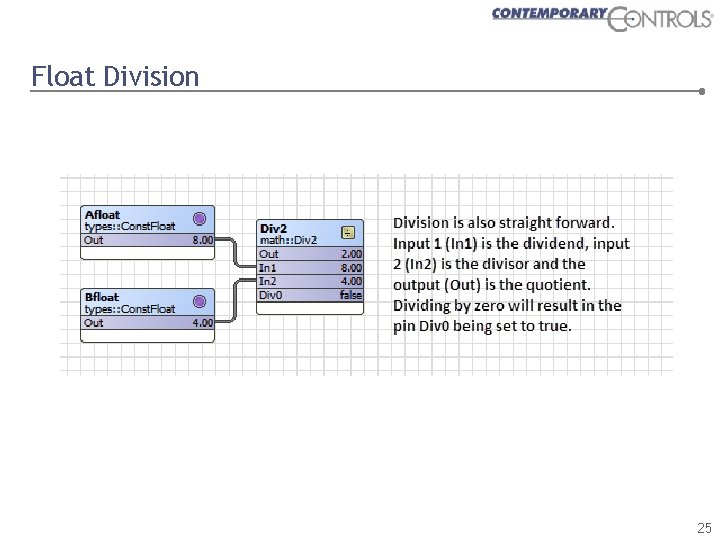

Float Division 25
Finding Minimums and Maximums 26
Rounding Off Floats 27
Averaging Successive Readings 28

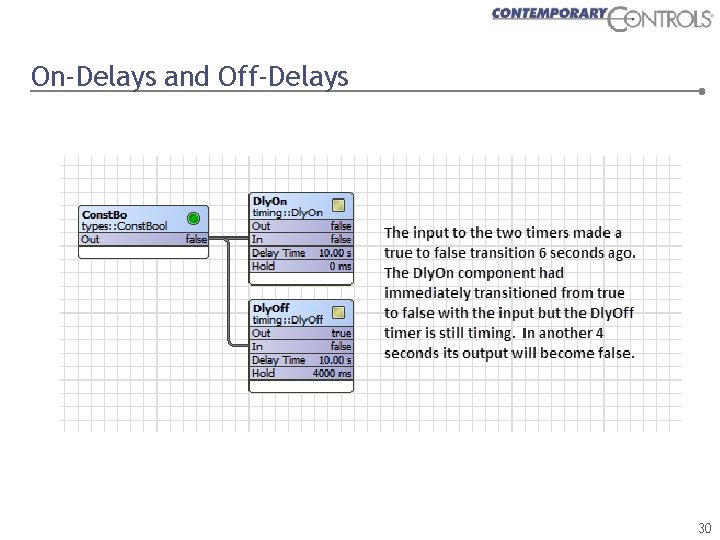

On-Delays and Off-Delays 29
On-Delays and Off-Delays 30
Using the Timer 31
Using One-Shots — Mono-Stable Multivibrators 32

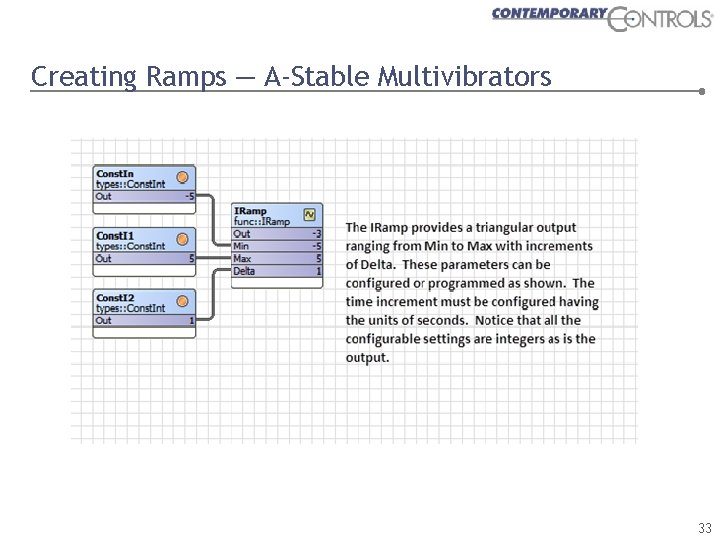

Creating Ramps — A-Stable Multivibrators 33
Creating Ramps — A-Stable Multivibrators 34
Comparing Two Floats 35
A Simple Clock — the Tick Toc 36
Introducing Counters 37
Operating on Real-World Signals — Hysteresis and Limiting 38
Handling Non-Linear Signals 39
Handling Non-Linear Signals 40

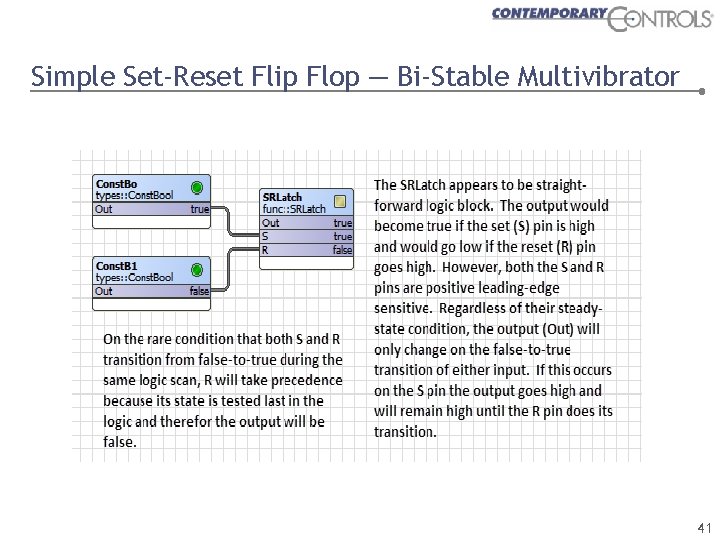

Simple Set-Reset Flip Flop — Bi-Stable Multivibrator 41
The Loop Component — Basic Analog Controller 42
The Loop Component — Basic PID Controller 43
Linear Sequencer — Bar-Graph Representation of a Float 44
Linear Sequencer — Bar-Graph Representation of a Float 45
Reheat Sequencer — Four Staged Outputs from a Float Input 46
Reheat Sequencer — Four Staged Outputs from a Float Input 47
Reset — Scaling a Float Input Between Two Limits 48
Tstat — Basic On/Off Temperature Controller 49
Real-Time Clock and Scheduling 50
Real-Time Clock and Scheduling 51
Priority Arrays 52

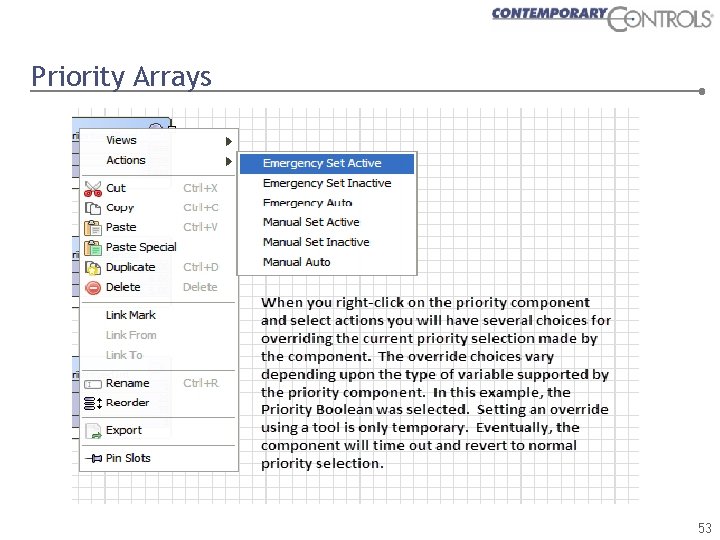

Priority Arrays 53
