Understanding Objects and Classes Barb Ericson ericsoncc gatech
Understanding Objects and Classes Barb Ericson ericson@cc. gatech. edu Jan 2005 Georgia Institute of Technology

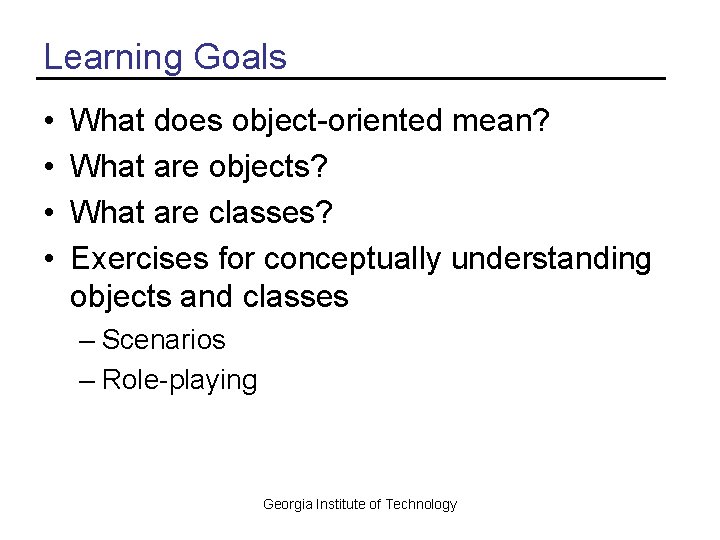

Learning Goals • • What does object-oriented mean? What are objects? What are classes? Exercises for conceptually understanding objects and classes – Scenarios – Role-playing Georgia Institute of Technology
What is Object-Oriented? • This means that we focus on the objects not just the procedures – – Focus on who (what objects? ) as well as what (what do the objects do? ) Georgia Institute of Technology
What is an Object? • A person, place, or thing – That knows something about itself • Has data (attributes, fields) • A cashier has a id, name, and a password – And can do something • Has operations (methods) • A cashier can total the items, take payment, make change Georgia Institute of Technology
What is a Class? • The type of an object – The way we classify an object • “The Idiot” by Dostoevsky is a book • “War and Peace” by Tolstoy is a book • Mary is a cashier • Tasha is a cashier • Grouping of objects with the same data and operations Georgia Institute of Technology
Class: Example • Mary is a cashier • Tasha is a cashier • Cashier is a class – All cashiers have an id, name and password • Each will have a different id, name, and password – All cashiers can total an order, take payment, make change Georgia Institute of Technology
Object Data • Each object has its own data – Tasha’s id is 4 and password is mhall – Mary’s id is 3 and password is smile 4 • All cashier objects have an id, name, and password • Changing Mary’s data won’t affect Tasha’s data Georgia Institute of Technology

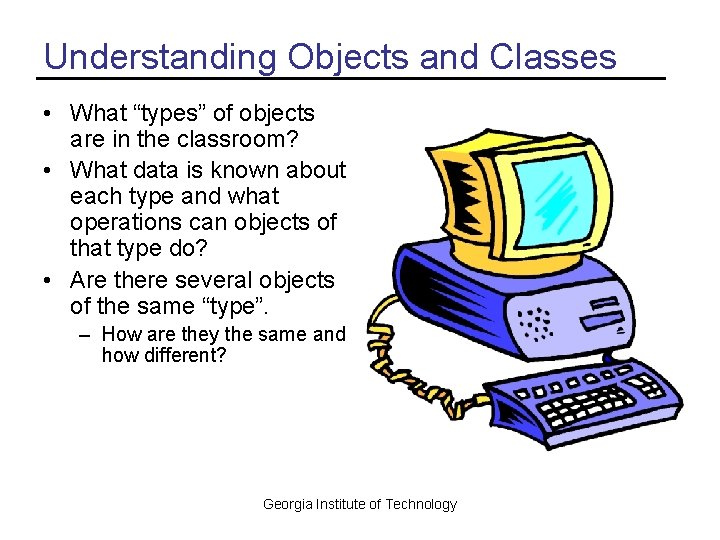

Understanding Objects and Classes • What “types” of objects are in the classroom? • What data is known about each type and what operations can objects of that type do? • Are there several objects of the same “type”. – How are they the same and how different? Georgia Institute of Technology
Simulation • Object-oriented development means creating a simulation of the problem – We need to know the objects in the problem • So we can create software objects to represent them Georgia Institute of Technology
Classes Define the Objects • The computer doesn’t know what we mean by a car or cashier • We define the class Cashier so that the computer will understand what a cashier or bank account “is” and what it can “do” – In the context of the problem we are trying to solve • Then the computer can create objects to do the simulation Georgia Institute of Technology
Classes Create Objects • The class can be thought of as a recipe, blueprint, or factory • Many objects can be created from one class • Objects keep track of the class that created them – I am an object (instance) of the Cookie class Georgia Institute of Technology
Software Objects are Models • The objects we create in software models of the physical object – We can’t stick a person in our software – We can create a model of the person with the information we need to know for that person for our task Georgia Institute of Technology Cashier id name password

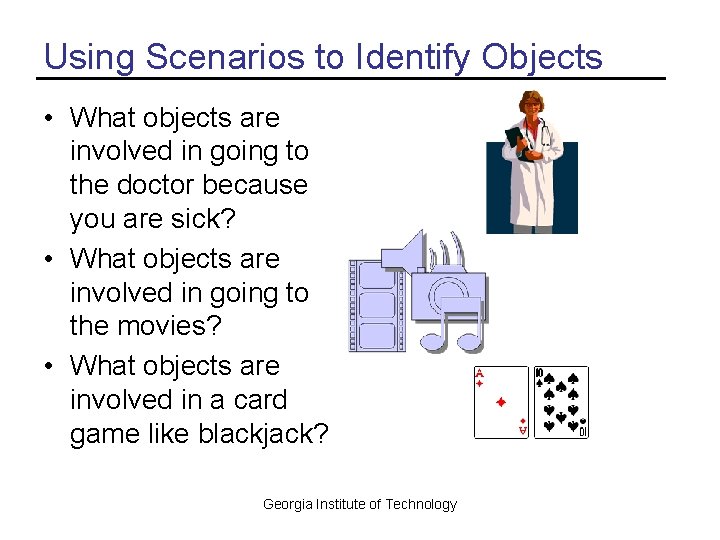

Using Scenarios to Identify Objects • What objects are involved in going to the doctor because you are sick? • What objects are involved in going to the movies? • What objects are involved in a card game like blackjack? Georgia Institute of Technology
Objects have Responsibilities • An object-oriented design – Determines the tasks to be done – Determines what objects will be responsible for each task • No one object does everything • Objects work together to accomplish tasks – The assignment of responsibilities is the key skill in object-oriented design Georgia Institute of Technology
Identifying Classes • What type of thing was each thing in the scenario? How would you classify it? – Patient, Doctor, Nurse, Insurance … – Movie, Ticket Seller, Ticket Taker, Ticket, Popcorn, Drink … – Card, Deck, Player, Suit … • How many objects of that types were in each scenario? – What data did each object have associated with it? What could it do? Georgia Institute of Technology
Learning about Objects and Classes • Walk through scenarios • Do role-playing • Underline nouns in scenarios to identify the objects and classes • Create CRC cards • Draw UML diagrams • Write methods and classes • Specialize a parent class • Use a debugger to step through execution Georgia Institute of Technology
Role Playing Exercises • Page at http: //web. sbu. edu/cs/dlevine/Role. Play/rol eplay. html has links to exercises • Powerpoint slides you can hand out developed by Joseph Bergin of Pace University – First. Day. Role. Play-Bergin. ppt Georgia Institute of Technology
Summary • Object-oriented programs are simulations – Objects simulate the “real world” and interact to accomplish a task – Classes define the data all objects will have and what things they can do • Ways to start understanding Objects and Classes – Scenarios – Role-Playing Georgia Institute of Technology
