Understanding Linux Kernel Booting Syscalls Interrupts Context Switching

Understanding Linux Kernel - Booting, Syscalls, Interrupts & Context Switching By – Jayant Upadhyay 2003 CS 50214 Pankaj K. Sharma 2003 CS 50219 Sohit Bansal 2003 CS 50224 Akshay Gaur 2003 CS 50209

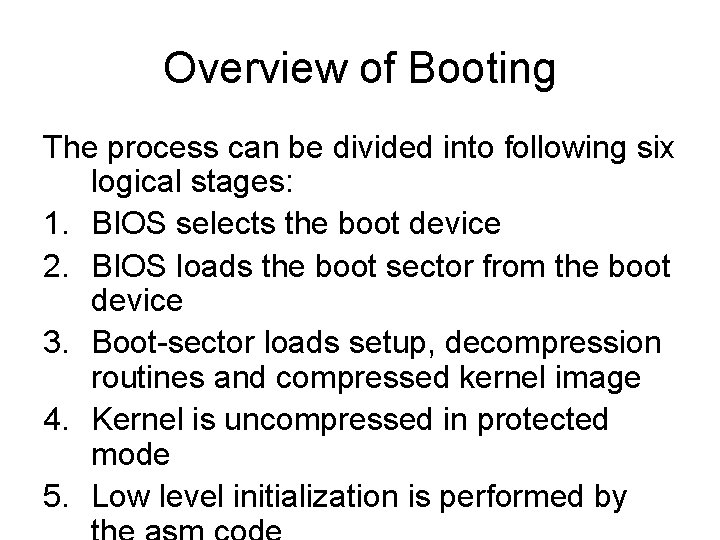

Overview of Booting The process can be divided into following six logical stages: 1. BIOS selects the boot device 2. BIOS loads the boot sector from the boot device 3. Boot-sector loads setup, decompression routines and compressed kernel image 4. Kernel is uncompressed in protected mode 5. Low level initialization is performed by

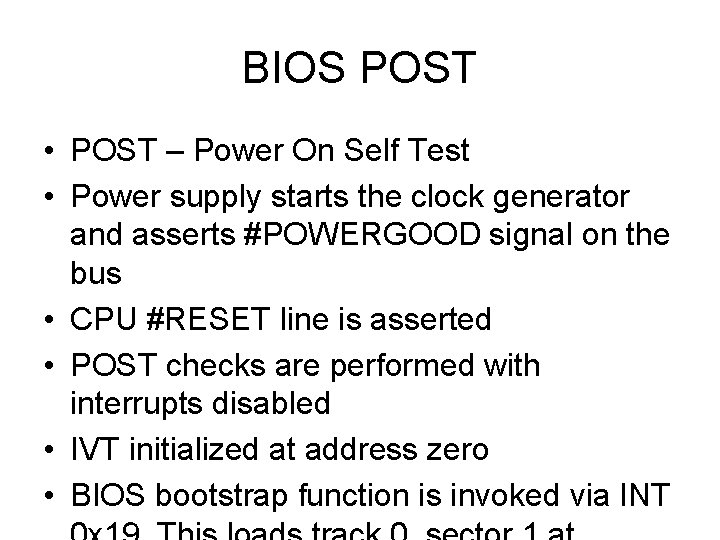

BIOS POST • POST – Power On Self Test • Power supply starts the clock generator and asserts #POWERGOOD signal on the bus • CPU #RESET line is asserted • POST checks are performed with interrupts disabled • IVT initialized at address zero • BIOS bootstrap function is invoked via INT

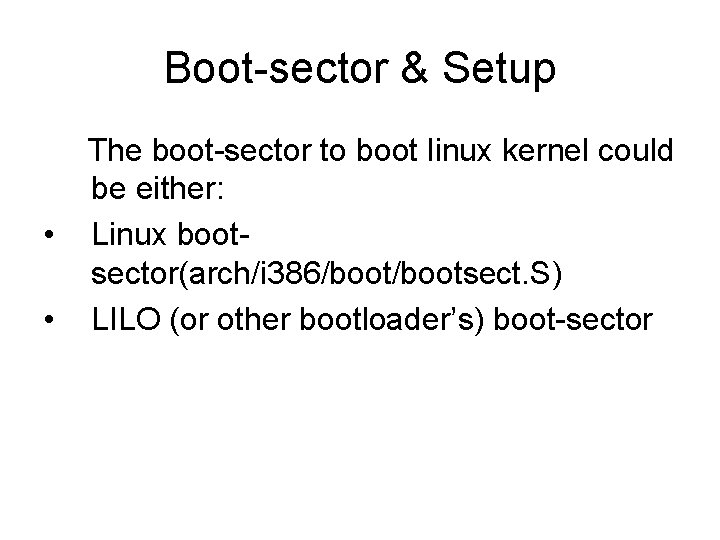

Boot-sector & Setup • • The boot-sector to boot linux kernel could be either: Linux bootsector(arch/i 386/bootsect. S) LILO (or other bootloader’s) boot-sector

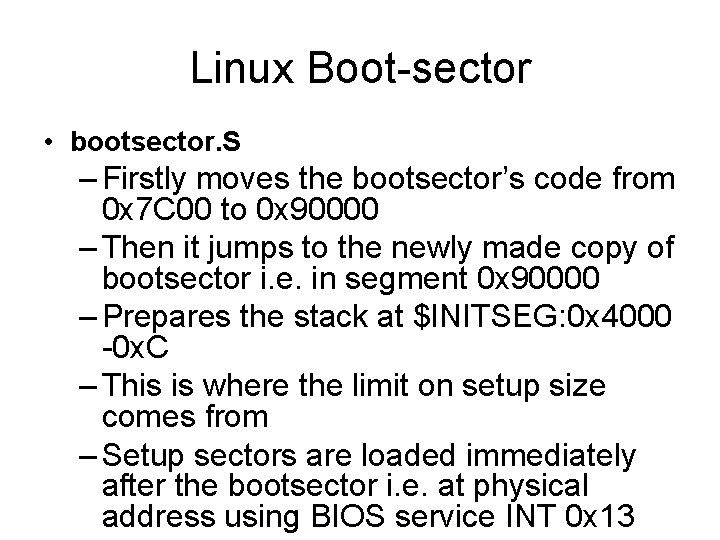

Linux Boot-sector • bootsector. S – Firstly moves the bootsector’s code from 0 x 7 C 00 to 0 x 90000 – Then it jumps to the newly made copy of bootsector i. e. in segment 0 x 90000 – Prepares the stack at $INITSEG: 0 x 4000 -0 x. C – This is where the limit on setup size comes from – Setup sectors are loaded immediately after the bootsector i. e. at physical address using BIOS service INT 0 x 13

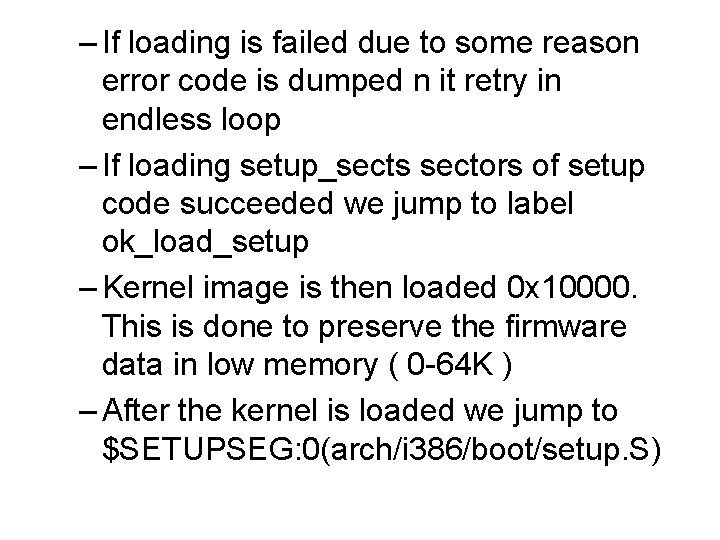

– If loading is failed due to some reason error code is dumped n it retry in endless loop – If loading setup_sects sectors of setup code succeeded we jump to label ok_load_setup – Kernel image is then loaded 0 x 10000. This is done to preserve the firmware data in low memory ( 0 -64 K ) – After the kernel is loaded we jump to $SETUPSEG: 0(arch/i 386/boot/setup. S)

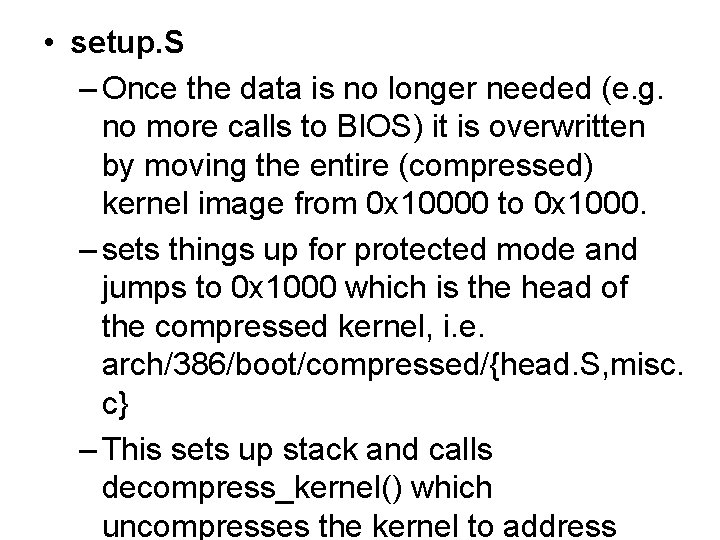

• setup. S – Once the data is no longer needed (e. g. no more calls to BIOS) it is overwritten by moving the entire (compressed) kernel image from 0 x 10000 to 0 x 1000. – sets things up for protected mode and jumps to 0 x 1000 which is the head of the compressed kernel, i. e. arch/386/boot/compressed/{head. S, misc. c} – This sets up stack and calls decompress_kernel() which uncompresses the kernel to address

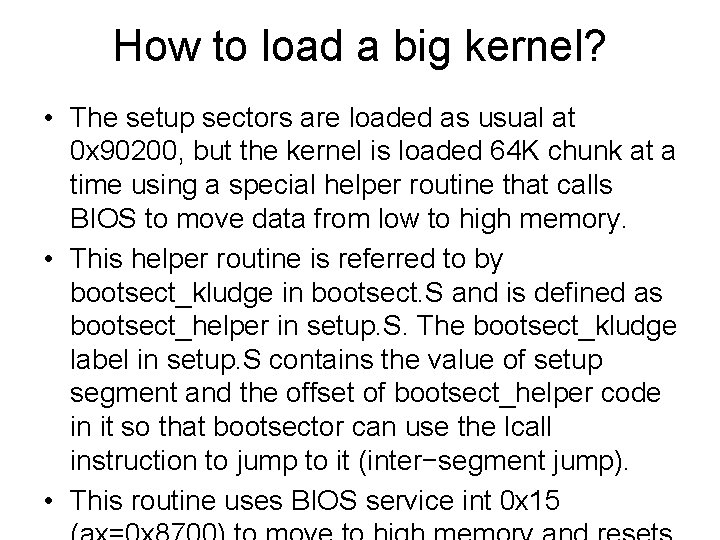

How to load a big kernel? • The setup sectors are loaded as usual at 0 x 90200, but the kernel is loaded 64 K chunk at a time using a special helper routine that calls BIOS to move data from low to high memory. • This helper routine is referred to by bootsect_kludge in bootsect. S and is defined as bootsect_helper in setup. S. The bootsect_kludge label in setup. S contains the value of setup segment and the offset of bootsect_helper code in it so that bootsector can use the lcall instruction to jump to it (inter−segment jump). • This routine uses BIOS service int 0 x 15

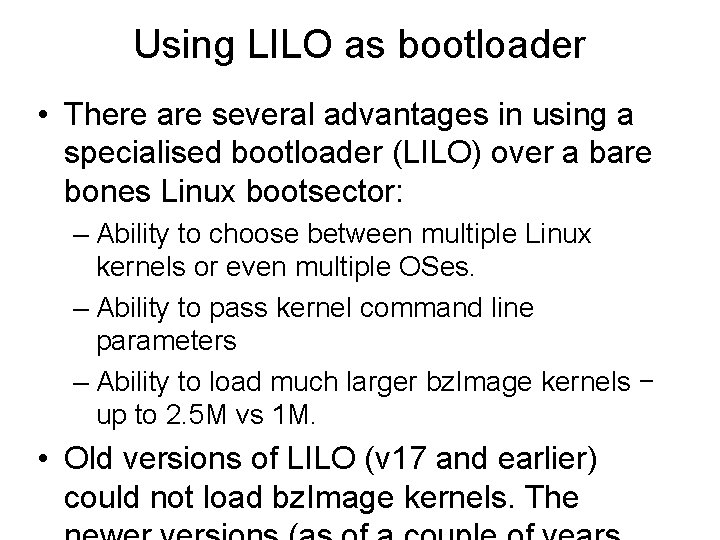

Using LILO as bootloader • There are several advantages in using a specialised bootloader (LILO) over a bare bones Linux bootsector: – Ability to choose between multiple Linux kernels or even multiple OSes. – Ability to pass kernel command line parameters – Ability to load much larger bz. Image kernels − up to 2. 5 M vs 1 M. • Old versions of LILO (v 17 and earlier) could not load bz. Image kernels. The

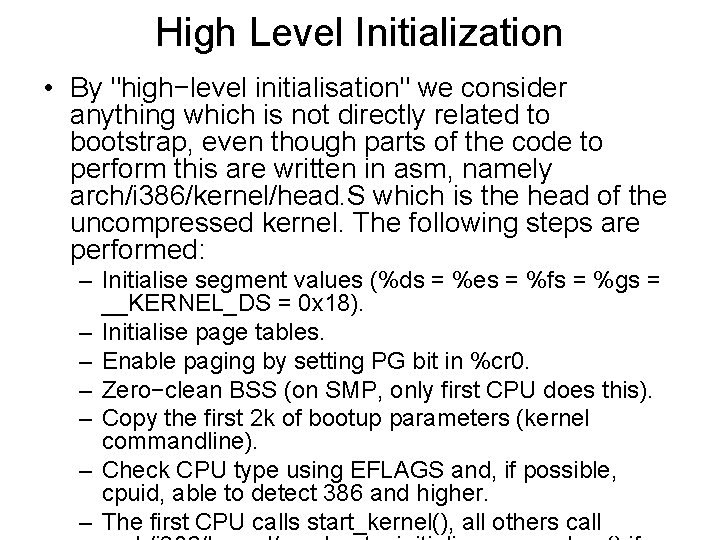

High Level Initialization • By "high−level initialisation" we consider anything which is not directly related to bootstrap, even though parts of the code to perform this are written in asm, namely arch/i 386/kernel/head. S which is the head of the uncompressed kernel. The following steps are performed: – Initialise segment values (%ds = %es = %fs = %gs = __KERNEL_DS = 0 x 18). – Initialise page tables. – Enable paging by setting PG bit in %cr 0. – Zero−clean BSS (on SMP, only first CPU does this). – Copy the first 2 k of bootup parameters (kernel commandline). – Check CPU type using EFLAGS and, if possible, cpuid, able to detect 386 and higher. – The first CPU calls start_kernel(), all others call

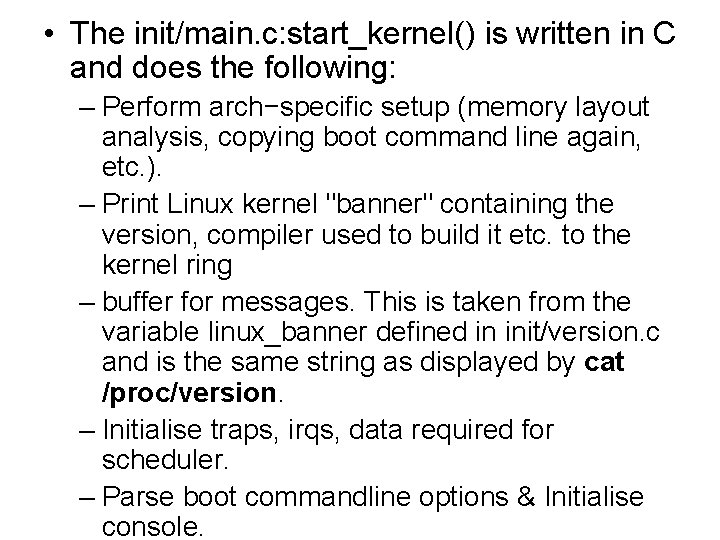

• The init/main. c: start_kernel() is written in C and does the following: – Perform arch−specific setup (memory layout analysis, copying boot command line again, etc. ). – Print Linux kernel "banner" containing the version, compiler used to build it etc. to the kernel ring – buffer for messages. This is taken from the variable linux_banner defined in init/version. c and is the same string as displayed by cat /proc/version. – Initialise traps, irqs, data required for scheduler. – Parse boot commandline options & Initialise console.

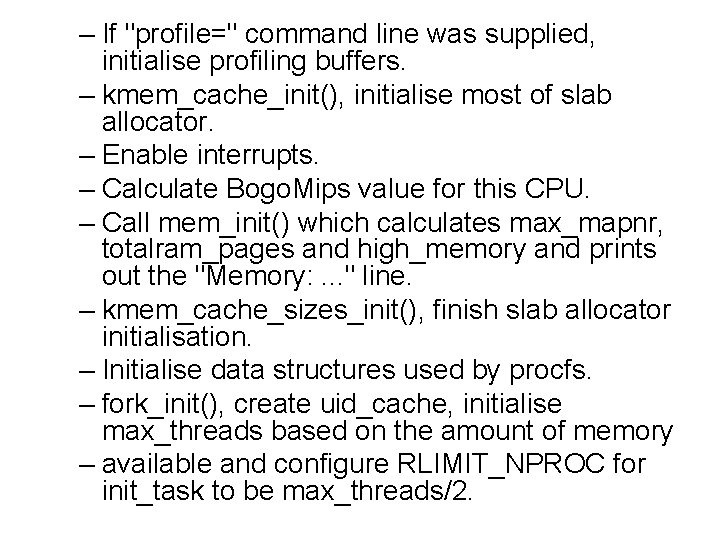

– If "profile=" command line was supplied, initialise profiling buffers. – kmem_cache_init(), initialise most of slab allocator. – Enable interrupts. – Calculate Bogo. Mips value for this CPU. – Call mem_init() which calculates max_mapnr, totalram_pages and high_memory and prints out the "Memory: . . . " line. – kmem_cache_sizes_init(), finish slab allocator initialisation. – Initialise data structures used by procfs. – fork_init(), create uid_cache, initialise max_threads based on the amount of memory – available and configure RLIMIT_NPROC for init_task to be max_threads/2.

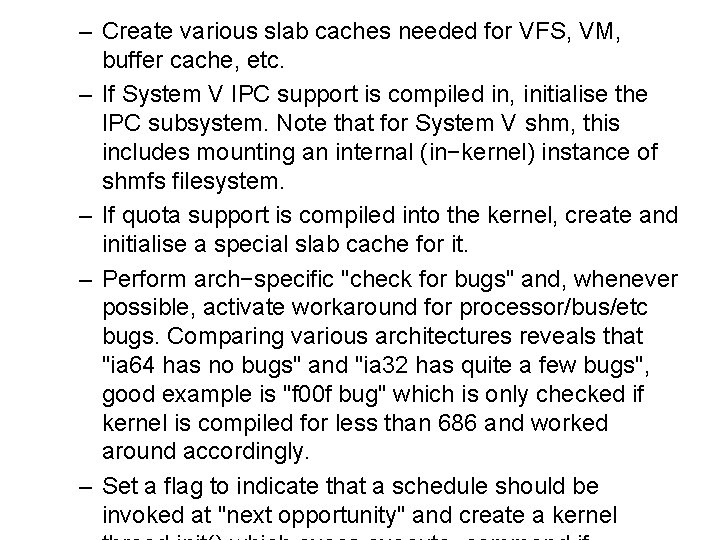

– Create various slab caches needed for VFS, VM, buffer cache, etc. – If System V IPC support is compiled in, initialise the IPC subsystem. Note that for System V shm, this includes mounting an internal (in−kernel) instance of shmfs filesystem. – If quota support is compiled into the kernel, create and initialise a special slab cache for it. – Perform arch−specific "check for bugs" and, whenever possible, activate workaround for processor/bus/etc bugs. Comparing various architectures reveals that "ia 64 has no bugs" and "ia 32 has quite a few bugs", good example is "f 00 f bug" which is only checked if kernel is compiled for less than 686 and worked around accordingly. – Set a flag to indicate that a schedule should be invoked at "next opportunity" and create a kernel

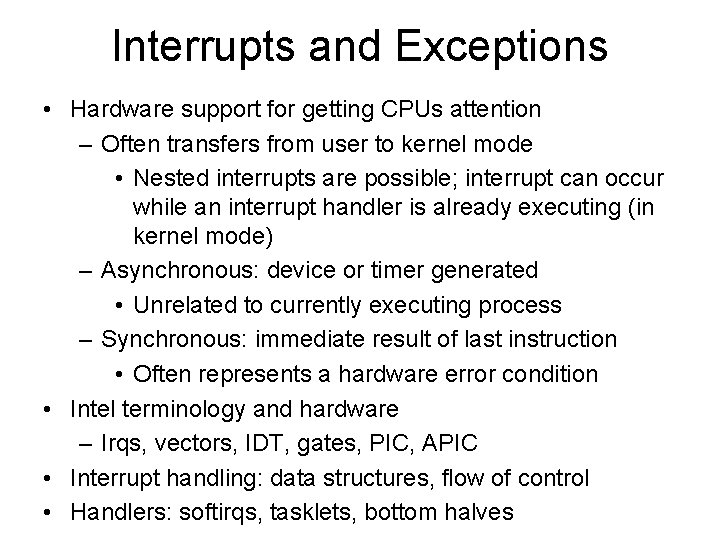

Interrupts and Exceptions • Hardware support for getting CPUs attention – Often transfers from user to kernel mode • Nested interrupts are possible; interrupt can occur while an interrupt handler is already executing (in kernel mode) – Asynchronous: device or timer generated • Unrelated to currently executing process – Synchronous: immediate result of last instruction • Often represents a hardware error condition • Intel terminology and hardware – Irqs, vectors, IDT, gates, PIC, APIC • Interrupt handling: data structures, flow of control • Handlers: softirqs, tasklets, bottom halves

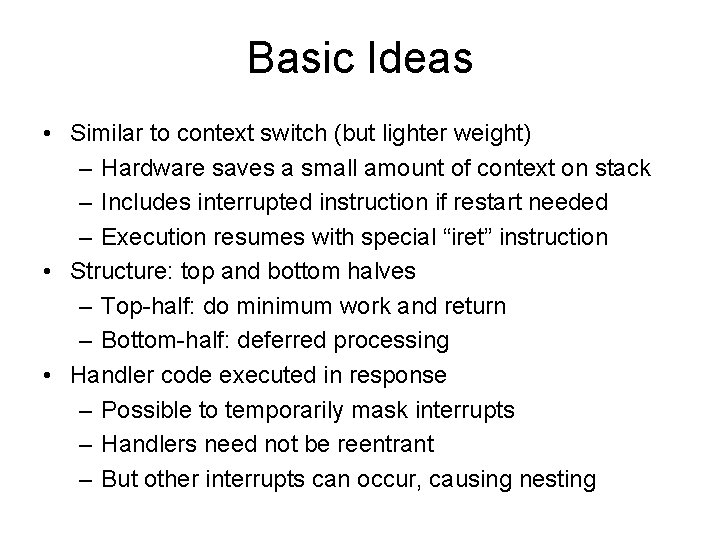

Basic Ideas • Similar to context switch (but lighter weight) – Hardware saves a small amount of context on stack – Includes interrupted instruction if restart needed – Execution resumes with special “iret” instruction • Structure: top and bottom halves – Top-half: do minimum work and return – Bottom-half: deferred processing • Handler code executed in response – Possible to temporarily mask interrupts – Handlers need not be reentrant – But other interrupts can occur, causing nesting

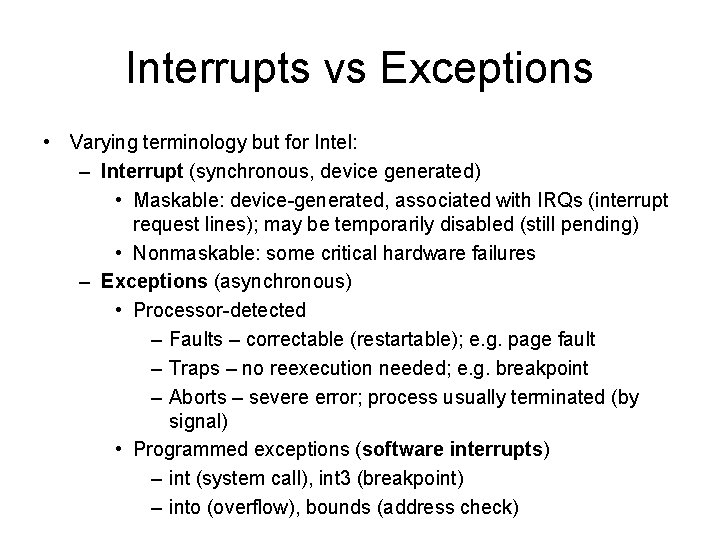

Interrupts vs Exceptions • Varying terminology but for Intel: – Interrupt (synchronous, device generated) • Maskable: device-generated, associated with IRQs (interrupt request lines); may be temporarily disabled (still pending) • Nonmaskable: some critical hardware failures – Exceptions (asynchronous) • Processor-detected – Faults – correctable (restartable); e. g. page fault – Traps – no reexecution needed; e. g. breakpoint – Aborts – severe error; process usually terminated (by signal) • Programmed exceptions (software interrupts) – int (system call), int 3 (breakpoint) – into (overflow), bounds (address check)

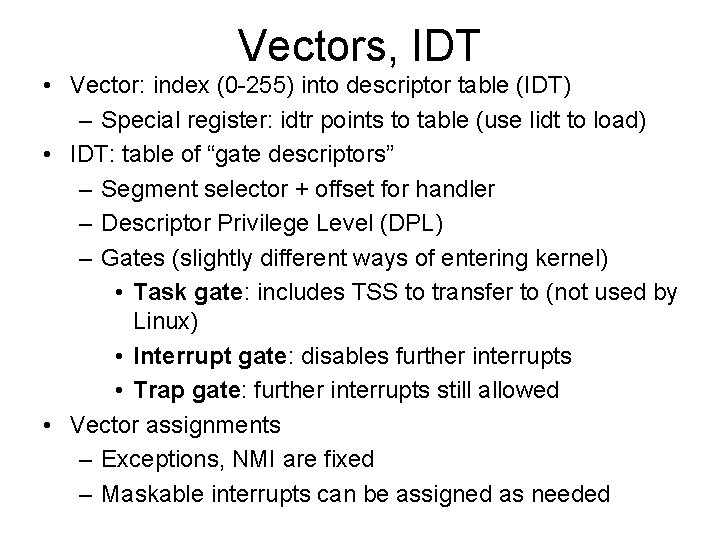

Vectors, IDT • Vector: index (0 -255) into descriptor table (IDT) – Special register: idtr points to table (use lidt to load) • IDT: table of “gate descriptors” – Segment selector + offset for handler – Descriptor Privilege Level (DPL) – Gates (slightly different ways of entering kernel) • Task gate: includes TSS to transfer to (not used by Linux) • Interrupt gate: disables further interrupts • Trap gate: further interrupts still allowed • Vector assignments – Exceptions, NMI are fixed – Maskable interrupts can be assigned as needed

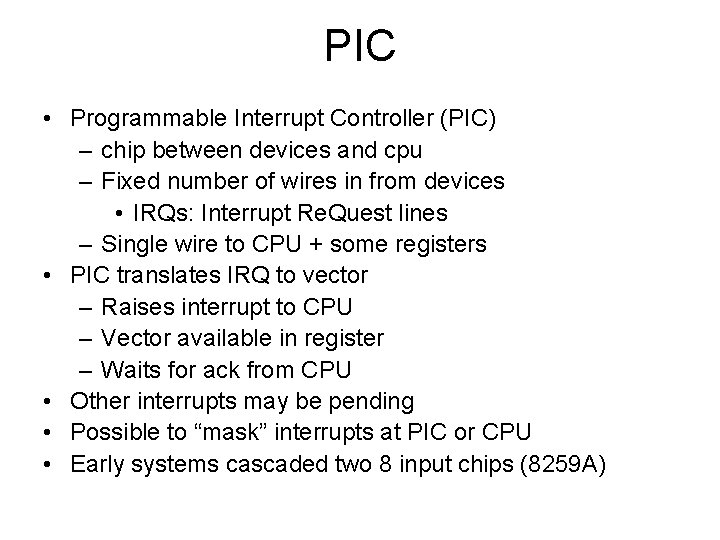

PIC • Programmable Interrupt Controller (PIC) – chip between devices and cpu – Fixed number of wires in from devices • IRQs: Interrupt Re. Quest lines – Single wire to CPU + some registers • PIC translates IRQ to vector – Raises interrupt to CPU – Vector available in register – Waits for ack from CPU • Other interrupts may be pending • Possible to “mask” interrupts at PIC or CPU • Early systems cascaded two 8 input chips (8259 A)

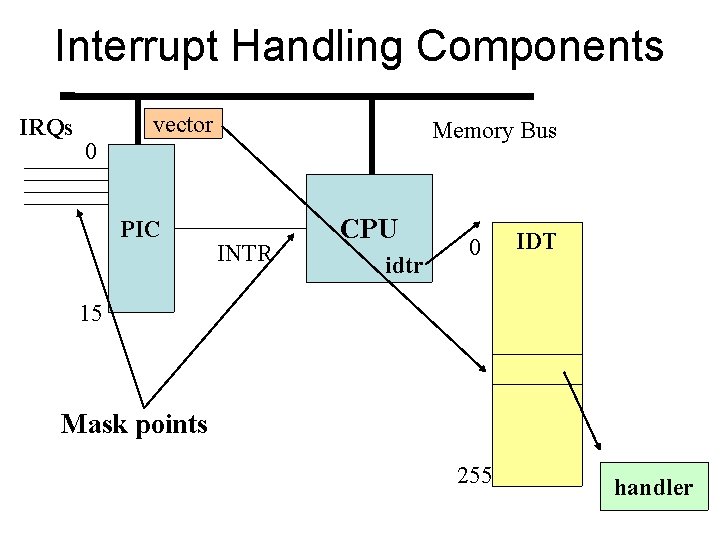

Interrupt Handling Components IRQs vector Memory Bus 0 PIC INTR CPU idtr 0 IDT 15 Mask points 255 handler

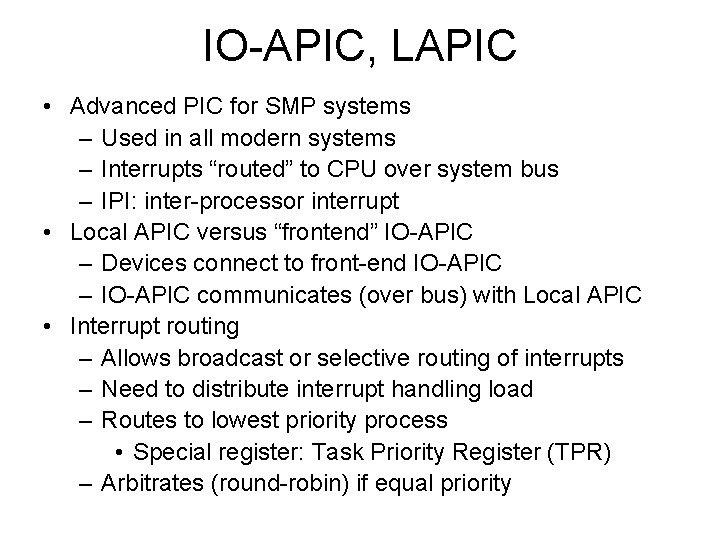

IO-APIC, LAPIC • Advanced PIC for SMP systems – Used in all modern systems – Interrupts “routed” to CPU over system bus – IPI: inter-processor interrupt • Local APIC versus “frontend” IO-APIC – Devices connect to front-end IO-APIC – IO-APIC communicates (over bus) with Local APIC • Interrupt routing – Allows broadcast or selective routing of interrupts – Need to distribute interrupt handling load – Routes to lowest priority process • Special register: Task Priority Register (TPR) – Arbitrates (round-robin) if equal priority

Intel Exceptions • Architecture (processor) dependent – Intel has about 20 (out of 32 possible) • Most exceptions send signal to current process – Default action often just kills process – Page fault is the one exception; very complex handler • Some examples: – 0 SIGFPE Divide by zero error – 3 SIGTRAP Breakpoint – 6 SIGILL Invalid op-code – 11 SIGBUS Segment not present – 12 SIGBUS Stack overflow – 13 SIGSEGV General protection fault (DPL violation) – 14 SIGSEGV Page fault

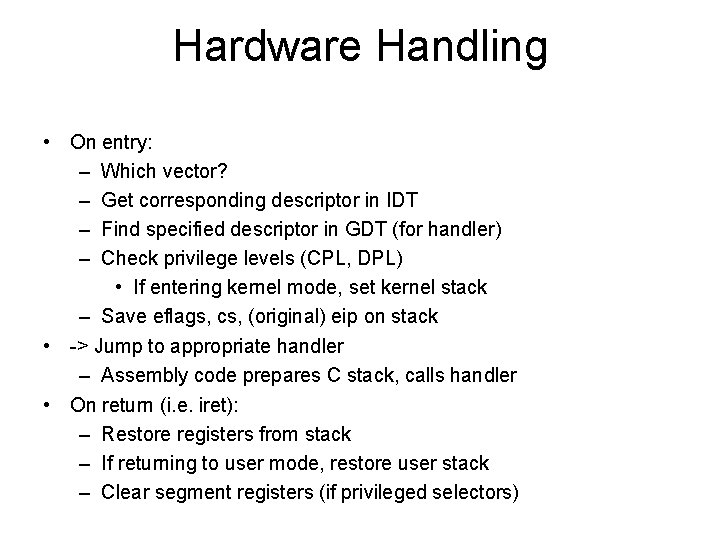

Hardware Handling • On entry: – Which vector? – Get corresponding descriptor in IDT – Find specified descriptor in GDT (for handler) – Check privilege levels (CPL, DPL) • If entering kernel mode, set kernel stack – Save eflags, cs, (original) eip on stack • -> Jump to appropriate handler – Assembly code prepares C stack, calls handler • On return (i. e. iret): – Restore registers from stack – If returning to user mode, restore user stack – Clear segment registers (if privileged selectors)

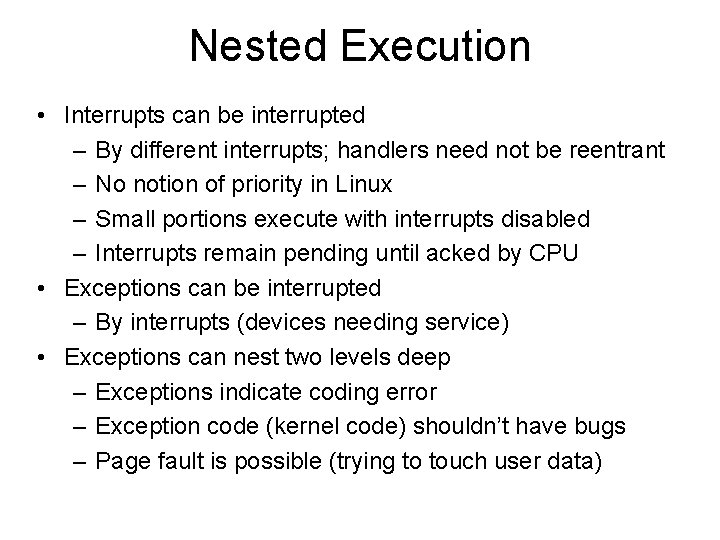

Nested Execution • Interrupts can be interrupted – By different interrupts; handlers need not be reentrant – No notion of priority in Linux – Small portions execute with interrupts disabled – Interrupts remain pending until acked by CPU • Exceptions can be interrupted – By interrupts (devices needing service) • Exceptions can nest two levels deep – Exceptions indicate coding error – Exception code (kernel code) shouldn’t have bugs – Page fault is possible (trying to touch user data)

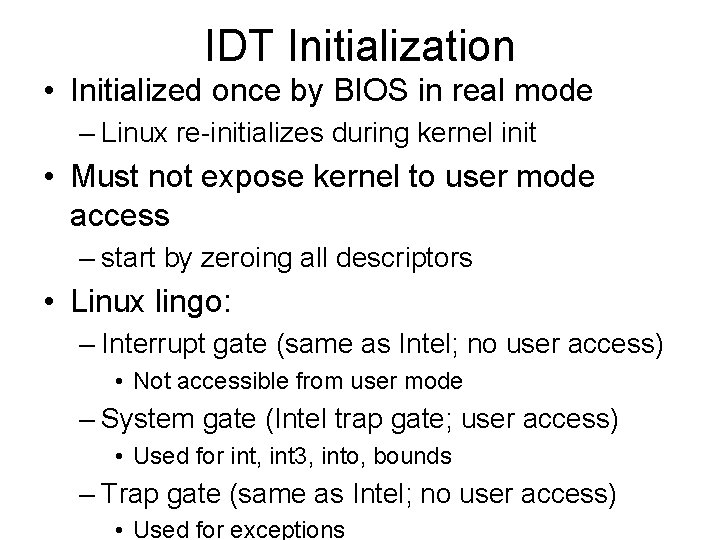

IDT Initialization • Initialized once by BIOS in real mode – Linux re-initializes during kernel init • Must not expose kernel to user mode access – start by zeroing all descriptors • Linux lingo: – Interrupt gate (same as Intel; no user access) • Not accessible from user mode – System gate (Intel trap gate; user access) • Used for int, int 3, into, bounds – Trap gate (same as Intel; no user access) • Used for exceptions

Exception Handling • Some exceptions push error code on stack – IDT points to small individual handlers (assembly) – handler_name: pushl $0 // placeholder if no error code pushl $do_handler_name jmp error_code • Common code sets up for C call – Pops handler address from stack, calls • All handlers check if kernel mode – Exceptions caused by touching bad syscall params • Return to userland with error code – Other exceptions-> die() // kernel Oops • Most handlers just generate signal for current – current->tss. error_code = error_code; – current->tss. trap_no = vector; – force_sig(sig_number, current);

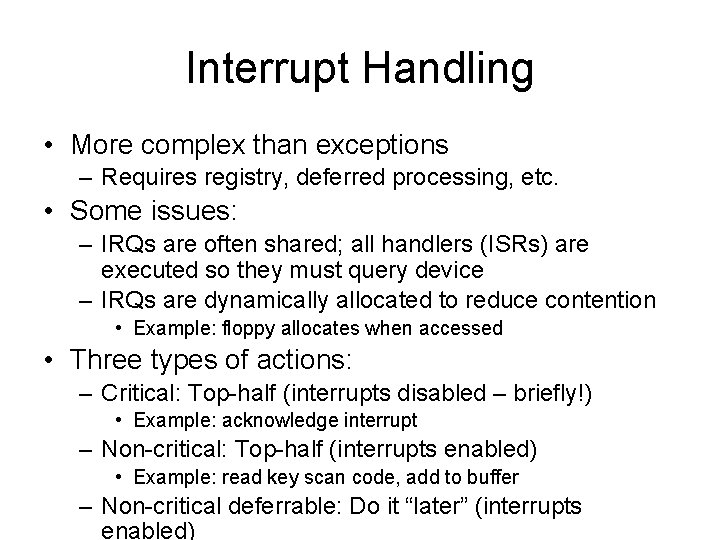

Interrupt Handling • More complex than exceptions – Requires registry, deferred processing, etc. • Some issues: – IRQs are often shared; all handlers (ISRs) are executed so they must query device – IRQs are dynamically allocated to reduce contention • Example: floppy allocates when accessed • Three types of actions: – Critical: Top-half (interrupts disabled – briefly!) • Example: acknowledge interrupt – Non-critical: Top-half (interrupts enabled) • Example: read key scan code, add to buffer – Non-critical deferrable: Do it “later” (interrupts enabled)

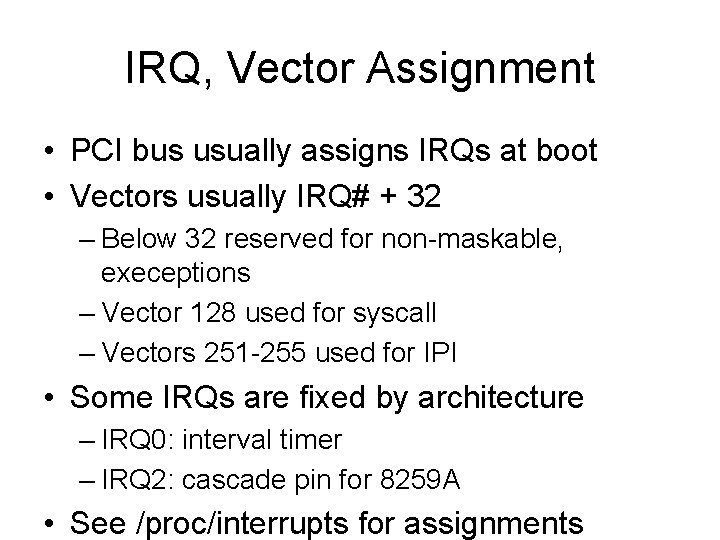

IRQ, Vector Assignment • PCI bus usually assigns IRQs at boot • Vectors usually IRQ# + 32 – Below 32 reserved for non-maskable, execeptions – Vector 128 used for syscall – Vectors 251 -255 used for IPI • Some IRQs are fixed by architecture – IRQ 0: interval timer – IRQ 2: cascade pin for 8259 A • See /proc/interrupts for assignments

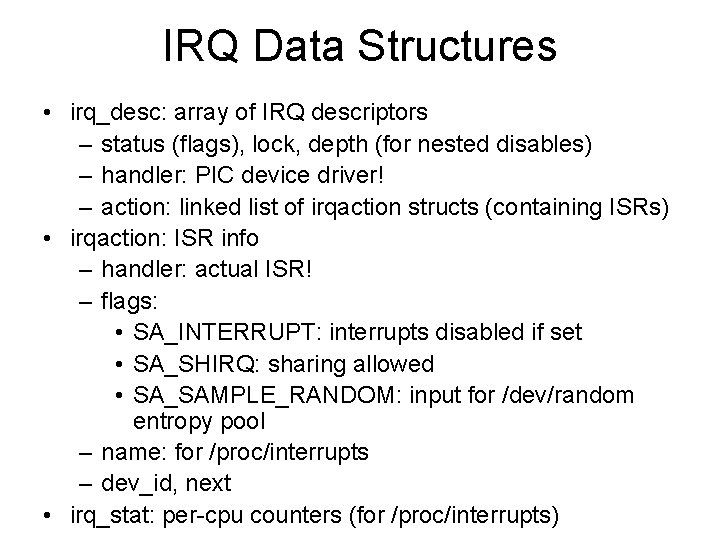

IRQ Data Structures • irq_desc: array of IRQ descriptors – status (flags), lock, depth (for nested disables) – handler: PIC device driver! – action: linked list of irqaction structs (containing ISRs) • irqaction: ISR info – handler: actual ISR! – flags: • SA_INTERRUPT: interrupts disabled if set • SA_SHIRQ: sharing allowed • SA_SAMPLE_RANDOM: input for /dev/random entropy pool – name: for /proc/interrupts – dev_id, next • irq_stat: per-cpu counters (for /proc/interrupts)

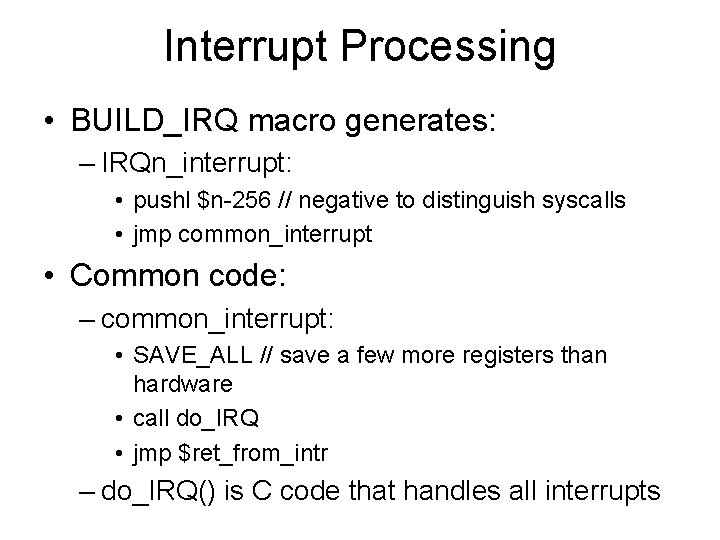

Interrupt Processing • BUILD_IRQ macro generates: – IRQn_interrupt: • pushl $n-256 // negative to distinguish syscalls • jmp common_interrupt • Common code: – common_interrupt: • SAVE_ALL // save a few more registers than hardware • call do_IRQ • jmp $ret_from_intr – do_IRQ() is C code that handles all interrupts

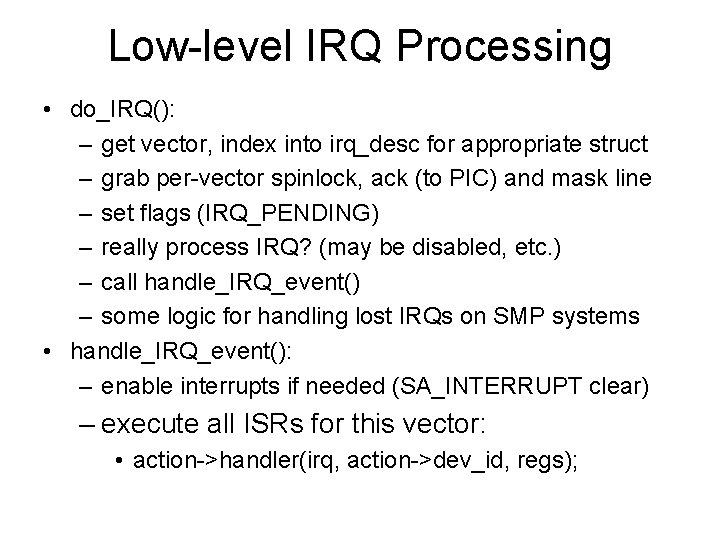

Low-level IRQ Processing • do_IRQ(): – get vector, index into irq_desc for appropriate struct – grab per-vector spinlock, ack (to PIC) and mask line – set flags (IRQ_PENDING) – really process IRQ? (may be disabled, etc. ) – call handle_IRQ_event() – some logic for handling lost IRQs on SMP systems • handle_IRQ_event(): – enable interrupts if needed (SA_INTERRUPT clear) – execute all ISRs for this vector: • action->handler(irq, action->dev_id, regs);

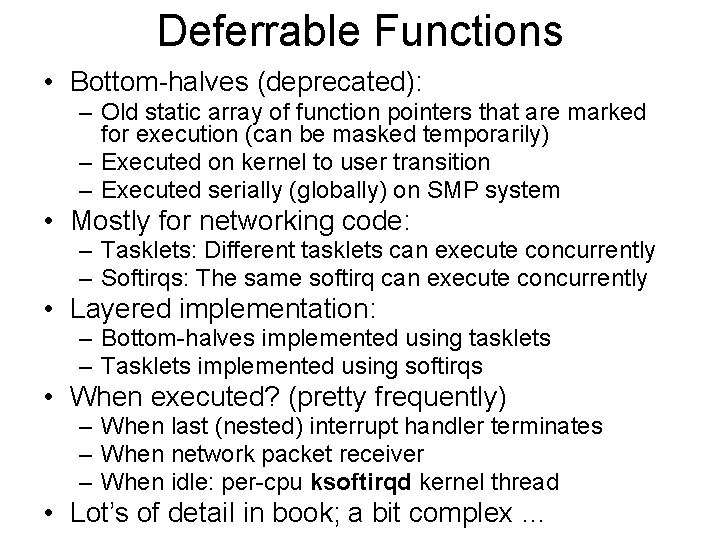

Deferrable Functions • Bottom-halves (deprecated): – Old static array of function pointers that are marked for execution (can be masked temporarily) – Executed on kernel to user transition – Executed serially (globally) on SMP system • Mostly for networking code: – Tasklets: Different tasklets can execute concurrently – Softirqs: The same softirq can execute concurrently • Layered implementation: – Bottom-halves implemented using tasklets – Tasklets implemented using softirqs • When executed? (pretty frequently) – When last (nested) interrupt handler terminates – When network packet receiver – When idle: per-cpu ksoftirqd kernel thread • Lot’s of detail in book; a bit complex …

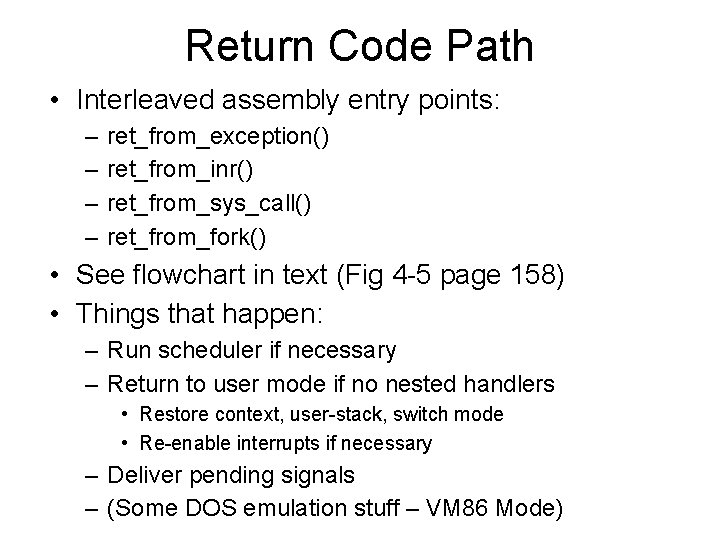

Return Code Path • Interleaved assembly entry points: – – ret_from_exception() ret_from_inr() ret_from_sys_call() ret_from_fork() • See flowchart in text (Fig 4 -5 page 158) • Things that happen: – Run scheduler if necessary – Return to user mode if no nested handlers • Restore context, user-stack, switch mode • Re-enable interrupts if necessary – Deliver pending signals – (Some DOS emulation stuff – VM 86 Mode)

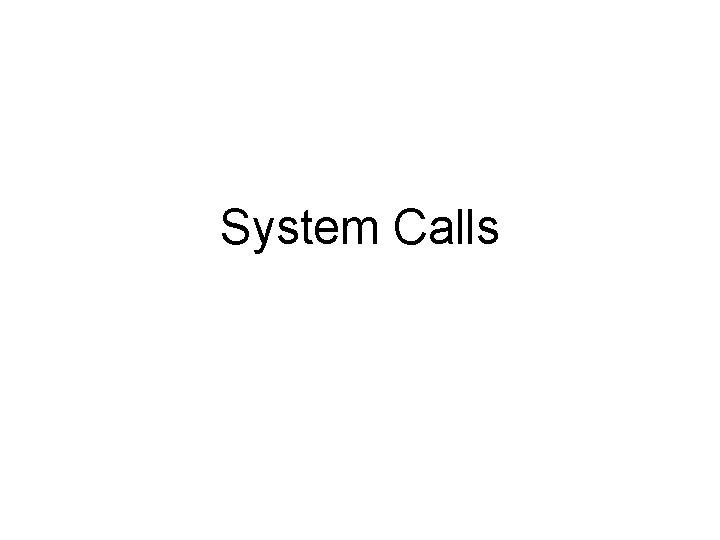

System Calls

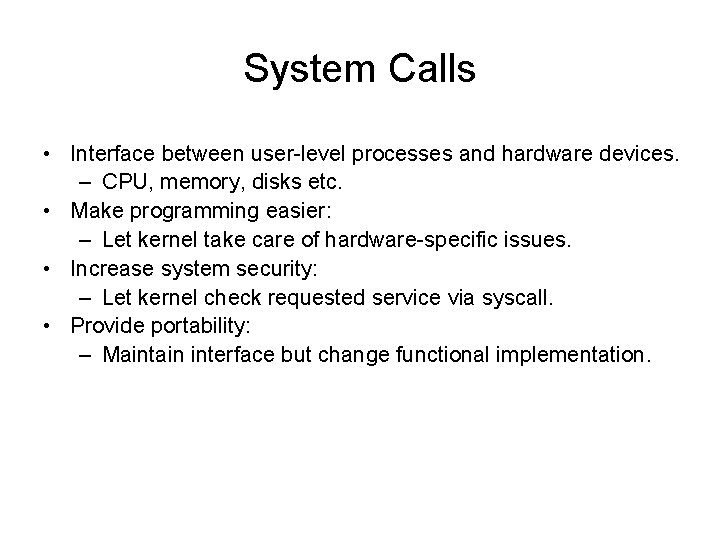

System Calls • Interface between user-level processes and hardware devices. – CPU, memory, disks etc. • Make programming easier: – Let kernel take care of hardware-specific issues. • Increase system security: – Let kernel check requested service via syscall. • Provide portability: – Maintain interface but change functional implementation.

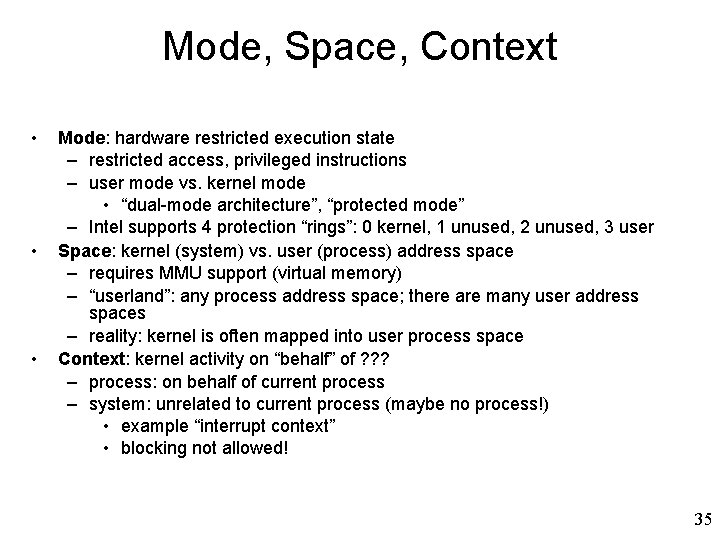

Mode, Space, Context • • • Mode: hardware restricted execution state – restricted access, privileged instructions – user mode vs. kernel mode • “dual-mode architecture”, “protected mode” – Intel supports 4 protection “rings”: 0 kernel, 1 unused, 2 unused, 3 user Space: kernel (system) vs. user (process) address space – requires MMU support (virtual memory) – “userland”: any process address space; there are many user address spaces – reality: kernel is often mapped into user process space Context: kernel activity on “behalf” of ? ? ? – process: on behalf of current process – system: unrelated to current process (maybe no process!) • example “interrupt context” • blocking not allowed! 35

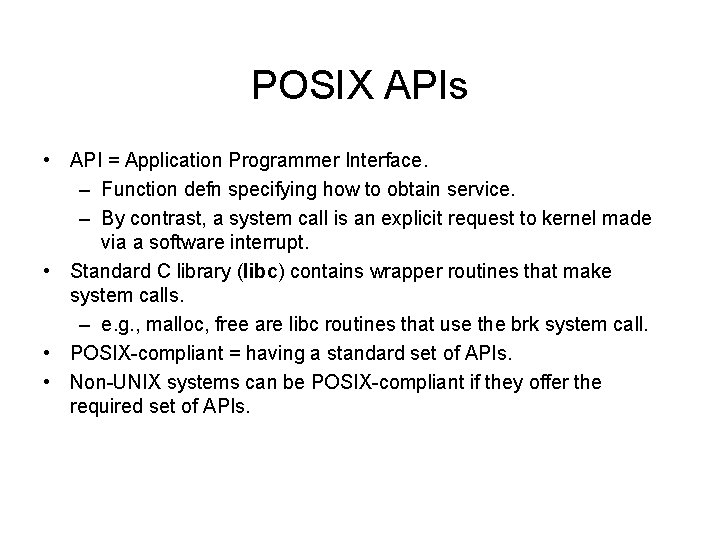

POSIX APIs • API = Application Programmer Interface. – Function defn specifying how to obtain service. – By contrast, a system call is an explicit request to kernel made via a software interrupt. • Standard C library (libc) contains wrapper routines that make system calls. – e. g. , malloc, free are libc routines that use the brk system call. • POSIX-compliant = having a standard set of APIs. • Non-UNIX systems can be POSIX-compliant if they offer the required set of APIs.

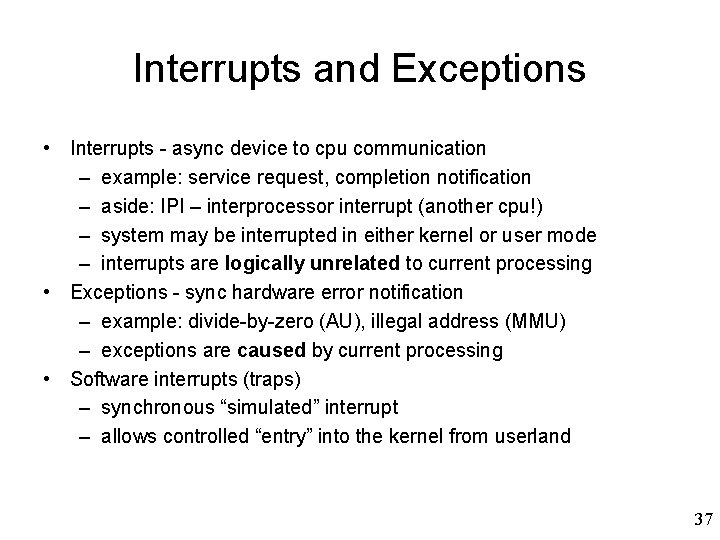

Interrupts and Exceptions • Interrupts - async device to cpu communication – example: service request, completion notification – aside: IPI – interprocessor interrupt (another cpu!) – system may be interrupted in either kernel or user mode – interrupts are logically unrelated to current processing • Exceptions - sync hardware error notification – example: divide-by-zero (AU), illegal address (MMU) – exceptions are caused by current processing • Software interrupts (traps) – synchronous “simulated” interrupt – allows controlled “entry” into the kernel from userland 37

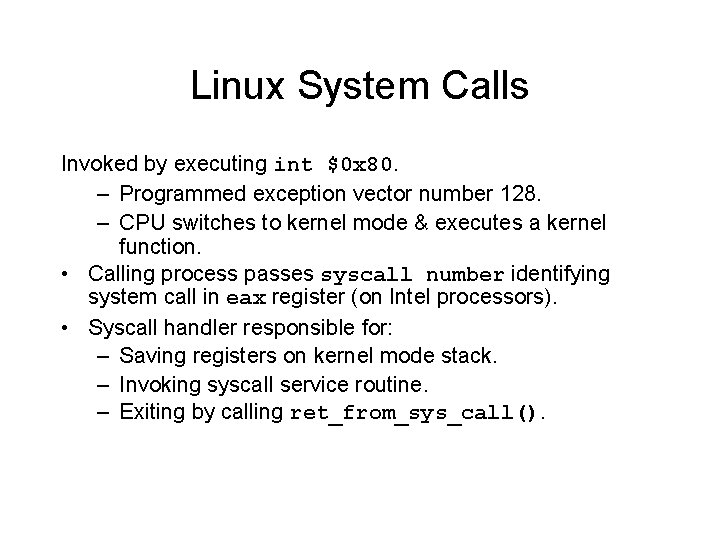

Linux System Calls Invoked by executing int $0 x 80. – Programmed exception vector number 128. – CPU switches to kernel mode & executes a kernel function. • Calling process passes syscall number identifying system call in eax register (on Intel processors). • Syscall handler responsible for: – Saving registers on kernel mode stack. – Invoking syscall service routine. – Exiting by calling ret_from_sys_call().

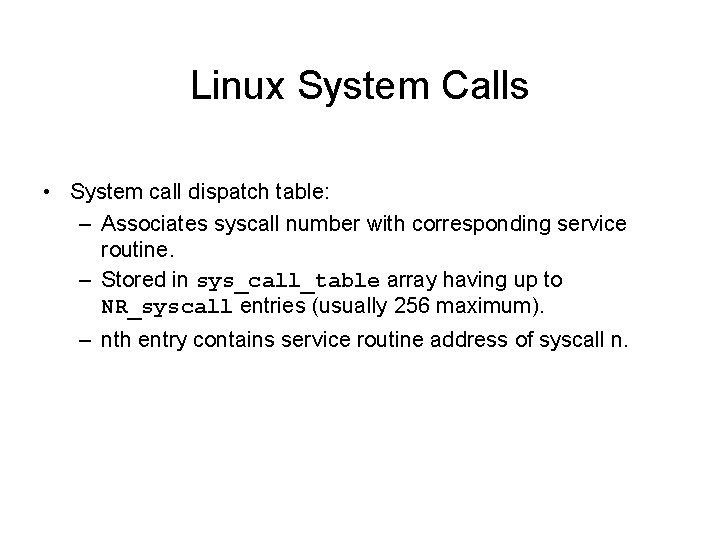

Linux System Calls • System call dispatch table: – Associates syscall number with corresponding service routine. – Stored in sys_call_table array having up to NR_syscall entries (usually 256 maximum). – nth entry contains service routine address of syscall n.

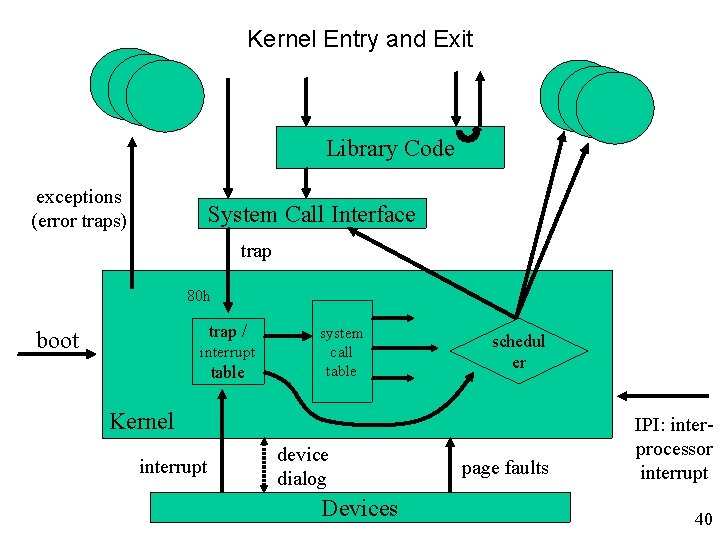

Kernel Entry and Exit Library Code exceptions (error traps) System Call Interface trap 80 h trap / boot interrupt table system call table schedul er Kernel interrupt device dialog Devices page faults IPI: interprocessor interrupt 40

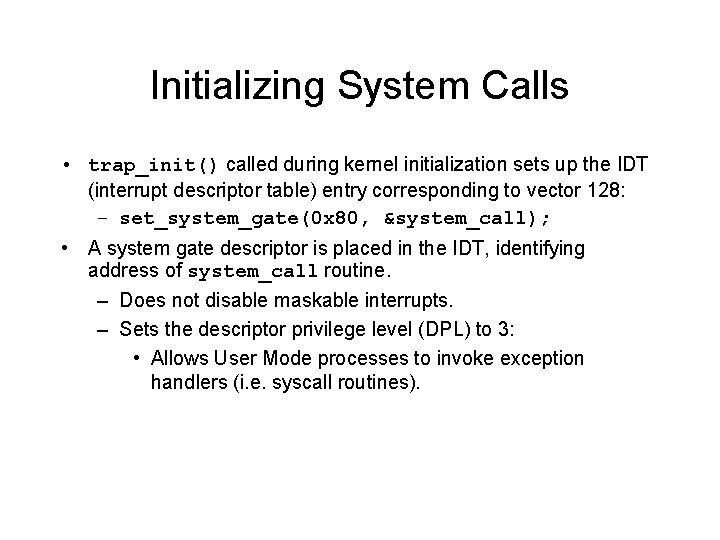

Initializing System Calls • trap_init() called during kernel initialization sets up the IDT (interrupt descriptor table) entry corresponding to vector 128: – set_system_gate(0 x 80, &system_call); • A system gate descriptor is placed in the IDT, identifying address of system_call routine. – Does not disable maskable interrupts. – Sets the descriptor privilege level (DPL) to 3: • Allows User Mode processes to invoke exception handlers (i. e. syscall routines).

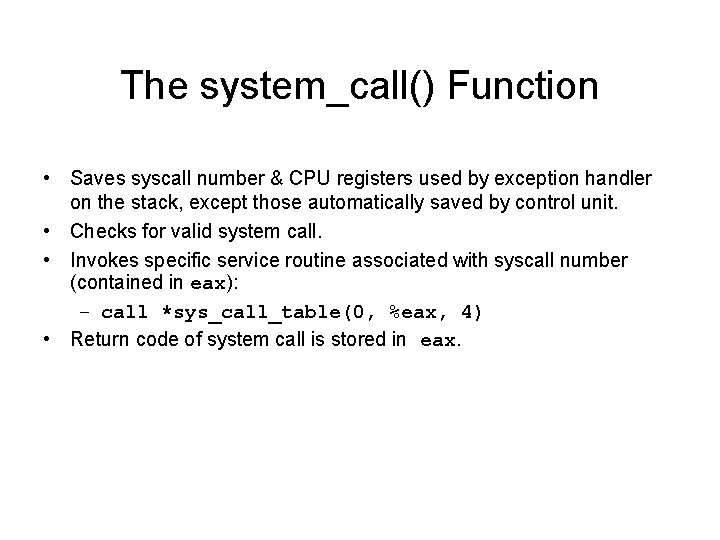

The system_call() Function • Saves syscall number & CPU registers used by exception handler on the stack, except those automatically saved by control unit. • Checks for valid system call. • Invokes specific service routine associated with syscall number (contained in eax): – call *sys_call_table(0, %eax, 4) • Return code of system call is stored in eax.

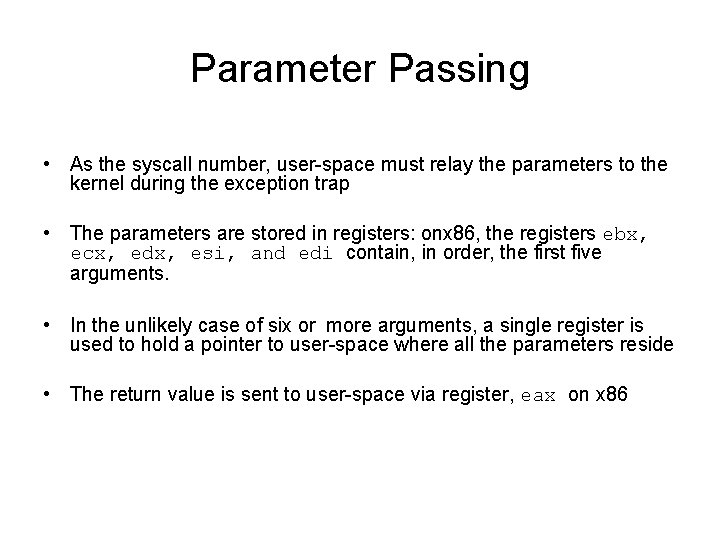

Parameter Passing • As the syscall number, user-space must relay the parameters to the kernel during the exception trap • The parameters are stored in registers: onx 86, the registers ebx, ecx, edx, esi, and edi contain, in order, the first five arguments. • In the unlikely case of six or more arguments, a single register is used to hold a pointer to user-space where all the parameters reside • The return value is sent to user-space via register, eax on x 86

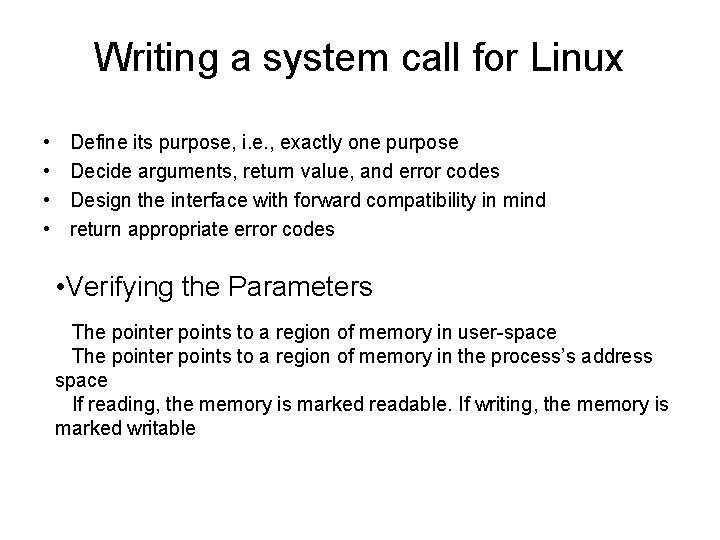

Writing a system call for Linux • • Define its purpose, i. e. , exactly one purpose Decide arguments, return value, and error codes Design the interface with forward compatibility in mind return appropriate error codes • Verifying the Parameters The pointer points to a region of memory in user-space The pointer points to a region of memory in the process’s address space If reading, the memory is marked readable. If writing, the memory is marked writable

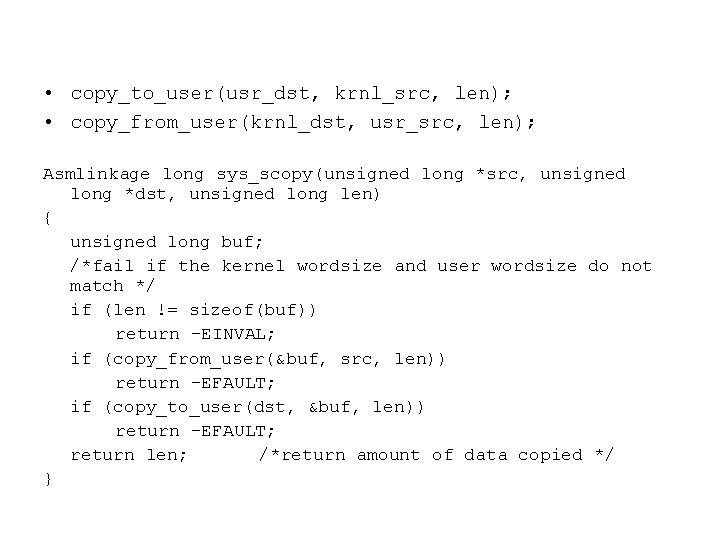

• copy_to_user(usr_dst, krnl_src, len); • copy_from_user(krnl_dst, usr_src, len); Asmlinkage long sys_scopy(unsigned long *src, unsigned long *dst, unsigned long len) { unsigned long buf; /*fail if the kernel wordsize and user wordsize do not match */ if (len != sizeof(buf)) return –EINVAL; if (copy_from_user(&buf, src, len)) return –EFAULT; if (copy_to_user(dst, &buf, len)) return –EFAULT; return len; /*return amount of data copied */ }

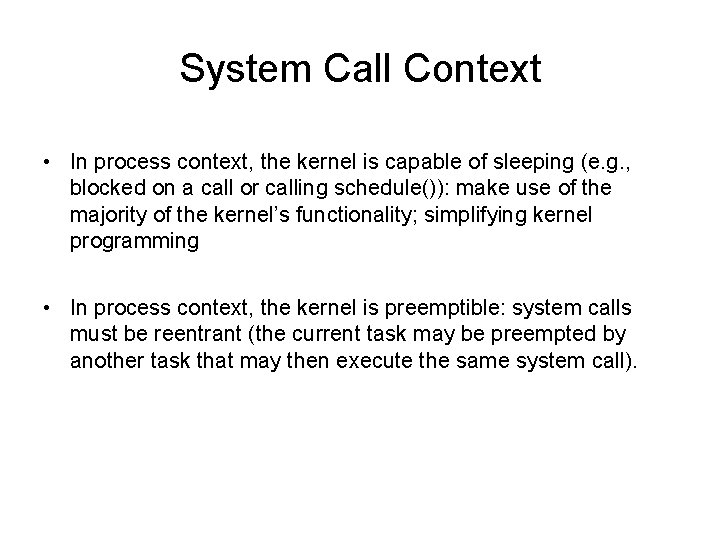

System Call Context • In process context, the kernel is capable of sleeping (e. g. , blocked on a call or calling schedule()): make use of the majority of the kernel’s functionality; simplifying kernel programming • In process context, the kernel is preemptible: system calls must be reentrant (the current task may be preempted by another task that may then execute the same system call).

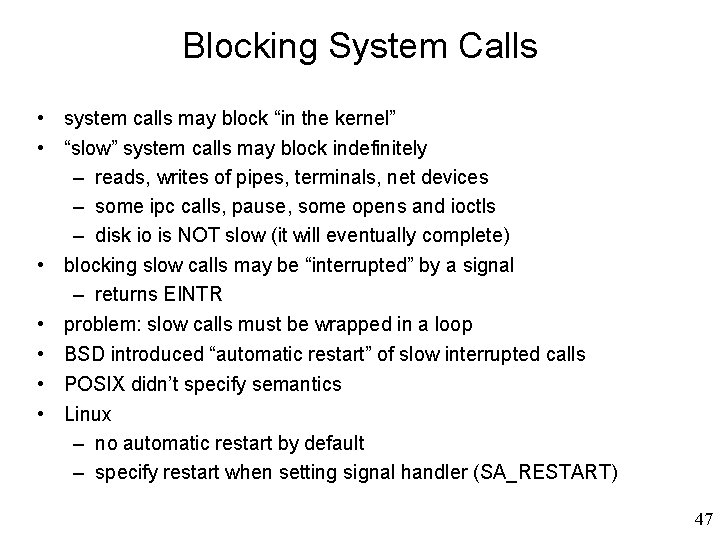

Blocking System Calls • system calls may block “in the kernel” • “slow” system calls may block indefinitely – reads, writes of pipes, terminals, net devices – some ipc calls, pause, some opens and ioctls – disk io is NOT slow (it will eventually complete) • blocking slow calls may be “interrupted” by a signal – returns EINTR • problem: slow calls must be wrapped in a loop • BSD introduced “automatic restart” of slow interrupted calls • POSIX didn’t specify semantics • Linux – no automatic restart by default – specify restart when setting signal handler (SA_RESTART) 47

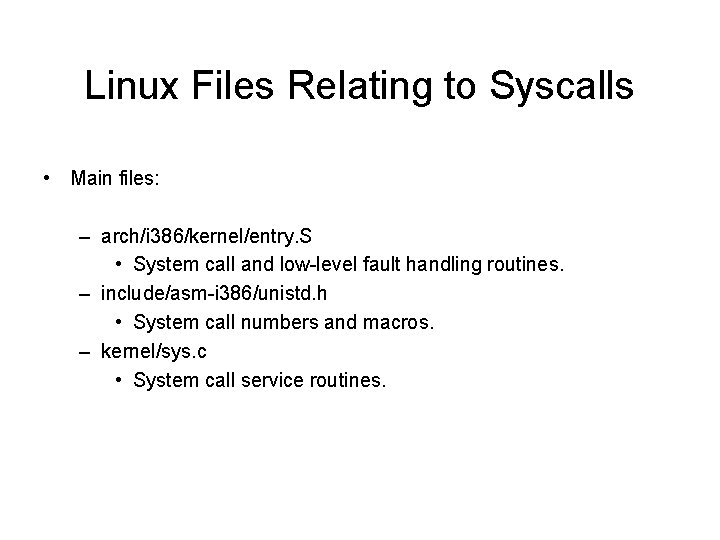

Linux Files Relating to Syscalls • Main files: – arch/i 386/kernel/entry. S • System call and low-level fault handling routines. – include/asm-i 386/unistd. h • System call numbers and macros. – kernel/sys. c • System call service routines.

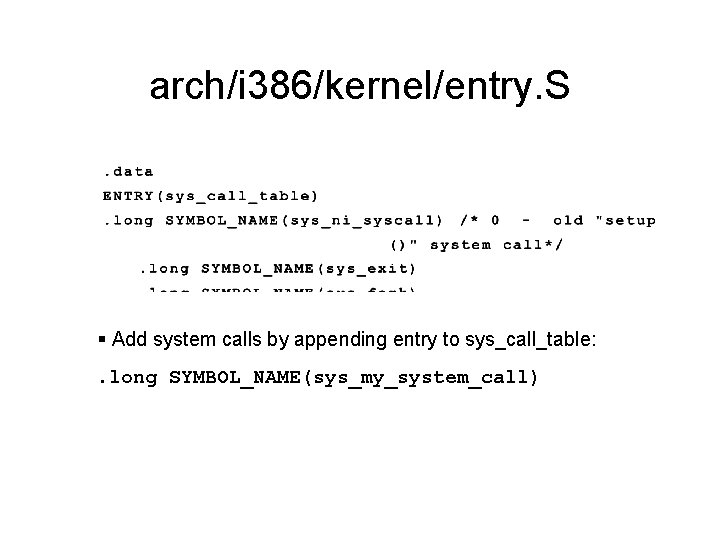

arch/i 386/kernel/entry. S § Add system calls by appending entry to sys_call_table: . long SYMBOL_NAME(sys_my_system_call)

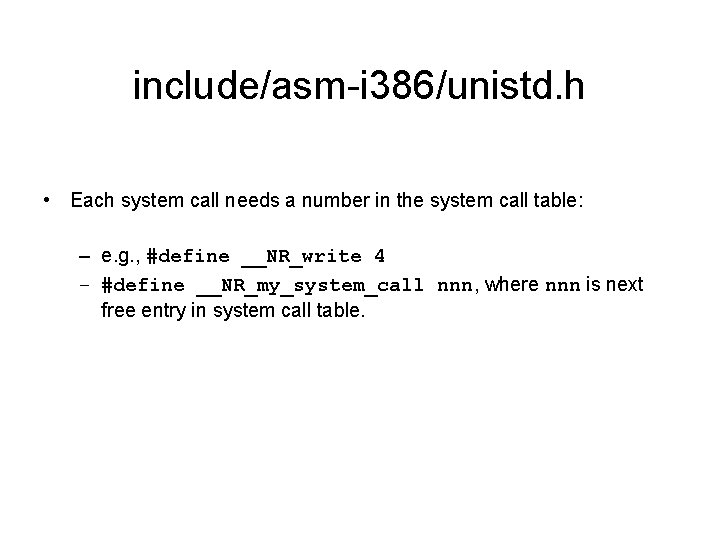

include/asm-i 386/unistd. h • Each system call needs a number in the system call table: – e. g. , #define __NR_write 4 – #define __NR_my_system_call nnn, where nnn is next free entry in system call table.

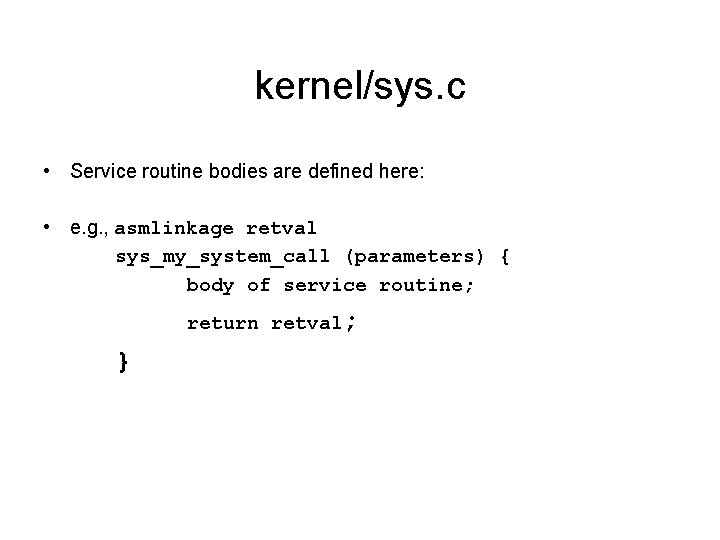

kernel/sys. c • Service routine bodies are defined here: • e. g. , asmlinkage retval sys_my_system_call (parameters) { body of service routine; return retval; }

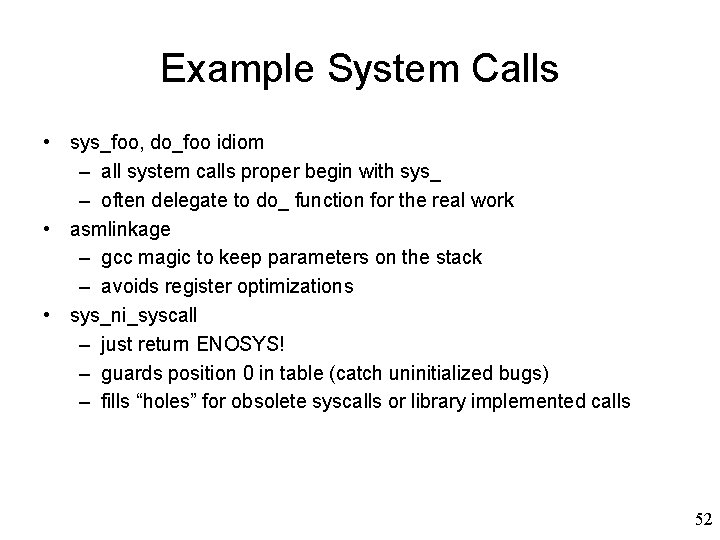

Example System Calls • sys_foo, do_foo idiom – all system calls proper begin with sys_ – often delegate to do_ function for the real work • asmlinkage – gcc magic to keep parameters on the stack – avoids register optimizations • sys_ni_syscall – just return ENOSYS! – guards position 0 in table (catch uninitialized bugs) – fills “holes” for obsolete syscalls or library implemented calls 52

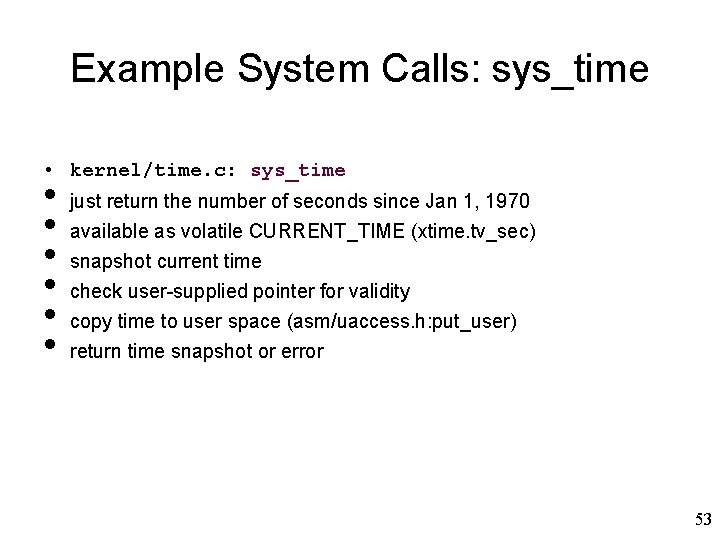

Example System Calls: sys_time • kernel/time. c: sys_time • • • just return the number of seconds since Jan 1, 1970 available as volatile CURRENT_TIME (xtime. tv_sec) snapshot current time check user-supplied pointer for validity copy time to user space (asm/uaccess. h: put_user) return time snapshot or error 53

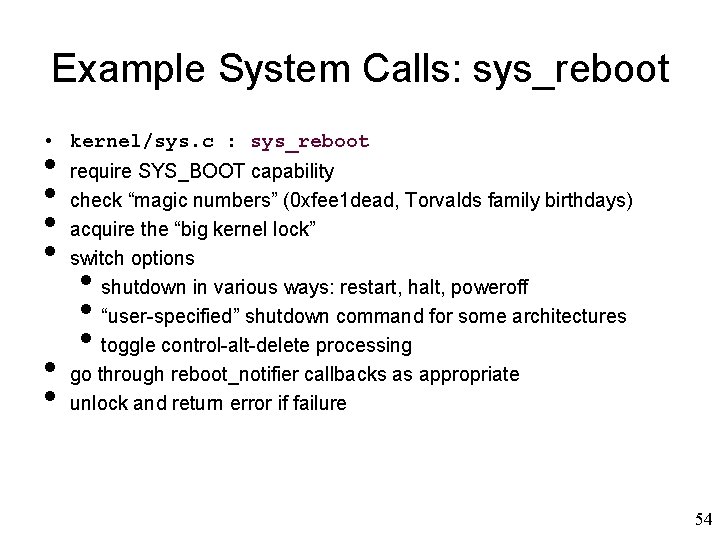

Example System Calls: sys_reboot • kernel/sys. c : sys_reboot • • • require SYS_BOOT capability check “magic numbers” (0 xfee 1 dead, Torvalds family birthdays) acquire the “big kernel lock” switch options shutdown in various ways: restart, halt, poweroff “user-specified” shutdown command for some architectures toggle control-alt-delete processing go through reboot_notifier callbacks as appropriate unlock and return error if failure • • • 54

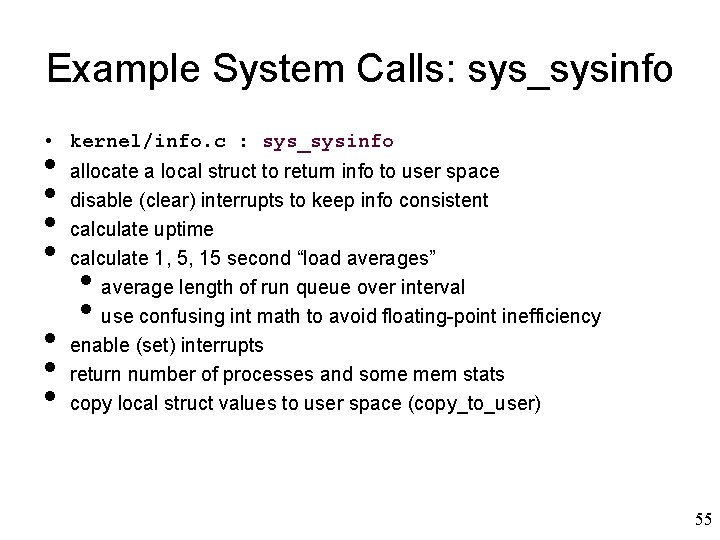

Example System Calls: sys_sysinfo • kernel/info. c : sys_sysinfo • • allocate a local struct to return info to user space disable (clear) interrupts to keep info consistent calculate uptime calculate 1, 5, 15 second “load averages” average length of run queue over interval use confusing int math to avoid floating-point inefficiency enable (set) interrupts return number of processes and some mem stats copy local struct values to user space (copy_to_user) • • 55

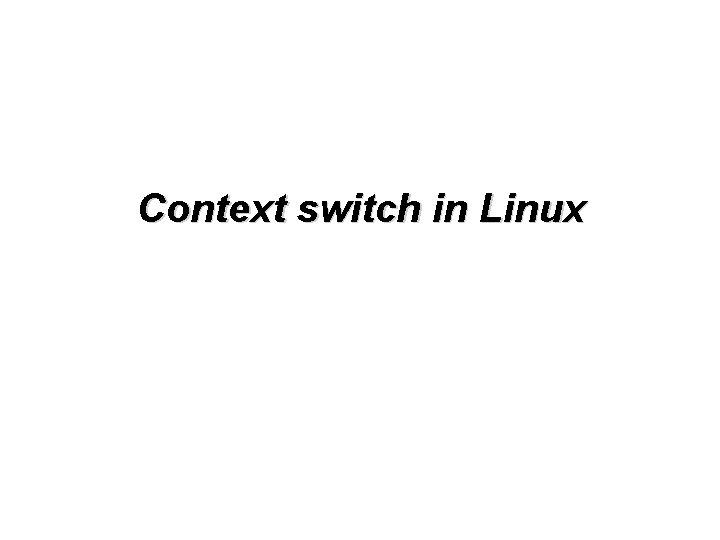

Context switch in Linux

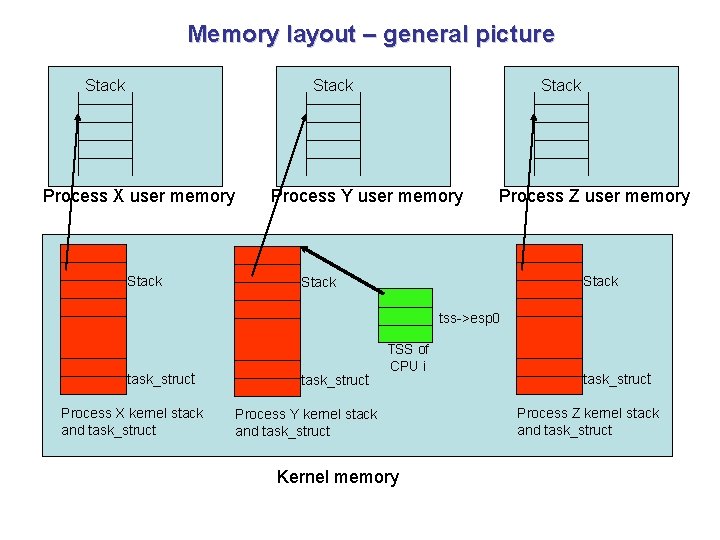

Memory layout – general picture Stack Process X user memory Stack Process Y user memory Process Z user memory Stack tss->esp 0 task_struct Process X kernel stack and task_struct TSS of CPU i Process Y kernel stack and task_struct Kernel memory task_struct Process Z kernel stack and task_struct

#1 – kernel stack after any system call, before context switch prev ss User Stack esp eflags cs … TSS tss->esp 0 eip … … Schedule() function frame User Code orig_eax es esp ds eax ebp task_struct edi esi thread. esp 0 edx ecx ebx Saved on the kernel stack during a transition to kernel mode by a jump to interrupt and by SAVE_ALL macro

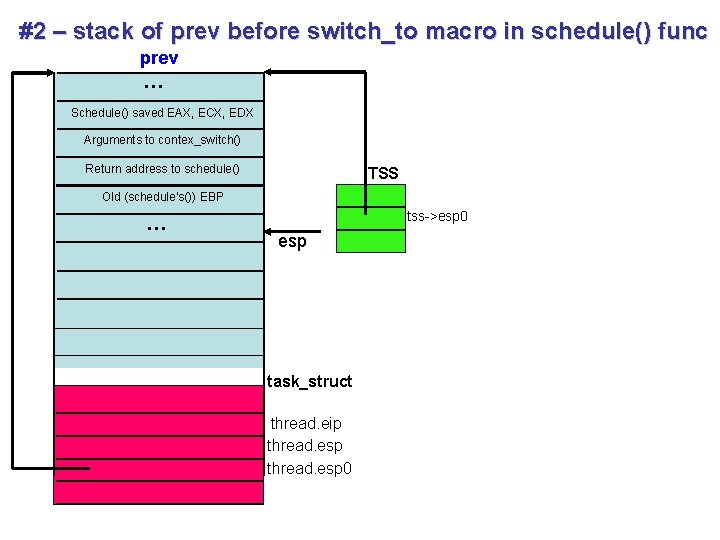

#2 – stack of prev before switch_to macro in schedule() func prev … Schedule() saved EAX, ECX, EDX Arguments to contex_switch() Return address to schedule() TSS Old (schedule’s()) EBP … tss->esp 0 esp task_struct thread. eip thread. esp 0

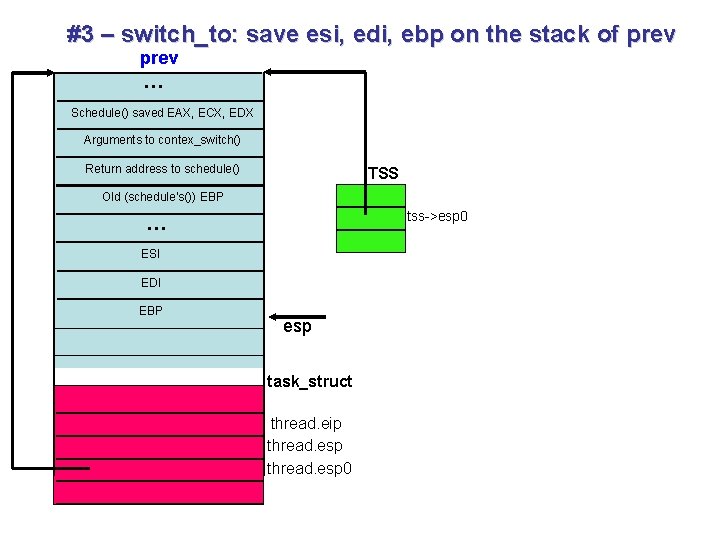

#3 – switch_to: save esi, edi, ebp on the stack of prev … Schedule() saved EAX, ECX, EDX Arguments to contex_switch() Return address to schedule() TSS Old (schedule’s()) EBP tss->esp 0 … ESI EDI EBP esp task_struct thread. eip thread. esp 0

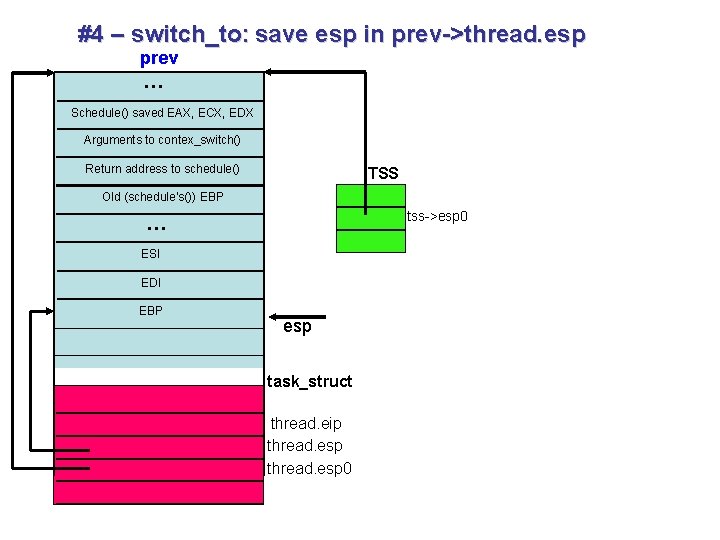

#4 – switch_to: save esp in prev->thread. esp prev … Schedule() saved EAX, ECX, EDX Arguments to contex_switch() Return address to schedule() TSS Old (schedule’s()) EBP tss->esp 0 … ESI EDI EBP esp task_struct thread. eip thread. esp 0

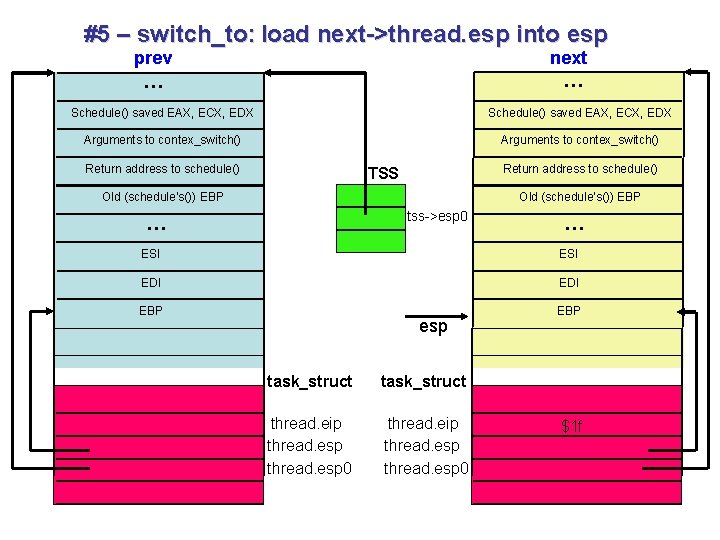

#5 – switch_to: load next->thread. esp into esp prev … next … Schedule() saved EAX, ECX, EDX Arguments to contex_switch() Return address to schedule() TSS Old (schedule’s()) EBP tss->esp 0 … … ESI EDI EBP esp task_struct thread. eip thread. esp 0 $1 f

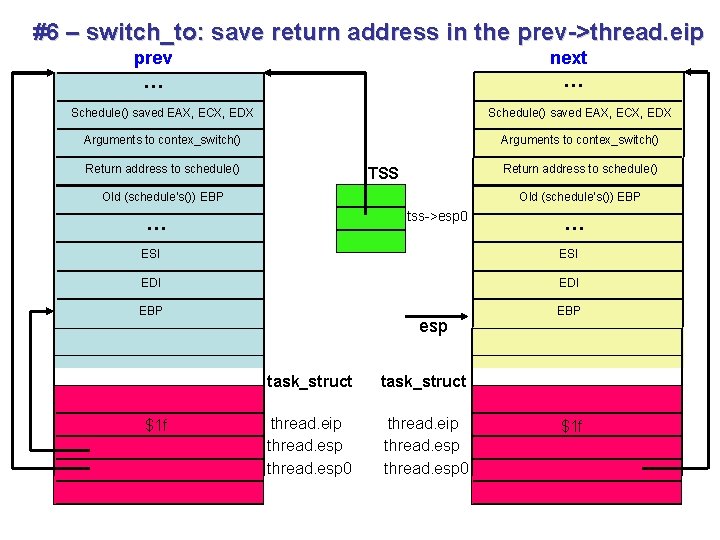

#6 – switch_to: save return address in the prev->thread. eip prev … next … Schedule() saved EAX, ECX, EDX Arguments to contex_switch() Return address to schedule() TSS Old (schedule’s()) EBP tss->esp 0 … … ESI EDI EBP $1 f esp task_struct thread. eip thread. esp 0 $1 f

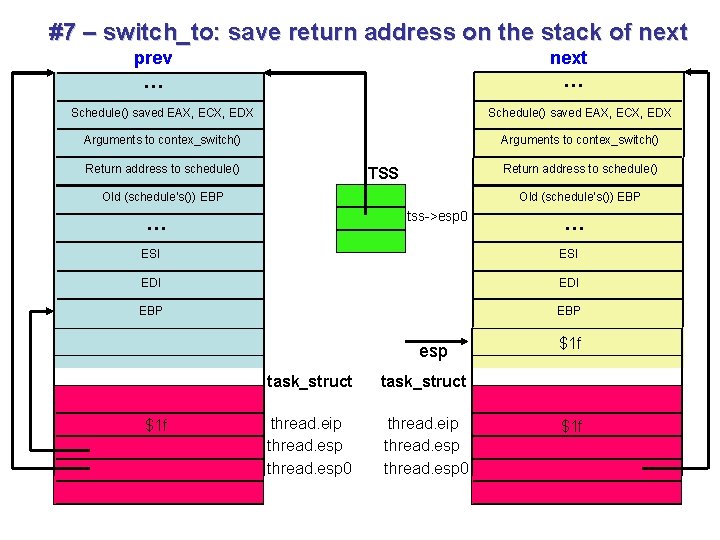

#7 – switch_to: save return address on the stack of next prev … next … Schedule() saved EAX, ECX, EDX Arguments to contex_switch() Return address to schedule() TSS Old (schedule’s()) EBP tss->esp 0 … … ESI EDI EBP esp $1 f task_struct thread. eip thread. esp 0 $1 f

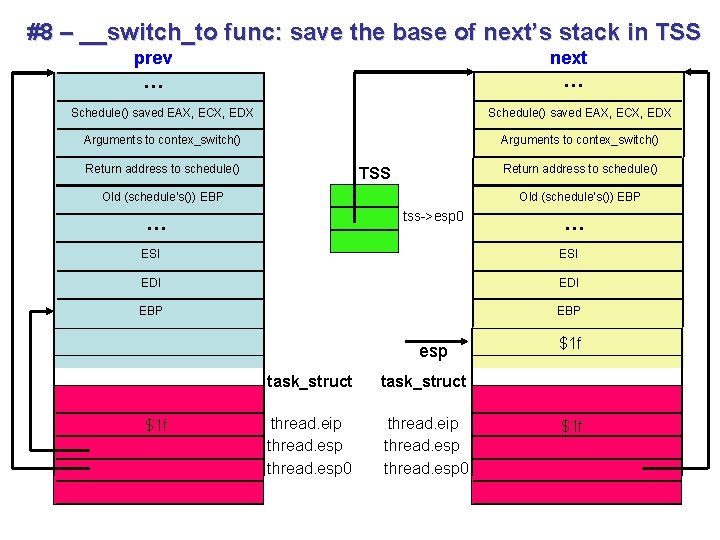

#8 – __switch_to func: save the base of next’s stack in TSS prev … next … Schedule() saved EAX, ECX, EDX Arguments to contex_switch() Return address to schedule() TSS Old (schedule’s()) EBP tss->esp 0 … … ESI EDI EBP esp $1 f task_struct thread. eip thread. esp 0 $1 f

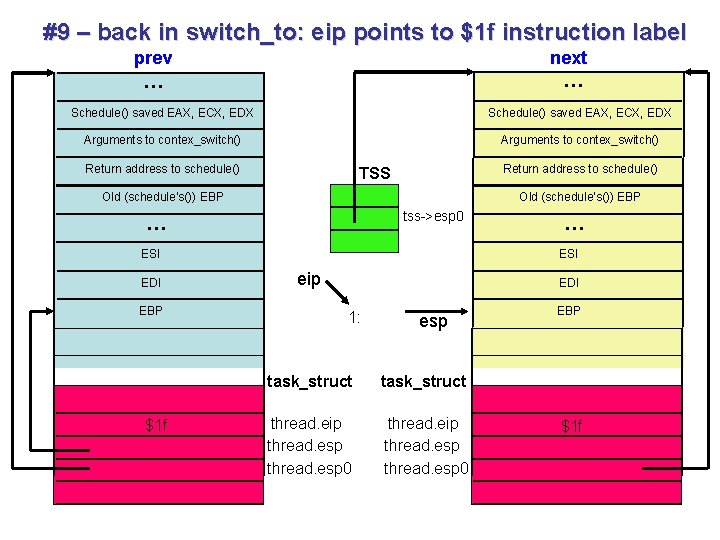

#9 – back in switch_to: eip points to $1 f instruction label prev … next … Schedule() saved EAX, ECX, EDX Arguments to contex_switch() Return address to schedule() TSS Old (schedule’s()) EBP tss->esp 0 … ESI EDI EBP $1 f … ESI eip EDI 1: esp task_struct thread. eip thread. esp 0 EBP $1 f

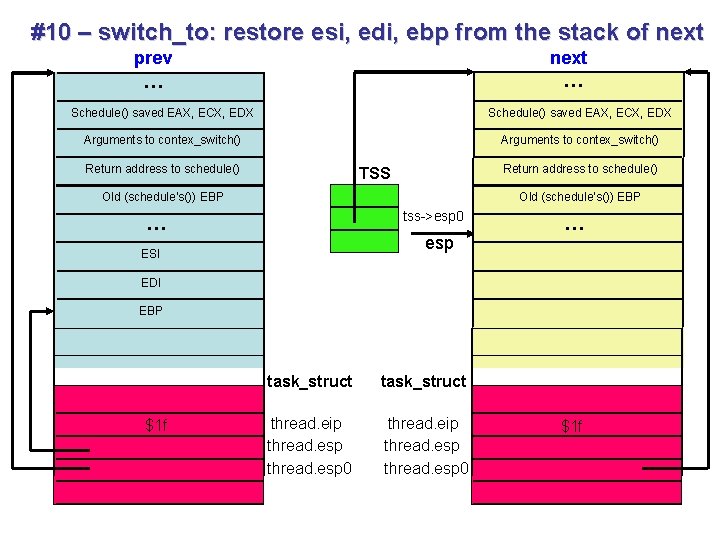

#10 – switch_to: restore esi, edi, ebp from the stack of next prev … next … Schedule() saved EAX, ECX, EDX Arguments to contex_switch() Return address to schedule() TSS Old (schedule’s()) EBP tss->esp 0 … esp ESI … EDI EBP $1 f task_struct thread. eip thread. esp 0 $1 f

Thank you
