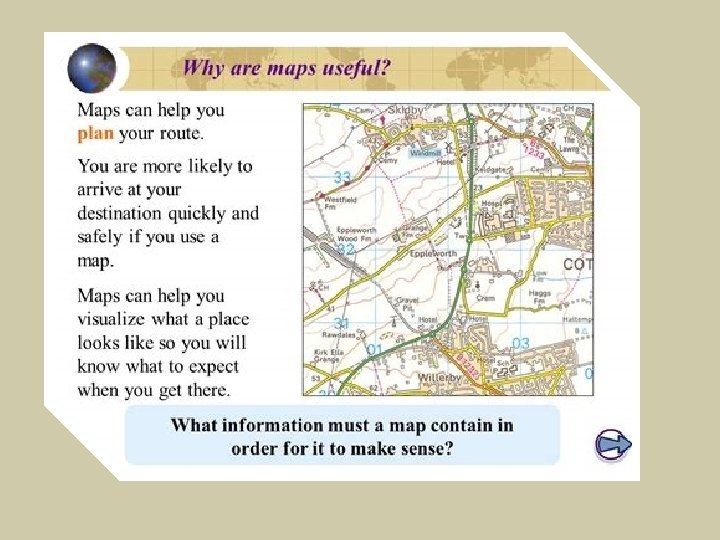

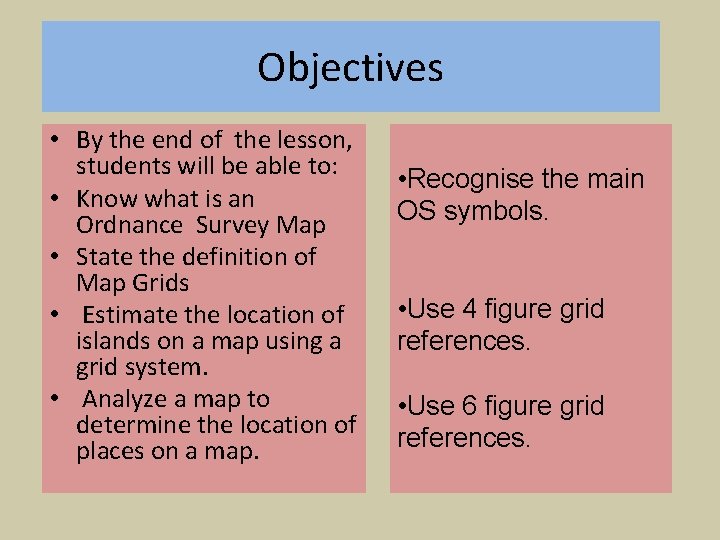

Objectives • By the end of the lesson, students will be able to: • Know what is an Ordnance Survey Map • State the definition of Map Grids • Estimate the location of islands on a map using a grid system. • Analyze a map to determine the location of places on a map. • Recognise the main OS symbols. • Use 4 figure grid references. • Use 6 figure grid references.

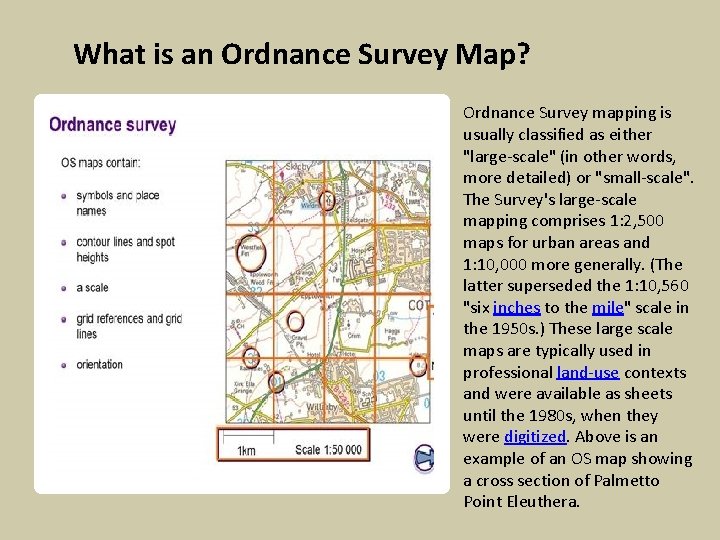

What is an Ordnance Survey Map? Ordnance Survey mapping is usually classified as either "large-scale" (in other words, more detailed) or "small-scale". The Survey's large-scale mapping comprises 1: 2, 500 maps for urban areas and 1: 10, 000 more generally. (The latter superseded the 1: 10, 560 "six inches to the mile" scale in the 1950 s. ) These large scale maps are typically used in professional land-use contexts and were available as sheets until the 1980 s, when they were digitized. Above is an example of an OS map showing a cross section of Palmetto Point Eleuthera.

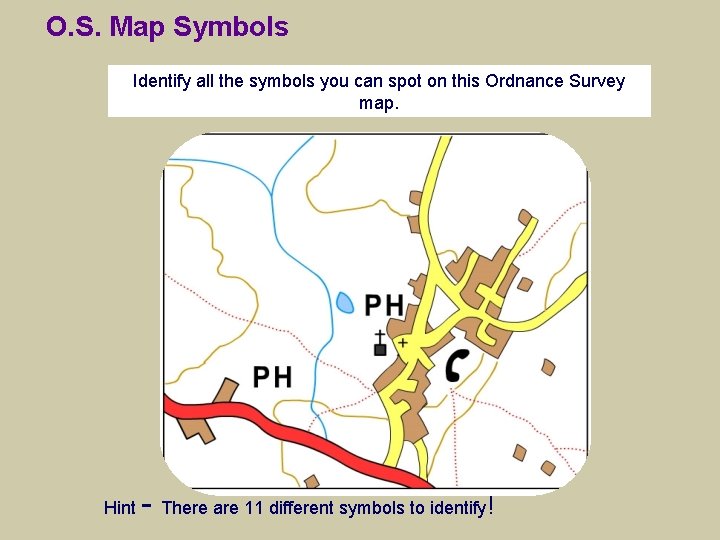

O. S. Map Symbols Identify all the symbols you can spot on this Ordnance Survey map. Hint - There are 11 different symbols to identify!

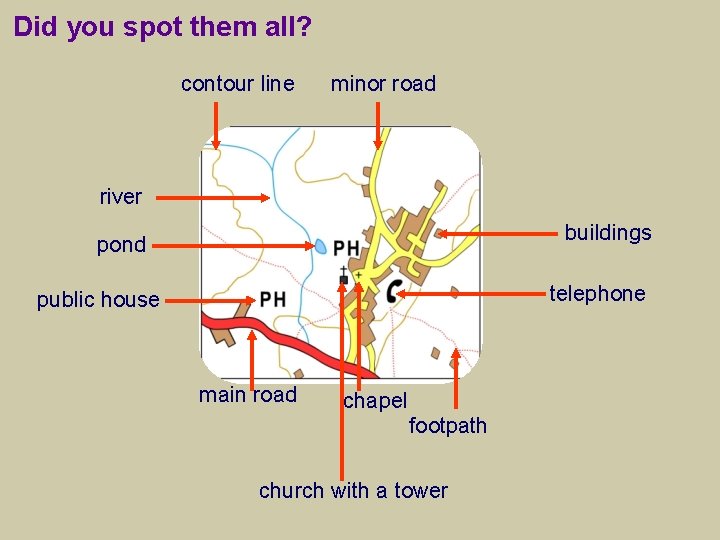

Did you spot them all? contour line minor road river buildings pond telephone public house main road chapel footpath church with a tower

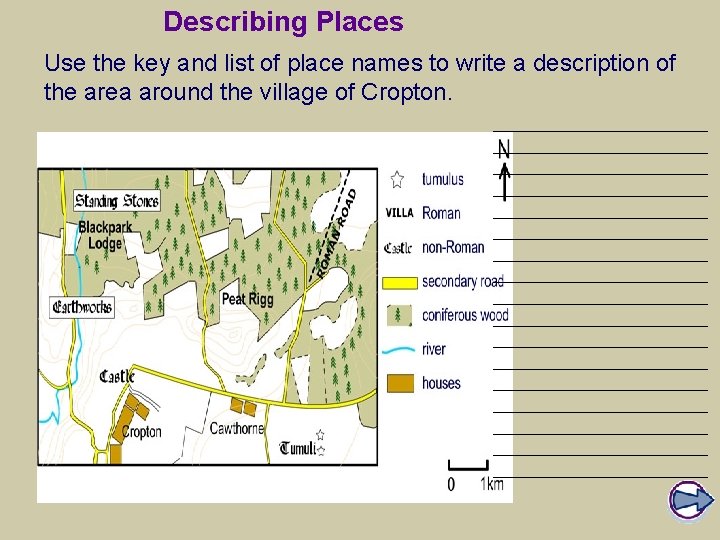

Describing Places Use the key and list of place names to write a description of the area around the village of Cropton. ________________________ ________________________ ________________________ ________________________ ____________

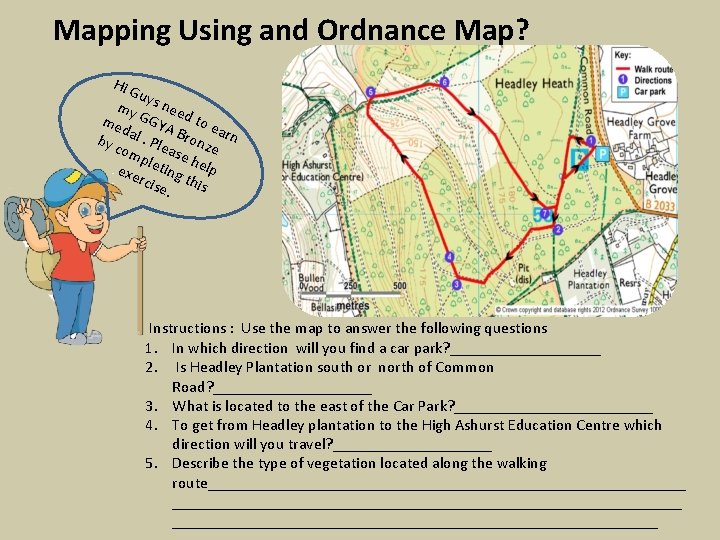

Mapping Using and Ordnance Map? Hi G uy my s nee me GGYA d to e d a by c al. Ple Bronz rn e a om ple se he lp exe ting this rcis e. Instructions : Use the map to answer the following questions 1. In which direction will you find a car park? __________ 2. Is Headley Plantation south or north of Common Road? __________ 3. What is located to the east of the Car Park? _____________ 4. To get from Headley plantation to the High Ashurst Education Centre which direction will you travel? __________ 5. Describe the type of vegetation located along the walking route____________________________________________________________

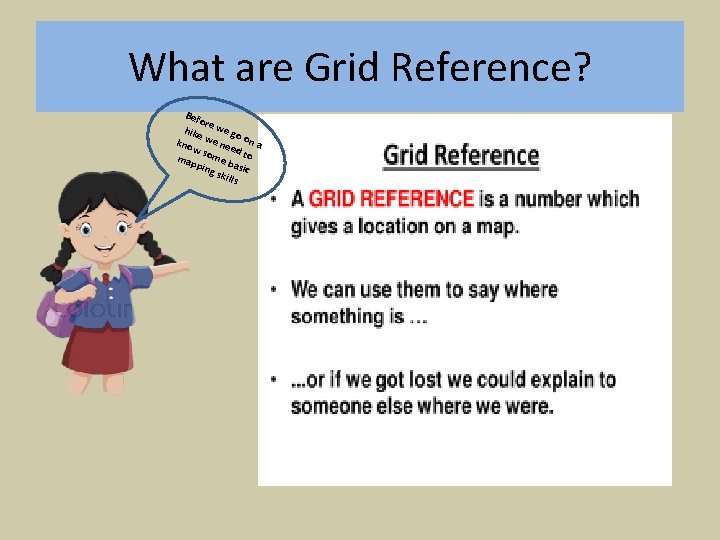

What are Grid Reference? Bef ore hike we go kno we ne on a ed w map some b to as ping skil ic ls

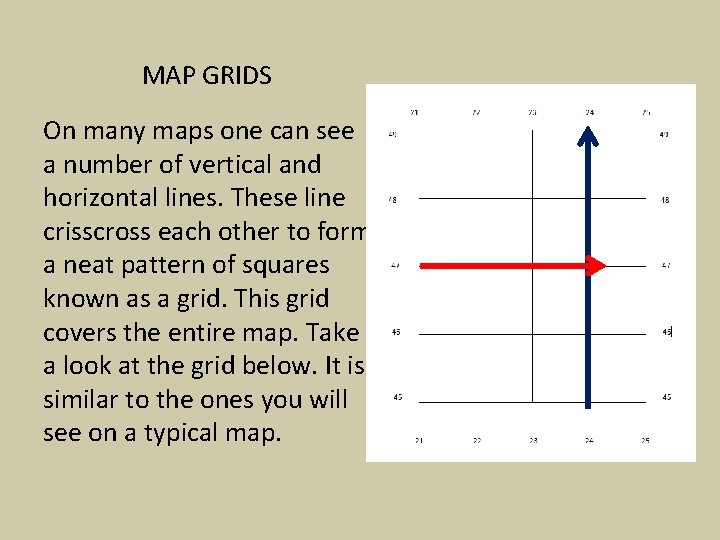

MAP GRIDS On many maps one can see a number of vertical and horizontal lines. These line crisscross each other to form a neat pattern of squares known as a grid. This grid covers the entire map. Take a look at the grid below. It is similar to the ones you will see on a typical map.

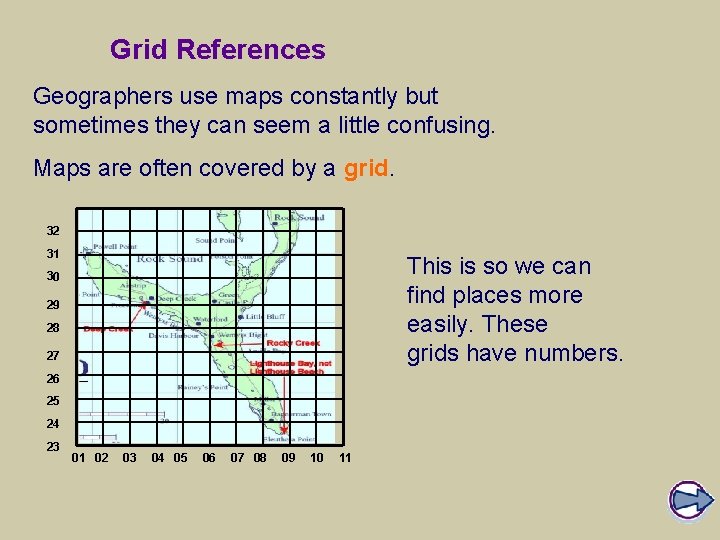

Grid References Geographers use maps constantly but sometimes they can seem a little confusing. Maps are often covered by a grid. 32 31 This is so we can find places more easily. These grids have numbers. 30 29 28 27 26 25 24 23 01 02 03 04 05 06 07 08 09 10 11

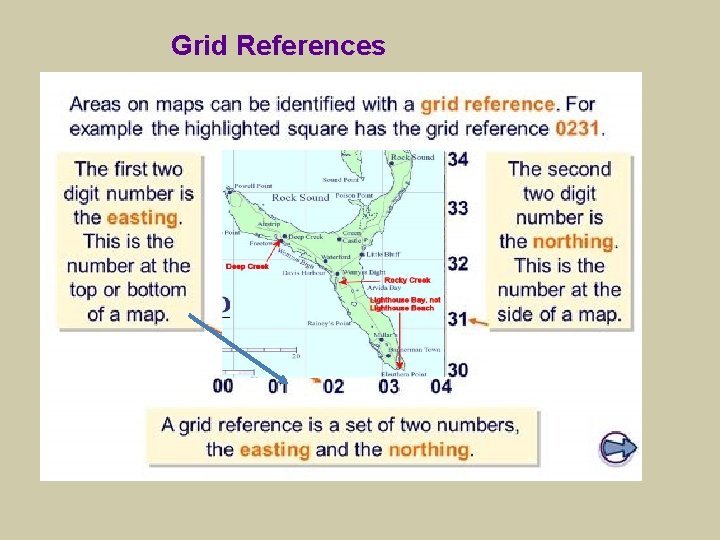

Grid References

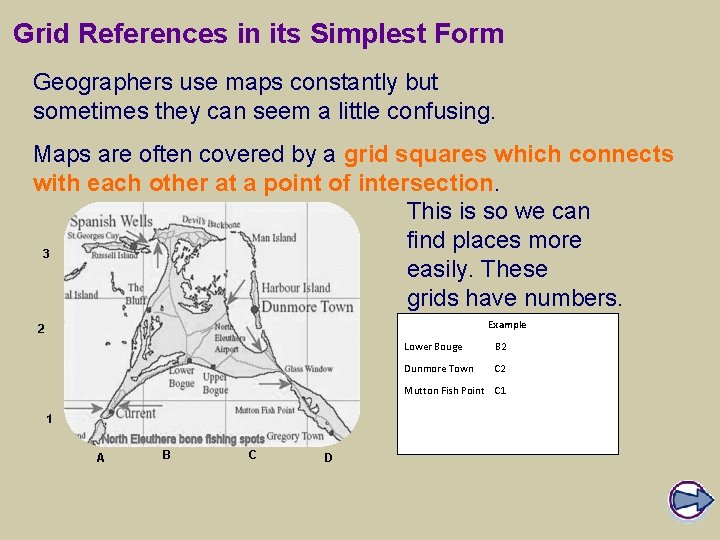

Grid References in its Simplest Form Geographers use maps constantly but sometimes they can seem a little confusing. Maps are often covered by a grid squares which connects with each other at a point of intersection. This is so we can find places more 3 easily. These grids have numbers. Example 2 Lower Bouge B 2 Dunmore Town C 2 Mutton Fish Point C 1 1 A B C D

Test Your Skills! Give the Map grid references for the objects in the grid above! Click start quiz to begin. A B C D Smiley Face B 48 1___________ Star A 47 2. __________ Heart C 46 3__________ Arrow D 46 4. __________ Cube A 45 5. __________ Lightening D 45 6. __________ A B C D Click in the Space for the answer

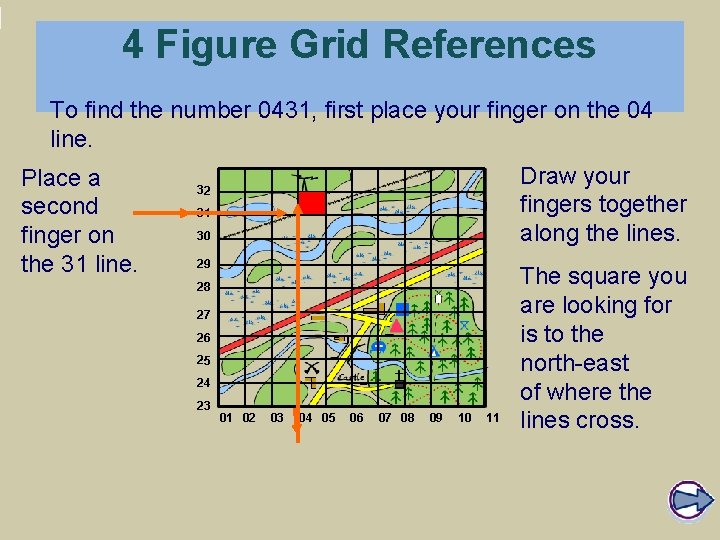

4 Figure Grid References To find the number 0431, first place your finger on the 04 line. Place a second finger on the 31 line. Draw your fingers together along the lines. 32 31 30 29 28 27 26 25 24 23 01 02 03 04 05 06 07 08 09 10 11 The square you are looking for is to the north-east of where the lines cross.

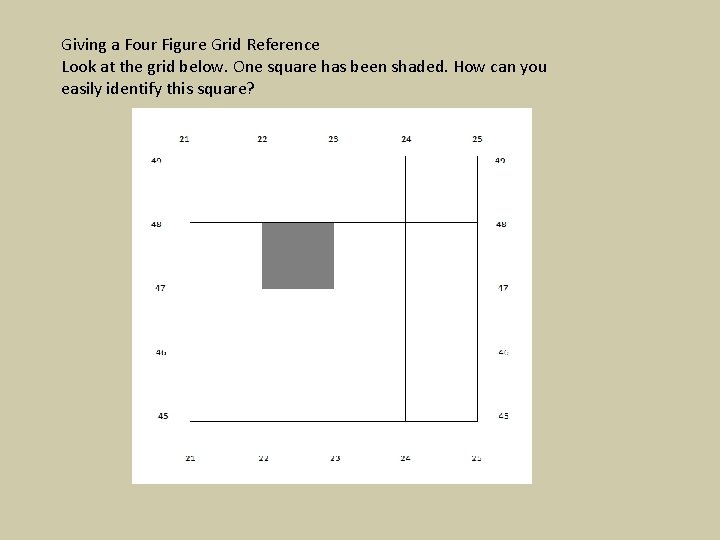

Giving a Four Figure Grid Reference Look at the grid below. One square has been shaded. How can you easily identify this square?

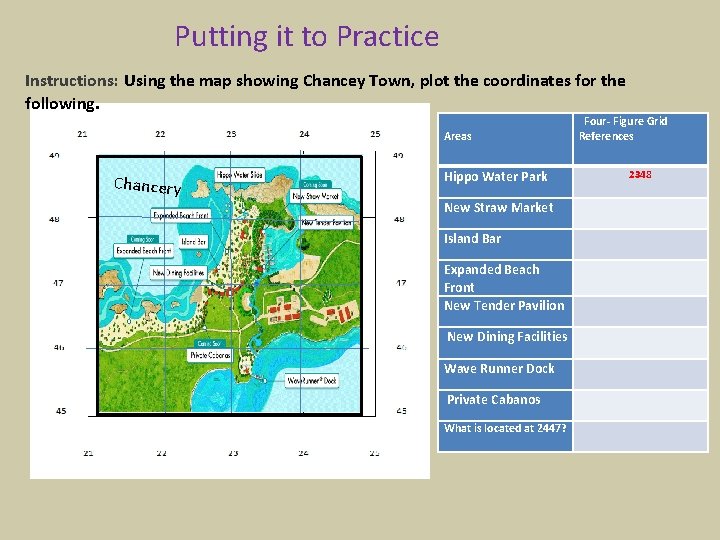

Putting it to Practice Instructions: Using the map showing Chancey Town, plot the coordinates for the following. Areas Chancery Hippo Water Park New Straw Market Island Bar Expanded Beach Front New Tender Pavilion New Dining Facilities Wave Runner Dock Private Cabanos What is located at 2447? Four- Figure Grid References 2348

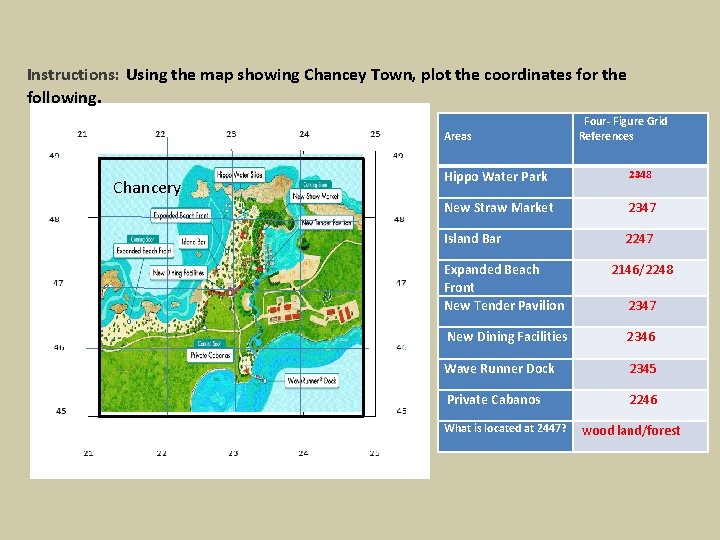

Instructions: Using the map showing Chancey Town, plot the coordinates for the following. Areas Chancery Four- Figure Grid References Hippo Water Park 2348 New Straw Market 2347 Island Bar 2247 Expanded Beach Front New Tender Pavilion 2146/2248 New Dining Facilities 2346 Wave Runner Dock 2345 Private Cabanos 2246 What is located at 2447? 2347 wood land/forest

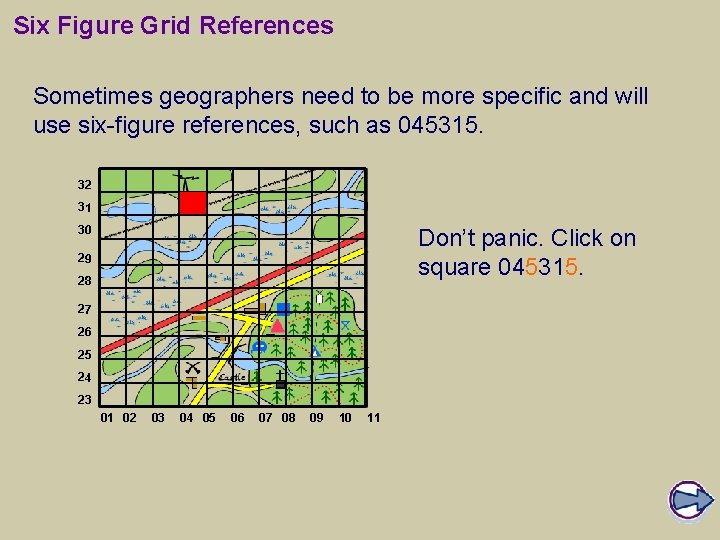

Six Figure Grid References Sometimes geographers need to be more specific and will use six-figure references, such as 045315. 32 31 30 Don’t panic. Click on square 045315. 29 28 27 26 25 24 23 01 02 03 04 05 06 07 08 09 10 11

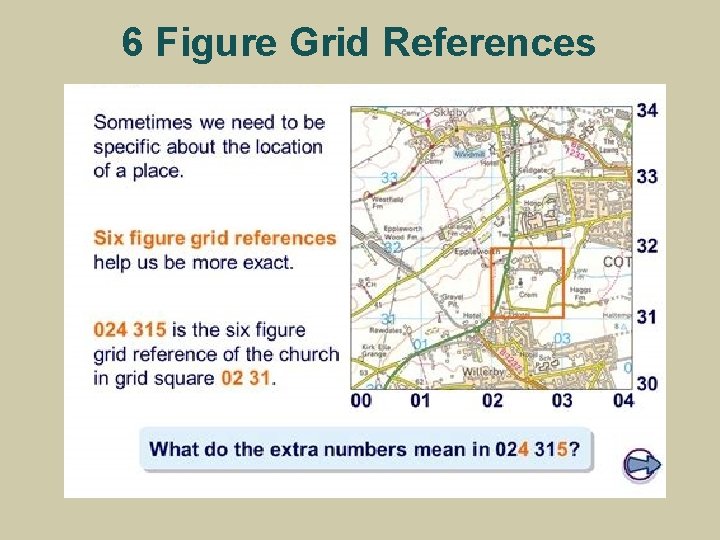

6 Figure Grid References

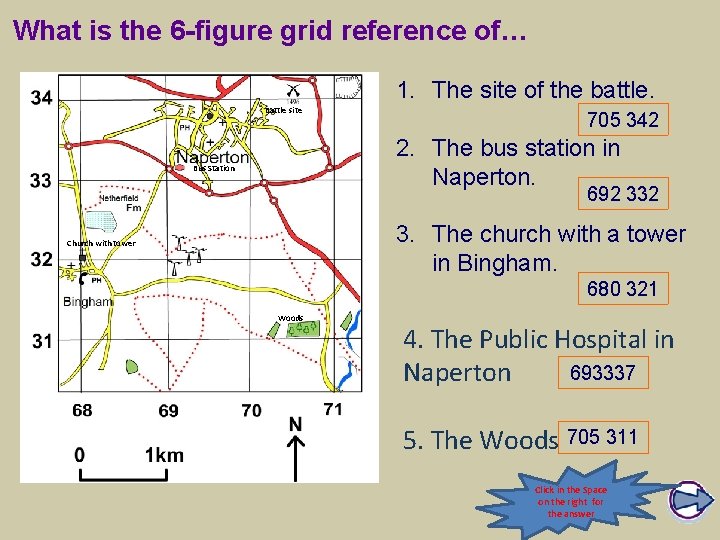

What is the 6 -figure grid reference of… 1. The site of the battle. Battle site 705 342 2. The bus station in Naperton. Bus Station 692 332 3. The church with a tower in Bingham. Church with tower 680 321 Woods 4. The Public Hospital in 693337 Naperton 5. The Woods 705 311 Click in the Space on the right for the answer

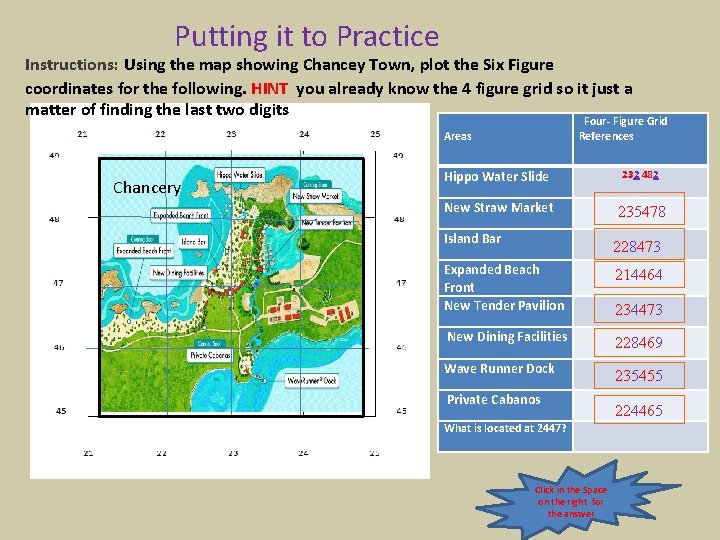

Putting it to Practice Instructions: Using the map showing Chancey Town, plot the Six Figure coordinates for the following. HINT you already know the 4 figure grid so it just a matter of finding the last two digits Four- Figure Grid References Areas Chancery Hippo Water Slide 232 482 New Straw Market 235478 Island Bar 228473 Expanded Beach Front New Tender Pavilion 214464 New Dining Facilities 228469 Wave Runner Dock Private Cabanos What is located at 2447? Click in the Space on the right for the answer 234473 235455 224465

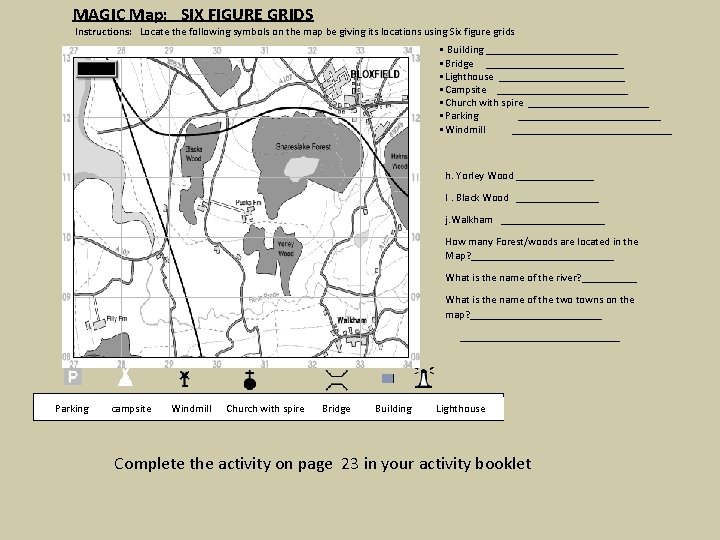

MAGIC Map: SIX FIGURE GRIDS Instructions: Locate the following symbols on the map be giving its locations using Six figure grids • Building ____________ • Bridge _____________ • Lighthouse ____________ • Campsite ____________ • Church with spire ___________ • Parking _____________ • Windmill _______________ h. Yorley Wood _______ I. Black Wood ________ j. Walkham __________ How many Forest/woods are located in the Map? _____________ What is the name of the river? _____ What is the name of the two towns on the map? _____________________________ Parking campsite Windmill Church with spire Bridge Building Lighthouse Complete the activity on page 23 in your activity booklet
