Understanding Building Systems Understanding Building Systems Physical Layout

Understanding Building Systems

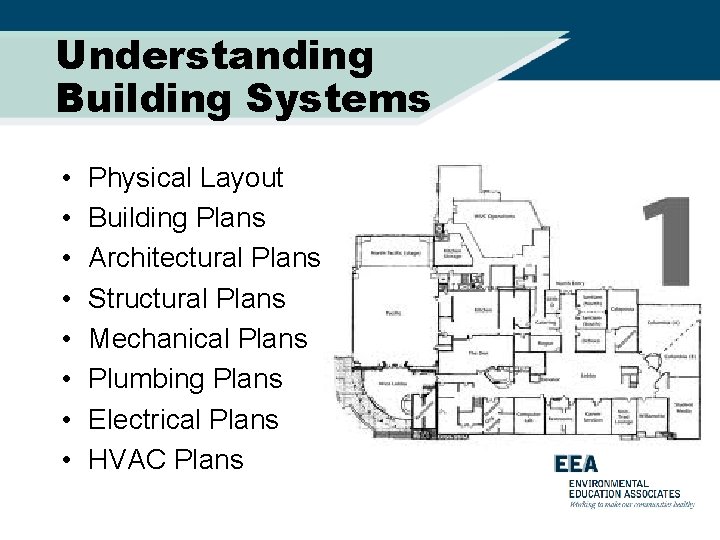

Understanding Building Systems • • Physical Layout Building Plans Architectural Plans Structural Plans Mechanical Plans Plumbing Plans Electrical Plans HVAC Plans

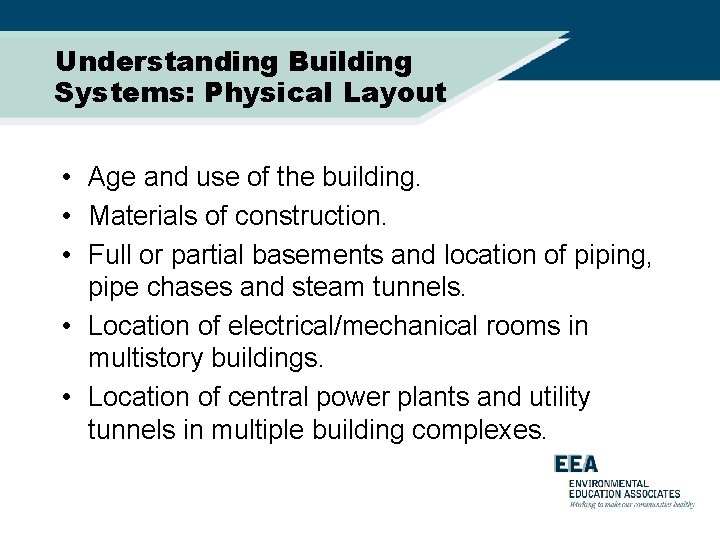

Understanding Building Systems: Physical Layout • Age and use of the building. • Materials of construction. • Full or partial basements and location of piping, pipe chases and steam tunnels. • Location of electrical/mechanical rooms in multistory buildings. • Location of central power plants and utility tunnels in multiple building complexes.

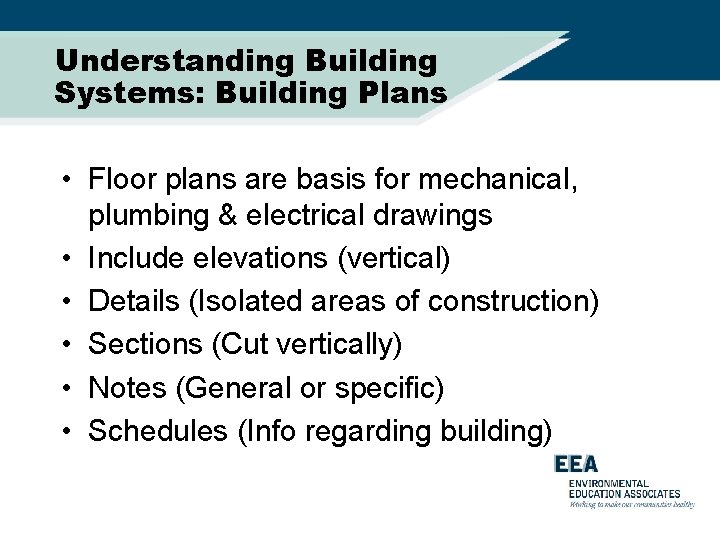

Understanding Building Systems: Building Plans • Floor plans are basis for mechanical, plumbing & electrical drawings • Include elevations (vertical) • Details (Isolated areas of construction) • Sections (Cut vertically) • Notes (General or specific) • Schedules (Info regarding building)

Understanding Building Systems: Architectural Plans • ID’s materials used in floors walls, doors, windows etc. • ID’s inaccessible bldg. products & any ACM/PACM • ID’s tunnels, pipe chases, attics & accessibility prior & during remediation • Review previous abatement records & room #’s accuracy

Understanding Building Systems: Structural Plans • Details of floors, framework and foundations • Structural beams, columns and slabs • Wood framing • Drywall/gypsum or Plaster • Concrete versus steel beams

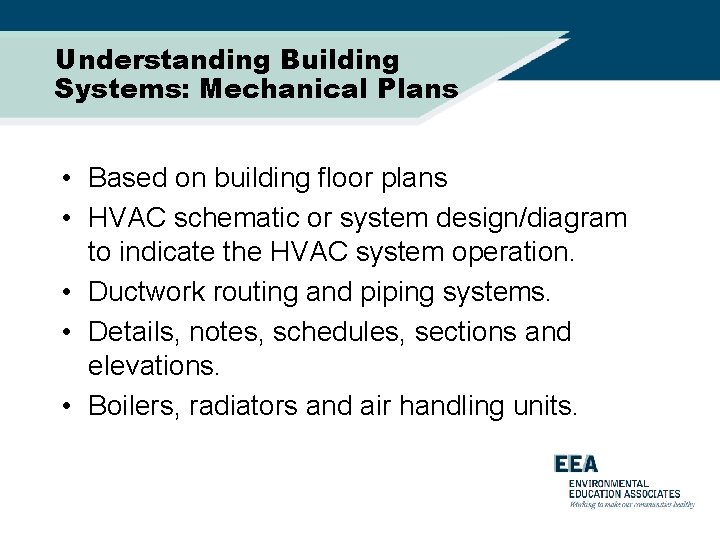

Understanding Building Systems: Mechanical Plans • Based on building floor plans • HVAC schematic or system design/diagram to indicate the HVAC system operation. • Ductwork routing and piping systems. • Details, notes, schedules, sections and elevations. • Boilers, radiators and air handling units.

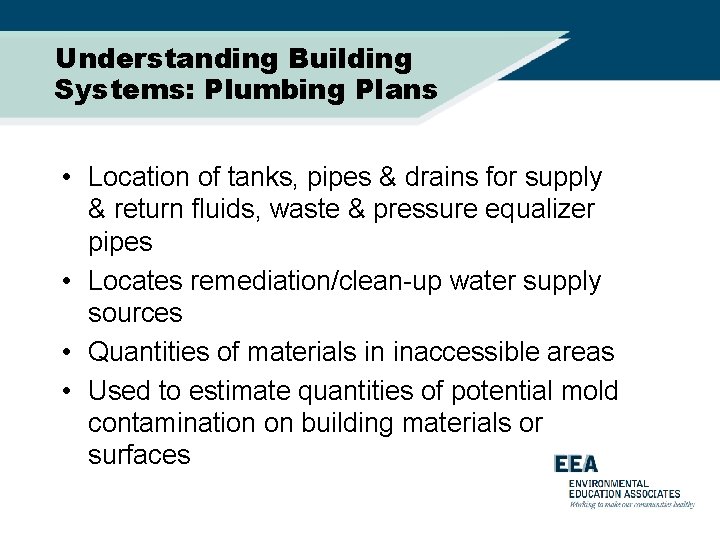

Understanding Building Systems: Plumbing Plans • Location of tanks, pipes & drains for supply & return fluids, waste & pressure equalizer pipes • Locates remediation/clean-up water supply sources • Quantities of materials in inaccessible areas • Used to estimate quantities of potential mold contamination on building materials or surfaces

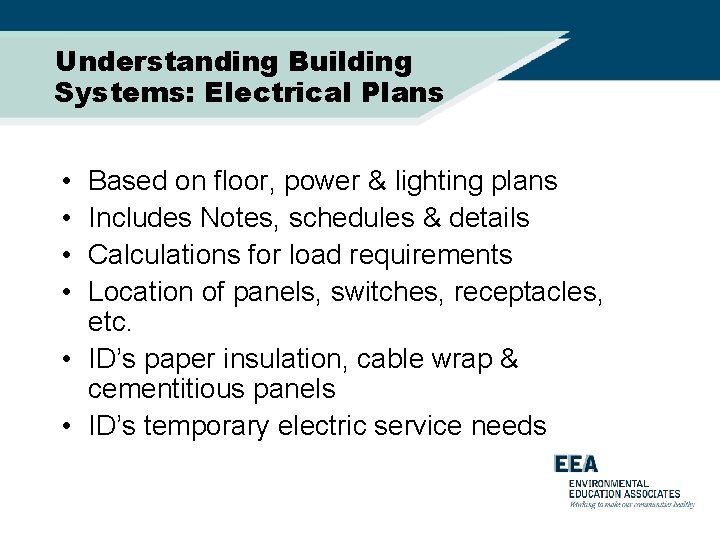

Understanding Building Systems: Electrical Plans • • Based on floor, power & lighting plans Includes Notes, schedules & details Calculations for load requirements Location of panels, switches, receptacles, etc. • ID’s paper insulation, cable wrap & cementitious panels • ID’s temporary electric service needs

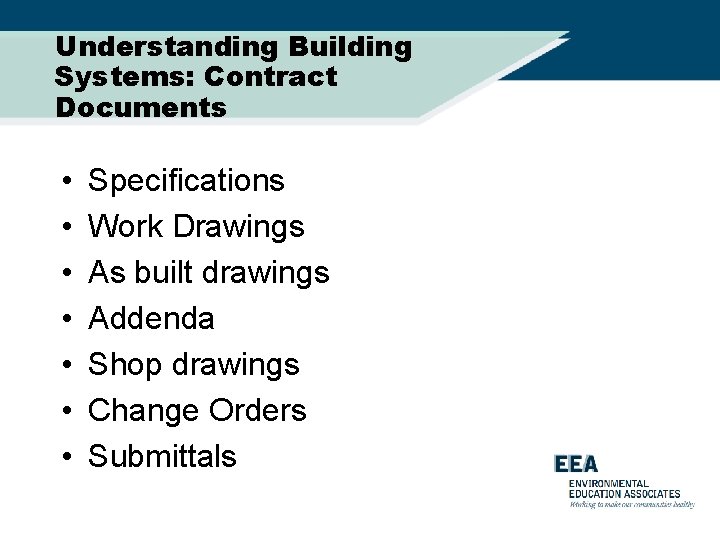

Understanding Building Systems: Contract Documents • • Specifications Work Drawings As built drawings Addenda Shop drawings Change Orders Submittals

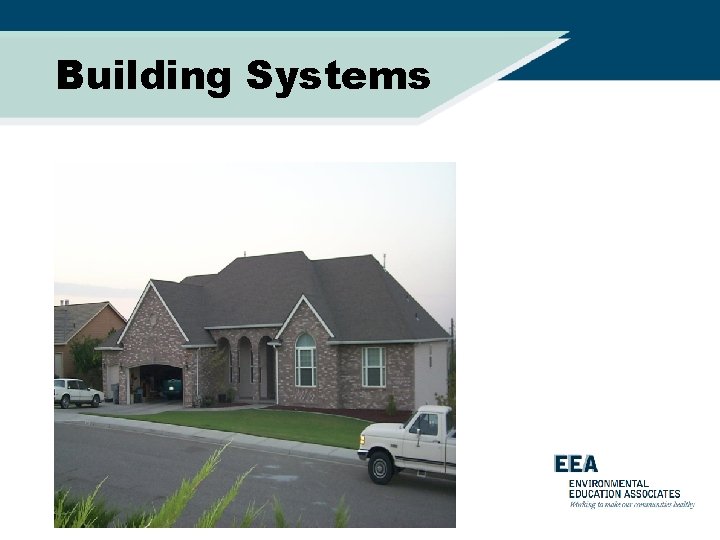

Building Systems

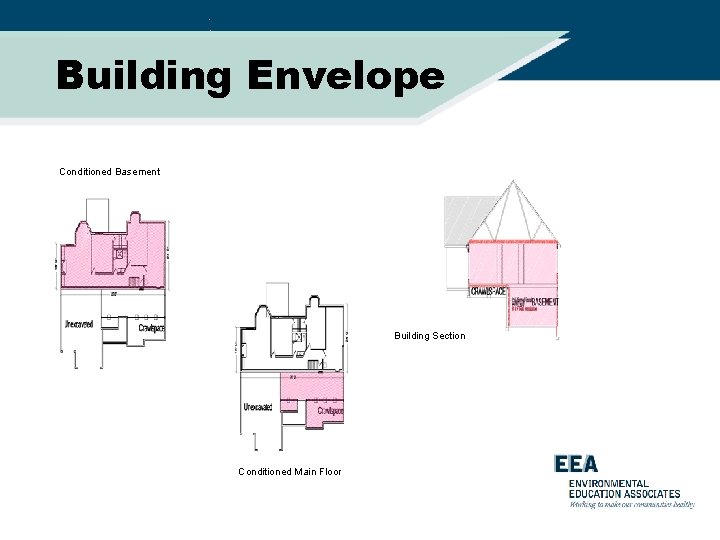

Building Envelope Conditioned Basement Building Section Conditioned Main Floor

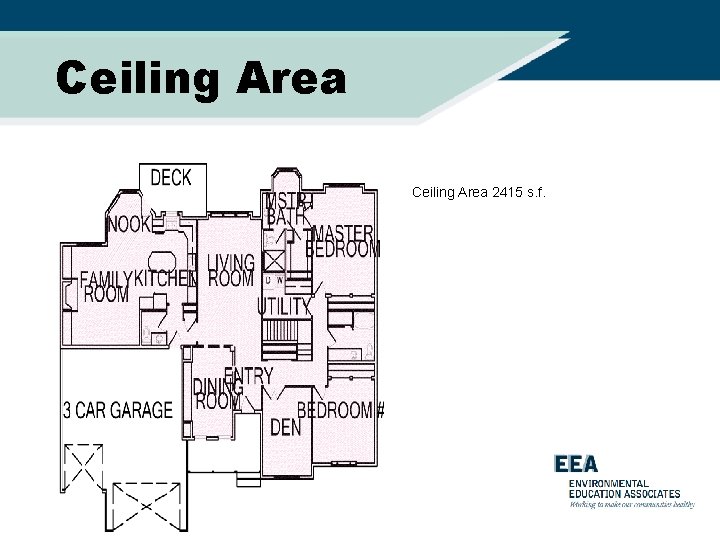

Ceiling Area 2415 s. f.

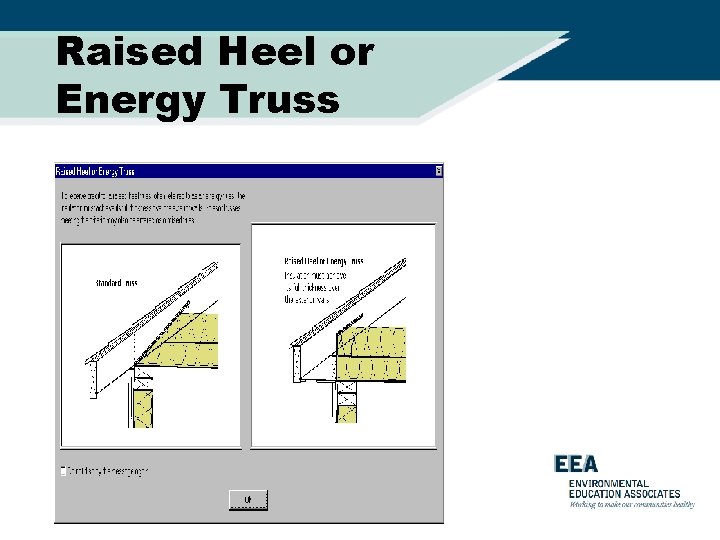

Raised Heel or Energy Truss

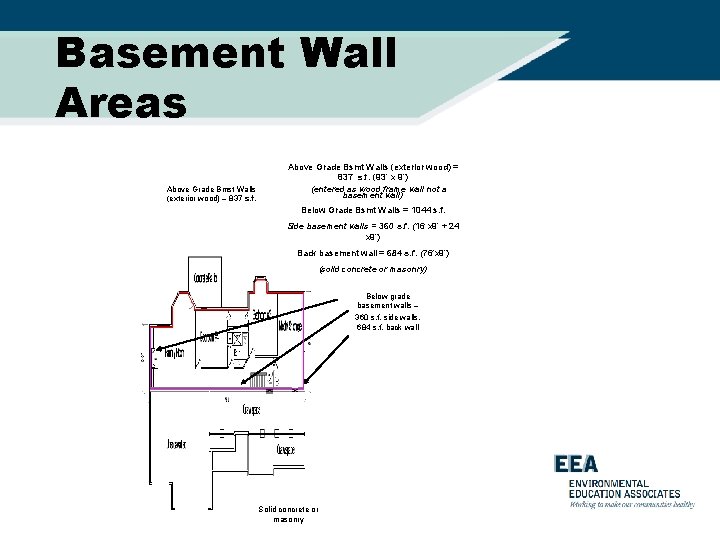

Basement Wall Areas Above Grade Bmst Walls (exterior wood) – 837 s. f. Above Grade Bsmt Walls (exterior wood) = 837 s. f. (93’ x 9’) (entered as wood frame wall not a basement wall) Below Grade Bsmt Walls = 1044 s. f. Side basement walls = 360 s. f. (16 x 9’ + 24 x 9’) Back basement wall = 684 s. f. (76’x 9’) (solid concrete or masonry) Below grade basement walls – 360 s. f. side walls, 684 s. f. back wall Solid concrete or masonry

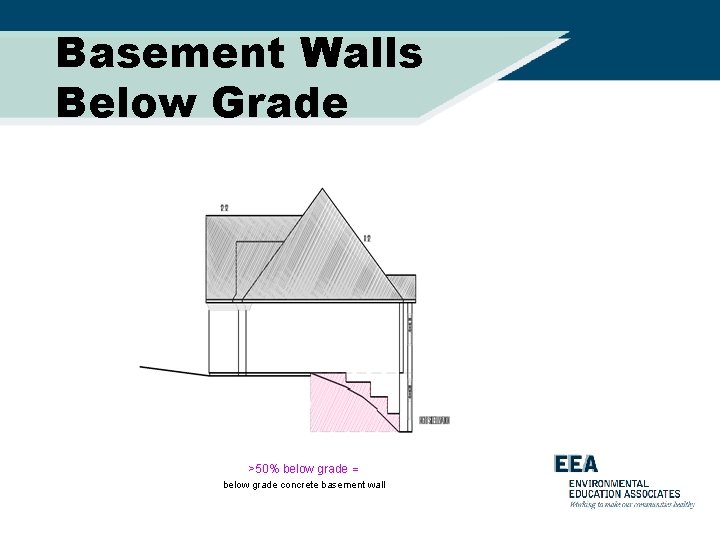

Basement Walls Below Grade >50% below grade = below grade concrete basement wall

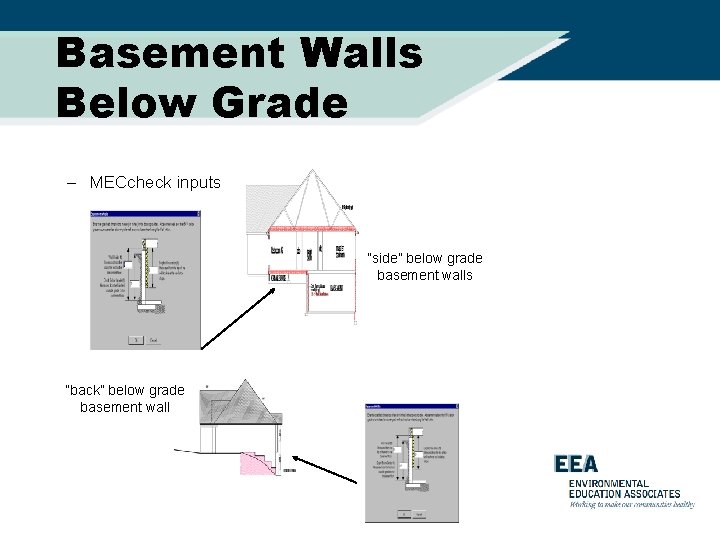

Basement Walls Below Grade – MECcheck inputs “side” below grade basement walls “back” below grade basement wall

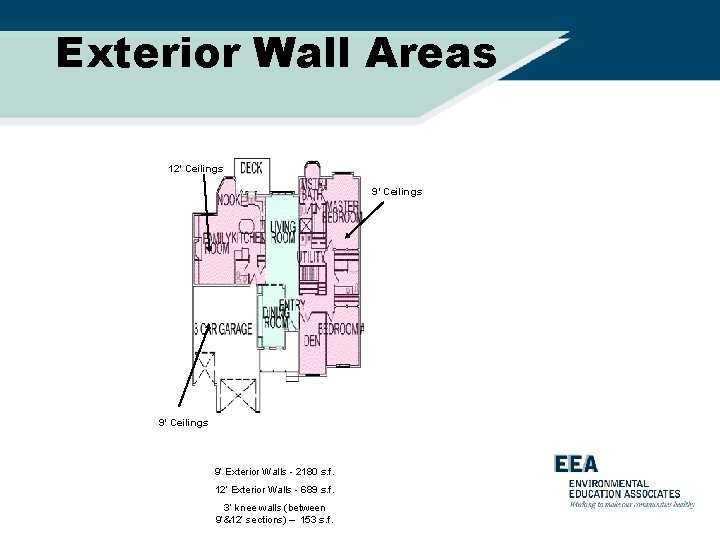

Exterior Wall Areas 12’ Ceilings 9’ Exterior Walls - 2180 s. f. 12’ Exterior Walls - 689 s. f. 3’ knee walls (between 9’&12’ sections) – 153 s. f.

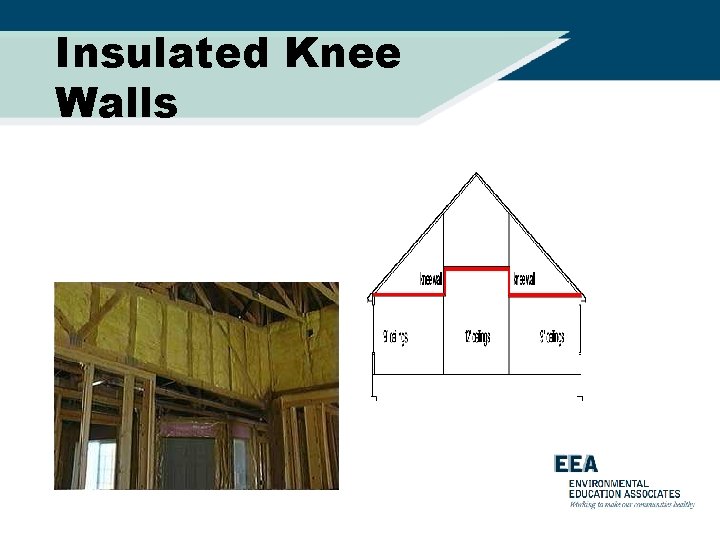

Insulated Knee Walls

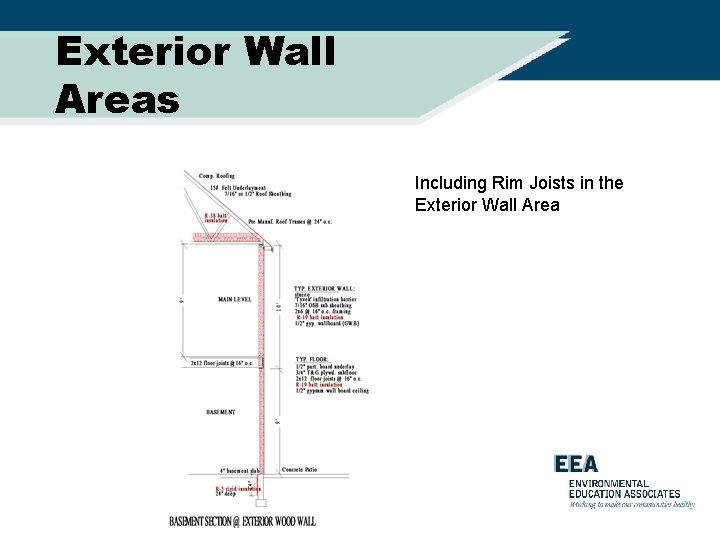

Exterior Wall Areas Including Rim Joists in the Exterior Wall Area

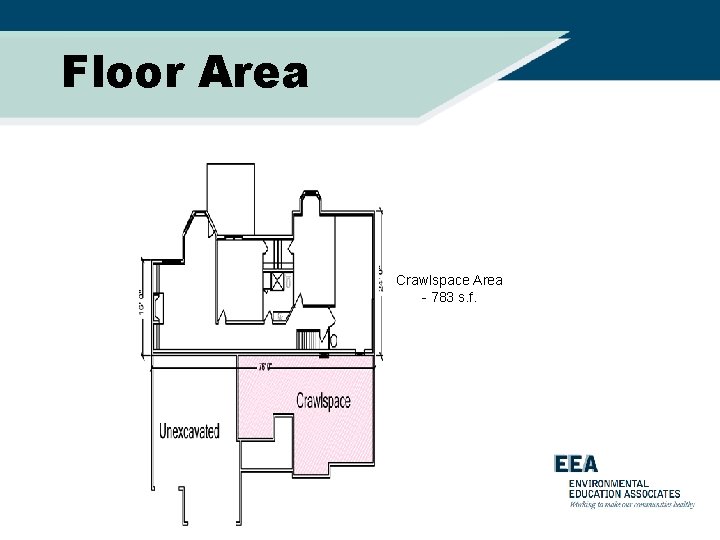

Floor Area Crawlspace Area - 783 s. f.

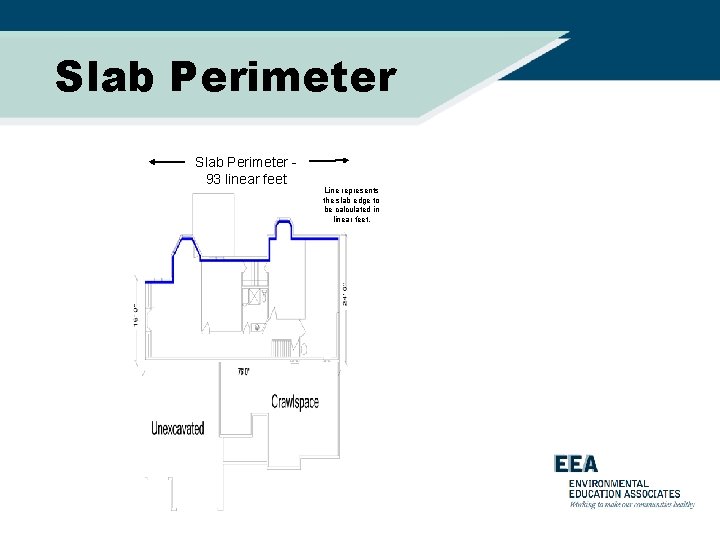

Slab Perimeter 93 linear feet Line represents the slab edge to be calculated in linear feet.

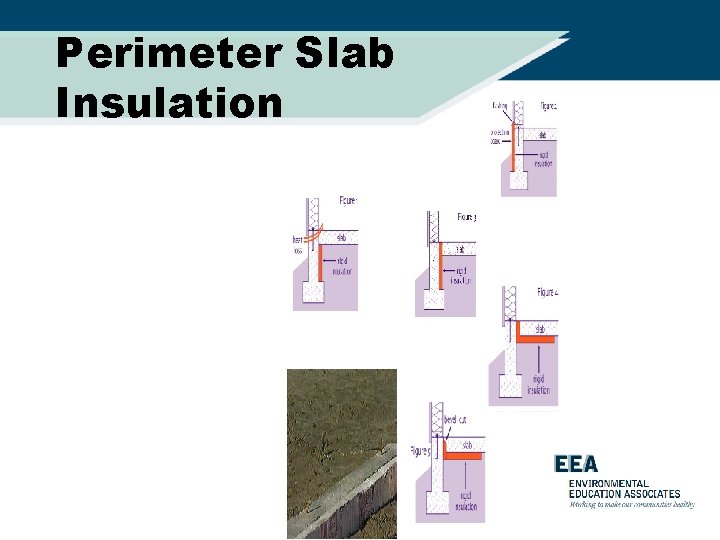

Perimeter Slab Insulation

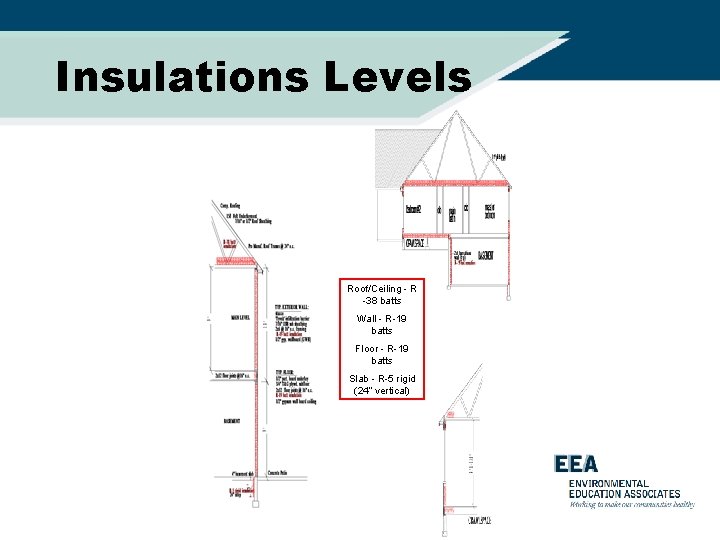

Insulations Levels Roof/Ceiling - R -38 batts Wall - R-19 batts Floor - R-19 batts Slab - R-5 rigid (24” vertical)

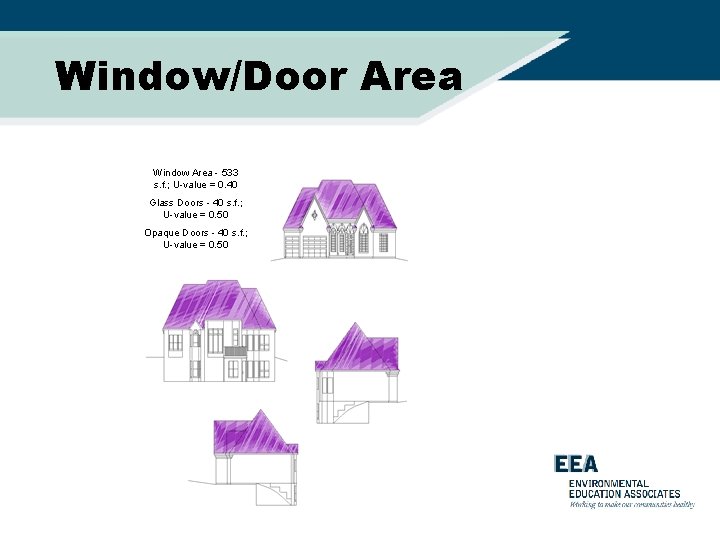

Window/Door Area Window Area - 533 s. f. ; U-value = 0. 40 Glass Doors - 40 s. f. ; U-value = 0. 50 Opaque Doors - 40 s. f. ; U-value = 0. 50

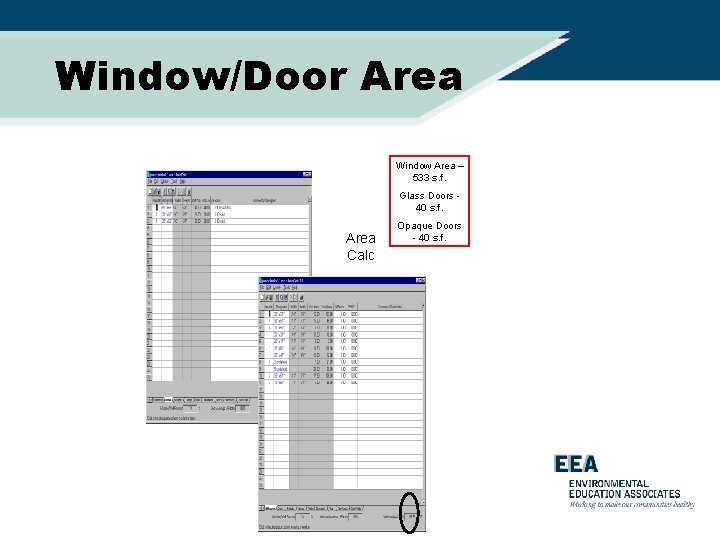

Window/Door Area Window Area – 533 s. f. Glass Doors 40 s. f. Area Calc Opaque Doors - 40 s. f.
