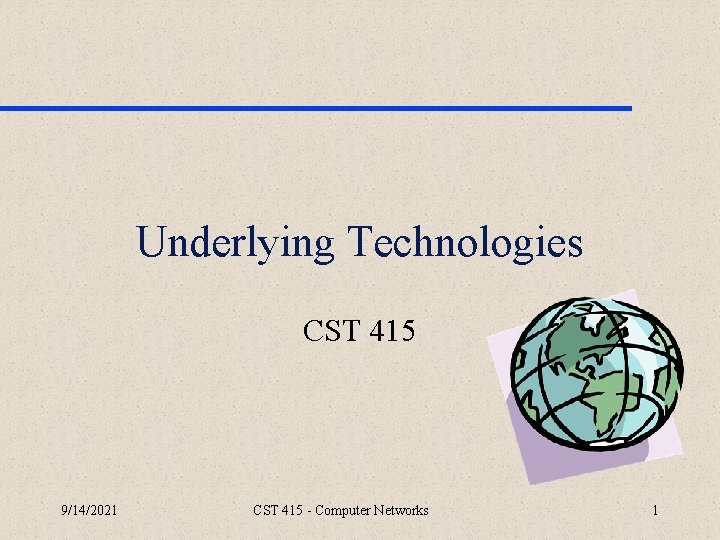

Underlying Technologies CST 415 9/14/2021 CST 415 - Computer Networks 1

Underlying Technologies CST 415 9/14/2021 CST 415 - Computer Networks 1

Topics • • Definitions Network Communications Ethernet FDDI ATM ARPANET NSFNET 9/14/2021 CST 415

Topics • • Definitions Network Communications Ethernet FDDI ATM ARPANET NSFNET 9/14/2021 CST 415 - Computer Networks 2

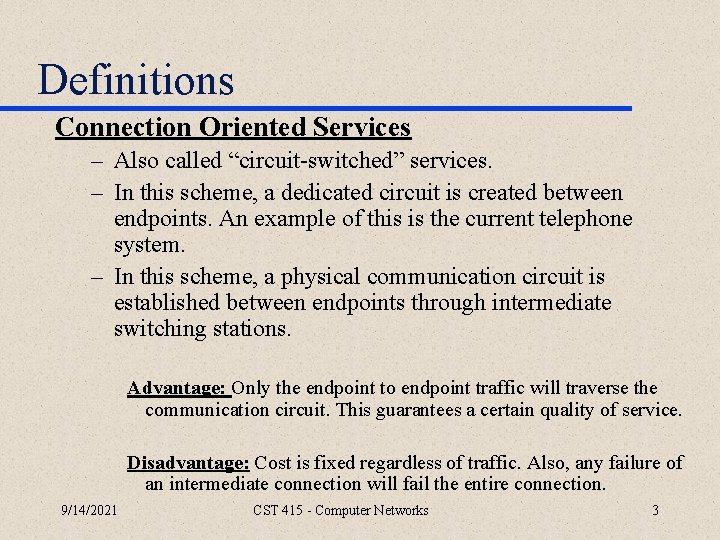

Definitions Connection Oriented Services – Also called “circuit-switched” services. – In this scheme, a

Definitions Connection Oriented Services – Also called “circuit-switched” services. – In this scheme, a dedicated circuit is created between endpoints. An example of this is the current telephone system. – In this scheme, a physical communication circuit is established between endpoints through intermediate switching stations. Advantage: Only the endpoint to endpoint traffic will traverse the communication circuit. This guarantees a certain quality of service. Disadvantage: Cost is fixed regardless of traffic. Also, any failure of an intermediate connection will fail the entire connection. 9/14/2021 CST 415 - Computer Networks 3

Definitions Connectionless Services – Also called “packet-switched” services. – There is no dedicated circuit

Definitions Connectionless Services – Also called “packet-switched” services. – There is no dedicated circuit between endpoints. – Communication is split up into small digitized chunks (packets). – End-to-end communication is potentially performed through many different routes depending on network load. Advantage: Communication redundancy provides a higher level of throughput depending on system load. Disadvantage: Reconstruction of packets is timely and data rate cannot be guaranteed. 9/14/2021 CST 415 - Computer Networks 4

Definitions Full Duplex – The communication media will allow concurrent transfer of information in

Definitions Full Duplex – The communication media will allow concurrent transfer of information in both directions. – From the application point of view, it appears as though there is a communication line for sending and a line for receiving. Half Duplex – The communication media will only transfer in one direction at a time such as a serial cable. 9/14/2021 CST 415 - Computer Networks 5

Network Communications LAN – Local Area Network – Privately owned networks within a single

Network Communications LAN – Local Area Network – Privately owned networks within a single building or campus, typically spanning a few kilometers as a maximum. – Bandwidth can be high because of low distance restrictions. – Security internal to a LAN can be closely monitored. 9/14/2021 CST 415 - Computer Networks 6

Network Communications LAN – Topologies – Ring Topology (Token Ring) – Bus Topology (Typically

Network Communications LAN – Topologies – Ring Topology (Token Ring) – Bus Topology (Typically Ethernet) A LAN can deploy any topology that the local system administrator wishes. Q: What will always be required if a LAN whishes to interoperate with other LAN installations? 9/14/2021 CST 415 - Computer Networks 7

Network Communications from Computer Networks by Andrew S. Tanenbaum Two network topologies (a) Bus

Network Communications from Computer Networks by Andrew S. Tanenbaum Two network topologies (a) Bus (b) Ring 9/14/2021 CST 415 - Computer Networks 8

Network Communications WAN – Wide Area Network – Data networks that span large geographical

Network Communications WAN – Wide Area Network – Data networks that span large geographical distances. – Typical speeds are 1. 5 Mbps to 155 Mbps. – WAN data rates are usually slower that LAN data rates. 9/14/2021 CST 415 - Computer Networks 9

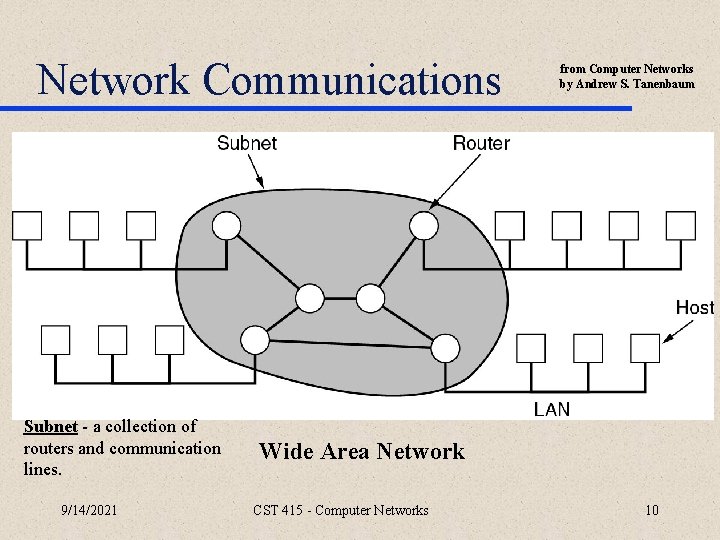

Network Communications Subnet - a collection of routers and communication lines. 9/14/2021 from Computer

Network Communications Subnet - a collection of routers and communication lines. 9/14/2021 from Computer Networks by Andrew S. Tanenbaum Wide Area Network CST 415 - Computer Networks 10

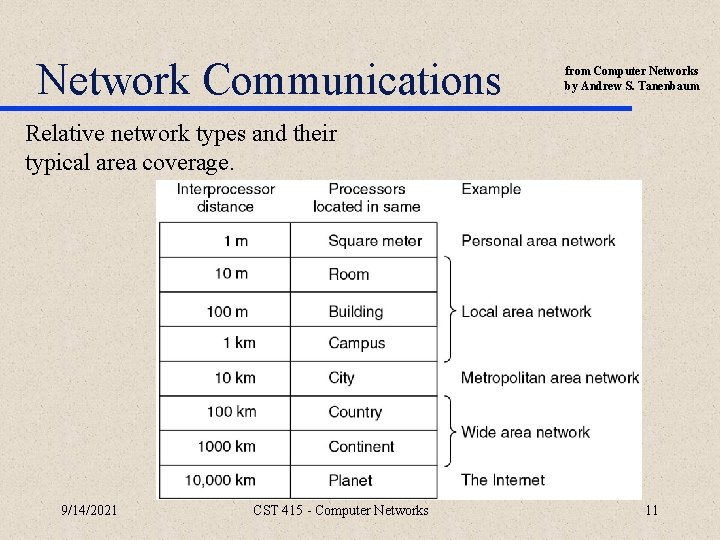

Network Communications from Computer Networks by Andrew S. Tanenbaum Relative network types and their

Network Communications from Computer Networks by Andrew S. Tanenbaum Relative network types and their typical area coverage. 9/14/2021 CST 415 - Computer Networks 11

Network Communications • The Internet is not made up of homogeneous networks. • Ethernet

Network Communications • The Internet is not made up of homogeneous networks. • Ethernet is one type of physical transmission standard/data link standard used for LAN communications. • Other packet switching technologies are used for WAN and Internet. – Frame Relay – FDDI – ATM 9/14/2021 CST 415 - Computer Networks 12

Ethernet The term Ethernet comes from the luminiferous ether, the medium through which electromagnetic

Ethernet The term Ethernet comes from the luminiferous ether, the medium through which electromagnetic radiation was thought to propagate. This was before it was discovered that electromagnetic radiation could propagate in a vacuum. 9/14/2021 CST 415 - Computer Networks 13

Ethernet • Developed at Xerox PARC in the early 70’s. • IEEE Standard Number

Ethernet • Developed at Xerox PARC in the early 70’s. • IEEE Standard Number is 802. 3 • Transceiver taps into the Ethernet cable – Senses signals (CS) – Sends signals • NIC (Network Interface Card) adapts the host computer to the transceiver. • Multiple computers are connected to a single cable to form a bus topology (MA). 9/14/2021 CST 415 - Computer Networks 14

Ethernet (CSMA/CD) • • • 9/14/2021 A computer decides to send a packet. The

Ethernet (CSMA/CD) • • • 9/14/2021 A computer decides to send a packet. The carrier is active and there are no packets currently being transmitted. (Carrier Sense – CS) There are multiple computers on the network bus (Multiple Access – MA) It is possible and highly probable that more than one machine will send at the same time. The collision will be detected (Collision Detection – CD) The computers will back off for a random amount of time and try again. CST 415 - Computer Networks 15

Ethernet (CSMA/CD) The amount of time the computer will “backoff” for is determined by

Ethernet (CSMA/CD) The amount of time the computer will “backoff” for is determined by a technique known as “binary exponential backoff”. 1. For the first 10 attempts, the mean value of the random delay is doubled. 2. For the next 6 attempts, the mean value is maintained. 3. After 16 unsuccessful attempts, the computer will give up and report a link error. 9/14/2021 CST 415 - Computer Networks 16

Ethernet (CSMA/CD) See 802. 3 • • • 9/14/2021 Figure 4– 3 Relationship among

Ethernet (CSMA/CD) See 802. 3 • • • 9/14/2021 Figure 4– 3 Relationship among CSMA/CD procedures Figure 4– 4 a—Control flow summary send frame Figure 4– 4 b—Control flow summary receive frame CST 415 - Computer Networks 17

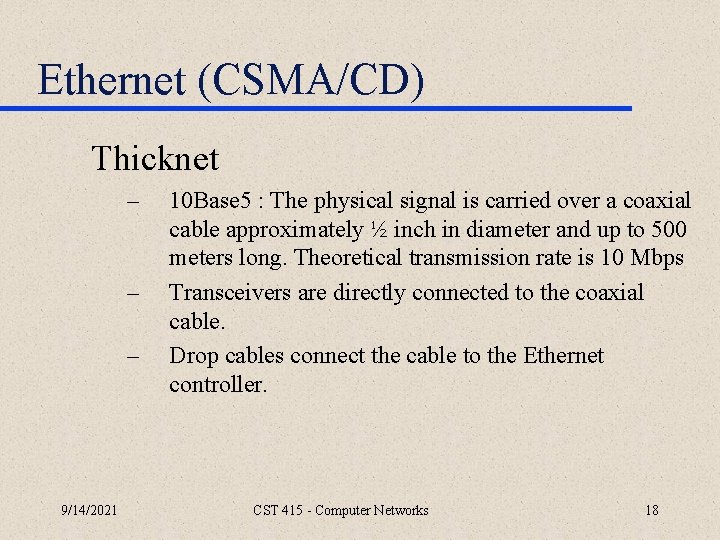

Ethernet (CSMA/CD) Thicknet – – – 9/14/2021 10 Base 5 : The physical signal

Ethernet (CSMA/CD) Thicknet – – – 9/14/2021 10 Base 5 : The physical signal is carried over a coaxial cable approximately ½ inch in diameter and up to 500 meters long. Theoretical transmission rate is 10 Mbps Transceivers are directly connected to the coaxial cable. Drop cables connect the cable to the Ethernet controller. CST 415 - Computer Networks 18

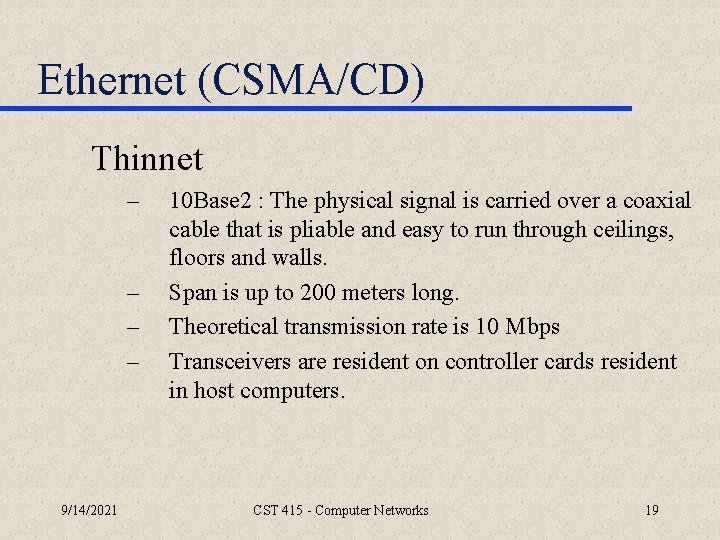

Ethernet (CSMA/CD) Thinnet – – 9/14/2021 10 Base 2 : The physical signal is

Ethernet (CSMA/CD) Thinnet – – 9/14/2021 10 Base 2 : The physical signal is carried over a coaxial cable that is pliable and easy to run through ceilings, floors and walls. Span is up to 200 meters long. Theoretical transmission rate is 10 Mbps Transceivers are resident on controller cards resident in host computers. CST 415 - Computer Networks 19

Ethernet (CSMA/CD) Twisted Pair Ethernet – – 9/14/2021 10 Base. T : The physical

Ethernet (CSMA/CD) Twisted Pair Ethernet – – 9/14/2021 10 Base. T : The physical signal is carried 4 unshielded twisted pair wires that are resident in standard telephone equipment (Category 5 or Cat 5). The cable is connected up to a hub that provides the Bus topology. Length of wire is limited to 100 meters. Theoretical transmission rate is 10 Mbps CST 415 - Computer Networks 20

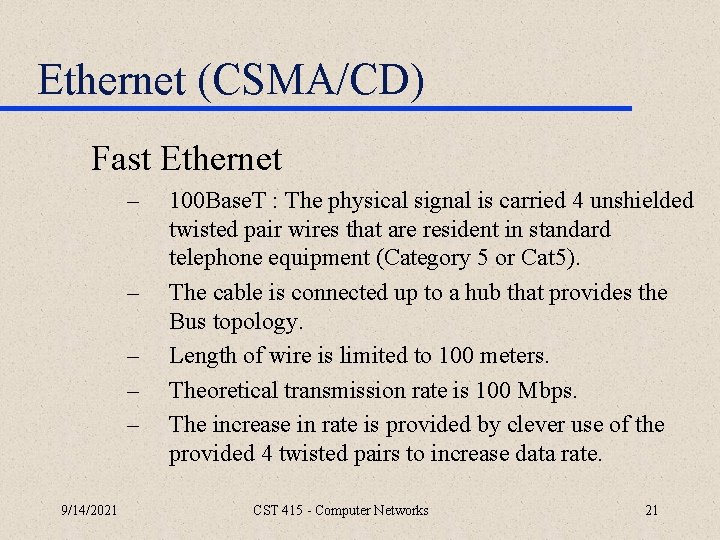

Ethernet (CSMA/CD) Fast Ethernet – – – 9/14/2021 100 Base. T : The physical

Ethernet (CSMA/CD) Fast Ethernet – – – 9/14/2021 100 Base. T : The physical signal is carried 4 unshielded twisted pair wires that are resident in standard telephone equipment (Category 5 or Cat 5). The cable is connected up to a hub that provides the Bus topology. Length of wire is limited to 100 meters. Theoretical transmission rate is 100 Mbps. The increase in rate is provided by clever use of the provided 4 twisted pairs to increase data rate. CST 415 - Computer Networks 21

Ethernet (CSMA/CD) Gigabit Ethernet – – 9/14/2021 1000 Base. T : The physical signal

Ethernet (CSMA/CD) Gigabit Ethernet – – 9/14/2021 1000 Base. T : The physical signal is carried 4 unshielded twisted pair wires that are resident in standard telephone equipment (Category 5 or Cat 5). The cable is connected up to a hub that provides the Bus topology. Length of wire is limited to 100 meters. Theoretical transmission rate is 1000 Mbps. CST 415 - Computer Networks 22

Ethernet (CSMA/CD) • Each of the Ethernet standards has a relatively short physical limitation.

Ethernet (CSMA/CD) • Each of the Ethernet standards has a relatively short physical limitation. To extend the distance of a single network, an administrator can employ: • – – 9/14/2021 Repeater : simply amplify and propagate packet signal. Bridges : repeat the packets with the intelligence of receiving a good packet before passing it on. Smart Bridges: only propagate those packets within a certain address range. Transport Bridge: perform a protocol conversion into a protocol running over a “long-haul” network (e. g. ATM). CST 415 - Computer Networks 23

Ethernet (CSMA/CD) Standards – 10 BASE 2: IEEE 802. 3 Physical Layer specification for

Ethernet (CSMA/CD) Standards – 10 BASE 2: IEEE 802. 3 Physical Layer specification for a 10 Mb/s CSMA/CD local area network over RG 58 coaxial cable. (See IEEE 802. 3 Clause 10) 10 BASE 5: IEEE 802. 3 Physical Layer specification for a 10 Mb/s CSMA/CD local area network over coaxial cable (i. e. , thicknet). (See IEEE 802. 3 Clause 8. ) 10 BASE-F: IEEE 802. 3 Physical Layer specification for a 10 Mb/s CSMA/CD local area network over fiber optic cable. (See IEEE 802. 3 Clause 15. ) 10 BASE-FB port: A port on a repeater that contains an internal 10 BASE-FB Medium Attachment Unit (MAU) that can connect to a similar port on another repeater. (See IEEE 802. 3 Clause 9, Figure 15 -1 b and Figure 17. 3. ) 9 ITU-T publications are vailable from the International Telecommunications Union, Place des Nations, CH -1211 Geneva 20, Switzerland (www. itu. int). 10 For information on Mat. Lab contact: The Math. Works, 24 Park Way, Natick, MA, (www. mathworks. com). IEEE Std 802. 3 -2002, Section One LOCAL AND METROPOLITAN AREA NETWORKS: 12 Copyright © 2002 IEEE. All rights reserved. 9/14/2021 CST 415 - Computer Networks 24

Ethernet (CSMA/CD) Standards – 10 BASE-FB segment: A fiber optic link segment providing a

Ethernet (CSMA/CD) Standards – 10 BASE-FB segment: A fiber optic link segment providing a point-to-point connection between two 10 BASE-FB ports on repeaters. (See link segment IEEE 802. 3 Figure 15 -1 b and Figure 15– 2. ) 10 BASE-FL segment: A fiber optic link segment providing point-to-point connection between two 10 BASE-FL Medium Attachment Units (MAUs). (See link segment IEEE 802. 3 Figure 15 -1 c and Figure 15– 2. ) 10 BASE-FP segment: A fiber optic mixing segment, including one 10 BASE-FP Star and all of the attached fiber pairs. (See IEEE 802. 3 Figure 15– 1 a, Figure 1– 3, and mixing segment. ) 1. 4. 8 10 BASE-FP Star: A passive device that is used to couple fiber pairs together to form a 10 BASE-FP segment. Optical signals received at any input port of the 10 BASE-FP Star are distributed to all of its output ports (including the output port of the optical interface from which it was received). A 10 BASE-FP Star is typically comprised of a passive-star coupler, fiber optic connectors, and a suitable mechanical housing. (See IEEE 802. 3, 16. 5. ) 9/14/2021 CST 415 - Computer Networks 25

Ethernet (CSMA/CD) 10 BASE-T: IEEE 802. 3 Physical Layer specification for a 10 Mb/s

Ethernet (CSMA/CD) 10 BASE-T: IEEE 802. 3 Physical Layer specification for a 10 Mb/s CSMA/CD local area network over two pairs of twisted-pair telephone wire. (See IEEE 802. 3 Clause 14. ) 100 BASE-FX: IEEE 802. 3 Physical Layer specification for a 100 Mb/s CSMA/CD local area network over two optical fibers. (See IEEE 802. 3 Clauses 24 and 26. ) 100 BASE-T: IEEE 802. 3 Physical Layer specification for a 100 Mb/s CSMA/CD local area network. (See IEEE 802. 3 Clauses 22 and 28. ) 100 BASE-T 2: IEEE 802. 3 specification for a 100 Mb/s CSMA/CD local area network over two pairs of Category 3 or better balanced cabling. (See IEEE 802. 3 Clause 32. ) 100 BASE-T 4: IEEE 802. 3 Physical Layer specification for a 100 Mb/s CSMA/CD local area network over four pairs of Category 3, 4, and 5 unshielded twistedpair (UTP) wire. (See IEEE 802. 3 Clause 23. ) 9/14/2021 CST 415 - Computer Networks 26

Ethernet (CSMA/CD) 100 BASE-TX: IEEE 802. 3 Physical Layer specification for a 100 Mb/s

Ethernet (CSMA/CD) 100 BASE-TX: IEEE 802. 3 Physical Layer specification for a 100 Mb/s CSMA/CD local area network over two pairs of Category 5 unshielded twisted-pair (UTP) or shielded twisted-pair (STP) wire. (See. IEEE 802. 3 Clauses 24 and 25. ) 100 BASE-X: IEEE 802. 3 Physical Layer specification for a 100 Mb/s CSMA/CD local area network that uses the Physical Medium Dependent (PMD) sublayer and Medium Dependent Interface (MDI) of the ISO/IEC 9314 group of standards developed by ASC X 3 T 12 (FDDI). (See IEEE 802. 3 Clause 24. ) 1000 BASE-CX: 1000 BASE-X over specialty shielded balanced copper jumper cable assemblies. (See IEEE 802. 3 Clause 39. ) 1000 BASE-LX: 1000 BASE-X using long wavelength laser devices over multimode and single-mode fiber. (See EEE 802. 3 Clause 38. ) 9/14/2021 CST 415 - Computer Networks 27

Ethernet (CSMA/CD) 1000 BASE-SX: 1000 BASE-X using short wavelength laser devices over multimode fiber.

Ethernet (CSMA/CD) 1000 BASE-SX: 1000 BASE-X using short wavelength laser devices over multimode fiber. (See IEEE 802. 3 Clause 38. ) 1000 BASE-T: IEEE 802. 3 Physical Layer specification for a 1000 Mb/s CSMA/CD LAN using four pairs of Category 5 balanced copper cabling. (See IEEE 802. 3 Clause 40. ) 1000 BASE-X: IEEE 802. 3 Physical Layer specification for a 1000 Mb/s CSMA/CD LAN that uses a Physical Layer derived from ANSI X 3. 2301994 (FC-PH) [B 20]11. (See IEEE 802. 3 Clause 36. ) CSMA/CD IEEE Std 802. 3 -2002, Section One 10 BROAD 36: IEEE 802. 3 Physical Layer specification for a 10 Mb/s CSMA/CD local area network over single broadband cable. (See IEEE 802. 3 Clause 11. ) 1 BASE 5: IEEE 802. 3 Physical Layer specification for a 1 Mb/s CSMA/CD local area network over two pairs of twisted-pair telephone wire. (See IEEE 802. 3 Clause 12. ) 9/14/2021 CST 415 - Computer Networks 28

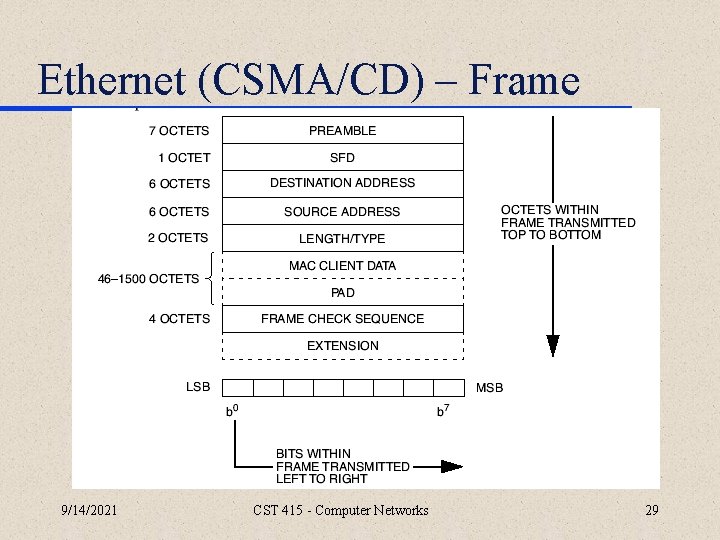

Ethernet (CSMA/CD) – Frame 9/14/2021 CST 415 - Computer Networks 29

Ethernet (CSMA/CD) – Frame 9/14/2021 CST 415 - Computer Networks 29

Ethernet (CSMA/CD) – Frame Preamble: – 56 bits of alternating 1’s and 0’s –

Ethernet (CSMA/CD) – Frame Preamble: – 56 bits of alternating 1’s and 0’s – Provided to help receiving interfaces synchronize. 9/14/2021 CST 415 - Computer Networks 30

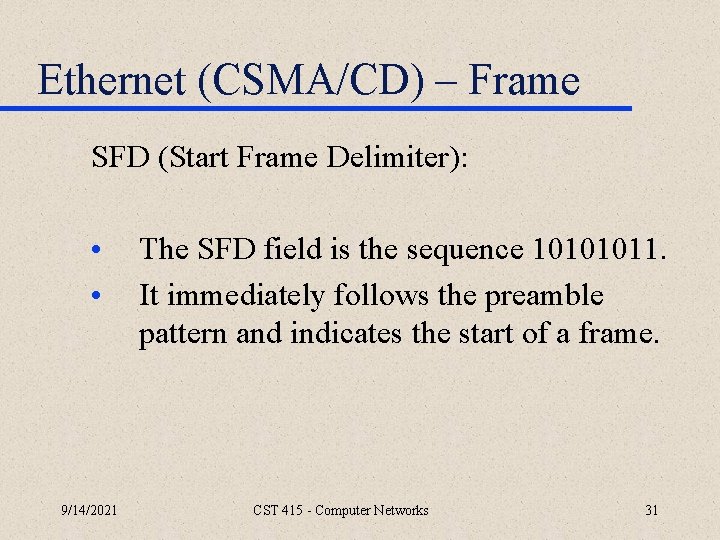

Ethernet (CSMA/CD) – Frame SFD (Start Frame Delimiter): • • 9/14/2021 The SFD field

Ethernet (CSMA/CD) – Frame SFD (Start Frame Delimiter): • • 9/14/2021 The SFD field is the sequence 10101011. It immediately follows the preamble pattern and indicates the start of a frame. CST 415 - Computer Networks 31

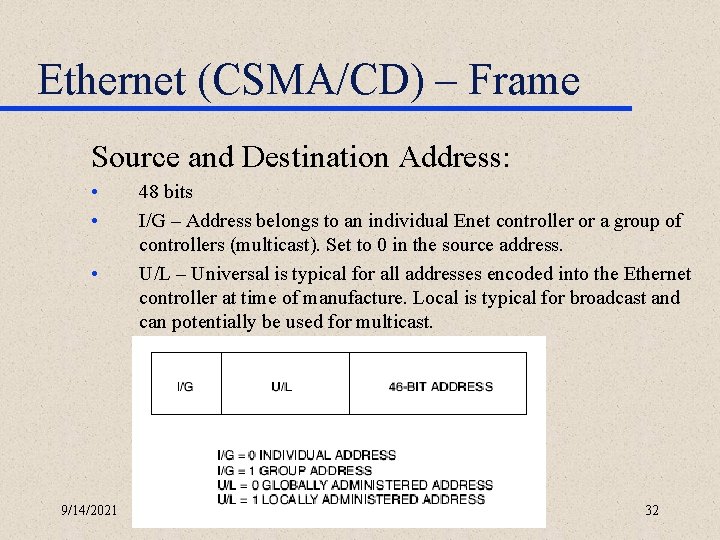

Ethernet (CSMA/CD) – Frame Source and Destination Address: • • • 9/14/2021 48 bits

Ethernet (CSMA/CD) – Frame Source and Destination Address: • • • 9/14/2021 48 bits I/G – Address belongs to an individual Enet controller or a group of controllers (multicast). Set to 0 in the source address. U/L – Universal is typical for all addresses encoded into the Ethernet controller at time of manufacture. Local is typical for broadcast and can potentially be used for multicast. CST 415 - Computer Networks 32

Ethernet (CSMA/CD) – Frame Source and Destination Address: • A MAC sublayer address is

Ethernet (CSMA/CD) – Frame Source and Destination Address: • A MAC sublayer address is one of two types: – – • There are two kinds of multicast address: – – 9/14/2021 Individual Address. The address associated with a particular station on the network. Group Address. A multidestination address, associated with one or more stations on a given network. Multicast-Group Address. An address associated by higher-level convention with a group of logically related stations. Broadcast Address. A distinguished, predefined multicast address that always denotes the set of all stations on a given LAN. CST 415 - Computer Networks 33

Ethernet (CSMA/CD) – Frame Length/Type: • • 9/14/2021 Identifies the type of data being

Ethernet (CSMA/CD) – Frame Length/Type: • • 9/14/2021 Identifies the type of data being carried in the frame (e. g. ARP, IP, etc. ). Allows for Ethernet frames to be self identifying. CST 415 - Computer Networks 34

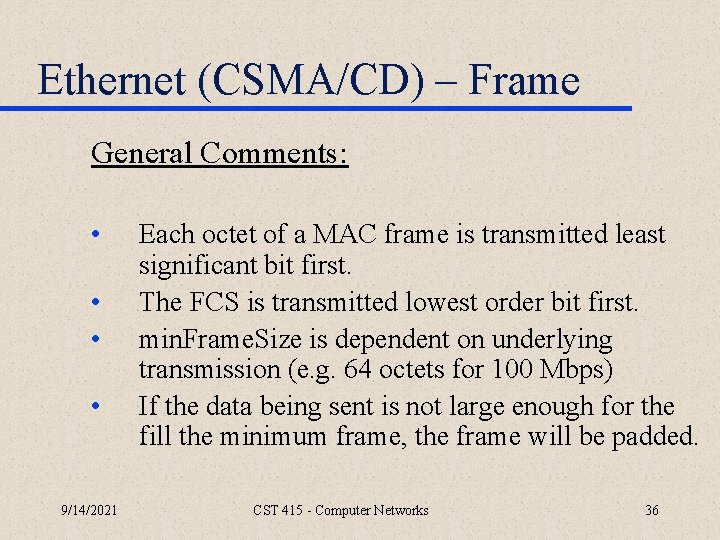

Ethernet (CSMA/CD) – Frame General Comments: max. Valid. Frame = max. Untagged. Frame. Size

Ethernet (CSMA/CD) – Frame General Comments: max. Valid. Frame = max. Untagged. Frame. Size – (2 x address. Size + length. Or. Type. Size + crc. Size) / 8; address. Size = 48 bits (6 octets) length. Or. Type. Size = 16 bits (2 octets) crc. Size = 32 bits (4 octets) max. Untagged. Frame. Size = 1518 octets for 10, and 100 Mbps. max. Valid. Frame = 1506 octets for an IP payload 9/14/2021 CST 415 - Computer Networks 35

Ethernet (CSMA/CD) – Frame General Comments: • • 9/14/2021 Each octet of a MAC

Ethernet (CSMA/CD) – Frame General Comments: • • 9/14/2021 Each octet of a MAC frame is transmitted least significant bit first. The FCS is transmitted lowest order bit first. min. Frame. Size is dependent on underlying transmission (e. g. 64 octets for 100 Mbps) If the data being sent is not large enough for the fill the minimum frame, the frame will be padded. CST 415 - Computer Networks 36

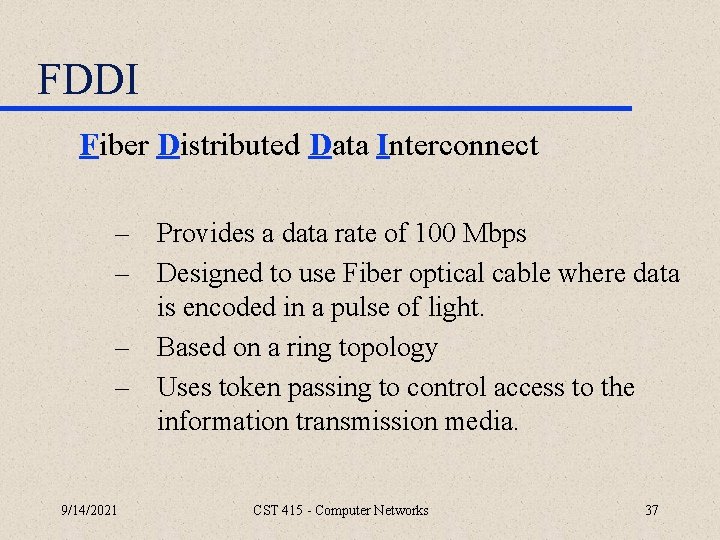

FDDI Fiber Distributed Data Interconnect – Provides a data rate of 100 Mbps –

FDDI Fiber Distributed Data Interconnect – Provides a data rate of 100 Mbps – Designed to use Fiber optical cable where data is encoded in a pulse of light. – Based on a ring topology – Uses token passing to control access to the information transmission media. 9/14/2021 CST 415 - Computer Networks 37

FDDI • • • 9/14/2021 Initially, there will be two rings with traffic rotating

FDDI • • • 9/14/2021 Initially, there will be two rings with traffic rotating in opposite directions. Each node in the ring has the ability to perform a loop back. This allows a FDDI network to be a “self-healing” network transport media. When a node failure occurs, the faulty node will be removed from the network by neighbor nodes looping away from the faulty node. CST 415 - Computer Networks 38

FDDI 9/14/2021 CST 415 - Computer Networks 39

FDDI 9/14/2021 CST 415 - Computer Networks 39

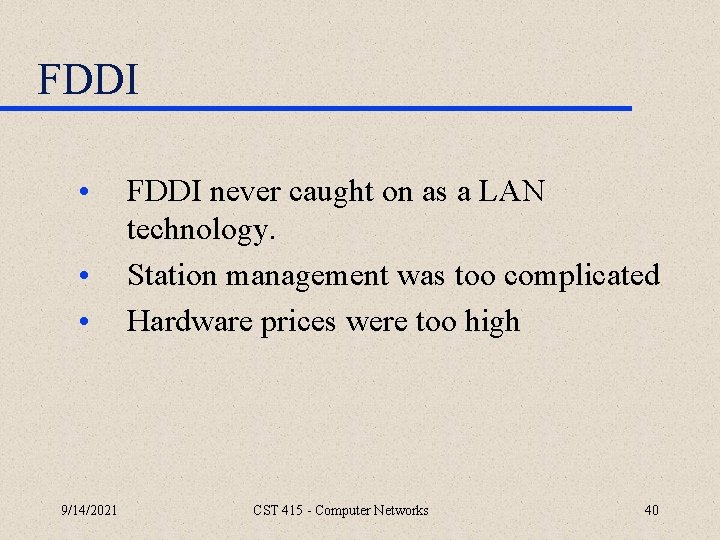

FDDI • • • 9/14/2021 FDDI never caught on as a LAN technology. Station

FDDI • • • 9/14/2021 FDDI never caught on as a LAN technology. Station management was too complicated Hardware prices were too high CST 415 - Computer Networks 40

ATM (Asynchronous Transfer Mode) • • A Fiber-Optic based technology. Designed to operate in

ATM (Asynchronous Transfer Mode) • • A Fiber-Optic based technology. Designed to operate in LAN and WAN environments. Permits extremely high level of bandwidth (gigabit speeds). Must use a high-speed ATM switch. ATM is a connection oriented service • • • – This allows service providers to charge based on connection time. 9/14/2021 CST 415 - Computer Networks 41

ATM (Asynchronous Transfer Mode) An ATM virtual circuit. 9/14/2021 CST 415 - Computer Networks

ATM (Asynchronous Transfer Mode) An ATM virtual circuit. 9/14/2021 CST 415 - Computer Networks 42

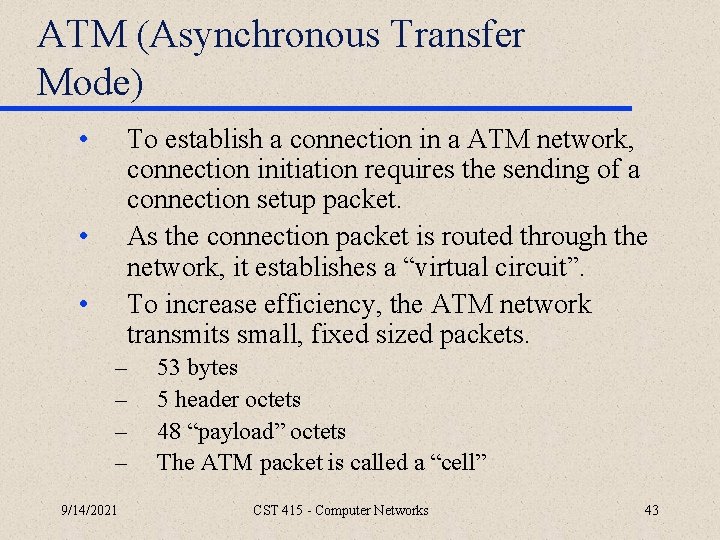

ATM (Asynchronous Transfer Mode) • To establish a connection in a ATM network, connection

ATM (Asynchronous Transfer Mode) • To establish a connection in a ATM network, connection initiation requires the sending of a connection setup packet. As the connection packet is routed through the network, it establishes a “virtual circuit”. To increase efficiency, the ATM network transmits small, fixed sized packets. • • – – 9/14/2021 53 bytes 5 header octets 48 “payload” octets The ATM packet is called a “cell” CST 415 - Computer Networks 43

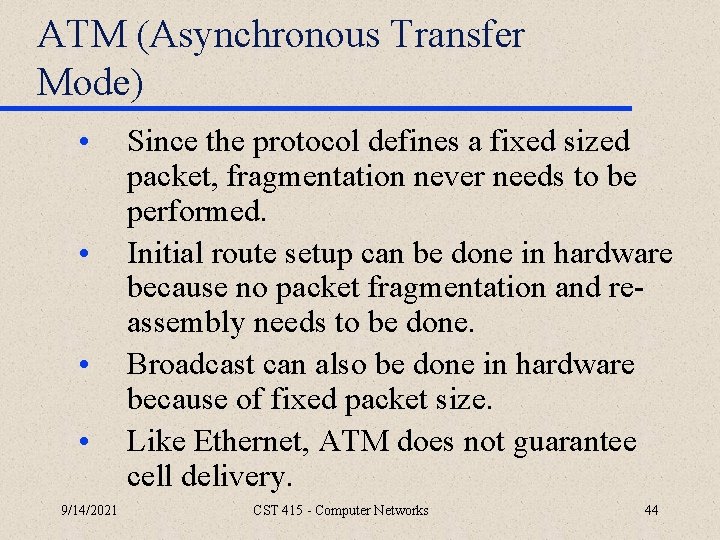

ATM (Asynchronous Transfer Mode) • • 9/14/2021 Since the protocol defines a fixed sized

ATM (Asynchronous Transfer Mode) • • 9/14/2021 Since the protocol defines a fixed sized packet, fragmentation never needs to be performed. Initial route setup can be done in hardware because no packet fragmentation and reassembly needs to be done. Broadcast can also be done in hardware because of fixed packet size. Like Ethernet, ATM does not guarantee cell delivery. CST 415 - Computer Networks 44

ARPANET Advanced Research Projects Agency • • • 9/14/2021 Awarded a contract to develop

ARPANET Advanced Research Projects Agency • • • 9/14/2021 Awarded a contract to develop network based technologies (contract awarded to BBN Technologies). Served as a major test bed for the major packet switched networking technologies. Tied major universities, military bases, and government laboratories together. CST 415 - Computer Networks 45

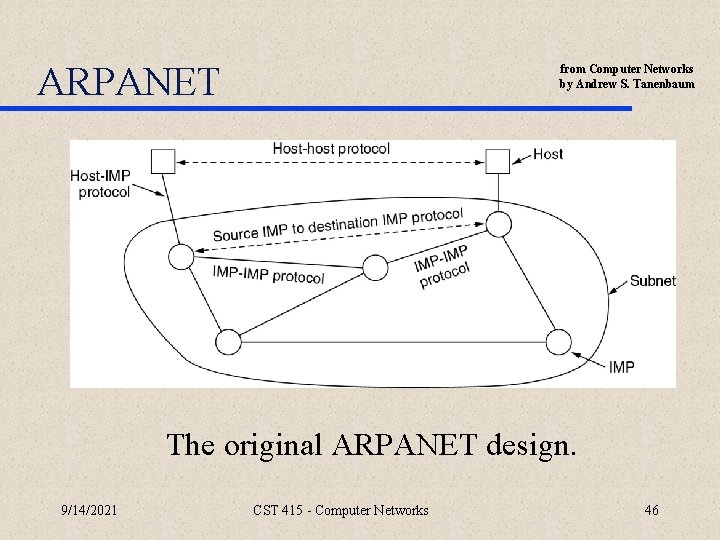

ARPANET from Computer Networks by Andrew S. Tanenbaum The original ARPANET design. 9/14/2021 CST

ARPANET from Computer Networks by Andrew S. Tanenbaum The original ARPANET design. 9/14/2021 CST 415 - Computer Networks 46

ARPANET from Computer Networks by Andrew S. Tanenbaum Growth of the ARPANET (a) December

ARPANET from Computer Networks by Andrew S. Tanenbaum Growth of the ARPANET (a) December 1969. (b) July 1970. (c) March 1971. 9/14/2021 (d) April 1972. CST 415 - Computer Networks (e) September 1972. 47

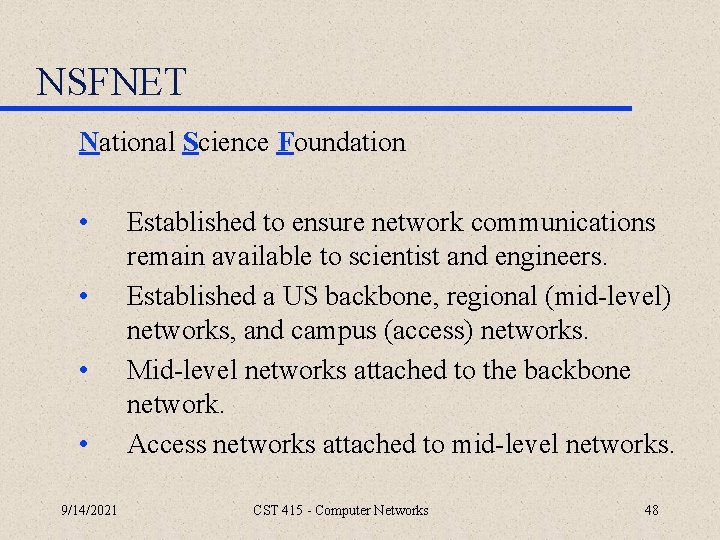

NSFNET National Science Foundation • • 9/14/2021 Established to ensure network communications remain available

NSFNET National Science Foundation • • 9/14/2021 Established to ensure network communications remain available to scientist and engineers. Established a US backbone, regional (mid-level) networks, and campus (access) networks. Mid-level networks attached to the backbone network. Access networks attached to mid-level networks. CST 415 - Computer Networks 48

NSFNET The NSFNET backbone in 1988. 9/14/2021 CST 415 - Computer Networks 49

NSFNET The NSFNET backbone in 1988. 9/14/2021 CST 415 - Computer Networks 49

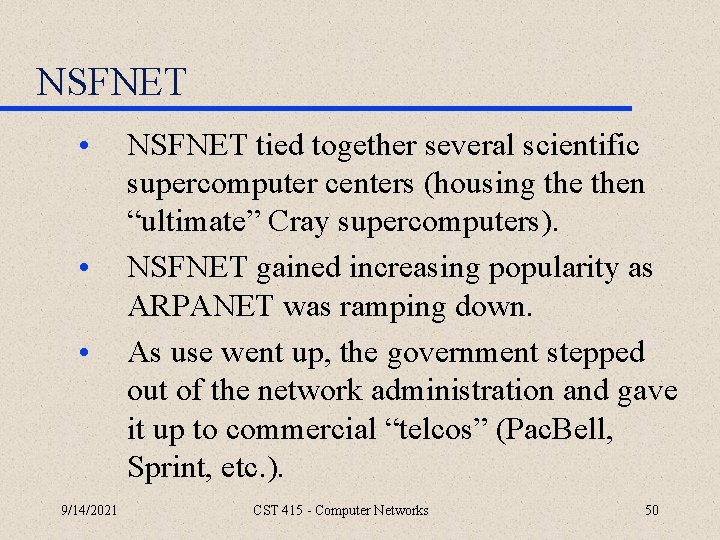

NSFNET • • • 9/14/2021 NSFNET tied together several scientific supercomputer centers (housing then

NSFNET • • • 9/14/2021 NSFNET tied together several scientific supercomputer centers (housing then “ultimate” Cray supercomputers). NSFNET gained increasing popularity as ARPANET was ramping down. As use went up, the government stepped out of the network administration and gave it up to commercial “telcos” (Pac. Bell, Sprint, etc. ). CST 415 - Computer Networks 50
