UNCLASSIFIED Purpose • Purpose: Provide insight into Vandenberg’s future spacelift activities and commodity needs in light of new National Security Space Launch variants and increasing demands from commercial spacelift – Leverage industry’s expert knowledge to help craft viable solutions for expanding commodity capacity/capabilities to meet future needs Care – Execute – Innovate 2

UNCLASSIFIED Launch Vehicles 400 ft New Current 300 ft 200 ft 100 ft Astra Rocket 1 Spin Launch Electron Vector R Minotaur I Pegasus XL Minotaur IV Vector H Relativity T 1 Firefly Alpha Relativity T 2 Firefly Beta Atlas V Omeg. A Vulcan Delta IV Care – Execute – Innovate Falcon Heavy Delta IV Heavy Omeg. A Heavy New Glenn 3

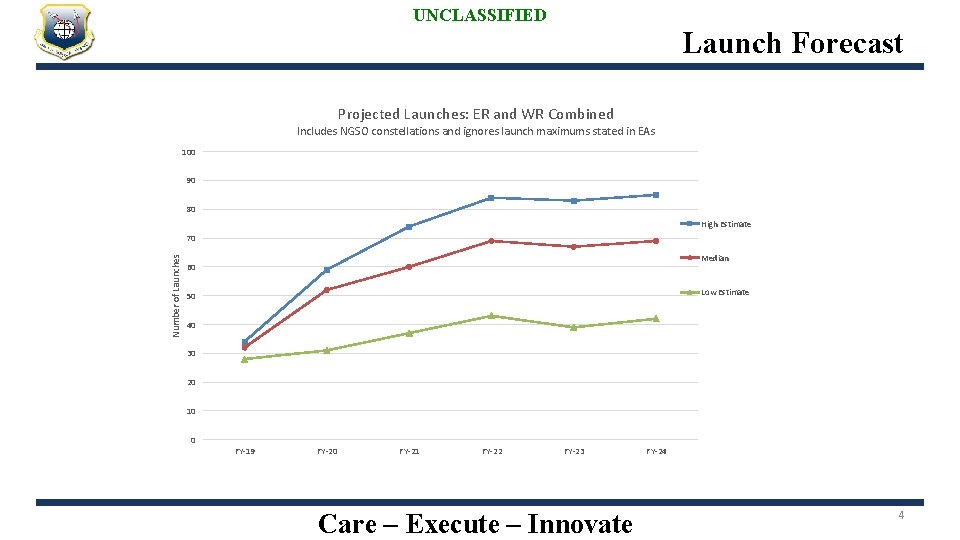

UNCLASSIFIED Launch Forecast Projected Launches: ER and WR Combined Includes NGSO constellations and ignores launch maximums stated in EAs 100 90 80 High Estimate Number of Launches 70 Median 60 Low Estimate 50 40 30 20 10 0 FY-19 FY-20 FY-21 FY-22 FY-23 Care – Execute – Innovate FY-24 4

UNCLASSIFIED Launch Forecast (cont. ) Medium/Heavy Spacelift Note: This is not an AFSPC or 30 SW launch schedule Ballistic Missile Defense Other Care – Execute – Innovate Small Spacelift 5

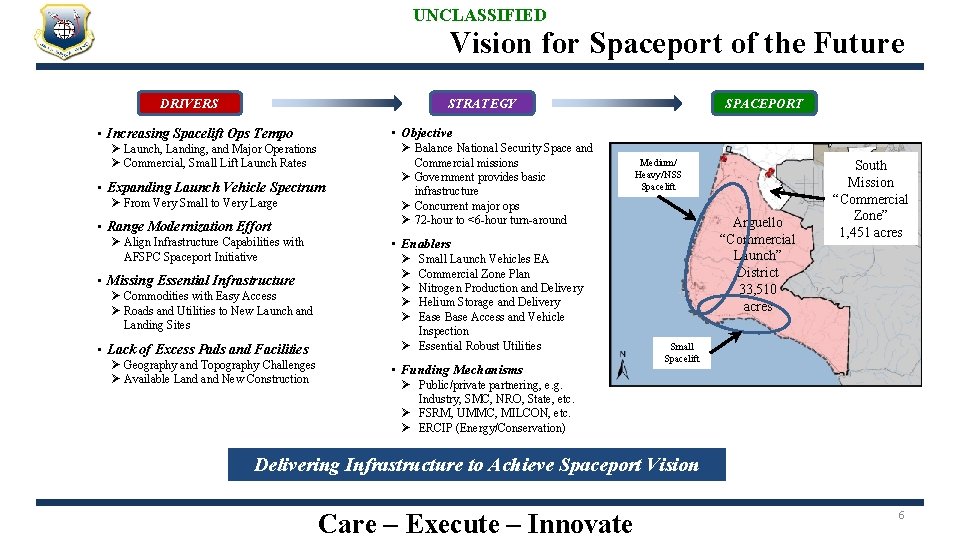

UNCLASSIFIED Vision for Spaceport of the Future DRIVERS STRATEGY • Objective • Increasing Spacelift Ops Tempo Ø Launch, Landing, and Major Operations Ø Commercial, Small Lift Launch Rates • Expanding Launch Vehicle Spectrum Ø From Very Small to Very Large • Range Modernization Effort Ø Align Infrastructure Capabilities with AFSPC Spaceport Initiative • Missing Essential Infrastructure Ø Commodities with Easy Access Ø Roads and Utilities to New Launch and Landing Sites • Lack of Excess Pads and Facilities Ø Geography and Topography Challenges Ø Available Land New Construction SPACEPORT Ø Balance National Security Space and Commercial missions Ø Government provides basic infrastructure Ø Concurrent major ops Ø 72 -hour to <6 -hour turn-around Medium/ Heavy/NSS Spacelift Arguello “Commercial Launch” District 33, 510 acres • Enablers Ø Ø Ø Small Launch Vehicles EA Commercial Zone Plan Nitrogen Production and Delivery Helium Storage and Delivery Ease Base Access and Vehicle Inspection Ø Essential Robust Utilities • Funding Mechanisms South Mission “Commercial Zone” 1, 451 acres Small Spacelift Ø Public/private partnering, e. g. Industry, SMC, NRO, State, etc. Ø FSRM, UMMC, MILCON, etc. Ø ERCIP (Energy/Conservation) Delivering Infrastructure to Achieve Spaceport Vision Care – Execute – Innovate 6

UNCLASSIFIED Future Initiatives South Mission District Area Development Plan (ADP) A B C Create a “Commercial Zone” on SVAFB enabling commercial Launch Service Providers (LSPs) to lease land for building required administrative, storage, launch control or processing facilities. Mission District Perimeter Security Fence Modification SVAFB Mission District perimeter security system modification to place the new Mission District outside of the controlled security area, enables public accessibility. Small Launch Vehicle Environmental Assessment (EA)/Launch & Landing Pads Develop a Small Launch Vehicle Programmatic EA to approve launch sites and launch rates at VAFB for small launch vehicles. Resulting EA will save Small Launch providers a potential 2 -yr effort and costs. SVAFB Gate Enhancement D SVAFB entry gate enhancement to support a new vehicle security inspection station for LSPs. Potential plan to connect NVAFB to SVAFB via an overpass roadway and incorporate a second inspection station on SVAFB. Care – Execute – Innovate 7

UNCLASSIFIED Future Initiatives (cont. ) E F G Space Launch Complex (SLC)-8 Transition SLC-8 into a government-facilitated launch pad for small Launch Service Providers launching government and commercial missions. GN 2 ASU and Pipeline Design and build a Gaseous Nitrogen (GN 2) Air Separation Unit (ASU), associated storage area and pipeline on SVAFB to produce launch quality nitrogen. Improve and Extend Utilities to new SVAFB Sites Extend roads, sewer, utilities, and communications to new SVAFB “green field” sites southeast of SLC-6/Boathouse to enable use of this area for small launch service providers. Care – Execute – Innovate 8

UNCLASSIFIED New Commodity to VAFB • Blue Origin BE-4 engine uses Liquefied Natural Gas (LNG) – BE-4 projected to drive United Launch Alliance (ULA) Vulcan launch vehicle and Blue Origin’s own New Glenn launch vehicle • LNG not currently used as launch fuel at VAFB – No LNG transportation or storage infrastructure on-base – DLA-E not currently involved in bulk sale of LNG • Joint military community currently defining specific LNG specification Care – Execute – Innovate 9

UNCLASSIFIED Latest Mission Success – NROL-71!! Care – Execute – Innovate 10

UNCLASSIFIED Care – UNCLASSIFIED Execute – Innovate 11

UNCLASSIFIED Launch Forecast Projected Launches: ER and WR Combined Does not include NGSO constellations e. g. , Starlink 100 90 80 High Estimate Number of Launches 70 Median 60 Low Estimate 50 40 30 20 10 0 FY-19 FY-20 FY-21 FY-22 FY-23 Care – Execute – Innovate FY-24 12
