UNCLASSIFIED JMP Discovery Summit - October 19, 2017 Army Sniper Munition Optimization: A Comprehensive Dispersion Response Analysis Using a Custom Split-Plot Design, Loglinear Variance and Graphical Analyses Christopher Drake Lead Statistician, Small Caliber Munitions QE&SA Statistical Methods & Analysis Group Douglas M. Ray Lead Statistician, ARDEC QE&SA Statistical Methods & Analysis Group UNPARALLELED COMMITMENT & SOLUTIONS DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. U. S. ARMY ARMAMENT RESEARCH, DEVELOPMENT & ENGINEERING CENTER

UNCLASSIFIED BACKGROUND AND MOTIVATION • The M 118 LR Sniper cartridge is a 7. 62 mm round used by snipers in the military for its enhanced dispersion performance. • The need for the improvement in dispersion was largely driven by the need to meet the stricter requirement demands of a new compact sniper rifle. • Using Monte Carlo simulation and prior data, it was estimated that the current M 118 LR cartridge with the new rifle would not meet the specification requirements for the rifle Lot Acceptance Testing (LAT) a larger than desired percentage of the time. • This would lead to an unacceptable risk of failing lots of new weapons, which costs money, time, and leaves the Warfighter temporarily with less fielded compact sniper weapon systems. • By improving the dispersion performance of the M 118 LR to meet the demands of the new compact sniper system, the Army would also be improving the dispersion performance across the board, decreasing the risk of missing targets downrange. Example DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 2

UNCLASSIFIED TEST PLANNING • To better scope and understand the work to be done to meet the test objective, a lengthy planning phase took place before the Dispersion Screening DOE. Some of the tools used include: – Factor Brainstorming – Input and Output Diagrams – Fishbone (Ishikawa) Diagrams – Failure Mode and Effect Analysis (FMEA) – Variation Mode and Effect Analysis (VMEA) – Interaction Assessments – Stakeholder Analyses – Voice of Customer input – Measurement Systems Analyses • This crucial activity played a large role in the successful execution of the DOE, and was leveraged in many ways during the test design. DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 3

UNCLASSIFIED DESIGN METHODOLOGY • The factors for the Dispersion Screening DOE were somewhat complex, containing various mixed level factors, a hard to change factor, and 13 total factors (relatively large). • With classical screening designs, having mixed level and hard to change factors would not be possible. • The Optimal Design is the best type of design for this style problem, as it shines when handling these challenges, and allows for a highly customizable environment to best conform to the test limitations and objectives. • Optimal designs are modern computer generated designs in which the test points are placed depending on some optimality criterion selected, and the desired model specified. Optimal Designs have seen growing favorability in recent years due to their flexibility and comprehensive nature, coupled with readily available computing power. Optimal Design IV-optimal Constrained Test Regions DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 4

UNCLASSIFIED DESIGN METHODOLOGY CONT. • DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 5

UNCLASSIFIED DISPERSION CONSIDERATIONS • Dispersion responses are inherently more noisy and difficult to estimate due to their highly variable nature. • Each data point requires a grouping of test events to characterize the response. There are many different dispersion metrics used in practice to characterize spread, some of which are more information rich than others. • Some widely-used dispersion metrics include Extreme Spread, Mean Radius, Radial Standard Deviation, and Vertical and Horizontal Standard Deviation. With the raw data points (X and Y coordinates) from each shot one can calculate any of these metrics, so gathering this raw data preserves all of the information that could possibly be pulled from the data. • The two metrics that would be used most frequently in the analysis phase of this test would be Mean Radius (summarized REML model) and Vertical and Horizontal Standard Deviation (Loglinear Variance model), metrics known for their information rich qualities. Mean Radius Formula Vertical and Horizontal SD Formula Mean Radius Visualized Normal Bivariate Distribution DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 6

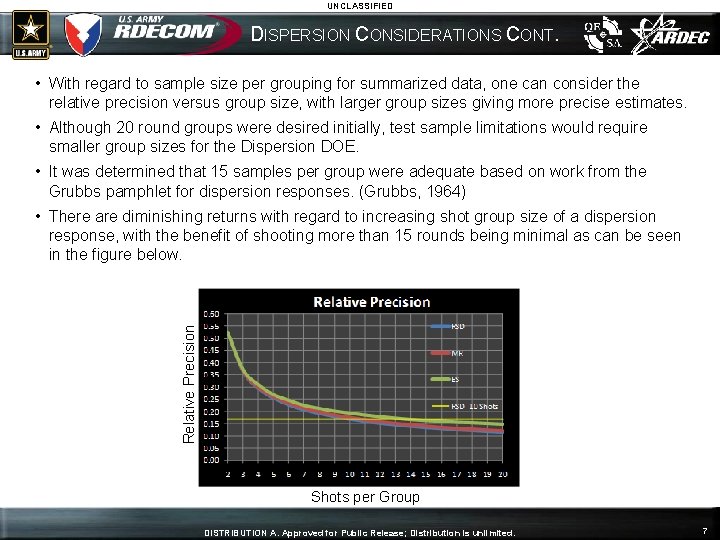

UNCLASSIFIED DISPERSION CONSIDERATIONS CONT. • With regard to sample size per grouping for summarized data, one can consider the relative precision versus group size, with larger group sizes giving more precise estimates. • Although 20 round groups were desired initially, test sample limitations would require smaller group sizes for the Dispersion DOE. • It was determined that 15 samples per group were adequate based on work from the Grubbs pamphlet for dispersion responses. (Grubbs, 1964) Relative Precision • There are diminishing returns with regard to increasing shot group size of a dispersion response, with the benefit of shooting more than 15 rounds being minimal as can be seen in the figure below. Shots per Group DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 7

UNCLASSIFIED TEST CONSTRAINTS AND SPLIT PLOT DESIGNS • Due to logistical limitations, the barrel/suppressor factor was of particular concern because of its hard to change nature. When a factor is hard to change, it restricts our ability to fully randomize the test, rendering us unable to adhere to the basic fundamental test design principle of randomization. • For this situation, Split Plot designs are utilized, which aim to balance the number of changes to the hard to change factor with some randomization via the use of Whole Plots. • These Whole Plots are groupings of the hard to change factor settings of a certain size that can be controlled largely based on the difficulty of factor changes. These groupings, which lessen the amount of total changes required, are then randomized to try to mitigate nuisance variable confounding concerns. • The smaller the whole plot sizes are, the closer one approaches full test randomization, improving the overall statistical power and alias structure of the design. • As a result, Split Plot designs are generally more complicated to analyze and less efficient than designs without randomization constraints. Split Plot Visualized (Jones and Nachtsheim, 2009) Whole Plots in a Test Matrix DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 8

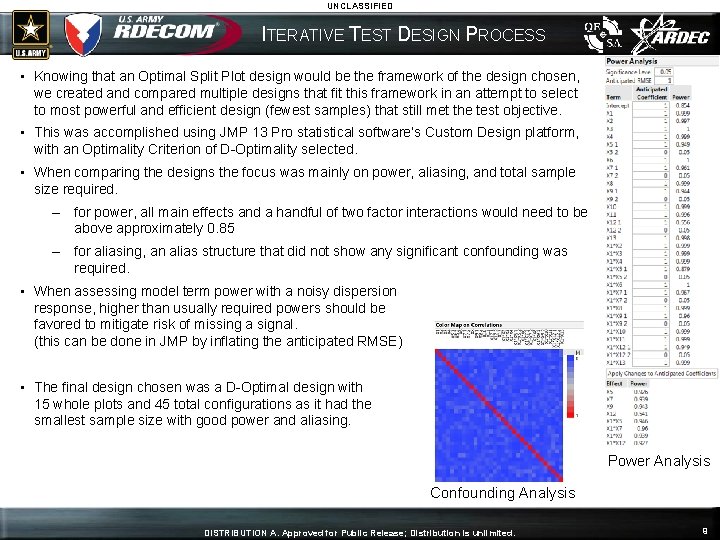

UNCLASSIFIED ITERATIVE TEST DESIGN PROCESS • Knowing that an Optimal Split Plot design would be the framework of the design chosen, we created and compared multiple designs that fit this framework in an attempt to select to most powerful and efficient design (fewest samples) that still met the test objective. • This was accomplished using JMP 13 Pro statistical software’s Custom Design platform, with an Optimality Criterion of D-Optimality selected. • When comparing the designs the focus was mainly on power, aliasing, and total sample size required. – for power, all main effects and a handful of two factor interactions would need to be above approximately 0. 85 – for aliasing, an alias structure that did not show any significant confounding was required. • When assessing model term power with a noisy dispersion response, higher than usually required powers should be favored to mitigate risk of missing a signal. (this can be done in JMP by inflating the anticipated RMSE) • The final design chosen was a D-Optimal design with 15 whole plots and 45 total configurations as it had the smallest sample size with good power and aliasing. Power Analysis Confounding Analysis DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 9

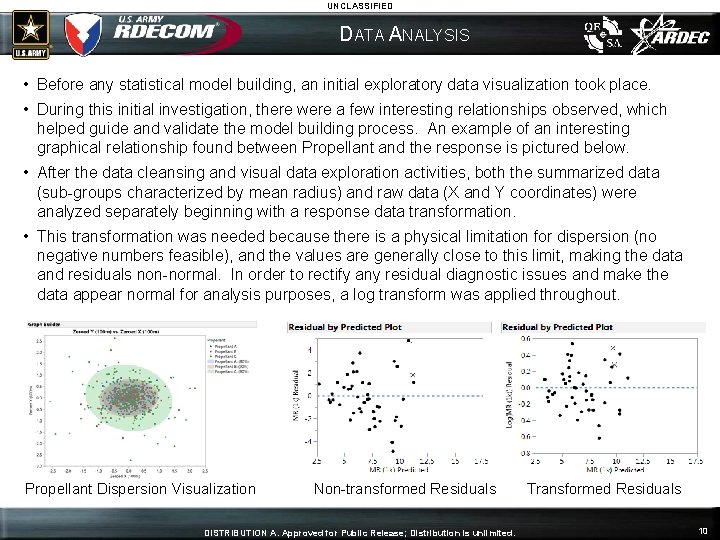

UNCLASSIFIED DATA ANALYSIS • Before any statistical model building, an initial exploratory data visualization took place. • During this initial investigation, there were a few interesting relationships observed, which helped guide and validate the model building process. An example of an interesting graphical relationship found between Propellant and the response is pictured below. • After the data cleansing and visual data exploration activities, both the summarized data (sub-groups characterized by mean radius) and raw data (X and Y coordinates) were analyzed separately beginning with a response data transformation. • This transformation was needed because there is a physical limitation for dispersion (no negative numbers feasible), and the values are generally close to this limit, making the data and residuals non-normal. In order to rectify any residual diagnostic issues and make the data appear normal for analysis purposes, a log transform was applied throughout. Propellant Dispersion Visualization Non-transformed Residuals DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. Transformed Residuals 10

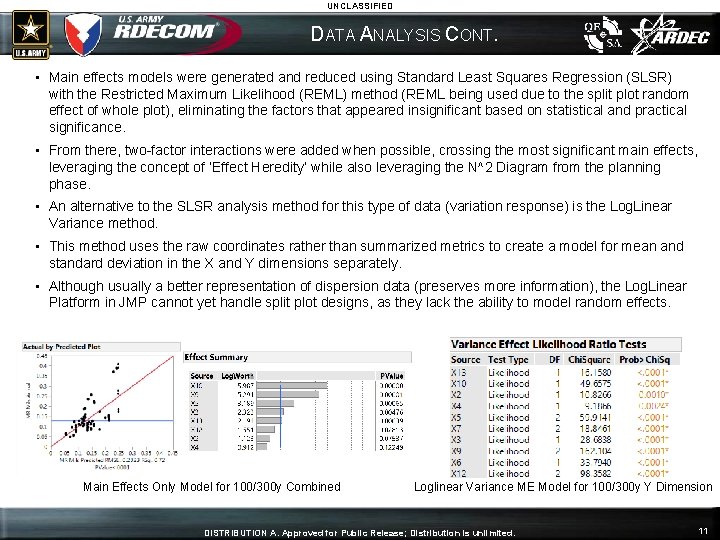

UNCLASSIFIED DATA ANALYSIS CONT. • Main effects models were generated and reduced using Standard Least Squares Regression (SLSR) with the Restricted Maximum Likelihood (REML) method (REML being used due to the split plot random effect of whole plot), eliminating the factors that appeared insignificant based on statistical and practical significance. • From there, two-factor interactions were added when possible, crossing the most significant main effects, leveraging the concept of ‘Effect Heredity’ while also leveraging the N^2 Diagram from the planning phase. • An alternative to the SLSR analysis method for this type of data (variation response) is the Log. Linear Variance method. • This method uses the raw coordinates rather than summarized metrics to create a model for mean and standard deviation in the X and Y dimensions separately. • Although usually a better representation of dispersion data (preserves more information), the Log. Linear Platform in JMP cannot yet handle split plot designs, as they lack the ability to model random effects. Main Effects Only Model for 100/300 y Combined Loglinear Variance ME Model for 100/300 y Y Dimension DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 11

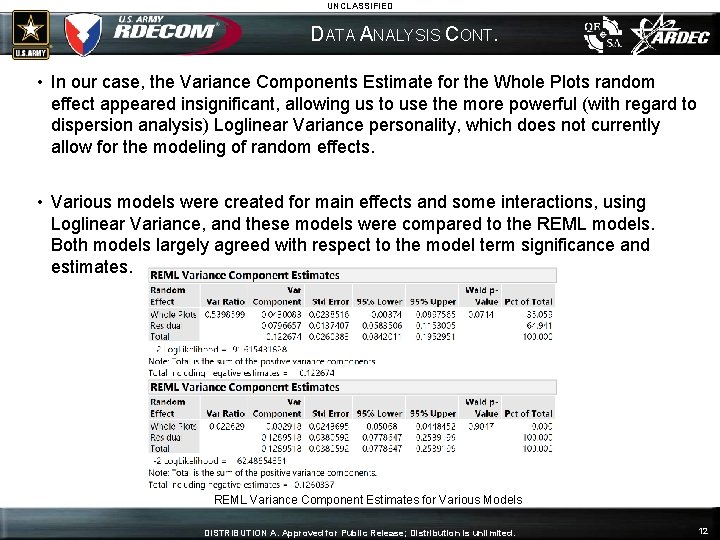

UNCLASSIFIED DATA ANALYSIS CONT. • In our case, the Variance Components Estimate for the Whole Plots random effect appeared insignificant, allowing us to use the more powerful (with regard to dispersion analysis) Loglinear Variance personality, which does not currently allow for the modeling of random effects. • Various models were created for main effects and some interactions, using Loglinear Variance, and these models were compared to the REML models. Both models largely agreed with respect to the model term significance and estimates. REML Variance Component Estimates for Various Models DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 12

UNCLASSIFIED INTERPRETATION • With the final reduced empirical models in hand, estimations could now be made for any potential configuration of the significant factors. 30 25 20 15 5 10 0 Normal Bivariate Distribution -3 0 -2 5 -2 0 -1 5 -1 0 -5 • To help management grasp the extent to which the new optimized M 118 LR configuration out performed the current fielded munition, multiple Monte Carlo simulations were run using the empirical model estimation outputs. 30 • This simulation used a Bivariate Normal distribution were σy=σx to approximate the dispersion performance of the new and current configurations, overlaid them on an E-Type silhouette at 1000 yards, and computed the ‘probability of hit’ for a single round of each configuration (shown right). 25 20 15 10 5 0 • The results were staggering, showing a drastic potential improvement in the new optimized configuration with a probability of hit at close to 100% versus the current configuration p-hit of 76%. -5 -10 -15 Current M 118 LR Optimized -20 -25 -30 P-Hit Calculations DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 13

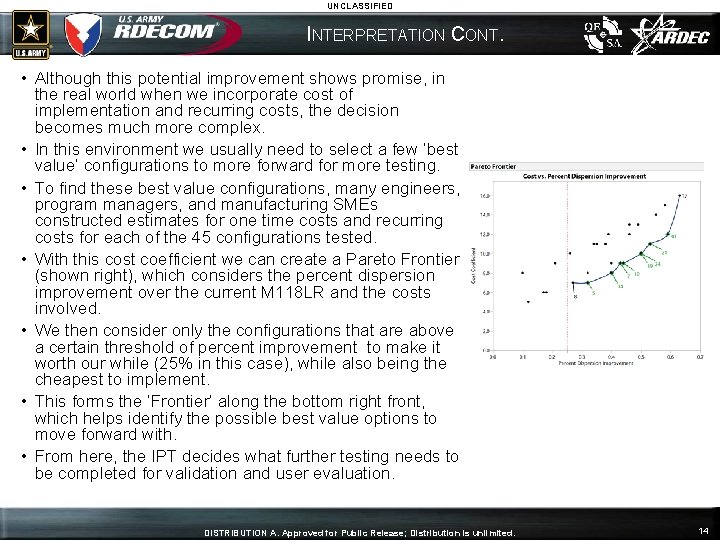

UNCLASSIFIED INTERPRETATION CONT. • Although this potential improvement shows promise, in the real world when we incorporate cost of implementation and recurring costs, the decision becomes much more complex. • In this environment we usually need to select a few ‘best value’ configurations to more forward for more testing. • To find these best value configurations, many engineers, program managers, and manufacturing SMEs constructed estimates for one time costs and recurring costs for each of the 45 configurations tested. • With this cost coefficient we can create a Pareto Frontier (shown right), which considers the percent dispersion improvement over the current M 118 LR and the costs involved. • We then consider only the configurations that are above a certain threshold of percent improvement to make it worth our while (25% in this case), while also being the cheapest to implement. • This forms the ‘Frontier’ along the bottom right front, which helps identify the possible best value options to move forward with. • From here, the IPT decides what further testing needs to be completed for validation and user evaluation. DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 14

UNCLASSIFIED CONCLUSIONS • Using statistically valid and defensible test design methodologies founded in DOE principles, the IPT was able to produce a highly efficient Optimal test to screen many design factors for the dispersion improvement of the M 118 LR Sniper Cartridge. • With classical test design techniques of the past, testing such a complex set of factors may have been impossible or infeasible from a sample size perspective. • With this modern, flexible, and lean test design, the IPT was able to generate the data required to meet the test objective in an efficient and defensible manner. • Analyzing this data with modern software and cutting edge statistical techniques such as SLSR with REML, and Loglinear Variance allowed for the clear and concise interpretation of the collected data. • Moving forward, the work produced from this effort has provided enough evidence to select optimal configurations considering cost and performance benefits, and future work will look to validate these results with small quantities of additional testing. • From this future work, the M 118 LR should see design modifications that will improve the dispersion performance of the round, enabling our Warfighters to be more precise with their sniper rifles than ever before. DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 15

UNCLASSIFIED REFERENCES 1. Grubbs, F. E. , Ph. D. , “Statistical Measures of Dispersion for Riflemen and Missile Engineers”, (1964). 2. Montgomery, D. , “Design and Analysis of Experiments 8 th ed. ”, J. Wiley Print, Hoboken, New Jersey (2009). 3. Montgomery, D. , “Statistical Quality Control 7 th ed. ”, J. Wiley Print, Hoboken, New Jersey (2013) 4. Jones, B. , Nachtsheim, C. , “Split-Plot Designs: What, Why, and How”, Journal of Quality Technology, Vol. 41, No. 4, October 2009 5. Goos, P. , Vandebroek, M. , “Optimal Split-Plot Designs”, J. Qual. Technol. (2001; 33). DISTRIBUTION A. Approved for Public Release; Distribution is unlimited. 16
