Ultrasound Spring 2009 Student Final
Ultrasound AKA: 1)Diagnostic Medical Sonography 2)Sonography 3) 4) Vascular Sonography 5)Echocardiography
Principles of Diagnostic Ultrasound n NON- ionizing n Uses high frequency sound waves n By giving reflections from parts in the body n ? n Cost effective n ? n Can be imaged in sectional, coronal and oblique planes
What makes a good Sonographer? n Knowledge of detailed anatomy and Pathophysiology n 3 D anatomy n Good communication n Be able to work under stress
Repetitive Motion Injuries n n Poor ergonomic habits n Poor equipment design n Poor posture 80% have muscloskeletal injuries n Shoulder (rotator cuff) n ? n Neck n Lower Back Pain n ? n Eyesight problems Why? n Sustained pressure and force n ? n Assisting with patient movement n ? n Inadequate work breaks n Overall job stress
Still a Neonate n Fairly new technology compared with x-ray First used for navy sonar in World War II n 1940’s n n US waves transmitted and returned
1947 – Through- Transmission n Used to detect tumors and intracranial lesions n n With 2 transducers opposite sides of the head Called throughtransmission

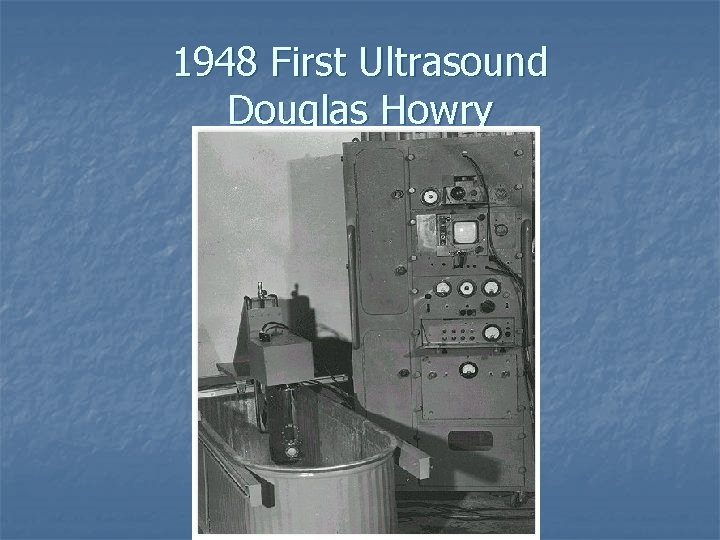

1948 First Ultrasound Douglas Howry
Contact Compound Scanner n 1957 n n Tom Brown and Ian Donald Obstetric techniques
Present Day n n n Smaller machines Increased resolution Real time scanning Portable Mobile
Properties of Sound Waves n Acoustic waves n n Audible sound waves n n Energy that moves back and forth or vibrates at a steady rate 16, 000 – 20, 000 cycles/sec Ultrasound waves n n 1 - 10 million cycles/sec _______ mechanical vibrations through a medium n Transmitted by particles of gas, liquid or solid medium
Piezoelectric Effect n AC applied across piezoelectric crystals n n n Crystals grow an shrink Conversion of electrical energy to mechanical energy US is produced from a transducer by this effect
Acoustic Impedance n Has properties similar to light n n n Focused, refracted, reflected or scattered Dependent on the density and elastic properties of medium Velocity of sound n n Sound waves are sent and received Velocity is different among bone, air and soft tissue n n Poor impedance in air Pitch and sound waves are picked up by computer and produce images: based on depths and speeds

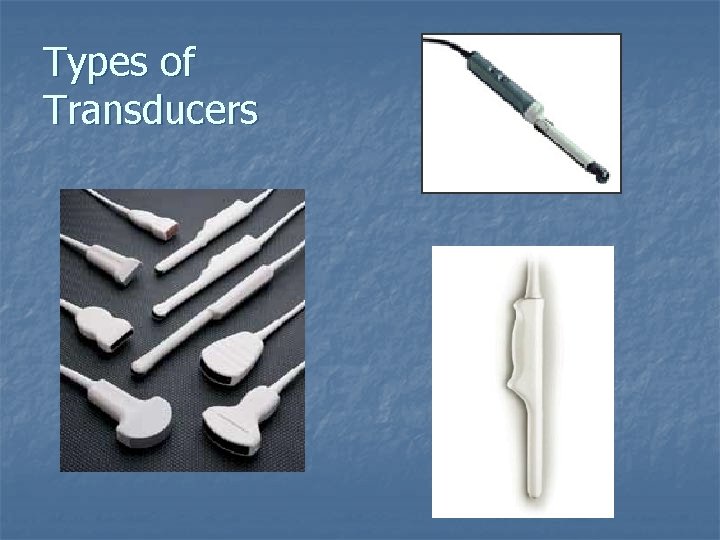

Types of Transducers
Elements of Transducers n Capable of sending and receiving US
Advantages of US n n 1. Ultrasound examinations can be non- invasive 2. Ultrasound methods are relatively inexpensive, quick and convenient n n 3. No harmful effects have been detected n 4. Ultrasound is particularly suited to imaging soft tissues
Disadvantages of US n n n 1. The major disadvantage is that the resolution of images is often limited. 2. Ultrasound is reflected very strongly on passing from tissue to gas, or vice versa 3. Ultrasound also does not pass well through bone
Real Time, Doppler and Color Flow Doppler n Real time: n n n Doppler n n Multiple rapid image frames per second Ex: can see pulsative vascular, cardiac structures, diaphragm motion & peristalsis Frequency change in laminar or turbulent flow in vascular structures Color Doppler n n Assigns a color scale to change in frequency Red toward transducer and blue away from transducer
Doppler
Color Doppler

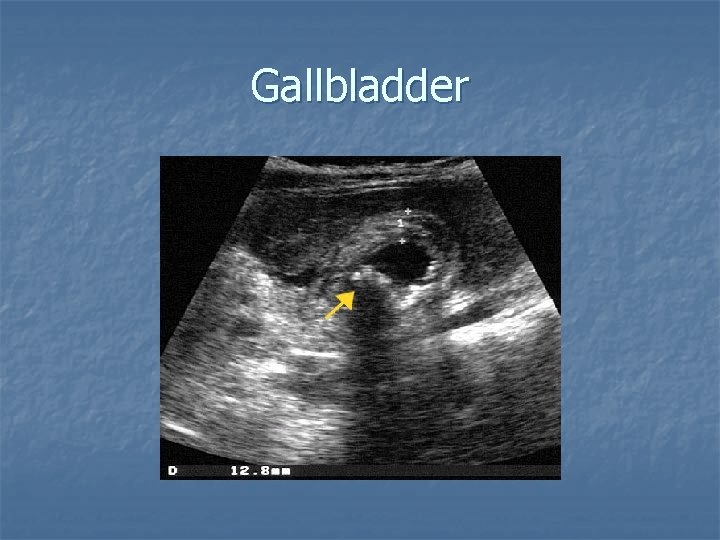

Gallbladder
Gallbladder
Prostate
Prostate

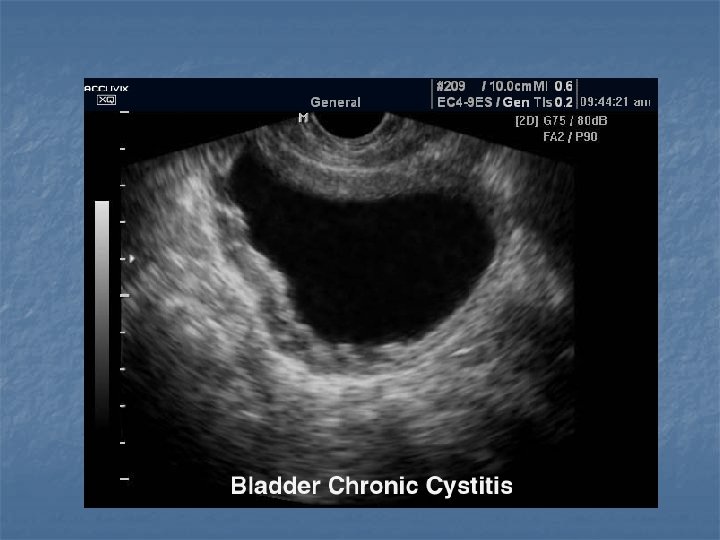

Bladder
Kidney
Abdomen - LUQ
Abdomen - RUQ
Liver
Liver
Spleen
Spleen
Pancreas
Uterus
Uterus
Ovary
Ovary

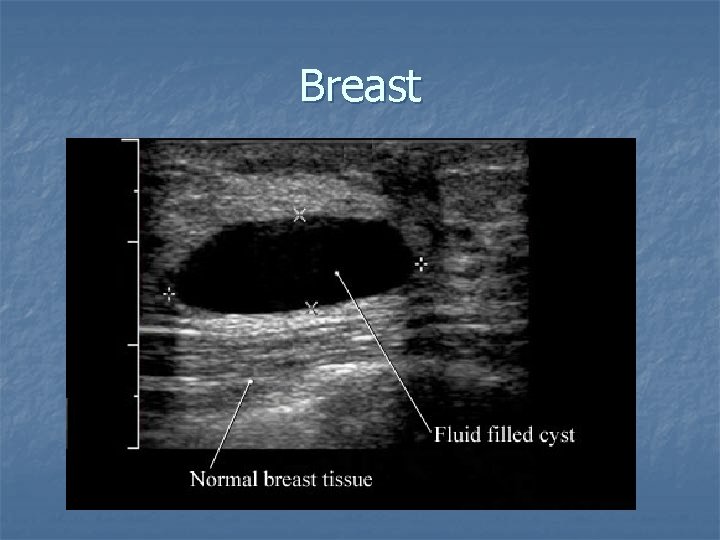

Breast
Breast
Testes
19 Week Fetus
Heart
Heart
