Ultrasonic Tracking System Group 4 Bill Harris Sabie

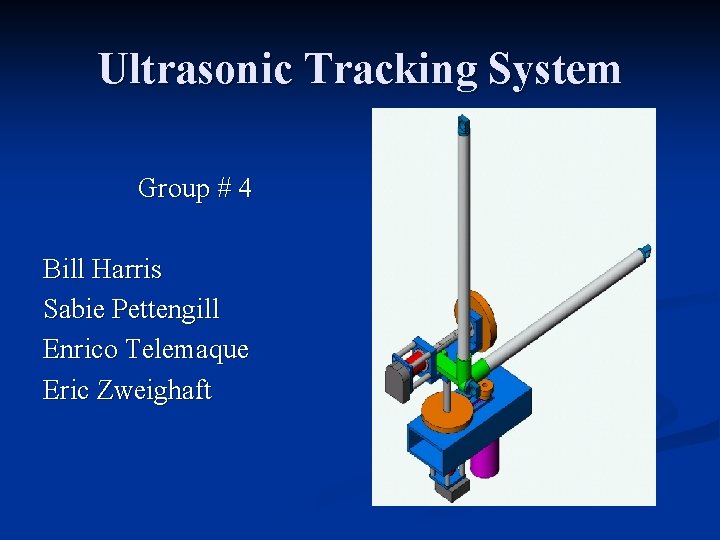

Ultrasonic Tracking System Group # 4 Bill Harris Sabie Pettengill Enrico Telemaque Eric Zweighaft

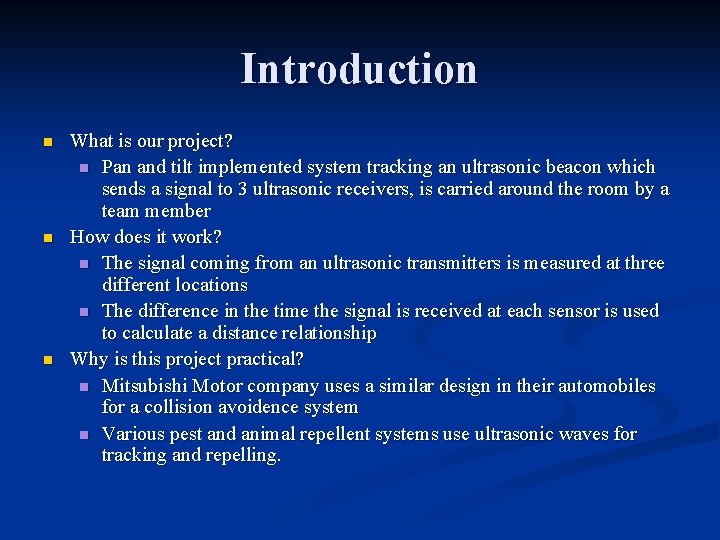

Introduction n What is our project? n Pan and tilt implemented system tracking an ultrasonic beacon which sends a signal to 3 ultrasonic receivers, is carried around the room by a team member How does it work? n The signal coming from an ultrasonic transmitters is measured at three different locations n The difference in the time the signal is received at each sensor is used to calculate a distance relationship Why is this project practical? n Mitsubishi Motor company uses a similar design in their automobiles for a collision avoidence system n Various pest and animal repellent systems use ultrasonic waves for tracking and repelling.

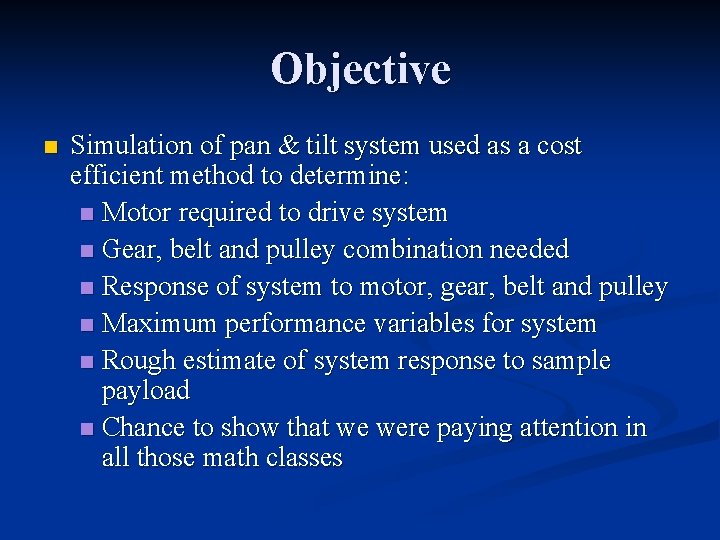

Objective n Simulation of pan & tilt system used as a cost efficient method to determine: n Motor required to drive system n Gear, belt and pulley combination needed n Response of system to motor, gear, belt and pulley n Maximum performance variables for system n Rough estimate of system response to sample payload n Chance to show that we were paying attention in all those math classes

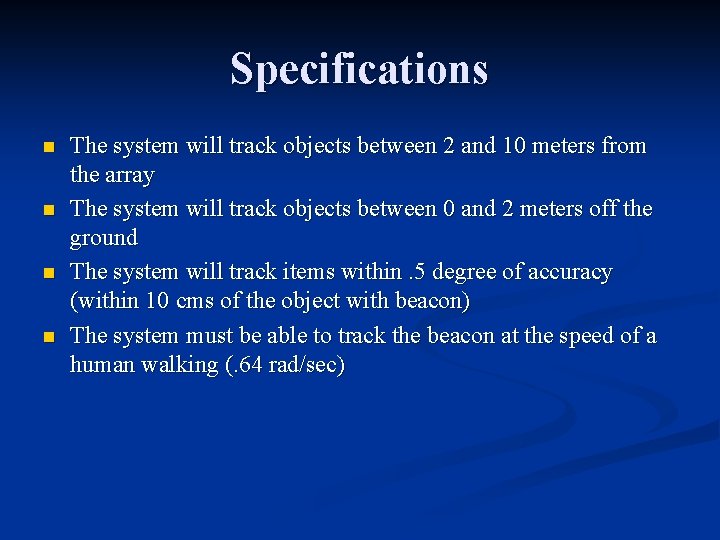

Specifications n n The system will track objects between 2 and 10 meters from the array The system will track objects between 0 and 2 meters off the ground The system will track items within. 5 degree of accuracy (within 10 cms of the object with beacon) The system must be able to track the beacon at the speed of a human walking (. 64 rad/sec)

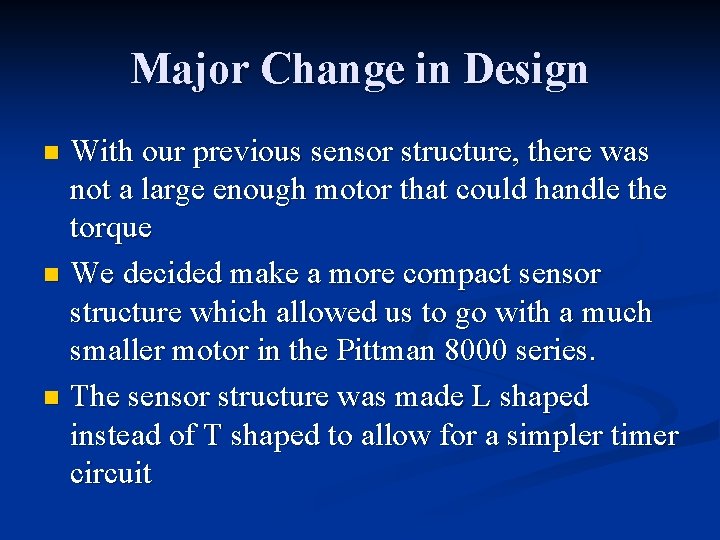

Major Change in Design With our previous sensor structure, there was not a large enough motor that could handle the torque n We decided make a more compact sensor structure which allowed us to go with a much smaller motor in the Pittman 8000 series. n The sensor structure was made L shaped instead of T shaped to allow for a simpler timer circuit n

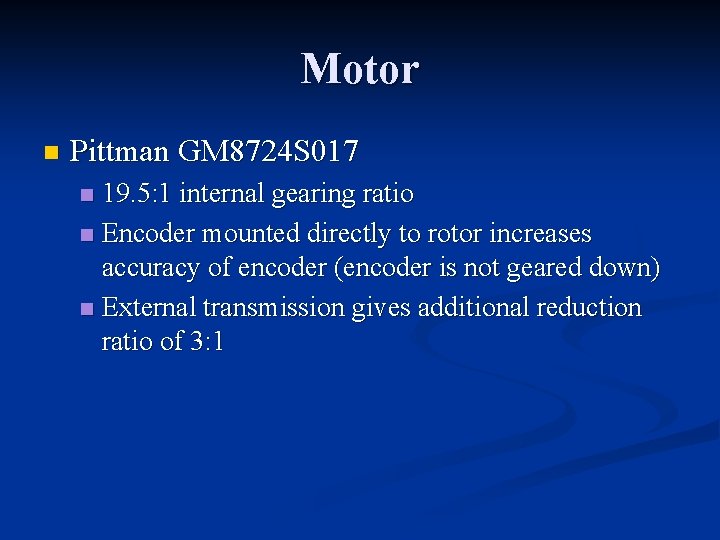

Motor n Pittman GM 8724 S 017 19. 5: 1 internal gearing ratio n Encoder mounted directly to rotor increases accuracy of encoder (encoder is not geared down) n External transmission gives additional reduction ratio of 3: 1 n

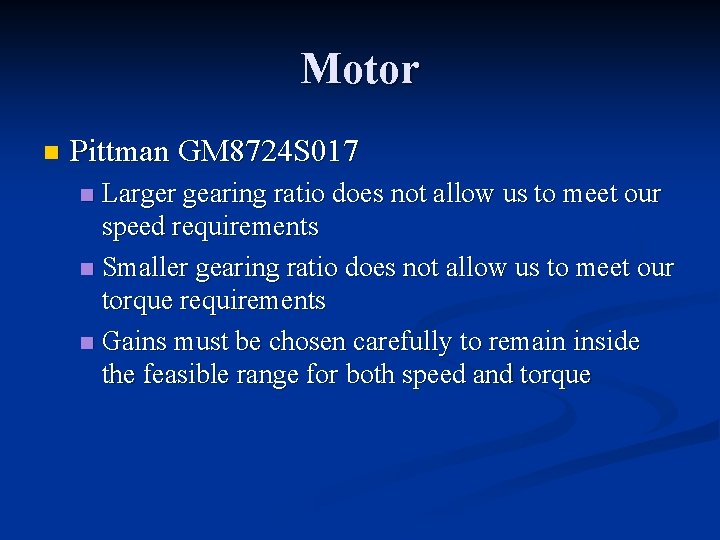

Motor n Pittman GM 8724 S 017 Larger gearing ratio does not allow us to meet our speed requirements n Smaller gearing ratio does not allow us to meet our torque requirements n Gains must be chosen carefully to remain inside the feasible range for both speed and torque n

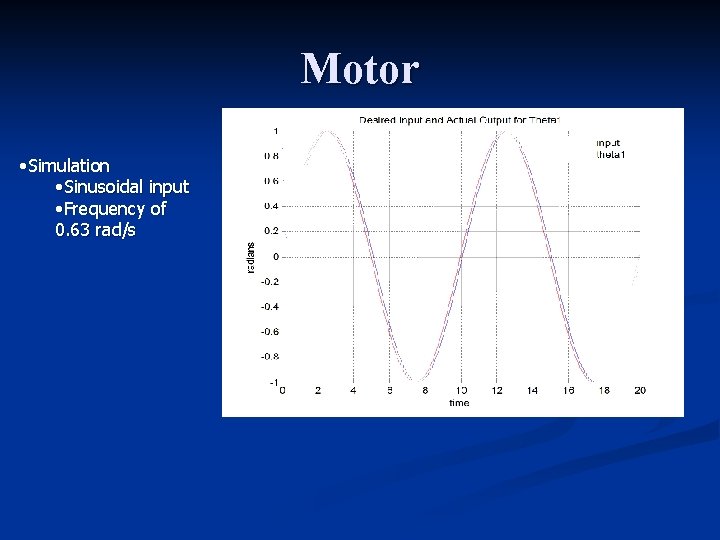

Motor • Simulation • Sinusoidal input • Frequency of 0. 63 rad/s

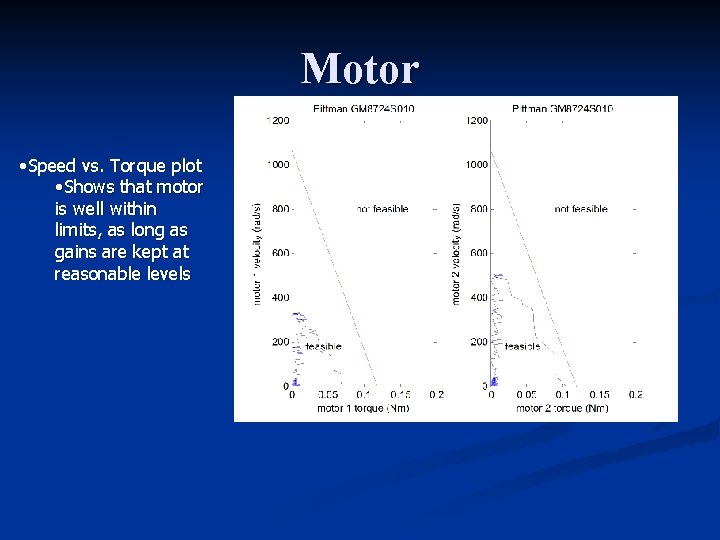

Motor • Speed vs. Torque plot • Shows that motor is well within limits, as long as gains are kept at reasonable levels

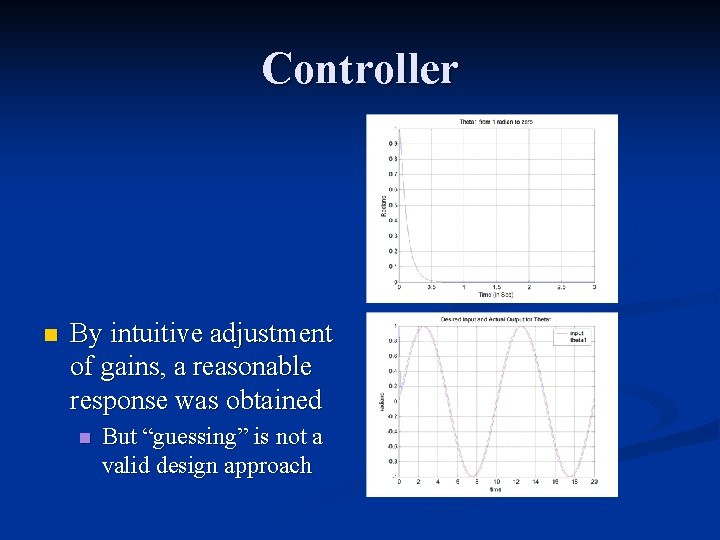

Controller n By intuitive adjustment of gains, a reasonable response was obtained n But “guessing” is not a valid design approach

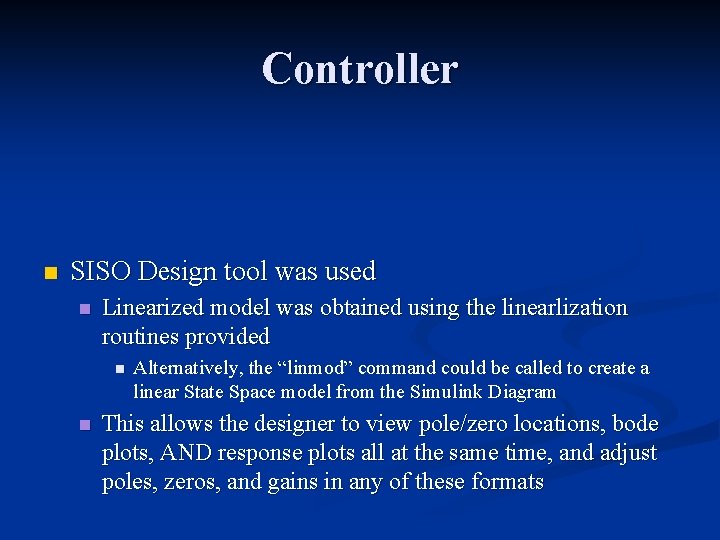

Controller n SISO Design tool was used n Linearized model was obtained using the linearlization routines provided n n Alternatively, the “linmod” command could be called to create a linear State Space model from the Simulink Diagram This allows the designer to view pole/zero locations, bode plots, AND response plots all at the same time, and adjust poles, zeros, and gains in any of these formats

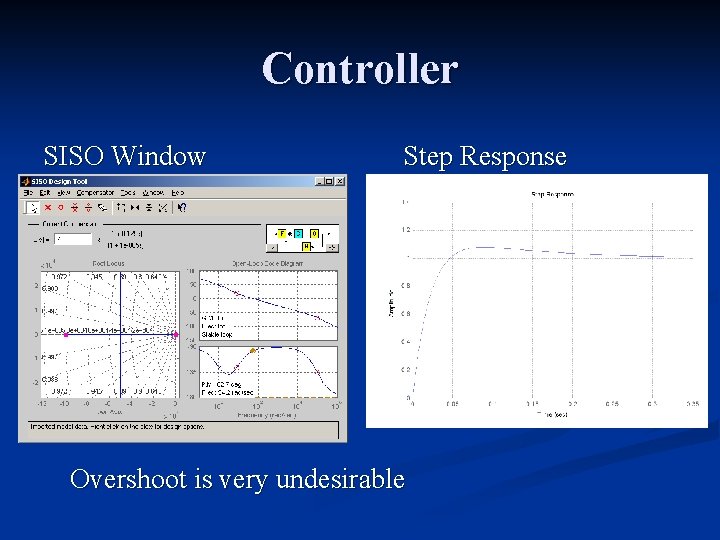

Controller SISO Window Step Response Overshoot is very undesirable

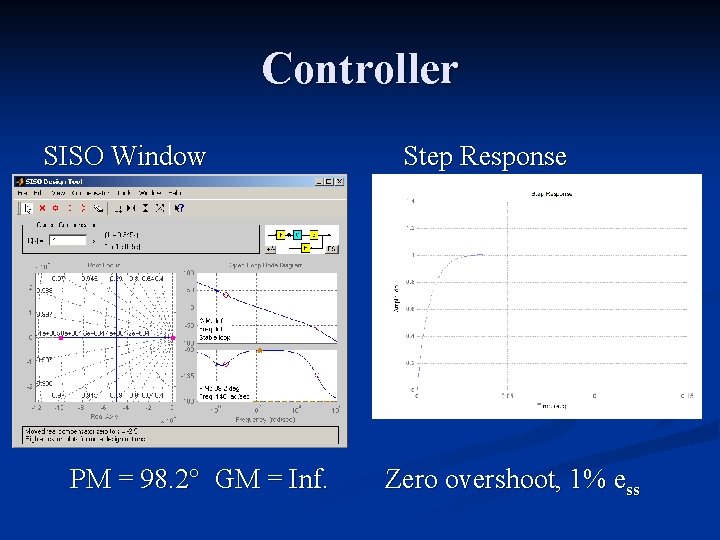

Controller SISO Window PM = 98. 2° GM = Inf. Step Response Zero overshoot, 1% ess

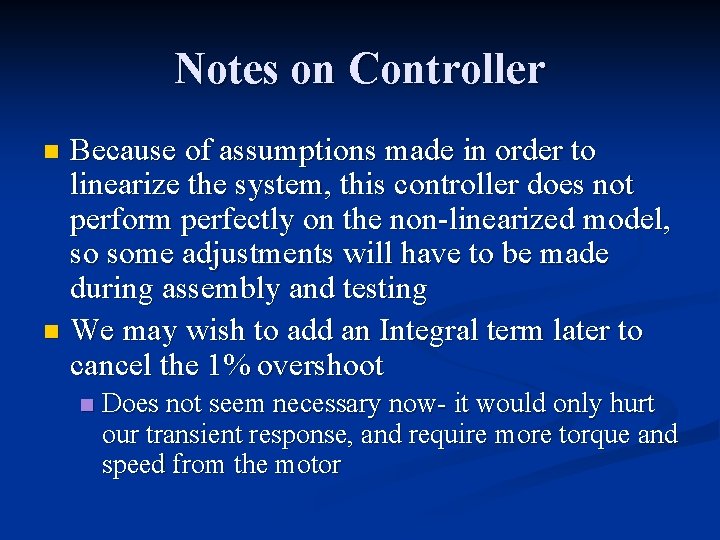

Notes on Controller Because of assumptions made in order to linearize the system, this controller does not perform perfectly on the non-linearized model, so some adjustments will have to be made during assembly and testing n We may wish to add an Integral term later to cancel the 1% overshoot n n Does not seem necessary now- it would only hurt our transient response, and require more torque and speed from the motor

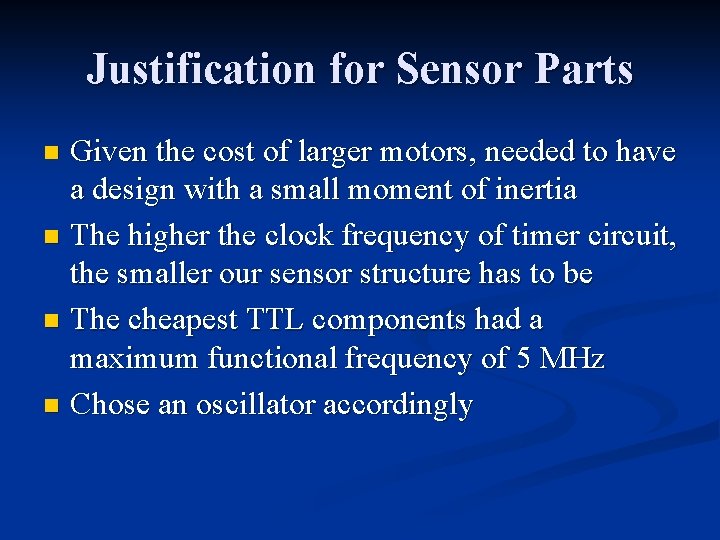

Justification for Sensor Parts Given the cost of larger motors, needed to have a design with a small moment of inertia n The higher the clock frequency of timer circuit, the smaller our sensor structure has to be n The cheapest TTL components had a maximum functional frequency of 5 MHz n Chose an oscillator accordingly n

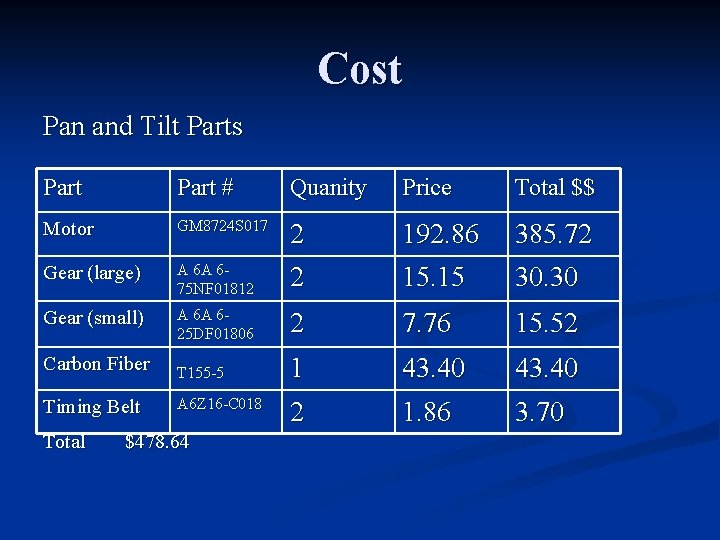

Cost Pan and Tilt Parts Part # Quanity Price Total $$ Motor GM 8724 S 017 2 192. 86 385. 72 Gear (large) A 6 A 675 NF 01812 2 15. 15 30. 30 Gear (small) A 6 A 625 DF 01806 2 7. 76 15. 52 Carbon Fiber T 155 -5 1 43. 40 Timing Belt A 6 Z 16 -C 018 2 1. 86 3. 70 Total $478. 64

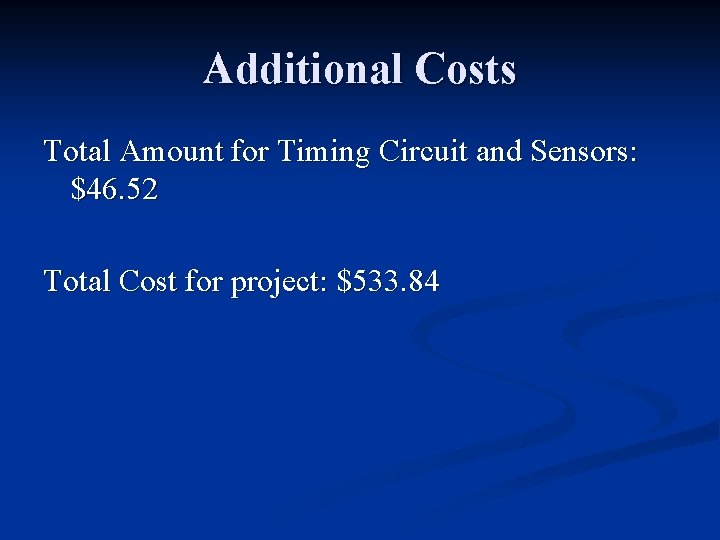

Additional Costs Total Amount for Timing Circuit and Sensors: $46. 52 Total Cost for project: $533. 84

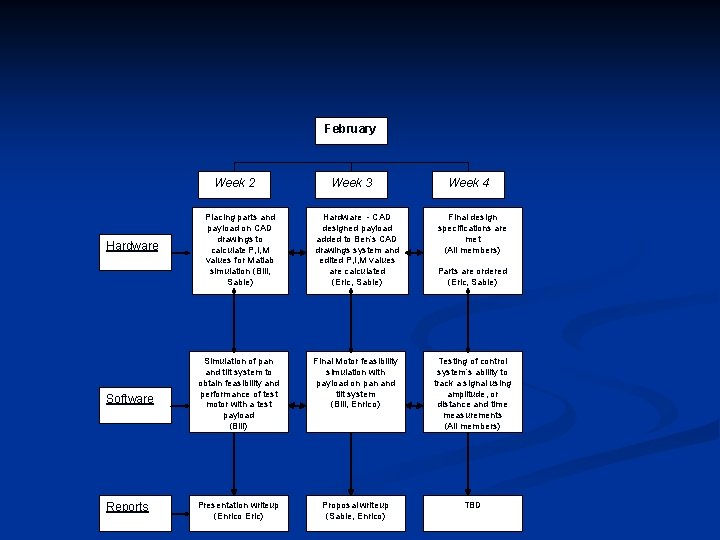

February Week 2 Hardware Software Reports Week 3 Week 4 Placing parts and payload on CAD drawings to calculate P, I, M values for Matlab simulation (Bill, Sabie) Hardware - CAD designed payload added to Ben’s CAD drawings system and edited P, I, M values are calculated (Eric, Sabie) Final design specifications are met (All members) Simulation of pan and tilt system to obtain feasibility and performance of test motor with a test payload (Bill) Final Motor feasibility simulation with payload on pan and tilt system (Bill, Enrico) Testing of control system’s ability to track a signal using amplitude, or distance and time measurements (All members) Presentation writeup (Enrico Eric) Proposal writeup (Sabie, Enrico) TBD Parts are ordered (Eric, Sabie)

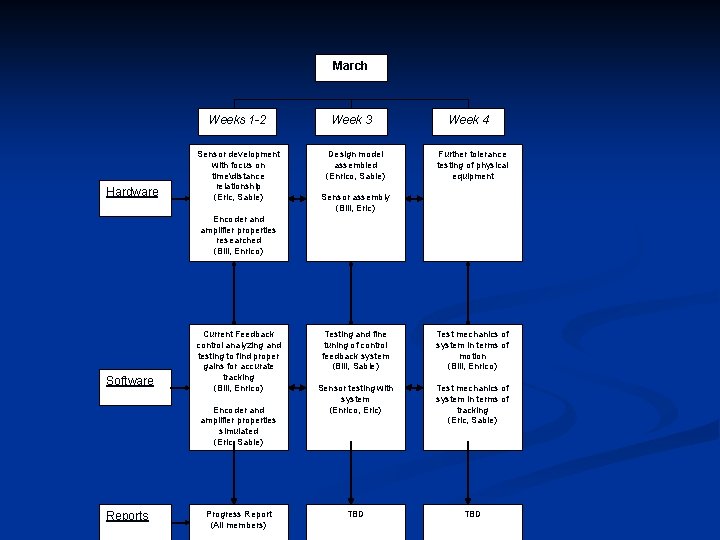

March Weeks 1 -2 Hardware Sensor development with focus on timedistance relationship (Eric, Sabie) Week 3 Design model assembled (Enrico, Sabie) Week 4 Further tolerance testing of physical equipment Sensor assembly (Bill, Eric) Encoder and amplifier properties researched (Bill, Enrico) Software Current Feedback control analyzing and testing to find proper gains for accurate tracking (Bill, Enrico) Encoder and amplifier properties simulated (Eric, Sabie) Reports Progress Report (All members) Testing and fine tuning of control feedback system (Bill, Sabie) Test mechanics of system in terms of motion (Bill, Enrico) Sensor testing with system (Enrico, Eric) Test mechanics of system in terms of tracking (Eric, Sabie) TBD
