Ultima X Gas Monitor with HART Display Version

Ultima® X Gas Monitor with HART Display Version

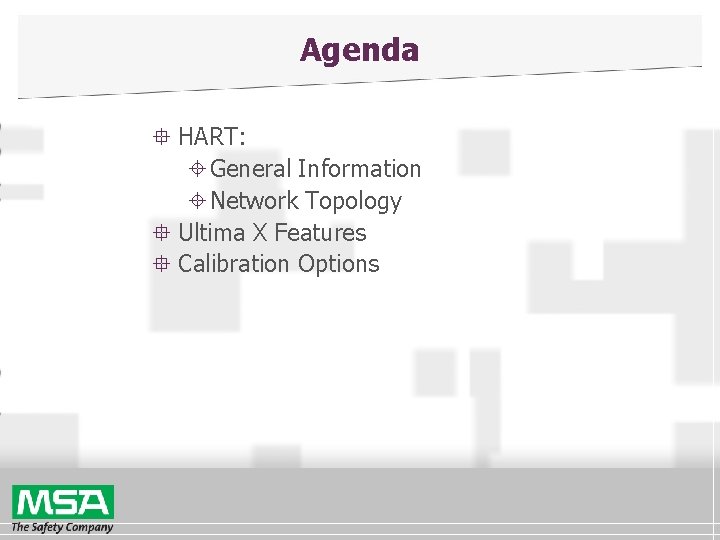

Agenda ° HART: ±General Information ±Network Topology ° Ultima X Features ° Calibration Options

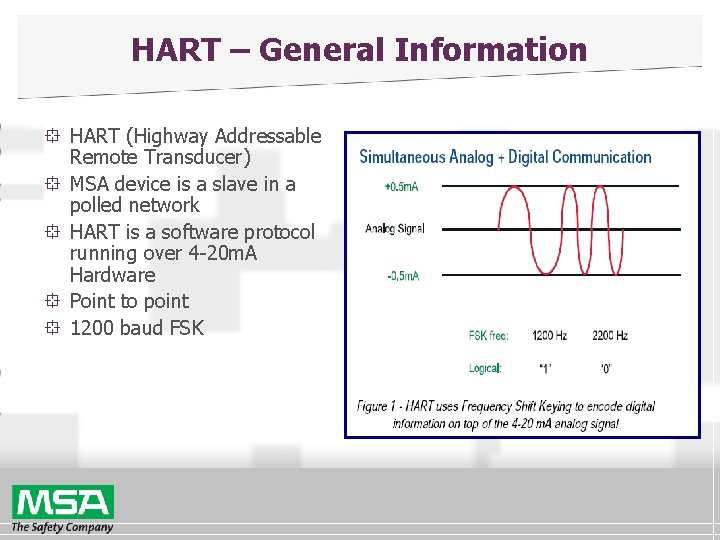

HART – General Information ° HART (Highway Addressable Remote Transducer) ° MSA device is a slave in a polled network ° HART is a software protocol running over 4 -20 m. A Hardware ° Point to point ° 1200 baud FSK

HART – General Information con’t ° HART Communication is a bi-directional industrial field communication protocol used to communicate between intelligent field instruments and host systems. ° HART provides two simultaneous communication channels: ± 4 -20 m. A analog signal ° Communicates the measured gas ° Fastest and most reliable in industry ±Digital signal ° Device status, diagnostics, additional measured / calculated values, etc ° Together, the two communication channels provide a complete field communication solution that is easy to use and configure, is low-cost and is very robust. Visit www. hartcomm 2. org for more information

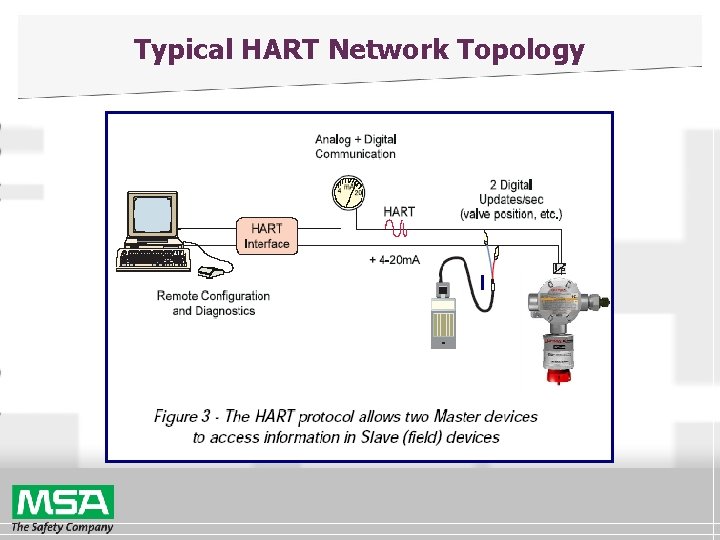

Typical HART Network Topology

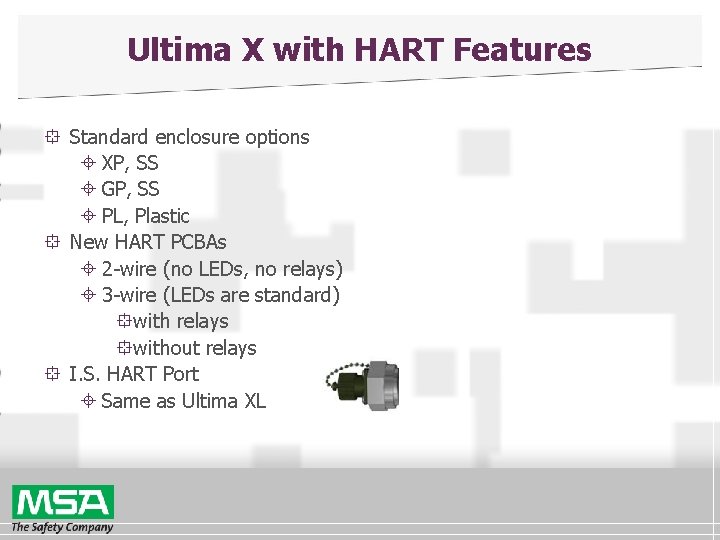

Ultima X with HART Features ° Standard enclosure options ± XP, SS ± GP, SS ± PL, Plastic ° New HART PCBAs ± 2 -wire (no LEDs, no relays) ± 3 -wire (LEDs are standard) °with relays °without relays ° I. S. HART Port ± Same as Ultima XL

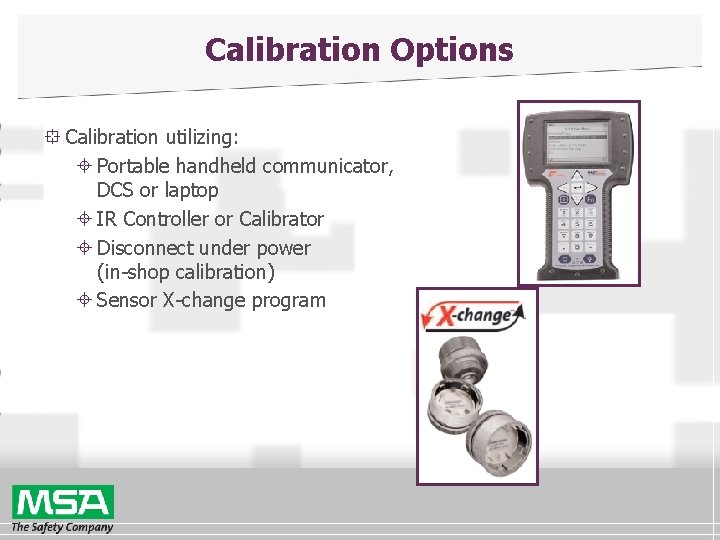

Calibration Options ° Calibration utilizing: ± Portable handheld communicator, DCS or laptop ± IR Controller or Calibrator ± Disconnect under power (in-shop calibration) ± Sensor X-change program

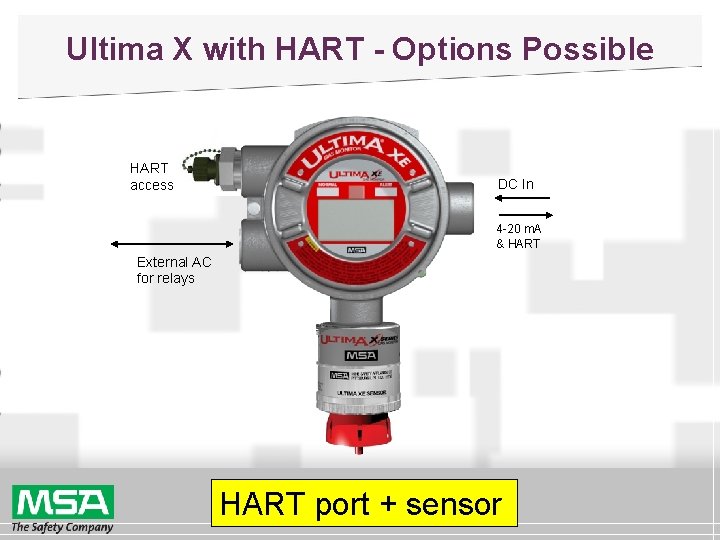

Ultima X with HART - Options Possible HART access DC In 4 -20 m. A & HART External AC for relays HART port + sensor

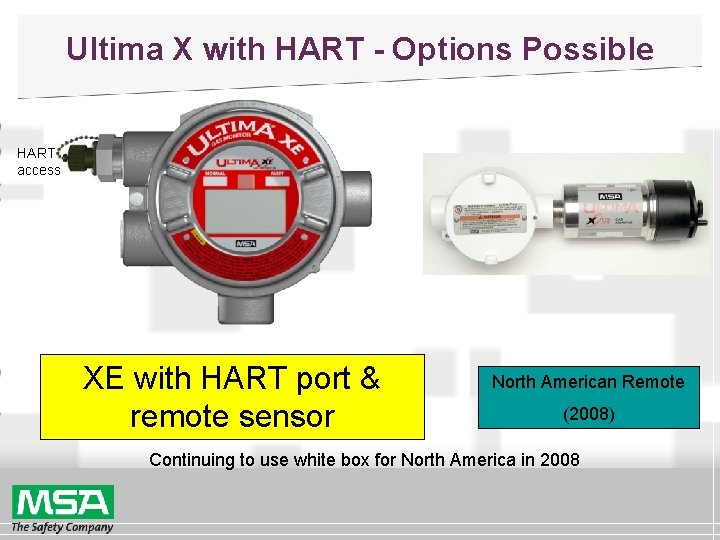

Ultima X with HART - Options Possible HART access XE with HART port & remote sensor North American Remote (2008) Continuing to use white box for North America in 2008

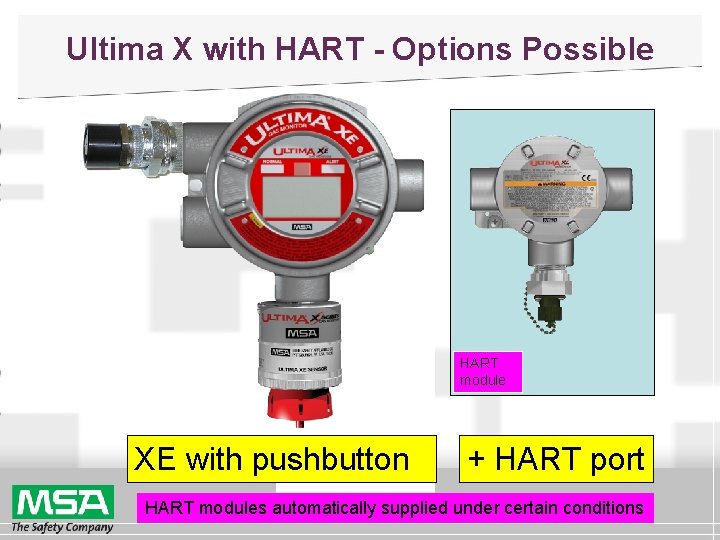

Ultima X with HART - Options Possible HART module XE with pushbutton + HART port HART modules automatically supplied under certain conditions

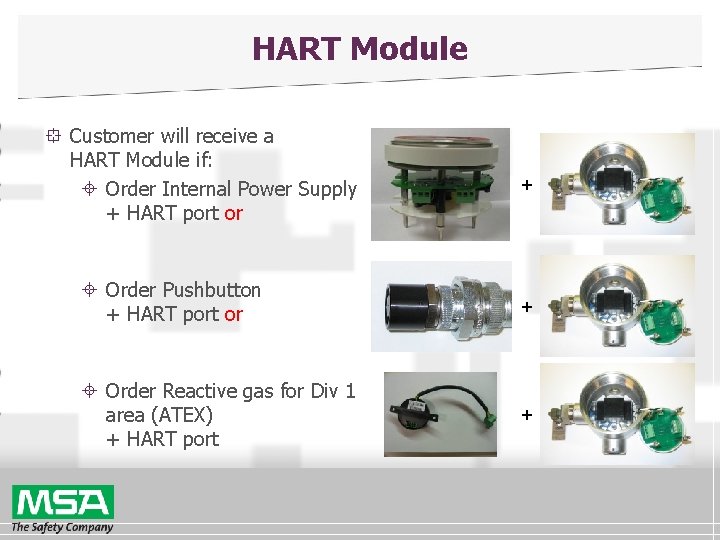

HART Module ° Customer will receive a HART Module if: ± Order Internal Power Supply + HART port or + ± Order Pushbutton + HART port or + ± Order Reactive gas for Div 1 area (ATEX) + HART port +

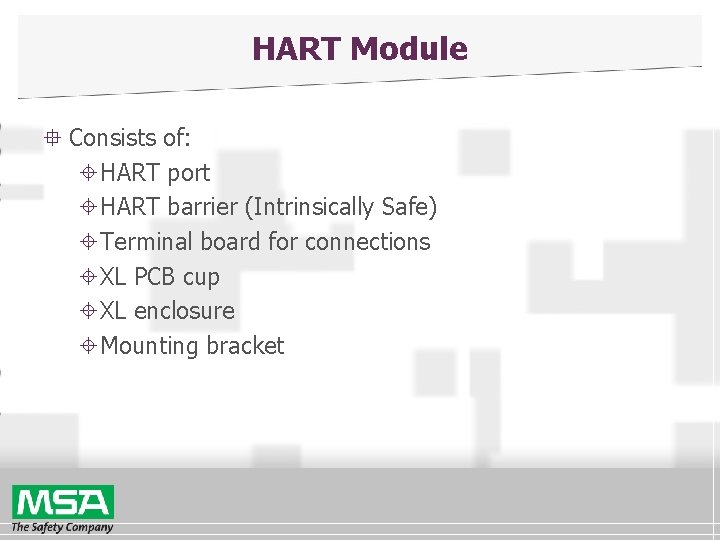

HART Module ° Consists of: ±HART port ±HART barrier (Intrinsically Safe) ±Terminal board for connections ±XL PCB cup ±XL enclosure ±Mounting bracket

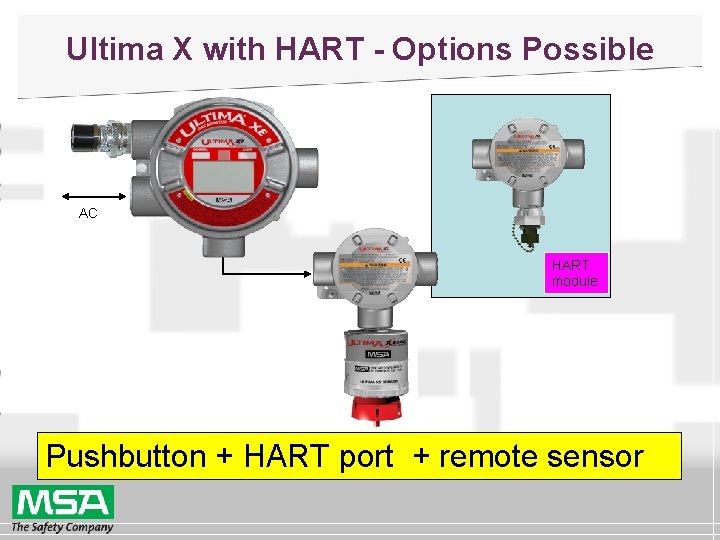

Ultima X with HART - Options Possible AC HART module Pushbutton + HART port + remote sensor

Ultima® X Gas Monitor with HART
