UKSG Serial Resource Management for 21 st Century

A mixed bag of jargon • The basics of the web • Linking –

How does the Web (currently) work? 3 simple protocols: Data Format HTML Addressing URL

How does the Web work? The Netsoft home page 1 User clicks on link

Linking – what’s required? • • User - ‘easy’ Library - accurate Publishers -

Linking Mechanisms URL-based include: • explicit filename http: //www. ariadne. ac. uk/issue 24/intro. html

Linking Mechanisms The Digital Object Identifier (DOI): • is a unique “dumb number” assigned

Linking Mechanisms The DOI is analogous to the Universal Product Code (UPC) bar code

Cross. Ref/DOI resolution References. DOI link URL to DOI Metadata Publisher http: //dx. doi.

Open. URL Pat Harris, Executive Director of NISO: "One message we hear is that

Open. URL format : : = Base URL ? Query Base-URL - Server address

“NOU” linking * NOU – non Open. URL Resource . Link Source Resource Link

Open. URL linking Context Sensitive Resource Link ri e at Hook Link op Component

The SFX Flow – Wo. S record as link source Getting Technical - Linking

Use of SFX in ‘ac. uk’ • Maximise use of (appropriate) e-resources 1. to

The Open Archives Initiative • 1999 Universal Preprint Service (UPS) • Multi-disciplinary DL of

OAI Metadata Harvesting Framework • Simple mechanism for sharing metadata records • Records shared

• Consistent, Credible & Compatible Usage Statistics Code of Practice for: • –

Thanks for listening SFX & Open. URL – http: //www. sfxit. com/ DOI –

Slides: 21

Download presentation

UKSG Serial Resource Management for 21 st Century Getting Technical - Linking Ross Mac. Intyre MIMAS University of Manchester Primary funding is provided by the JISC and ESRC. 11 Based at Manchester Computing, The University of Manchester.

A mixed bag of jargon • The basics of the web • Linking – D. I. Y. – DOI – Cross. Ref – Open. URL • Open Archives Initiative – ‘e-prints’ • Usage statistics Getting Technical - Linking UKSG SRM 2

How does the Web (currently) work? 3 simple protocols: Data Format HTML Addressing URL Transport HTTP Data Formats HTML (Hyper. Text Markup Language) provides the data format for native documents Addressing URLs (Uniform Resource Locator) provides an addressing mechanism for web resources Transport HTTP (Hyper. Text Transfer Protocol) defines transfer of resources between client and server Getting Technical - Linking UKSG SRM 3

How does the Web work? The Netsoft home page 1 User clicks on link to the address (URL) http: //www. netsoft. com/hello. html 2 Browser converts link to HTTP command (METHOD): Connect to computer at www. netsoft. com GET /hello. html Welcome to Netsoft Web Browser 3 Remote computer sends file <HTML> <TITLE>Welcome</TITLE>. . <P>Welcome to <B>Netsoft </B> Web server 4 Local computer displays HTML file Getting Technical - Linking UKSG SRM 4

Linking – what’s required? • • User - ‘easy’ Library - accurate Publishers - secure Intermediary - standard Getting Technical - Linking UKSG SRM 5

Linking Mechanisms URL-based include: • explicit filename http: //www. ariadne. ac. uk/issue 24/intro. html • derived filename, e. g. ISSN, SICI http: //www. jstor. ac. uk/journals/10624783. html • script, e. g. http: //www. esajournals. org/esaonline/? request=getabstract&issn=00129658&volume=077&issue=08&page=2302 Getting Technical - Linking UKSG SRM 6

Getting Technical - Linking UKSG SRM 7

Getting Technical - Linking UKSG SRM 8

Linking Mechanisms The Digital Object Identifier (DOI): • is a unique “dumb number” assigned to an entity • remains persistent for the life of the digital object • is comprised of a prefix and a suffix separated by a forward slash One or more prefix per content producer The suffix can be any type of identifier The suffix can be assigned to entities of any size or granularity or any file type Getting Technical - Linking UKSG SRM 9

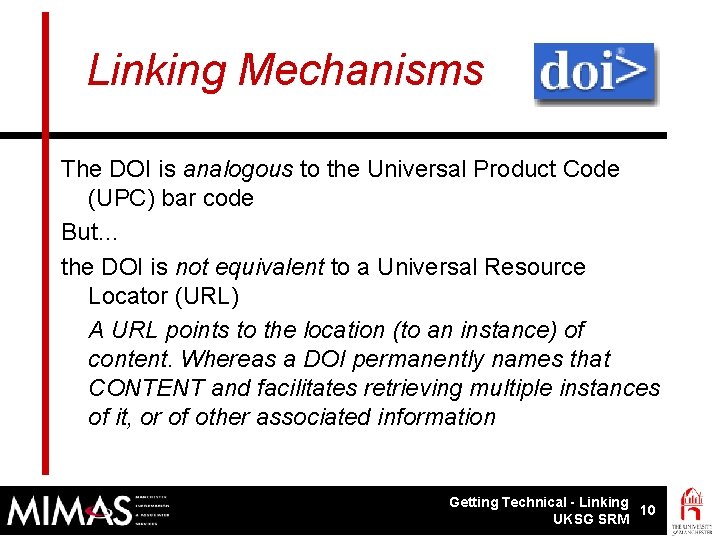

Linking Mechanisms The DOI is analogous to the Universal Product Code (UPC) bar code But… the DOI is not equivalent to a Universal Resource Locator (URL) A URL points to the location (to an instance) of content. Whereas a DOI permanently names that CONTENT and facilitates retrieving multiple instances of it, or of other associated information Getting Technical - Linking 10 UKSG SRM

Cross. Ref/DOI resolution References. DOI link URL to DOI Metadata Publisher http: //dx. doi. org/10. 1093/toxsci/57. 1. 95 Getting Technical - Linking 11 UKSG SRM

Open. URL Pat Harris, Executive Director of NISO: "One message we hear is that the new business model will be enabled by information technology with standards at the core. This is where NISO fits in. …over five hundred years ago Guttenberg fundamentally changed communication and learning. Today NISO's challenge is to create those standards that will enable the modern day Gothenburg Moment. Could it be the Open. URL? " Getting Technical - Linking 12 UKSG SRM

Open. URL format : : = Base URL ? Query Base-URL - Server address for the service component (eg SFX) Query - Elements of the metadata (or pointer to metadata) - Information supporting delivery of services http: //sfx. aaa. edu/menu? genre=article&issn=1234 -5678 &volume=12&issue=3&spage=1&epage=8&date=1998 &aulast=Smith&aufirst=Paul Getting Technical - Linking 13 UKSG SRM

“NOU” linking * NOU – non Open. URL Resource . Link Source Resource Link Destination Provision of Links Resolution of Links Oren Beit-Arie, Ex. Libris Getting Technical - Linking 14 UKSG SRM

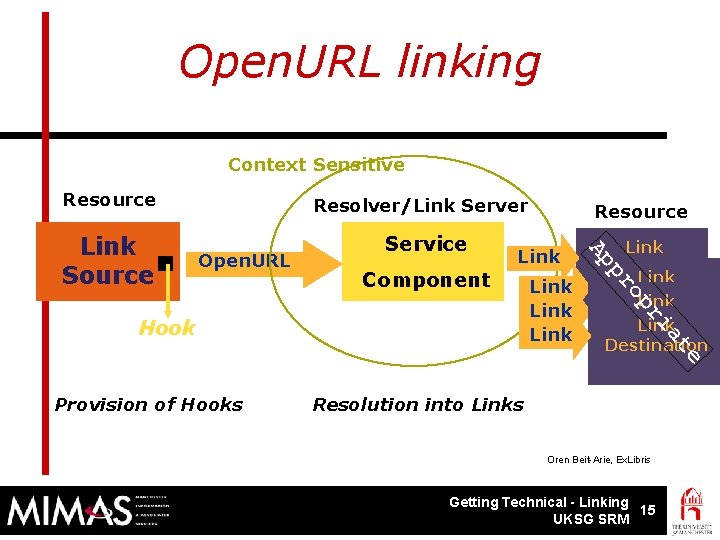

Open. URL linking Context Sensitive Resource Link ri e at Hook Link op Component Link Destination pr Open. URL Service Resource Ap . Link Source Resolver/Link Server Provision of Hooks Resolution into Links Oren Beit-Arie, Ex. Libris Getting Technical - Linking 15 UKSG SRM

The SFX Flow – Wo. S record as link source Getting Technical - Linking 16 UKSG SRM

Use of SFX in ‘ac. uk’ • Maximise use of (appropriate) e-resources 1. to increase use of (their) e-journals 2. provide links from bibliographic resources • • • Help with e-journal management – please! All sources possible, targets limited to major ‘bundled’ deals – ‘slowly & accurately’ Launch ‘quickly but quietly’ Getting Technical - Linking 17 UKSG SRM

The Open Archives Initiative • 1999 Universal Preprint Service (UPS) • Multi-disciplinary DL of technical reports, e-print servers, etc. • Services provided on harvested metadata • Data Providers / Service Providers • Sharing versus searching • OAI is only about metadata – not full text • OAI is neutral about nature of metadata and the resources described Getting Technical - Linking 18 UKSG SRM

OAI Metadata Harvesting Framework • Simple mechanism for sharing metadata records • Records shared over the web (ie HTTP as XML) • ‘Client’ can ask metadata server for – all records modified in last ‘n’ days – info about sets, formats, etc. • Specific application: self-archiving via e-print servers in/for all institutions Getting Technical - Linking 19 UKSG SRM

• Consistent, Credible & Compatible Usage Statistics Code of Practice for: • – – • Data elements to be measured Definitions of these data elements Output report formats/delivery/frequency/granularity Methods for measurement and use AAP, ALPSP, ARL, ASA, EDIt. EUR, JISC, NCLIS, NISO, PA, STM, UKSG Getting Technical - Linking 20 UKSG SRM

Thanks for listening SFX & Open. URL – http: //www. sfxit. com/ DOI – http: //www. doi. org Cross. Ref – http: //ww. crossref. org/ OAI – http: //www. openarchives. org/ e-prints – http: //www. eprints. org/ COUNTER – http: //www. project. Counter. org/ email: ross. macintyre@man. ac. uk web: http: //www. mimas. ac. uk/ Getting Technical - Linking 21 UKSG SRM
