UKASACS United Kingdom Air Defence A Brief History

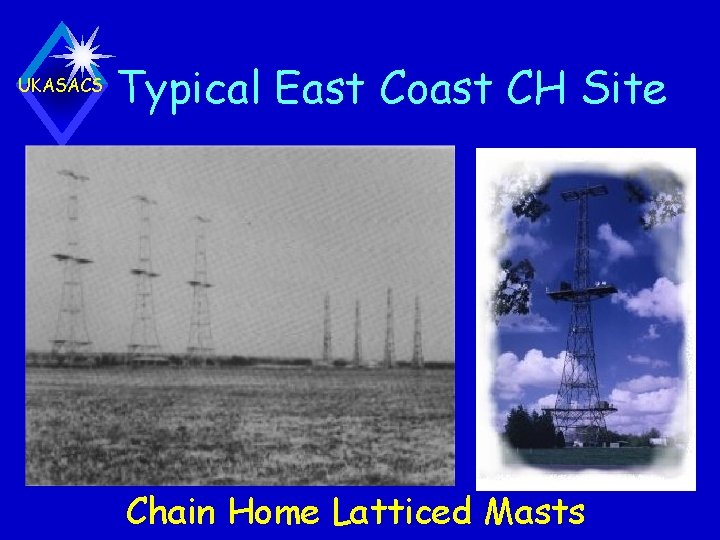

UKASACS Typical East Coast CH Site Chain Home Latticed Masts

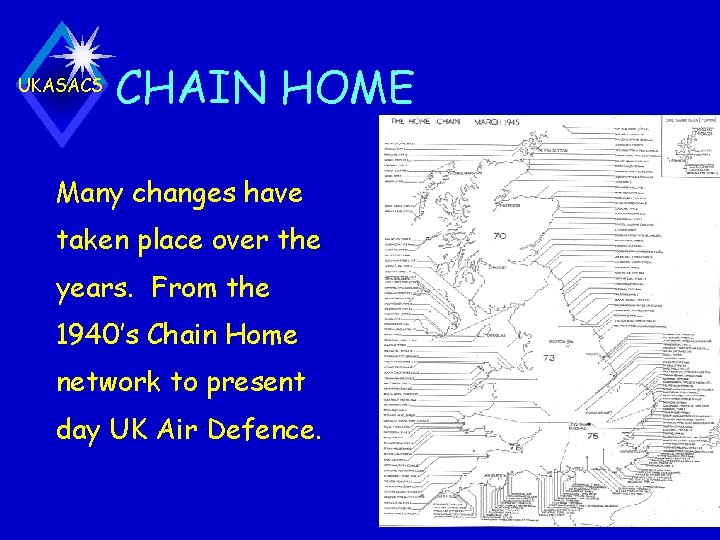

UKASACS CHAIN HOME Many changes have taken place over the years. From the 1940’s Chain Home network to present day UK Air Defence.

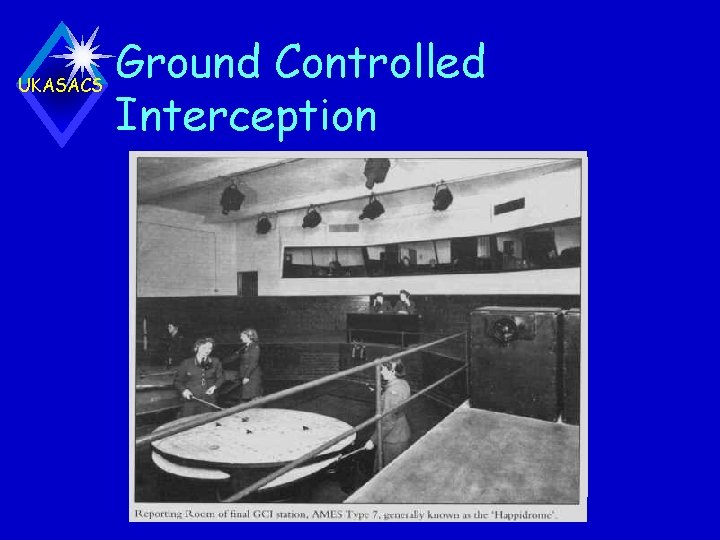

Ground Controlled UKASACS Interception

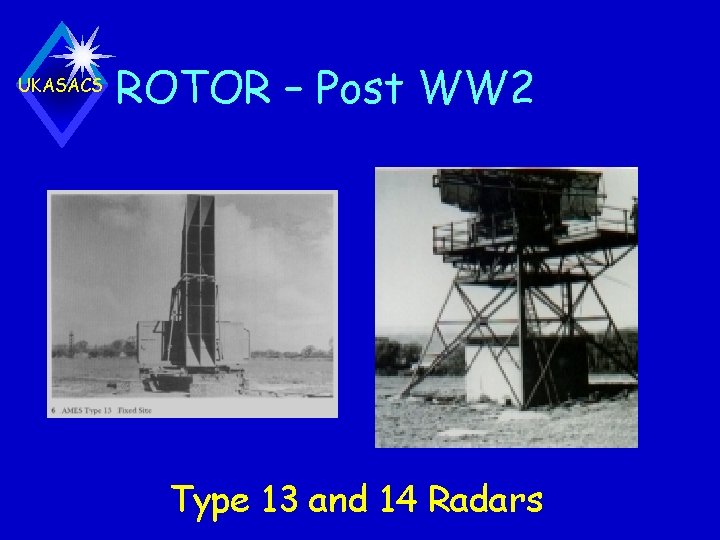

UKASACS ROTOR – Post WW 2 Type 13 and 14 Radars

UKASACS BERLIN AIRLIFT

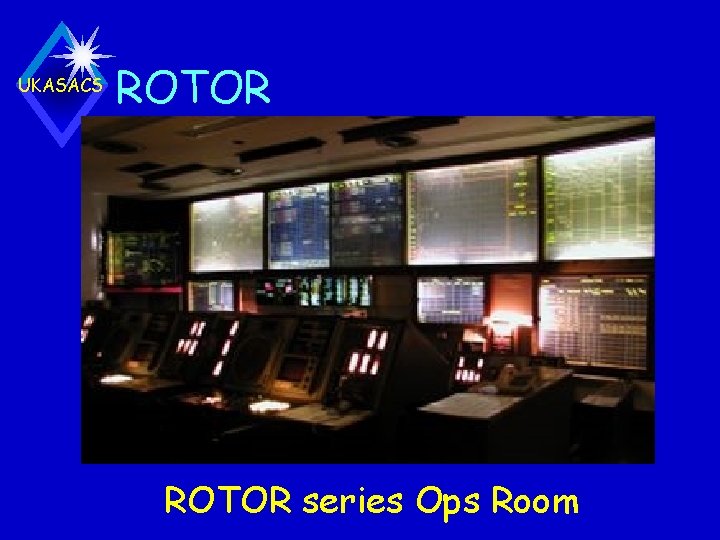

UKASACS ROTOR series Ops Room

UKASACS CUBAN MISSILE CRISIS

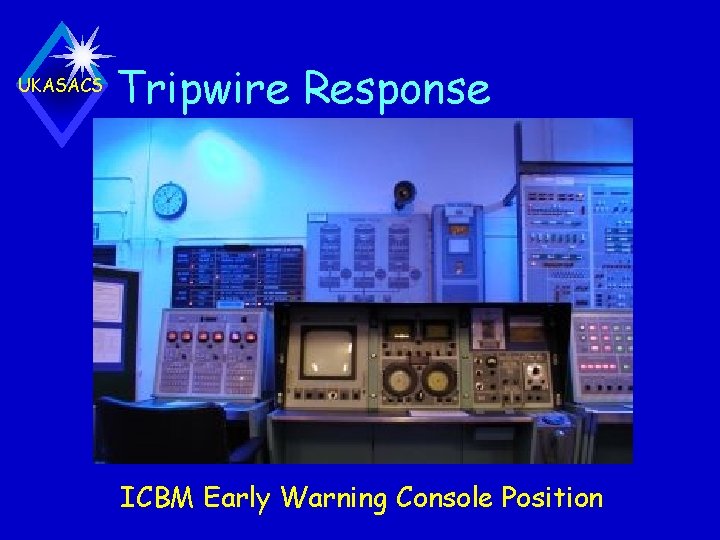

UKASACS Tripwire Response ICBM Early Warning Console Position

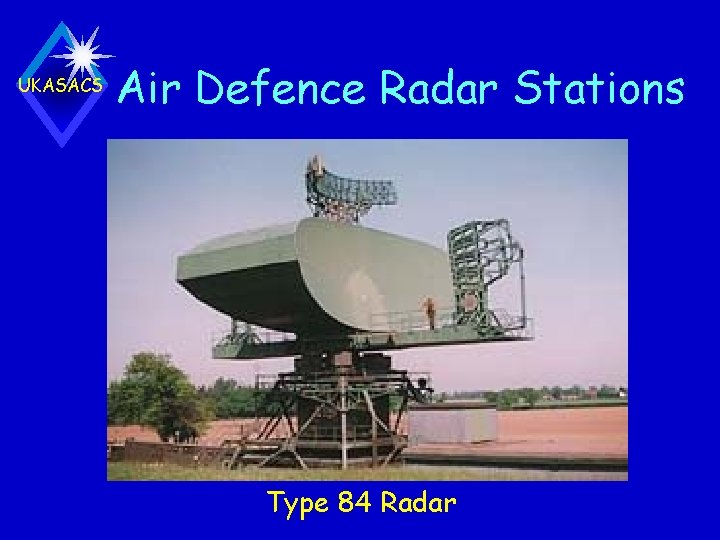

UKASACS Air Defence Radar Stations Type 84 Radar

UKASACS Air Defence Radar Stations Type 85 Radar

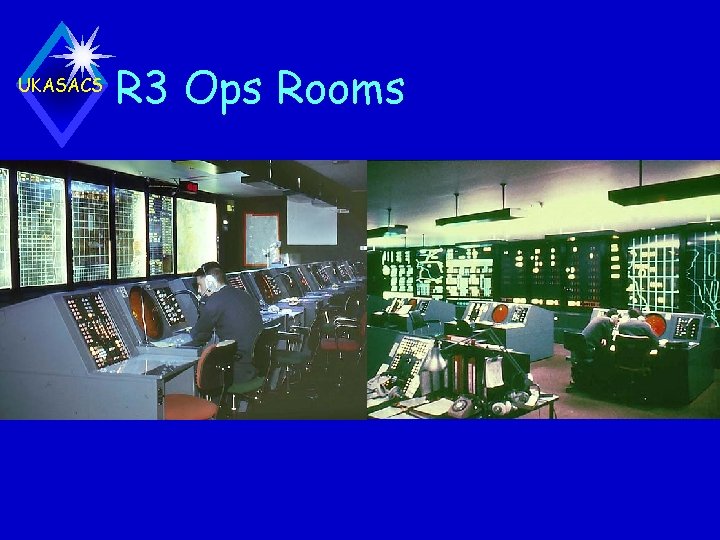

UKASACS R 3 Ops Rooms

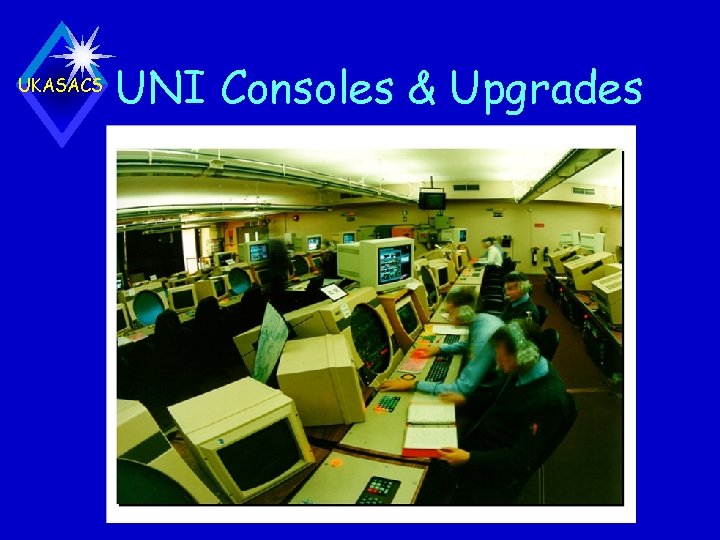

UKASACS UNI Consoles & Upgrades

UKASACS UKADR The UK Air Defence Region is a region of air space, around the United Kingdom The region is 2048 square miles covering the United Kingdom and Faroe Islands.

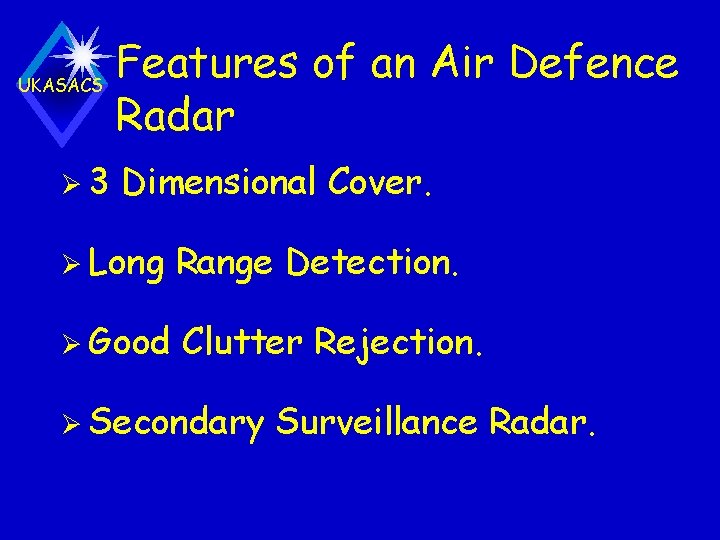

Features of an Air Defence UKASACS Radar Ø 3 Dimensional Cover. Ø Long Range Detection. Ø Good Clutter Rejection. Ø Secondary Surveillance Radar.

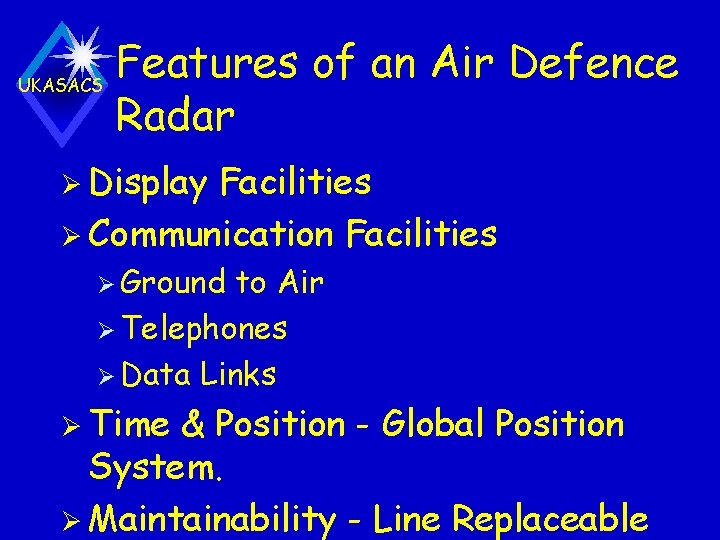

Features of an Air Defence UKASACS Radar Ø Display Facilities Ø Communication Facilities Ø Ground to Air Ø Telephones Ø Data Links Ø Time & Position - Global Position System. Ø Maintainability - Line Replaceable

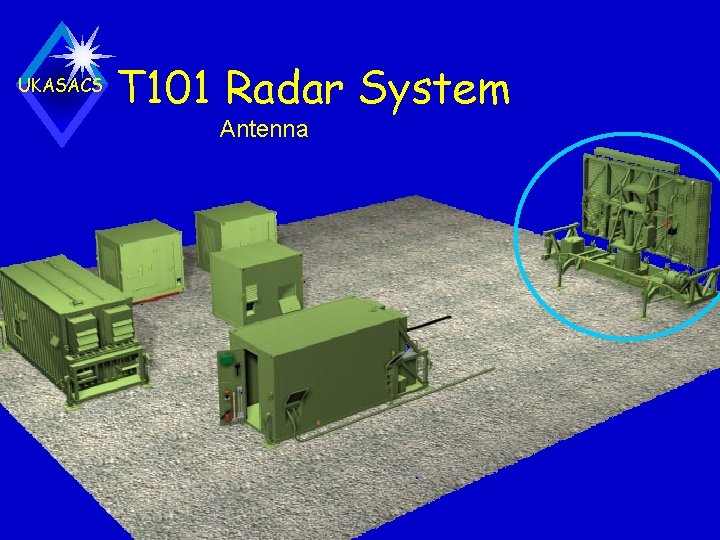

UKASACS T 101 Radar System Antenna

UKASACS T 101 Radar System Radar Management Cabin

UKASACS T 101 Radar System Display Workshop Cabin

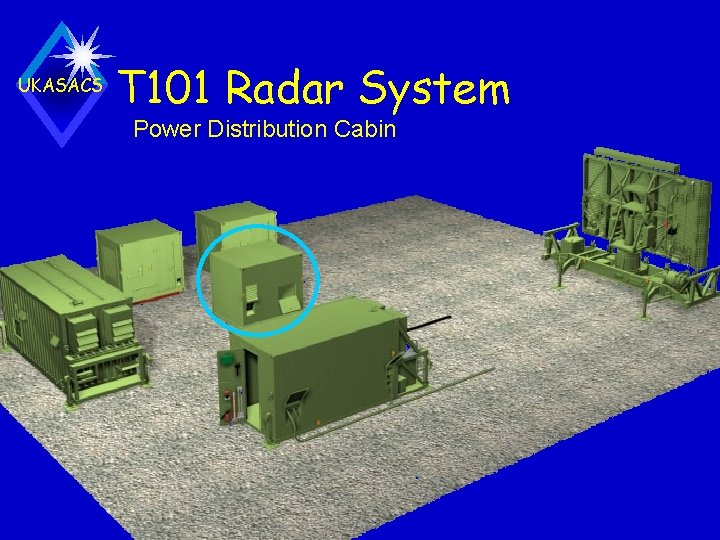

UKASACS T 101 Radar System Power Distribution Cabin

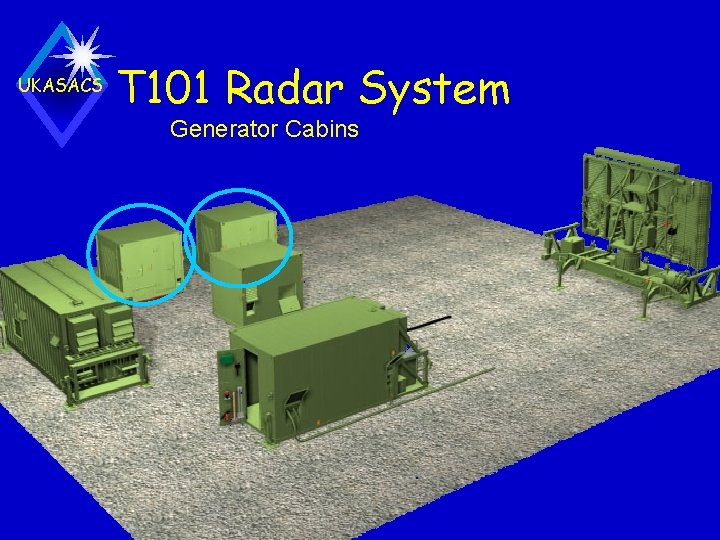

UKASACS T 101 Radar System Generator Cabins

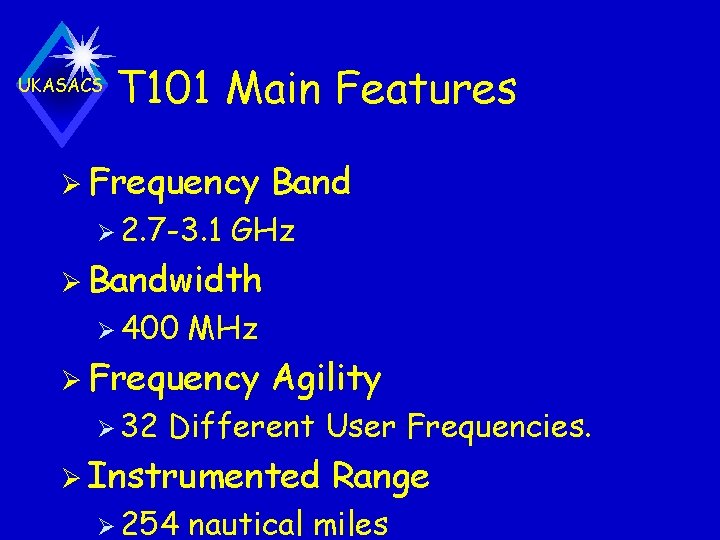

UKASACS T 101 Main Features Ø Frequency Ø 2. 7 -3. 1 Band GHz Ø Bandwidth Ø 400 MHz Ø Frequency Ø 32 Agility Different User Frequencies. Ø Instrumented Ø 254 Range nautical miles

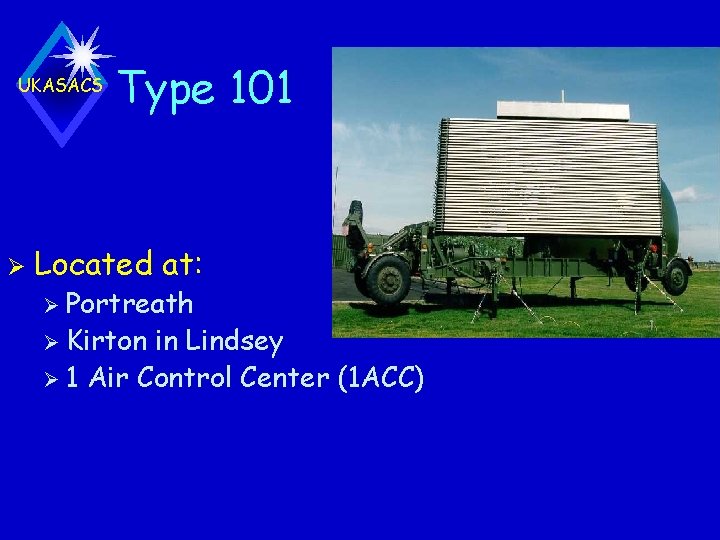

UKASACS Ø Type 101 Located at: Ø Portreath Ø Kirton in Lindsey Ø 1 Air Control Center (1 ACC)

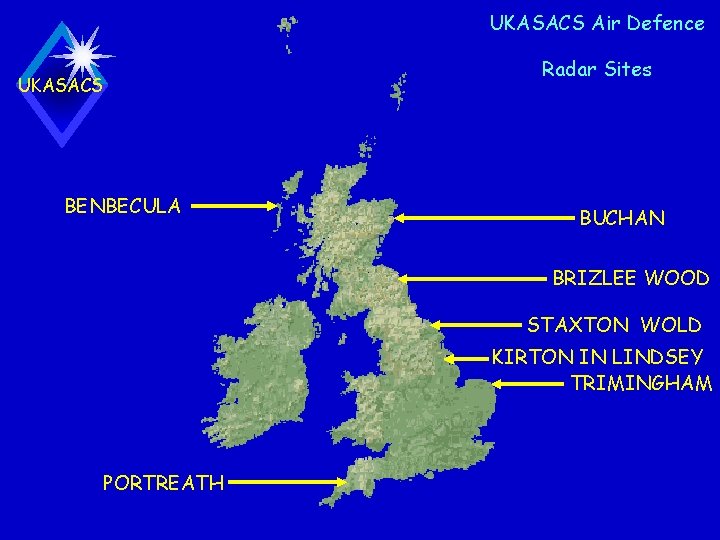

UKASACS Air Defence UKASACS BENBECULA Radar Sites BUCHAN BRIZLEE WOOD STAXTON WOLD KIRTON IN LINDSEY TRIMINGHAM PORTREATH

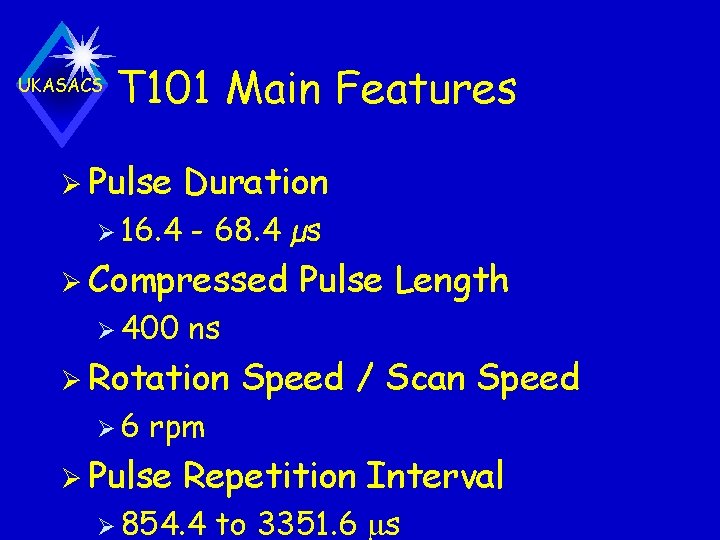

UKASACS T 101 Main Features Ø Pulse Ø 16. 4 Duration - 68. 4 µs Ø Compressed Ø 400 ns Ø Rotation Ø 6 Pulse Length Speed / Scan Speed rpm Ø Pulse Repetition Interval Ø 854. 4 to 3351. 6 ms

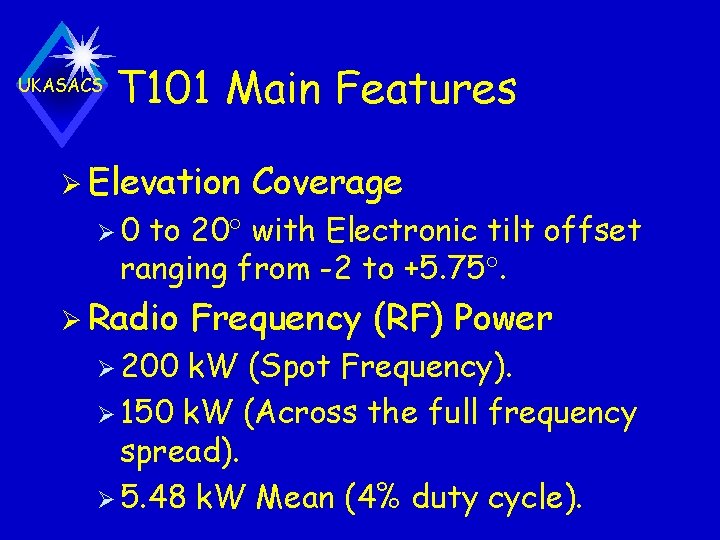

UKASACS T 101 Main Features Ø Elevation Coverage Ø 0 to 20 with Electronic tilt offset ranging from -2 to +5. 75. Ø Radio Ø 200 Frequency (RF) Power k. W (Spot Frequency). Ø 150 k. W (Across the full frequency spread). Ø 5. 48 k. W Mean (4% duty cycle).

UKASACS Air Defence UKASACS BENBECULA Radar Sites BUCHAN BRIZLEE WOOD STAXTON WOLD KIRTON IN LINDSEY TRIMINGHAM PORTREATH

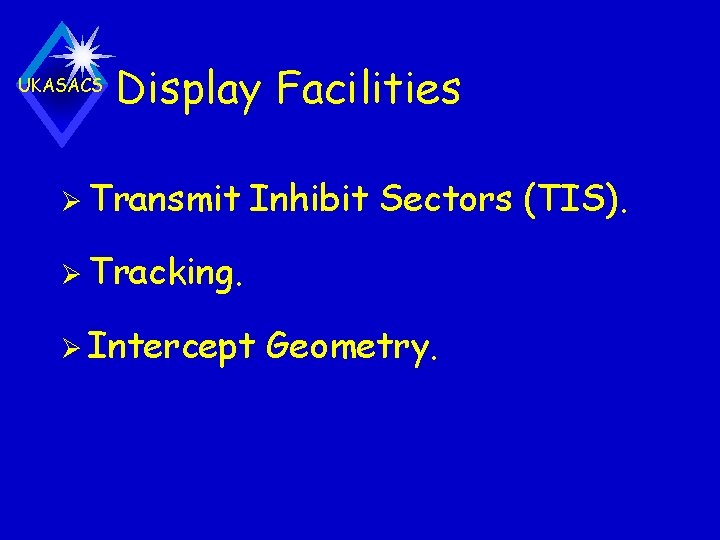

UKASACS Display Facilities Ø Transmit Inhibit Sectors (TIS). Ø Tracking. Ø Intercept Geometry.

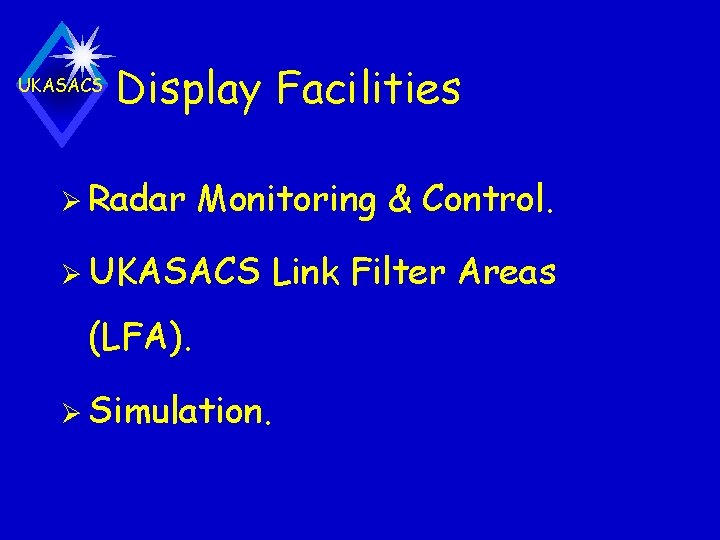

UKASACS Display Facilities Ø Radar Monitoring & Control. Ø UKASACS Link Filter Areas (LFA). Ø Simulation.
