UE Capability Transfer UE Capability Information 3 L
實驗目標 • 了解UE Capability Transfer程序內參數之意義 • 修改程式碼顯示UE Capability Information訊息參數 3 L A B

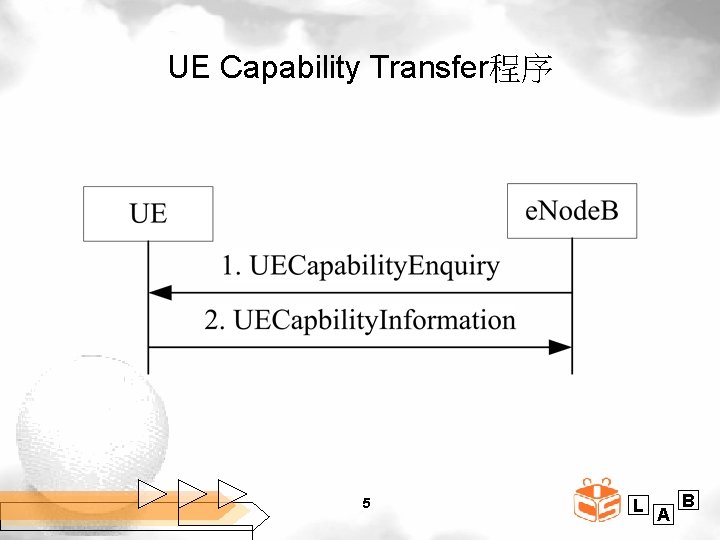

UE Capability Transfer程序 5 L A B

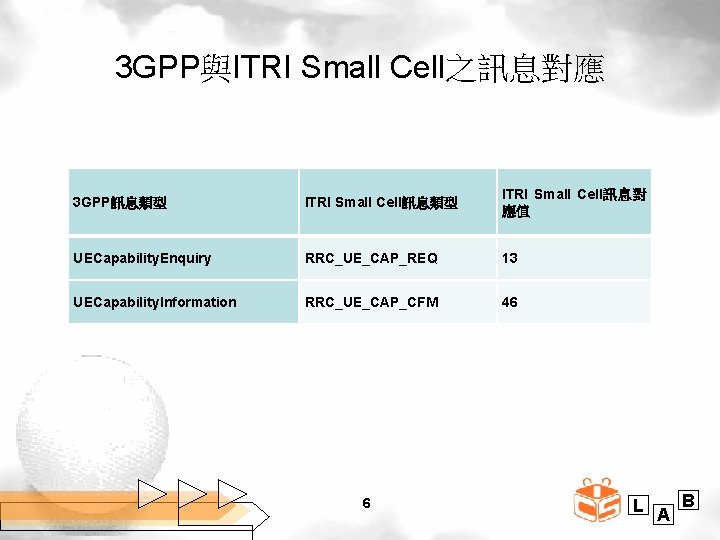

3 GPP與ITRI Small Cell之訊息對應 3 GPP訊息類型 ITRI Small Cell訊息對 應值 UECapability. Enquiry RRC_UE_CAP_REQ 13 UECapability. Information RRC_UE_CAP_CFM 46 6 L A B
實驗設備 • 硬體 – Small Cell: 研院開發的Small Cell – EPC: 研院開發的EPC – SIM Card:特製的實驗用LTE SIM Card – LTE Dongle:Bandrich Band. Luxe Dongle – UE:HTC Desire 820實驗手機與一般筆記型電腦 • 軟體 – Ubuntu Linux 作業系統 – Wireshark封包擷取軟體 – gcc編譯器 – vi/vim文字編輯器 7 L A B

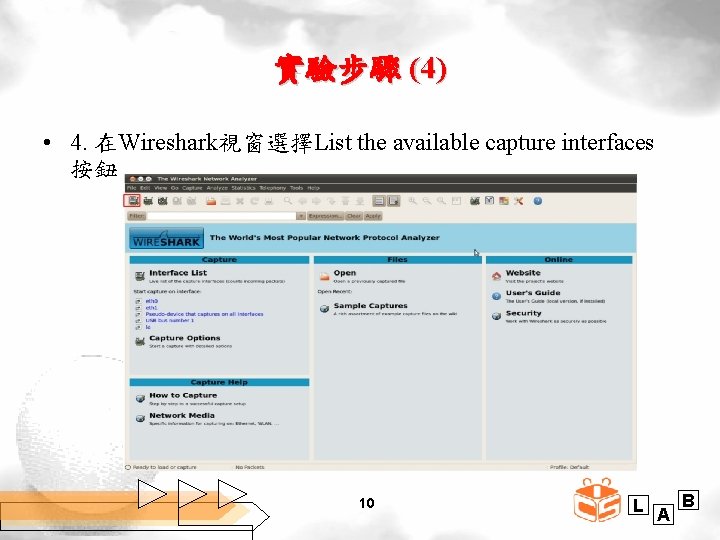

實驗步驟 (4) • 4. 在Wireshark視窗選擇List the available capture interfaces 按鈕 10 L A B

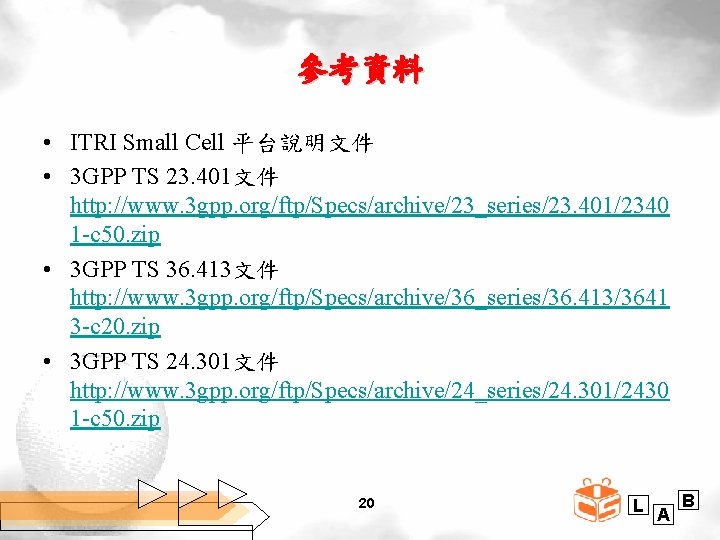

參考資料 • ITRI Small Cell 平台說明文件 • 3 GPP TS 23. 401文件 http: //www. 3 gpp. org/ftp/Specs/archive/23_series/23. 401/2340 1 -c 50. zip • 3 GPP TS 36. 413文件 http: //www. 3 gpp. org/ftp/Specs/archive/36_series/36. 413/3641 3 -c 20. zip • 3 GPP TS 24. 301文件 http: //www. 3 gpp. org/ftp/Specs/archive/24_series/24. 301/2430 1 -c 50. zip 20 L A B
