UAS Control and Non Payload Communications (CNPC) Link Availability ICAO ACP-WG-F Meeting #24 Paris, March 2011 Michael Neale and Brooks Cressman

Overview What levels of UAS Control and Non-Payload Communications (CNPC) Link Availability will be required? Safety driven analysis of Collision Avoidance Scenario. Dependent on Aircraft type, Class of Airspace, Operation. ICAO AMS(R)S Manual. What levels of Availability can be achieved? LOS and BLOS (satellite). Using frequencies likely to be approved at ITU WRC-12. An overall system view. A candidate UAS CNPC design solution 2

Safety Analysis of a Collision Avoidance Scenario Conflict Avoidance Period 5 -10 seconds. Collision Avoidance Period 5 -10 seconds. CNPC Link temporary outage must last for less than 1 -2 seconds during this 10 -20 second period. 3

Safety Analysis Target UAS Midair Collision Rates per flight hour to be the same as manned aircraft AOPA NALL Report shows about 10 Part 91 (GA) manned aircraft midair collisions per year during approximately 25 million flight hours = 4 x 10^-7 per flight hour. NTSB and FAA data shows for manned Part 121 (airline and large cargo) aircraft no midair collisions during over 400 million flight hours = 2. 5 x 10^-9 per flight hour. Collision Likelihood Current estimates of the likelihood of an intruder, on a collision course with a UA, entering the UA's self conflict avoidance volume (self separation volume) is once every 10, 000 hrs. Collision Likelihood = 1 x 10^-4 per flight hour. Sense and Avoid and CNPC systems must reduce this Collision Likelihood to the target Midair Collision rates achieved by manned aircraft 4

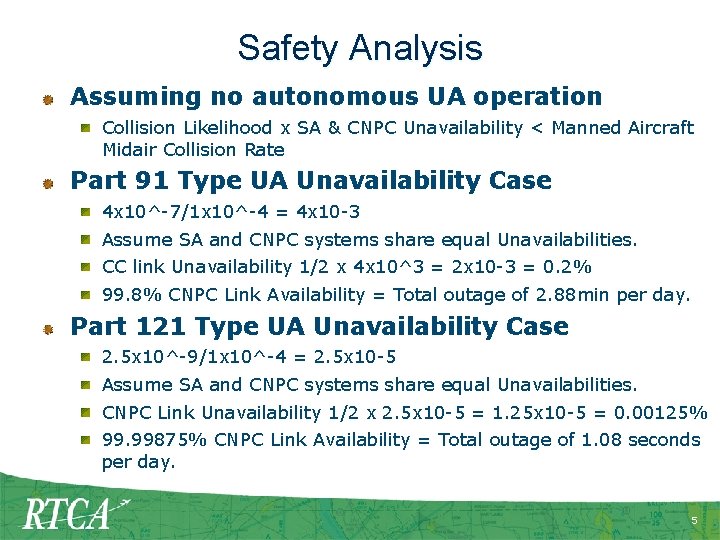

Safety Analysis Assuming no autonomous UA operation Collision Likelihood x SA & CNPC Unavailability < Manned Aircraft Midair Collision Rate Part 91 Type UA Unavailability Case 4 x 10^-7/1 x 10^-4 = 4 x 10 -3 Assume SA and CNPC systems share equal Unavailabilities. CC link Unavailability 1/2 x 4 x 10^3 = 2 x 10 -3 = 0. 2% 99. 8% CNPC Link Availability = Total outage of 2. 88 min per day. Part 121 Type UA Unavailability Case 2. 5 x 10^-9/1 x 10^-4 = 2. 5 x 10 -5 Assume SA and CNPC systems share equal Unavailabilities. CNPC Link Unavailability 1/2 x 2. 5 x 10 -5 = 1. 25 x 10 -5 = 0. 00125% 99. 99875% CNPC Link Availability = Total outage of 1. 08 seconds per day. 5

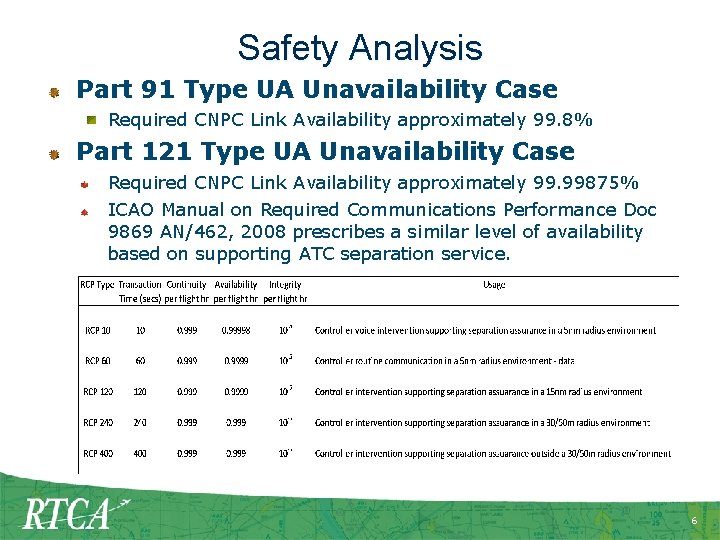

Safety Analysis Part 91 Type UA Unavailability Case Required CNPC Link Availability approximately 99. 8% Part 121 Type UA Unavailability Case Required CNPC Link Availability approximately 99. 99875% ICAO Manual on Required Communications Performance Doc 9869 AN/462, 2008 prescribes a similar level of availability based on supporting ATC separation service. 6

LOS CNPC Link Availability LOS Availability impairments compared to free space Multipath and Diffraction – low altitude e. g. takeoff and landing as well as earth curvature obstruction near maximum range. Airframe antenna obstruction - maneuvering during takeoff and landing as well as when flying straight and level en-route. LOS Multipath Using ITU-R P. 530 Propagation data and prediction methods required for the design of terrestrial line of sight systems – Section 2. 3. 2. Additional propagation loss of 11 -19 d. B (depending on frequency and aircraft altitude) added for 99. 8% availability. 7

LOS CNPC Link Availability LOS Installed antenna performance analysis Using a single antenna yields 20 -25 d. B nulls. Using two diversity controlled antennas gives 12 d. B nulls. Additional loss (12 d. B) added to link budgets to account for airframe obstruction 8

LOS CNPC Link Availability Assuming Control - Telecommand telemetry data rates 10 kbps Pilot Voice Communication data rates 5 kbps SA/TCAS support data rates 10 kbps Weather radar and nose camera video 270 kbps L Band (circa 1 GHz) and C Band (circa 5 GHz) ITU preferred AM(R)S LOS frequencies. 10 Watt transmitters 2 d. B Noise Figure receivers Realistic system losses Two Omnidirectional antennas on the aircraft High gain antenna(s) at Control Station Include 6 d. B safety margin Approximately 150 km (80 nm) range Single Link Availability of 99. 8% can be achieved 9

BLOS CNPC Link Availability BLOS Satellite Availability impairments compared to free space L and C Band scintillation loss (<0. 5 d. B). Ku and Ka Band. Rain and scintillation fading. Use ITU-R P. 618 - Propagation data and prediction methods required for the design of Earth-space telecommunication systems Section 2. 2. 1. 1. Additional propagation loss of 1. 6 -14 d. B depending on rain rate and altitude for 99. 8% availability. Other Ku and Ka Band limitations Aircraft size and power capability, limits antenna size and transmit amplifier power output which limits EIRP and G/T and link margin. 10

BLOS CNPC Link Availability Rain at lower altitudes causes additional propagation loss on Ku/Ka satellite links UA can only use Ku/Ka Band satellites at aircraft altitudes where rain loss is not excessive. This limits the lowest altitude the UA can fly. UA will switch to LOS for takeoff and landing. Manned Aircraft avoid weather radar level 3 (red) and above regions where rain is higher than an R 0. 01 of approximately 20 mm/hr. 11

BLOS CNPC Link Availability Assuming Control - Telecommand telemetry data rates 10 kbps Pilot Voice Communication data rates 5 kbps SA/TCAS support data rates 10 kbps Weather radar and nose camera video 270 kbps L Band (circa 1. 6 GHz), C Band (circa 5 GHz), Ku (12/14 GHz) and Ka Band (20/30 GHz) frequencies 10 Watt transmitters Realistic system losses Omnidirectional antennas on the aircraft at L and C Band 0. 8 m and 0. 5 m dish antennas on aircraft at Ku and Ka Band EIRP limited by uplink power flux density regulations Single Link Availability 99. 8% can be achieved 12

Candidate Design A single CNPC link is probably adequate for Part 91 Type UA operating in class E or G airspace A very effective way to achieve the availability needed for a Part 121 Type UA operating in class A, B or C airspace is to use two noncorrelated CNPC systems 1 - 0. 998 x 1 -0. 998 = 1 -0. 999996 or 99. 9996% Availability Also mitigates against hardware and software failures. Use the multiple frequency bands that are being considered by ITU to provide the diversity. Dual links for larger UA already assumed in ITU-R M. 2171 spectrum analysis. Allows some margin for other parts of the CNPC link. 13

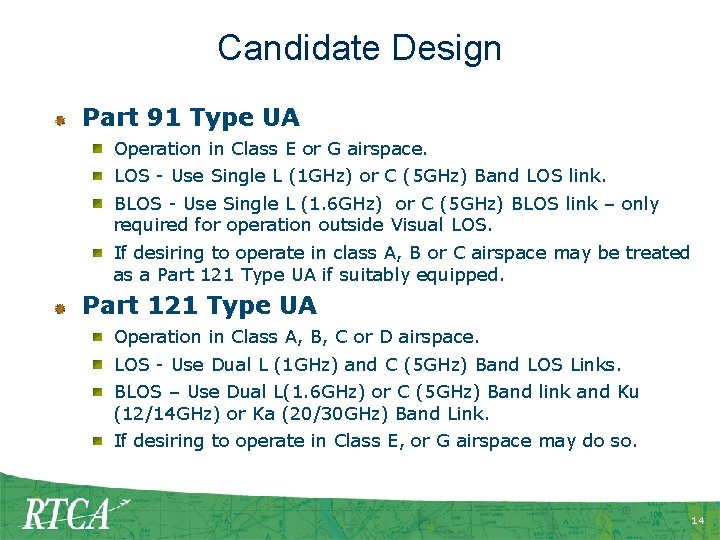

Candidate Design Part 91 Type UA Operation in Class E or G airspace. LOS - Use Single L (1 GHz) or C (5 GHz) Band LOS link. BLOS - Use Single L (1. 6 GHz) or C (5 GHz) BLOS link – only required for operation outside Visual LOS. If desiring to operate in class A, B or C airspace may be treated as a Part 121 Type UA if suitably equipped. Part 121 Type UA Operation in Class A, B, C or D airspace. LOS - Use Dual L (1 GHz) and C (5 GHz) Band LOS Links. BLOS – Use Dual L(1. 6 GHz) or C (5 GHz) Band link and Ku (12/14 GHz) or Ka (20/30 GHz) Band Link. If desiring to operate in Class E, or G airspace may do so. 14

Conclusions A flexible dual band approach can deliver the levels of safety anticipated while affording a number of advantages: Redundancy Using two non-correlated frequencies offers protection against equipment failure as well as improvements in availability. Scalability A smaller UA only requires a simple single AM(R)S L (1 GHz) or C (5 GHz) Band system for Visual LOS or Radio LOS operation. A larger UA, that can support more equipment, can achieve higher levels of availability. Interference Protection Combining an L(1. 6 GHz) or C (5 GHz) Band AMS(R)S BLOS system with a Ku or Ka Band FSS system provides the interference protection of AMS(R)S with the ubiquity and payload data rate capability of FSS. 15

Future Liaison RTCA SC 203 Control and Communications Work Group has developed a number of papers on: UAS CNPC Spectrum UAS CNPC Security UAS CNPC messaging and data requirements UAS Candidate CNPC Architectures UAS CNPC Required Communications Performance Latency, Availability Continuity, Integrity etc. Contact Michael Neale for copies of SC 203 papers or to participate in RTCA UAS MASPS and MOPS development Michael Neale – michael. neale@uav. com Brooks Cressman – brooks. cressman@itt. com 16
