Summary Status, opened issues & future requests : • Extended Configurations • Reverse Engineering • Olproc • Flex. Extractor • DIP Import/Export • un. Import. Validation 20/05/2014 2

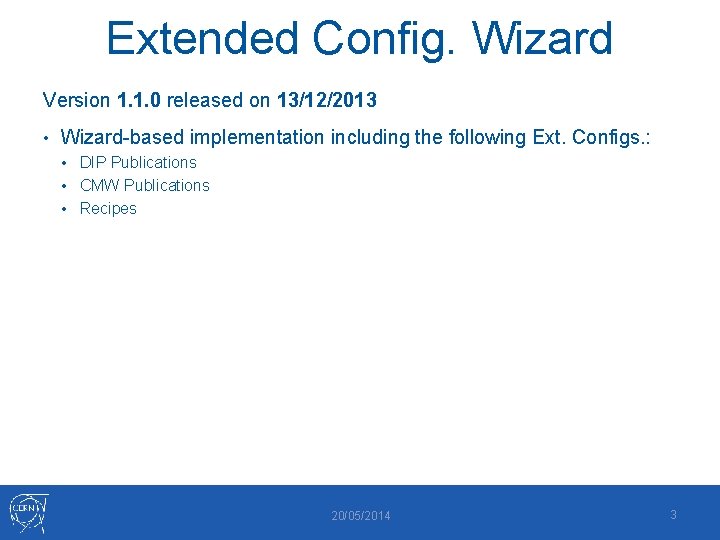

Extended Config. Wizard Version 1. 1. 0 released on 13/12/2013 • Wizard-based implementation including the following Ext. Configs. : • DIP Publications • CMW Publications • Recipes 20/05/2014 3
Extended Config. Wizard Opened issues for CMW / DIP Publications (Wizard) • TODO: Filter opened issues (currently assigned to Jacques) • UAB-791 CMW Configuration & Spec Viewer: select a row on right click • UAB-792 CMW Configuration: support copy/paste on cell level • UAB-815 DPE Selector: use better separator • UAB-826 Default values for DIP and CMW • UAB-836 Comments on Ext Config Wizard 1. 1. 0 -rc-01 DIP component after testing 17 nov 2013 • UAB-840 Ext. Config. Wizard: Ctrl-F should be 'Find' not 'Add Free Data‘ • UAB-847 New Keyboard shortcuts Ext. Config. Wizard • UAB-848 Improve Find pop-up in spec viewer to allow user to type a regex to match aliases Improvements • UAB-845 CMW/DIP : class selection differ from RECIPE one (selection, visualisation) 20/05/2014 4

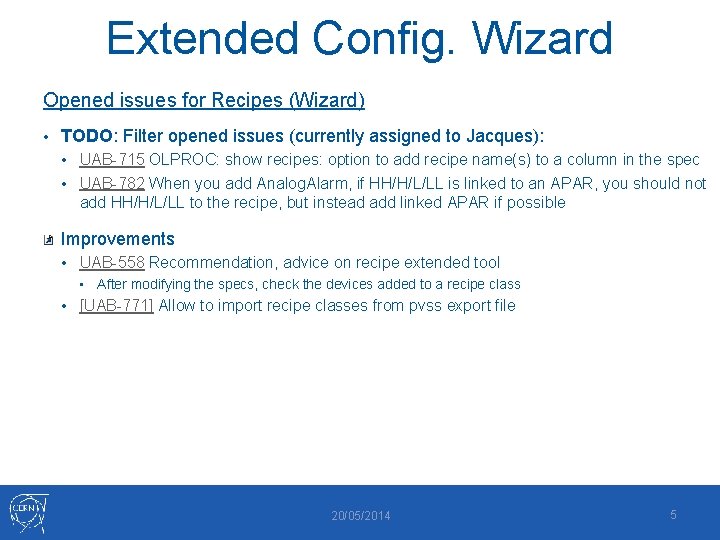

Extended Config. Wizard Opened issues for Recipes (Wizard) • TODO: Filter opened issues (currently assigned to Jacques): • UAB-715 OLPROC: show recipes: option to add recipe name(s) to a column in the spec • UAB-782 When you add Analog. Alarm, if HH/H/L/LL is linked to an APAR, you should not add HH/H/L/LL to the recipe, but instead add linked APAR if possible Improvements • UAB-558 Recommendation, advice on recipe extended tool • After modifying the specs, check the devices added to a recipe class • [UAB-771] Allow to import recipe classes from pvss export file 20/05/2014 5

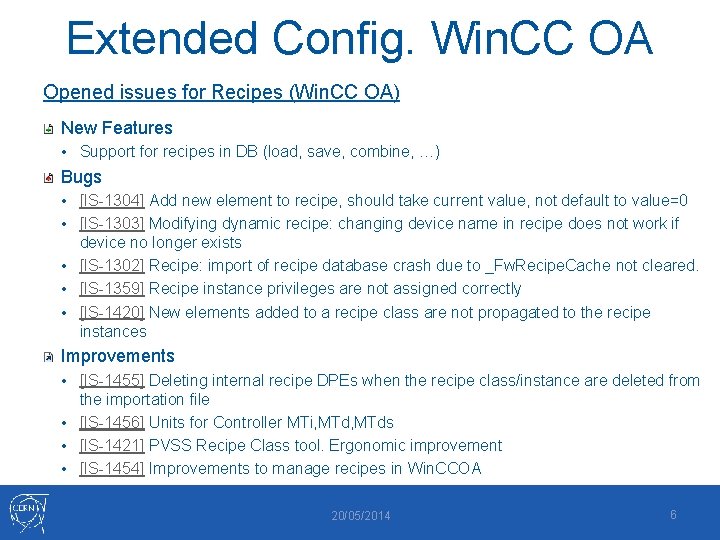

Extended Config. Win. CC OA Opened issues for Recipes (Win. CC OA) New Features • Support for recipes in DB (load, save, combine, …) Bugs • [IS-1304] Add new element to recipe, should take current value, not default to value=0 • [IS-1303] Modifying dynamic recipe: changing device name in recipe does not work if device no longer exists • [IS-1302] Recipe: import of recipe database crash due to _Fw. Recipe. Cache not cleared. • [IS-1359] Recipe instance privileges are not assigned correctly • [IS-1420] New elements added to a recipe class are not propagated to the recipe instances Improvements • [IS-1455] Deleting internal recipe DPEs when the recipe class/instance are deleted from the importation file • [IS-1456] Units for Controller MTi, MTds • [IS-1421] PVSS Recipe Class tool. Ergonomic improvement • [IS-1454] Improvements to manage recipes in Win. CCOA 20/05/2014 6
Extended Configurations New Extended Configurations? • DIP Subscriptions • LHC Logging • LASER • Alerts (CPC) • Anomalies (CPC) • Device Actions • Access Control • Navigation, Window & Trend Trees • Simulation https: //j 2 eeps. cern. ch/wikis/display/EN/UAB+Extended+Configurations+Requirements+-+WP 7 20/05/2014 7

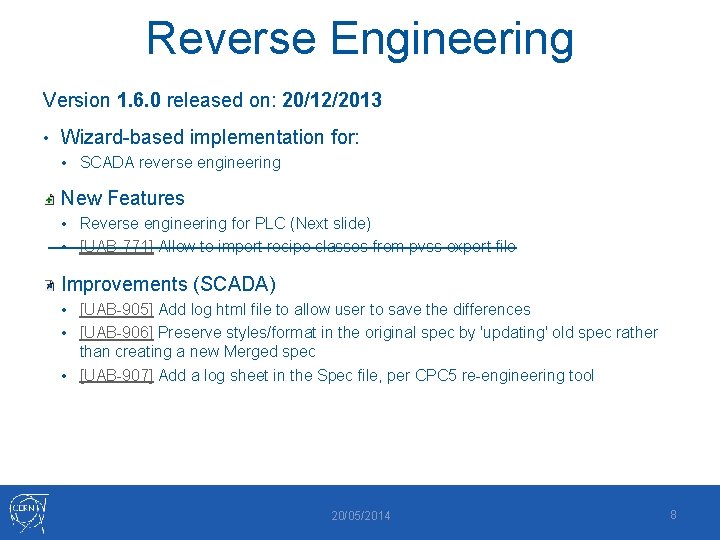

Reverse Engineering Version 1. 6. 0 released on: 20/12/2013 • Wizard-based implementation for: • SCADA reverse engineering New Features • Reverse engineering for PLC (Next slide) • [UAB-771] Allow to import recipe classes from pvss export file Improvements (SCADA) • [UAB-905] Add log html file to allow user to save the differences • [UAB-906] Preserve styles/format in the original spec by 'updating' old spec rather than creating a new Merged spec • [UAB-907] Add a log sheet in the Spec file, per CPC 5 re-engineering tool 20/05/2014 8

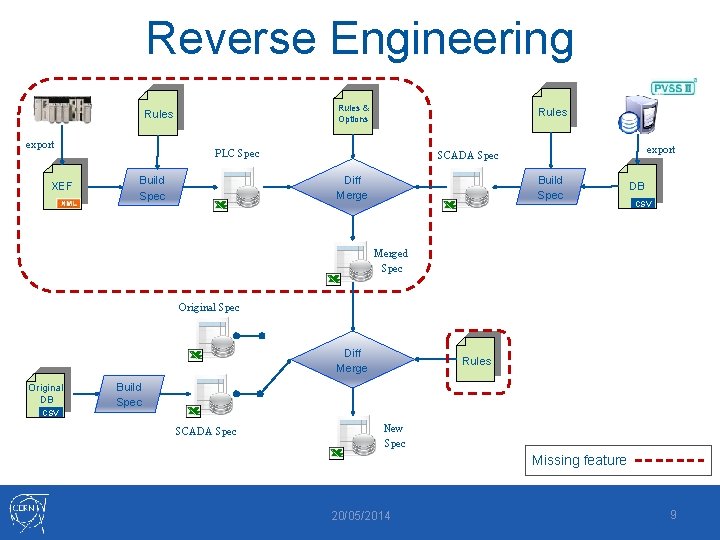

Reverse Engineering Rules & Options Rules export XEF Rules PLC Spec Build Spec Diff Merge Build Spec export SCADA Spec DB CSV Merged Spec Original Spec Diff Merge Original DB CSV Rules Build Spec SCADA Spec New Spec Missing feature 20/05/2014 9

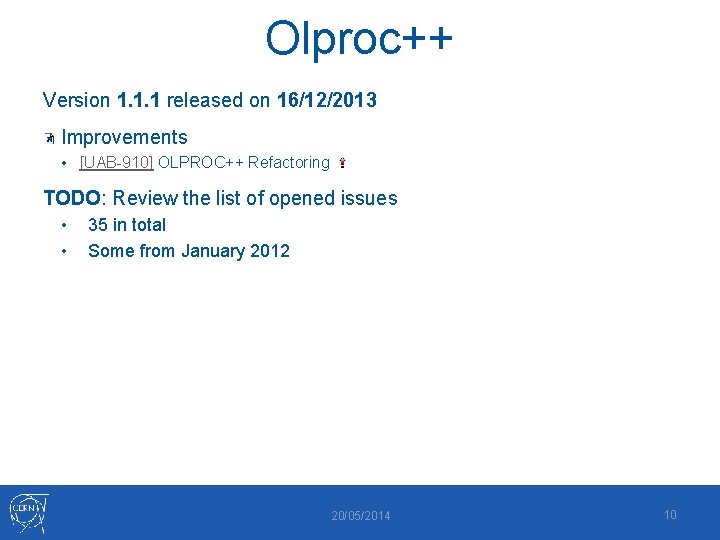

Olproc++ Version 1. 1. 1 released on 16/12/2013 Improvements • [UAB-910] OLPROC++ Refactoring TODO: Review the list of opened issues • • 35 in total Some from January 2012 20/05/2014 10
Flex. Extractor Version 1. 10 released on 04/07/2013 TODO: Review the list of opened issues • • 29 in total Some from November 2011 20/05/2014 11

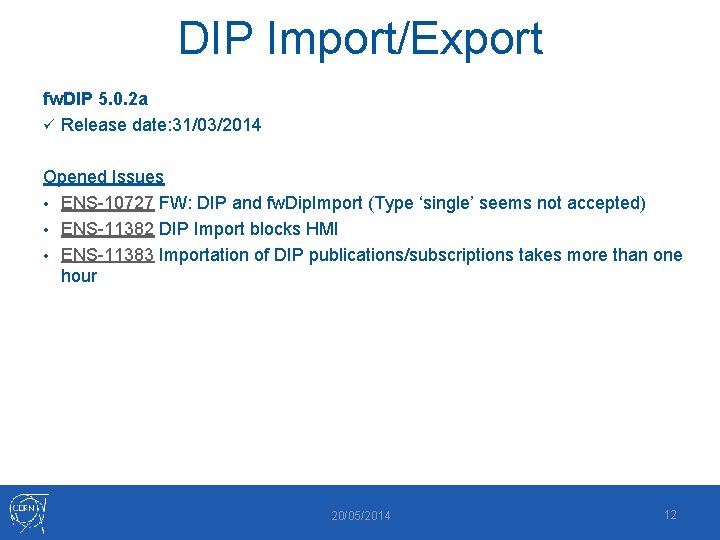

DIP Import/Export fw. DIP 5. 0. 2 a ü Release date: 31/03/2014 Opened Issues • ENS-10727 FW: DIP and fw. Dip. Import (Type ‘single’ seems not accepted) • ENS-11382 DIP Import blocks HMI • ENS-11383 Importation of DIP publications/subscriptions takes more than one hour 20/05/2014 12
un. Import. Validation Version 1. 0. 0 released on 13/11/2013 No opened issues! 20/05/2014 13
