U. S. Fish & Wildlife Service Realty Cartography Program Presentation to NWRS Breakout Session National Conservation Training Center March 2, 2016 10/10/14 Ron Salz (ron_salz@fws. gov) Chief Cartographer Division of Realty National Wildlife Refuge System

U. S. Fish & Wildlife Service Today’s items • Realty Cartography and the Cadastral Data Working Group (CDWG) • The Cadastral Geodatabase • Data to the Public • Land Status Maps and Serv. Cat • Lands Mapper Redesign • Maps, Data and Publications

U. S. Fish & Wildlife Service What is “Cadastral? ” • A map or survey showing the extent, value, and ownership of land, especially for taxation. (Google) Neal Smith National Wildlife Refuge

U. S. Fish & Wildlife Service Division of Realty Cartography and Graphics • • • Ron Salz, chief cartographer Sean Killen, HQ production cartographer Carlton Cheatham, visual information specialist Peter Harms, scanning and data entry NWRS GIS Coordinator

U. S. Fish & Wildlife Service CDWG – The Cadastral Data Working Group Region Member 1 - Portland Dave Hoy, Kendra Maty 2 - Albuquerque Holger Benkert 3 - Minneapolis Jessica Campbell, Gabe De. Alessio 4 - Atlanta Ashley Potter 5 - Hadley Sue Fuller, Rick Schauffler 6 – Denver/Bismarck Sue Kvas, Linda Moeder 7 - Anchorage Scott Mc. Gee 8 - Sacramento Valerie Howard, Mike Haskell HQ Realty - DC Ron Salz, Sean Killen HQ IRTM - Denver Greg Galligan, Doug Steinshouer, Kenny Elsner

U. S. Fish & Wildlife Service The Cadastral Geodatabase

U. S. Fish & Wildlife Service Geospatial Data Integration Strategy (Cadastral, Water Resources, Roads & Trails, I&M) External Data Consumers and Providers National (Parent) External Web Viewers Regional (Child) Local (Grandchild) USFWS Web Viewers and Data Services Data Standards & Metadata

U. S. Fish & Wildlife Service Cadastral System Architecture Region Database 1 SDE Enterprise 2 Connect to Denver child geodatabase 3 SDE Enterprise 4 SDE Enterprise 5 File Geodatabase – post to the Denver child 6 SDE Workgroup - hybrid 7 SDE Enterprise exported to the child 8 Connect to Denver child geodatabase HQ IRTM SDE Enterprise

U. S. Fish & Wildlife Service Cadastral Geodatabase Feature Classes • • • Acq. Approval FWSApproved FWSBoundary_Topology FWSEncumbrance FWSInterest Special. Designation Survey. Monument Tract. Boundary And now…………………. . MBCCBoundary Feature Class

U. S. Fish & Wildlife Service Cadastral Geodatabase Features Feature Class FWS Approved FWS Interest Special Designation Features – Jan 2016 720 51, 245 567 FWS Interest Simplified 9816

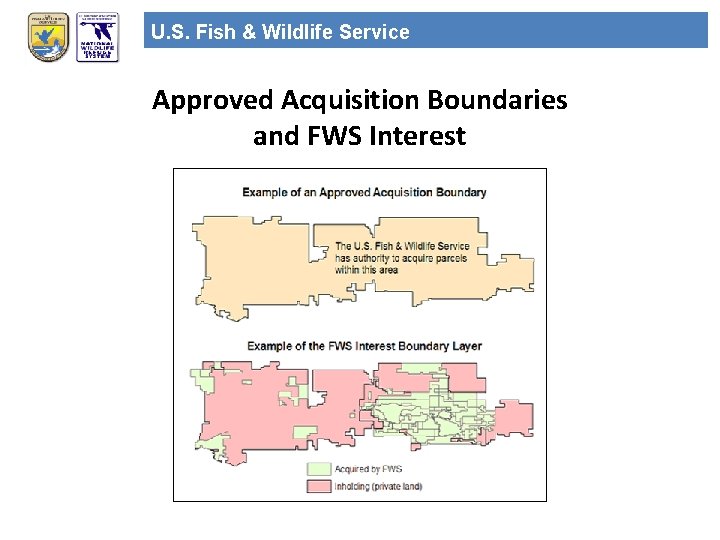

U. S. Fish & Wildlife Service Approved Acquisition Boundaries and FWS Interest

U. S. Fish & Wildlife Service Data to the Public

U. S. Fish & Wildlife Service Data to the Public http: //www. fws. gov/gis/data/national/index. htm l

U. S. Fish & Wildlife Service Data to the Public www. fws. gov/gis/data/Cadastral. DB/index_cadastral. html

U. S. Fish & Wildlife Service

U. S. Fish & Wildlife Service

U. S. Fish & Wildlife Service Land Status Maps and the Service Catalog (Serv. Cat) https: //ecos. fws. gov/Serv. Cat

U. S. Fish & Wildlife Service Land Status Maps and the Service Catalog (Serv. Cat) Series & Versions

U. S. Fish & Wildlife Service Land Status Maps and the Service Catalog (Serv. Cat)

U. S. Fish & Wildlife Service Land Status Maps and the Service Catalog (Serv. Cat) • • 1669 maps in Serv. Cat as of March 1, 2016 More historic maps to load All new land status maps will be posted to Serv. Cat Policy will be in the manual update

U. S. Fish & Wildlife Service Lands Mapper Redesign

U. S. Fish & Wildlife Service Lands Mapper Redesign http: //gis. fws. doi. net/fwslands_mapper/

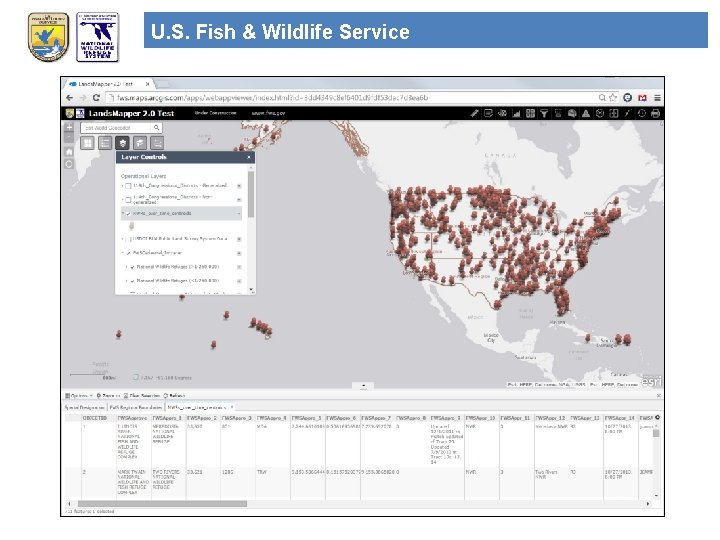

U. S. Fish & Wildlife Service Lands Mapper Redesign

U. S. Fish & Wildlife Service

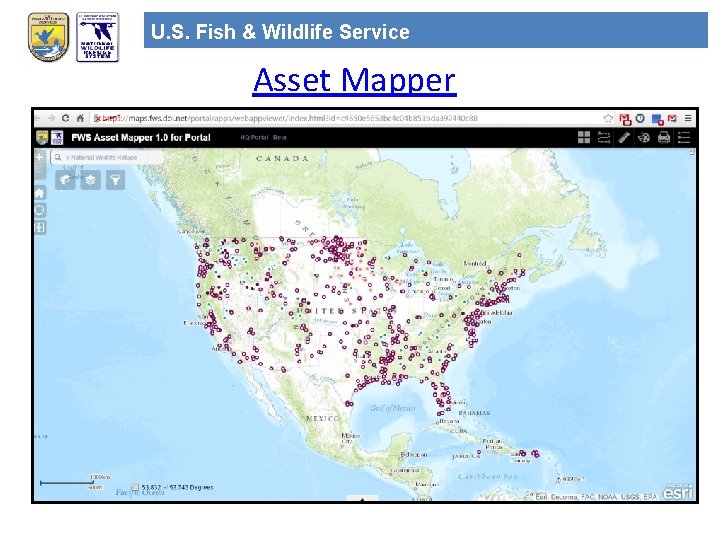

U. S. Fish & Wildlife Service Asset Mapper

U. S. Fish & Wildlife Service Maps, Data, Graphics and Publications

U. S. Fish & Wildlife Service Manual Chapter 343 FW 5 - Mapping

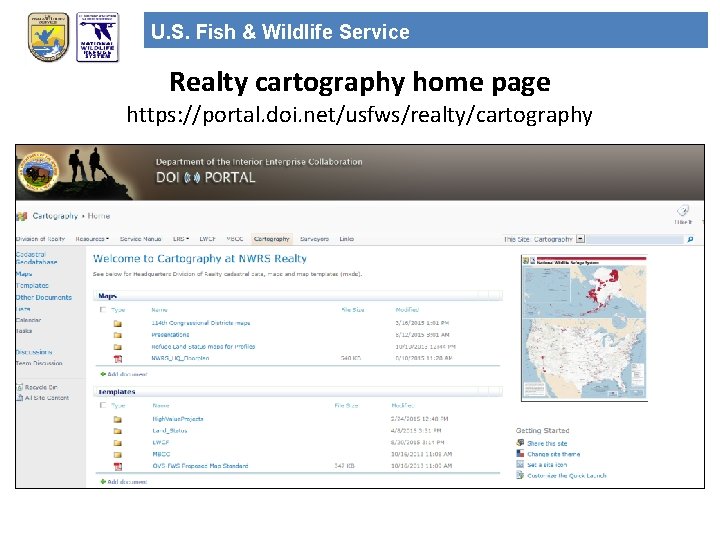

U. S. Fish & Wildlife Service Realty cartography home page https: //portal. doi. net/usfws/realty/cartography

First Place, Large Format Printed Map ESRI 2014 International User Conference

First Place, Small Format Printed Map ESRI 2015 International User Conference

U. S. Fish & Wildlife Service Map Products – MBCC

U. S. Fish & Wildlife Service Map Products - LWCF

U. S. Fish & Wildlife Service Map Products – Congressional Atlas

U. S. Fish & Wildlife Service Map Products - Assorted

U. S. Fish & Wildlife Service Map Products - Assorted

U. S. Fish & Wildlife Service Graphics and Reports

U. S. Fish & Wildlife Service Questions?
