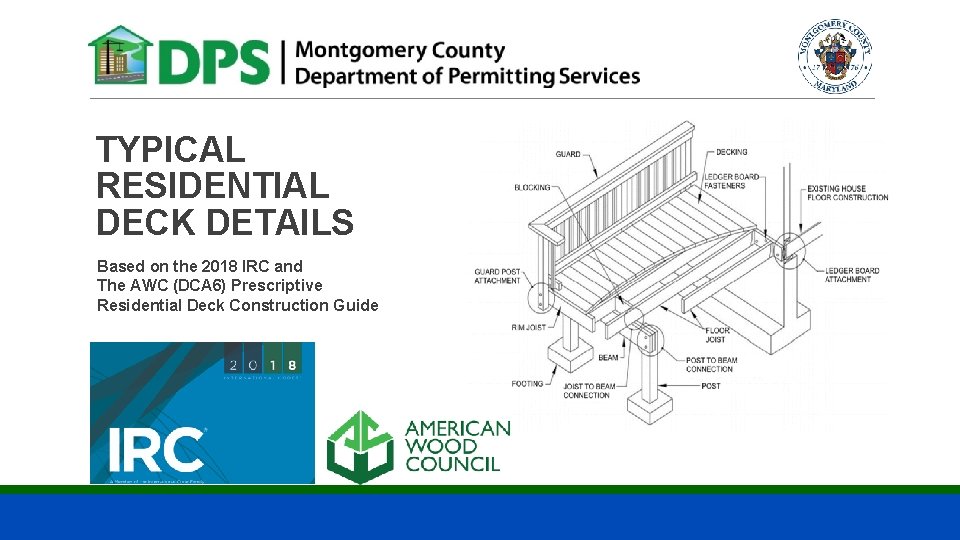

TYPICAL RESIDENTIAL DECK DETAILS Based on the 2018 IRC and The AWC (DCA 6) Prescriptive Residential Deck Construction Guide

Contents 1. 2. 3. 4. 5. 6. 7. 8. General Requirements Framing Plans and Sections Footings Posts Beam Post to Beam Connection Joist Floor Joist to Beam Connection 9. Ledger Attachment 10. Ledger Board Fastener 11. Deck Lateral Loads 12. Framing at Chimney or Bay Window 13. Decking 14. Guardrail 15. Stairway 16. Deck Worksheet

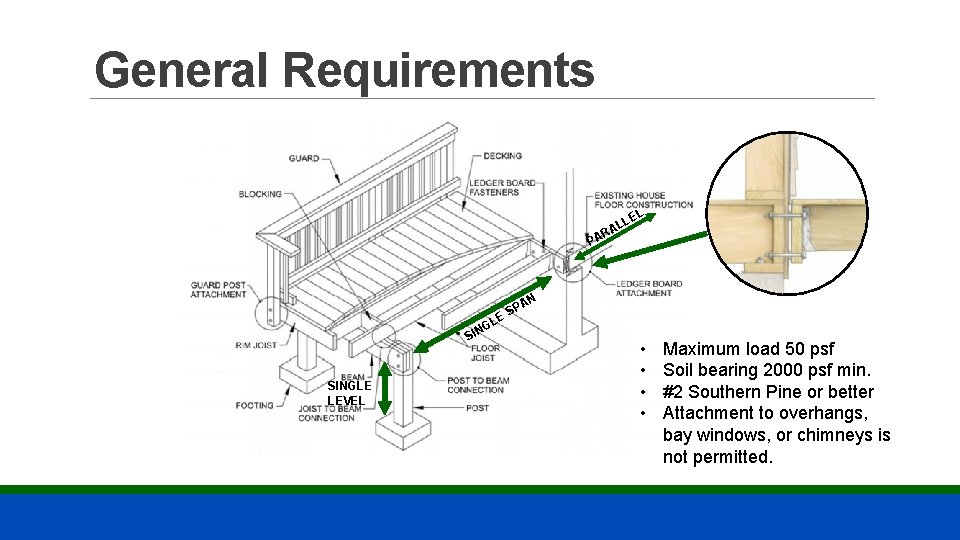

General Requirements EL L AL R A P N LE G SINGLE LEVEL A SP • • Maximum load 50 psf Soil bearing 2000 psf min. #2 Southern Pine or better Attachment to overhangs, bay windows, or chimneys is not permitted.

Deck Types Attached Deck Free Standing Deck

Deck Framing Plan and Sections Framing Plan Section

Deck Footings • Footings shall be minimum 20 inches square or 22 inches diameter. • Deck footings closer than 5’-0” to an exterior house foundation wall must bear at the same elevation as the existing house foundation.

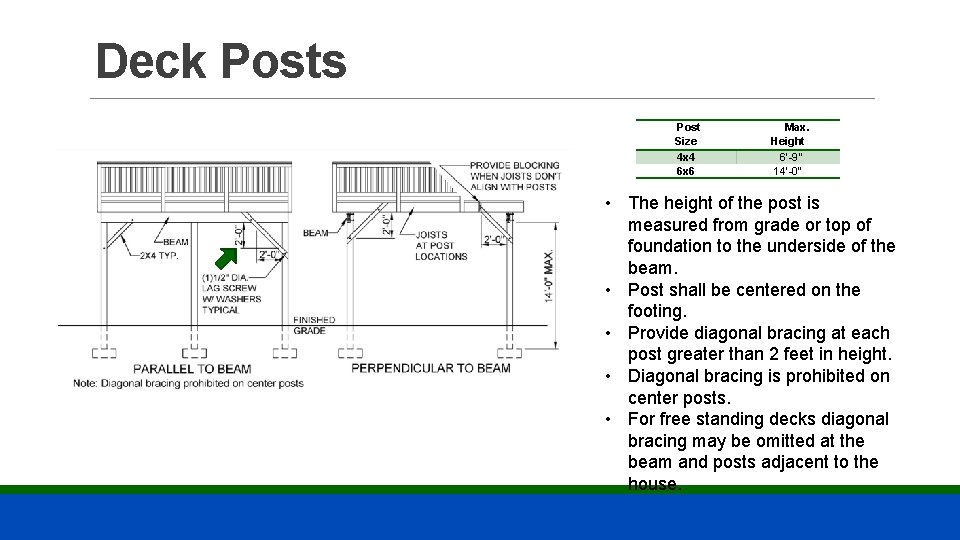

Deck Posts Post Size 4 x 4 6 x 6 Max. Height 6’-9” 14’-0” • The height of the post is measured from grade or top of foundation to the underside of the beam. • Post shall be centered on the footing. • Provide diagonal bracing at each post greater than 2 feet in height. • Diagonal bracing is prohibited on center posts. • For free standing decks diagonal bracing may be omitted at the beam and posts adjacent to the house.

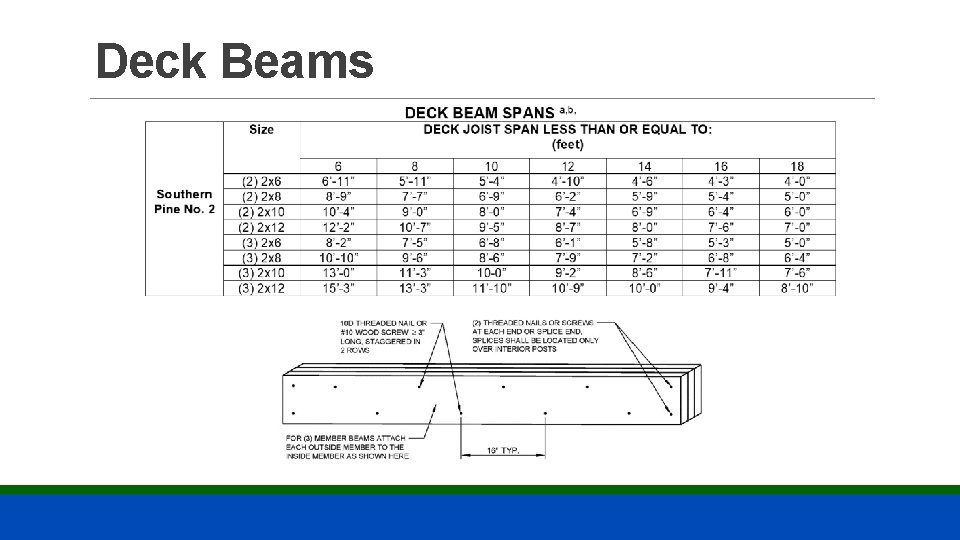

Deck Beams

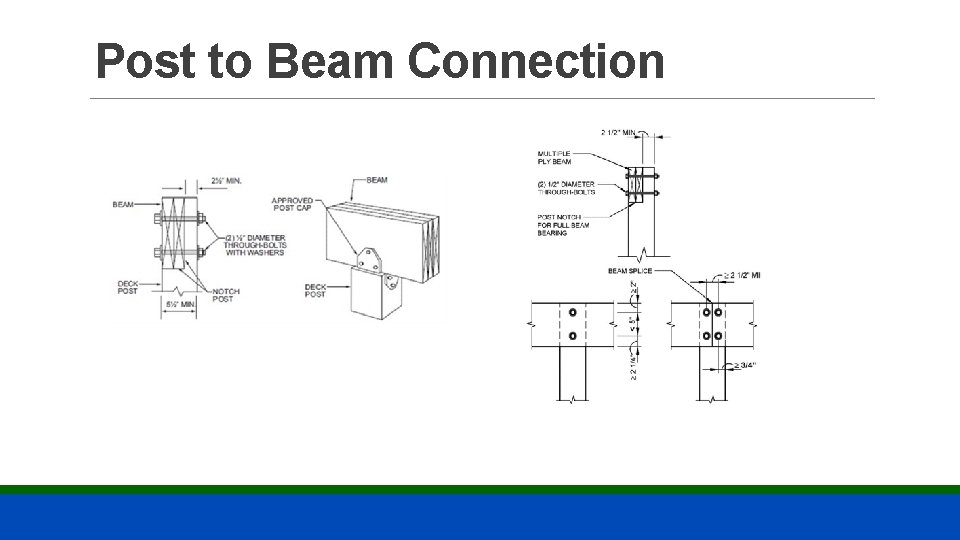

Post to Beam Connection

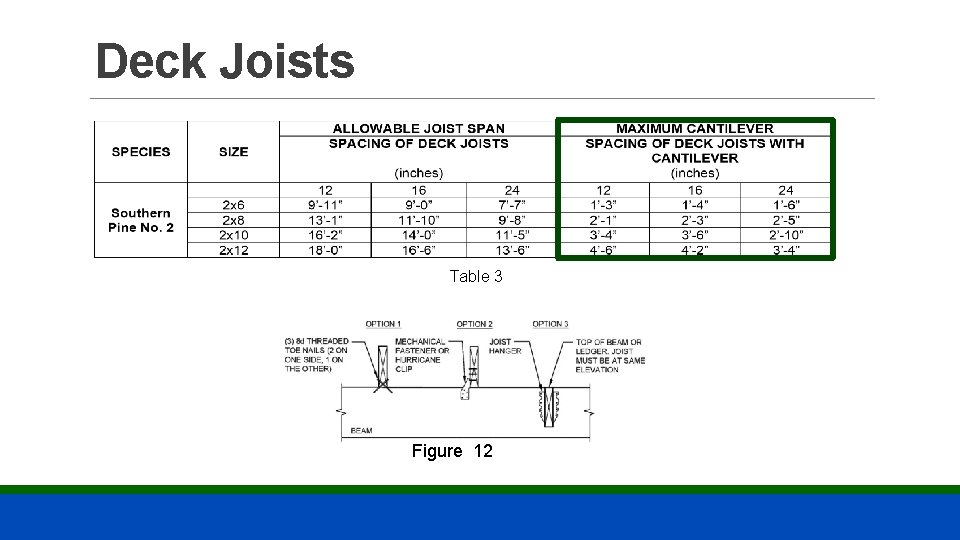

Deck Joists Table 3 Figure 12

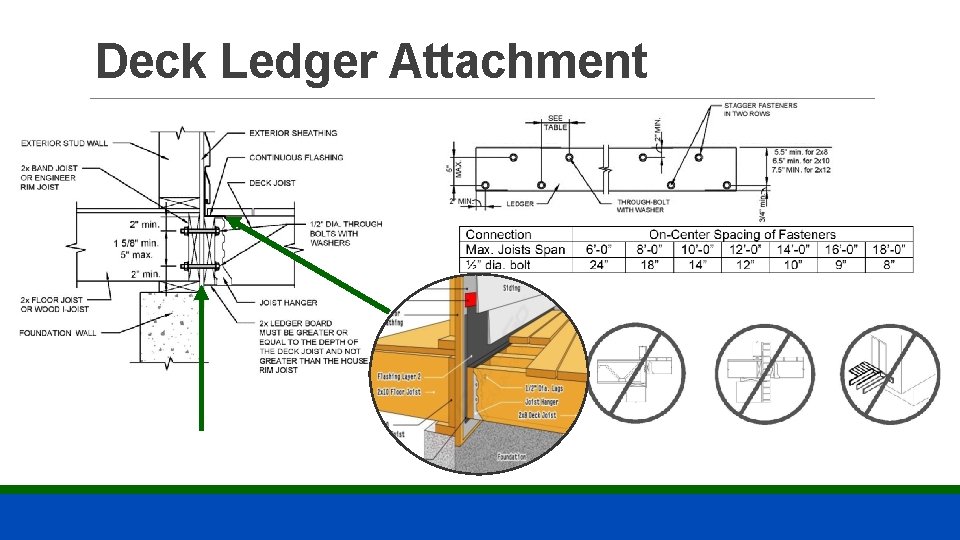

Deck Ledger Attachment

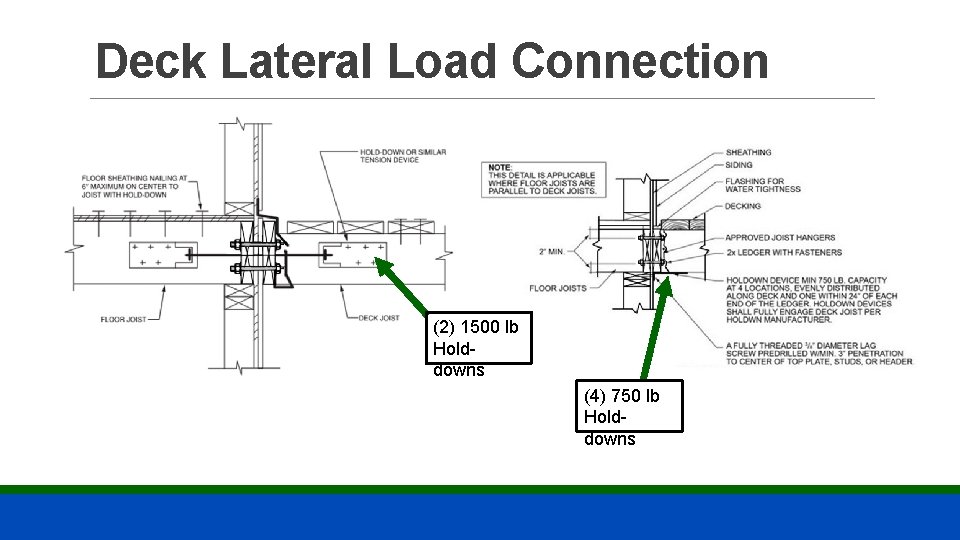

Deck Lateral Load Connection (2) 1500 lb Holddowns (4) 750 lb Holddowns

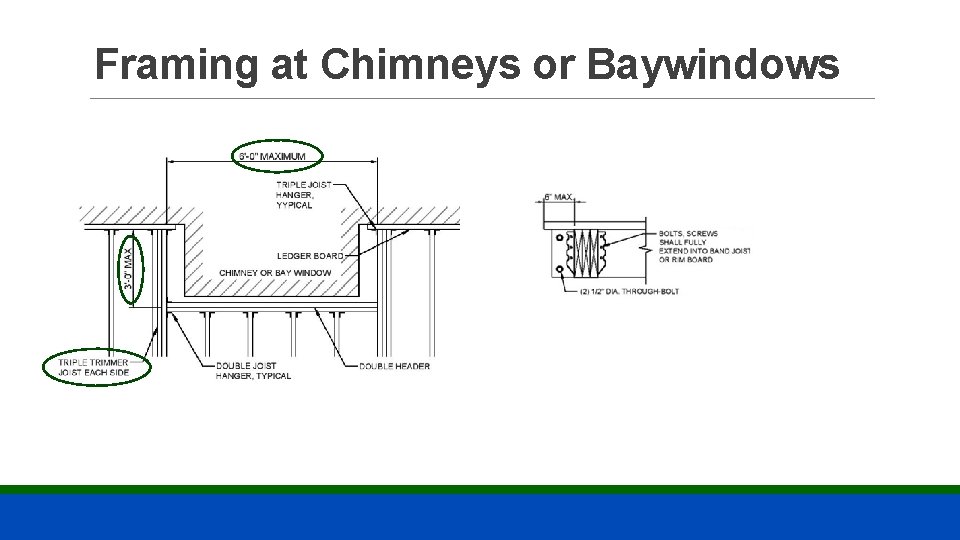

Framing at Chimneys or Baywindows

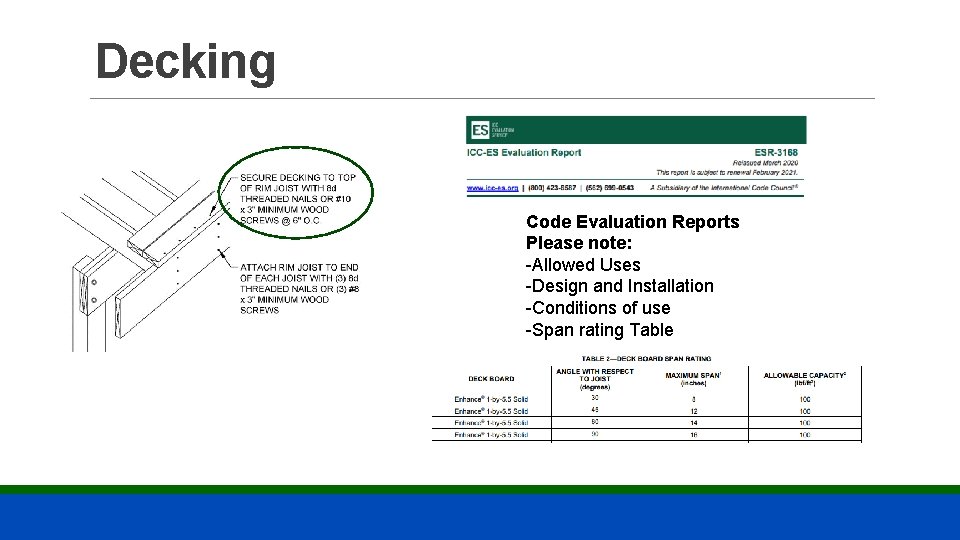

Decking Code Evaluation Reports Please note: -Allowed Uses -Design and Installation -Conditions of use -Span rating Table

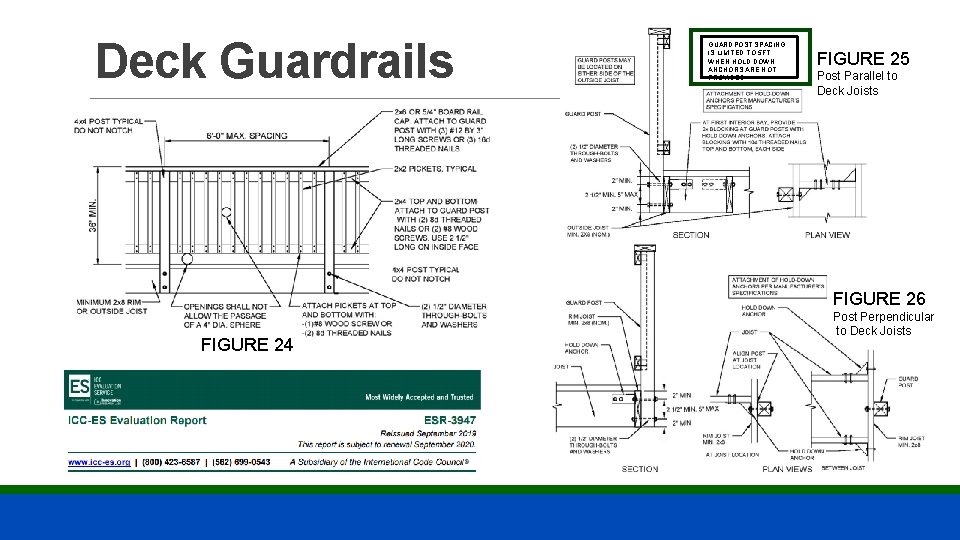

Deck Guardrails GUARDPOST SPACING IS LIMITED TO 5 FT WHEN HOLD DOWN ANCHORS ARE NOT PROVIDED FIGURE 25 Post Parallel to Deck Joists FIGURE 26 FIGURE 24 Post Perpendicular to Deck Joists

Deck Stairs TREADS AND RISERS GUARDRAIL/HANDRAIL REQUIREMENTS

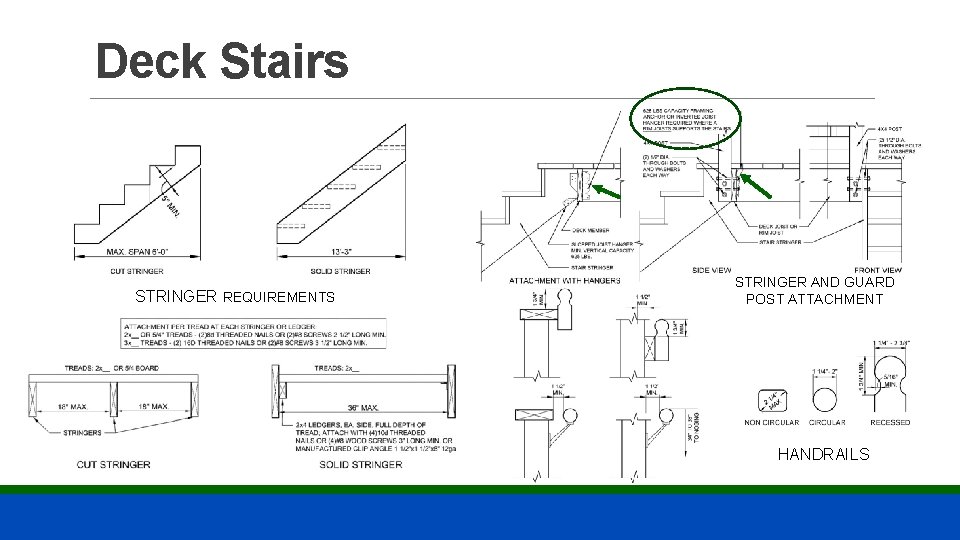

Deck Stairs STRINGER REQUIREMENTS STRINGER AND GUARD POST ATTACHMENT HANDRAILS
